New guy that is ready for his dream car

[Tony Chastain]

Hello. I'm a new guy from Indiana. I feel in love with the GT40 since I was a kid when I saw my first one in Indy.
I'm at the point and ability where I want to biuld one from scratch for myself.
Any help ,info , where and who to find prints on the chassis and rest of the car would be very appreciated.
I want to biuld a fe 427 version. I have had the injected engine for some 25 years.
I and 2 friends will biuld It.
Thank you



[Brian Kissel]

Welcome to GT40S Tony. All I can say is read all the build threads out there. To my knowledge there are no real prints available for purchase. Search the forum as there was a thread or two recently about just that. There are partials out there but do not know how accurate.
Enjoy the forum!!!
Regards Brian



[Tony Chastain]

Thanks



[Brian Kissel]

Look here, for start.

Alans Scratch build

Starting the welding jig squared up ends on the Hass using XYZ to make measurement.

www.gt40s.com

Benjamin GT40 YOUTUBE PROJECT

Hi, This is Benjamin, and I will share my GT40 project ! I'm 23years old and I'm an engineering student. I'm passionate by machining, mechanical design and car. My dream is to own a GT40 ! My workshop is composed by lathe, numerical milling machine, CNC, 3d printer, and MMA/TIG (and basic tools...

www.gt40s.com

Classic Car Developments Chassis #3

Not sure if image station is still hosting stuff, but let's give it a whirl. Assuming a picture appears, this is my CCD monocoque chassis as at last Sunday. The fibreglass roof section is just a buck to give some idea of proportion. the steel roof section is being pressed sometime this or...

www.gt40s.com

Jimmymac & Alistair's Cars

My mate Ali and I had a chat with Ray Webber over lunch today and decided that we should post some details of the work done over the past months with our Mirage monocoques. We will open this up with some shots of the recent craftmanship done by Ray Webber and Steve Hill at Mirage Automotive. The...

www.gt40s.com

Regards Brian



[Randy V]

Welcome to GT40s.com Tony! Enjoy the journey!!!



[Michel]

In addition to the Brian list links there is also this one
http://www.gt40s.com/forum/gt40-build-logs/32106-riviera-scratchbuilt-gt40-2.html
Thread very nicely documented by René with drawings and alot of build pictures

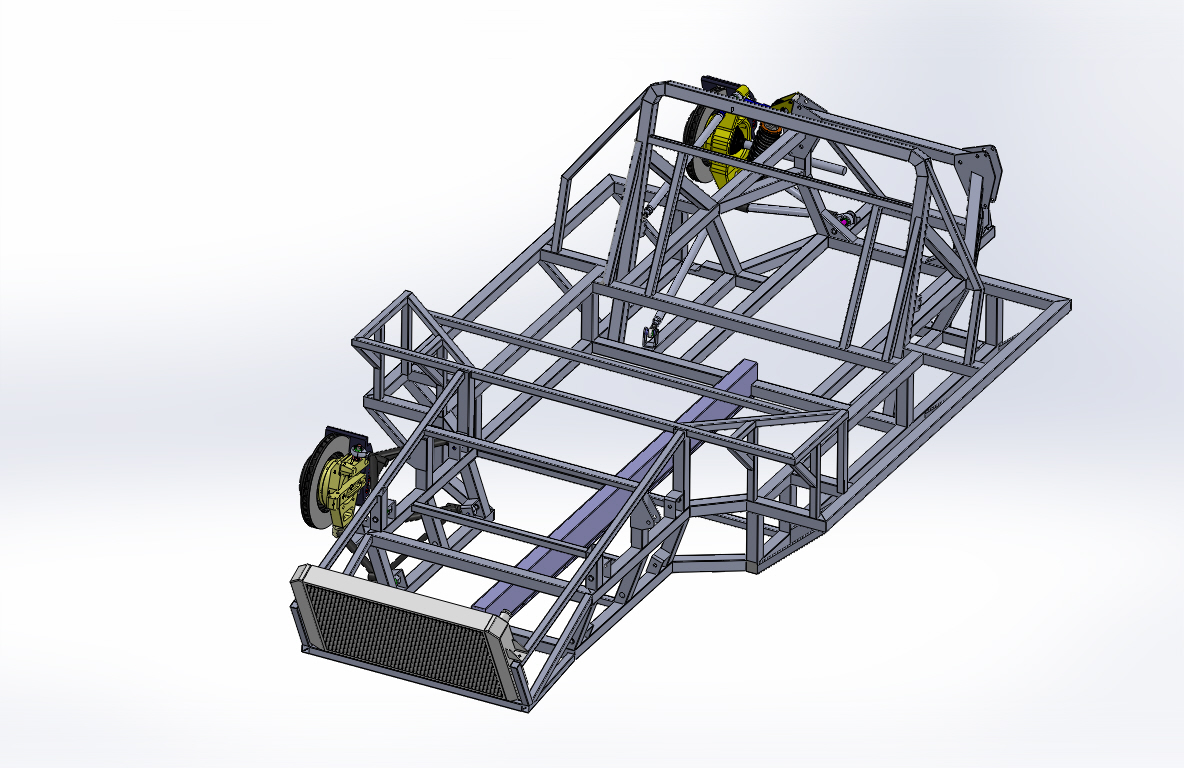

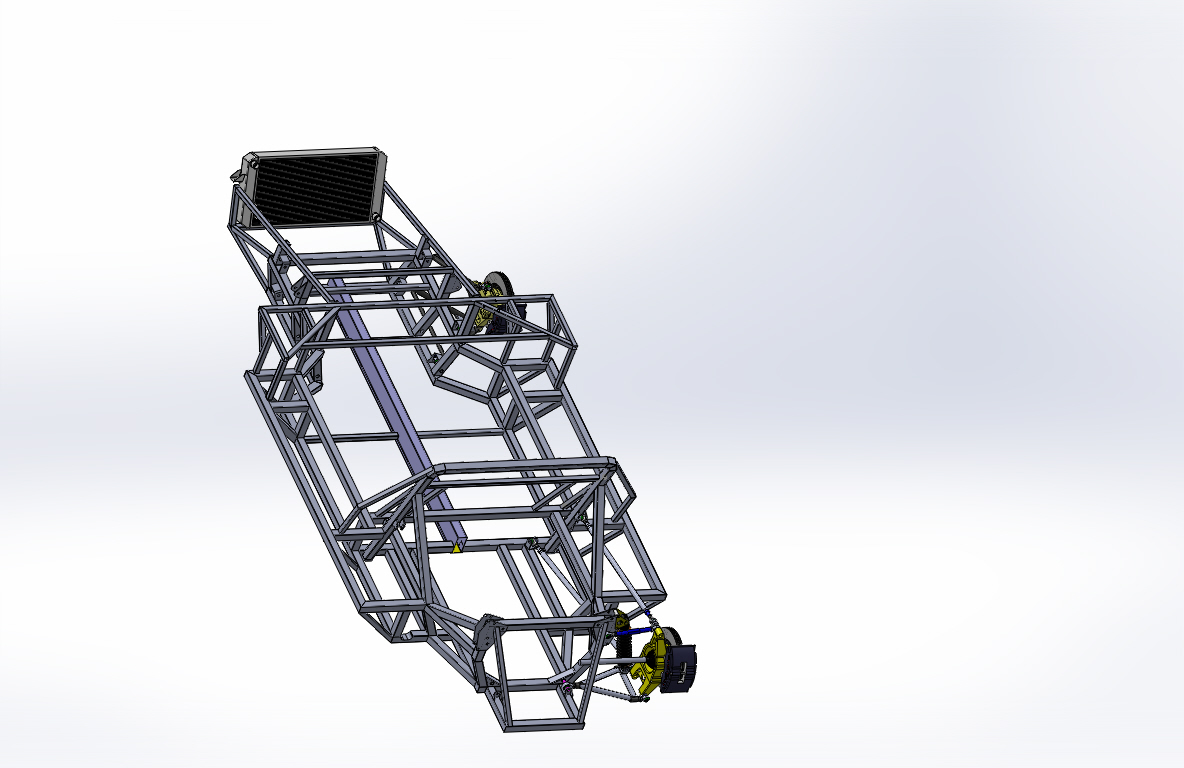

If you use those 2D drawings to transform them in CAD you can easily have a good start to draw all the frame and suspensions before to built and do watever mod you need for your own built



[Brian Kissel]

Thanks Mic. I know there are others as well. All help is appreciated. The search function is his friend.

Regards Brian
