My mate Ali and I had a chat with Ray Webber over lunch today and decided that we should post some details of the work done over the past months with our Mirage monocoques.

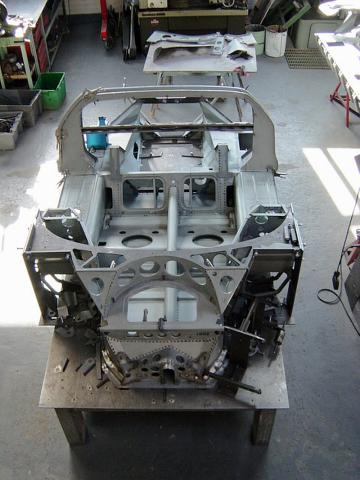

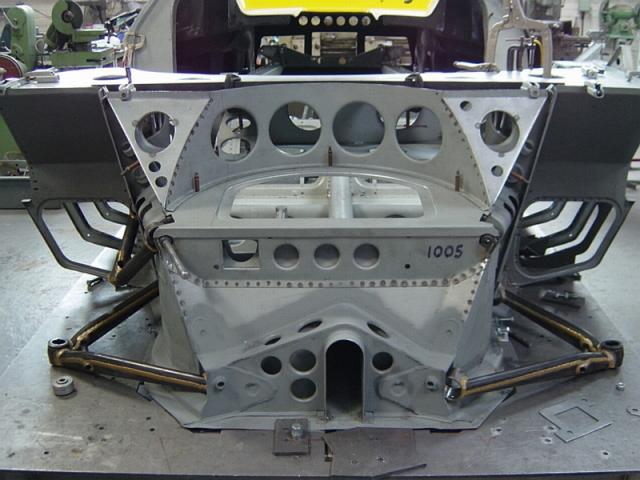

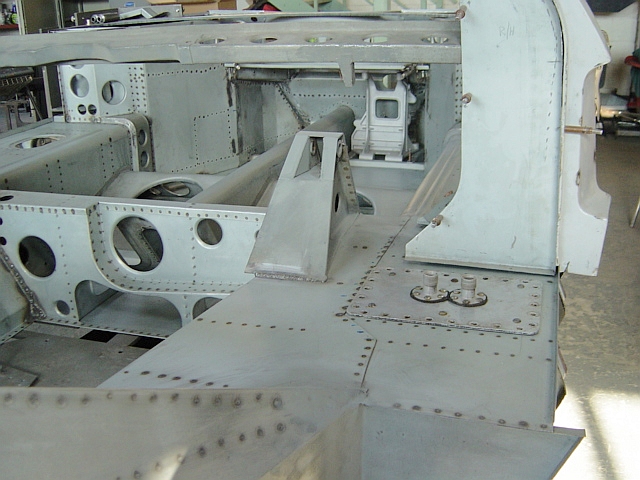

We will open this up with some shots of the recent craftmanship done by Ray Webber and Steve Hill at Mirage Automotive.
The cars will be full MKI monocoques with steel roof skins and FIA approved bladder tanks.
They have been built to original general arrangements and CAD surveys of original cars. I have a complete set of original parts for replicating and we will furnish these chassis' over the next months as accurate as we can.


Attachments

  • Front Scuttle.jpg
    Front Scuttle.jpg
    49.5 KB · Views: 4,576
  • Wishbone Fitting.jpg
    Wishbone Fitting.jpg
    50.8 KB · Views: 4,144
  • TOP VIEW.jpg
    TOP VIEW.jpg
    33 KB · Views: 4,736

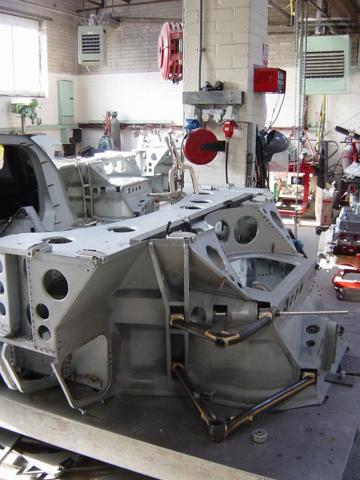

  • Line Up.jpg
    Line Up.jpg
    33.7 KB · Views: 3,904
  • Roof Skins.jpg
    Roof Skins.jpg
    46.6 KB · Views: 3,747
  • SPONSON NEARSIDE.jpg
    SPONSON NEARSIDE.jpg
    231.9 KB · Views: 3,702

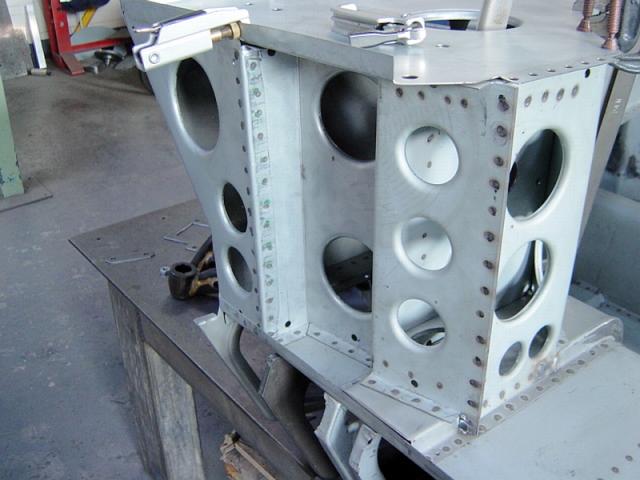

  • Door Post.jpg
    Door Post.jpg
    40.7 KB · Views: 3,708
  • BULKHEAD FITTING.jpg
    BULKHEAD FITTING.jpg
    198 KB · Views: 3,583

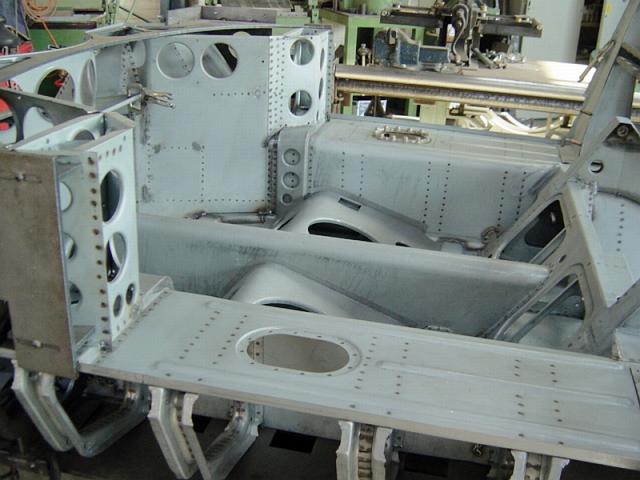

  • Broadside.jpg
    46.2 KB · Views: 3,531
re: Jimmymac & Alistair's Cars

Ray and Steve are doing a fantastic job on these chassis and other parts. They have both put in mad amounts of hours to get thus far and are nearing the end of development. The attention to detail and accuracy employed in the building of the units is exceptional. Good luck to them both in their venture and all the customers with their builds.


Keith

Moderator
re: Jimmymac & Alistair's Cars

Fantastic! Very good to see. Good luck with the build ups....:thumbsup:

re: Jimmymac & Alistair's Cars

That is an incredible piece of work. You gents are to be commended for such attention to detail and accuracy. How was the roof section made?

Also, would these cars, once complete, be elegible to race in vintage races?


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Vintage,
Thank you.

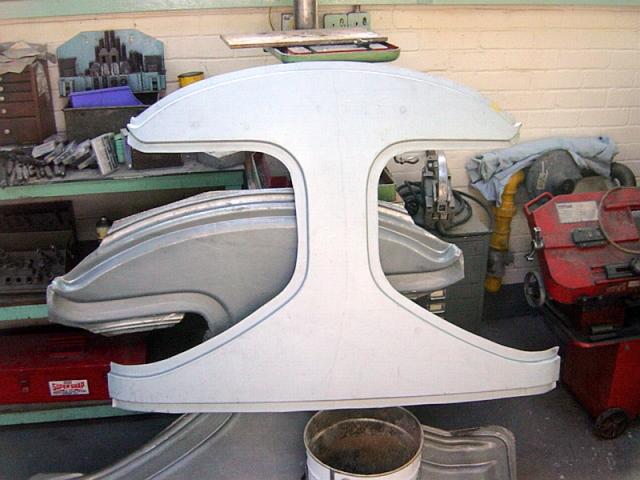

The roof-skins were shop pressed in one piece.
The fit-out will be 100% accurate but as for historic racing eligibility who knows yet.


Doc Watson

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Thanks for the update James...... Will, the roof section is pressed steel, with inner and outer panels.

I'm nowhere near having a complete parts bin like James but am eagerly awating my chassis from Ray.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

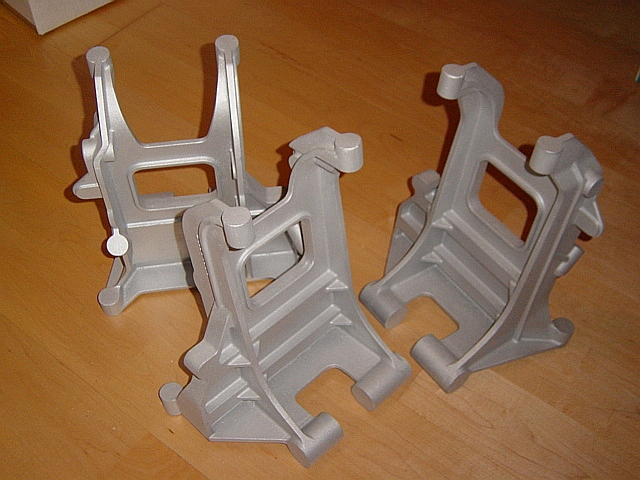

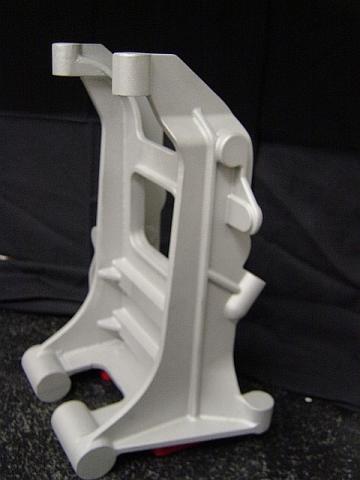

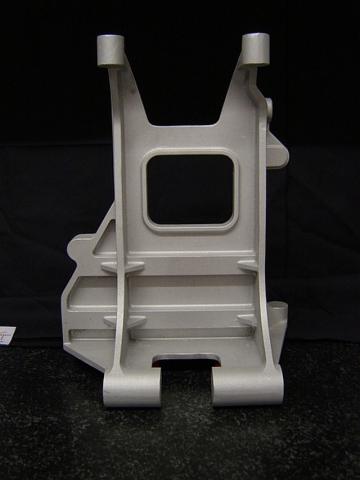

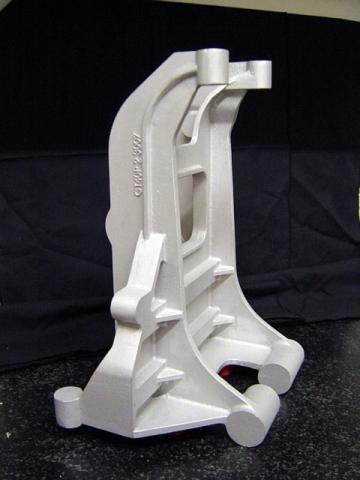

Here are some pedal box castings I made recently


Attachments

  • Castings 006.jpg
    Castings 006.jpg
    16.2 KB · Views: 2,287
  • Castings 007.jpg
    Castings 007.jpg
    17.6 KB · Views: 2,123
  • Castings 008.jpg
    Castings 008.jpg
    19.6 KB · Views: 2,148
  • Castings 003.jpg
    Castings 003.jpg
    223.2 KB · Views: 2,427
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

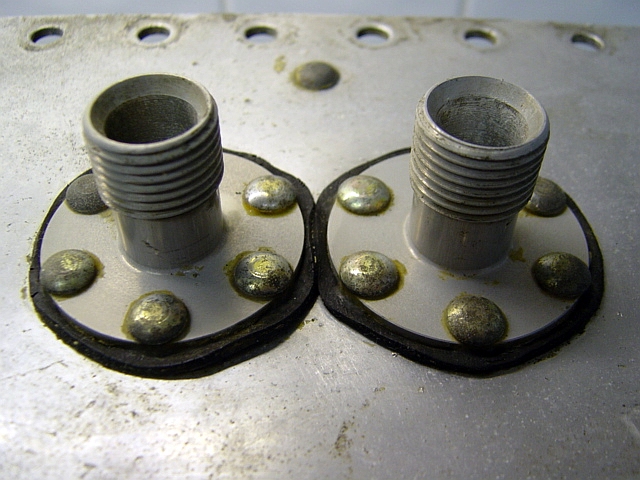

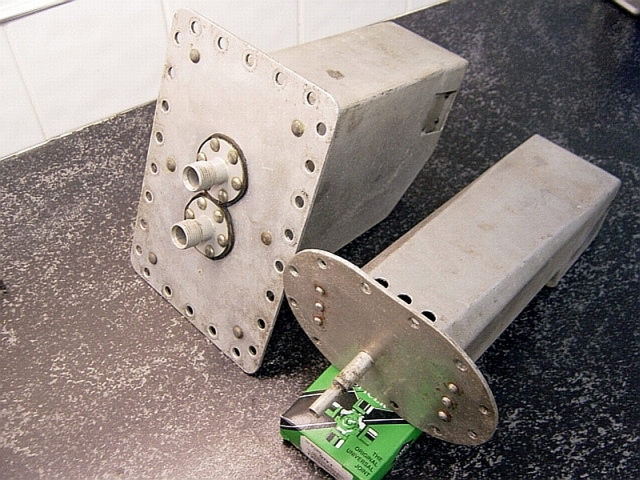

Fuel surge tanks were always a mystery.
As they are hidden away, the only reference point was the JWA parts book however these two turned up and Mirage are making new sets.
The original nozzles are aircraft parts with British whitworth threads and we got some spares from a man who owns a Supermarine Spitfire.
They are fixed using Huck rivets.


Attachments

  • Fuel Sumps.jpg
    Fuel Sumps.jpg
    229.3 KB · Views: 2,511
  • Fuel Return Line Nozzles.jpg
    Fuel Return Line Nozzles.jpg
    203.7 KB · Views: 2,299
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

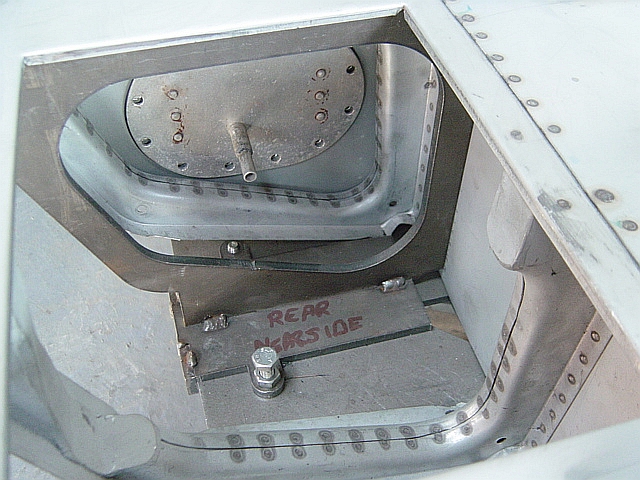

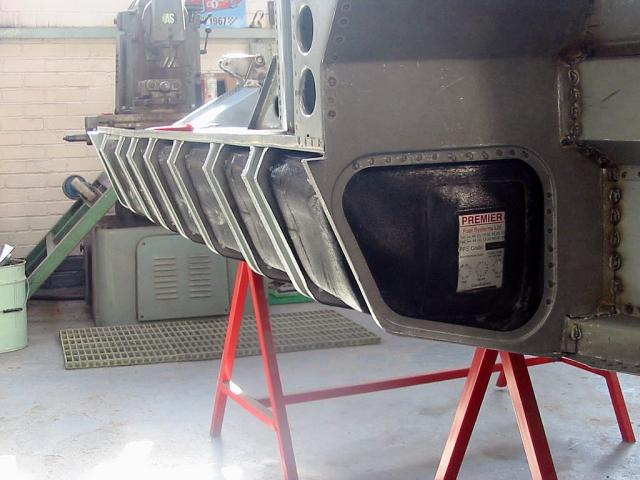

A fuel cell trial fitted to the sponson (FIA require these cells replacing every few years).
The stiffeners all fitted perfectly with no chafing.


Attachments

  • 011.jpg
    45.9 KB · Views: 3,125

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

We removed the foam and connected it to a pump to collapse it to get it in through the front bulkhead opening.
There are also draw loops welded to the rubber bag to pull it out.
So the reverse procedure with the pump would apply to remove it.


Ian Clark

Supporter
re: Jimmymac & Alistair's Cars

Staggering, thanks for posting the pics! I wonder if there is any other historically significant automobile that enjoys such a dedicated, global effort to extend the marque...

Cheers
Ian


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Thanks Simon,
He also got me fuel taps and is making up my fuel lines with the original fittings.

Last edited:

Steve C

Steve
GT40s Supporter
re: Jimmymac & Alistair's Cars

AMAZING!

Was wondering what you were going to do with all the original parts...now we know.

Keep us posted.

Fantastic work and detail!

Steve


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Thank you,
We are getting very close to two sets of original parts now.

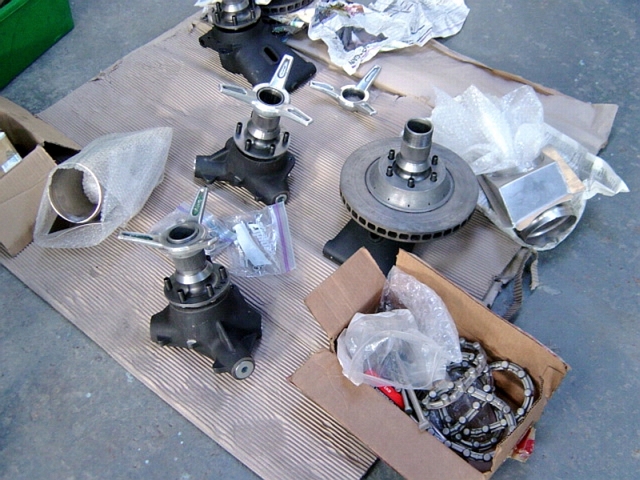

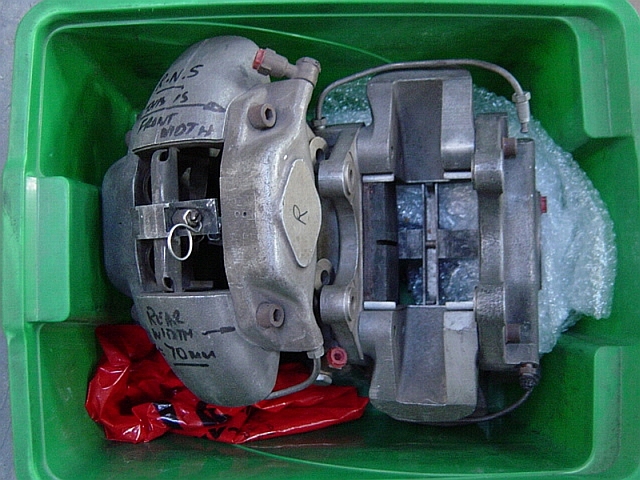

Ali got some more bits delivered last week. Girling 4 pots and a set of splined hubs for 1.25" ventilated discs. I am using the later smooth Gulf hubs so we shall be able to see the difference in set-up.
The spinners are marked Halibrand (AlcoA).


Attachments

  • gt40 026.jpg
    gt40 026.jpg
    224.2 KB · Views: 3,163
  • gt40 027.jpg
    gt40 027.jpg
    229.9 KB · Views: 2,998
