Steve's RCR GT40 Build

Klaf

Supporter

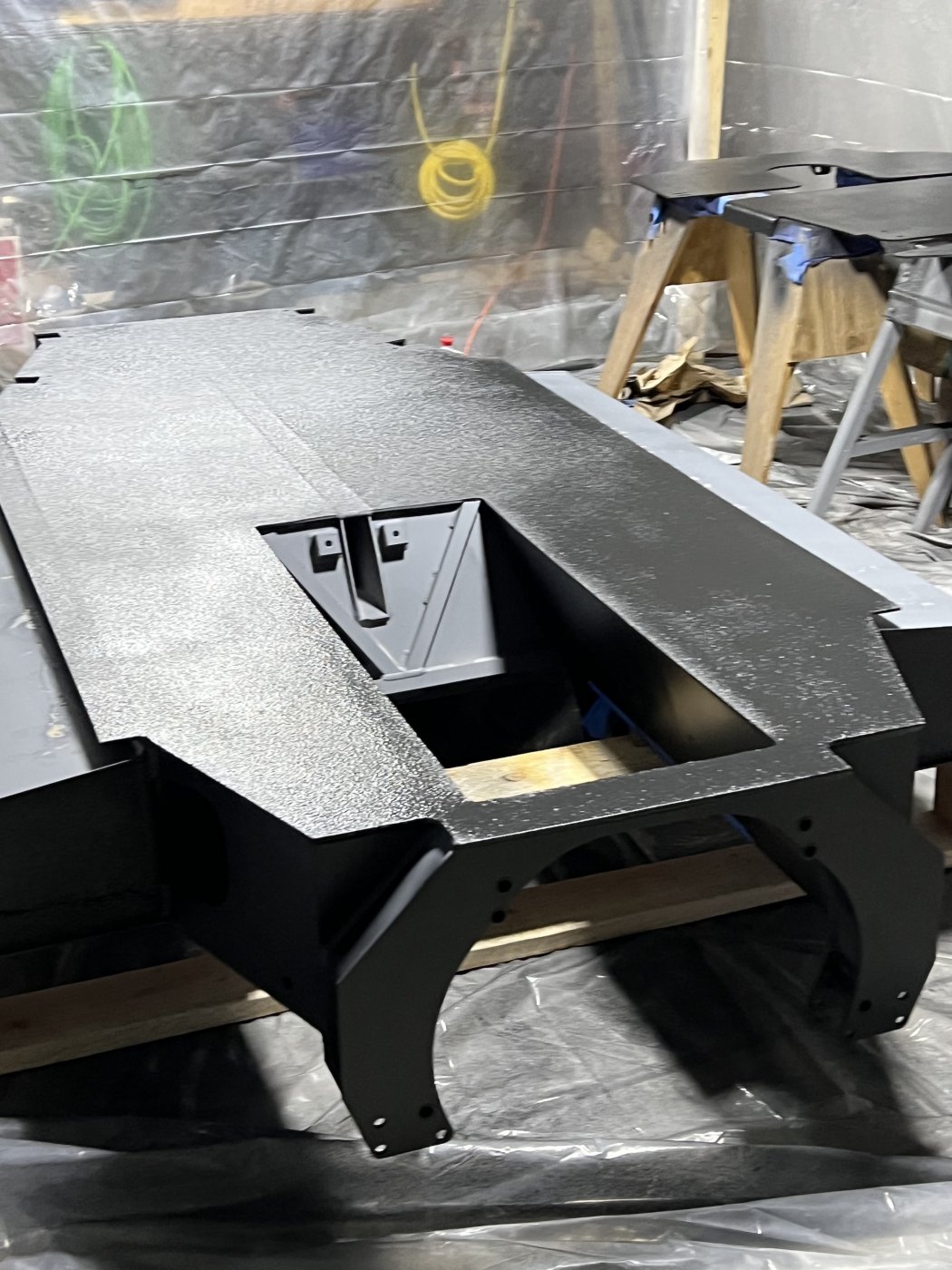

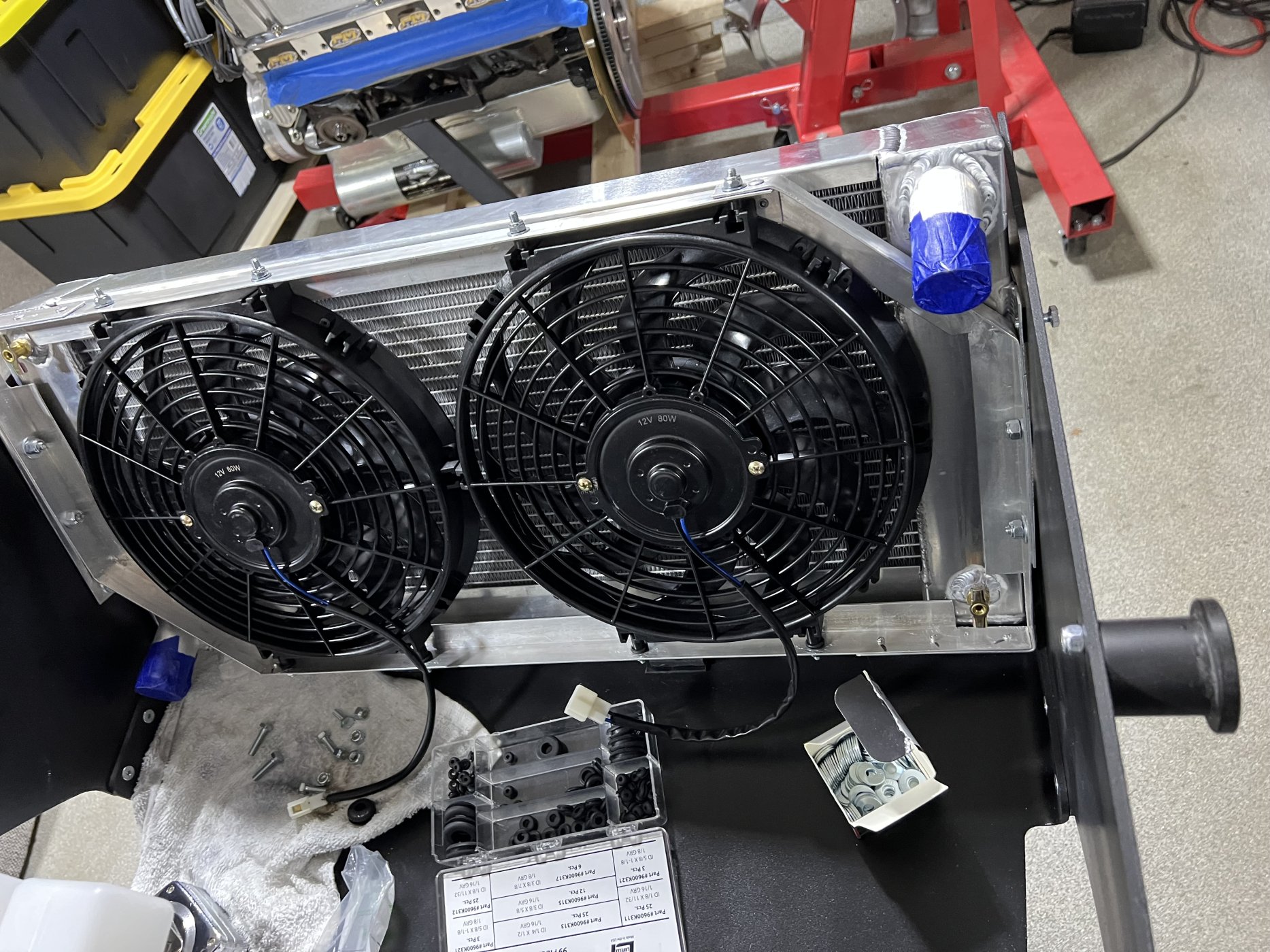

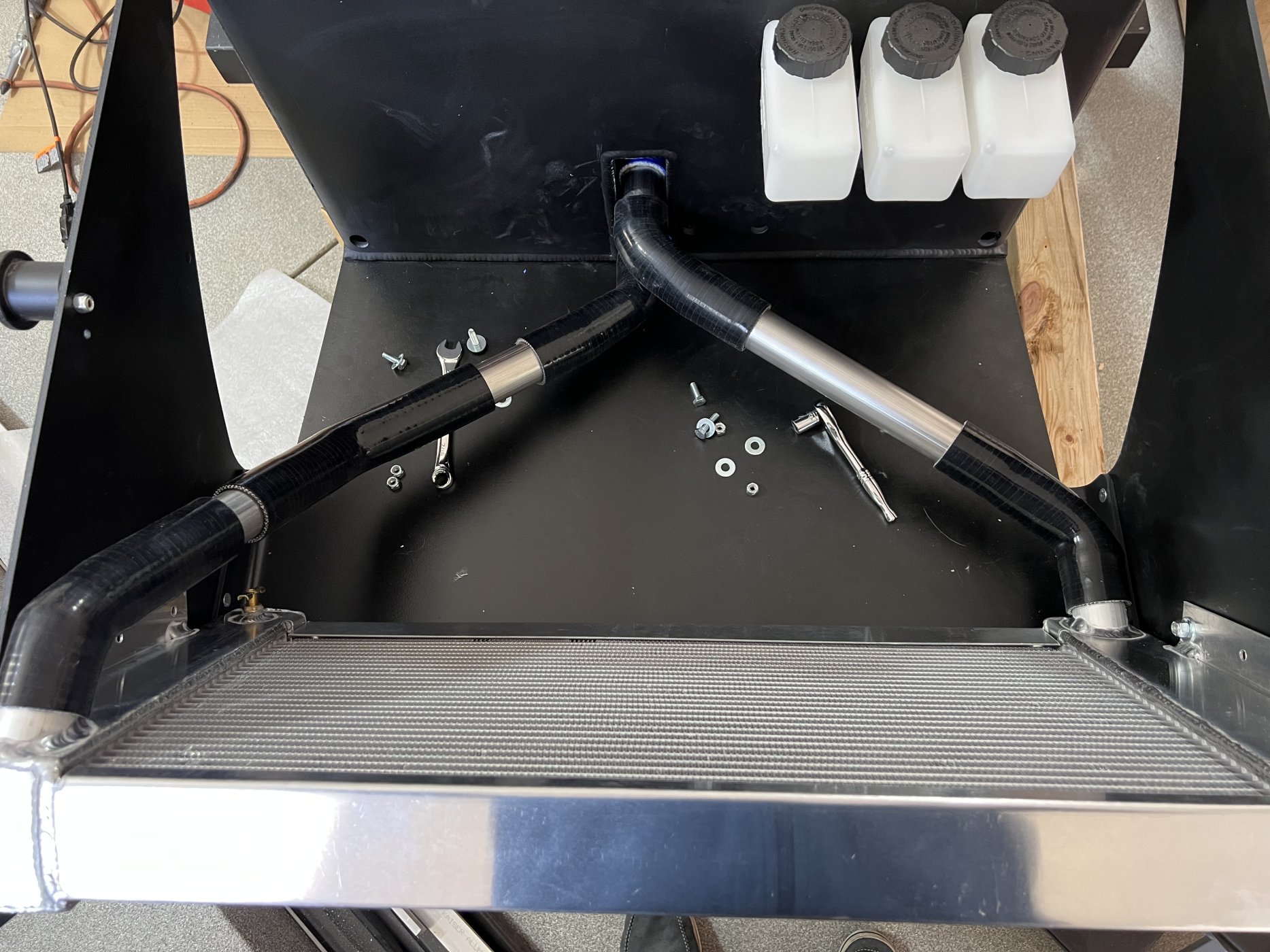

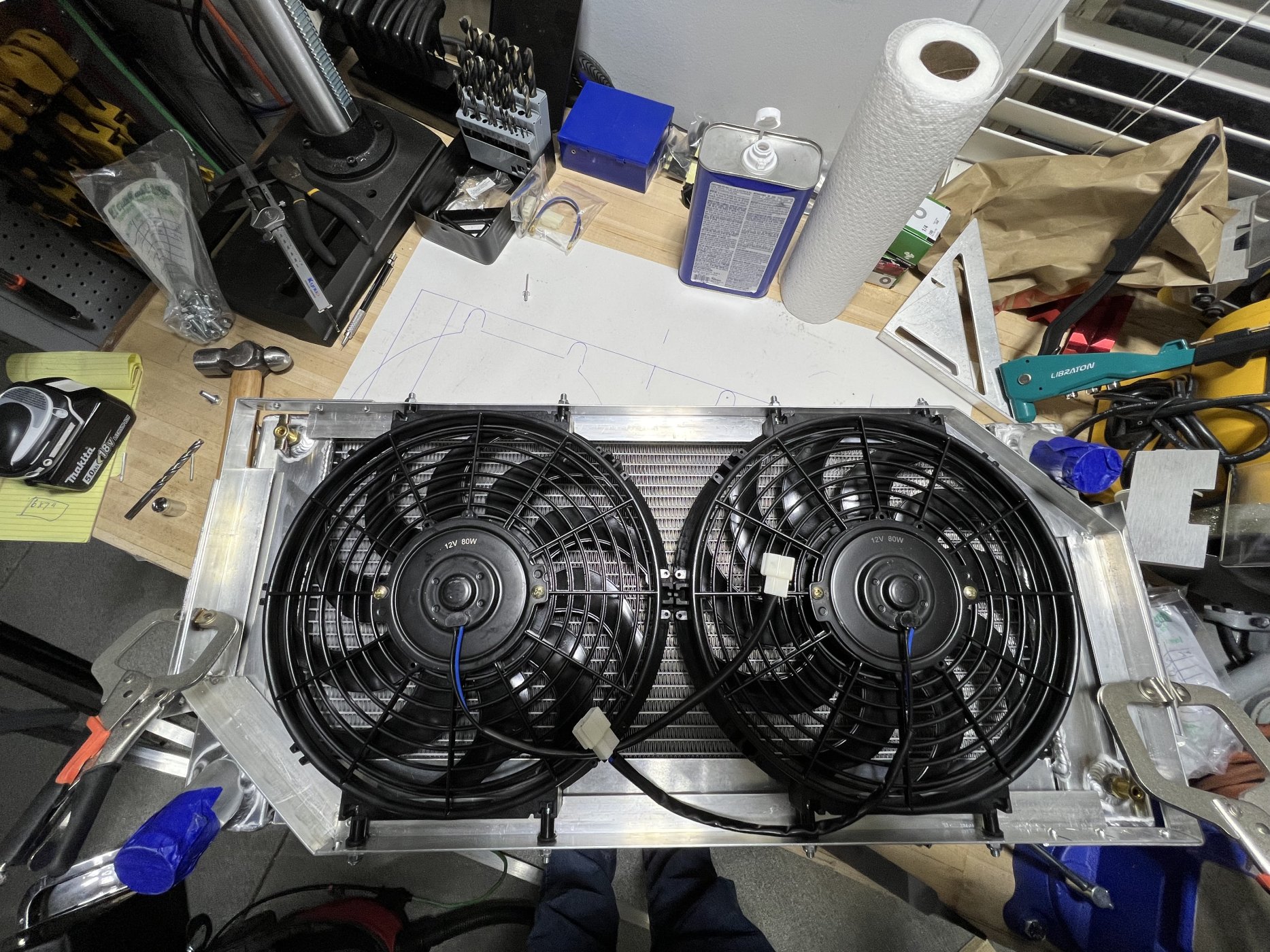

Almost done with painting the chassis. Primed the bottom and used Raptor liner.

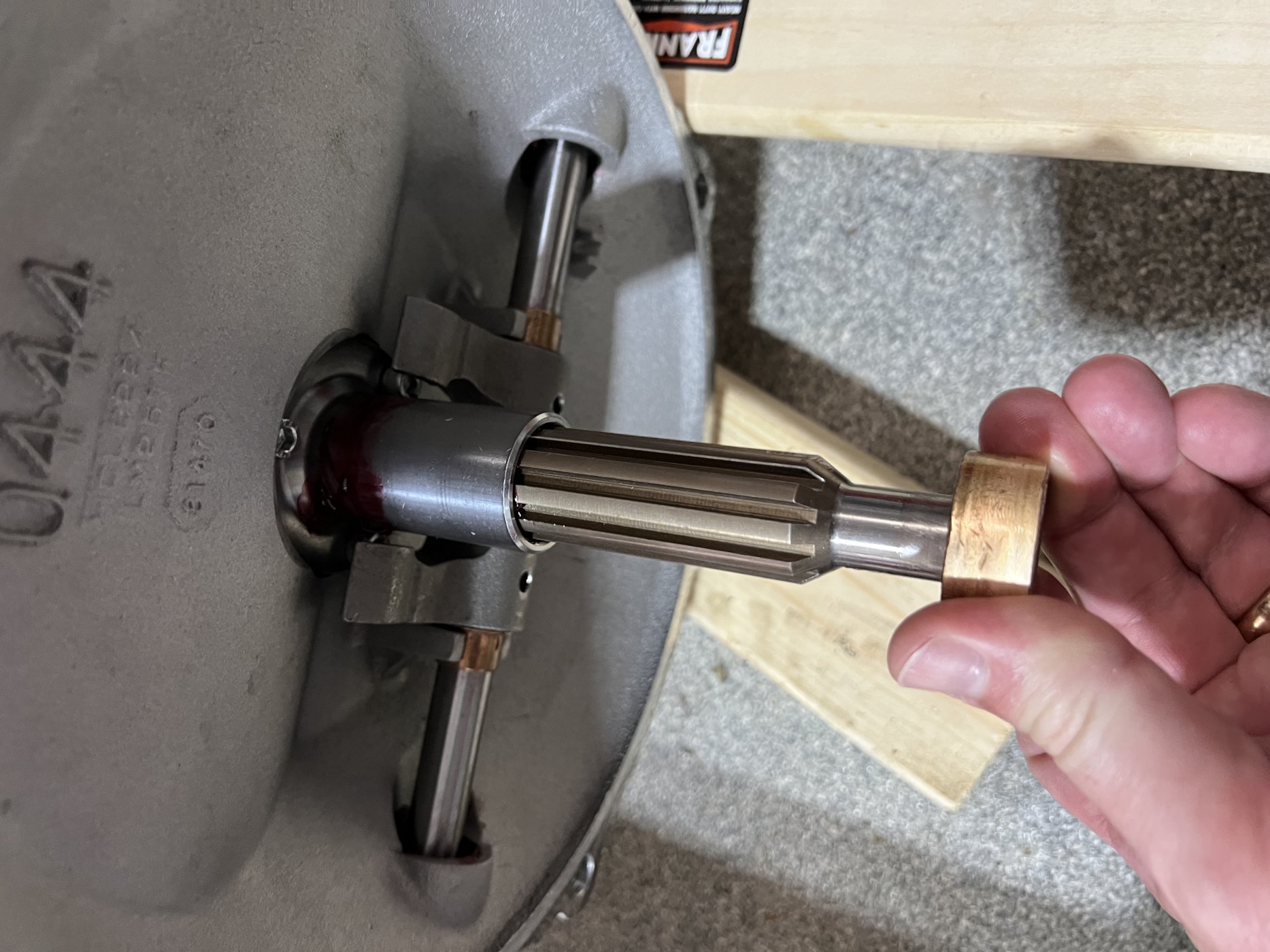

I attached the starter and hooked it up to a battery and everything seemed in order. Then the train fell off the rails while attempting to connect the trans to the engine. First off, that transaxle is a beast. Getting the spline through the clutch plates was no problem. It was the last 3/4 inch that plagued me. I resisted all temptation to force it in with longer bolts and finally gave up for the night. I resigned myself to taking it all apart. With the clutch off, still couldn’t thread it through the pilot bushing. Yes, I did check the size on the spline prior to assembly. That came out next. I used tortilla and grease for some southwest flavor since we were out of bread. View attachment 132803
There was a tiny deformation of the inner hole when I put it in. Wouldn’t fit. Back to the Summit website.
Hi Steve: Just a word of caution: the rod which holds the clutch release fork does not seem to be stock Quaife (Theirs does not have the three grooves at the splined end). I had the same in my ZFQ and it sheared off at the inner groove (see my build log). I just put in an original rod supplied by Quaife. It comes without the weakening grooves. At most you need one groove for the clamping bolt and I recommend you have one machined into one of Quaife's original rods right where you need it ( In my case a few slight brushes with a file did the job. ). I just put my car back together again. Also it is very important to keep a proper free play between clutch fingers and release bearing. This calls for a properly sized release bearing piston, then a fine adjustment of the length of the slave cylinder rod, as explained elsewhere on this forum. Finally, clutch pedal travel may have to be restricted. You don't want unnecessary pressure in the system. Good luck and lots of enjoyment with your build.


Klaf

Supporter

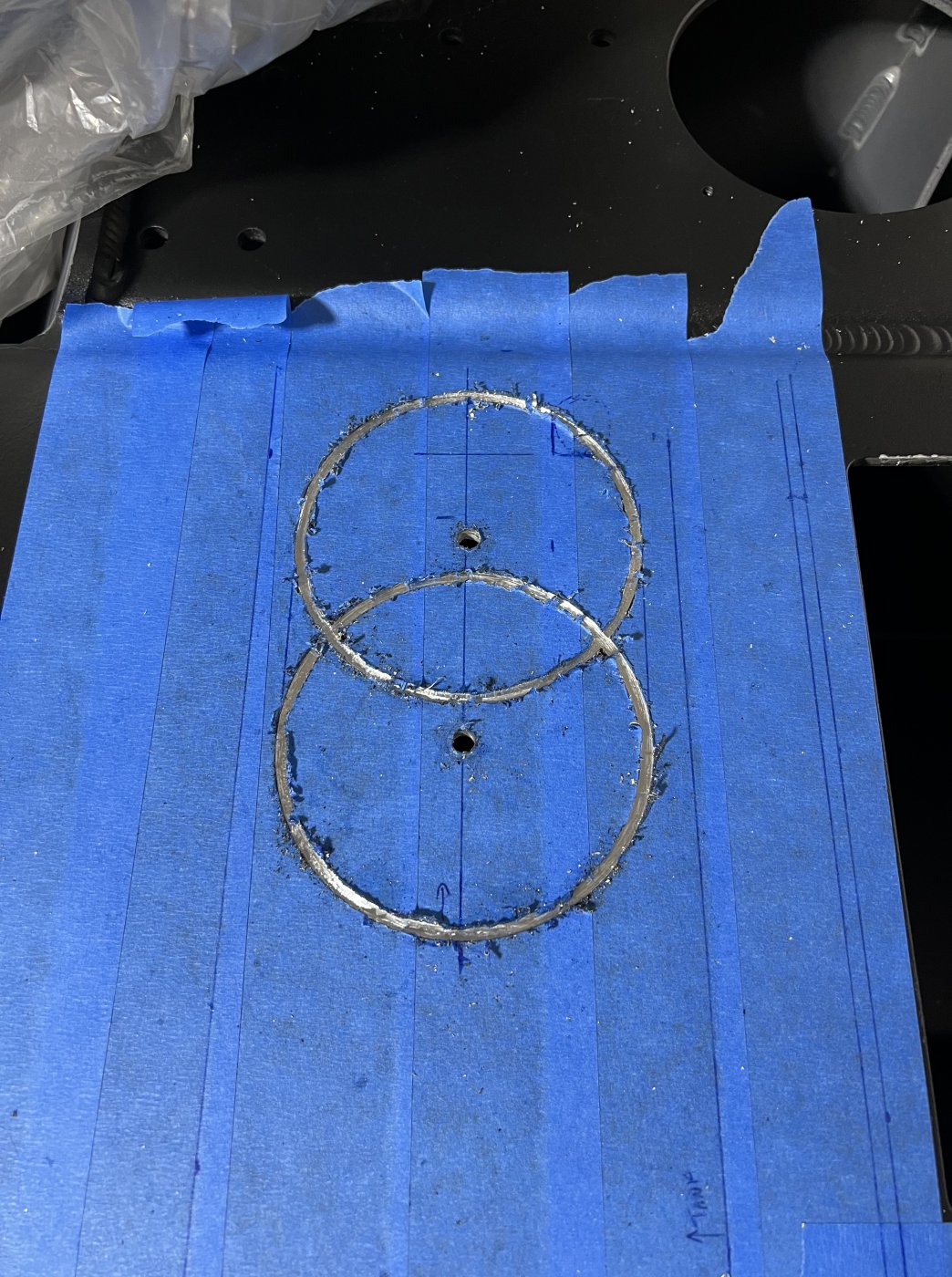

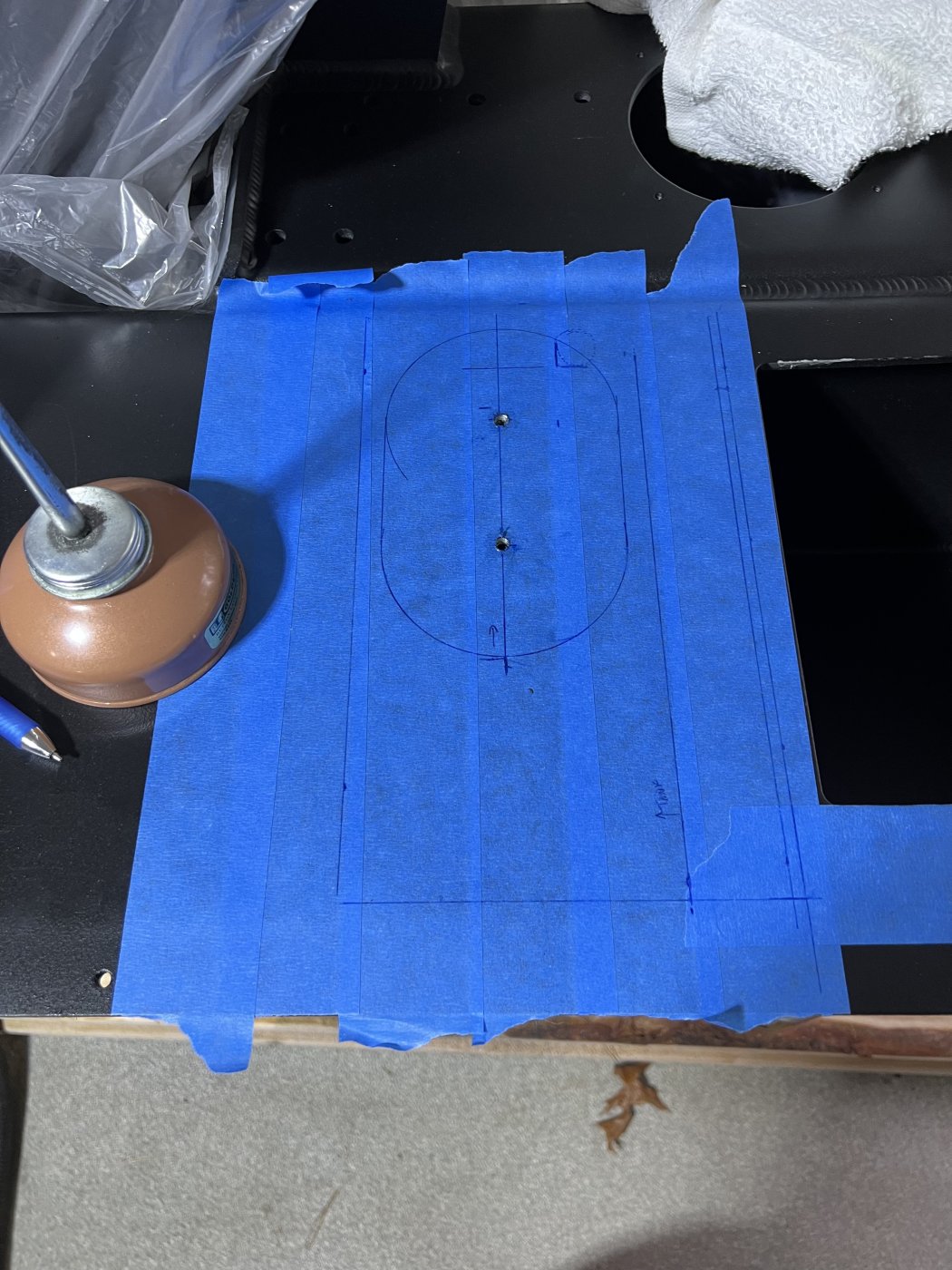

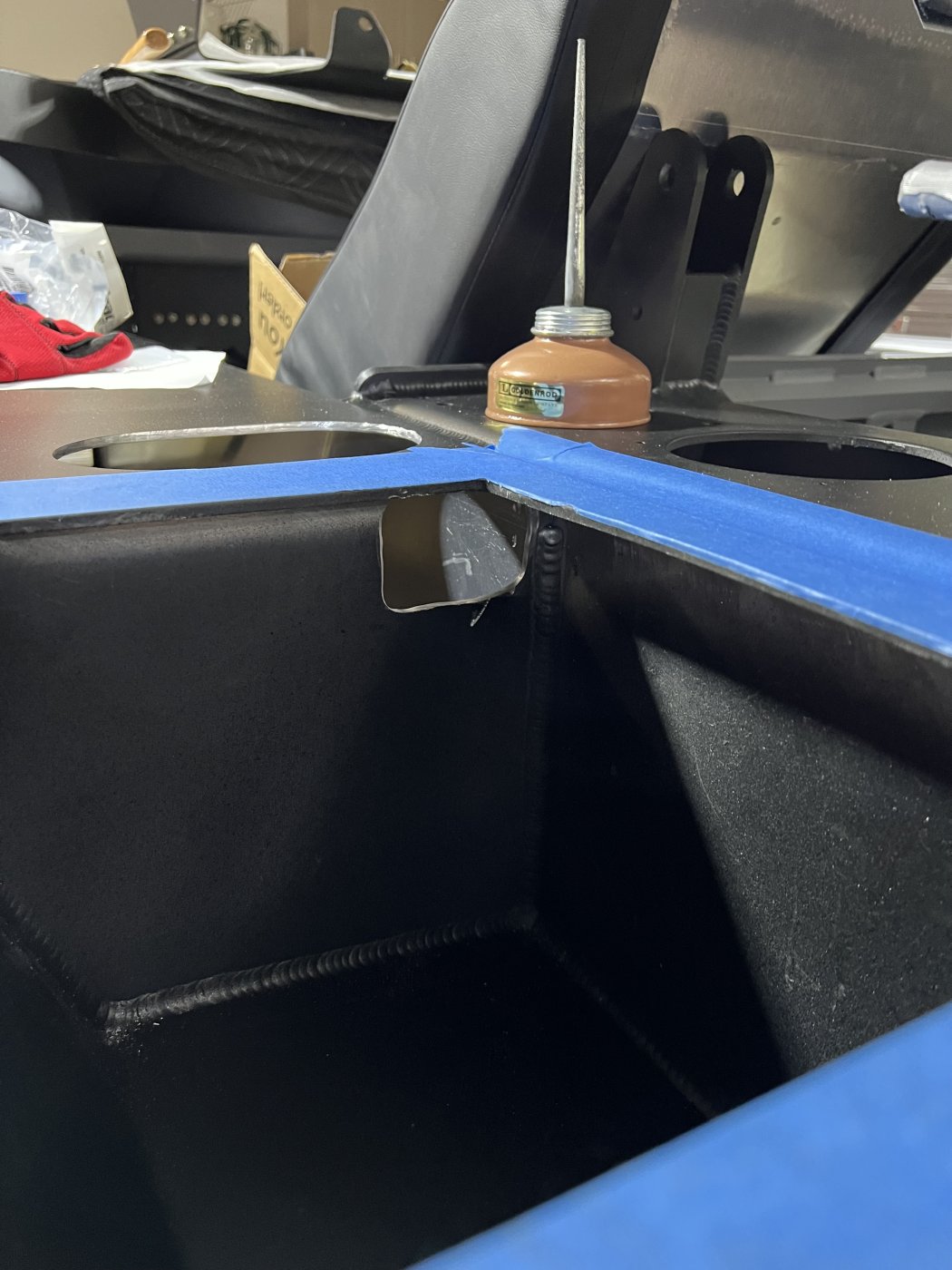

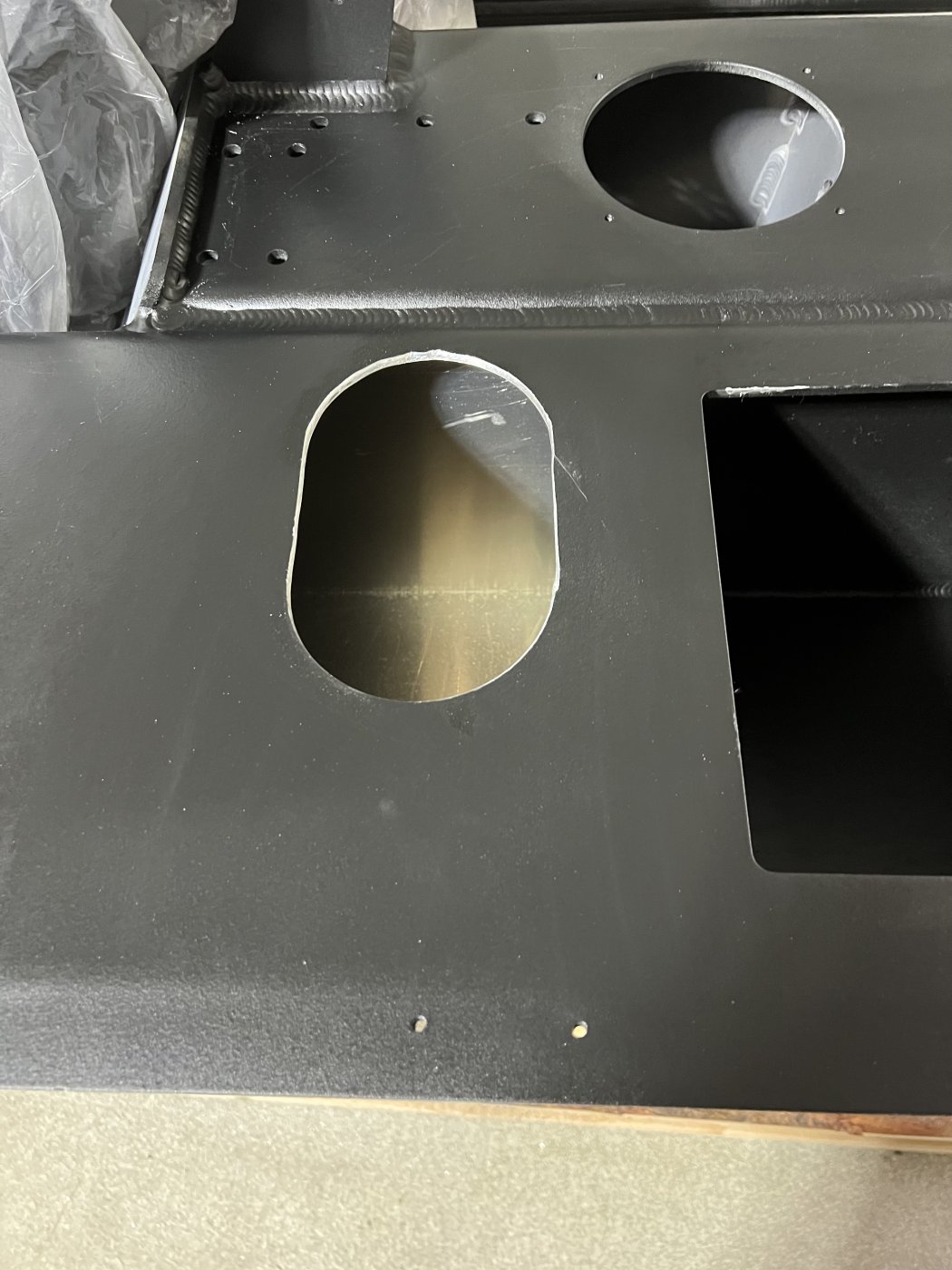

It’s been 2 months since my last confession. I work on the car every day but progress eludes me. I have a plan, work the plan and determine it’s a crappy plan. I started with the gas tanks. First, I needed some holes.

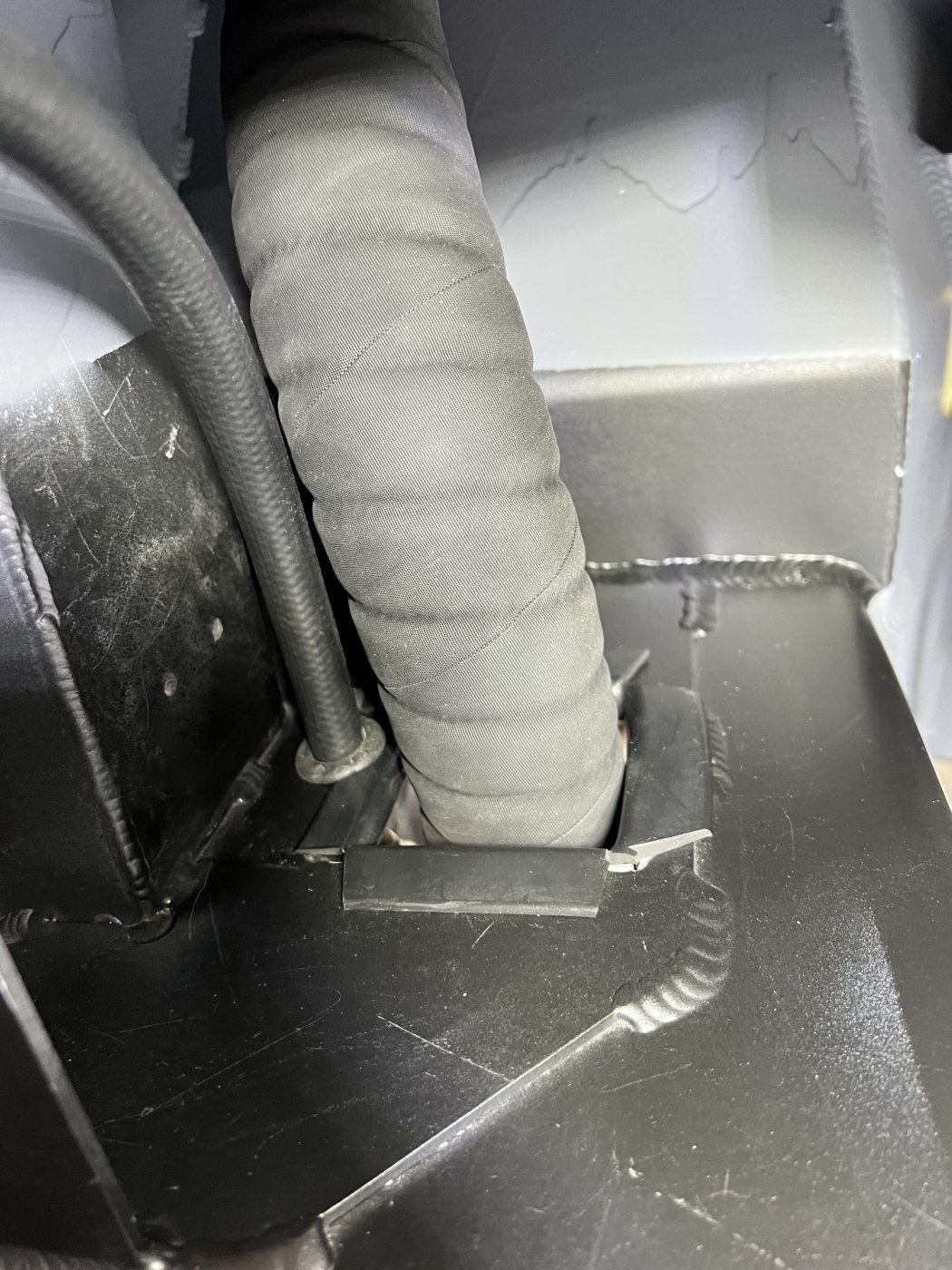

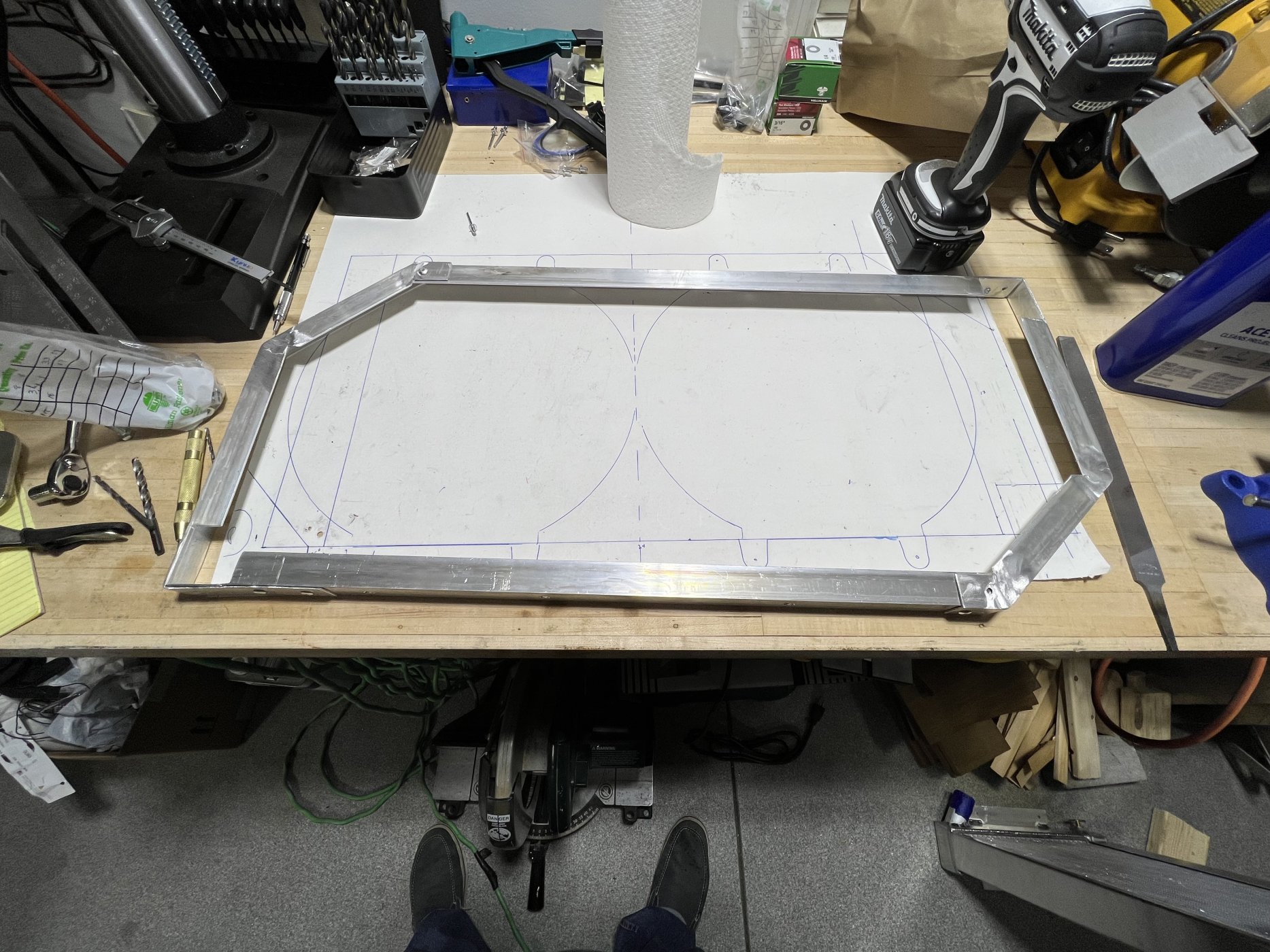

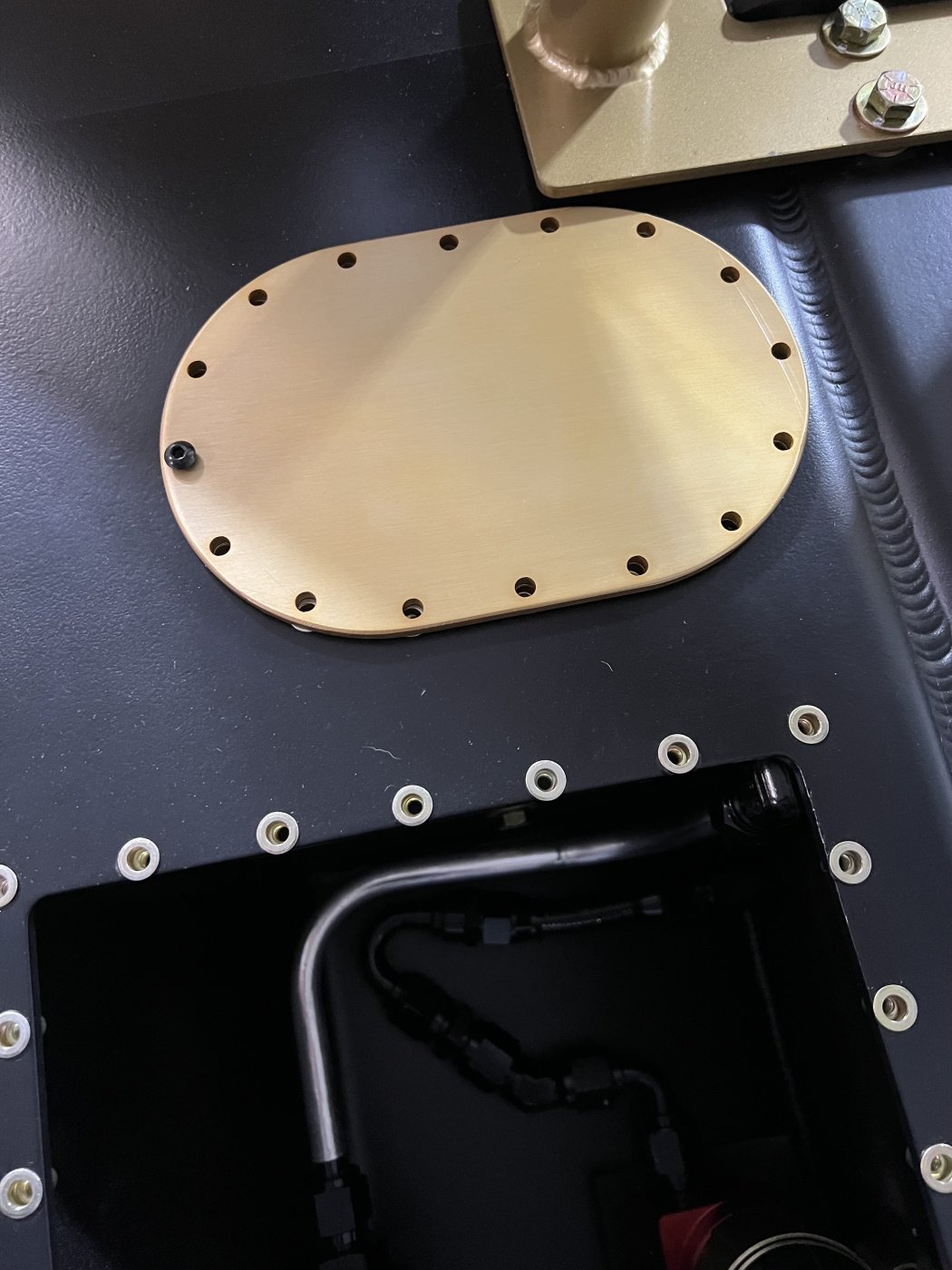

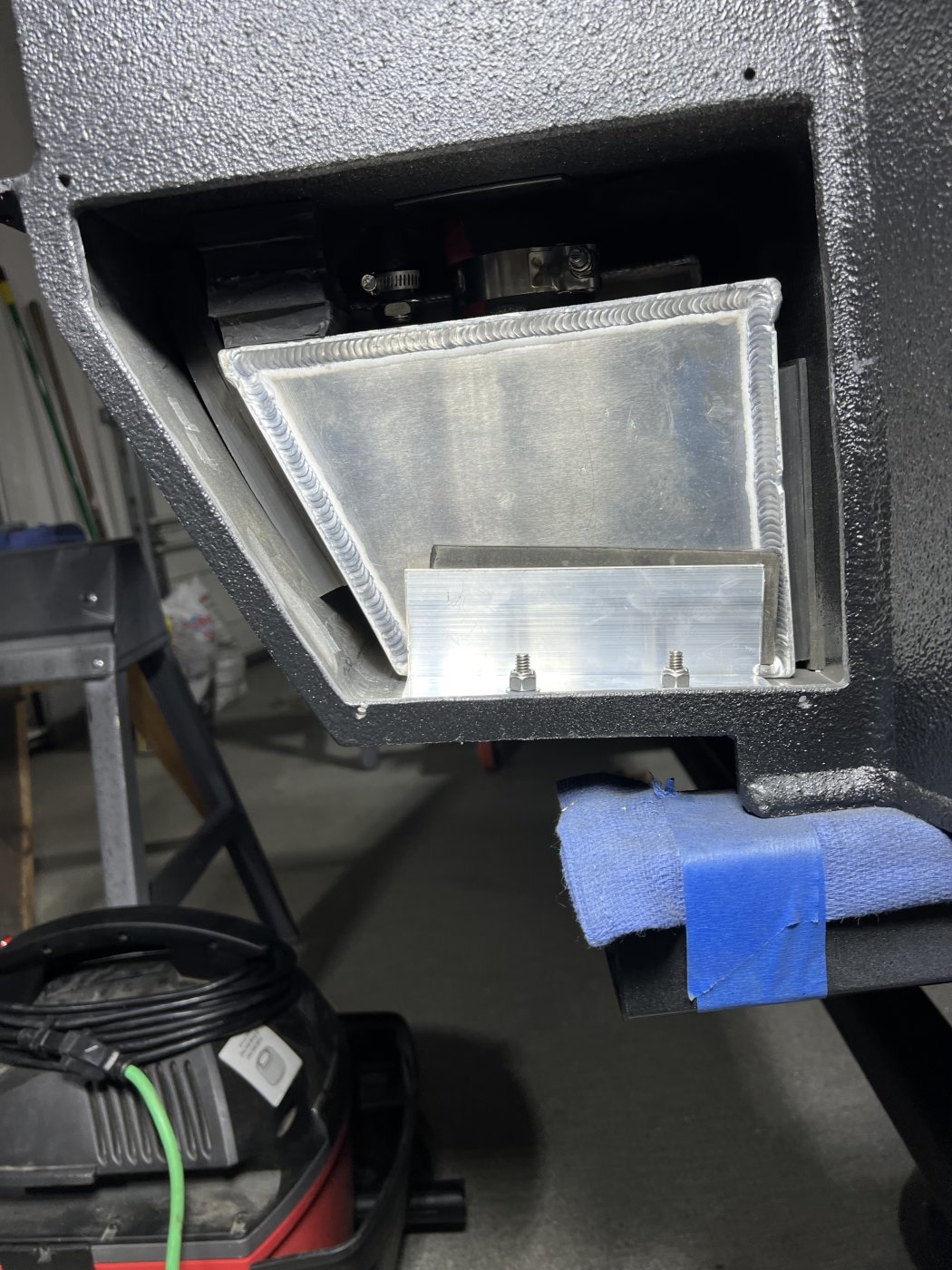

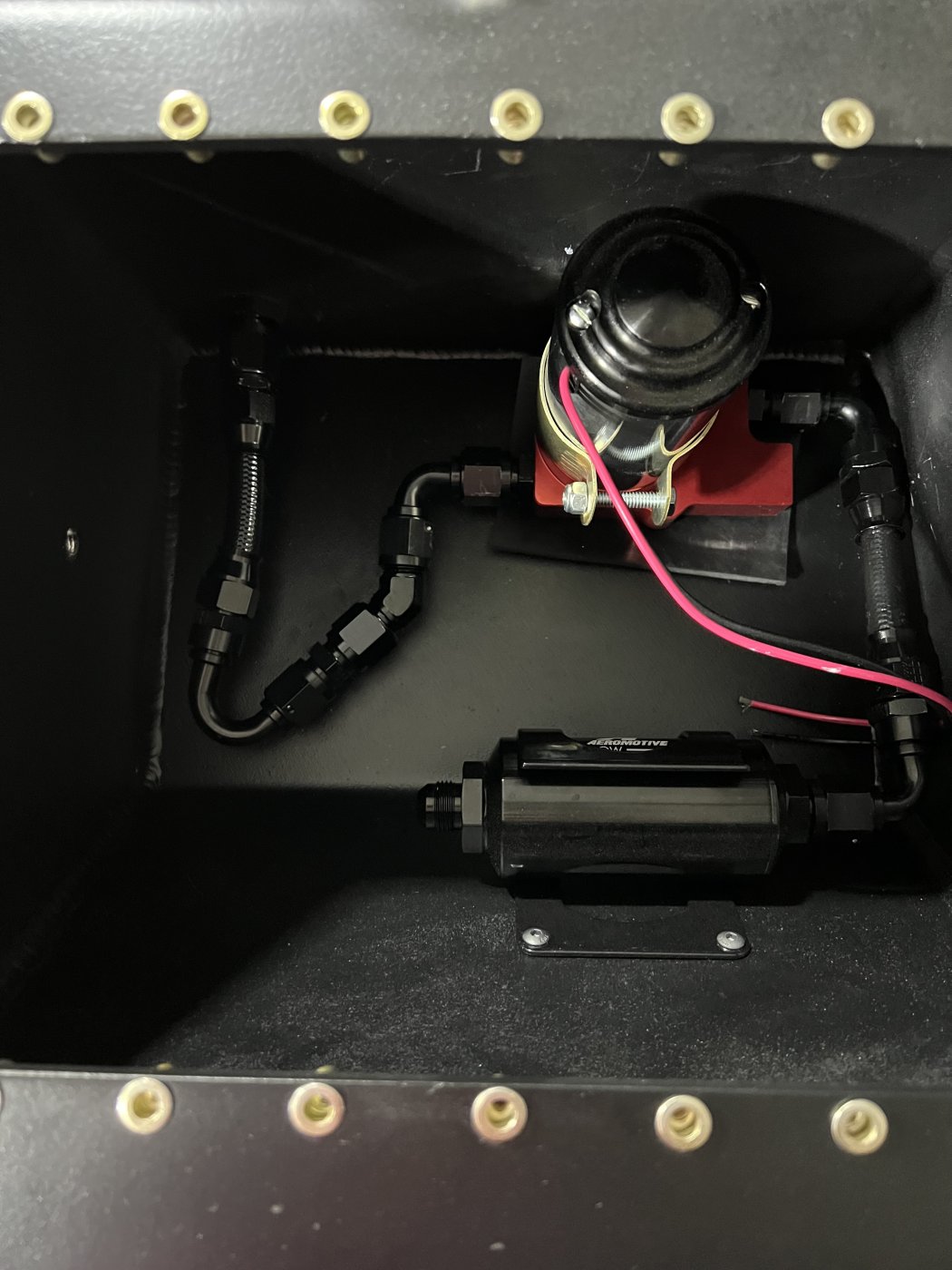

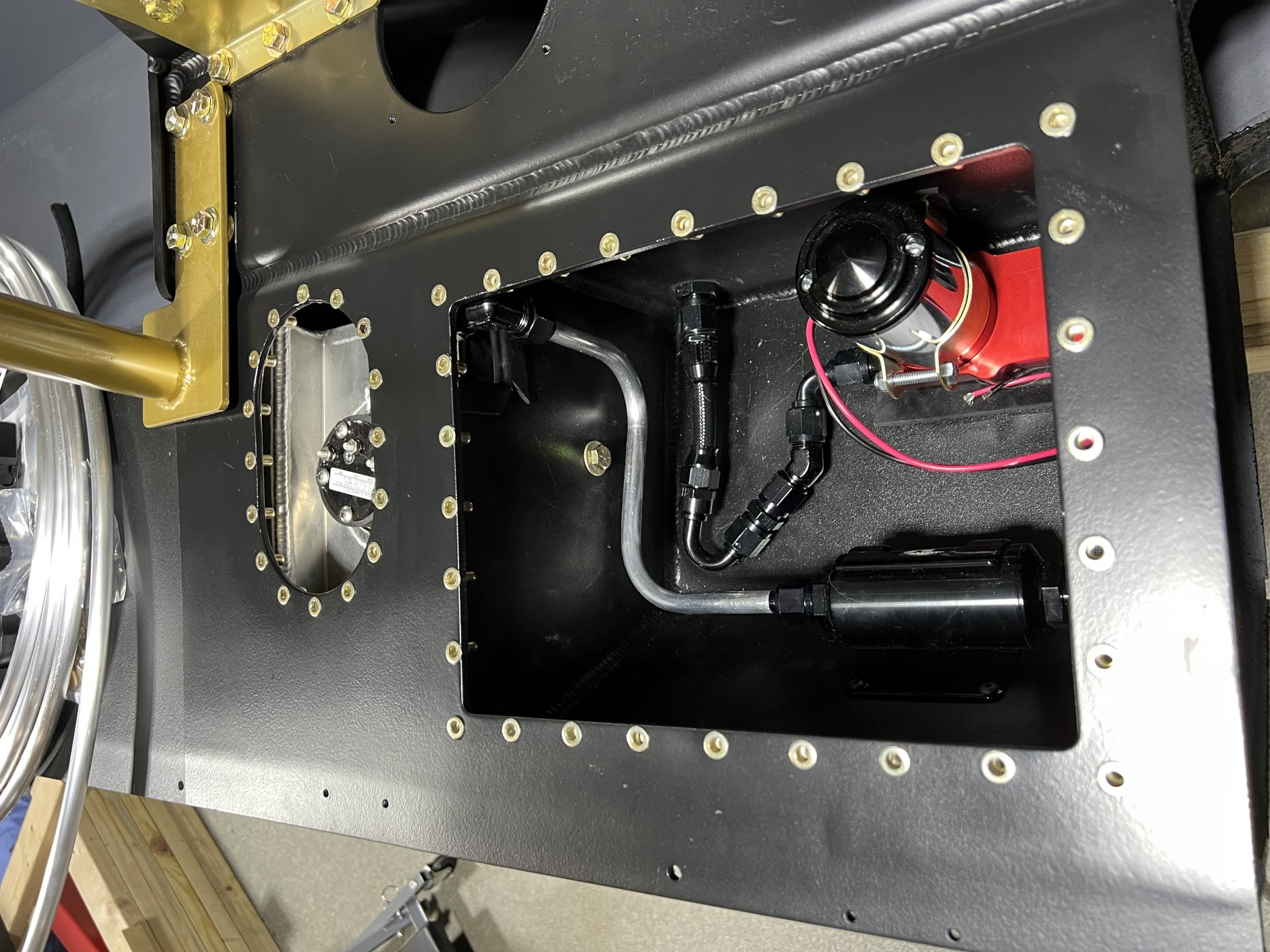

Next goes the tank. Sounds easy. I have put that stupid tank in and out 20 times to line up the fittings. I enlarged the hole for the filler hose and attached the vent in the front. The sender and pickup were installed in the back. I used hard aluminum line to the filter and flexible PTFE on either side of the aeromotive fuel pump. The tank has a block welded to the back and it’s screwed into the wall The front is secured with a bracket. The entire tank is wedged in with rubber. I CAD designed some covers and anodized them.


Klaf

Supporter

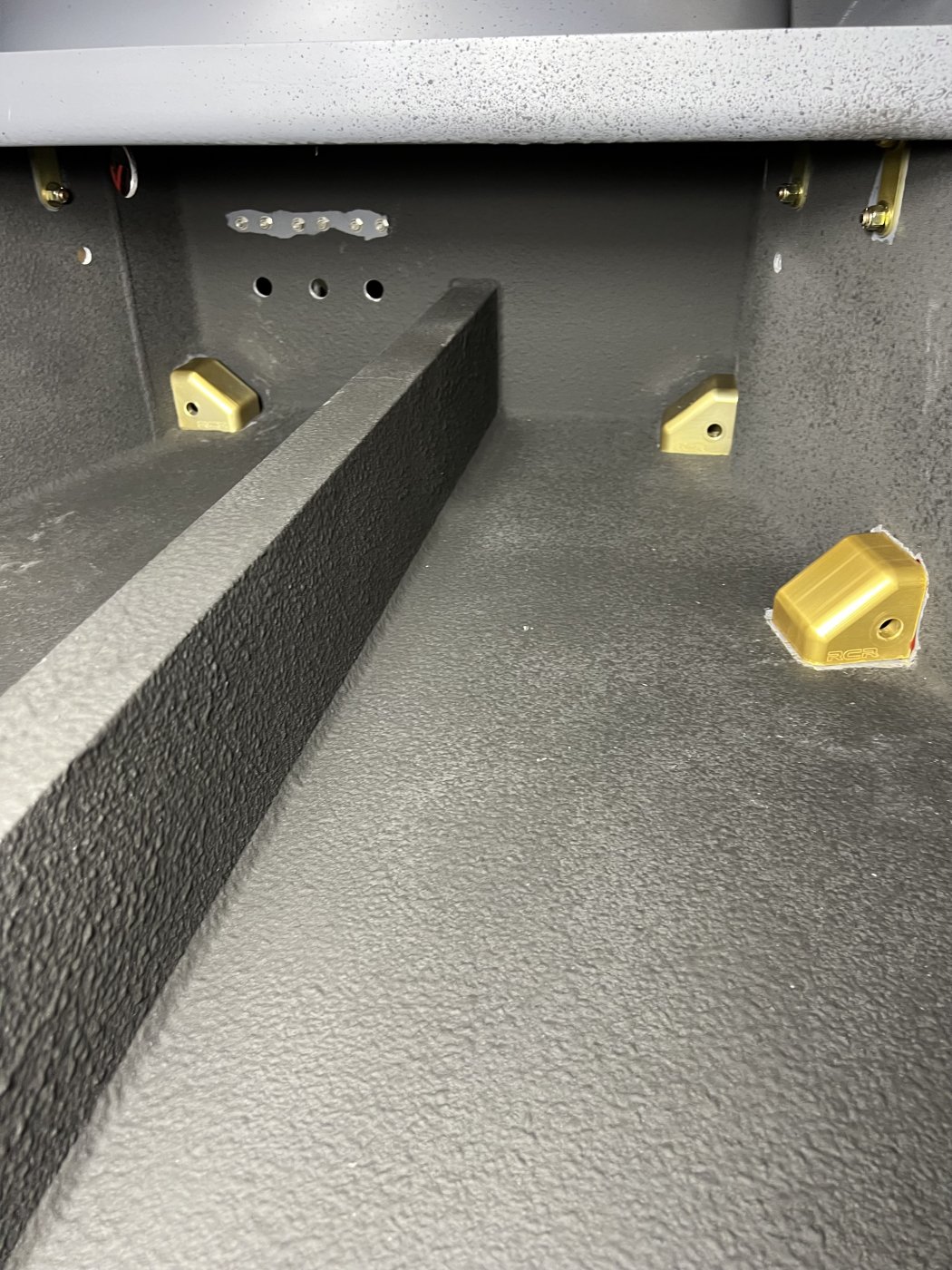

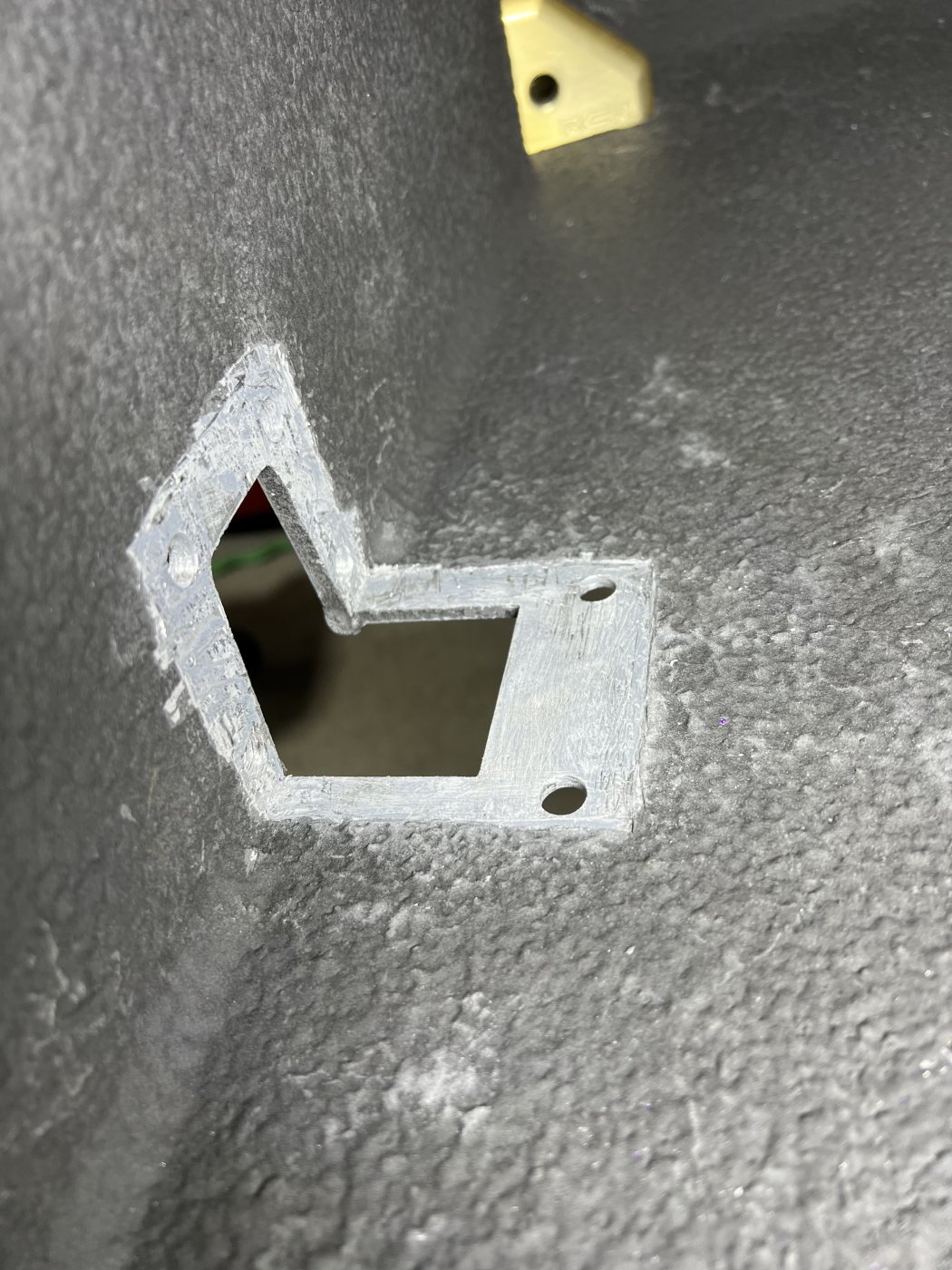

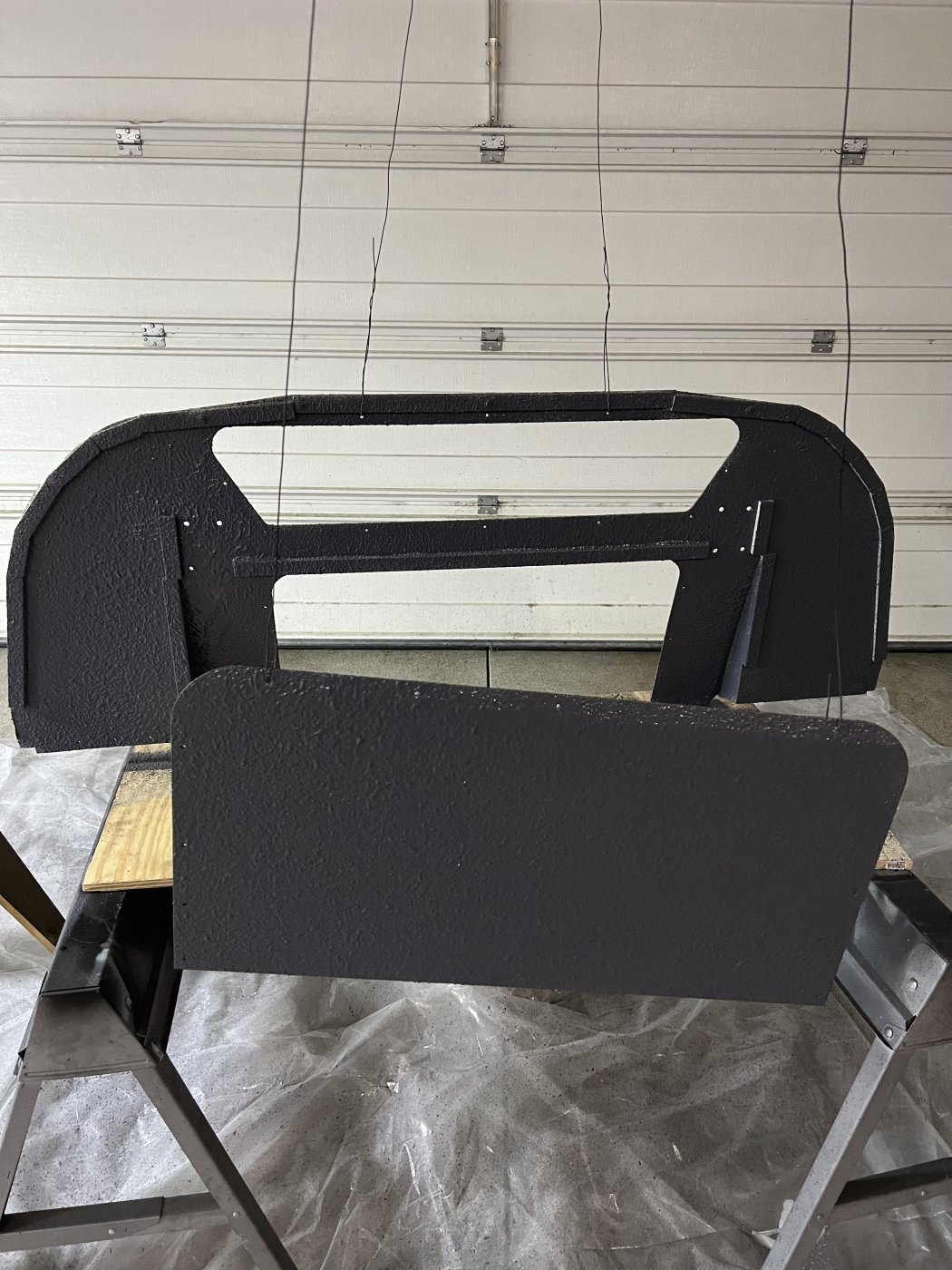

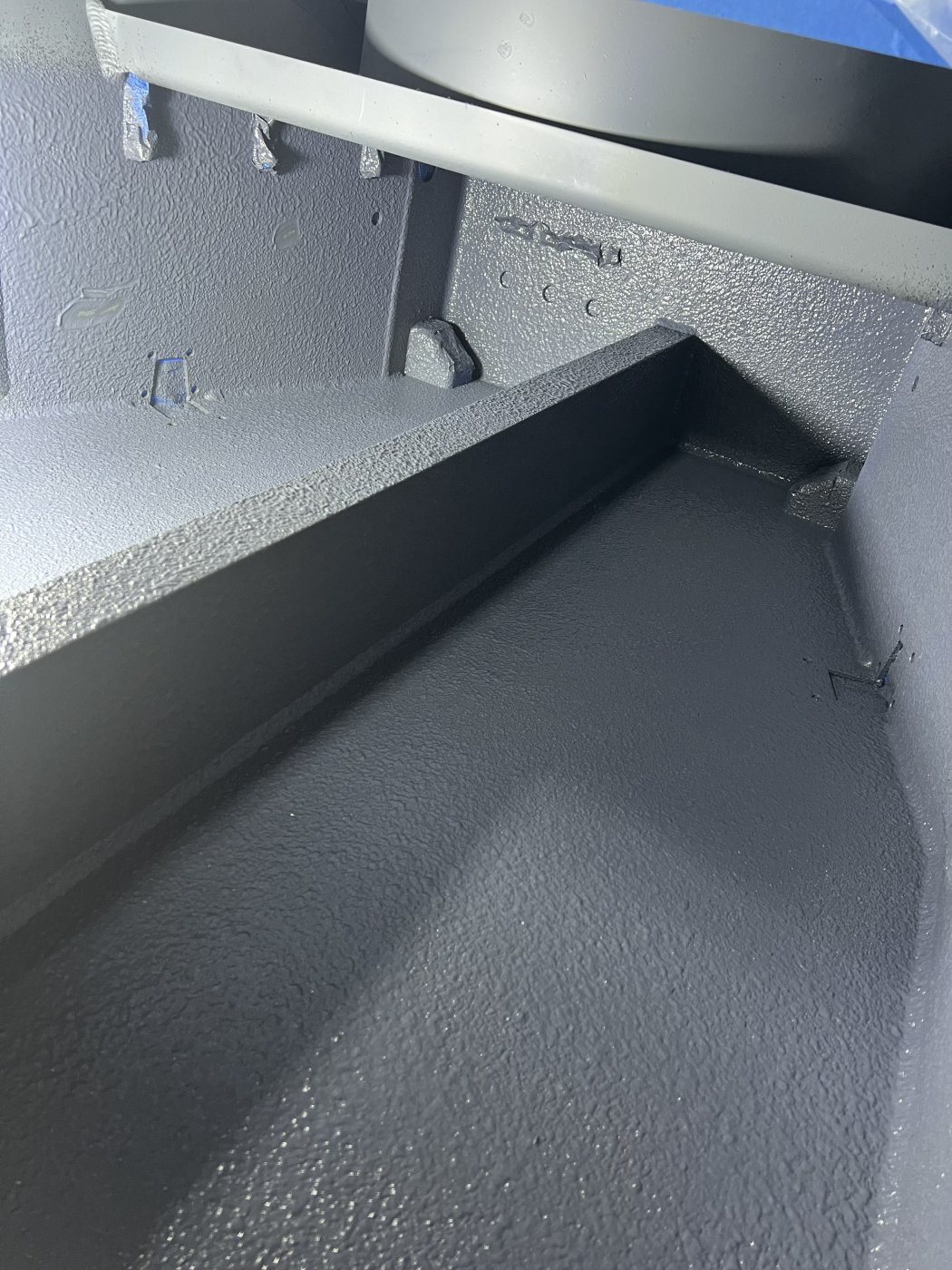

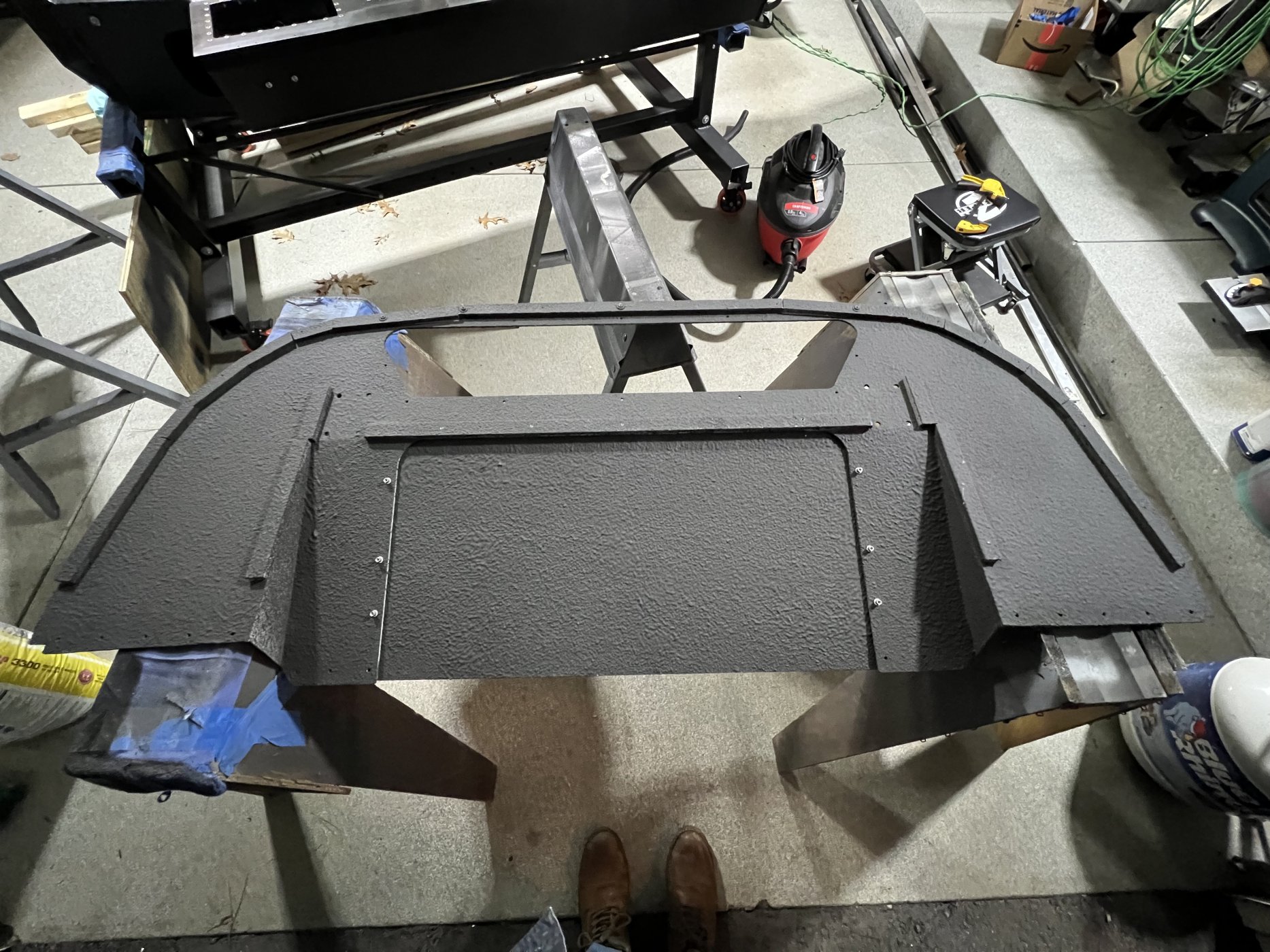

I used lizard skin sound and heat coating on the firewall and cockpit. Unfortunately, it’s winter in Michigan. That stuff needs at least 60 and preferably 70 degrees to cure. I had to rent a propane heater to jack up the heat in the garage. Lizard skin is pretty thick so the suspension blocks on the bottom don’t fit. I had to chisel it away. The firewall is to be doubled up like in Tom’s post.



Klaf

Supporter
Hi Steve: Just a word of caution: the rod which holds the clutch release fork does not seem to be stock Quaife (Theirs does not have the three grooves at the splined end). I had the same in my ZFQ and it sheared off at the inner groove (see my build log). I just put in an original rod supplied by Quaife. It comes without the weakening grooves. At most you need one groove for the clamping bolt and I recommend you have one machined into one of Quaife's original rods right where you need it ( In my case a few slight brushes with a file did the job. ). I just put my car back together again. Also it is very important to keep a proper free play between clutch fingers and release bearing. This calls for a properly sized release bearing piston, then a fine adjustment of the length of the slave cylinder rod, as explained elsewhere on this forum. Finally, clutch pedal travel may have to be restricted. You don't want unnecessary pressure in the system. Good luck and lots of enjoyment with your build.
I am using the clutch release lever from Safir. It has a different spline number than the Quaife. So I purchased and installed the rod from Safir. Hopefully it doesn’t bust.

I am using the clutch release lever from Safir. It has a different spline number than the Quaife. So I purchased and installed the rod from Safir. Hopefully it doesn’t bust.
Yes, Quaife for some reason decided to use a different spline count and offer their own push rod lever. My setup is not from Safir based on the spline count and the shape of the lever. So good luck with your build- I'm sure in the end joy will win over any occasional frustration ;-)


Rod Dittmar

Supporter
Hi Steve,
Really nice meticulous work and looking great! Note: I cut those 'ears' off the bottom of my bellhousing also.
Rod

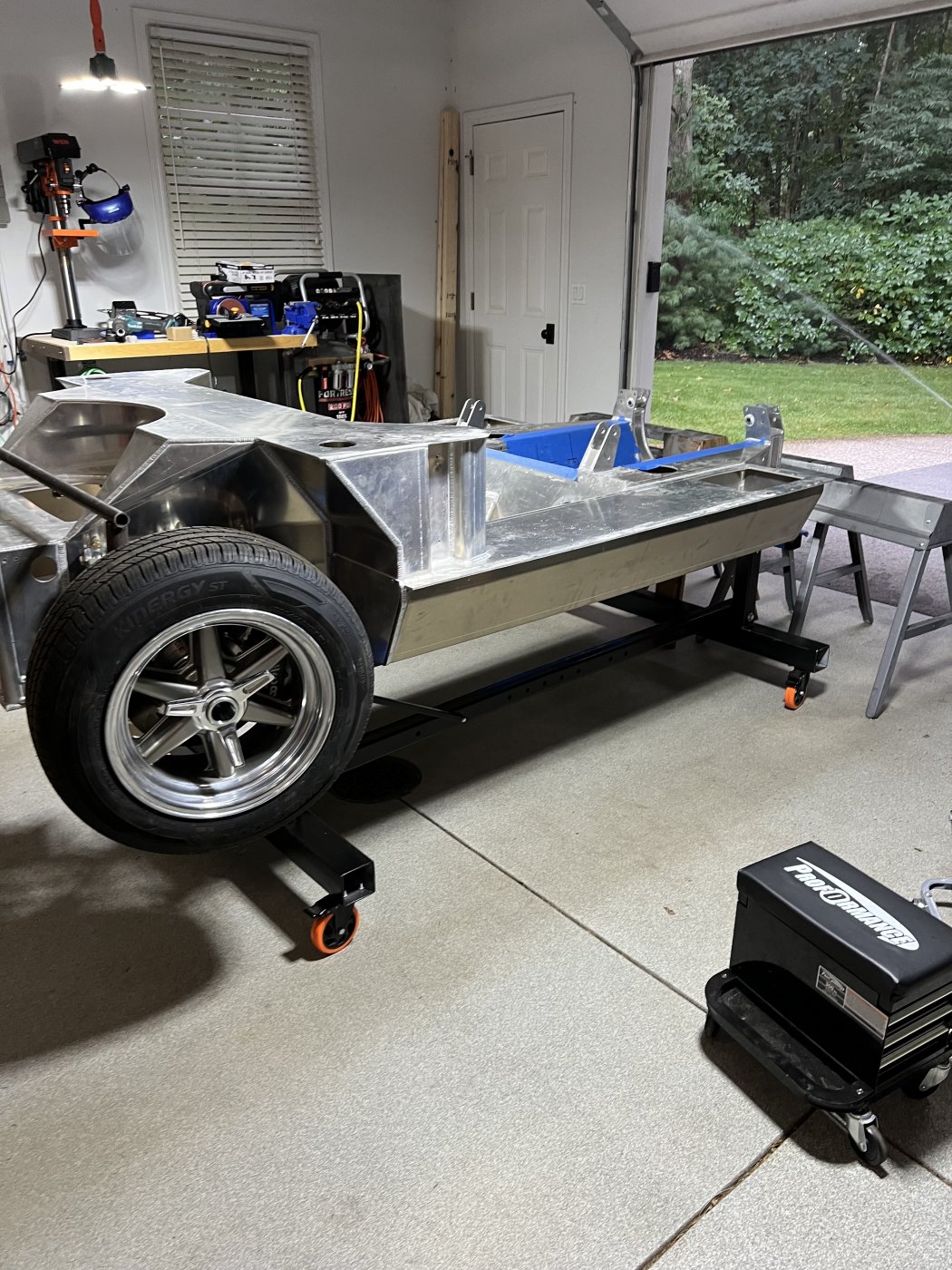

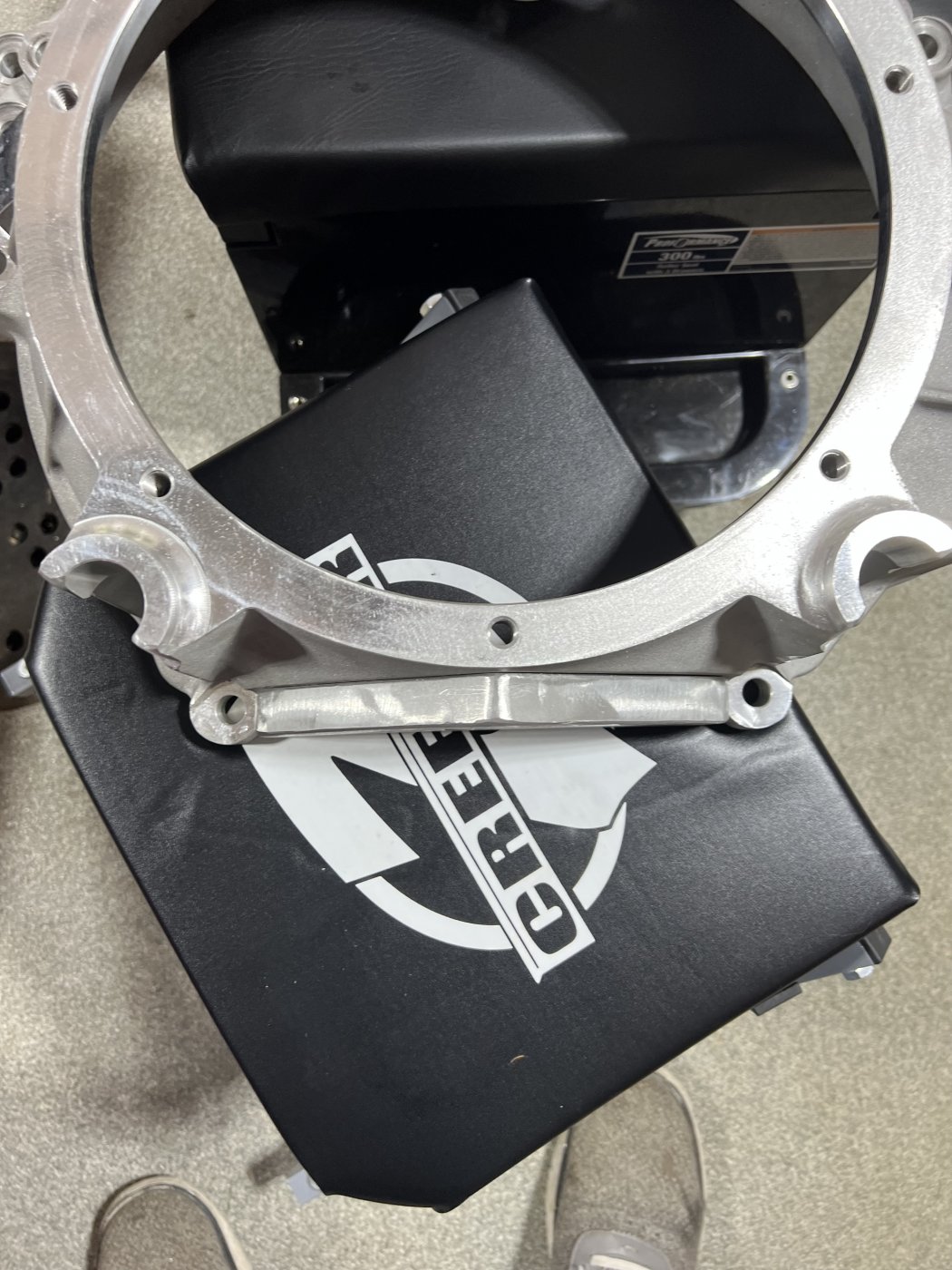

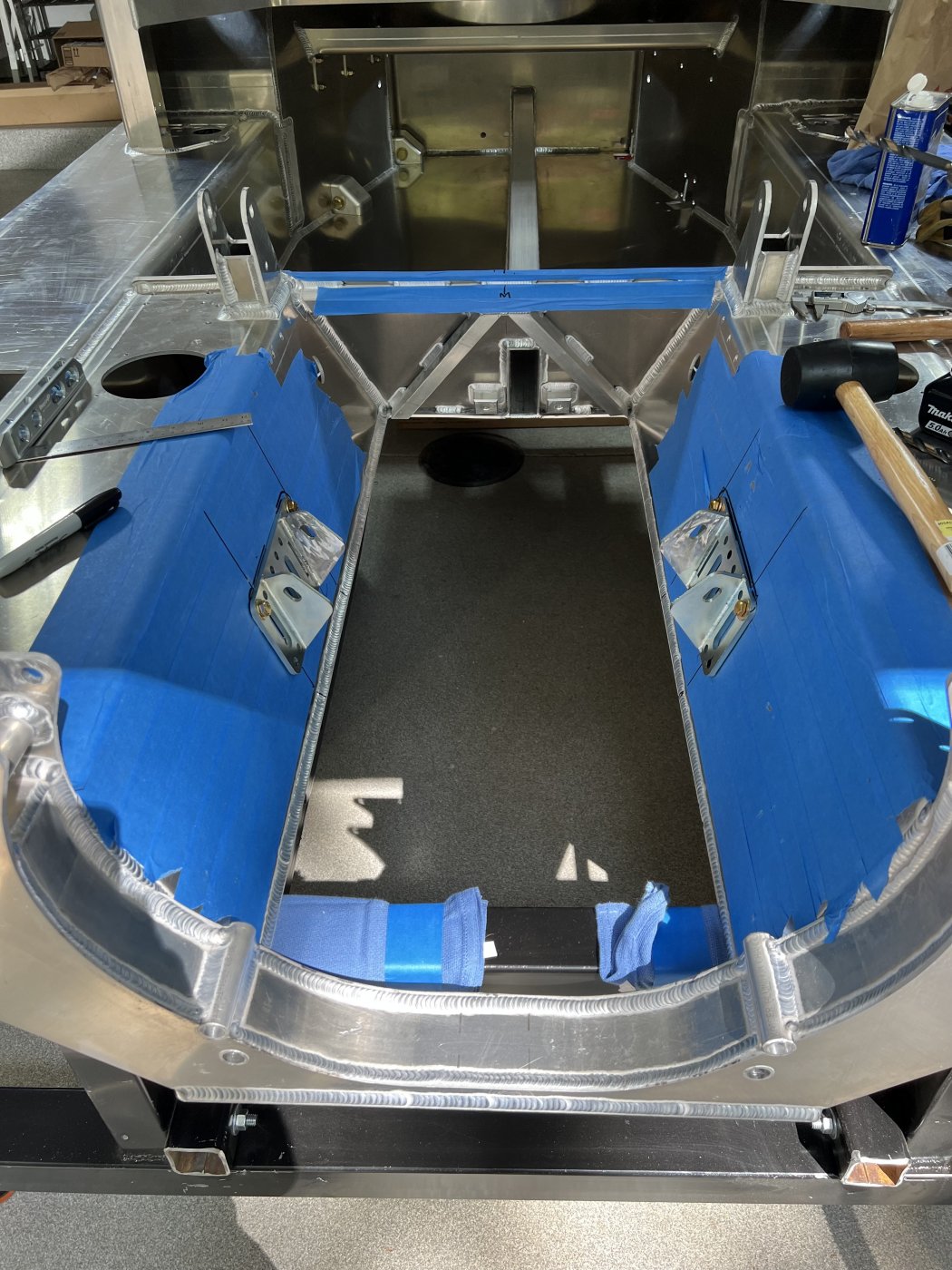

I took an angle grinder to the bellhousing and aligned the engine, I drilled 2 holes for the engine plates taking the 0.4 inches further back into account. Then I continued with disassembly. View attachment 132845View attachment 132846View attachment 132847

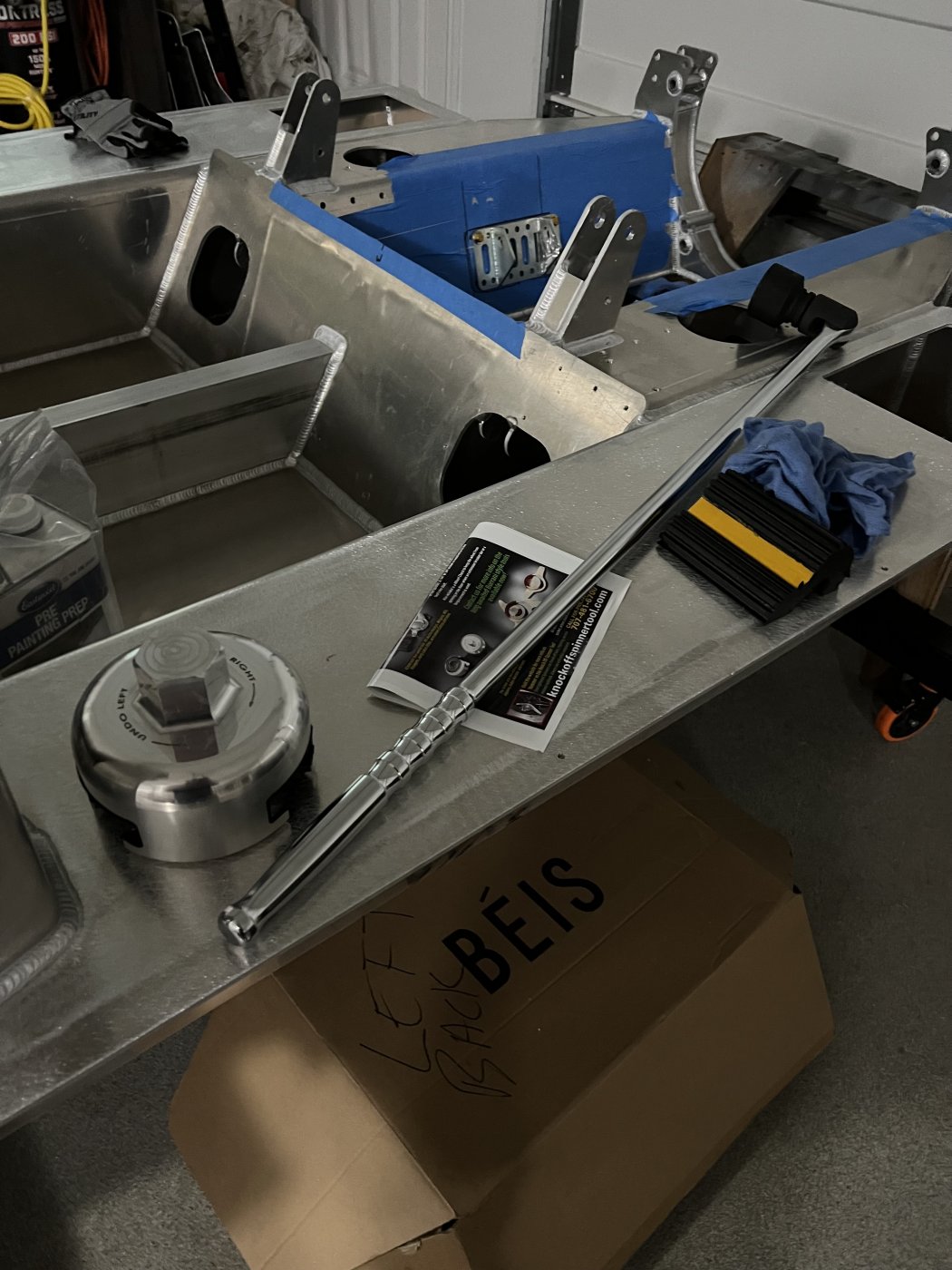

So both my boys abandoned me at this point. Something about college education, for what’s that worth. I managed to put the car chassis on the dolly with my 13 year old daughter. She’s small and skinny but strong. Next I removed the suspension. I’m sure you can see the left tire in place still. That’s a story for sure. I was pounding on that spinner for an hour. I’m pretty sure in the wrong direction. The others came off so easy. I finally got it off with a tool I found in this site. https://www.knockoffspinnertool.com/
View attachment 132848View attachment 132850

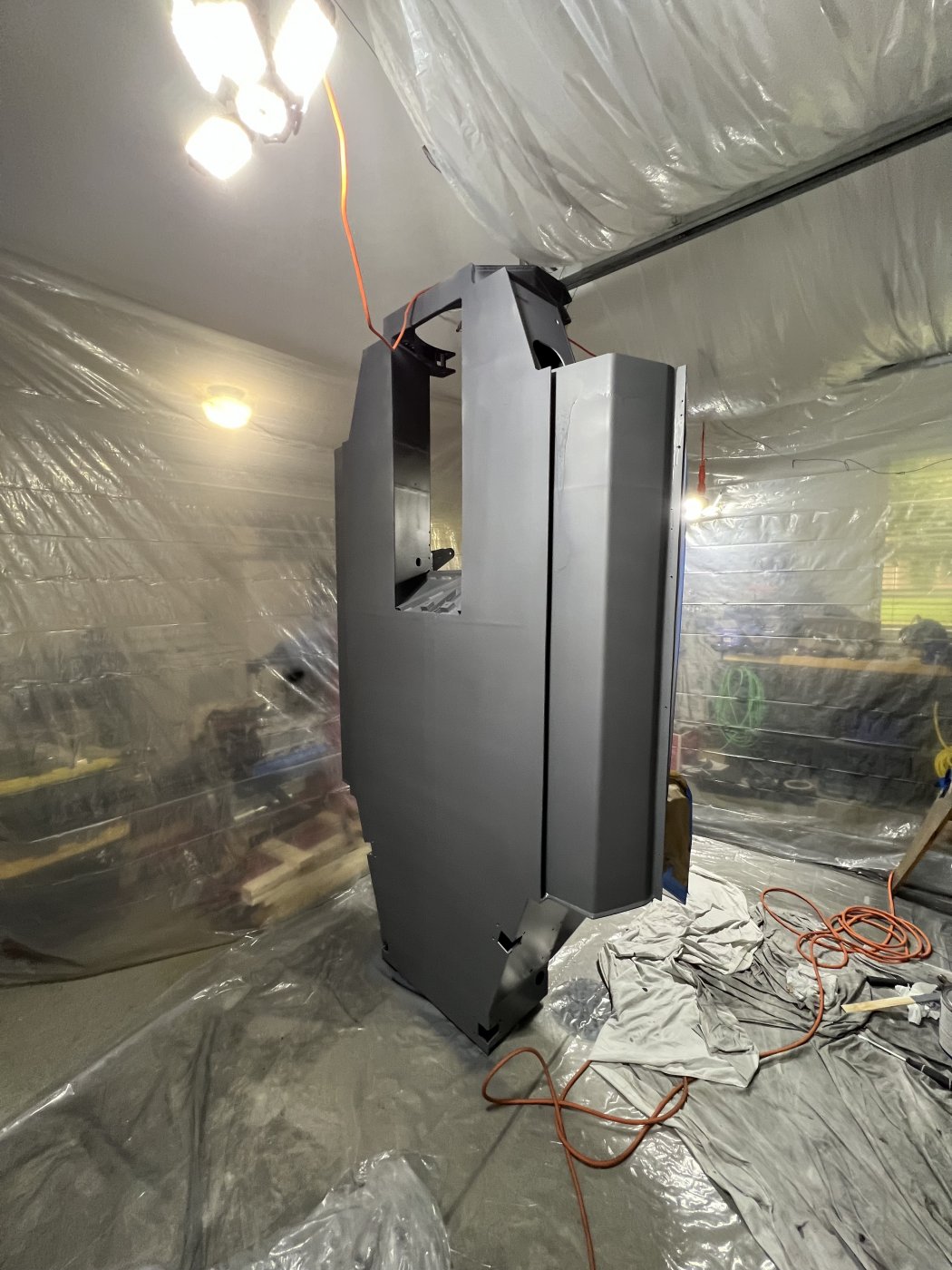

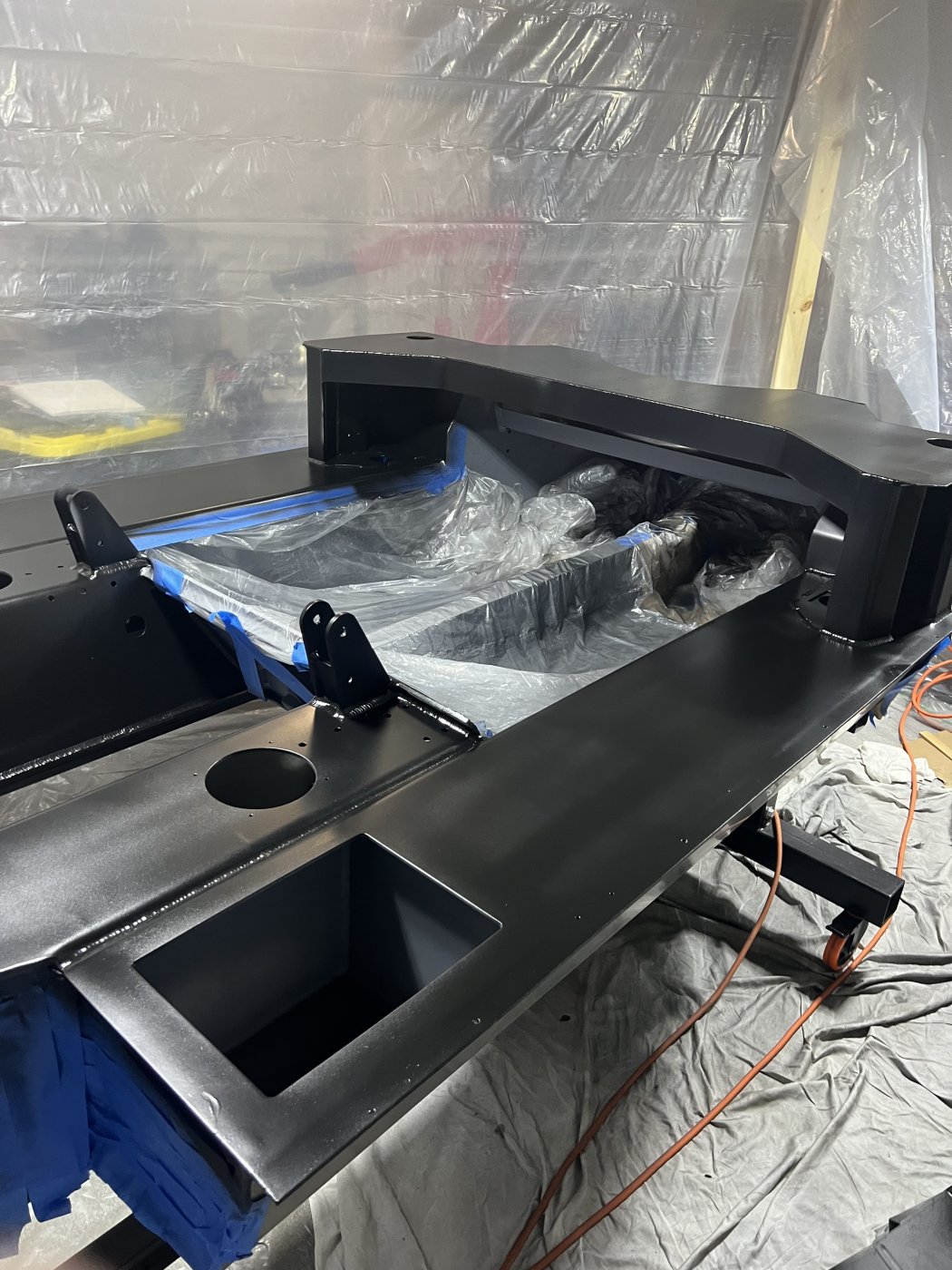

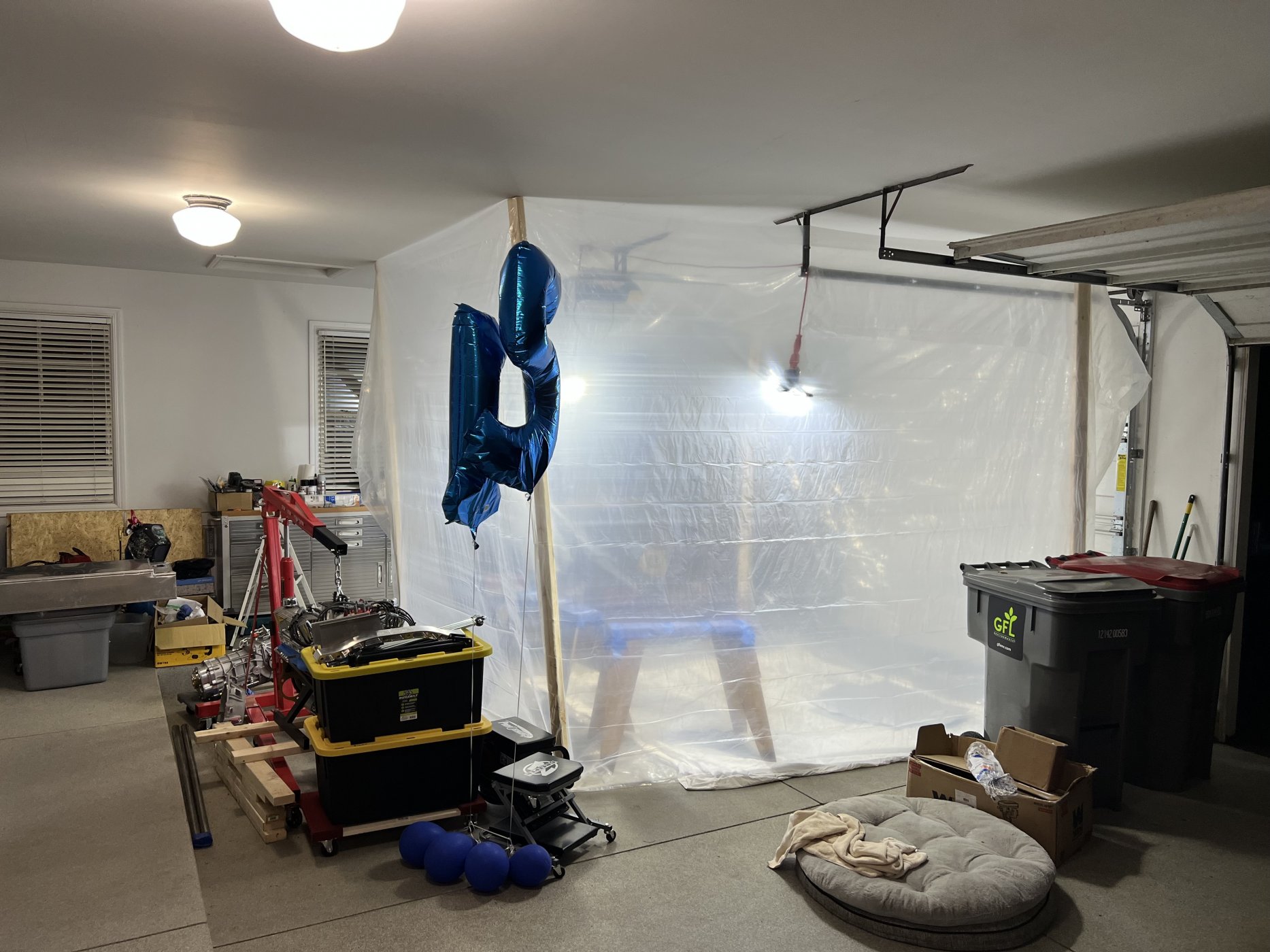

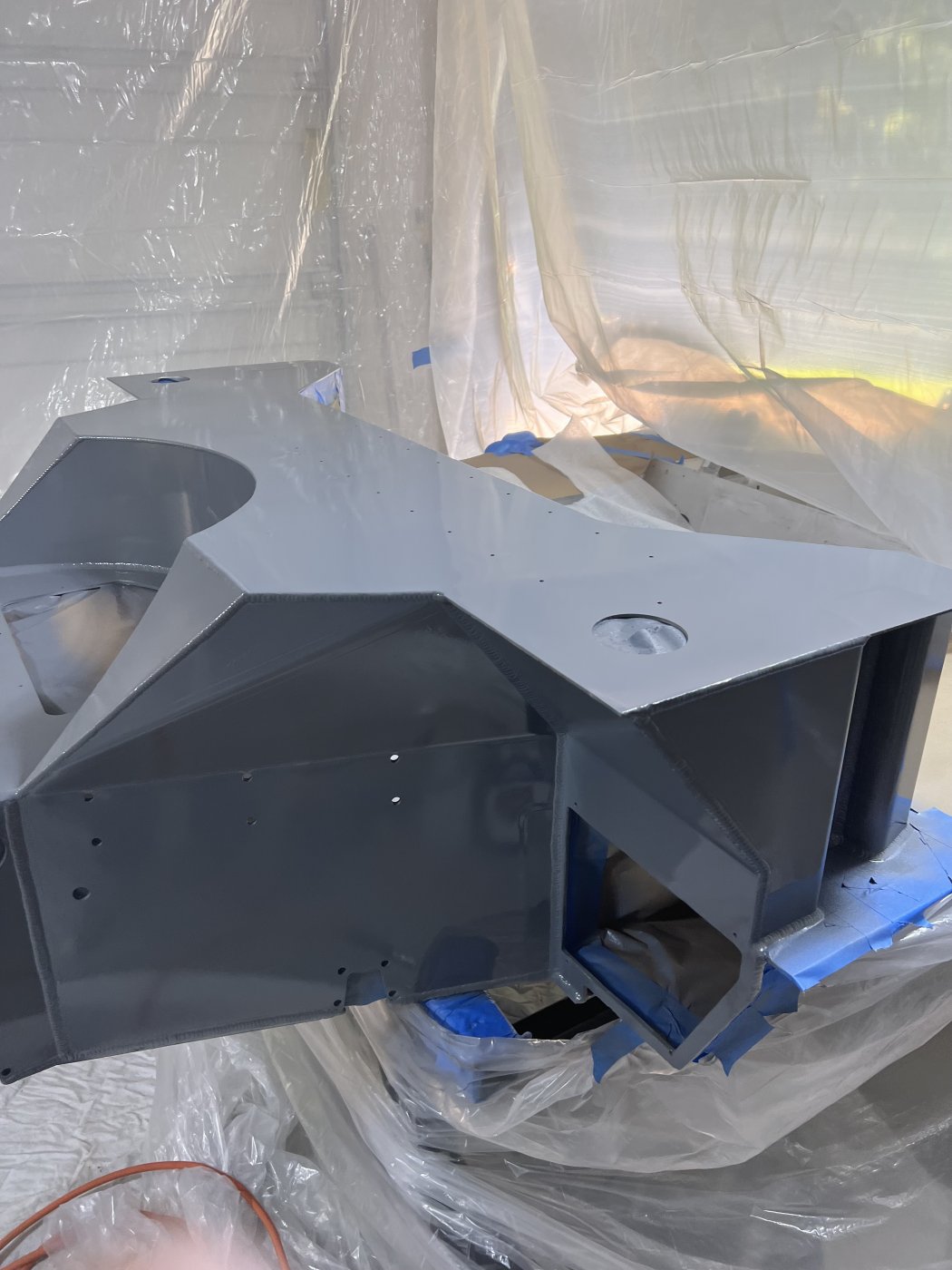

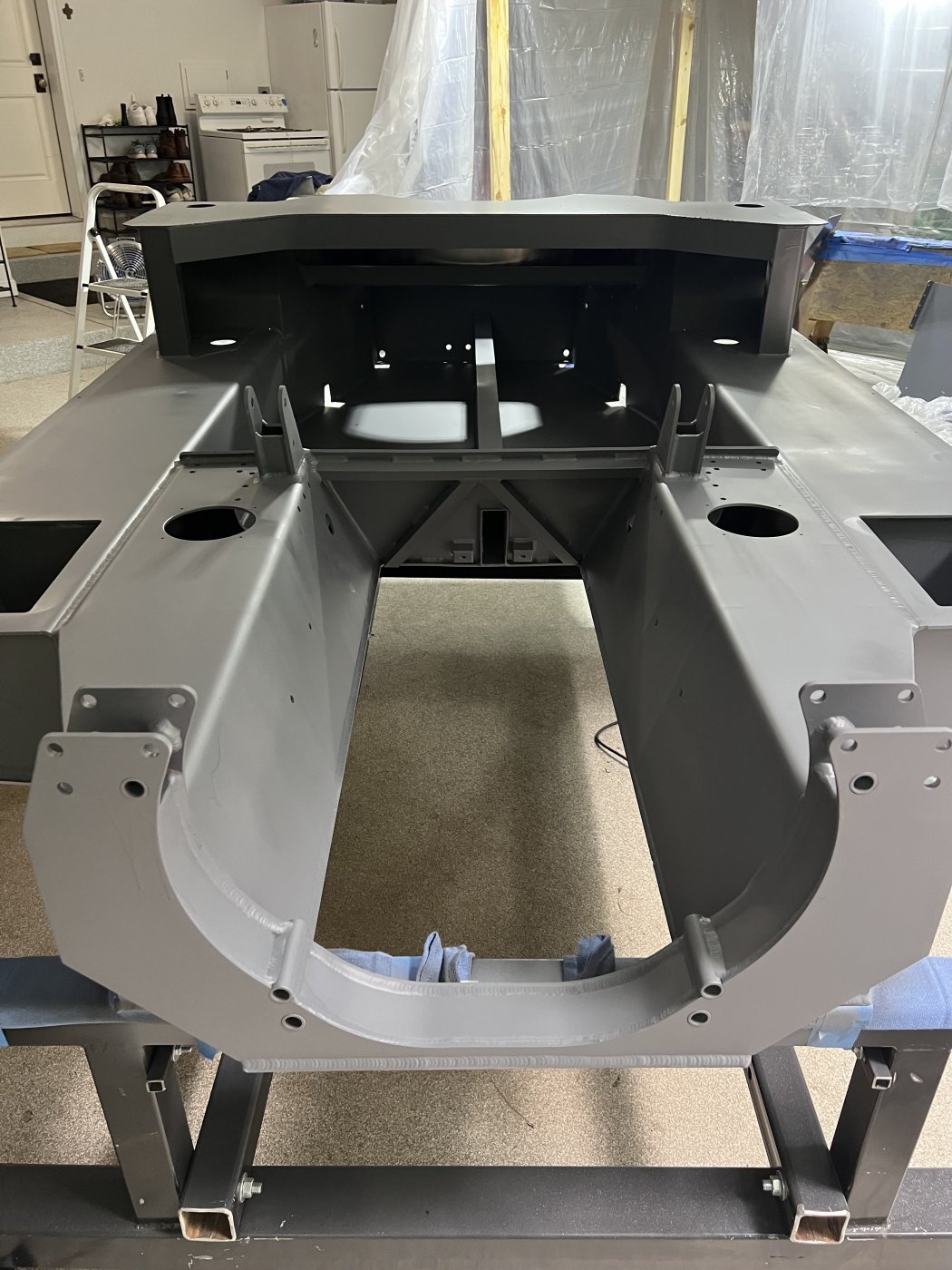

I started sanding and degreasing. I used 2 coats of epoxy primer and then chassis black from Eastwood. View attachment 132851View attachment 132852View attachment 132853View attachment 132854
I was about to ask! Some people don’t paint the aluminum panels and I was wondering why? What are the cons and pros.


Klaf

Supporter
I was about to ask! Some people don’t paint the aluminum panels and I was wondering why? What are the cons and pros.
Again, I’m no expert. Here’s my reasoning. The aluminum does oxidize. However, I don’t think holes would appear in our lifetime. One guy polished the entire chassis like he was trying to win an Overdrive Pride and PoIish competition. Got to get it to a mirror like finish. I went with 2k epoxy primer with chassis paint over top. Others use POR 15 and look up some posts from Neil. He uses airplane grade etch to prevent oxidation. I think it looks cool with a black backdrop behind the engine. I was planning on raptor liner for the undercarriage and lizard skin inside. Both require a primer over the bare metal. Plus, it gives me something to drag this entire endeavor out, while I wait for my air conditioner parts.


Rod Dittmar

Supporter
Andres,
I don't think there are any cons to applying paint to the aluminum unless of course you just don't like the look of it. However, because it will oxidize, you should coat it with something. If you like shiny, then put a product such as Sharkhide on it. Very easy to apply, I used it on the Cobra I built 8 years ago and the panels still look as good today as they did back then. Meanwhile, back to Steve's build log.....
Rod


Neil

Supporter
I was about to ask! Some people don’t paint the aluminum panels and I was wondering why? What are the cons and pros.
Painting aluminum panels is more that simply for appearance. A fundamental question is "What is the aluminum alloy?" Some alloys, mainly the weldable grades are suitable for leaving bare. So, too are the "Alclad" alloys, the ones with a very thin skin of pure aluminum bonded to their outside surfaces. High-strength alloys such as 2024-T3 or 7075-T6 are very corrosion -prone and should be coated with primer at a minimum. My stressed bottom panel is 7075-T6, the highest strength aluminum alloy, so there was no option of leaving it bare.


Klaf

Supporter

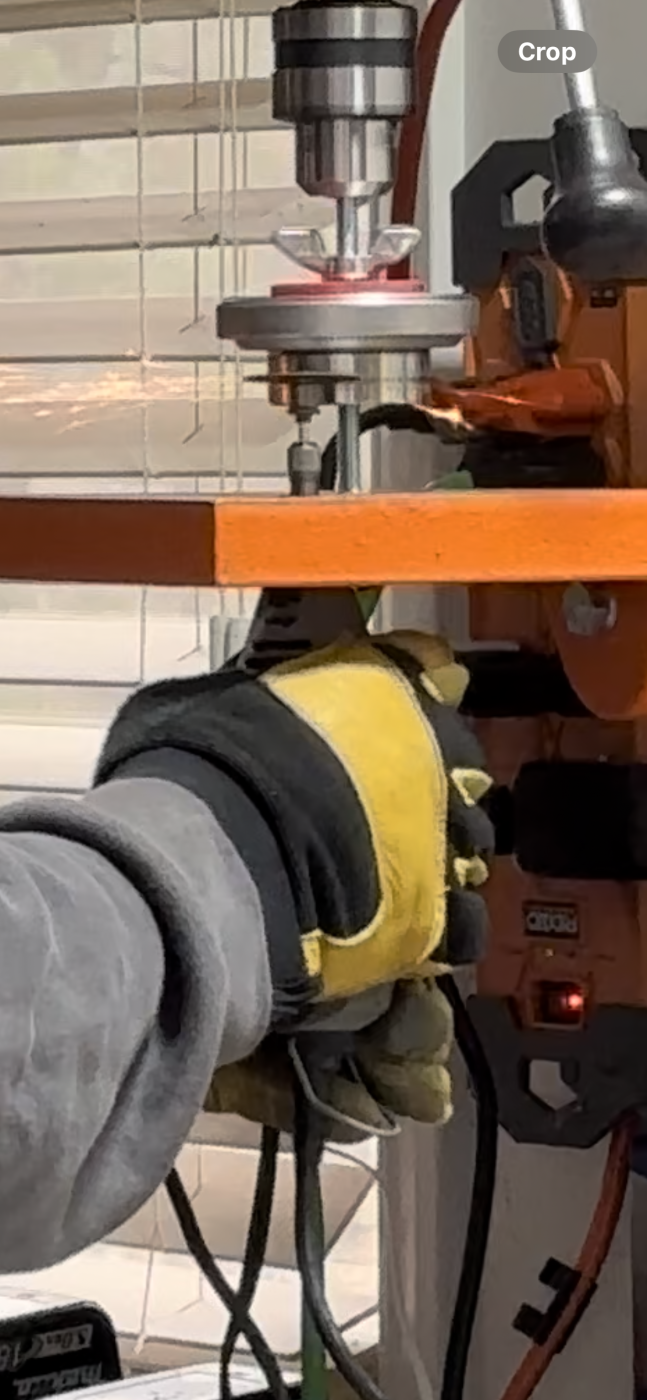

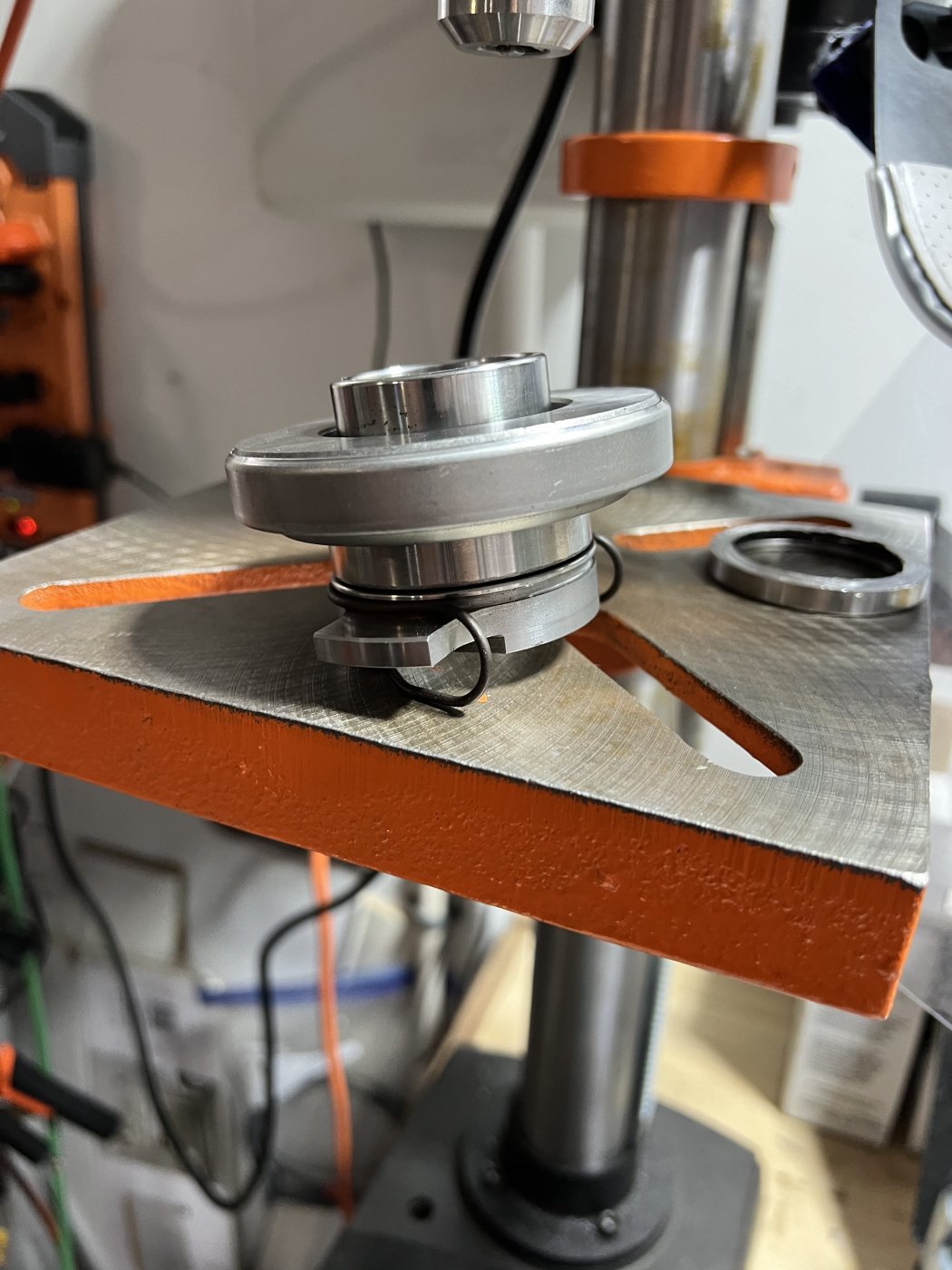

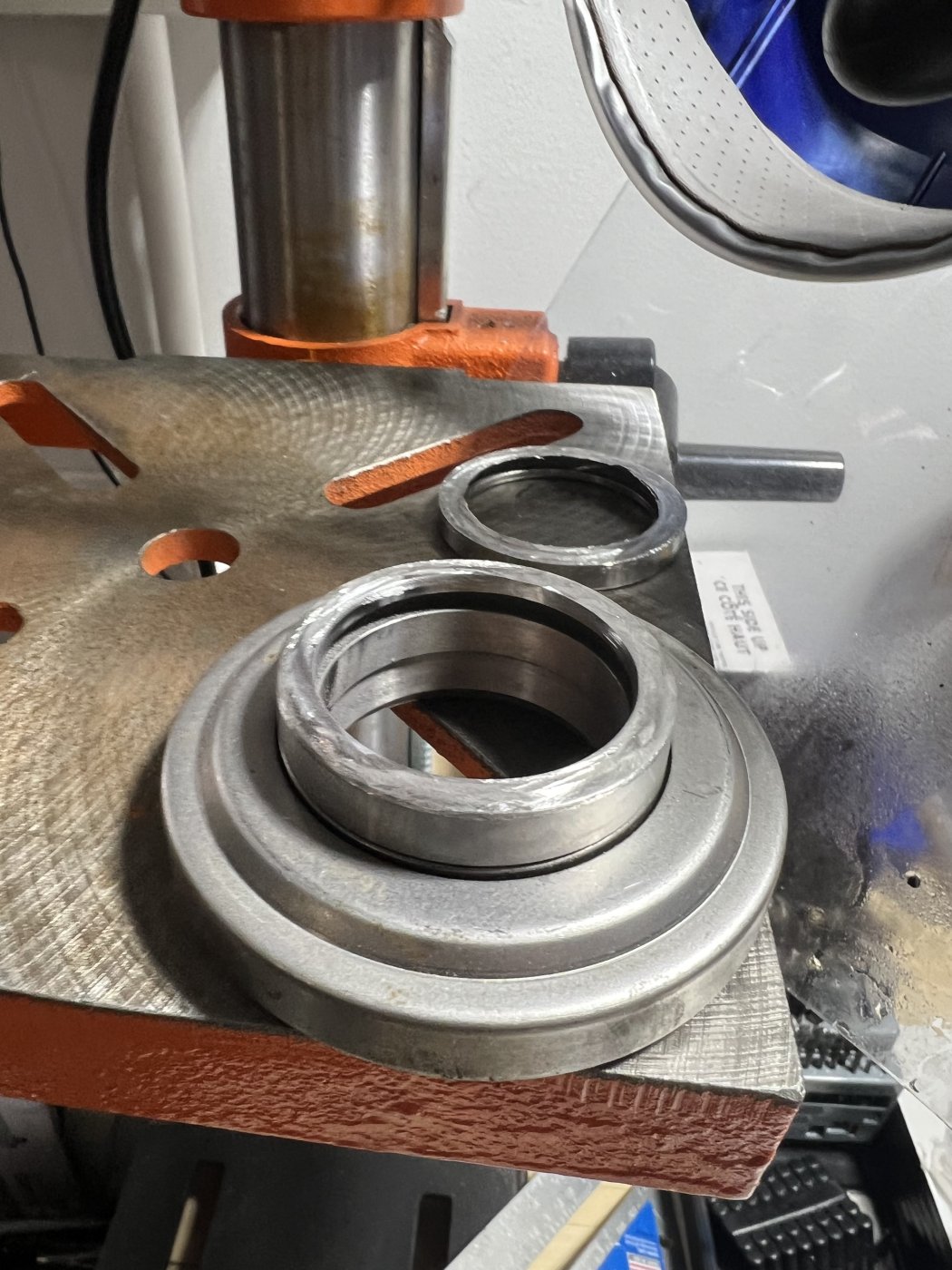

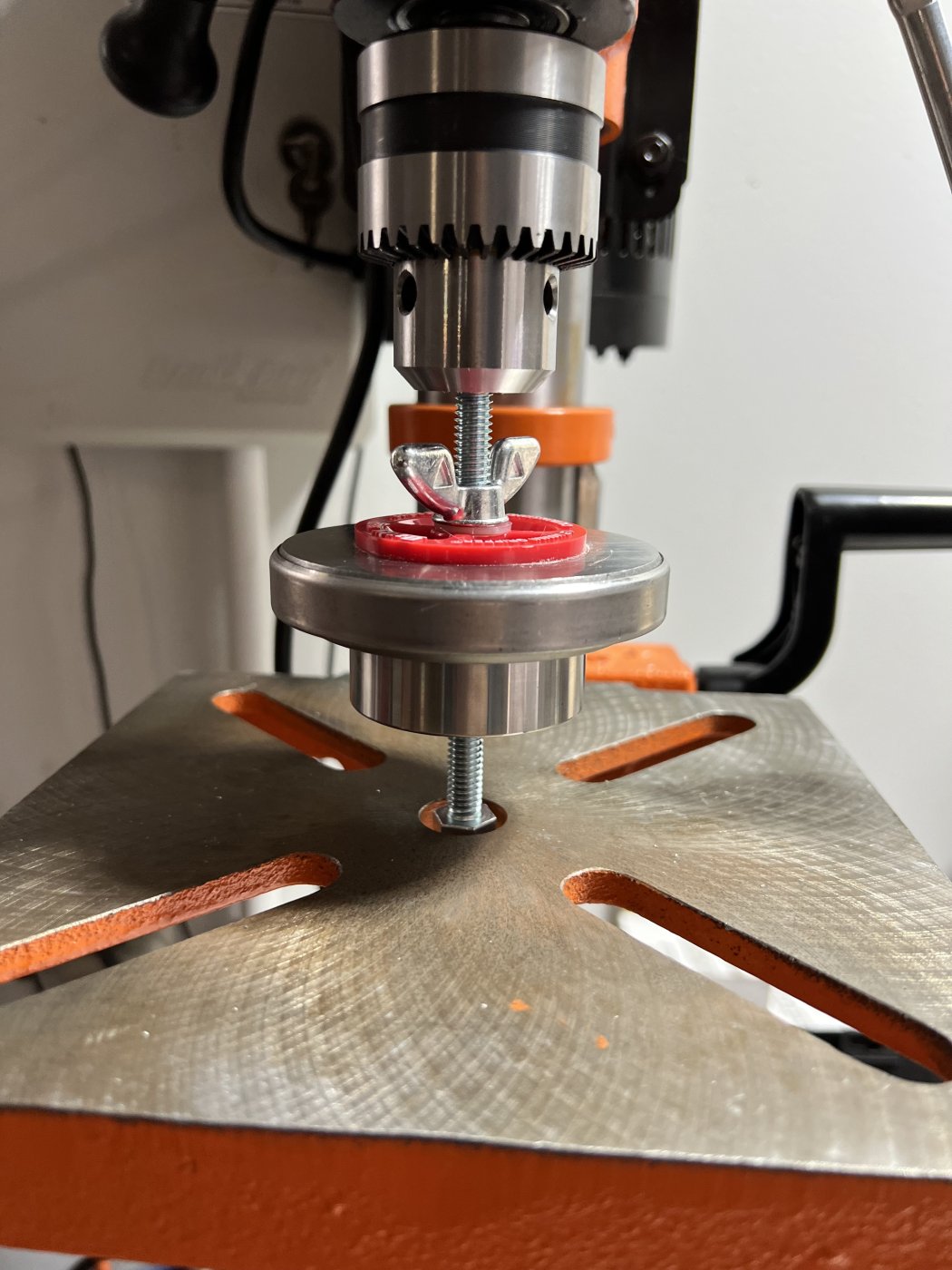

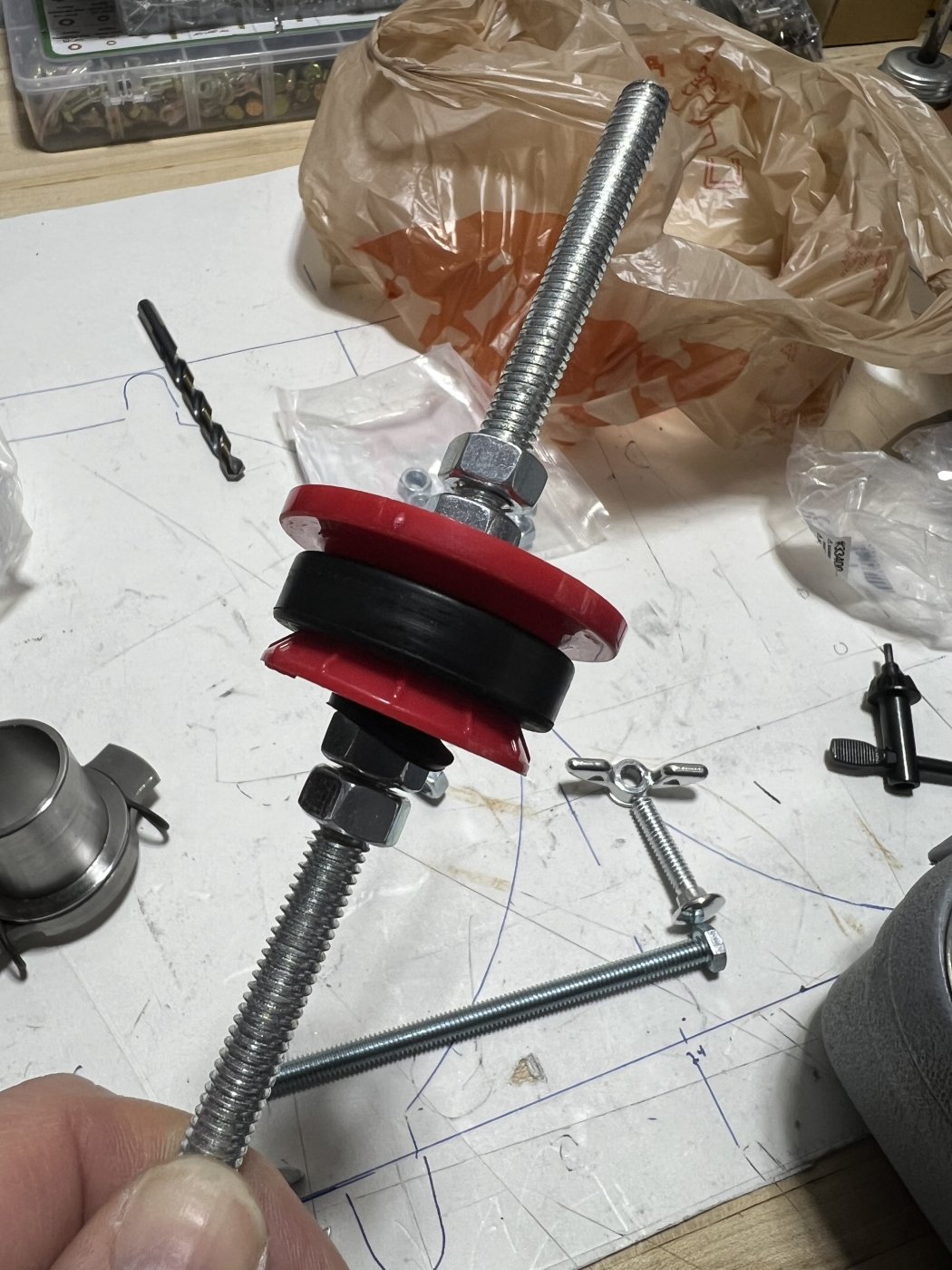

Here is a short holiday update. I had a small victory with my greatest nemesis to date. I posted long ago the problem I was having with my throw out bearing being too long. I had a machinist friend holding on to it for months to no avail. He was concerned about turning hardened steel and the number of blades he would destroy trying to cut it. Thank God for YouTube. I found 2 guys from Australia cutting a motorcycle axle. I turned my drill press into a lathe and used a dremel drill. I was able to get the center axis of the bearing using an expandable wedge stopper for 2 inch pipe for $5.00 from Home Depot.







Here is a short holiday update. I had a small victory with my greatest nemesis to date. I posted long ago the problem I was having with my throw out bearing being too long. I had a machinist friend holding on to it for months to no avail. He was concerned about turning hardened steel and the number of blades he would destroy trying to cut it. Thank God for YouTube. I found 2 guys from Australia cutting a motorcycle axle. I turned my drill press into a lathe and used a dremel drill. I was able to get the center axis of the bearing using an expandable wedge stopper for 2 inch pipe for $5.00 from Home Depot. View attachment 135045View attachment 135046


View attachment 135047


View attachment 135048
Nice work Steve Merry Christmas!


Rod Dittmar

Supporter
Steve,
Nice job solving a problem using a rather interesting bit of machining! Ya gotta love ingenuity! How many of those Dremel discs did you go through to do that?
Rod
