What’s this????

[Simon]

Stripping down a 302 for rebuild (roller cam block)

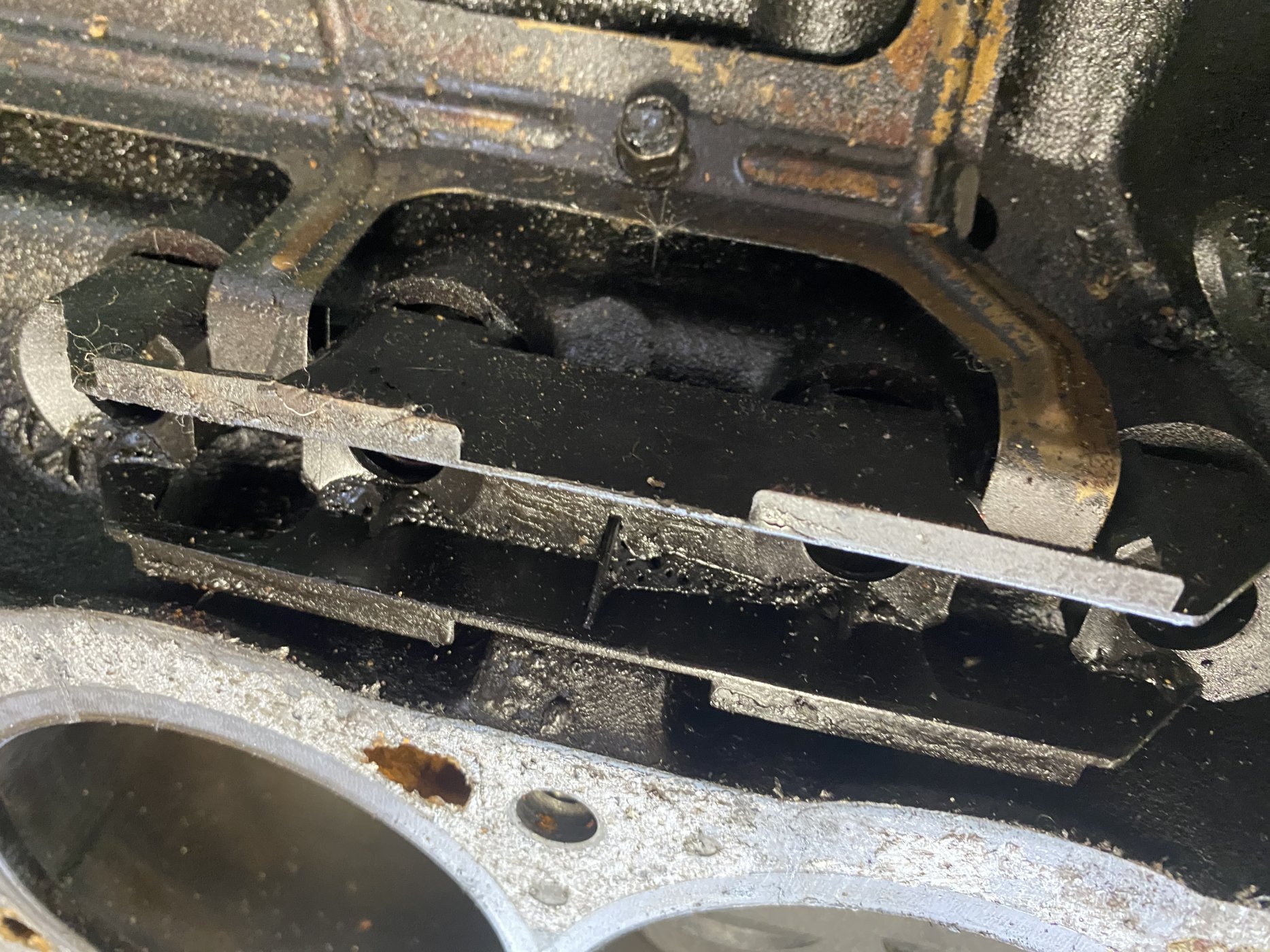

But apart from the “spider” which holds the lifters in place, what is the steel contraption on the lifter? See puc



[Randy V]

Looks like the Alignment Bracket that keeps the roller lifters properly oriented to the rotation of the cam…
Many engines use steel “dog bones” to accomplish the same thing..



[Simon]

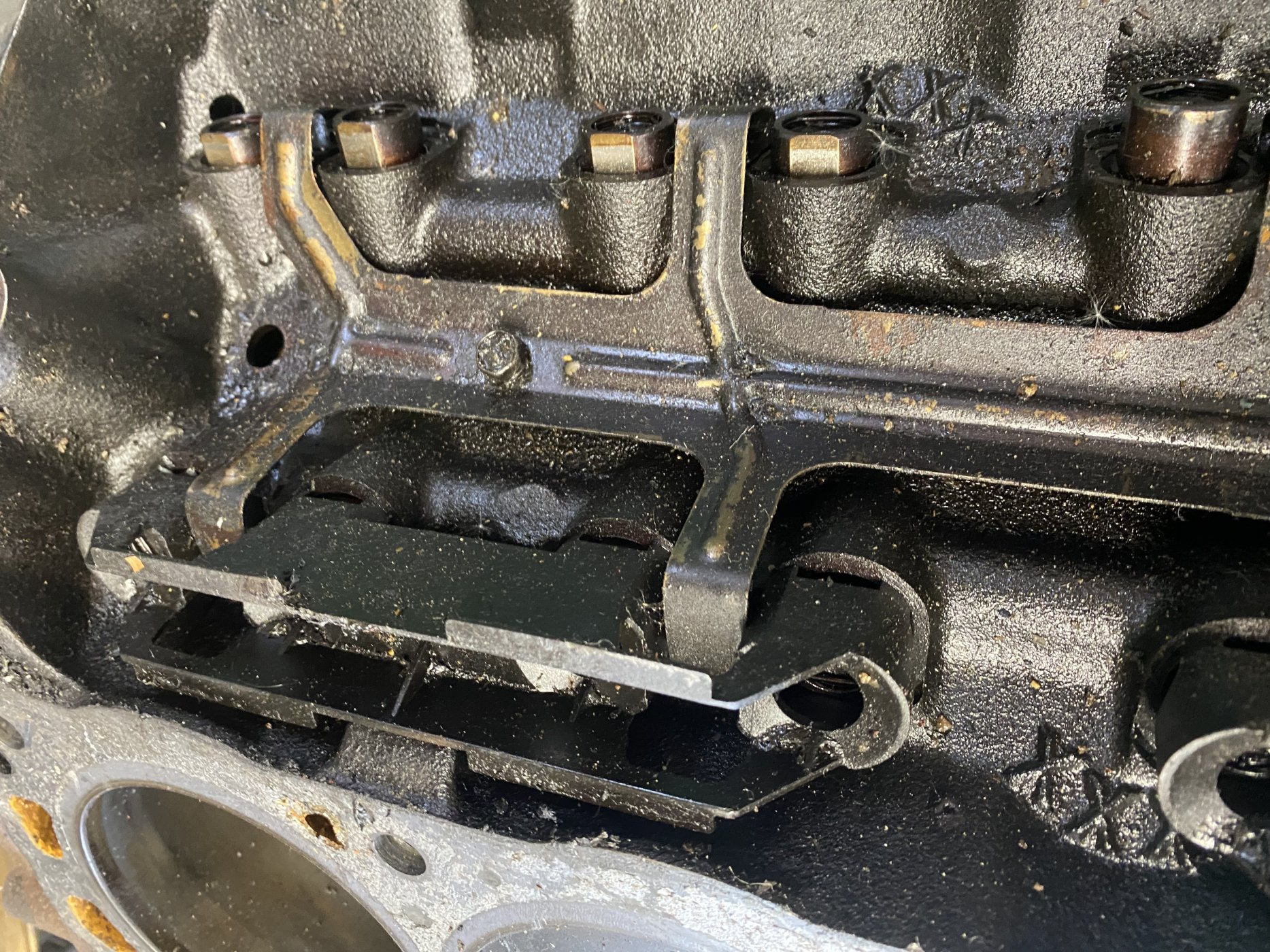

It’s got the “dog bones” underneath, I’m confused as to why this is fitted as well…



[Larry L.]

"Looks like the Alignment Bracket that keeps the roller lifters properly oriented to the rotation of the cam"

A few of the roller cam lifter "alignment" systems I've always been familiar with are shown below:






analiticaderetail.com
· In stock
Tornász homoszexuális le roller lifters maga skót mestermű
Hot Rod Engine Tech Johnson Lifters Guide: Solid Mechanical Roller Lifters - Hot Rod Engine Tech

Hot Rod Engine Tech
Hot Rod Engine Tech Johnson Lifters Guide: Solid Mechanical Roller Lifters - Hot Rod Engine Tech
COMP Cams Short Travel Link Bar Hydraulic Roller Lifters Pair Chrysler Hemi 6.4L - 15820-2 - Unleashed Tuning

Unleashed Tuning
· In stock
COMP Cams Short Travel Link Bar Hydraulic Roller Lifters Pair Chrysler Hemi 6.4L - 15820-2 - Unleashed Tuning
Melling F1900RF16 High Performance Hydraulic Roller Lifter | eBay

5+ stores

eBay
· In stock
Melling F1900RF16 Engine Valve Lifter-Performance
maXpeedingrods Hydraulic Roller Valve Lifters for Ford SBF Small Block 302 221 255 260 289 | 351W 351C 351M 400M hydraulic roller cam kit, Cam & Lifter Kits - Amazon Canada

Amazon.ca
· In stock
maXpeedingrods Hydraulic Roller Valve Lifters for Ford SBF Small Block 302 221 255 260 289 | 351W 351C 351M 400M hydraulic roller cam kit, Cam & Lifter Kits - Amazon Canada
Morel SBF Windsor .875" OD Solid Roller Lifters 4713

Vincent Performance
· In stock
Morel SBF Windsor .875" OD Solid Roller Lifters 4713



[Terry Oxandale]

Simon, I'd say you've stumped the chump(s) on this one. Never seen anything like it.



[Randy V]

Simon - I'm not familiar with them then.
Larry - Those are aftermarket Tie-Bar Roller Lifters. I have never seen a Tie-Bar setup from an OEM like Ford, Chevrolet, Dodge, et al...



[Larry L.]

Larry - Those are aftermarket Tie-Bar Roller Lifters. I have never seen a Tie-Bar setup from an OEM like Ford, Chevrolet, Dodge, et al...

Understood, Randy. (I've never seen an OEM "Tie-Bar setup" either!)
'Only intent was to show the type of 'system I (and I'd bet most of us!) have always used / been familiar with as opposed to Ford's OEM setup. ;-)



[Paul Hendrickx]

Simon,
I found this

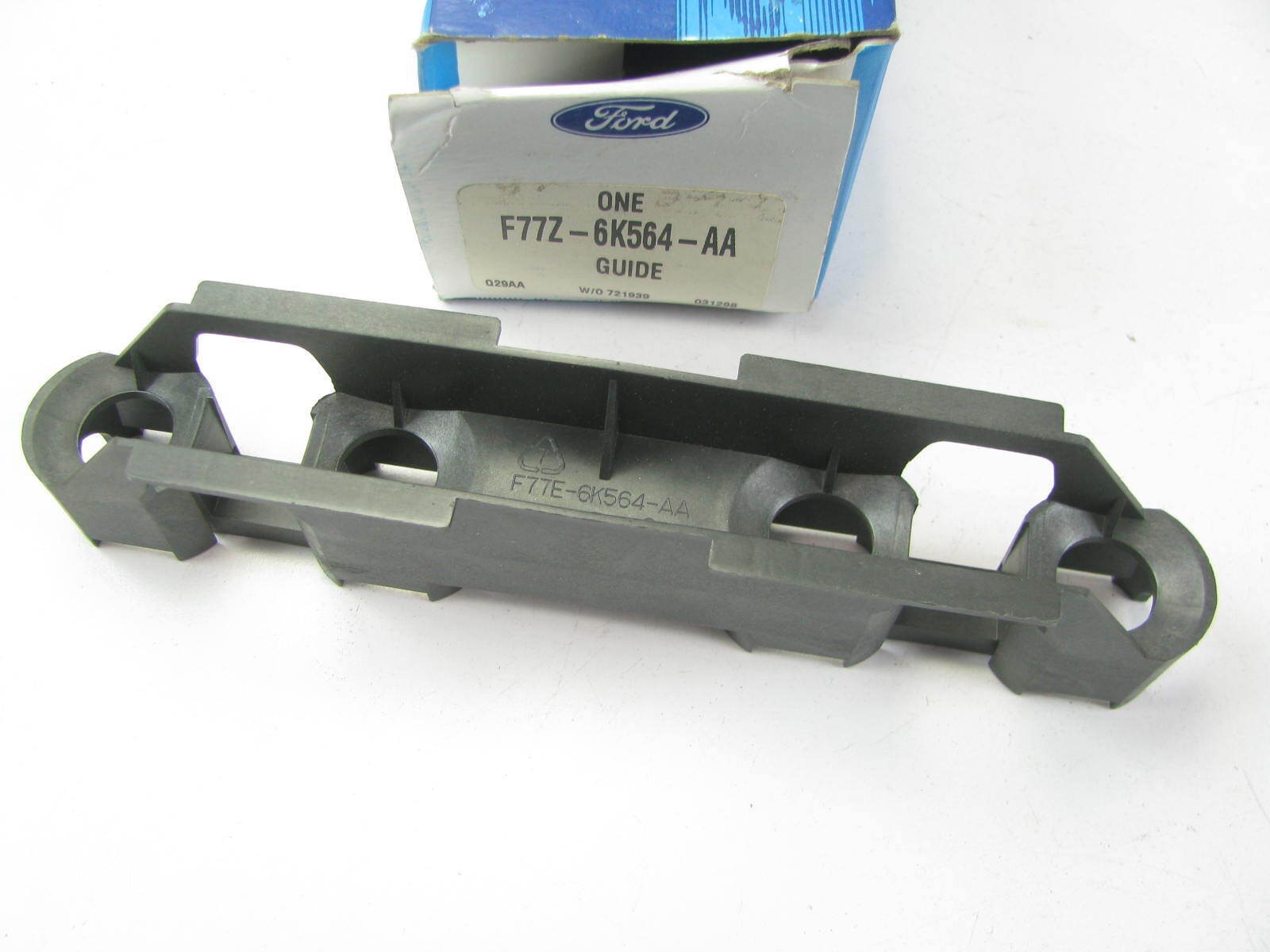

FORD OEM GUIDE F77Z*6K564*AA for sale online | eBay

Find many great new & used options and get the best deals for FORD OEM GUIDE F77Z*6K564*AA at the best online prices at eBay! Free shipping for many products!

www.ebay.com

seems to be original part on explorer engine

Paul



[Paul Hendrickx]

and this

Alternative to dog bones in lifter valley? Updated with...

Car is an 86 5.0 Mustang. Long story short, heard weird noise, analyzed under valve covers with rockers/girdle/pushrods removed and I can see through the pushrod tunnel in the heads (with a bright shop light) that exhaust lifter on cylinder 3 is slightly turned and it appears dog bone is...

www.corral.net



[William PRO-V8]

Those plastic parts are factory 5.0L roller block "dog bonnes" version from the 90's.
Some say they are better than the steel one.
But you can't have both !!!! You must chose Steel or plastic



[Brian]

A plastic guide to keep the lifter from going sideways and wiping a cam. Hmmm. What could go wrong.

That's almost as awesome as the plastic timing gears they used that always eventually shed the plastic and retard the cam until the exhaust valves smack the pistons.



[Howard Jones]

That is a beancounter/minivan part.

This is a hot rod part.

https://www.compcams.com/endure-x-solid-roller-lifters-for-ford-289-351w-875-dia-centered-set-of-16.html



[Simon]

It’s got the “dog bones” underneath, I’m confused as to why this is fitted as well…

Upon closer inspection, I see this is a substitute for the “dog bones” and yes, cheaply cheapy.
it’s a ‘95 roller block, I’ve only every had experience of early 302s before
Simon
