WANTED: GT40 MkII Wiper Assembly (Motor/Gearbox/Arm)

[Derek]

Looking to buy a MkII wiper assembly (Boeing)

Only interested in quality, ready to run parts. No repaired damage.

Let me know what you got.



[Are Farovig]

Dear Sir
Is it the Boeing 707 version, or would a set from a 737 be okay ?



[Ian Anderson]

Hi
My brother who is an aircraft engineer confirmed that the 707 737 and 727 have the same systems installed.

Ian



[Are Farovig]

I just bought a pair of boeing 737 wiper-arms = I have one for sale. It’s still with the postal service, I will post a picture and price when it arrives.



[Are Farovig]

I just bought a pair of boeing 737 wiper-arms = I have one for sale. It’s still with the postal service, I will post a picture and price when it arrives.

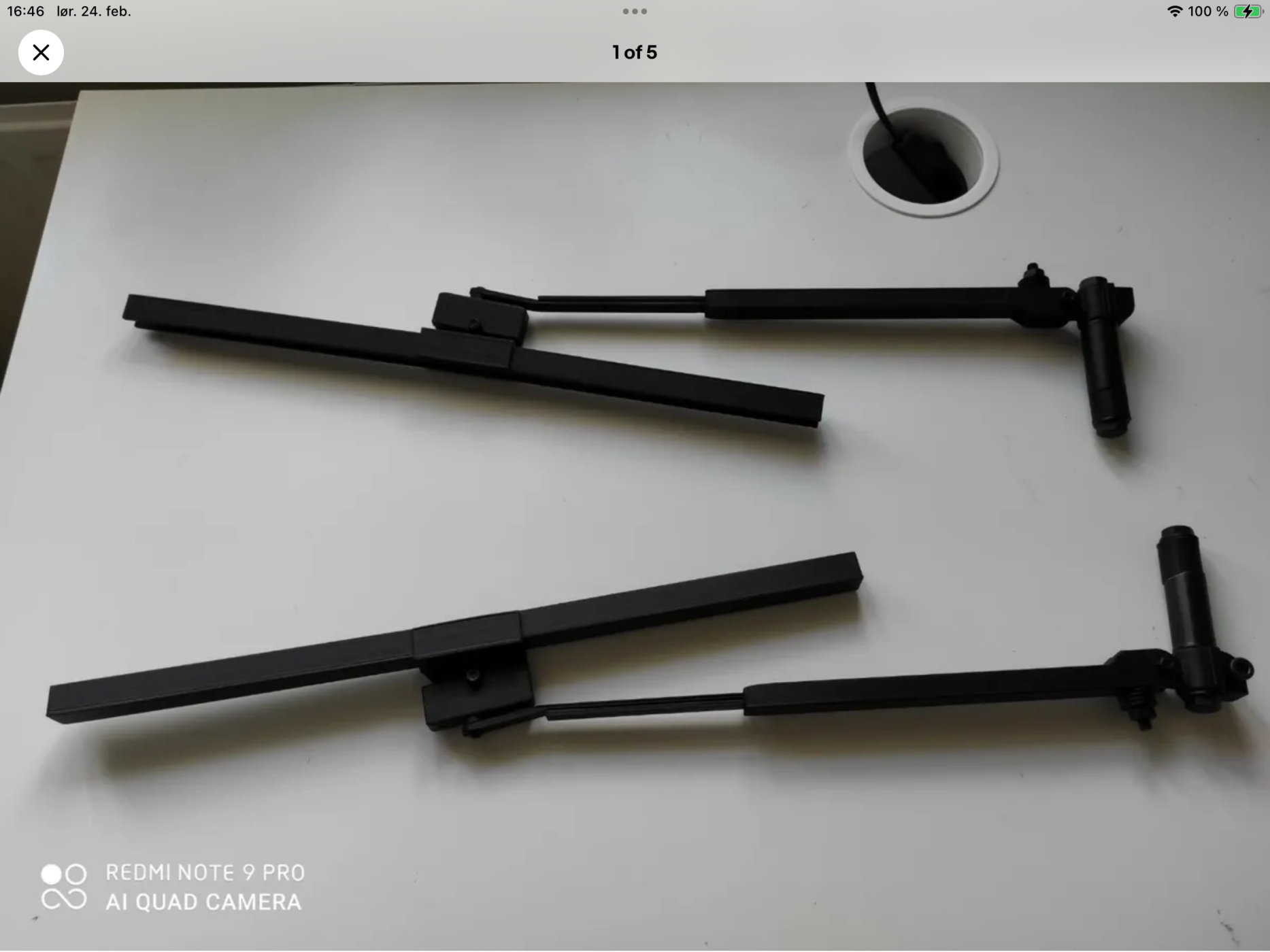

Picture from the seller



[Derek]

I just bought a pair of boeing 737 wiper-arms = I have one for sale. It’s still with the postal service, I will post a picture and price when it arrives.

That wiper arm is not original to the GT40, way too short. My search leads me to believe that the original wiper arm came from a Bell Huey Helicopter. Still on the hunt...



[Mark H.]

What would be the correct length of the arm?



[Derek]

What would be the correct length of the arm?

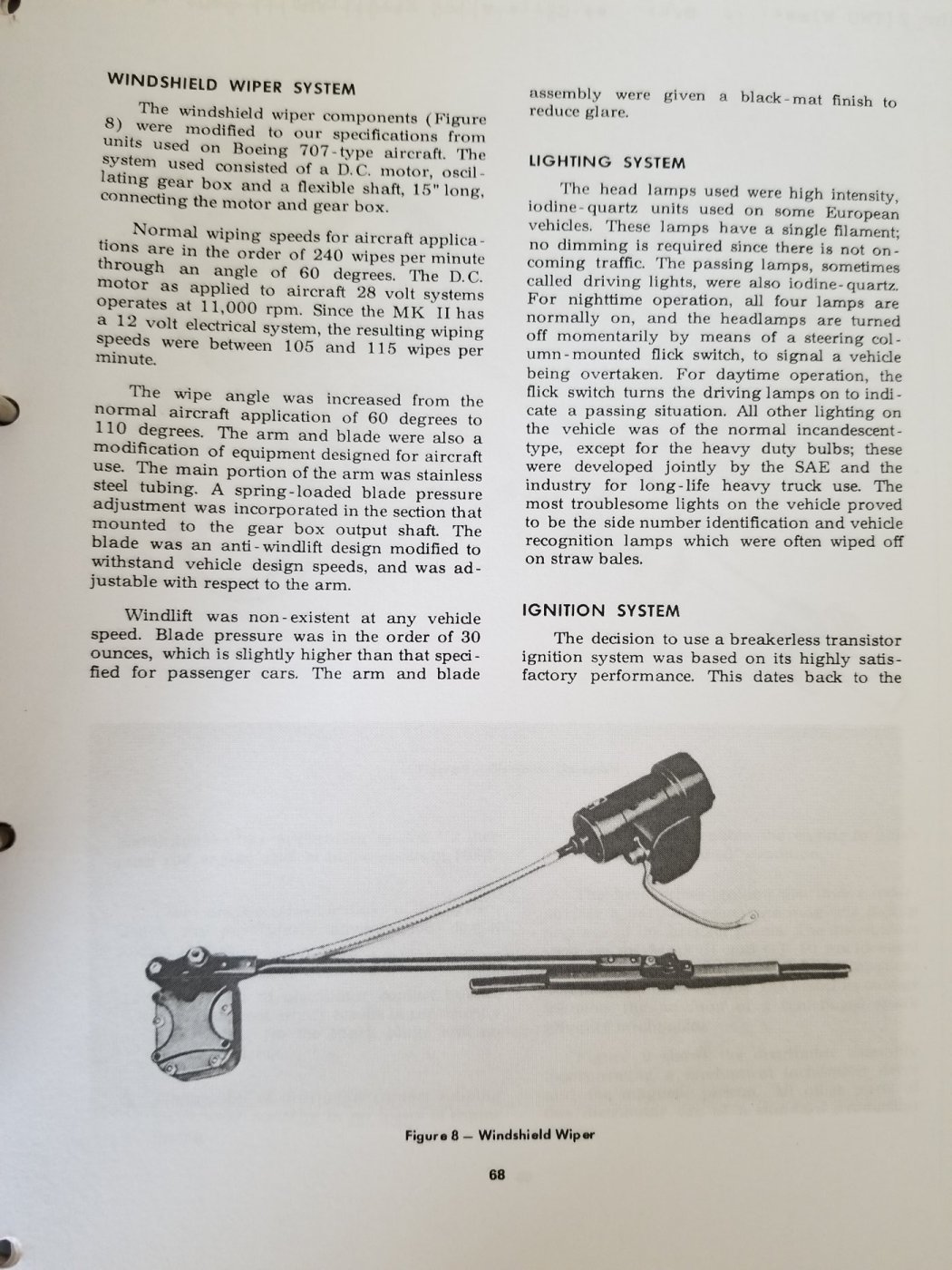

I'm not sure, this article is the only reference I can find on this setup and it doesn't mention arm length. However it does mention the shaft length from motor to gear box being 15" so based on this, the wiper arm looks longer than this shaft. So the arm's gotta be somewhere between 15" and 20" in length. My best guess anyway...



[Mark H.]

There appears to be two nuts on the on the top of the arm near the box. Wonder if the one nearest the wiper is the pressure adjustment referenced in the paper?



[Derek]

There appears to be two nuts on the on the top of the arm near the box. Wonder if the one nearest the wiper is the pressure adjustment referenced in the paper?

My thoughts as well. Hoping I can find this arm somewhere....



[Morten]

Still, even with a conversion to 110deg sweep, its not enough to cover the windshield as 130deg or better will be needed to pass the registration process - atleast in the UK...



[Douglas]

Still, even with a conversion to 110deg sweep, its not enough to cover the windshield as 130deg or better will be needed to pass the registration process - atleast in the UK...

Every state in the US is different for home built or as mine calls it "self assembled vehicles", but I'm glad mine just has vague rules like: "The windshield on every motor vehicle, streetcar, and trackless trolley shall be equipped with a device for cleaning rain, snow, or other moisture from the windshield. The device shall be maintained in good working order and so constructed as to be controlled or operated by the operator of the vehicle, streetcar, or trackless trolley."



[Mark H.]

Going to an aircraft salvage facility next week. Hope to find 707, 27 or 37 wiper arm. Will let you know how I make out.



[Douglas]

Looking to buy a MkII wiper assembly (Boeing)

Only interested in quality, ready to run parts. No repaired damage.

Let me know what you got.

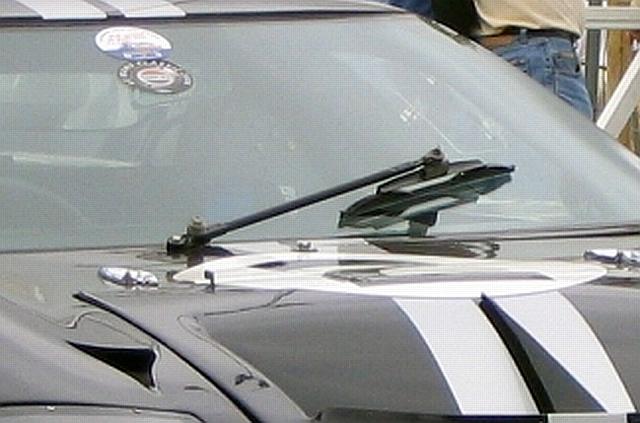

View attachment 136502

Contact AVMATS in Chesterfield Mo, they have a massive warehouse of old you name it everything aircraft, including aircraft parted out. Only issue you would have to find the right guy there to help out, the parts office people will only search known part numbers and have zero idea what they have. If someone can find an old 707 IPC they can find the part in the ILS database. Even someone at Aviall(Boeing) might help.



[Derek]

Going to an aircraft salvage facility next week. Hope to find 707, 27 or 37 wiper arm. Will let you know how I make out.

As stated above, the GT40 MkII wiper arm isn't from a Boeing aircraft. The Motor and Gear Box are (707) but the actual wiper arm is from a different aircraft. Some have suggested its from a Bell Huey UH-1 Helicopter... Keep us posted, I'm still looking for the 707 Gear Box and Motor myself, (as well as the wiper arm)



[Mark H.]

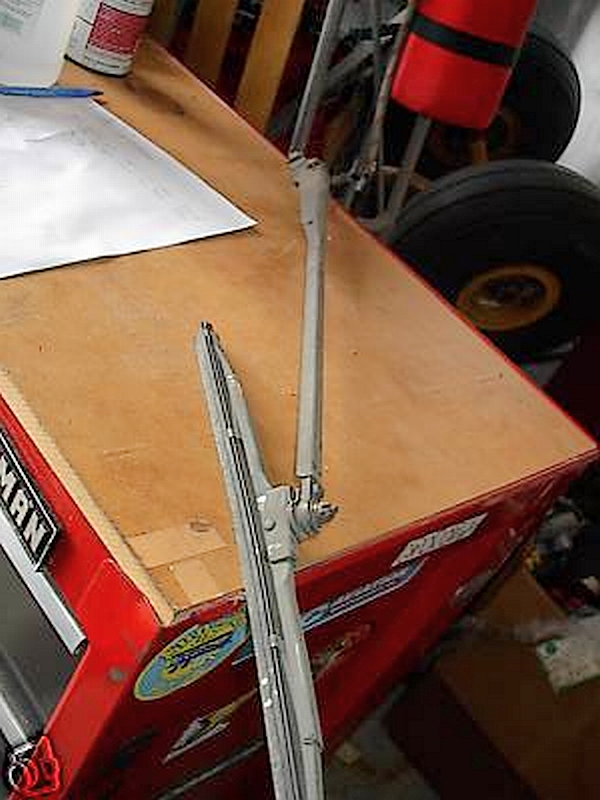

So... just to be clear, you are saying the drive components were used (motor, gear box, drive shaft) but the wiper arm itself was not, even though it is shown in the manual on pg 68. From the initial picture in this thread that arm appears to be 707 with the extra stud/nut on top of the arm. A Huey arm posted elsewhere on this site appears not to have this extra stud/nut affair in the picture attached.



[Derek]

So... just to be clear, you are saying the drive components were used (motor, gear box, drive shaft) but the wiper arm itself was not, even though it is shown in the manual on pg 68. From the initial picture in this thread that arm appears to be 707 with the extra stud/nut on top of the arm. A Huey arm posted elsewhere on this site appears not to have this extra stud/nut affair in the picture attached.

I don't know where the wiper arm is from exactly, only what others have suggested. (Bell UH-1) But I do know the wiper arm is not from a Boeing 707, the 707 wiper arms are way shorter in length...



[David mono]

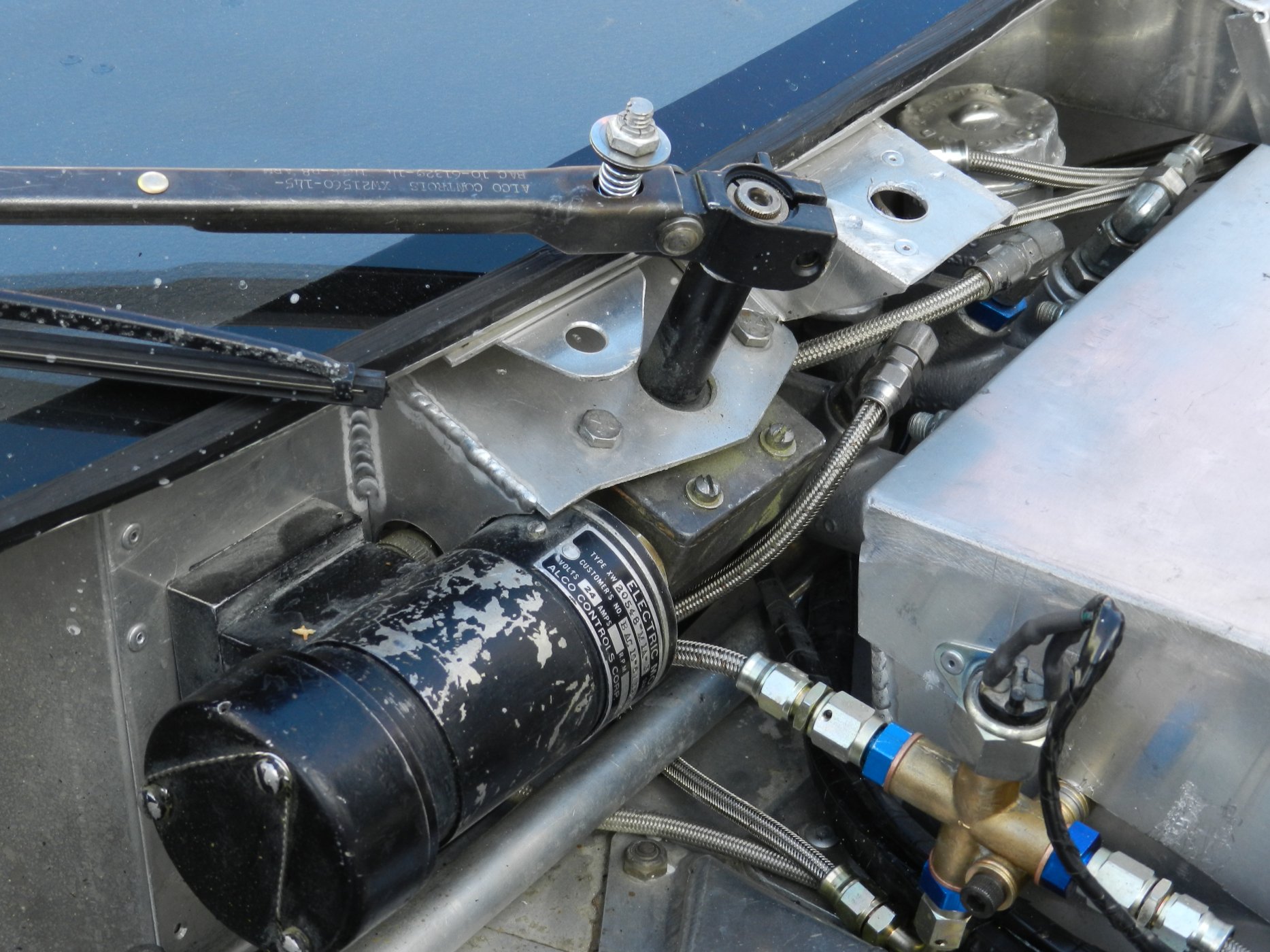

From J-9.



[Brian Kissel]

Looking at Dave's picture, I see it says Alco Controls on the wiper arm. A quick search brought up this one on Ebay. It is not the exact number. but they are a supplier of aircraft parts. Perhaps someone should ring them up and perhaps they could lend a hand.
Only a suggestion .

XW21559-1 (Alt: 551-950) Alco Controls Windshield Wiper Arm Assembly LH | eBay

8538200 (Alt: 50544-000) Harrison HE29-182 Bleed Air Intercooler Assembly. 4610-00 (Alt: 492-229) Dukes Inc Outflow Safety Valve Assembly. 763-043 (Alt: P601793) Pratt & Whitney Starter Air Inlet Assembly.

www.ebay.com

regards Brian



[Douglas]

Looking at Dave's picture, I see it says Alco Controls on the wiper arm. A quick search brought up this one on Ebay. It is not the exact number. but they are a supplier of aircraft parts. Perhaps someone should ring them up and perhaps they could lend a hand.
Only a suggestion .

XW21559-1 (Alt: 551-950) Alco Controls Windshield Wiper Arm Assembly LH | eBay

8538200 (Alt: 50544-000) Harrison HE29-182 Bleed Air Intercooler Assembly. 4610-00 (Alt: 492-229) Dukes Inc Outflow Safety Valve Assembly. 763-043 (Alt: P601793) Pratt & Whitney Starter Air Inlet Assembly.

www.ebay.com

regards Brian

I did the same thing, little zoom action

PN: xw21560-145
