Dave Morton - A Ressurection

Hi all, hope you're all busy building?

I've been gratefully tasked with bringing Dave Mortons GTD40 back to life.

The job here at Classic Car Restorations UK is to:

Fit a Southern GT supplied rear chassis section and rear suspension components, and customer supplied rear uprights, hubs and brake components
Fabricate new engine mounts
Make and fit new rear horseshoe aluminium panels
Adjust bunch of snakes to fit
And get the car running again

Dave had originally got someone to start the work, but the work couldn't be completed.
The project then stalled due to Dave's unfortunate ill health, and I've stepped in to complete the project.

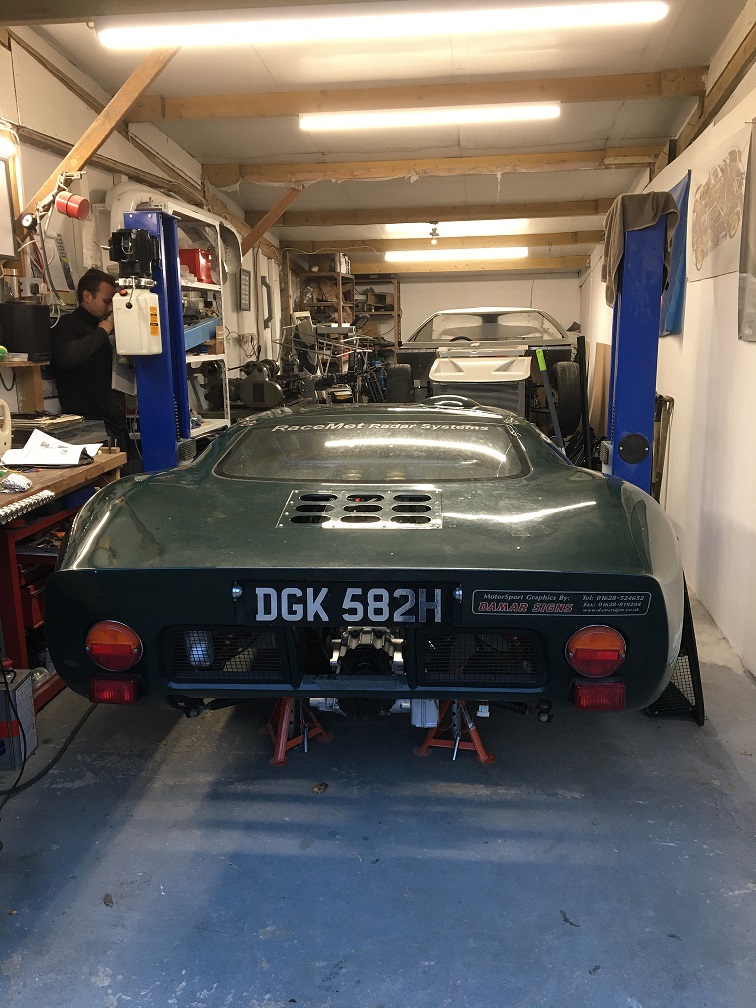

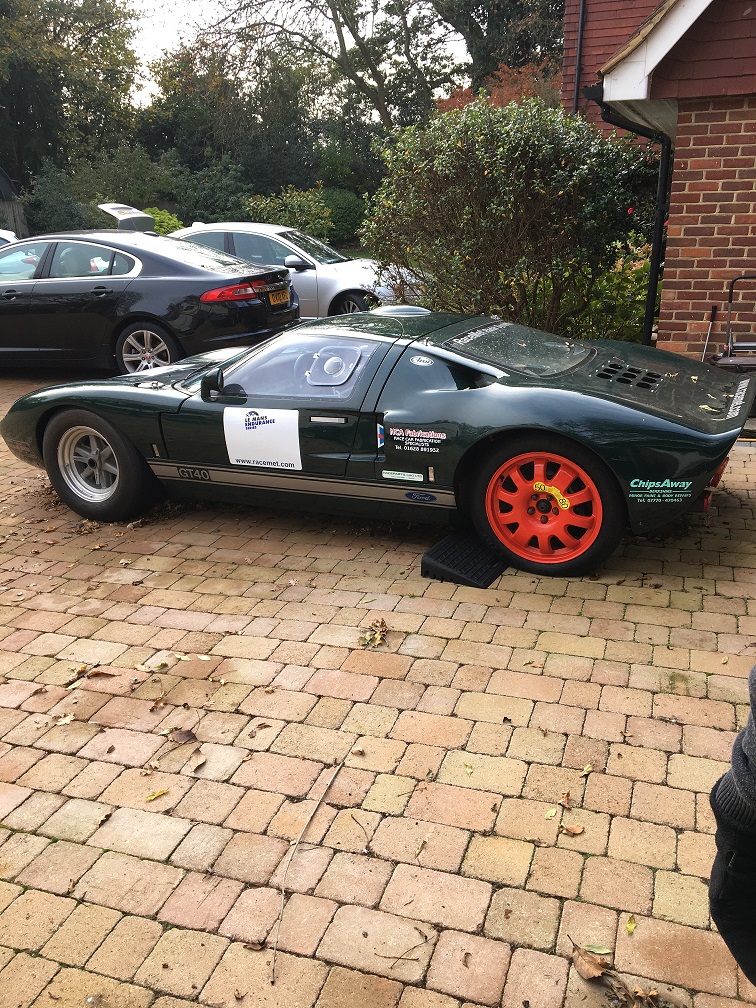

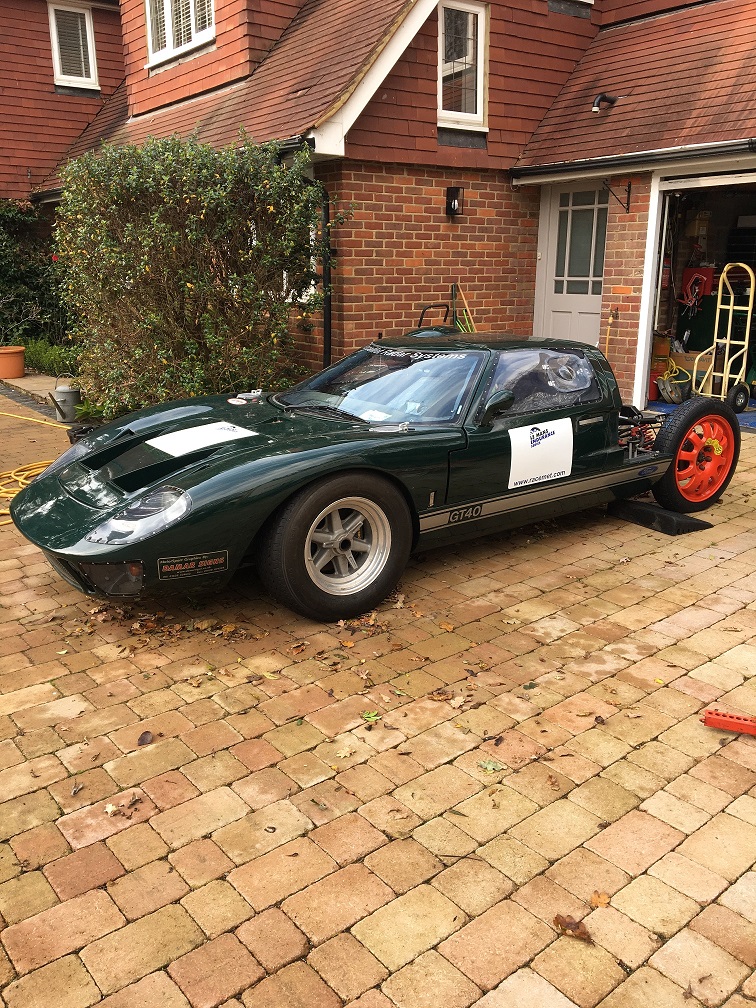

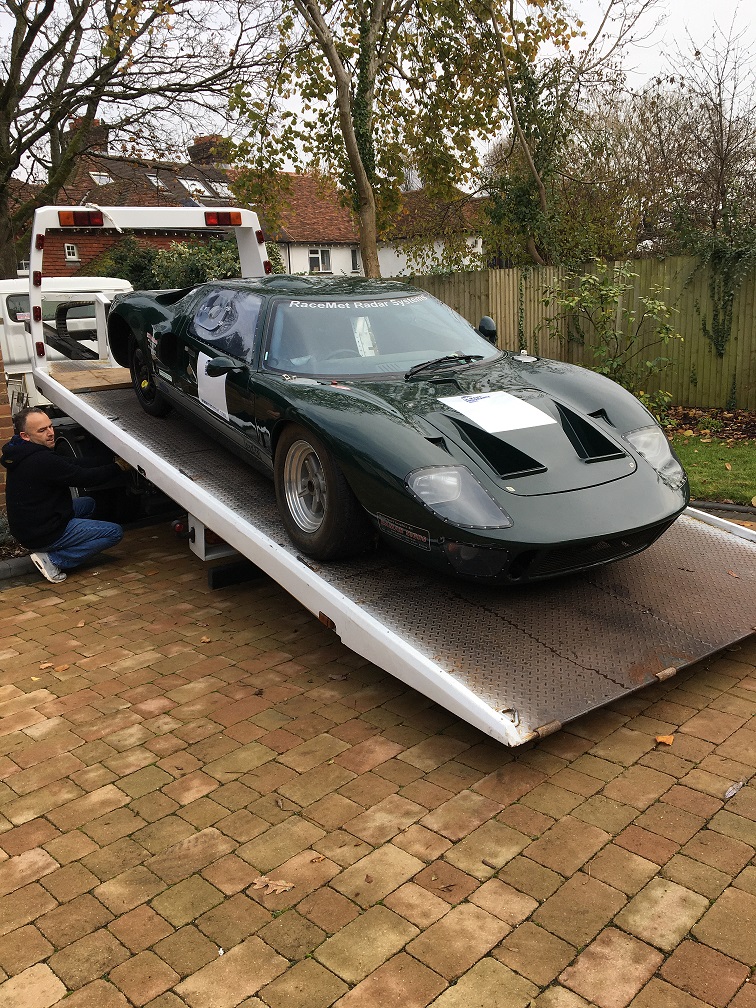

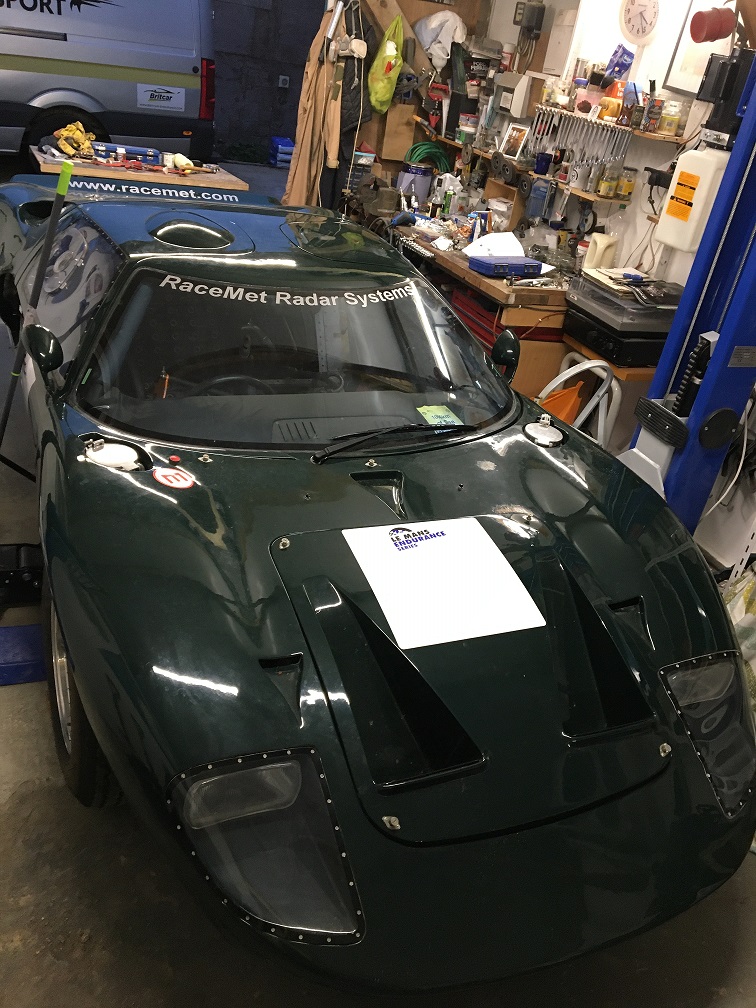

Here's some pictures from day one, loading up and delivering Dave's car back to my workshop:


Attachments

  • IMG_5377.JPG
    471.1 KB · Views: 483
  • IMG_5378.JPG
    466.3 KB · Views: 488
  • IMG_5380.JPG
    465 KB · Views: 413
  • IMG_5384.JPG
    282.5 KB · Views: 401
  • IMG_5385.JPG
    303 KB · Views: 437
Some more pictures of progress from the first week:

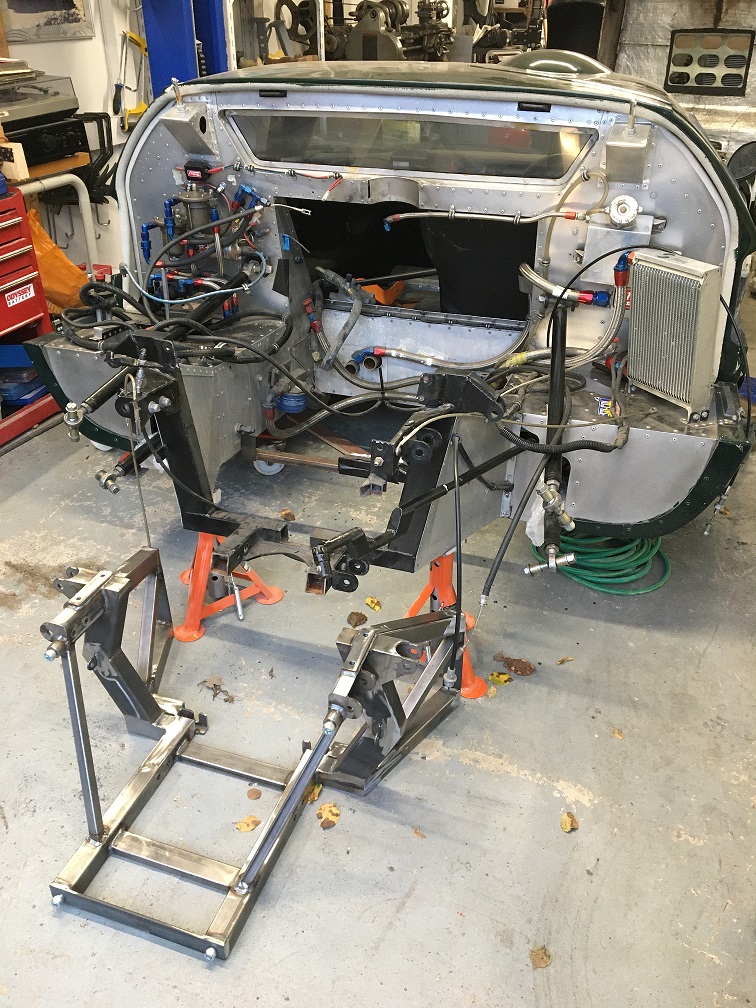

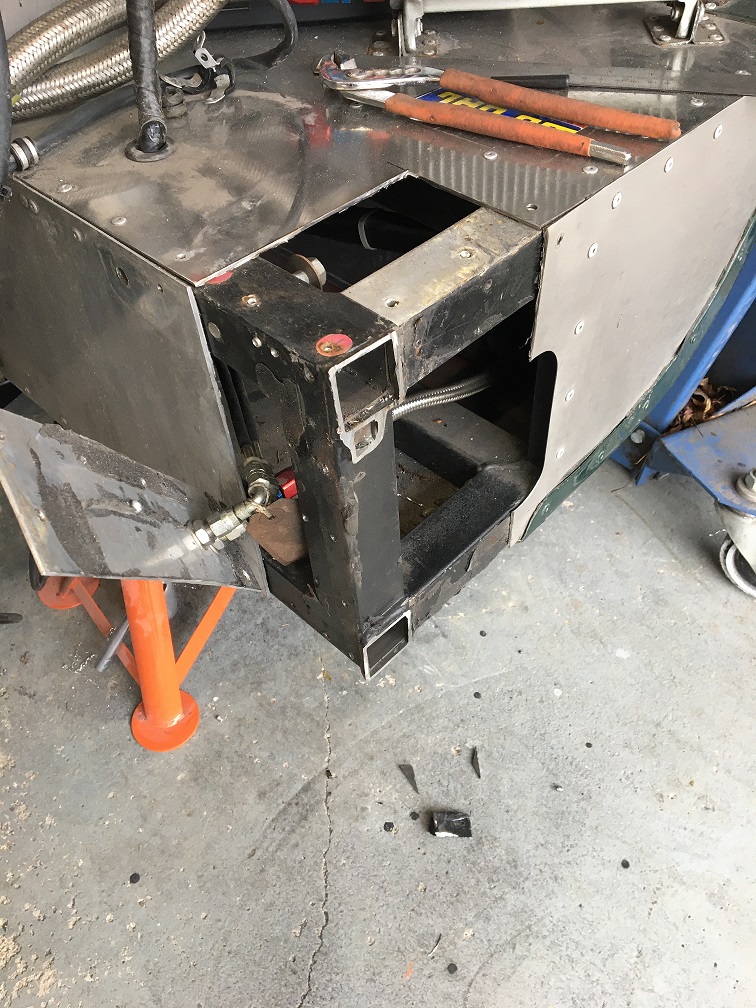

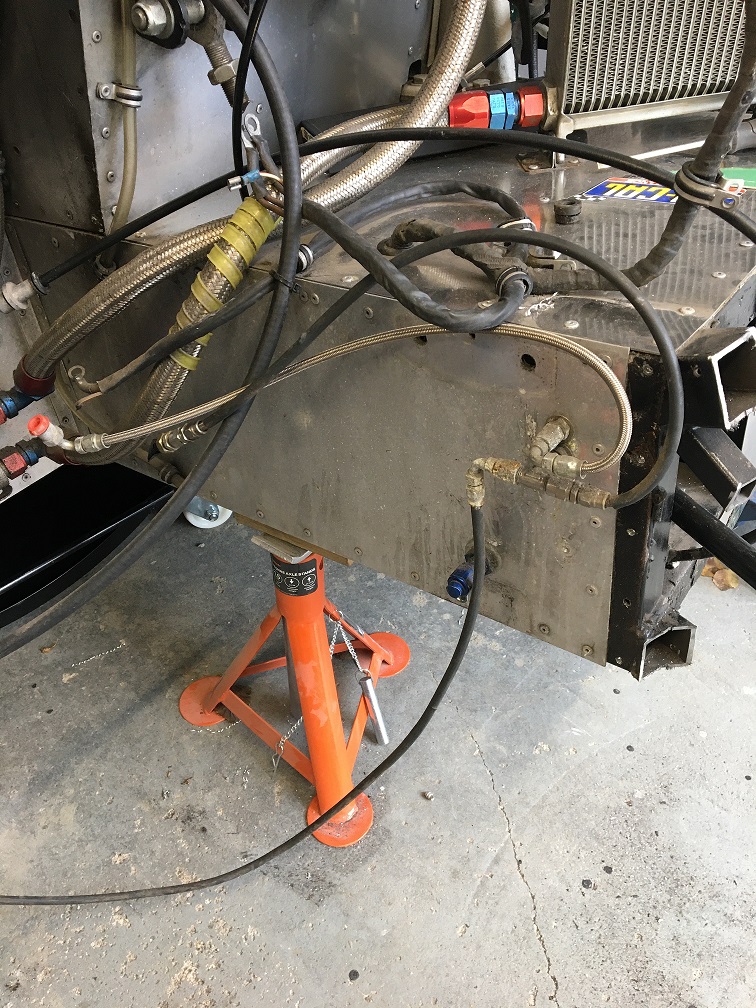

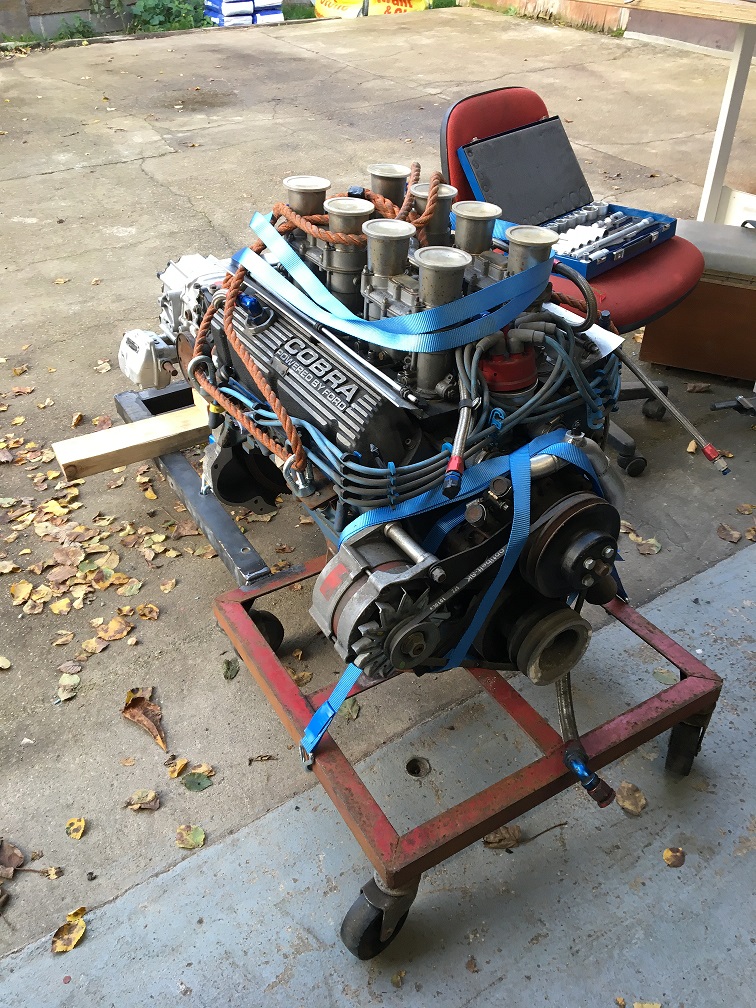

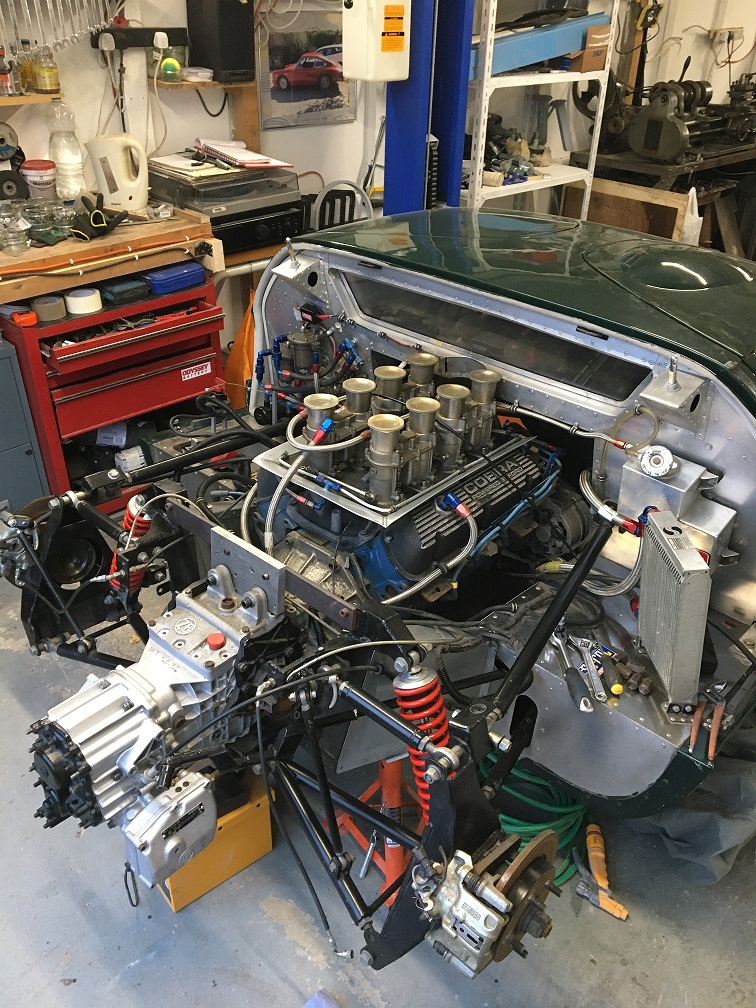

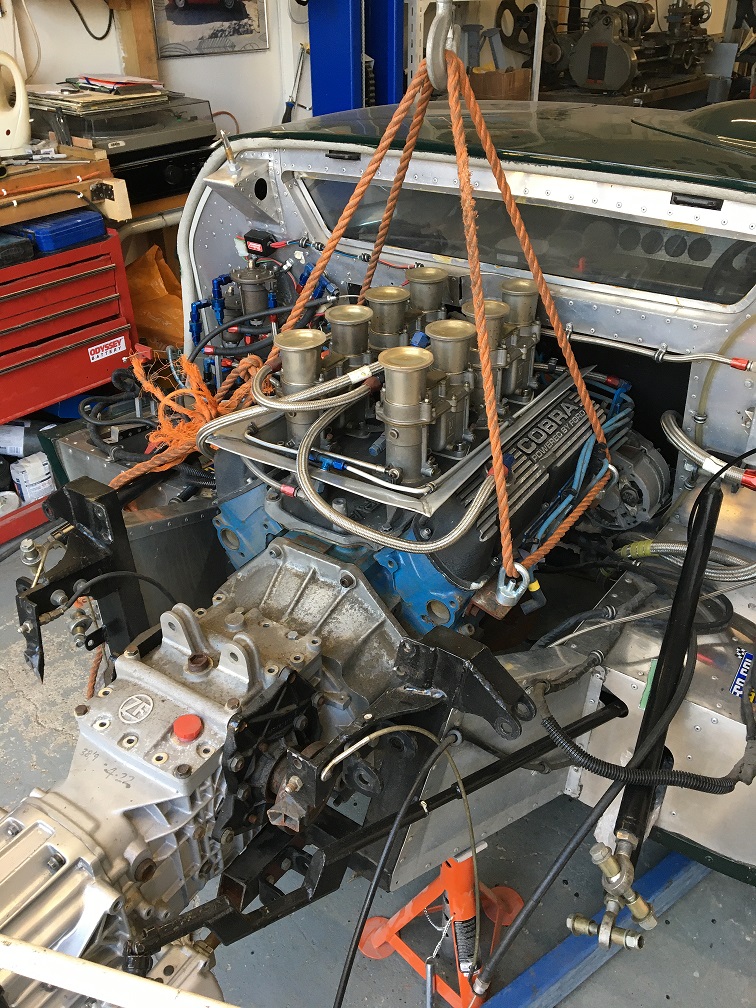

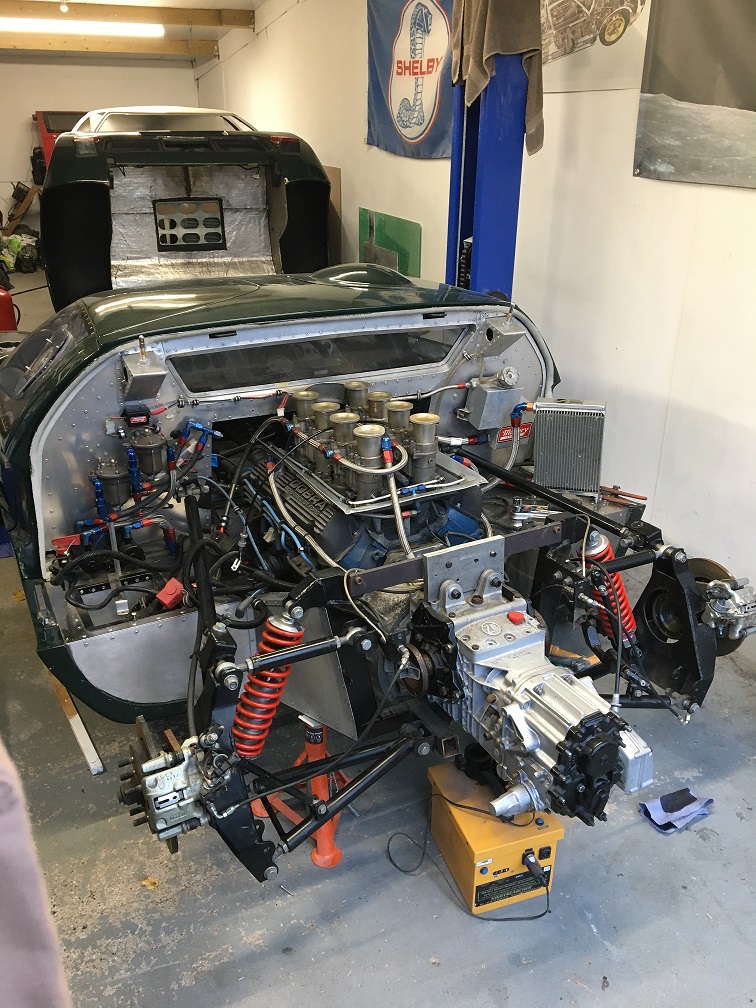

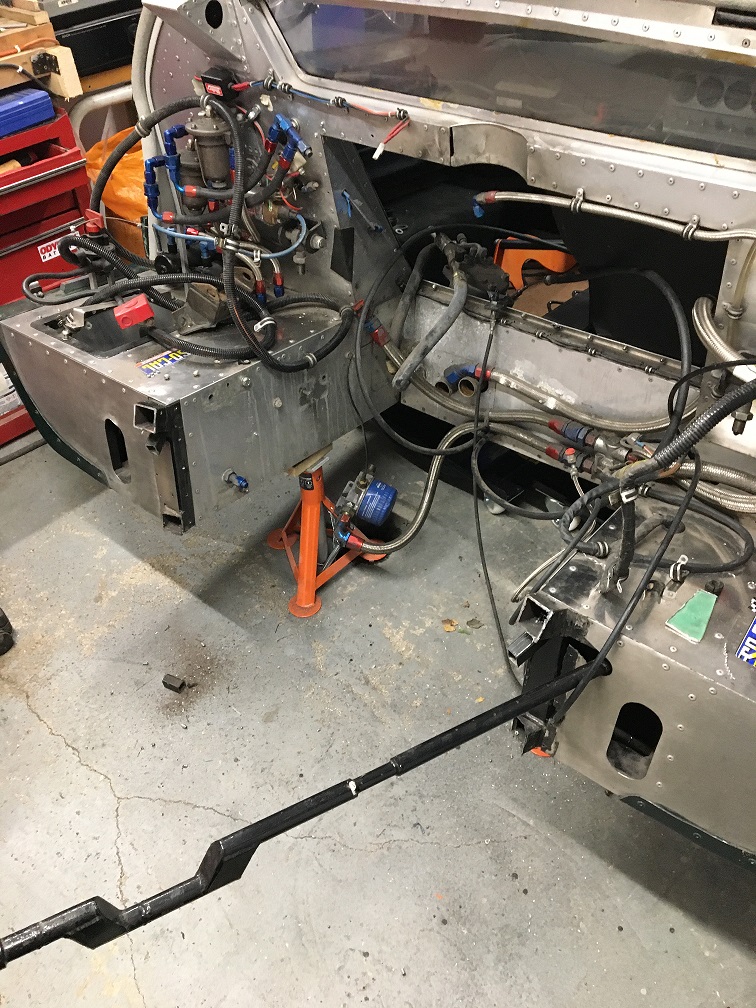

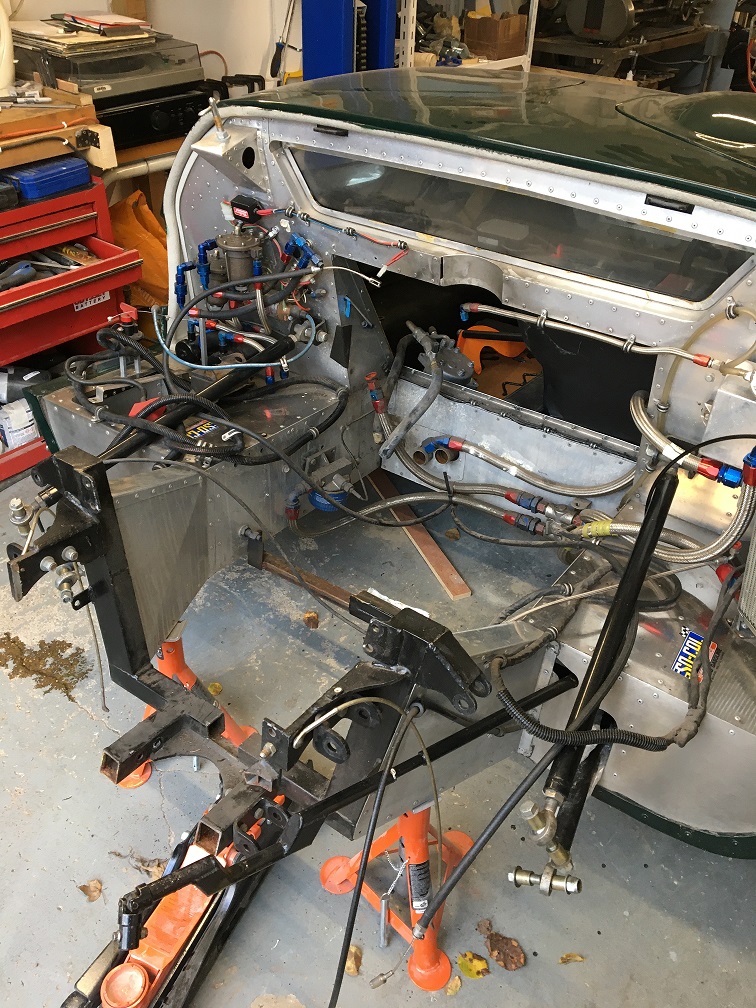

Engine and gearbox were removed to enable me to remove the rear horseshoe, and weld on Mick Sollis's new rear end


Attachments

  • IMG_5388.JPG
    337.1 KB · Views: 352
  • IMG_5390.JPG
    395.8 KB · Views: 350
  • IMG_5408.JPG
    410.7 KB · Views: 353
  • IMG_5411.JPG
    408.3 KB · Views: 349
  • IMG_5412.JPG
    398.5 KB · Views: 345

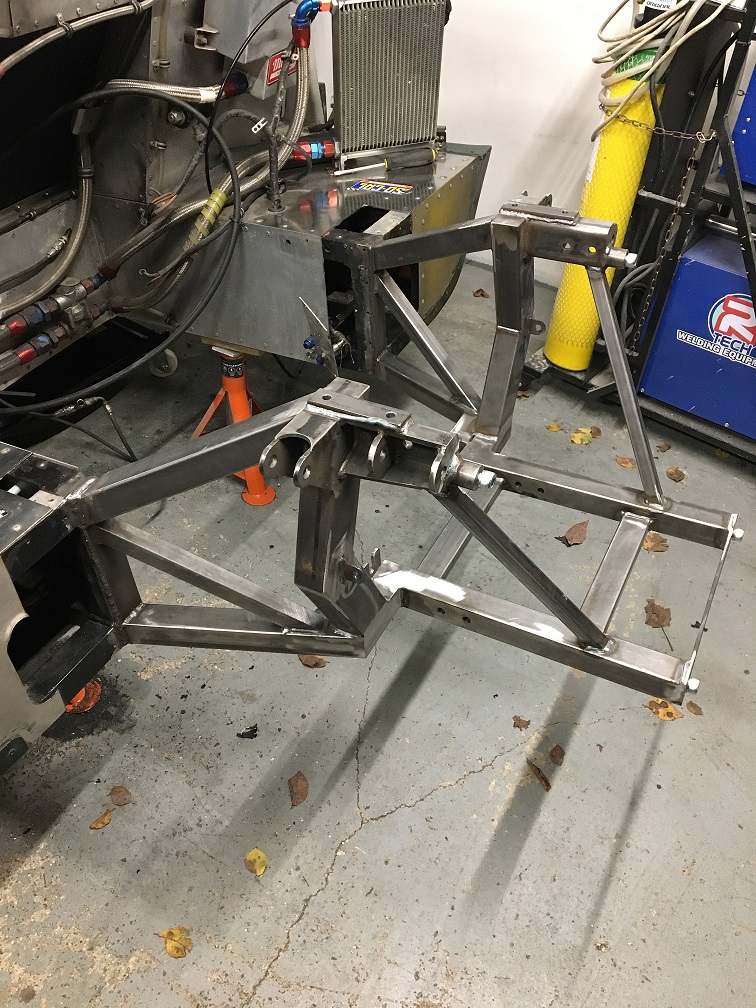

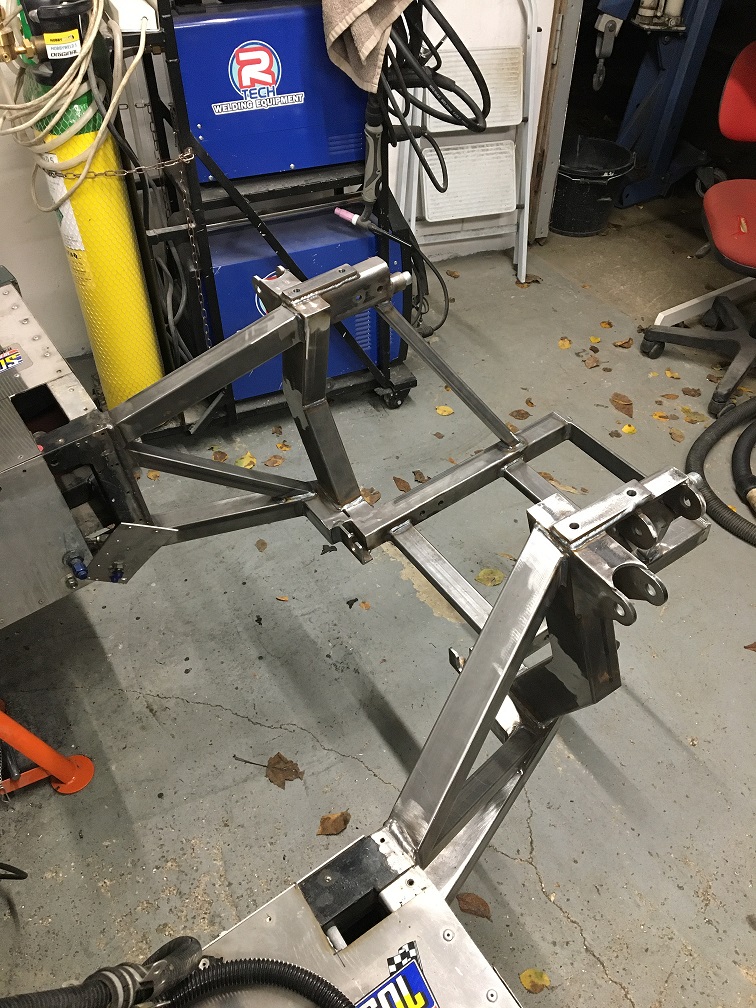

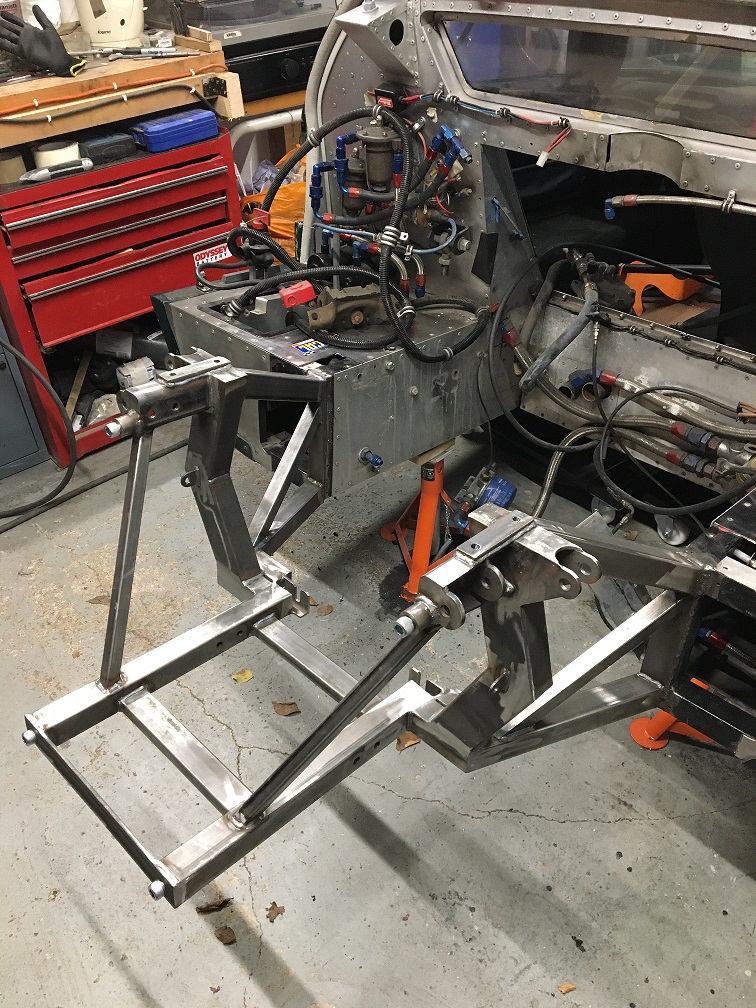

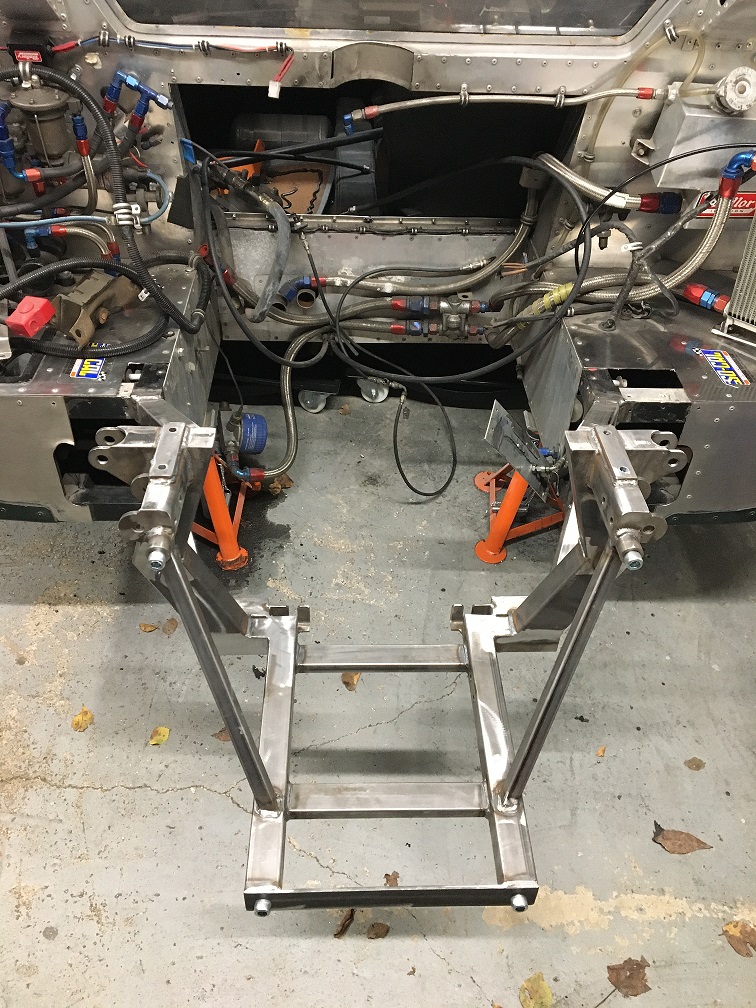

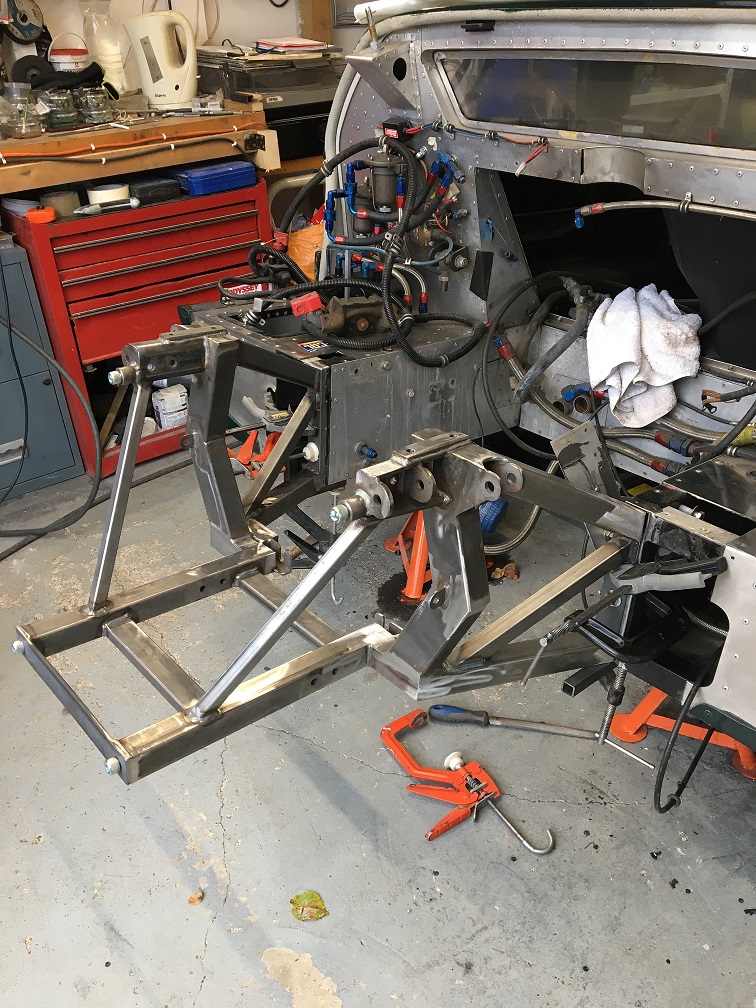

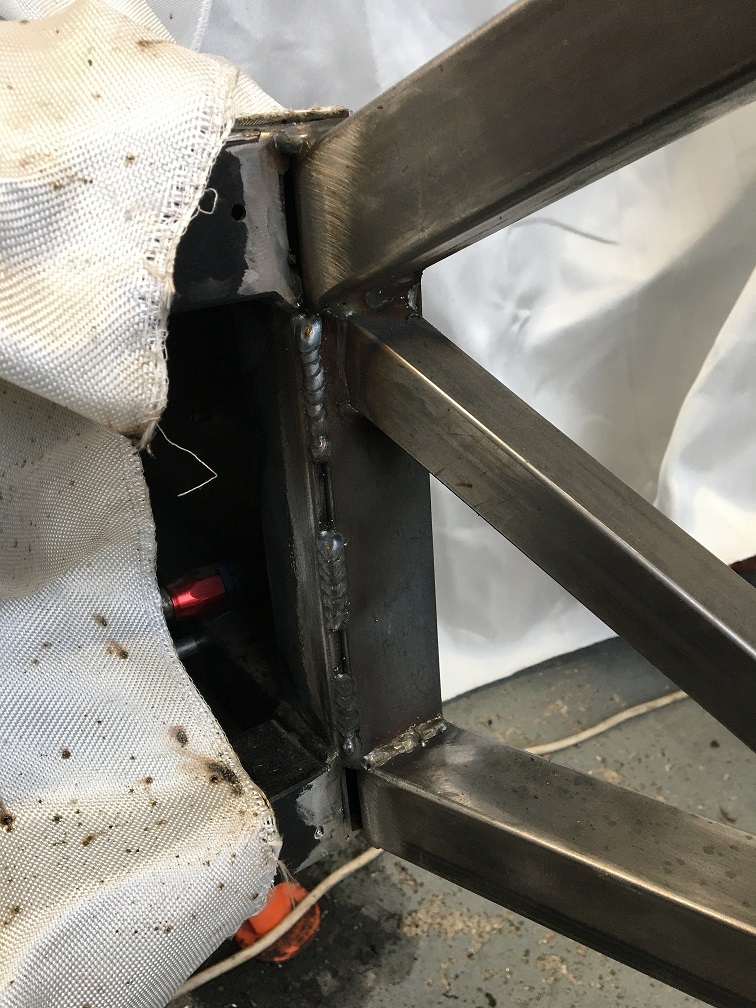

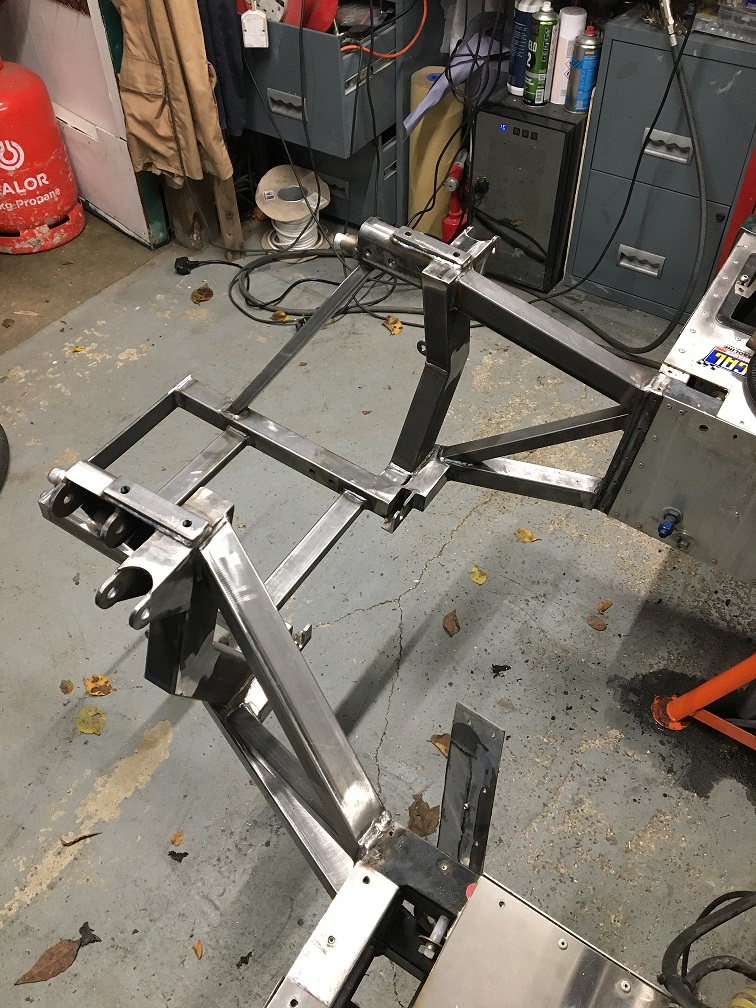

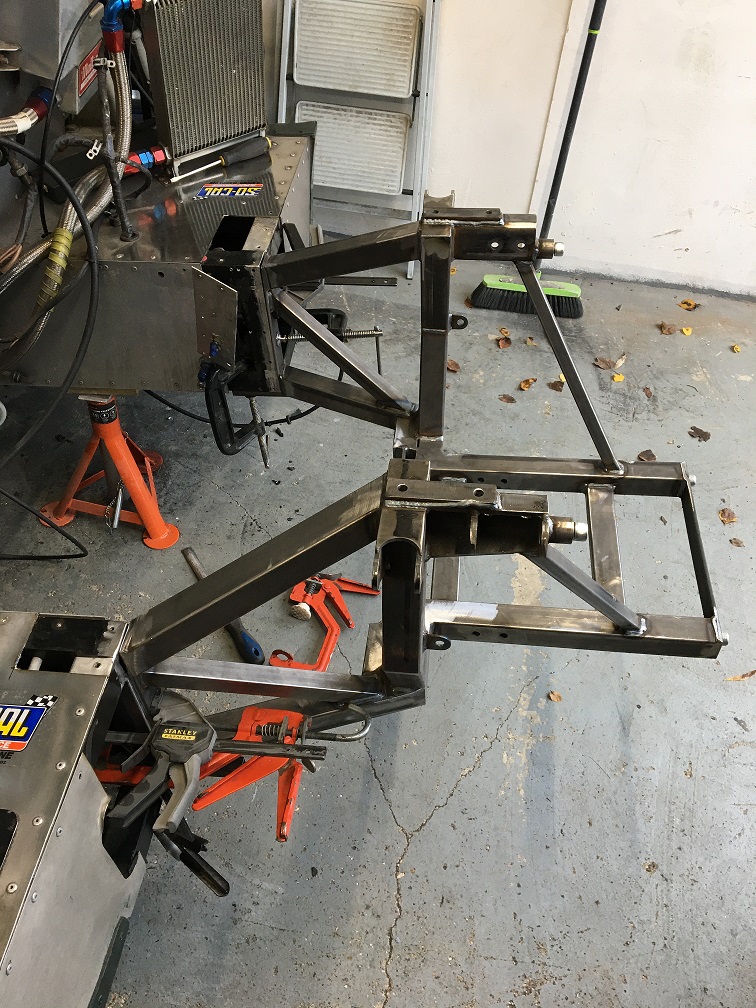

And the new one welded in place:


Attachments

  • IMG_5455.JPG
    379.8 KB · Views: 314
  • IMG_5458.JPG
    356.4 KB · Views: 332
  • IMG_5464.JPG
    301.6 KB · Views: 310
  • IMG_5466.JPG
    359.7 KB · Views: 306
  • IMG_5467.JPG
    372.2 KB · Views: 303
  • IMG_5468.JPG
    389.5 KB · Views: 297
  • IMG_5469.JPG
    360.4 KB · Views: 308
  • IMG_5470.JPG
    358.6 KB · Views: 323

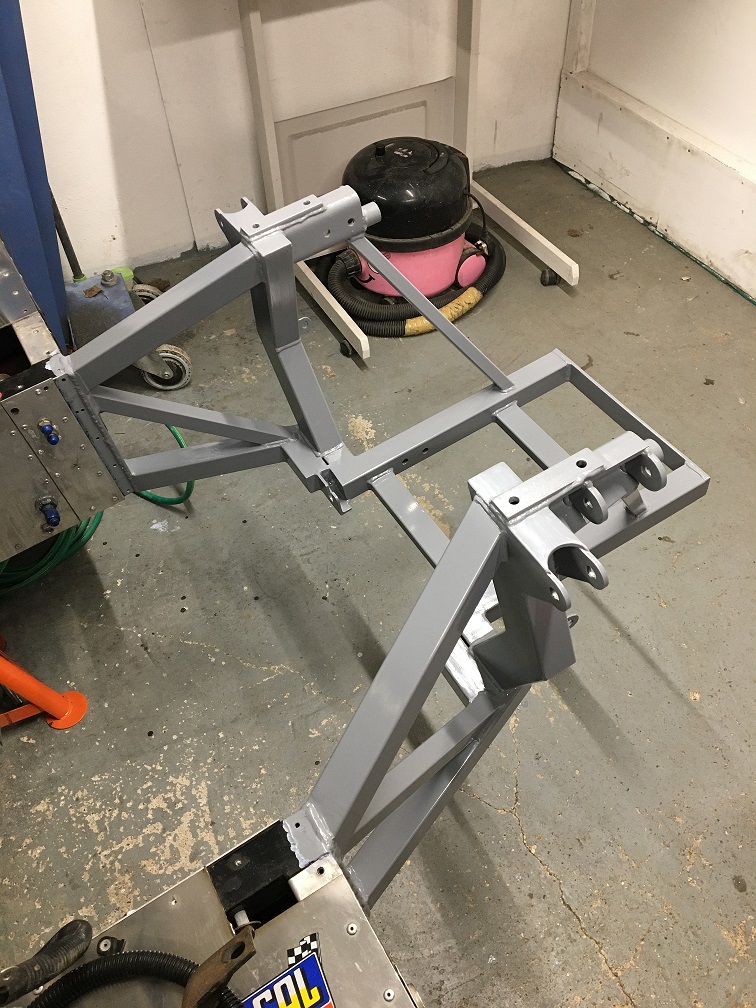

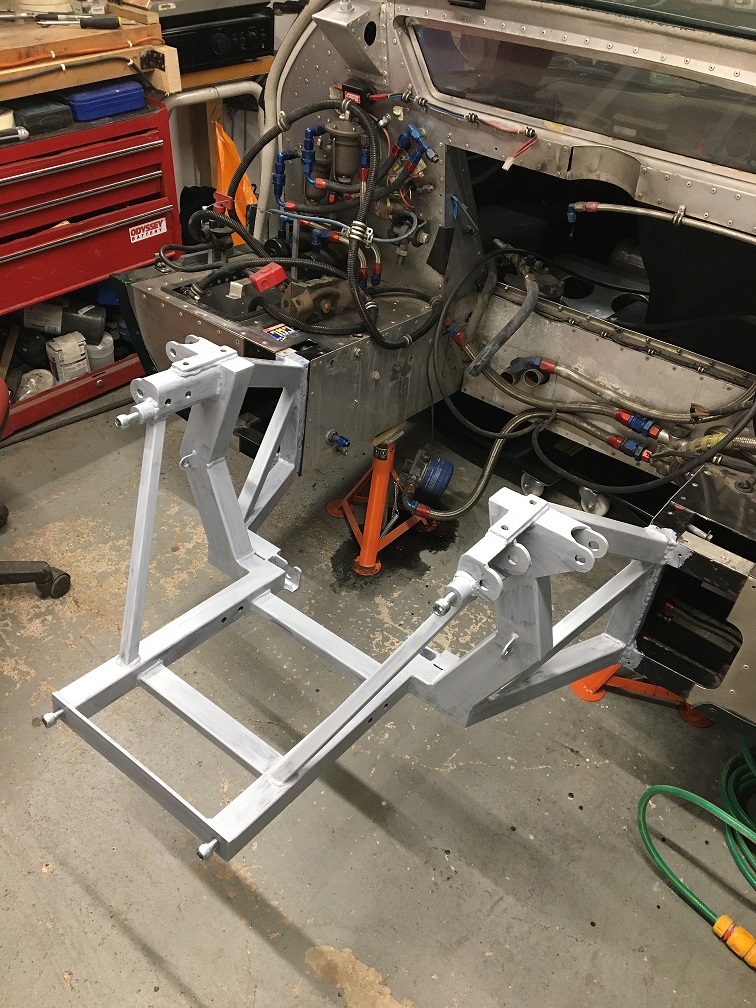

I painted the new horseshoe with etch primer, then a normal grey primer.

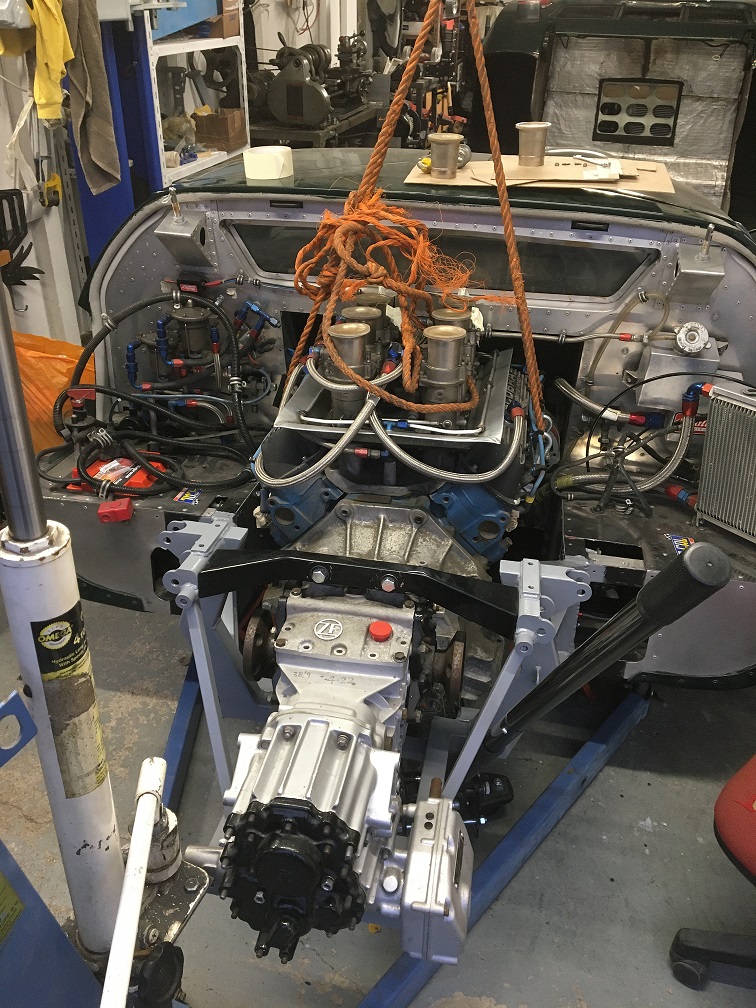

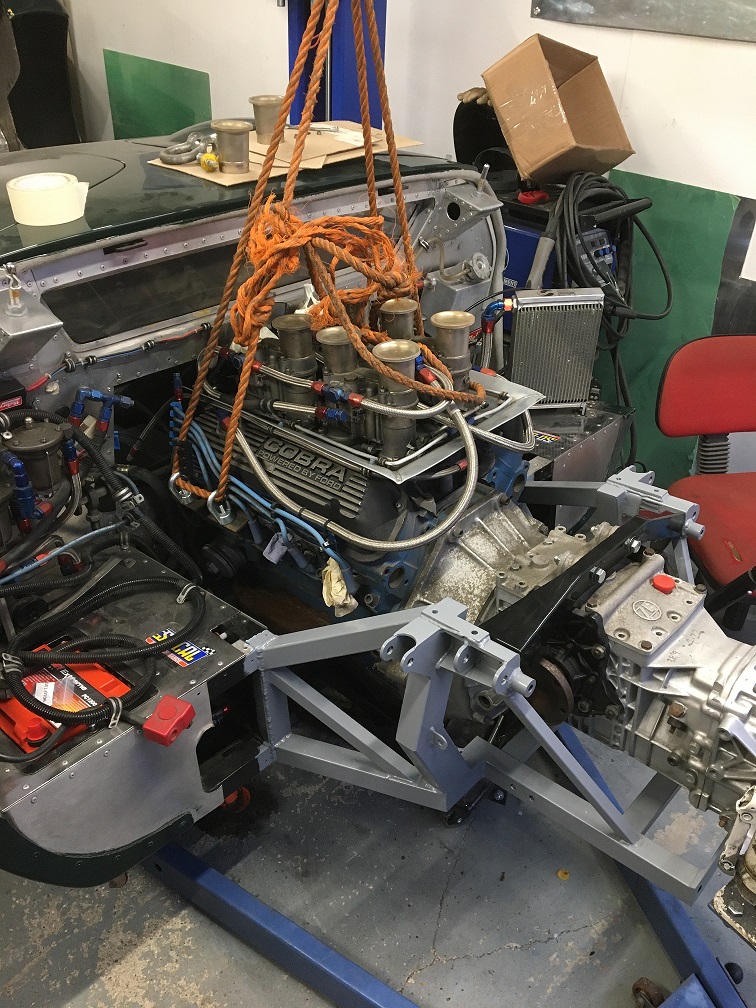

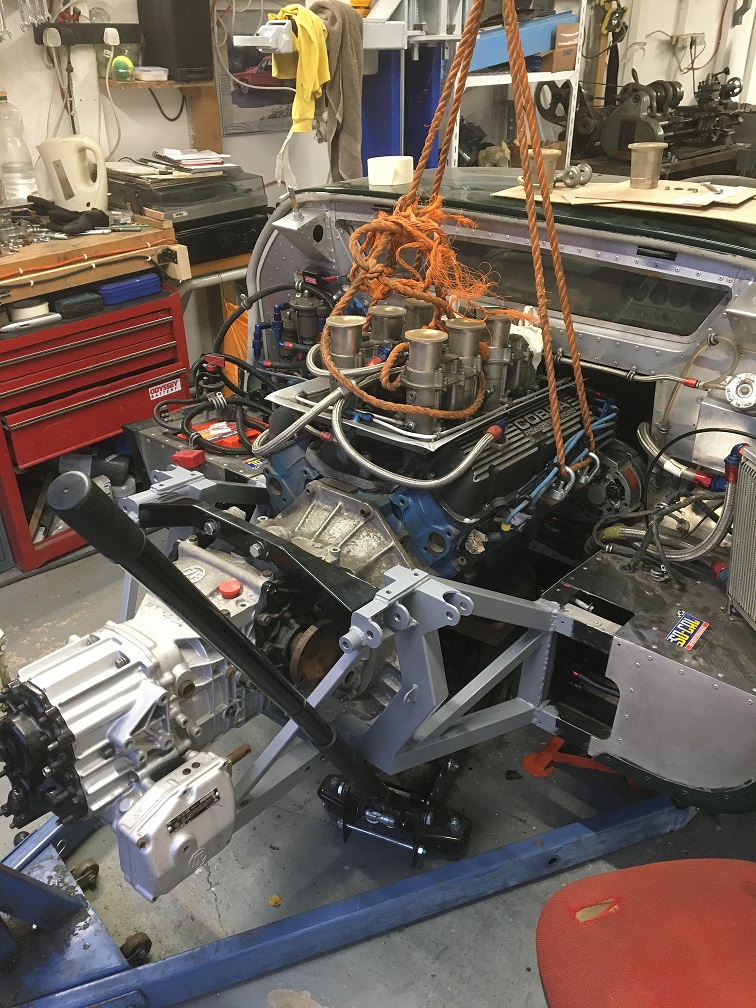

Next, engine and box were carefully put back in place, using Mick's gearbox top crossmember as a starting point.

I've measured and cut 4mm metal plate for the new engine mounts, and will post more updates and pictures as work progresses this week:


Attachments

  • IMG_5488.JPG
    360.2 KB · Views: 328
  • IMG_5490.JPG
    312.3 KB · Views: 336
  • IMG_5513.JPG
    356.7 KB · Views: 338
  • IMG_5514.JPG
    369.8 KB · Views: 350
  • IMG_5515.JPG
    382 KB · Views: 367
I am really digging that workshop. love the addition of the turntable for playing vinyl. going to have to have another look and see what else i can see.
keep up the good work.

Ryan

I am really digging that workshop. love the addition of the turntable for playing vinyl. going to have to have another look and see what else i can see.
keep up the good work.

Ryan

Hi Ryan

Thanks! The needle is skipping at the mo. There’s a South Bend lathe that I was given, lurking near the back of my workshop, I’ll post a pic later today

Hi all

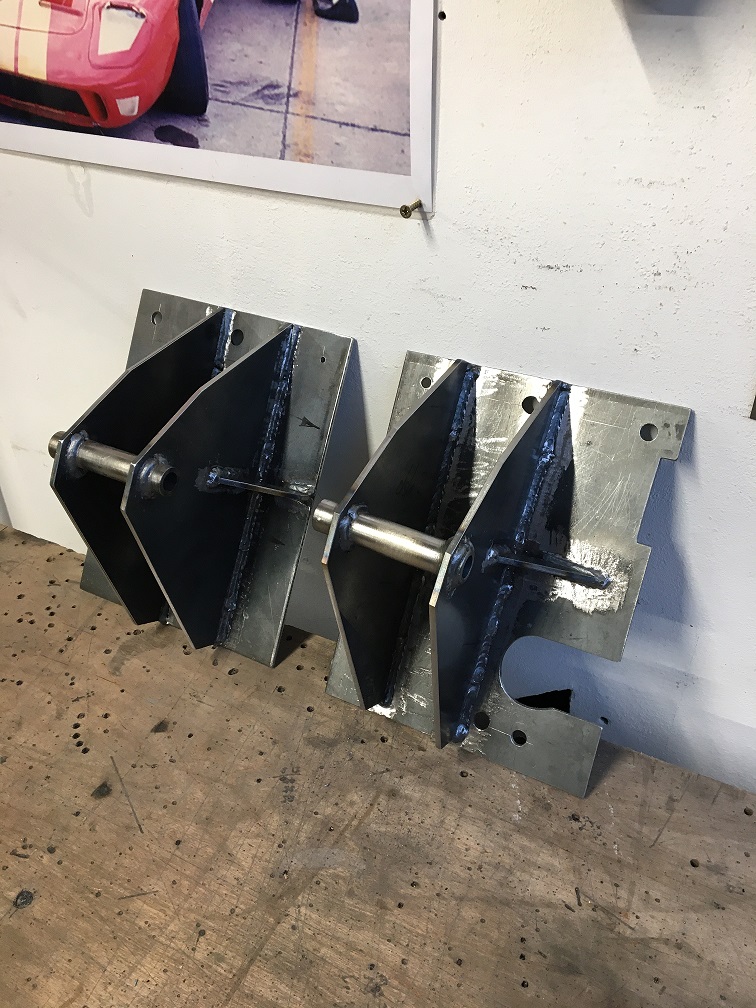

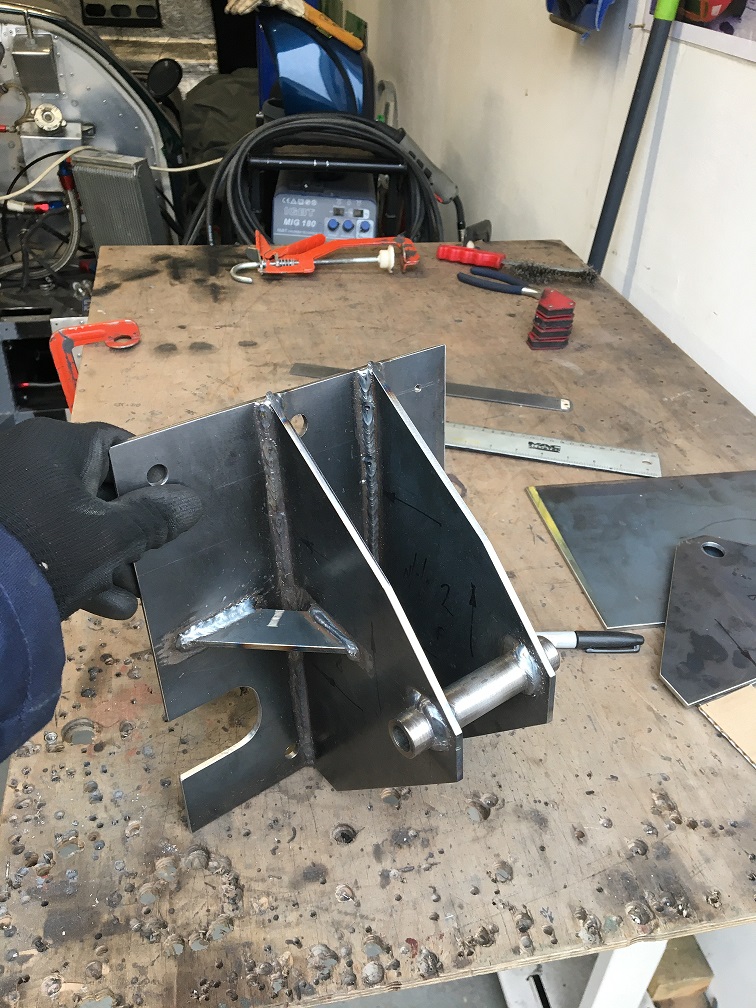

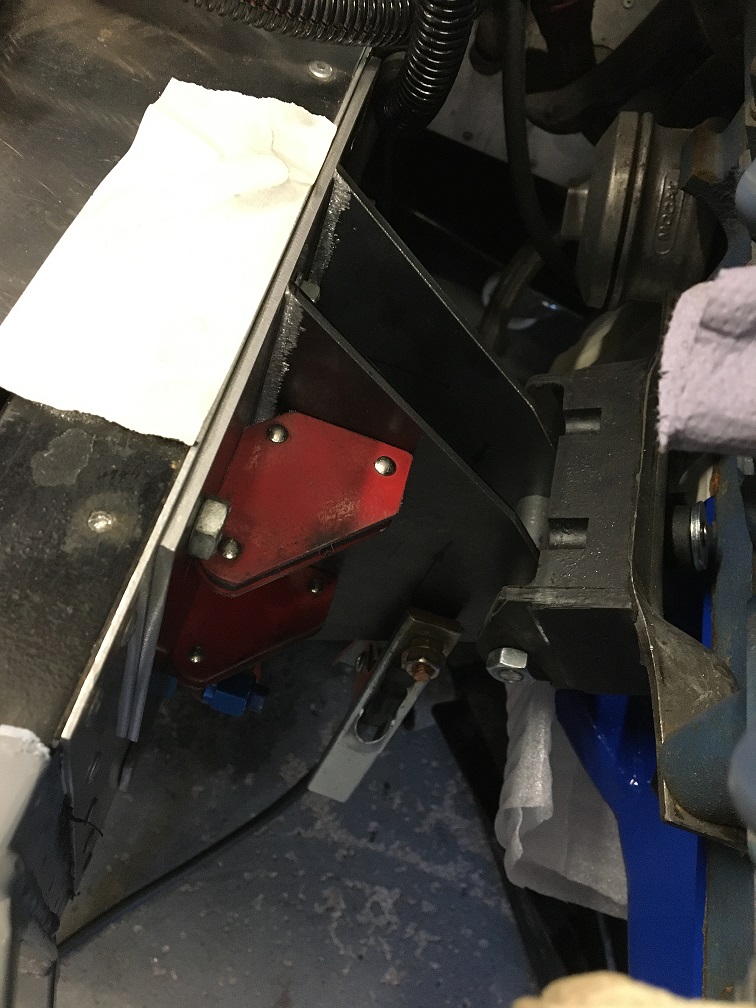

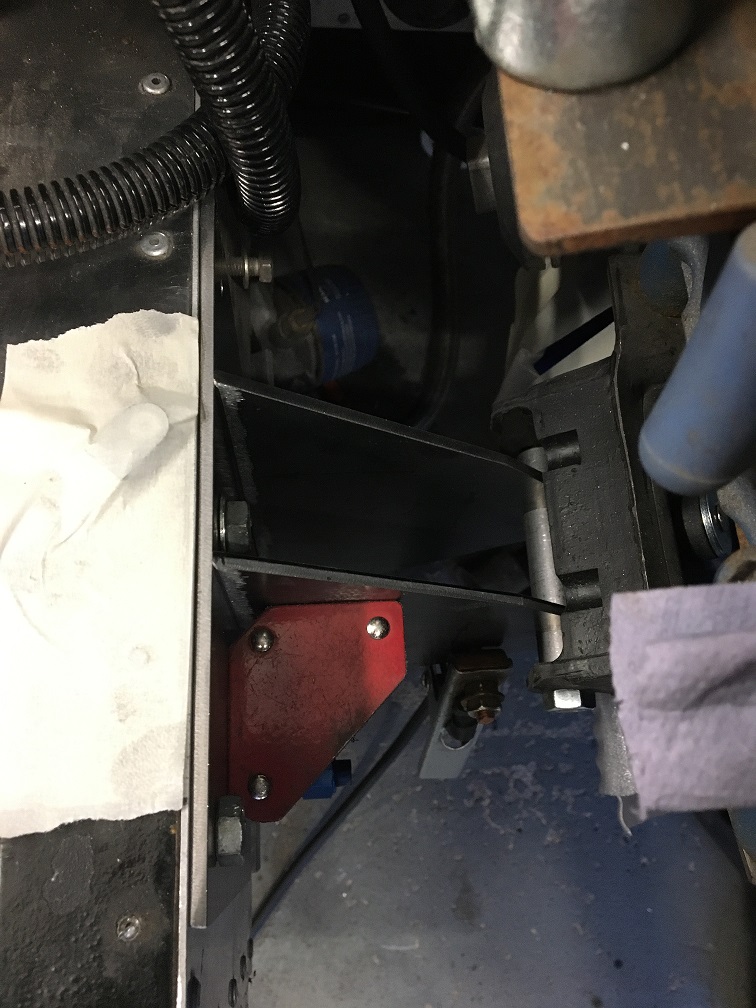

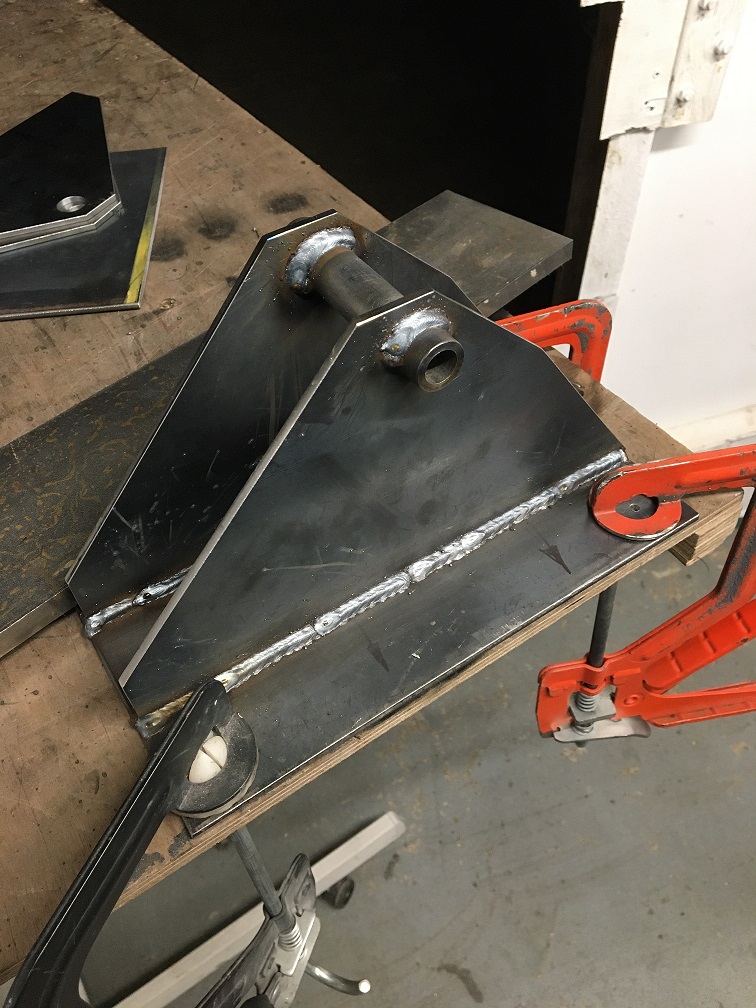

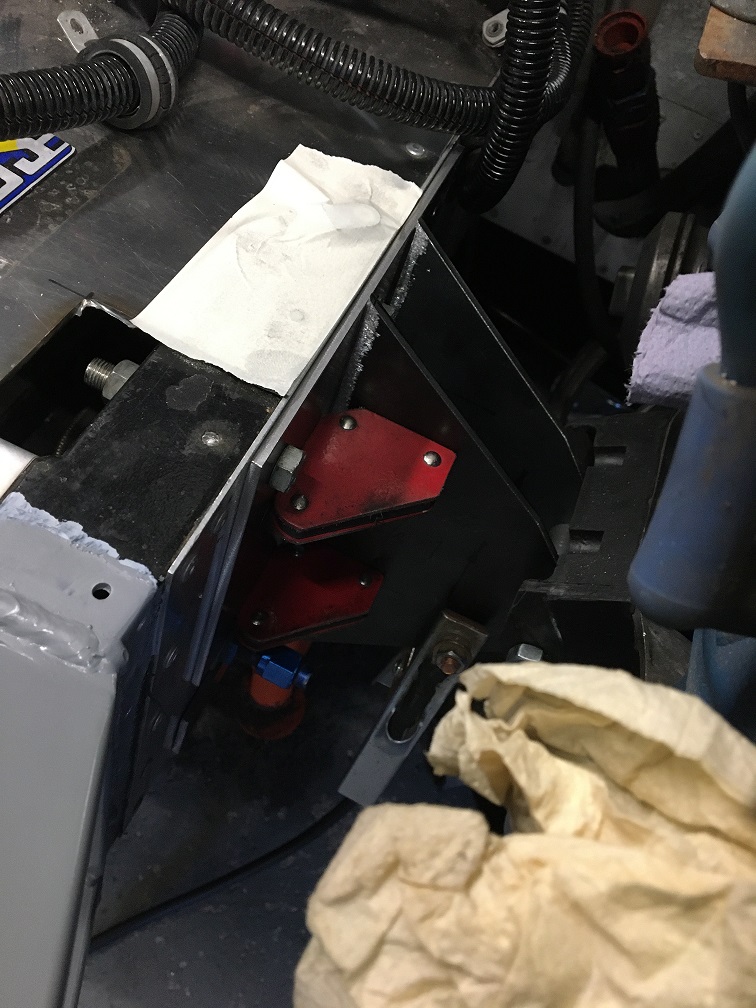

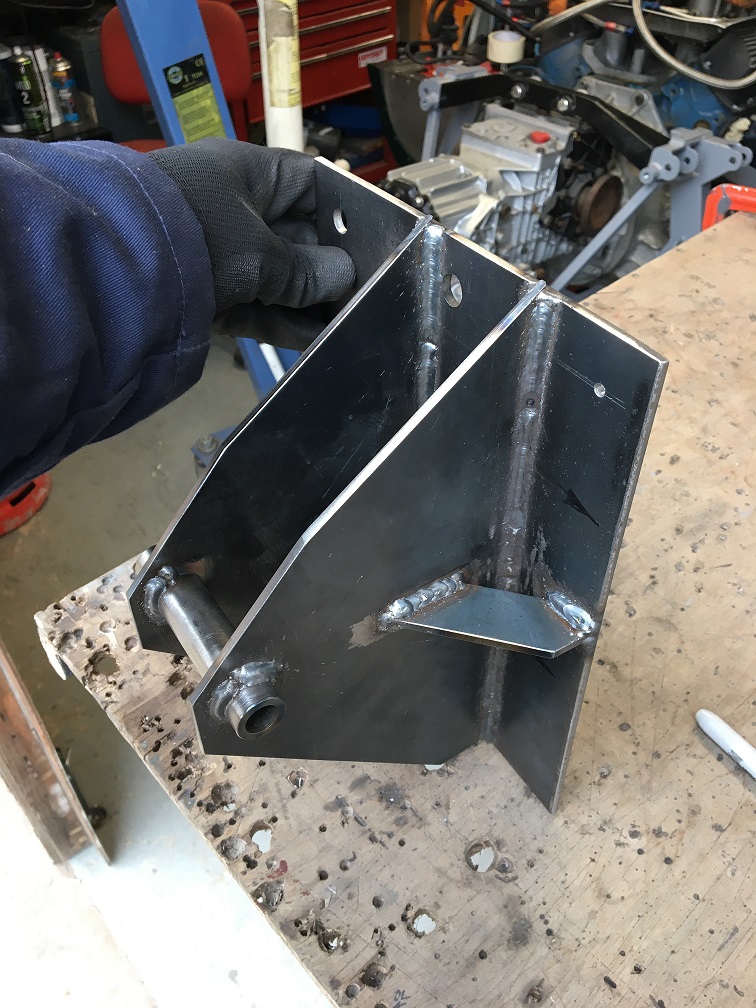

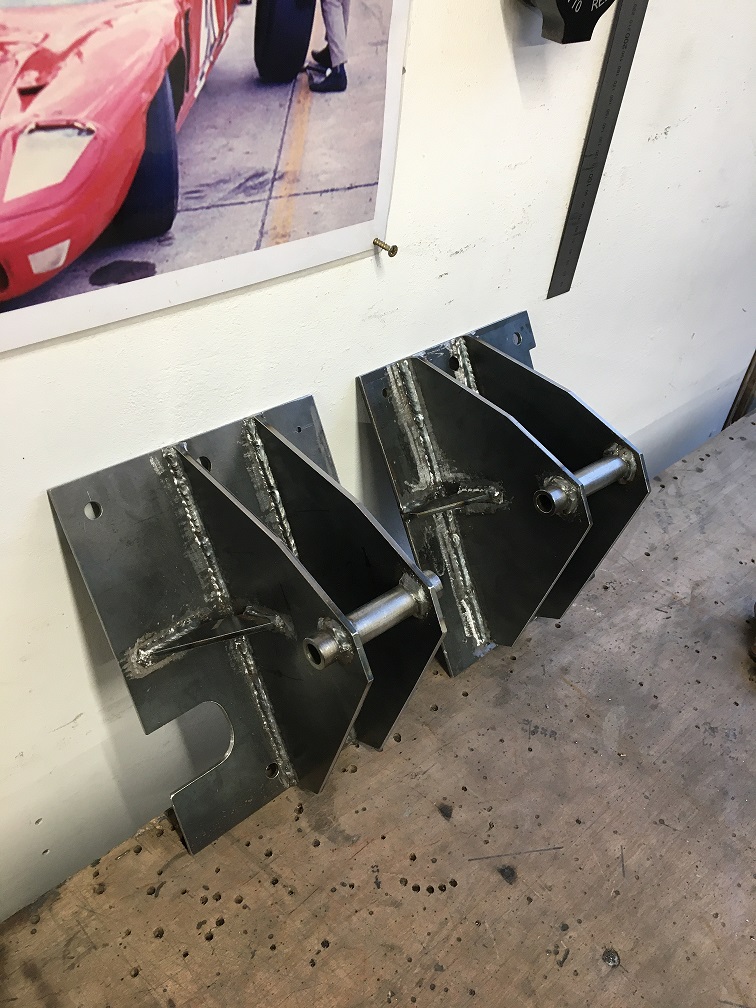

Here's some pictures of the engine mounts I've fabricated.

These will bolt onto the chassis, using holes already drilled in the chassis:


Attachments

  • IMG_5541.JPG
    243.6 KB · Views: 270
  • IMG_5542.JPG
    234.5 KB · Views: 268
  • IMG_5543.JPG
    241.1 KB · Views: 259
  • IMG_5544.JPG
    268.1 KB · Views: 253
  • IMG_5545.JPG
    316.6 KB · Views: 269
  • IMG_5546.JPG
    291.3 KB · Views: 257
  • IMG_5548.JPG
    270.2 KB · Views: 257
  • IMG_5550.JPG
    293.3 KB · Views: 267
