Front substructure dimensions

[Ole Nylende]

Hi

Does anyone have some dimensions for the following;
-Mk1 quick jack tube. Looking for height from bottom of the front tray(or some other point) and center to the radiator screen frame. Also need to verify the pipedia, guess either 3/4 or 1" OD.

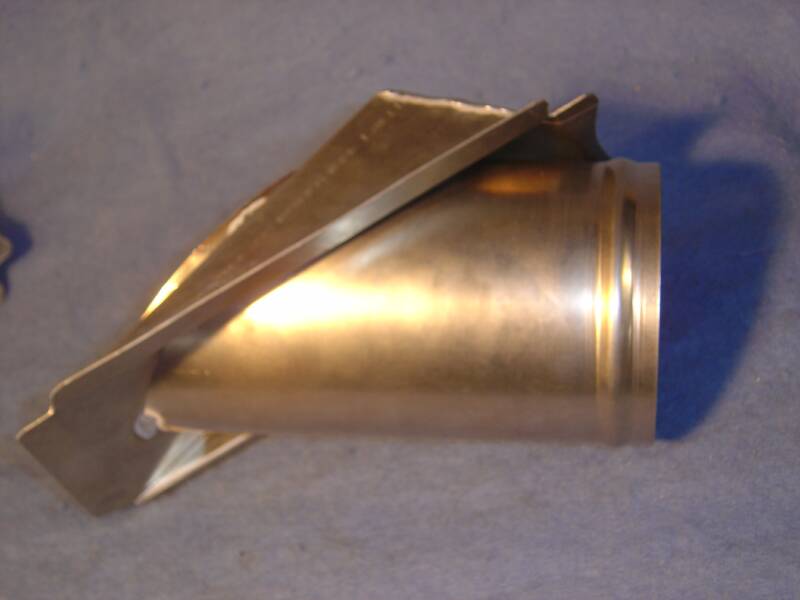

-Some reference dimensions for the brake cooling duct/hose adaptor.



[Graham Endeacott]

Front tube is 3/4" OD.

Regards,

Graham.



[Davidmgbv8]

Ole,

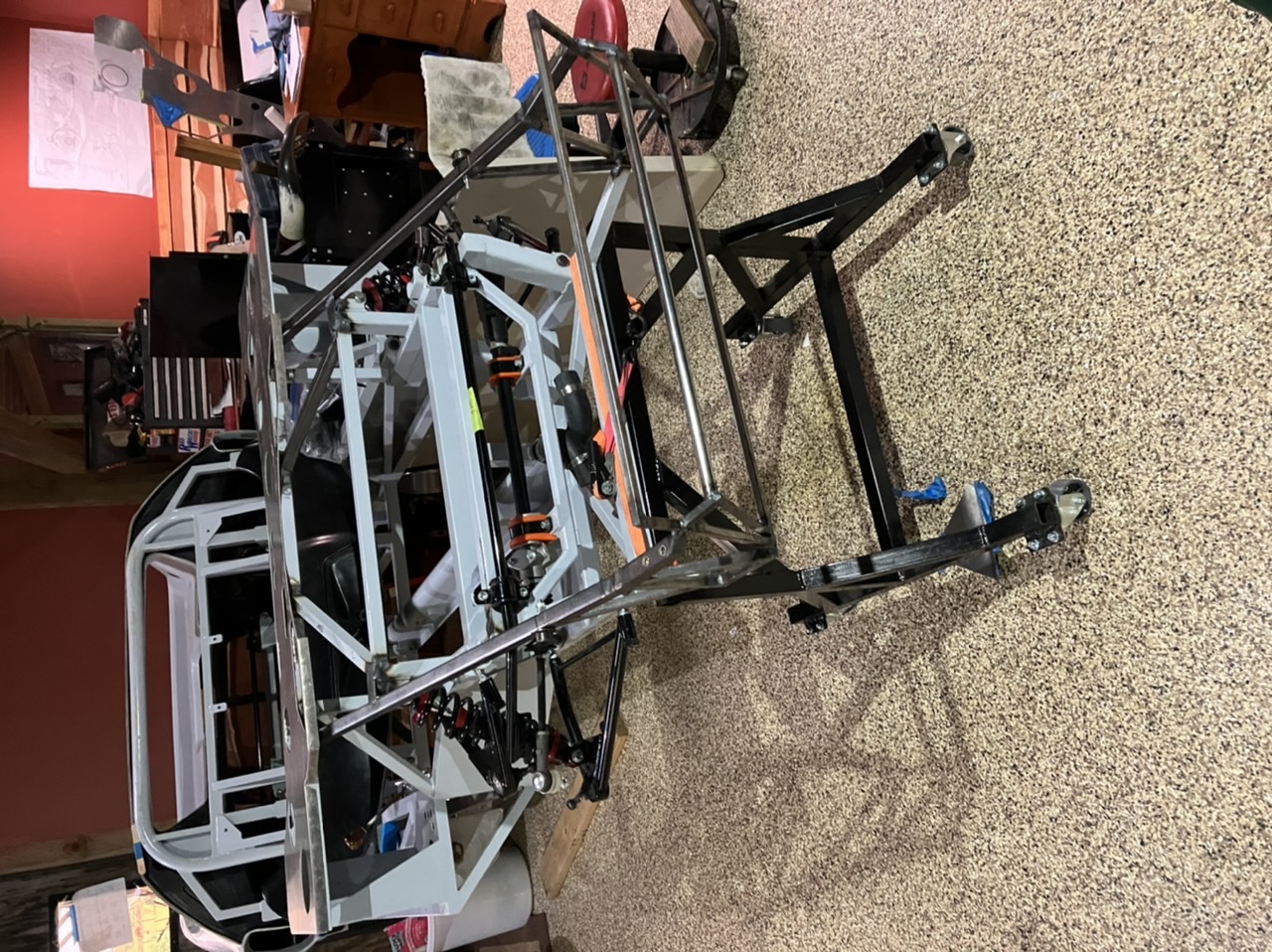

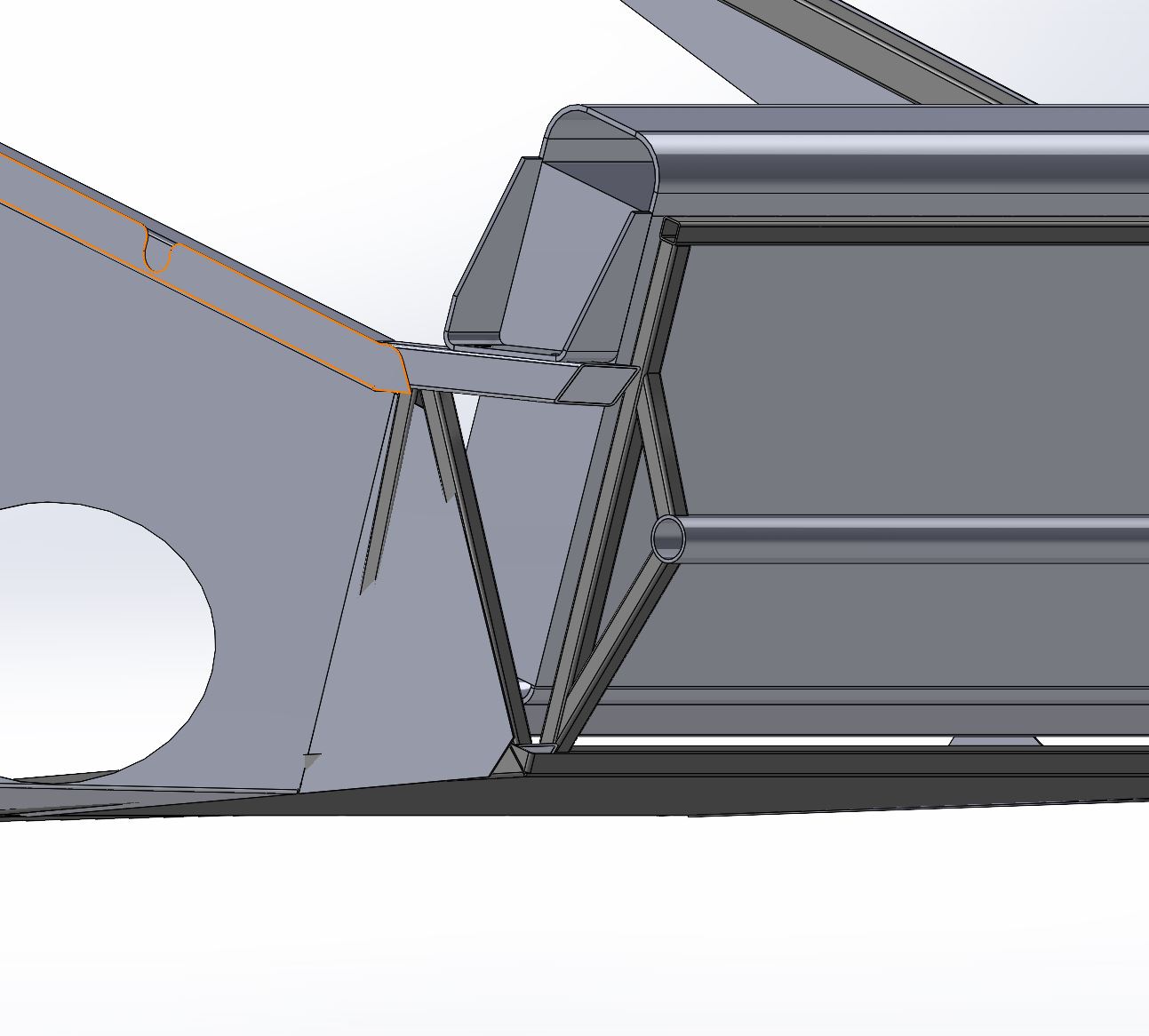

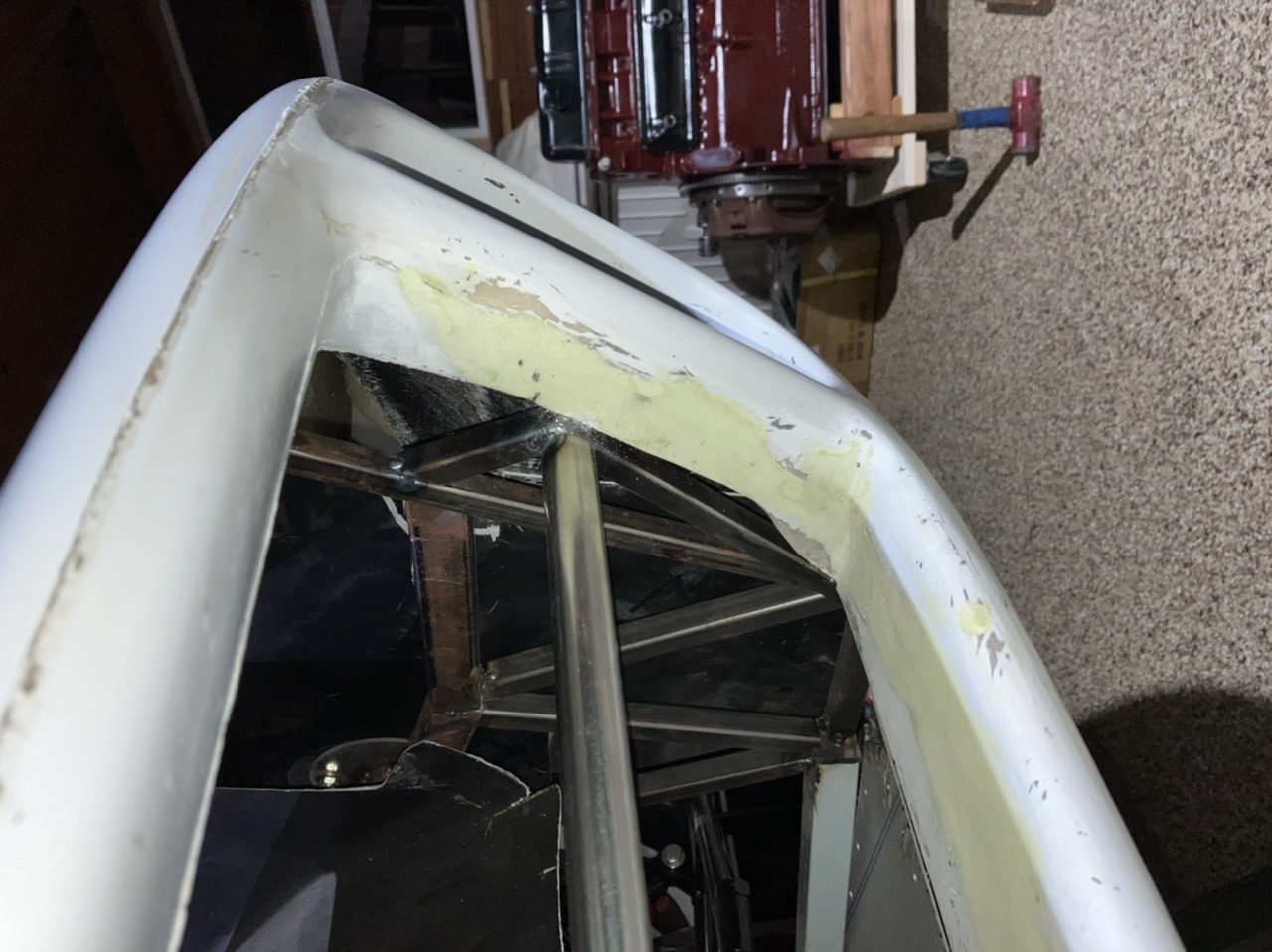

I found that the tubes holding the quick jack actually are not straight out as it appears in your drawing. Everything I researched a lot of photos and they cant inwards to clear the space between the brake duct and the radiator opening.



[Davidmgbv8]
