Front Tow Hooks

David Morton

Lifetime Premier Supporter
#8

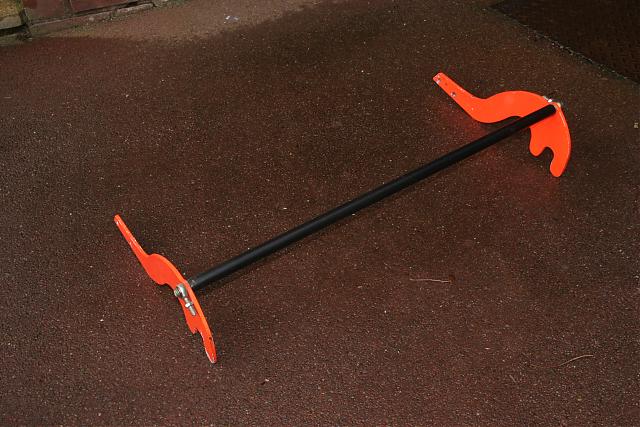

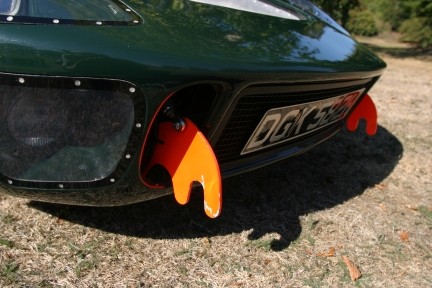

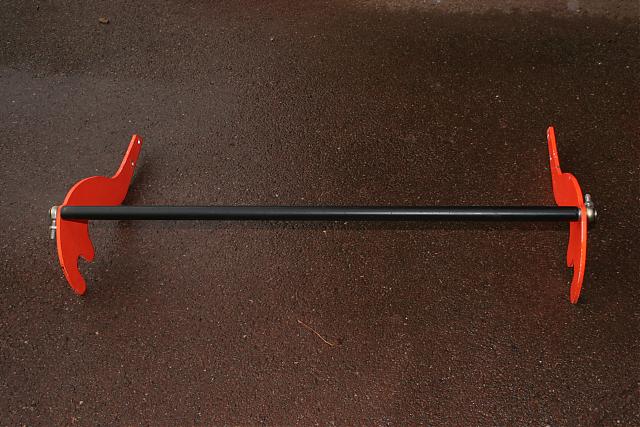

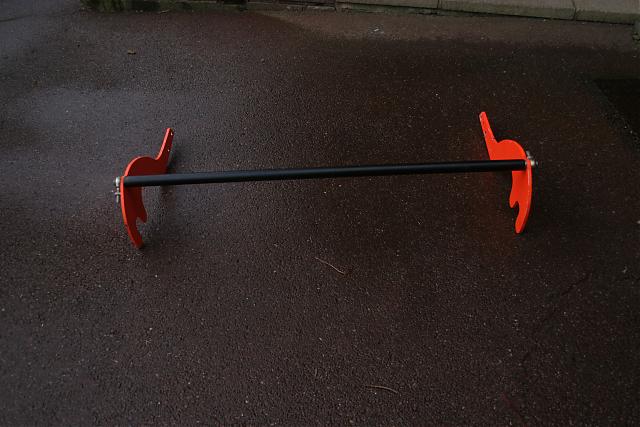

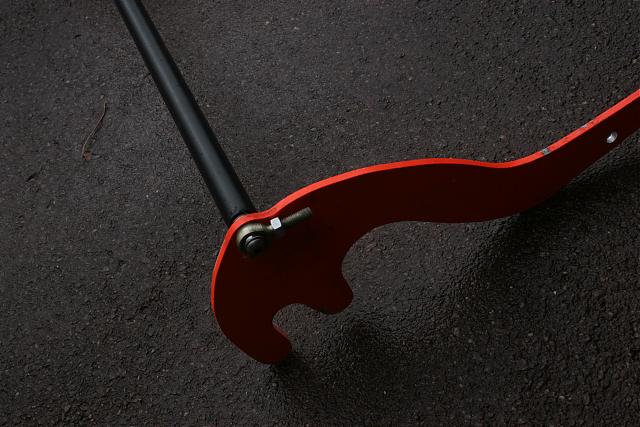

Qick lift hooks. I use a low level hydraulic jack with a lateral bar and end stops to stop it falling off sideways. There was a thread on this way back when, and the bar is shown in that thread. Having moved house 8 months ago, things are still turning up but I can't find the bar at the moment.


Attachments

David Morton

Lifetime Premier Supporter
#9
04-08-04, 03:14 AM #1 (permalink) patbarry

Gold Supporter
Posts: 677
Join Date: Apr 2002
Rep Power: 11






Jacking Front End

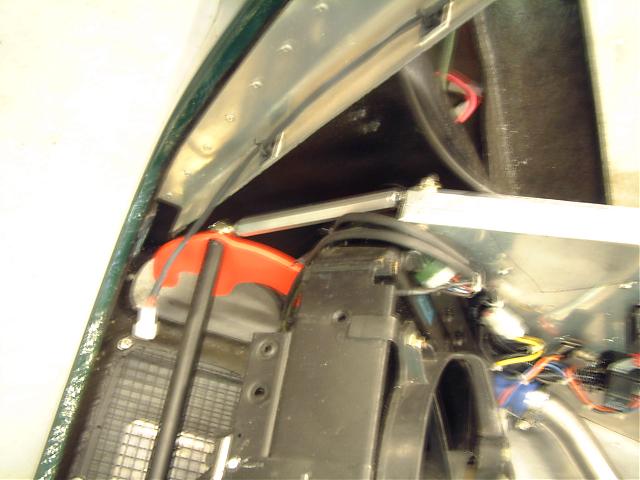

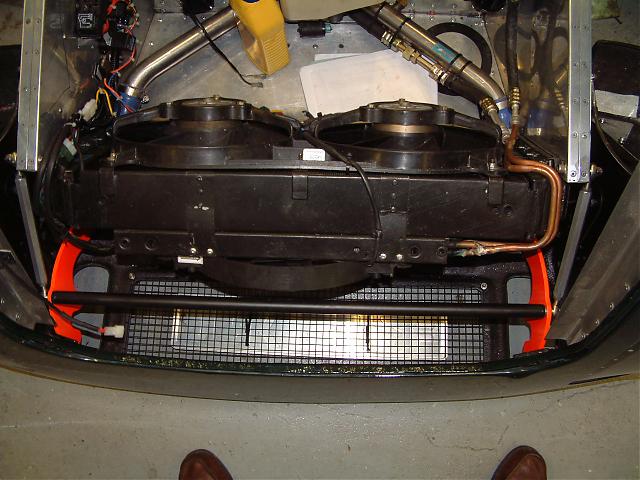

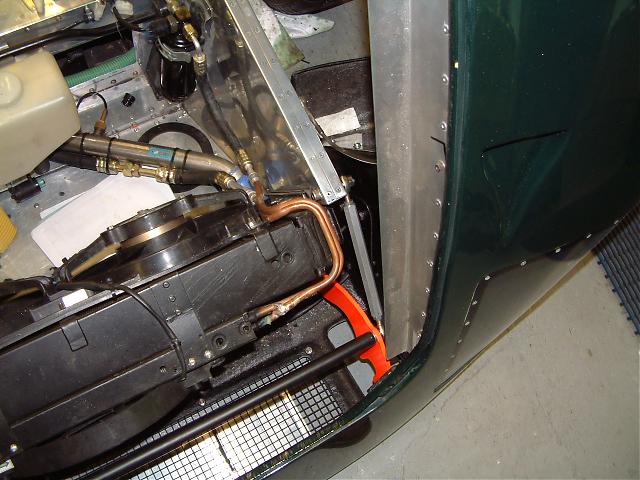

I have been struggling with jacking the front end once the front clip is mounted. Many thanks go to Dave Morton for his sending pictures of how he solved the problem. (Yes, I have permission to post!)

Thanks again Dave
Attached Images



patbarryView Public ProfileSend a private message to patbarryFind More Posts by patbarryAdd patbarry to Your Buddy List


04-08-04, 03:16 AM #2 (permalink) patbarry

Gold Supporter
Posts: 677
Join Date: Apr 2002
Rep Power: 11






Re: Jacking Front End

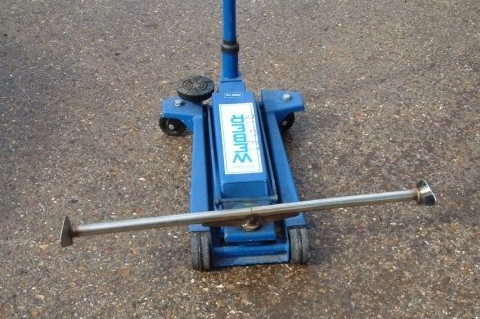

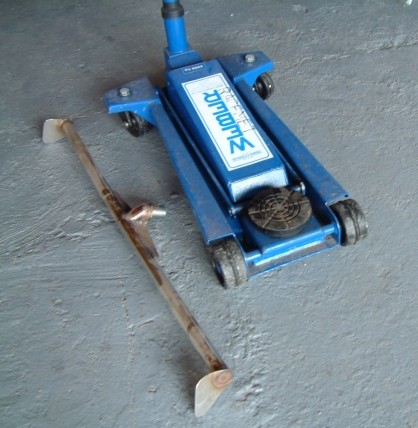

And the modified jack...
Attached Images



patbarryView Public ProfileSend a private message to patbarryFind More Posts by patbarryAdd patbarry to Your Buddy List



04-08-04, 03:17 AM #3 (permalink) patbarry

Gold Supporter
Posts: 677
Join Date: Apr 2002
Rep Power: 11






Re: Jacking Front End
Last one. Well done Dave!
Attached Images



patbarryView Public ProfileSend a private message to patbarryFind More Posts by patbarryAdd patbarry to Your Buddy List



04-08-04, 05:39 AM #4 (permalink) brianstewart

A Tenth
Posts: 193
Join Date: Jun 2003
Rep Power: 5






Re: Jacking Front End
Brilliantly simple!



#11
David,

I guess that beats running the 40 up on a series of 2" X 6"s to get it off the ground high enough to get a floor jack under it!

Question: How sturdy is this method of lifting the front end (or the rearend for that matter)? Does this put undo stress on the frontend/ back support structure? I know in race conditions, this is the way they did it. But for me, I would have some concerns.........that flex would end up dinging something up.


David Morton

Lifetime Premier Supporter
#13
Bill, I made them with Henry Atherton doing the fabricating. (he made most of the Safir tubs at Adams Mac in High Wycombe)
Gary- no problems at all. Notice that there is rod ends (spherical joints) on the hook set up triangulating the side plates.The front frame on the GTD with aluminium panelling both sides glued on and then avdel riveted is incredibly strong and there is no flexing at all. For a tow hook I will simply bolt a dural plate on the side of the left lifting hook.
The bar thats you see on the jack is stainless - I think 25mm or 30mm with a boss to sit in the centre cup on the jack and two stainless endplates to sit just outside the hook and prevent it/them from moving around as you jack it up. I'm not sure it Pat Barry made something similar.
As for the rear end, once the ZF trans is installed, there will either be another jacking point on the rear, not disimilar, or I've been looking at some air jacks that the Audi R8.R10 uses - just simply shove the airline in and voila. QED or W5
regards
Dave.

Last edited:
#19
Go to "introduce yourself" section of this form; see page 10 "new CAV owner" dated 11-3-10 for 3 photos showing the custom made quick jacks. The photo under the rear boot shows an added brace to the jack point to keep it from bending anything. I have used a floor jack to lift the entire rear at one hook with no bending what so ever with the added support that runs from the quick jack to the rear of the tub at about 40 degree angle with heim joints at both ends. Also added the braces to the front structure. The billet hooks are one inch thick. They look great all polished up, and set back in far enough to look O.K. (IMO).......................................Forever Ford!
