Luke's MK3 KVA build

L

Luke

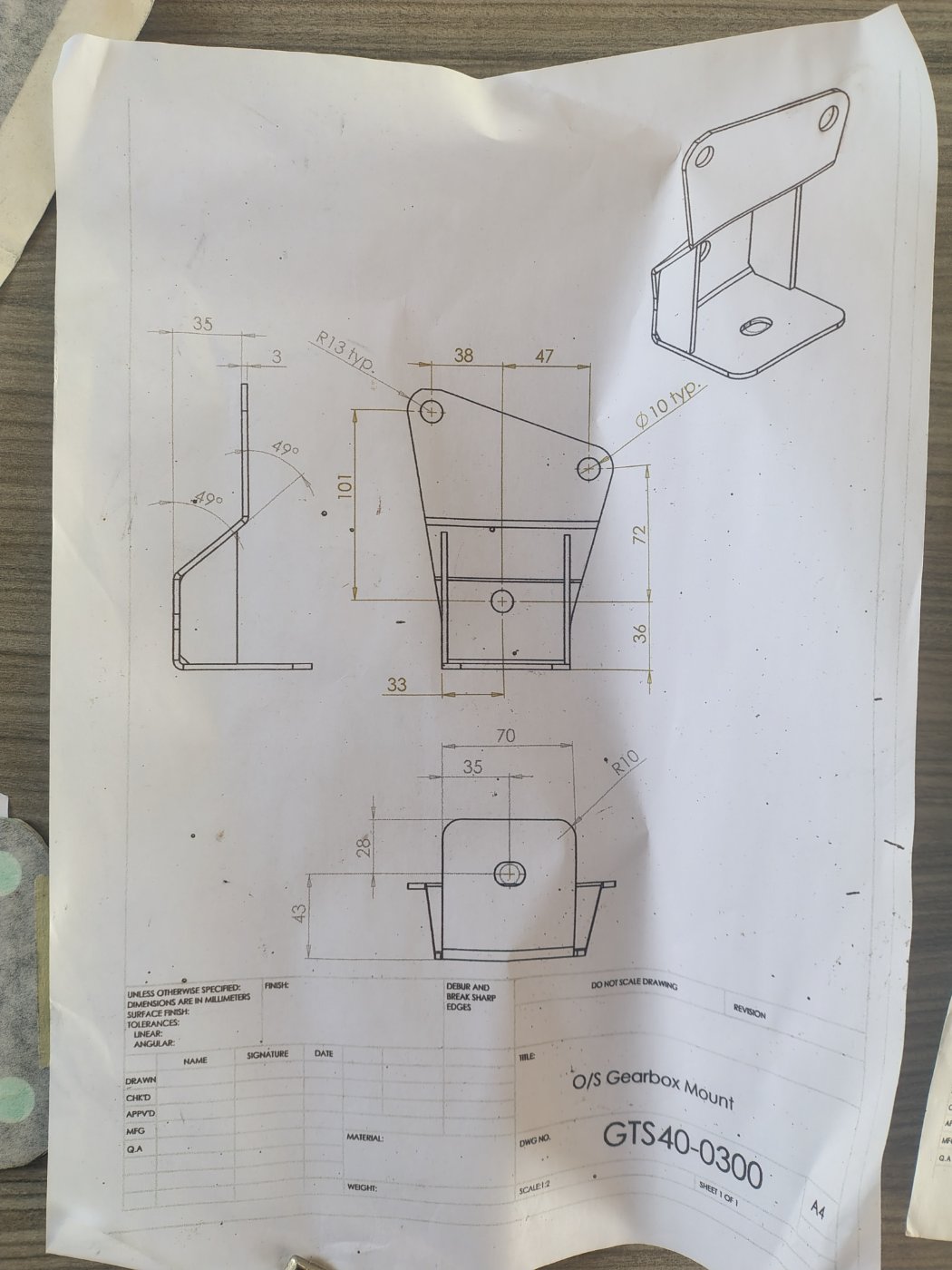

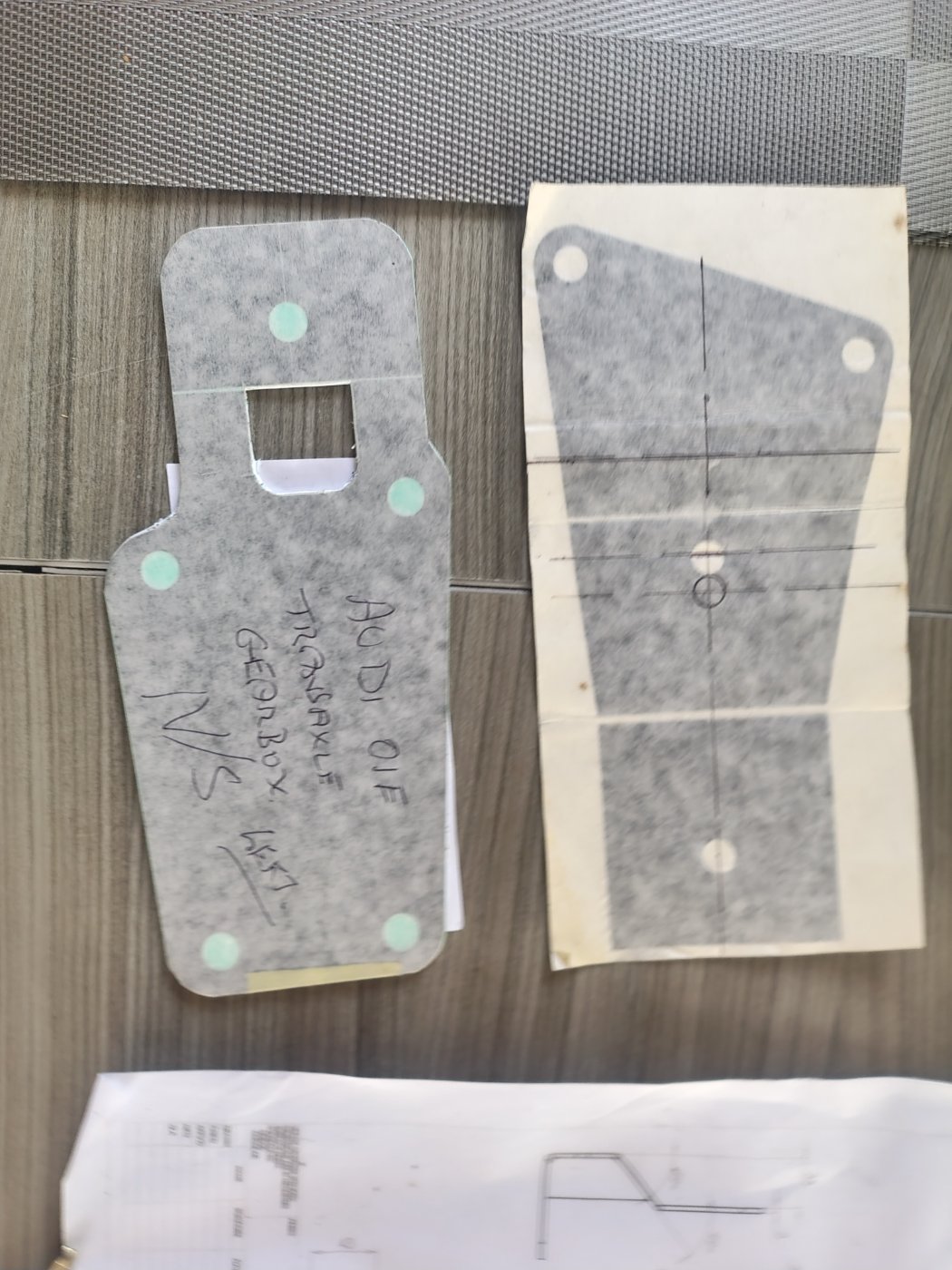

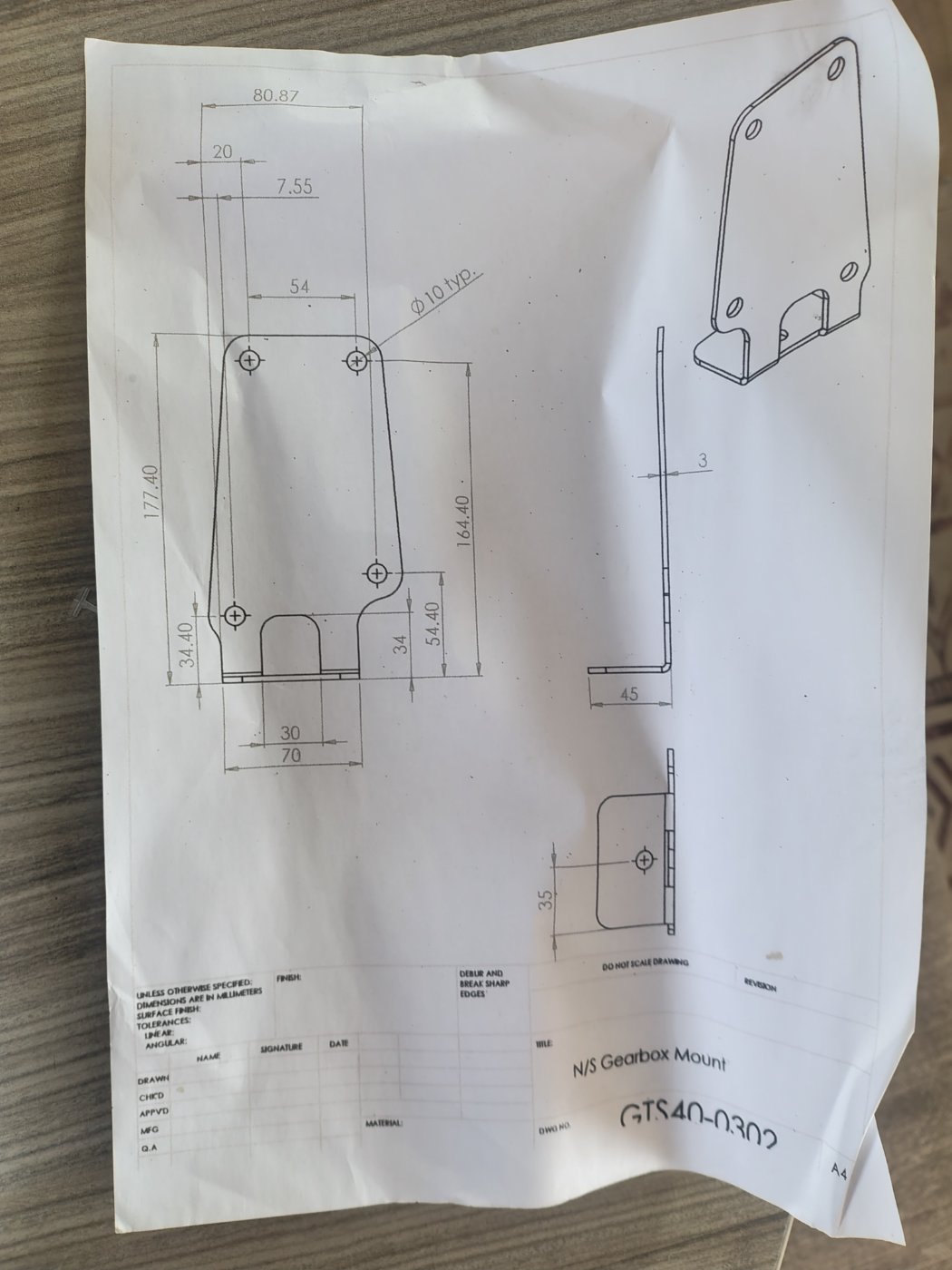

So whilst on my trip to Scotland last Christmas I also got these drawings for gear box mounts for a Audi gearbox and with templates... If there of any use to anyone then more than happy to photo copy them for you


Attachments

  • IMG_20260710_080302746_HDR.jpg
    151.9 KB · Views: 4
  • IMG_20260710_080305369_HDR.jpg
    139 KB · Views: 4
  • IMG_20260710_080310511_HDR.jpg
    230.4 KB · Views: 4
