Weber 48IDA reversion plate dimensions

[Jeff P2302]

Anyone have the dimensions for the reversion plate that was used on original cars
along with the material and thickness? I need to have one fabricated.
Thank You.

Jeff



[JimmyMac]

Jeff
Hello again.
Look in your PM inbox.



[Jeff P2302]

Perfect. Just what I was looking for.
Thank You!



[Julian]

That's nice do you fabricate and sell them?



[Ryan L]

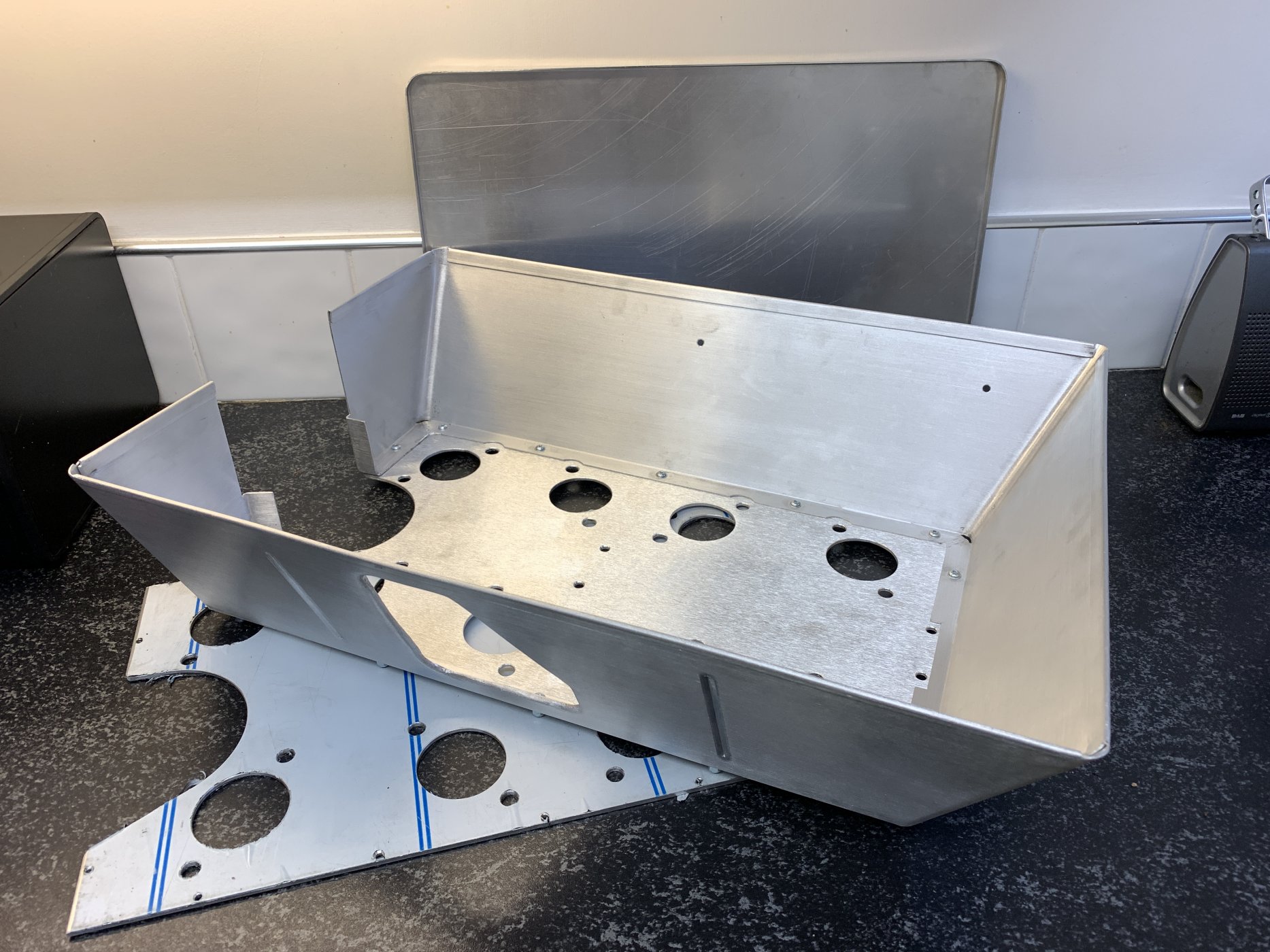

Lovely sheet metal work James. I really like the safety edge around the top of the turkey pan.



[JimmyMac]

That's nice do you fabricate and sell them?

Afraid not Joules.



[Ed White]

Jimmy mac, any chance you could pm me the drawings please? Thanks, Ed



[Julian]

Afraid not Joules.

Any chance I can purchase the drawings then?



[JimmyMac]

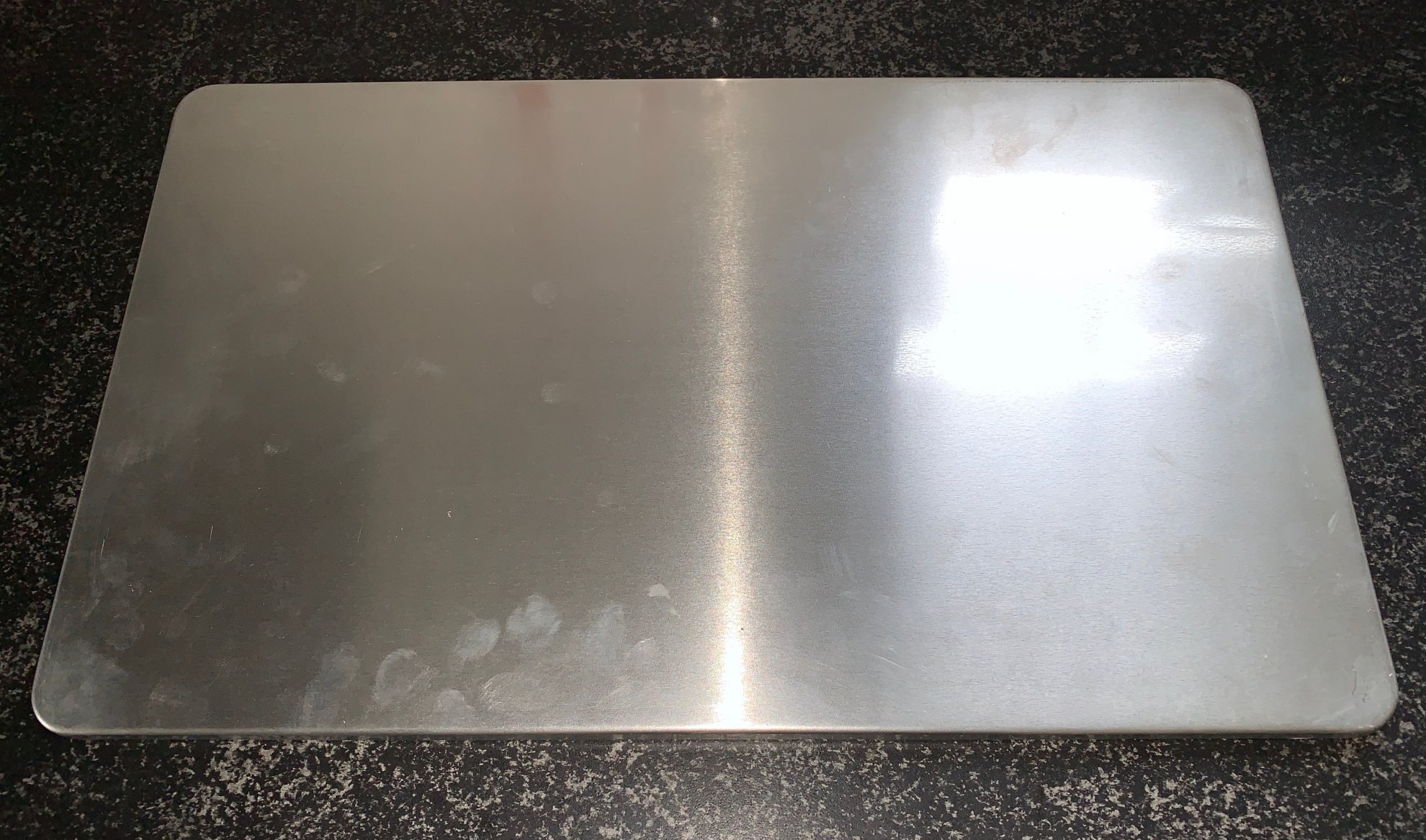

The plate is 19" long X 11.5" Wide with a flange of 5/16" and a corner radius of 1/2"
