CANAMSA - SA stratch build

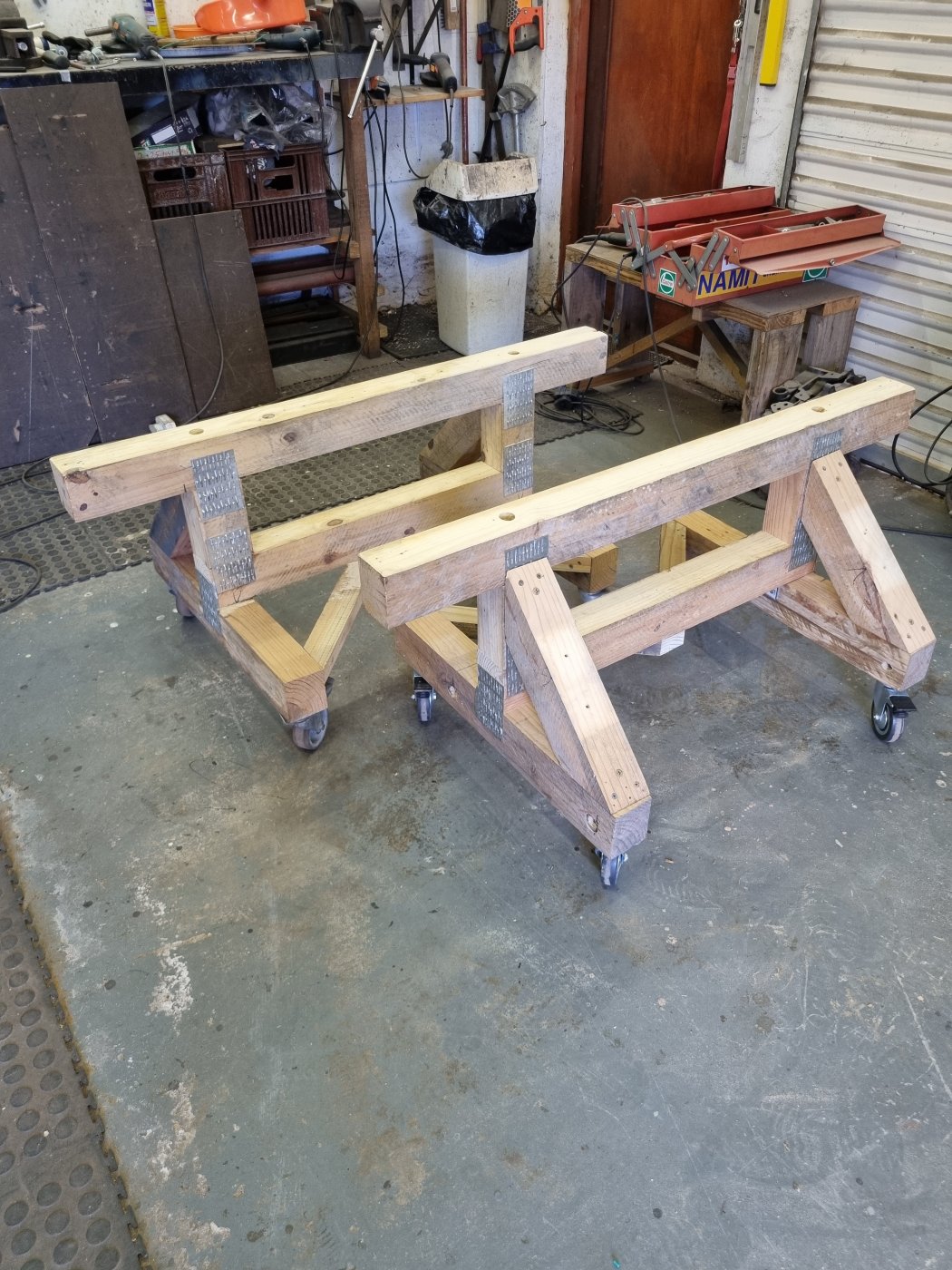

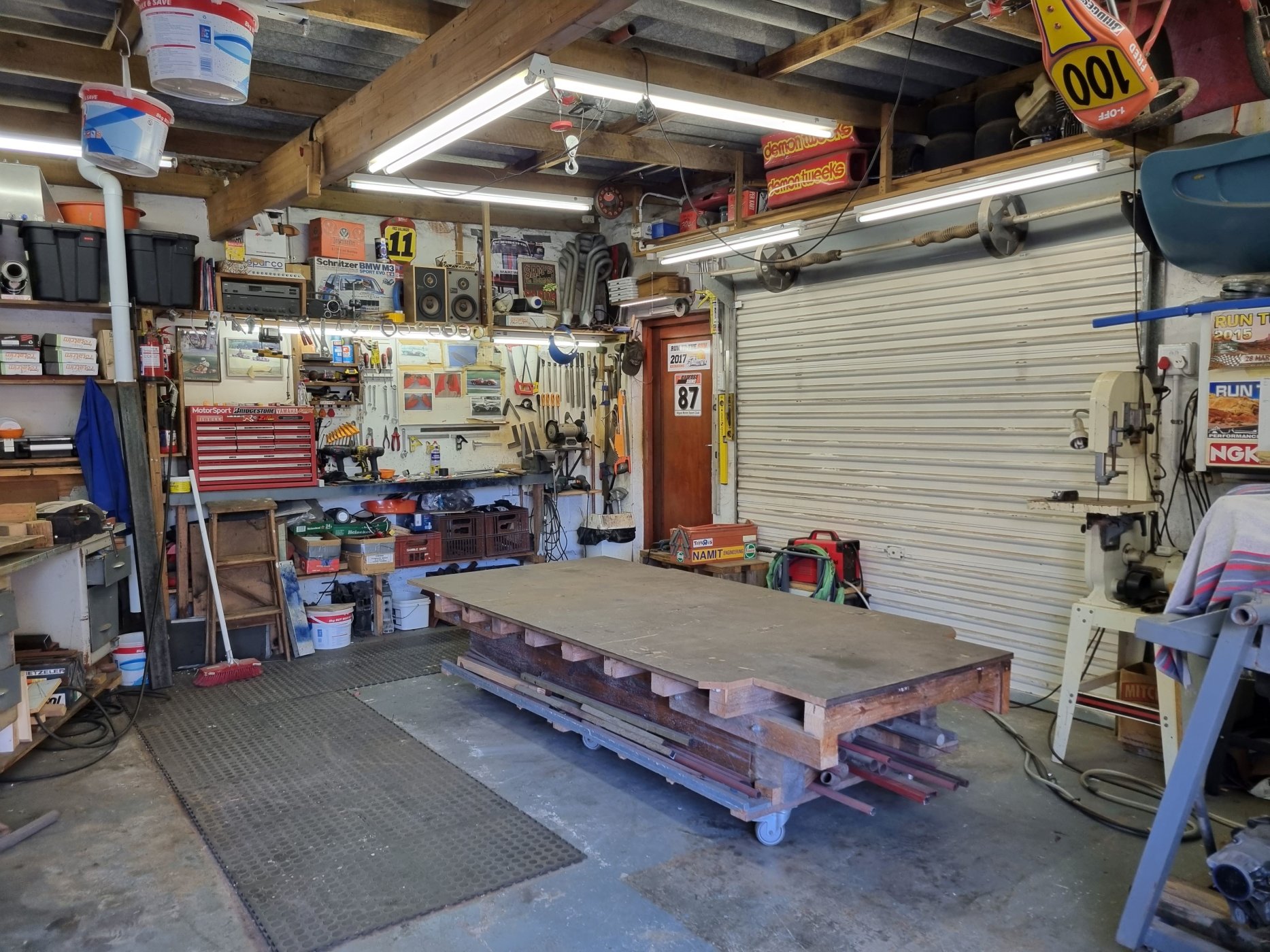

The garage looks so empty with the chassis gone. I disassembled the build table the chassis has stood on for so long and used some of the material to make a pair of chassis trestles
workshop feb 24 .jpg ups.jpg version 2.jpg
tressels.jpg version 3.jpg

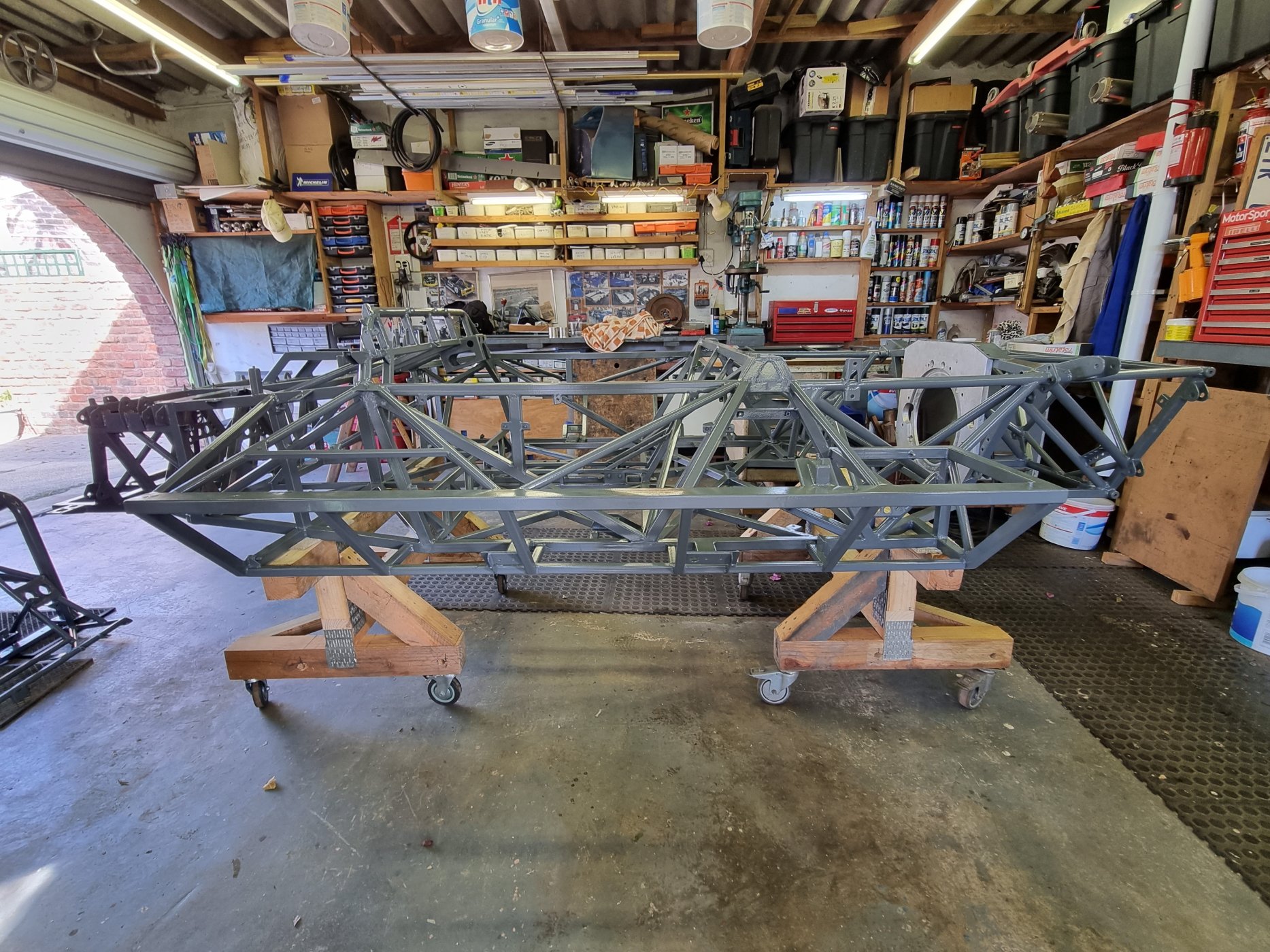

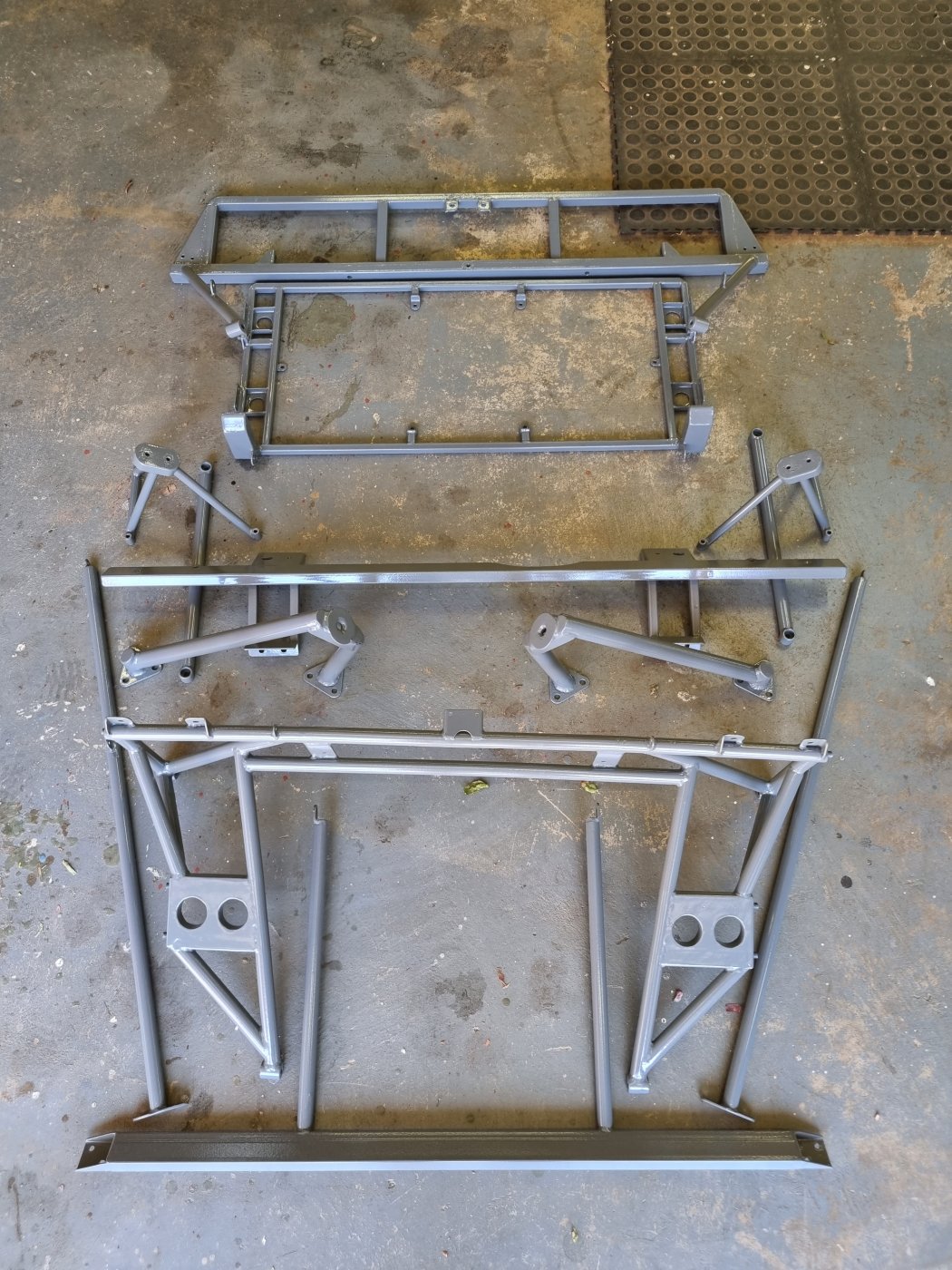

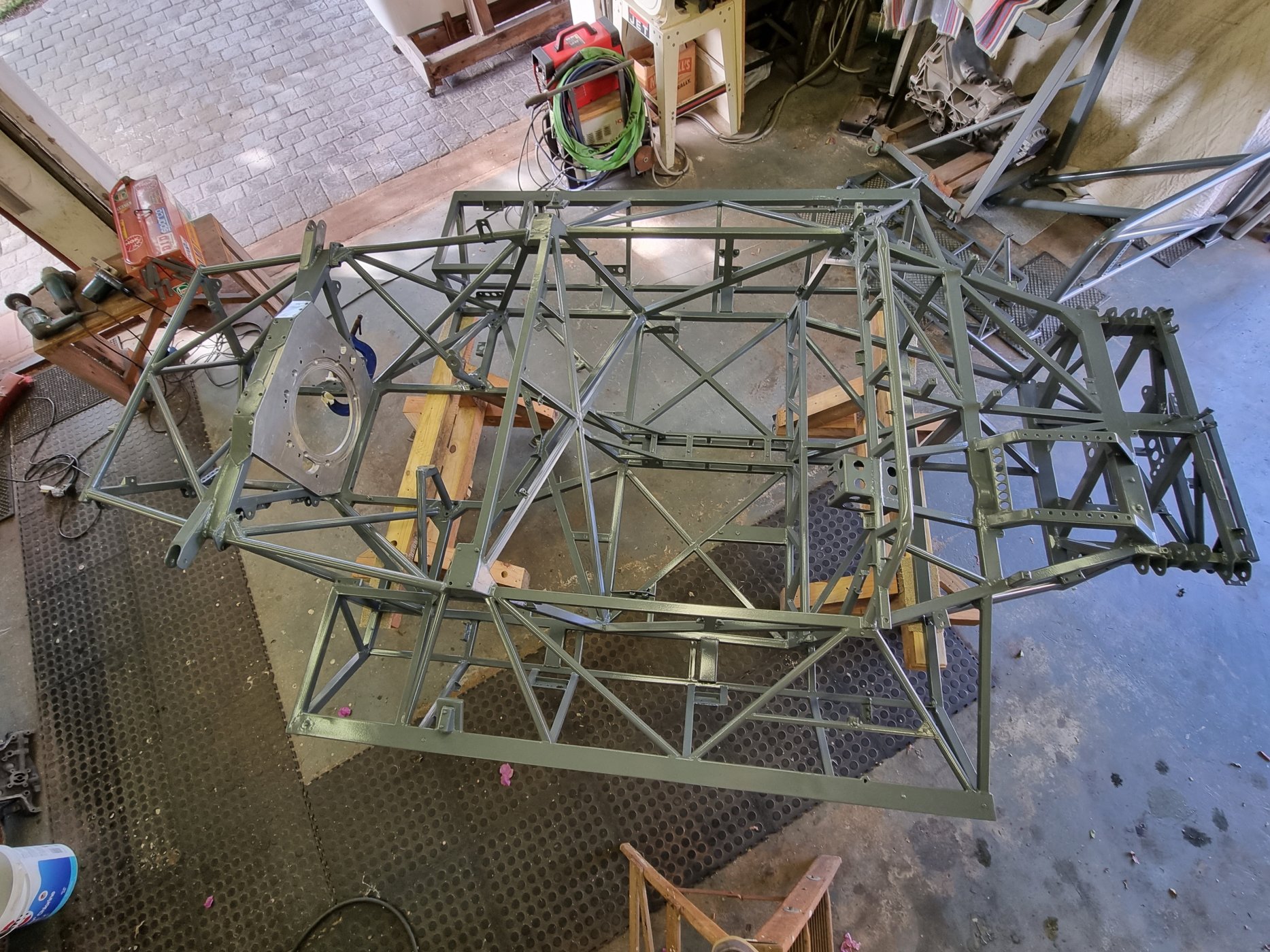

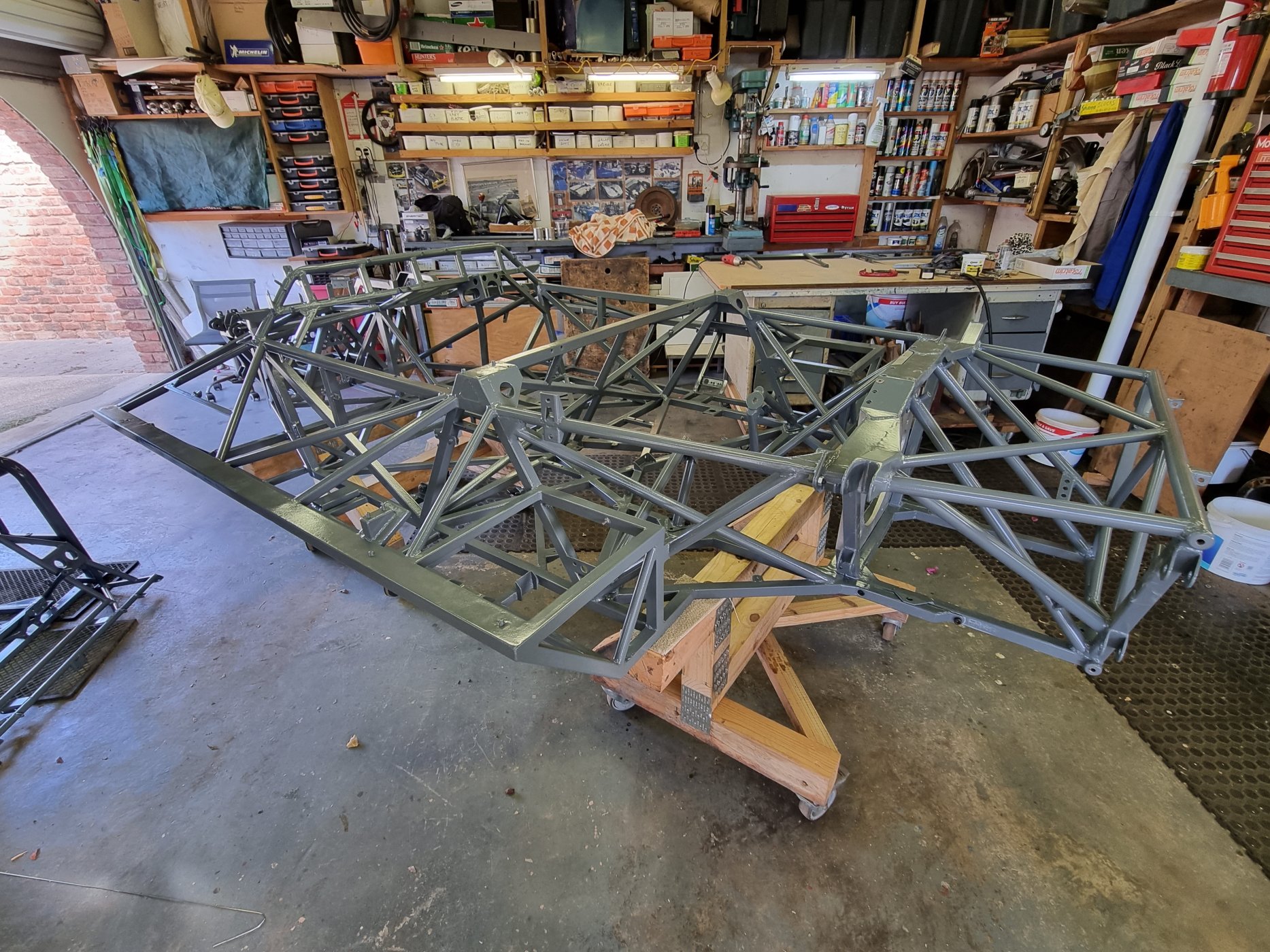

Very exciting weekend for me! Got the chassis and subframes back from paint and I am very happy with it. The colour is Basalt grey RAL 7012. Before painting the main chassis and rear section weighed about 119 kg (260 pounds), the zinc rich primer and polyurethane top coat added about 2 kg (4.5 pound).

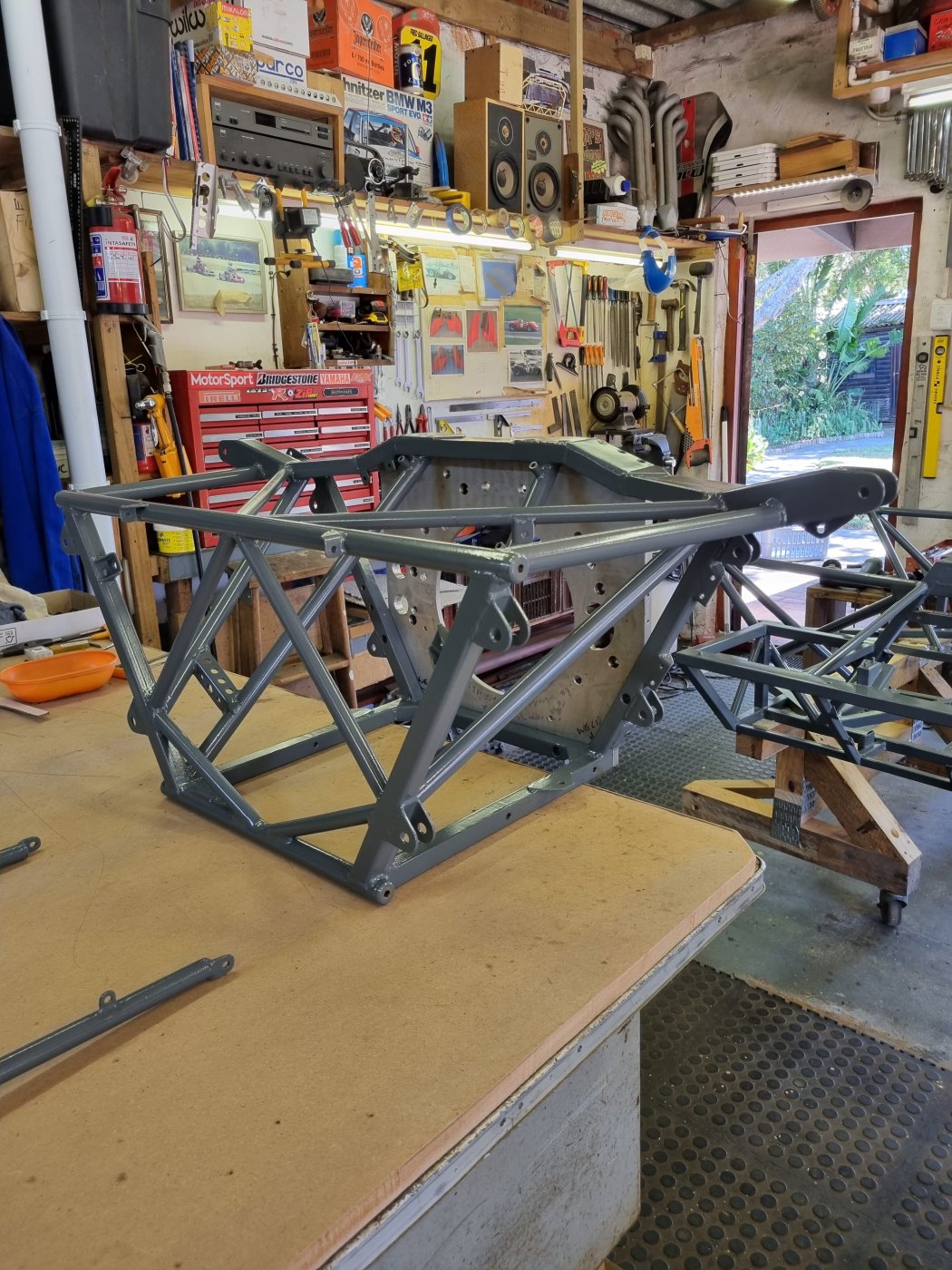

I bolted the engine engine adapter / mount plate to the rear chassis section and mated that to the main chassis section to check it still fitted. Had to relieve some paint thickness in the mating faces. Started to remove the threaded plugs and checked that a bolt turned nicely by hand into all the bushes. Currently busy with that as I am having to retap most of them.
rear chassis march 24.jpg

Last edited:

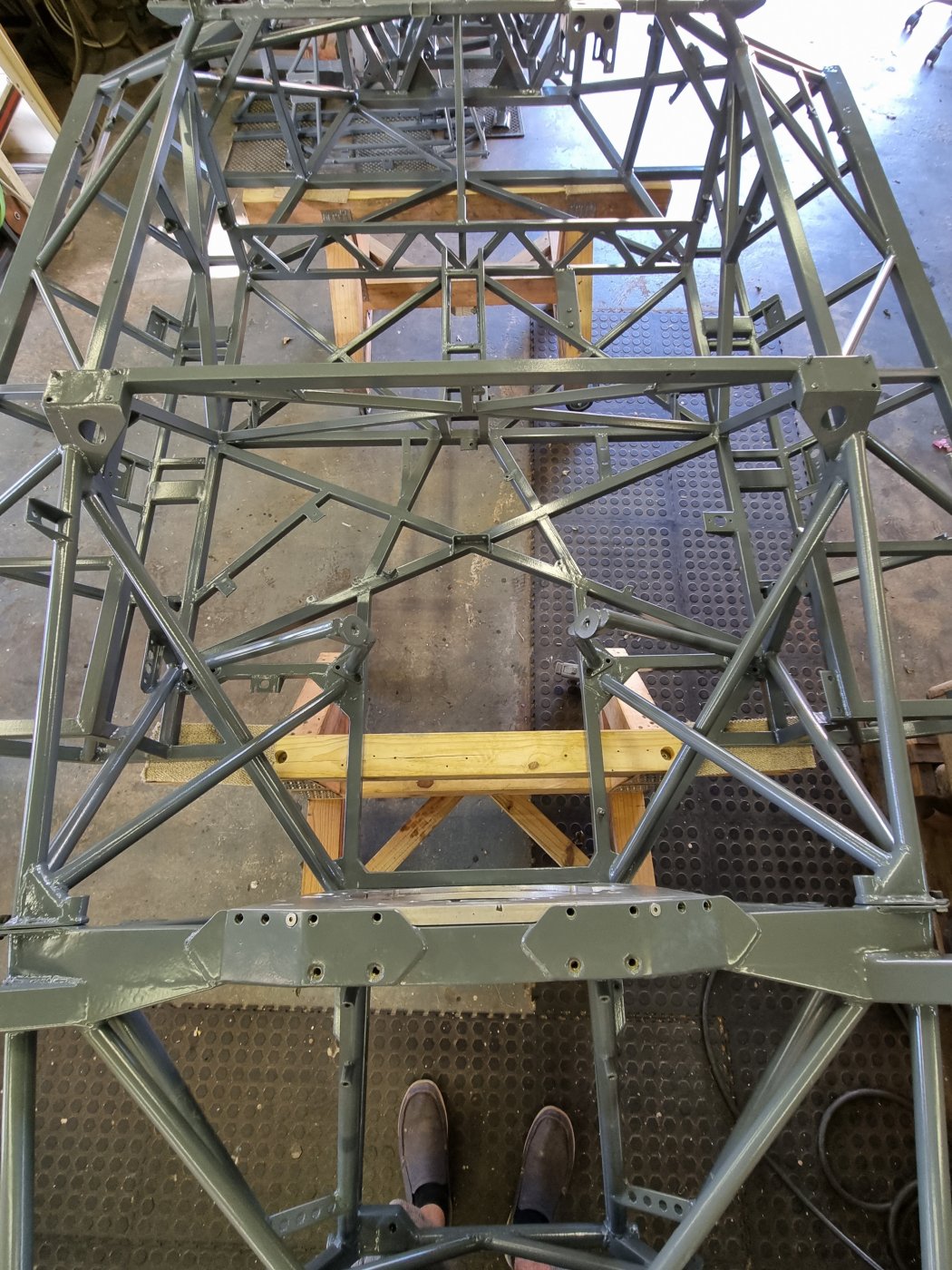

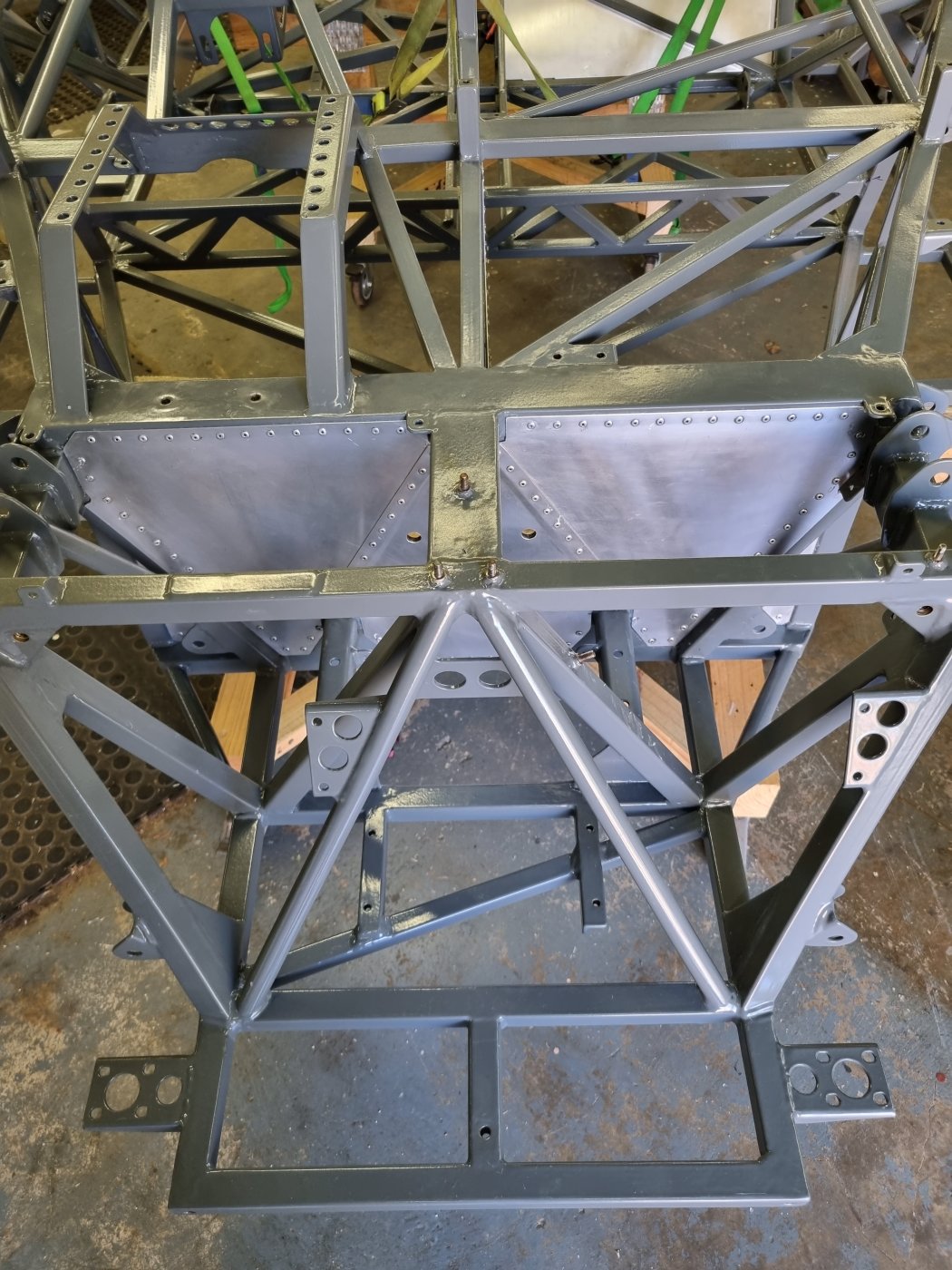

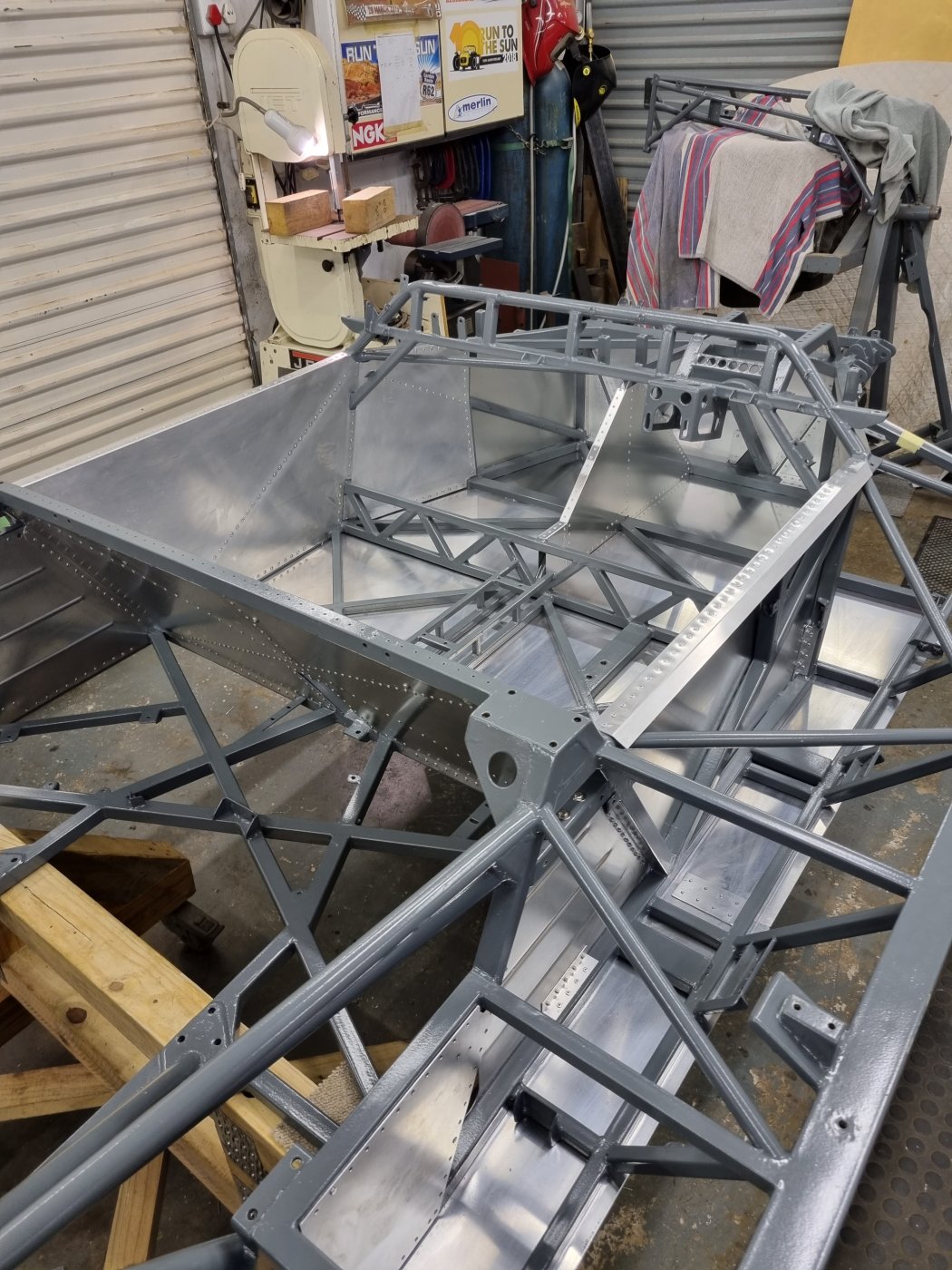

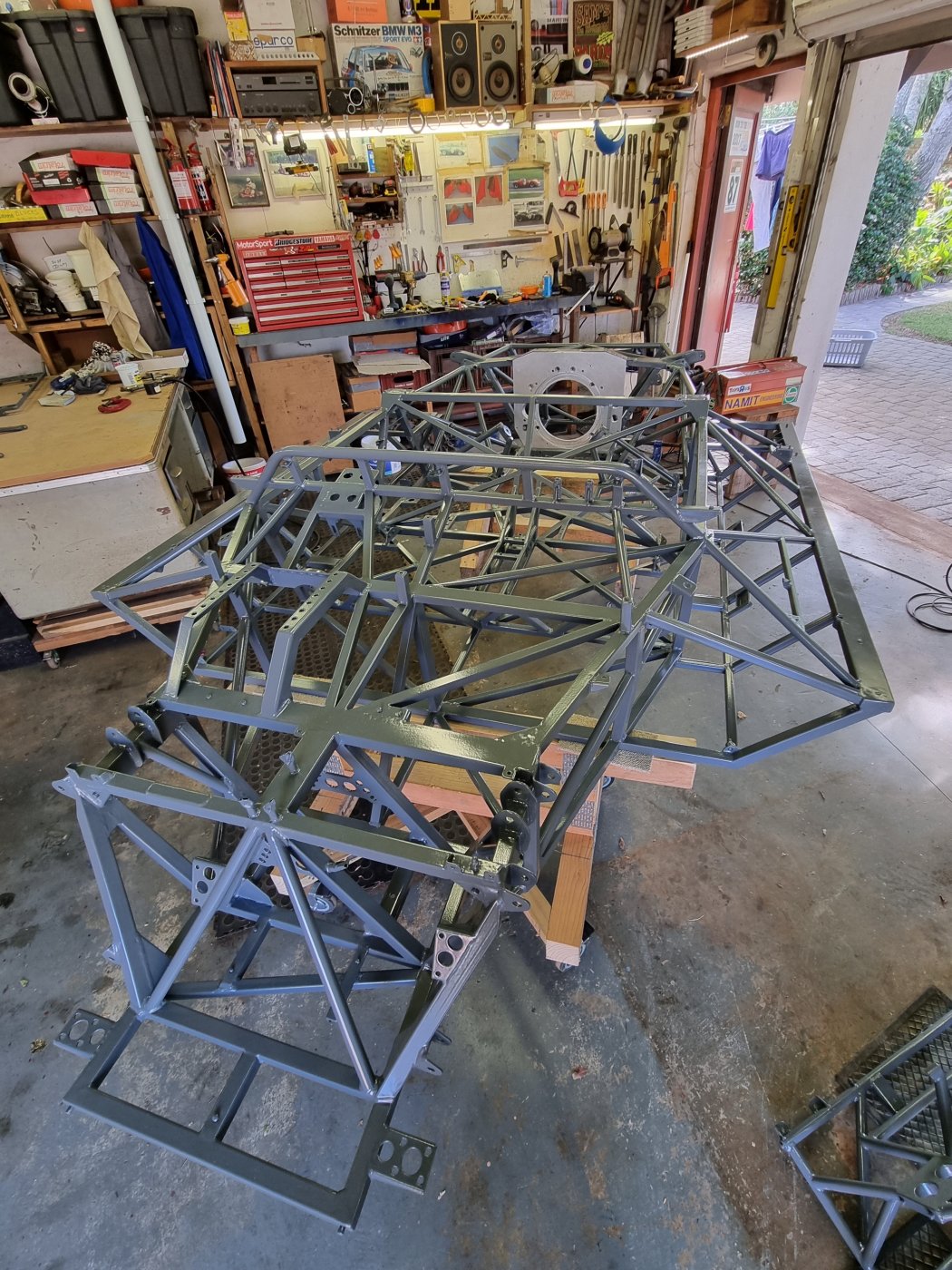

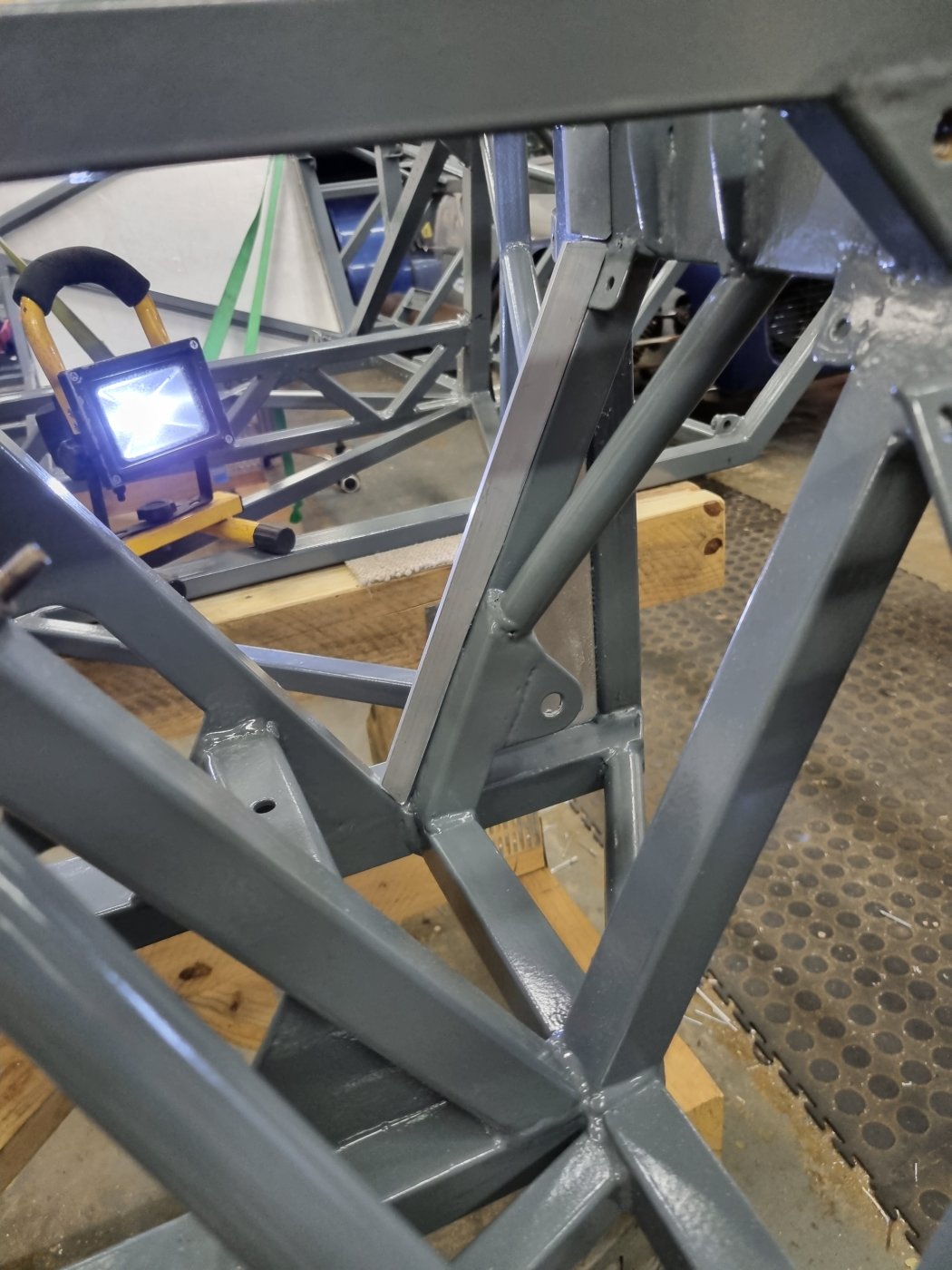

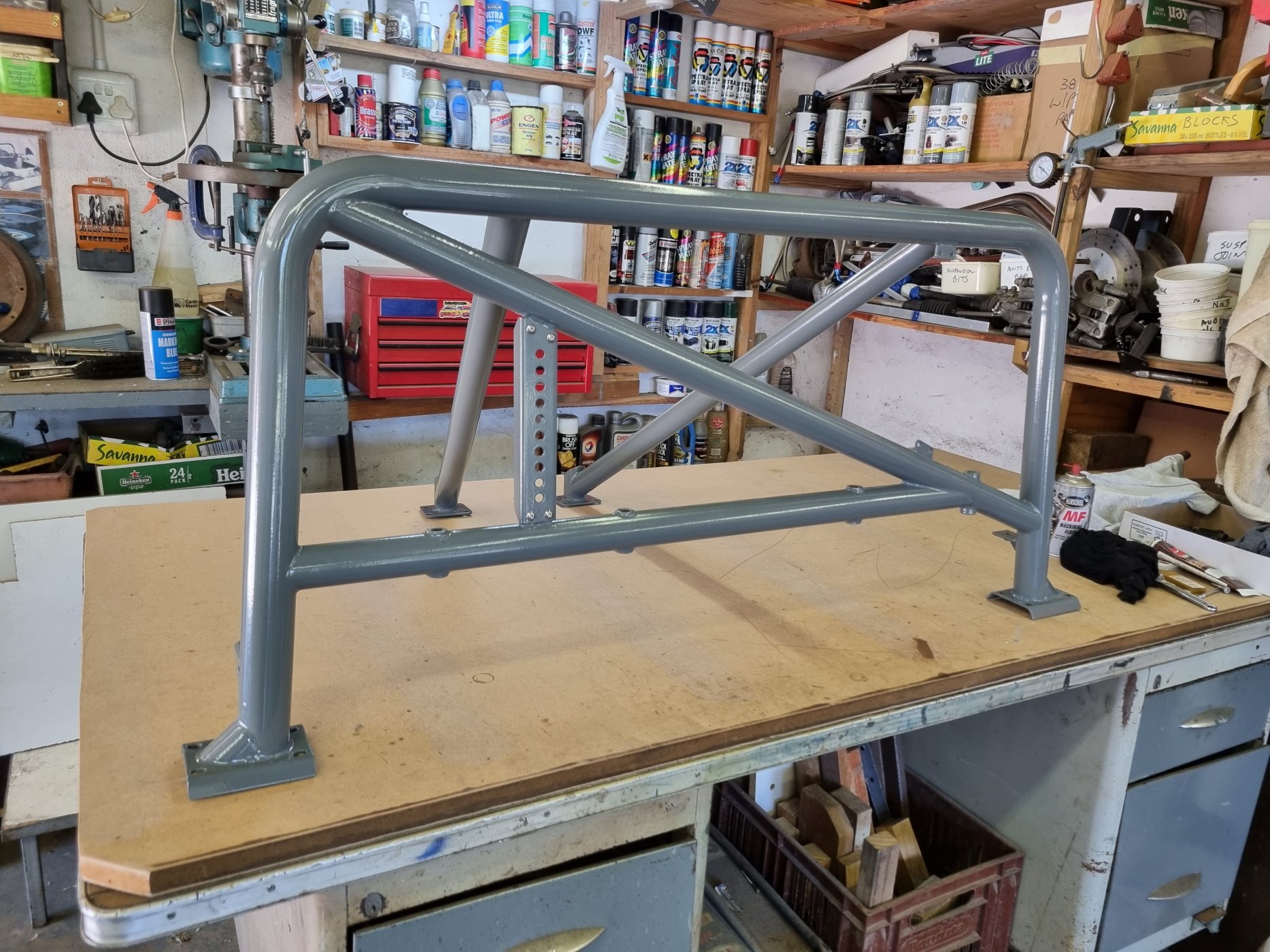

A view of the engine bay showing various brackets for such as handbrake cables, fuel tank and lines, brake lines etc . The small structure in the centre of the cockpit that supports the gearshift is slight offset from centre to give the driver more elbow room.
chassi rear match 24.jpg

Last edited:

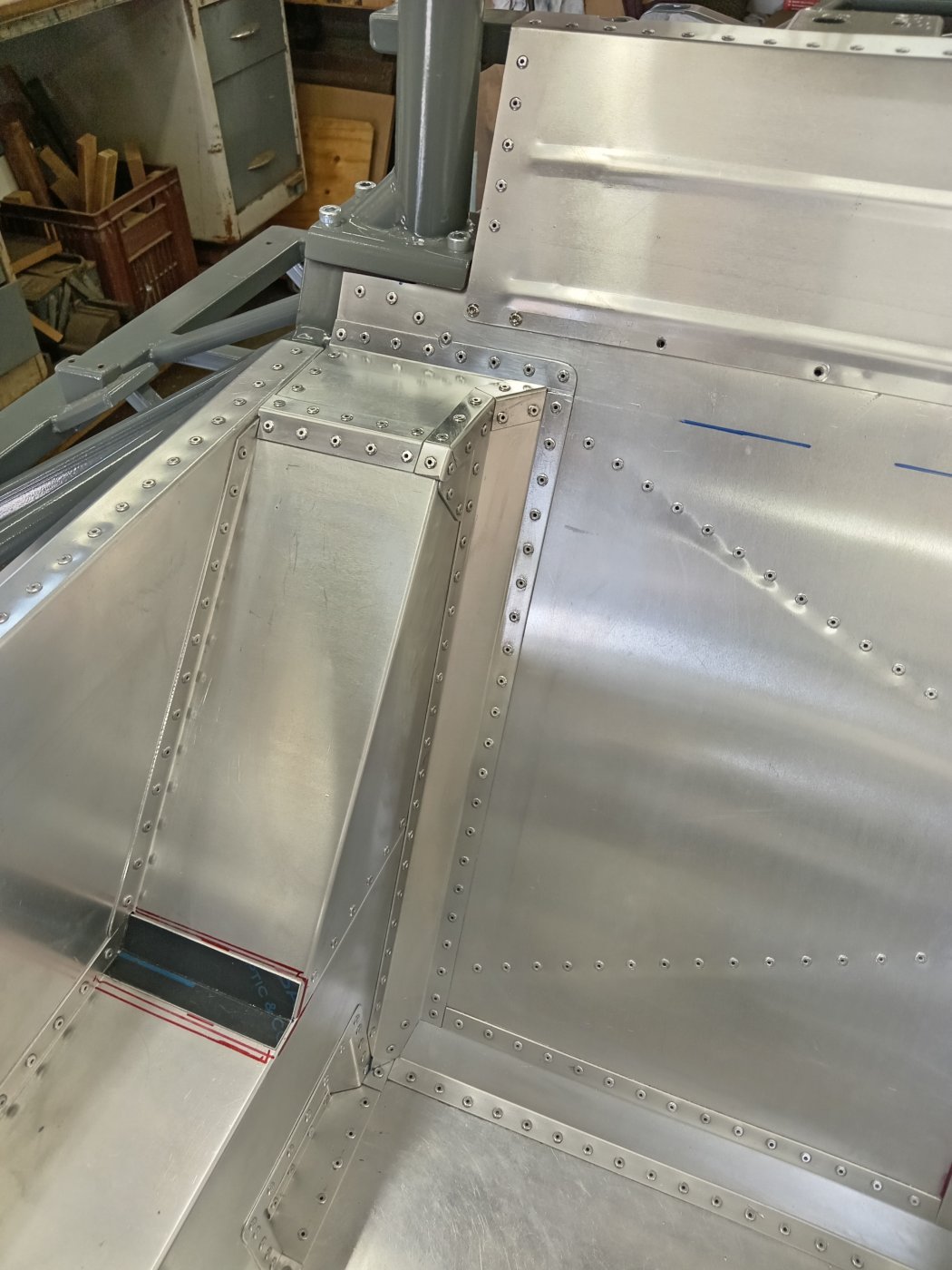

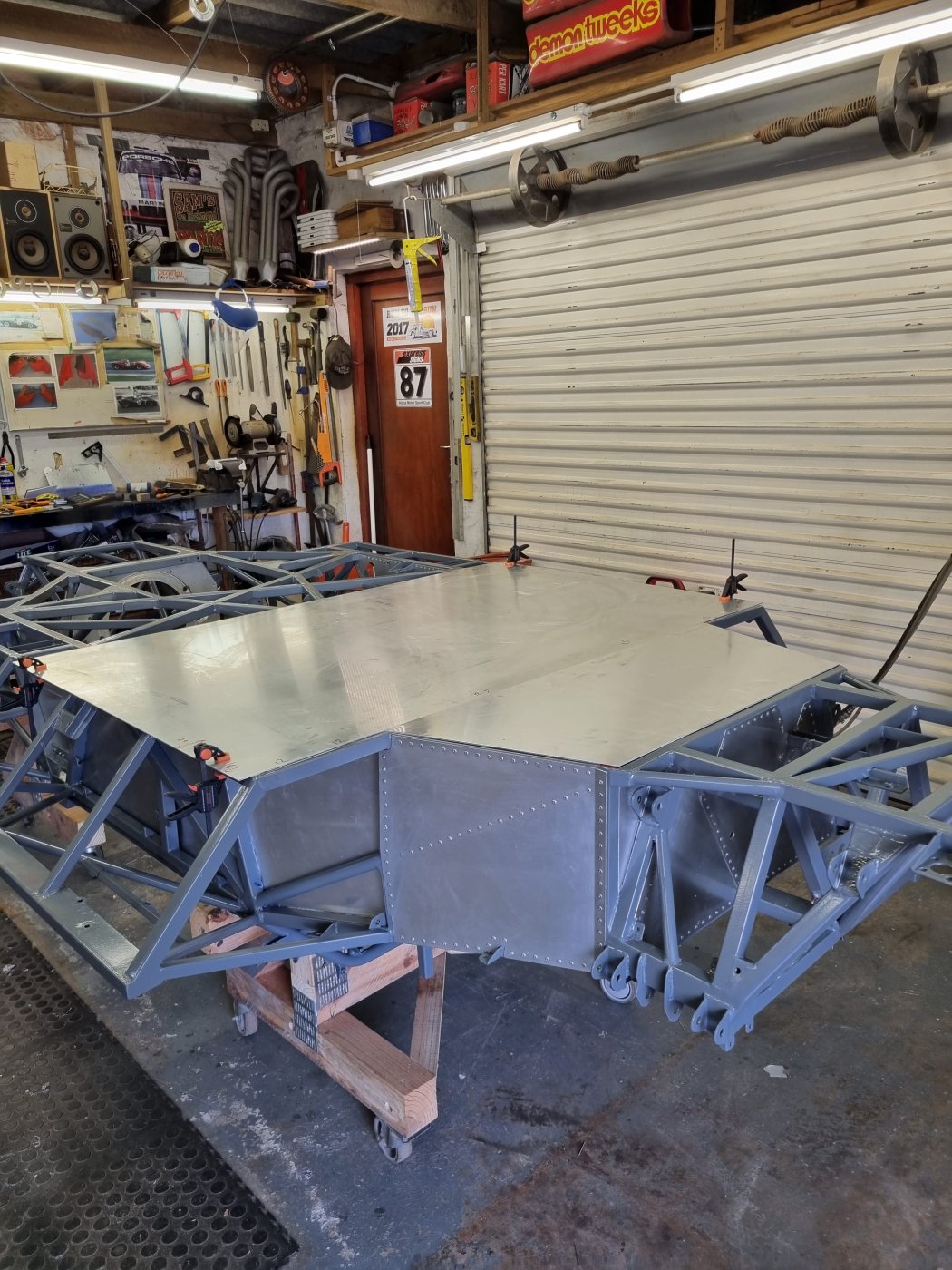

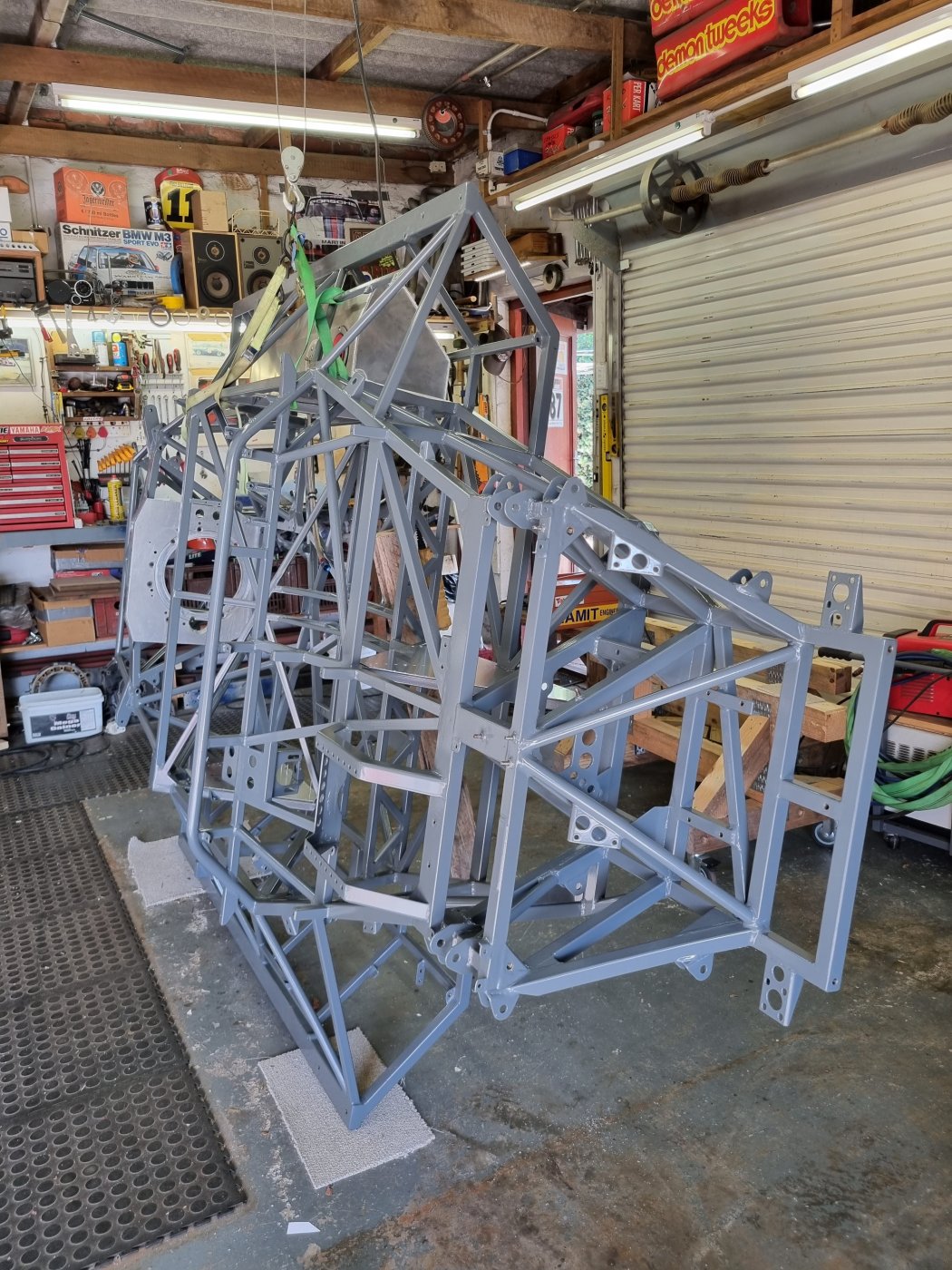

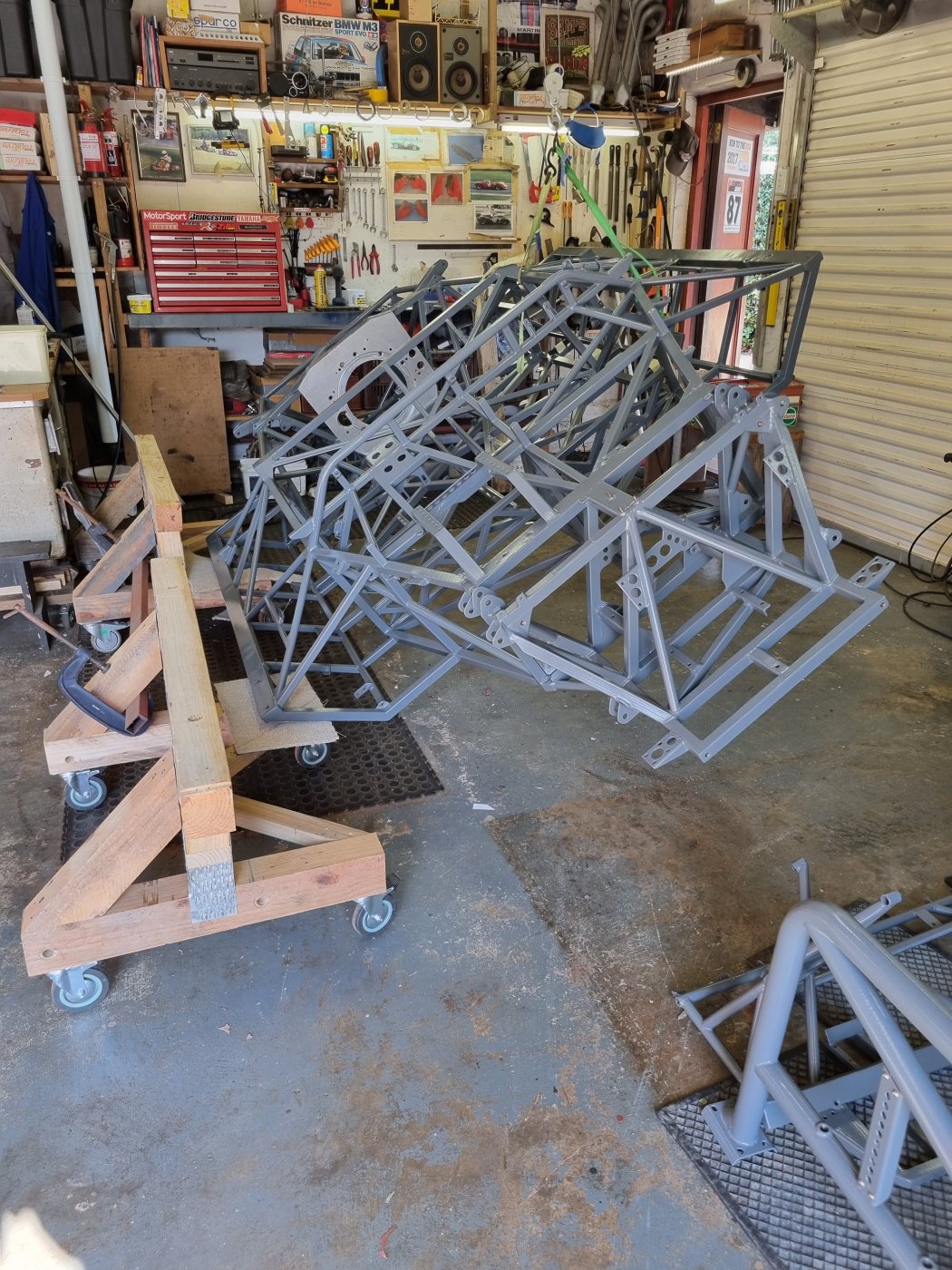

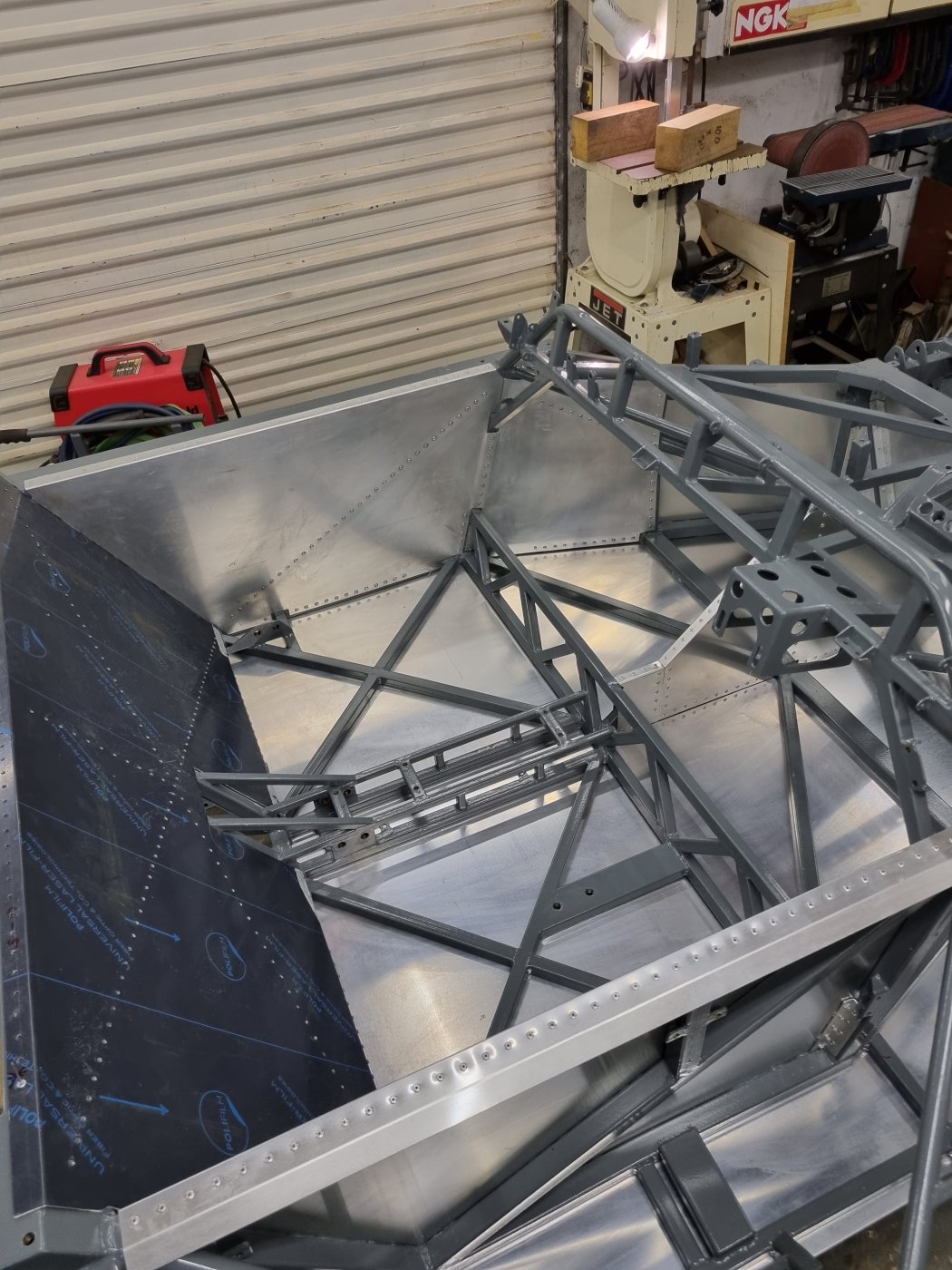

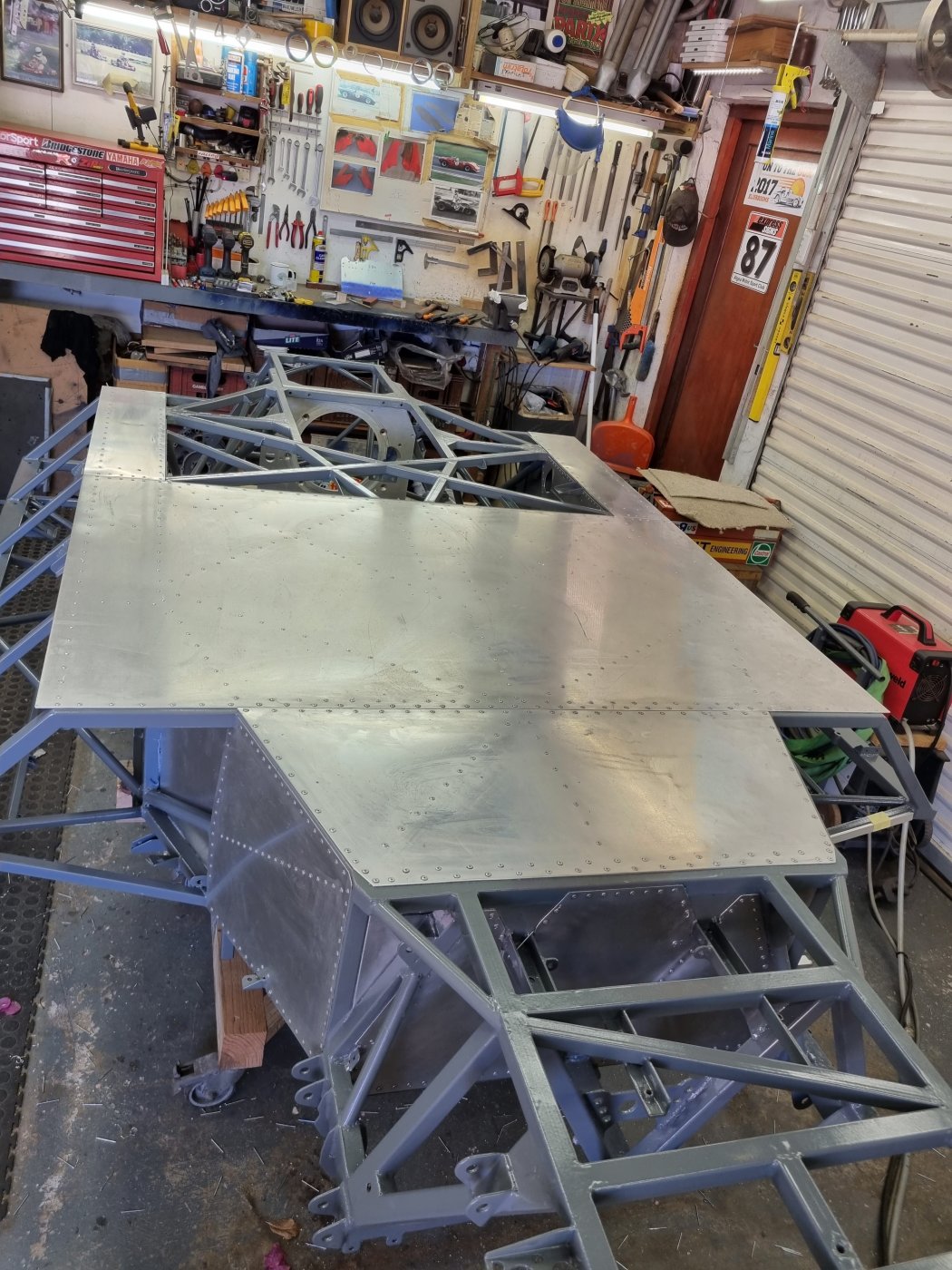

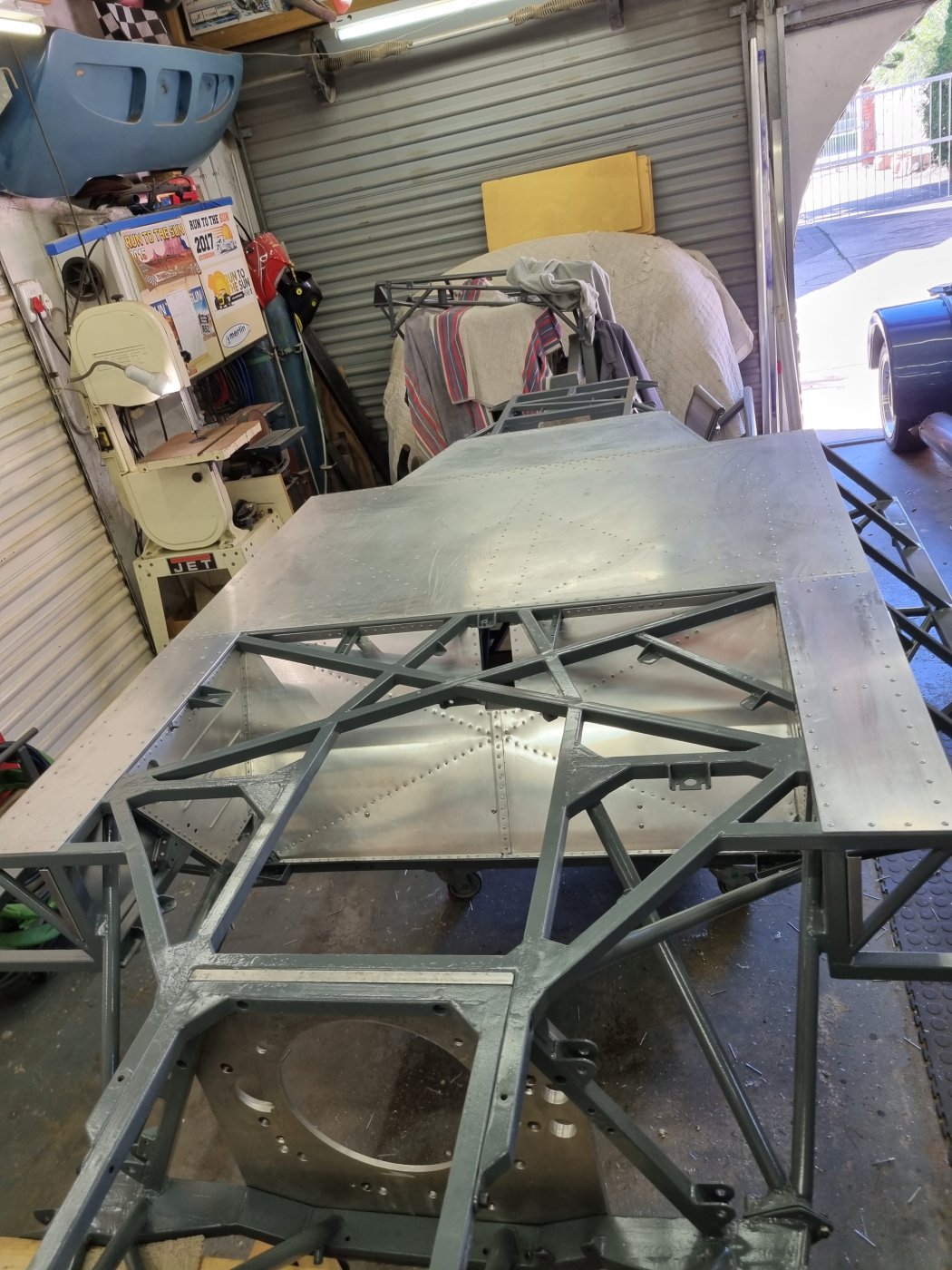

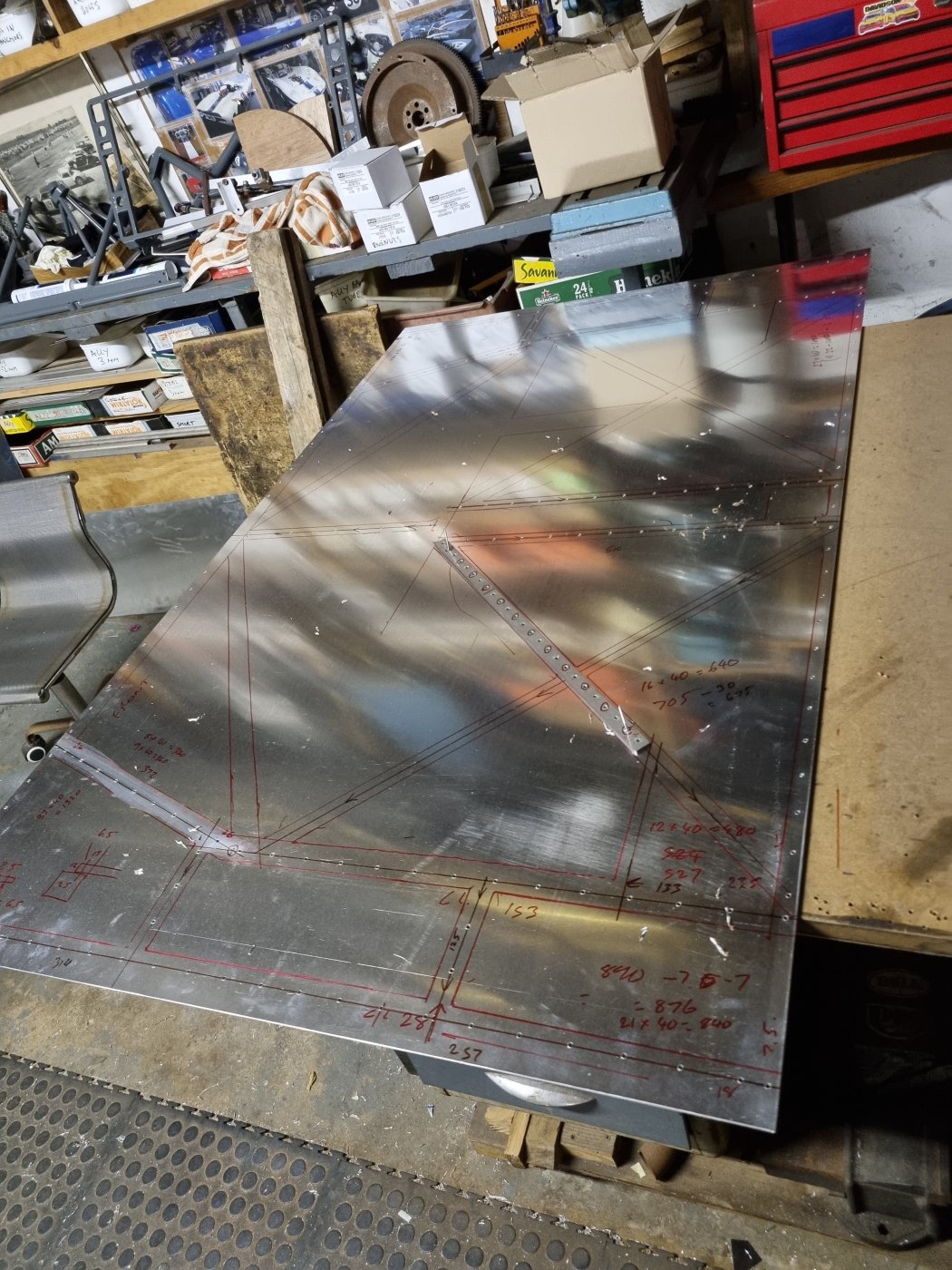

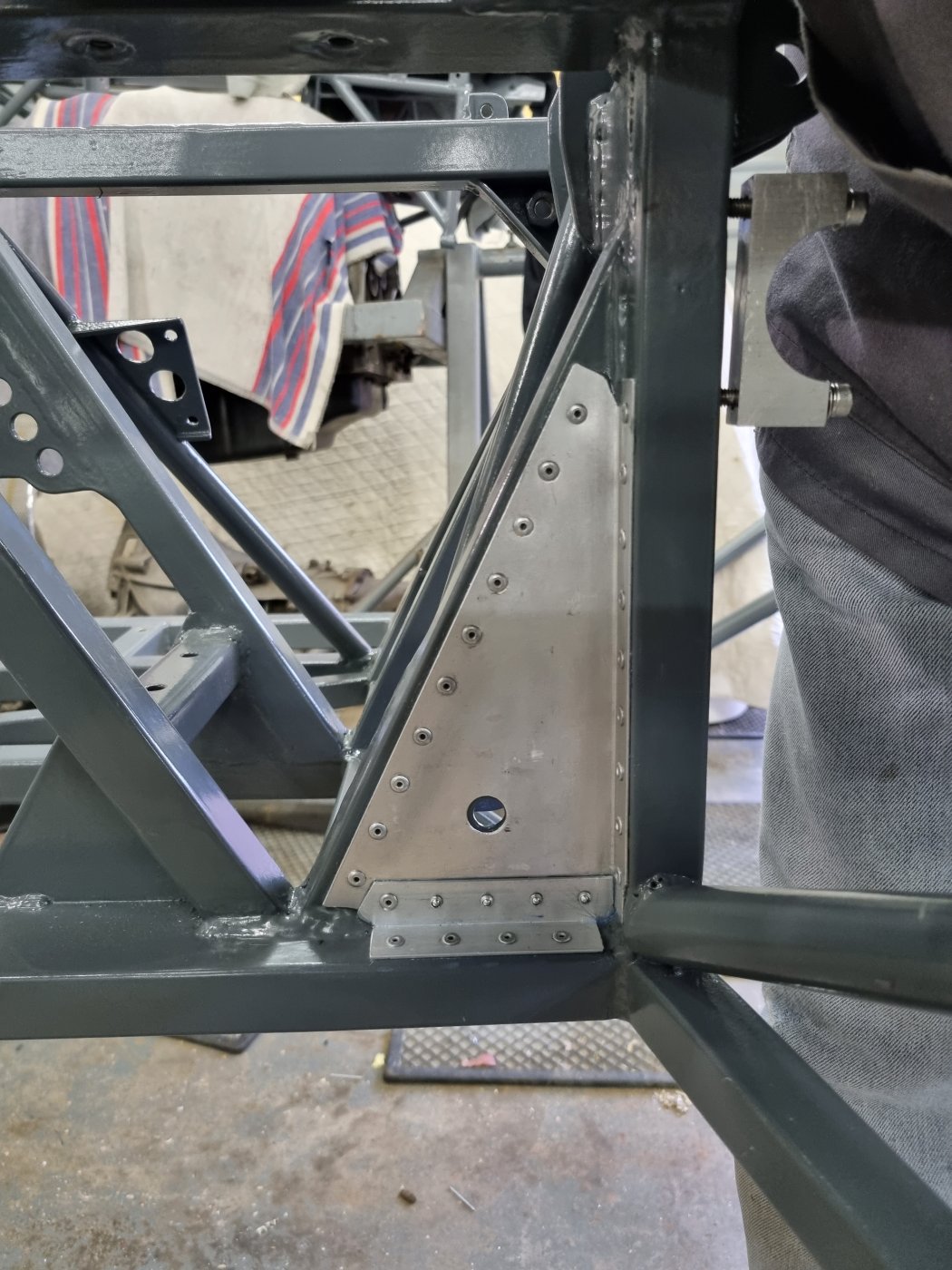

Once I had finished cleaning out all the internal threads I could make a start on the aluminium panelling. Although this is a space frame chassis I want to panel the cockpit internal area so that it resembles a monocoque construction. I intended to fit the floor first but as I turned the chassis I realized access to work on the internal side panels is much better with the chassis on its side, and before the floor is fitted.

turn chassis 1.jpg


turn chassis 2.jpg

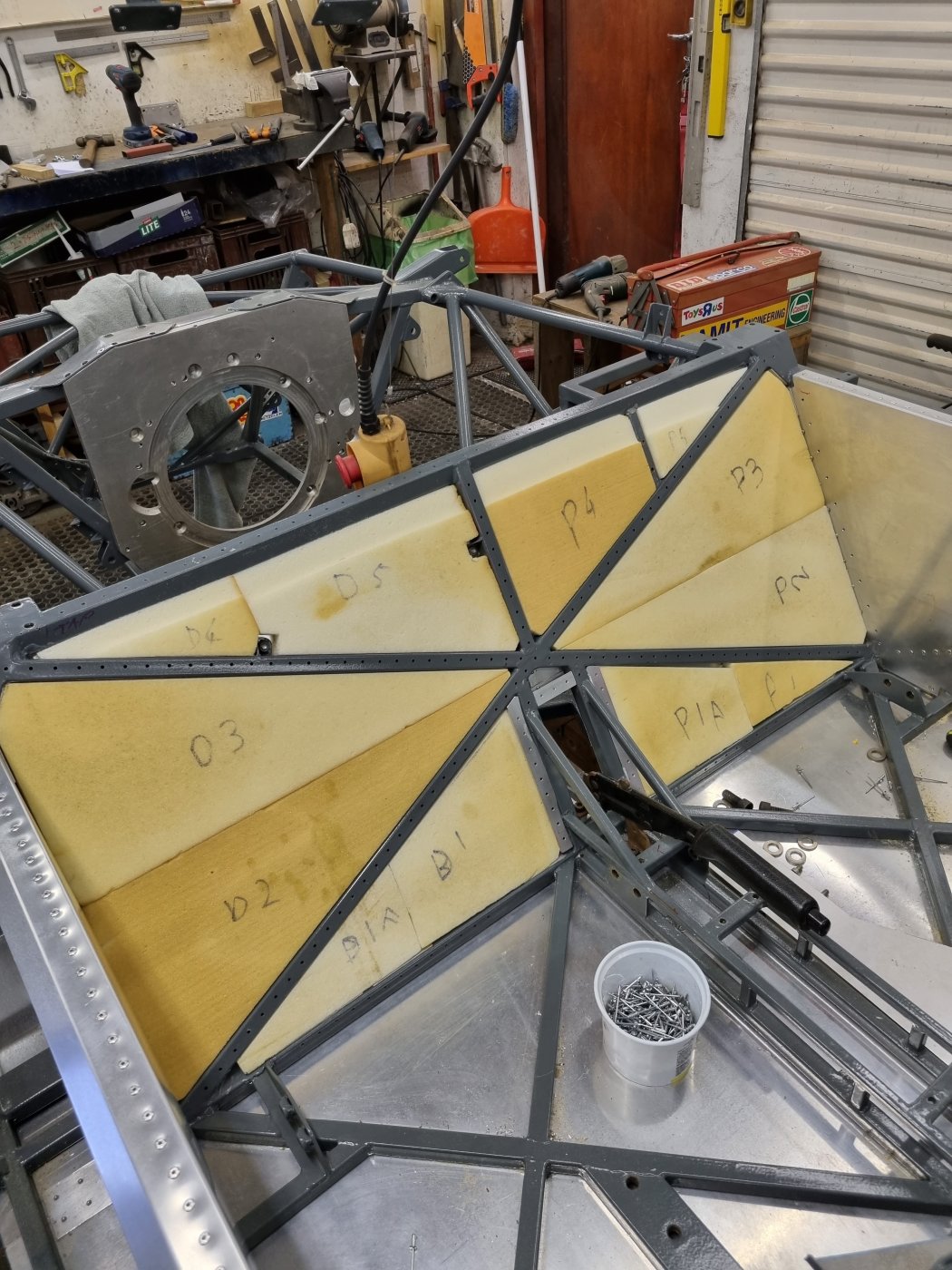

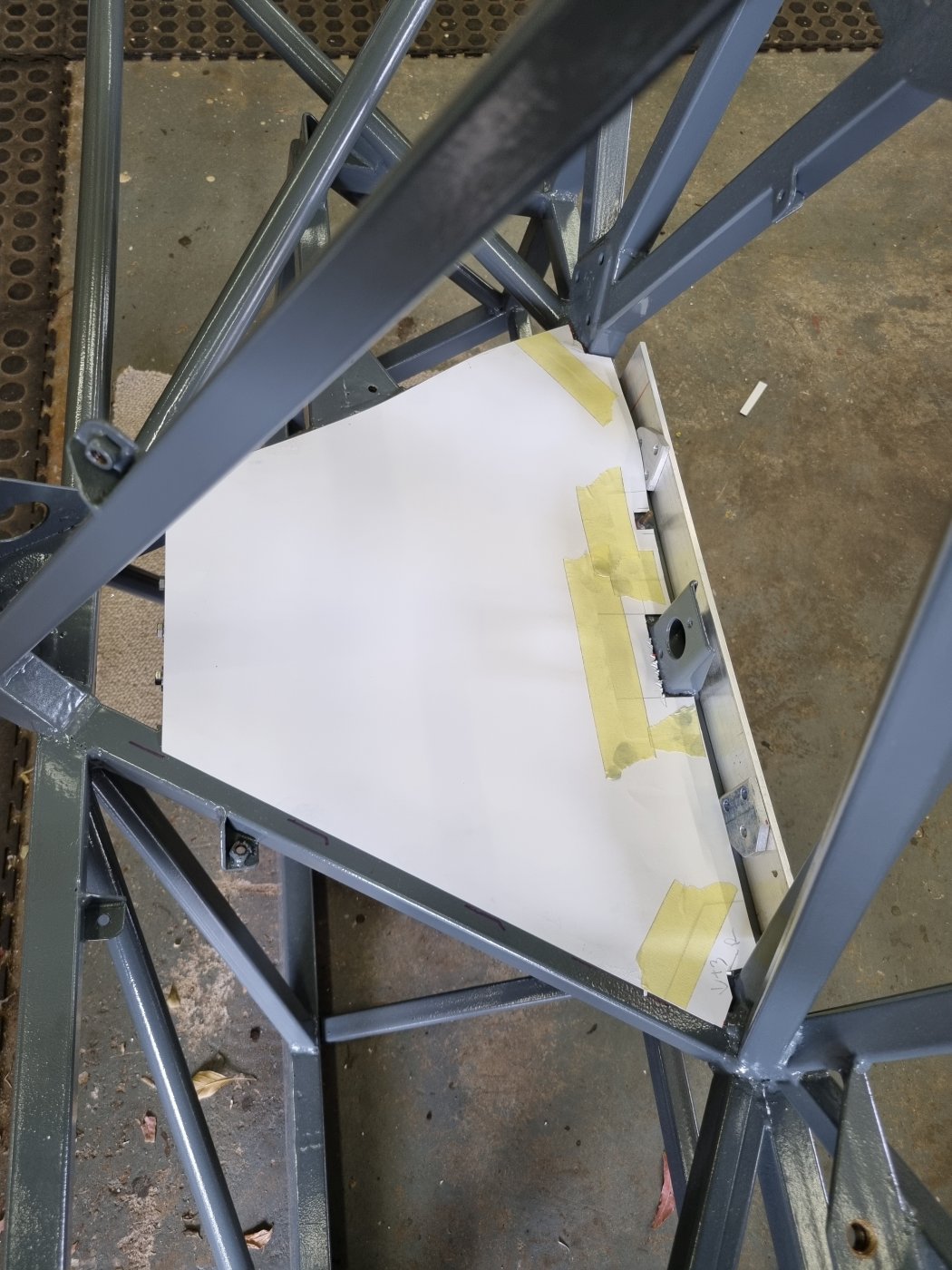

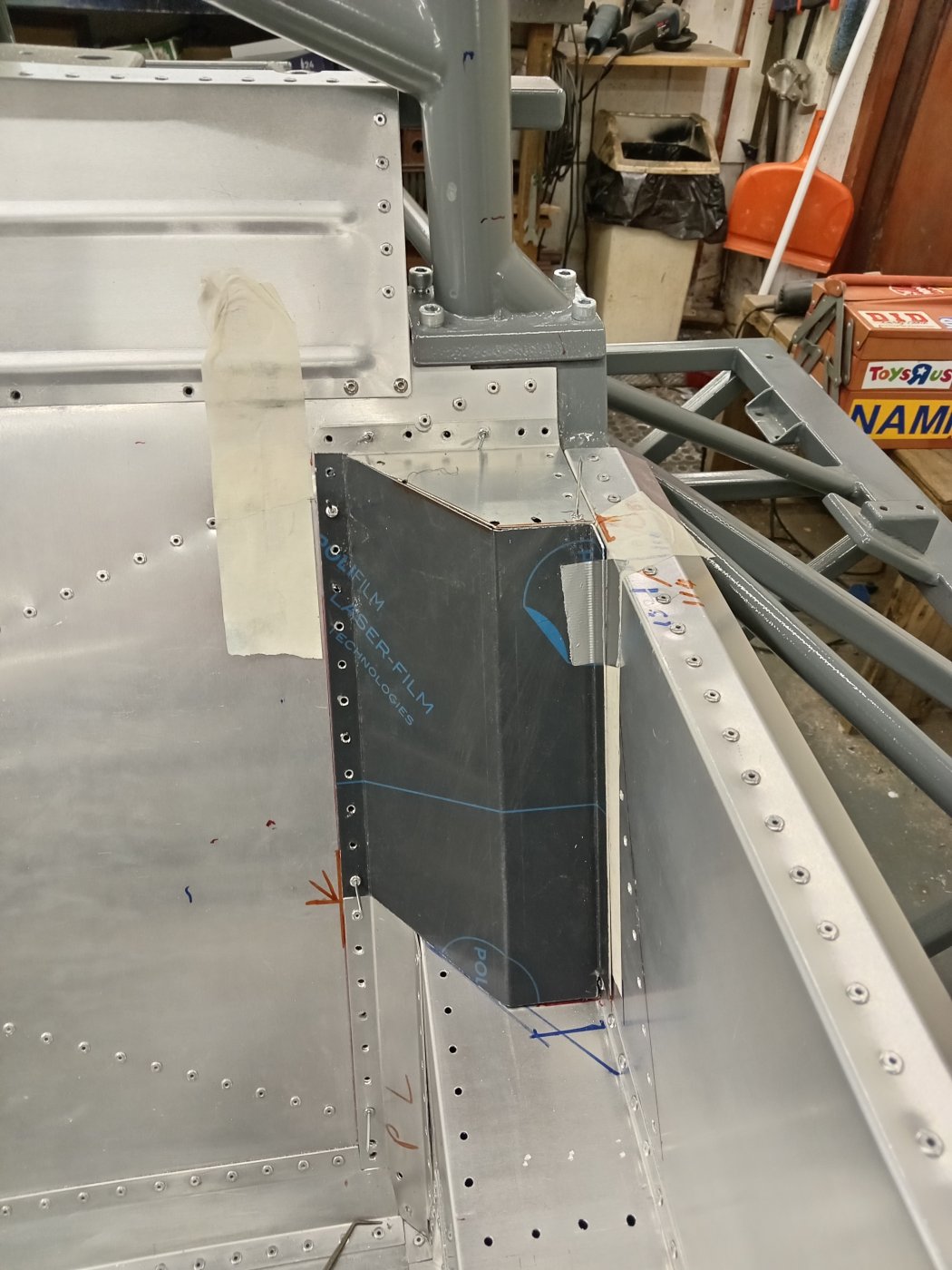

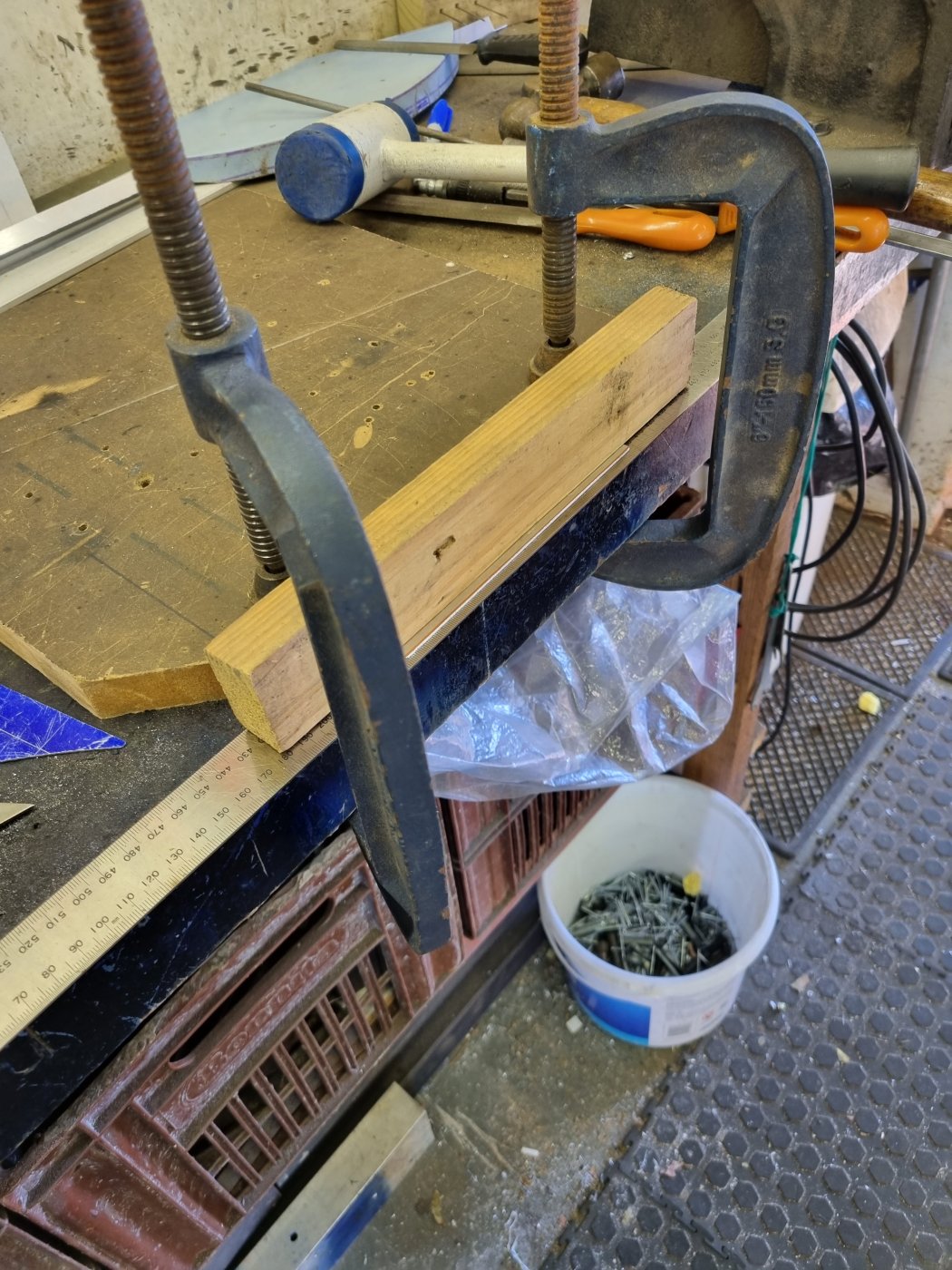

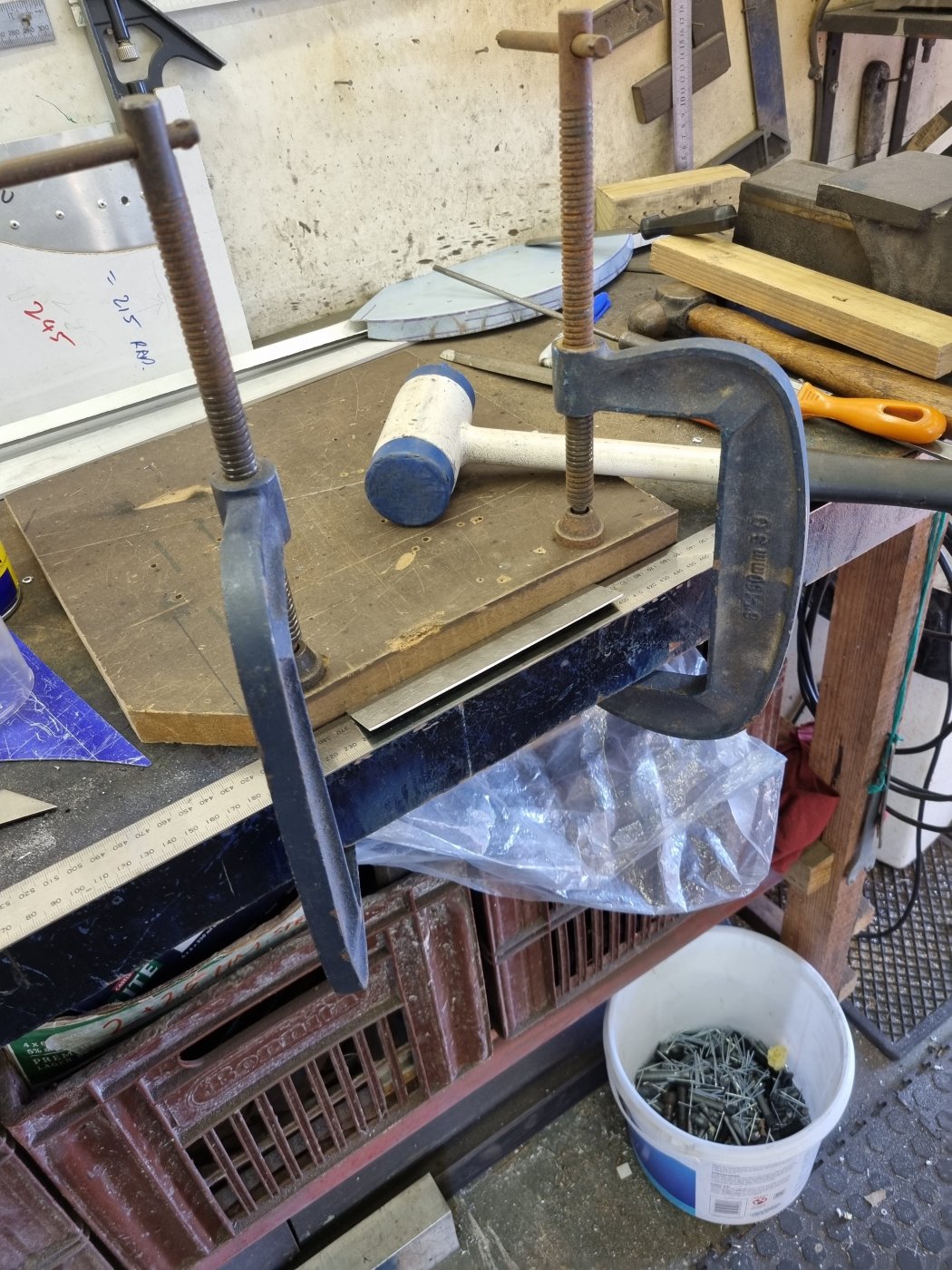

I make paper templates to aid in cutting reliefs around frame members and brackets. Rough fit it first and then tape bits on to get the final fit-up.

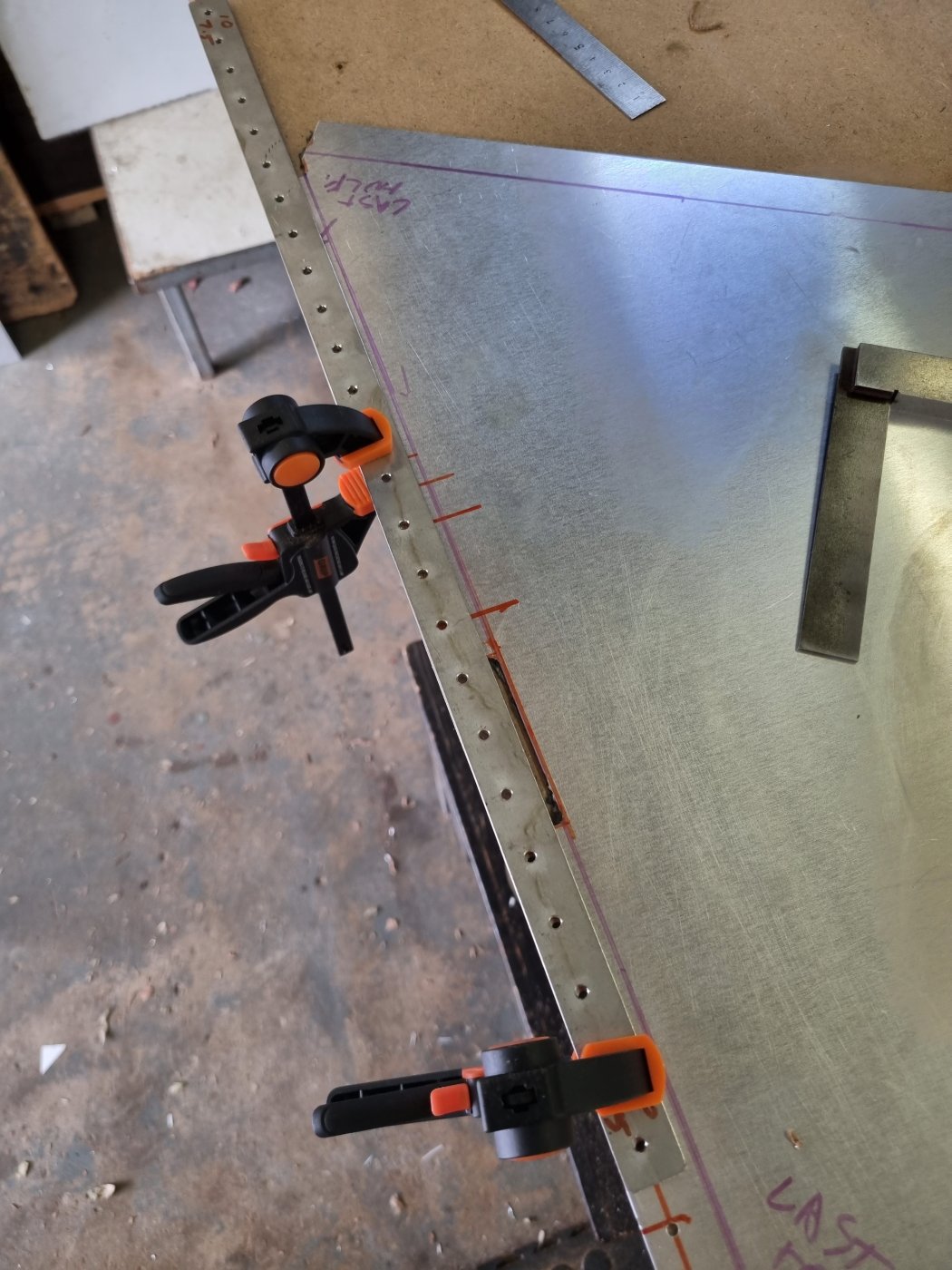

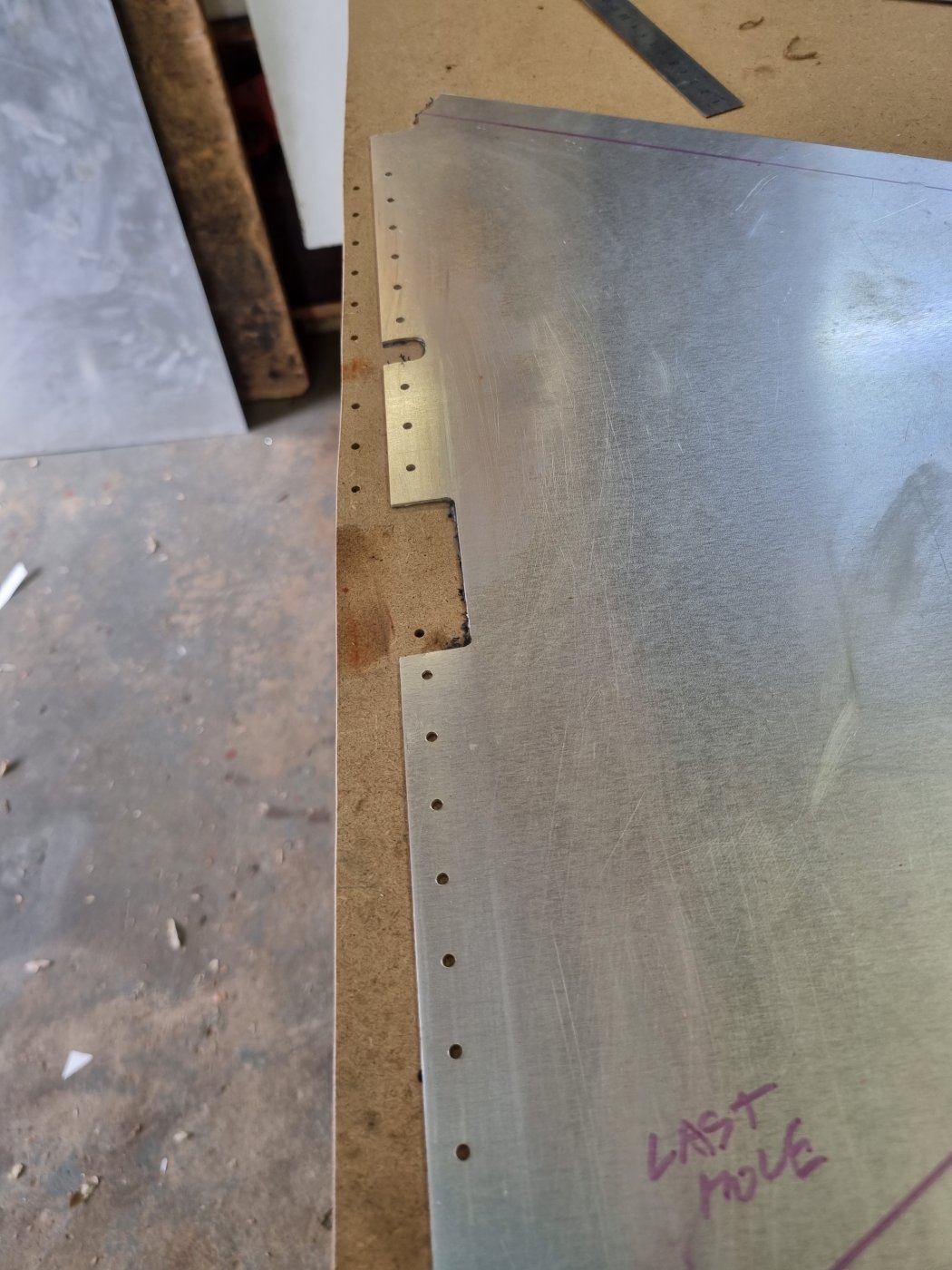

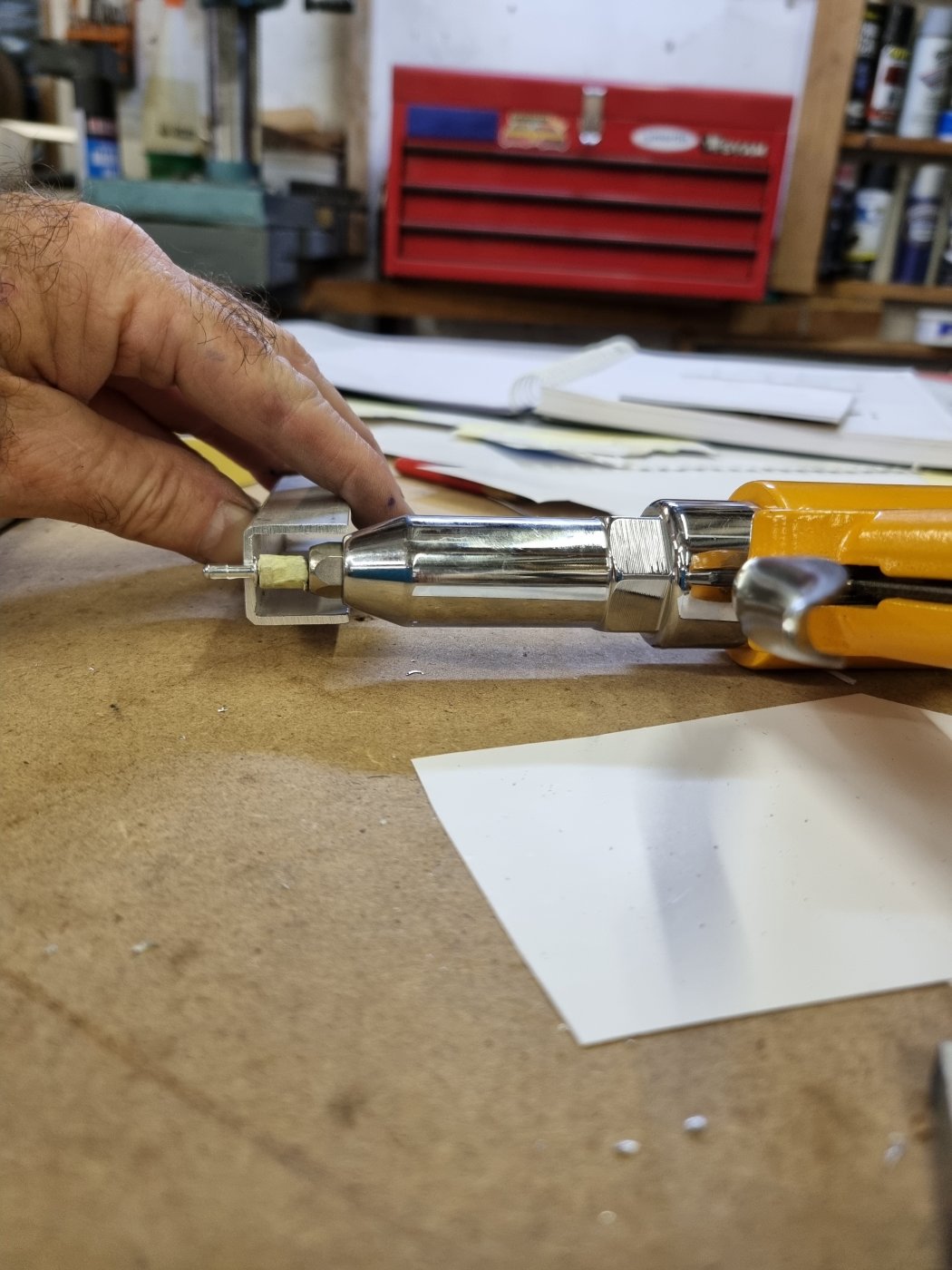

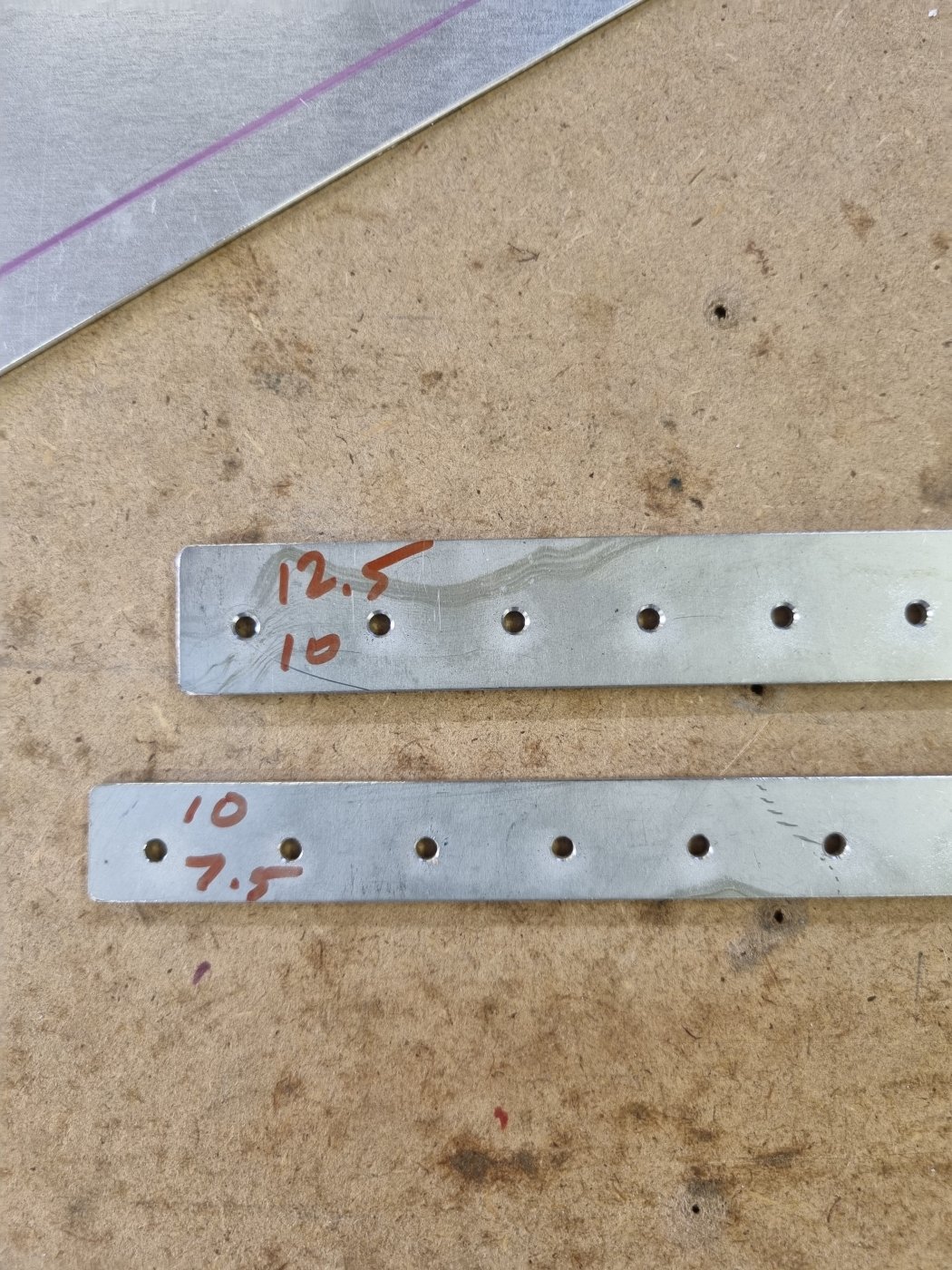

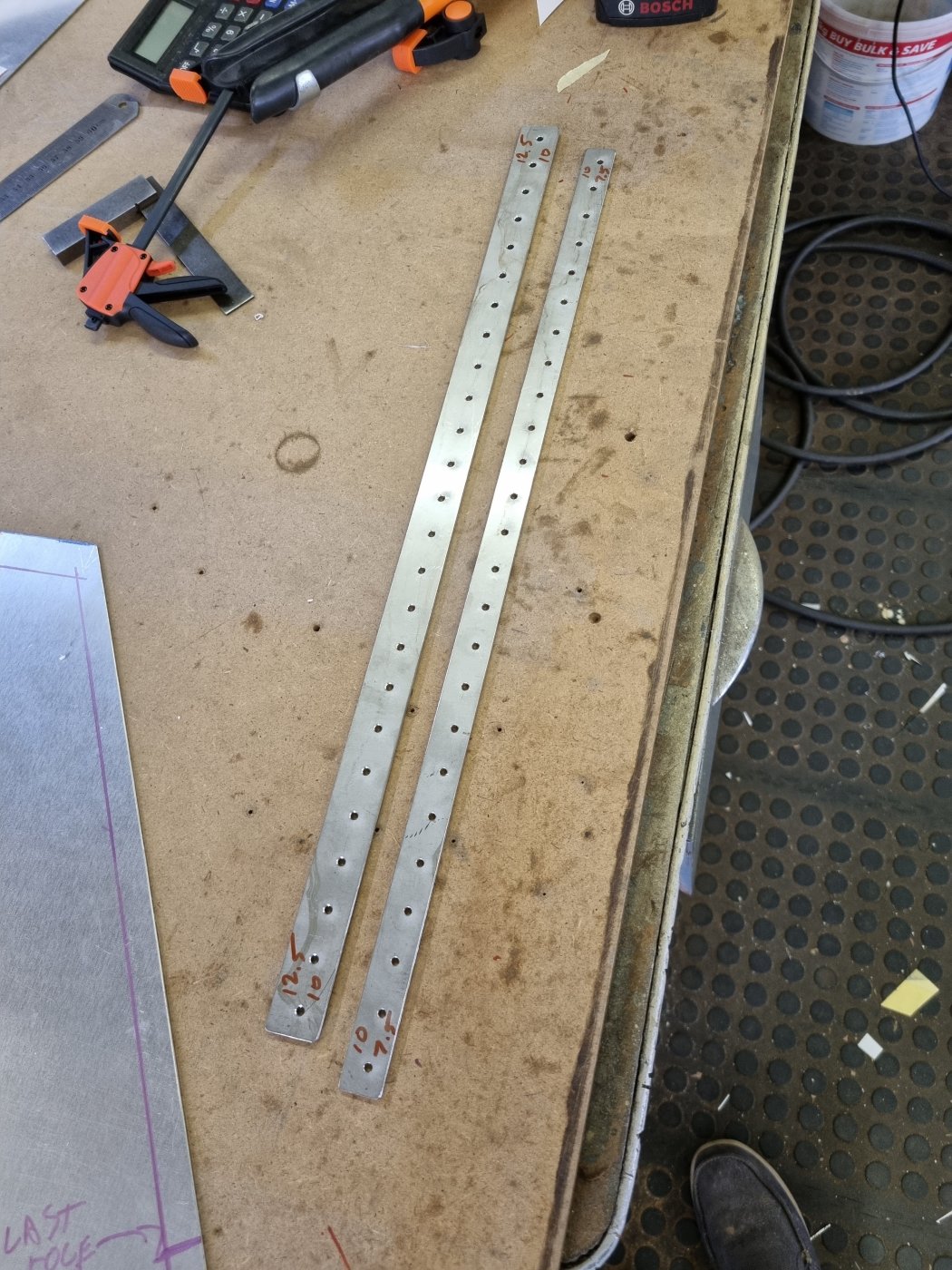

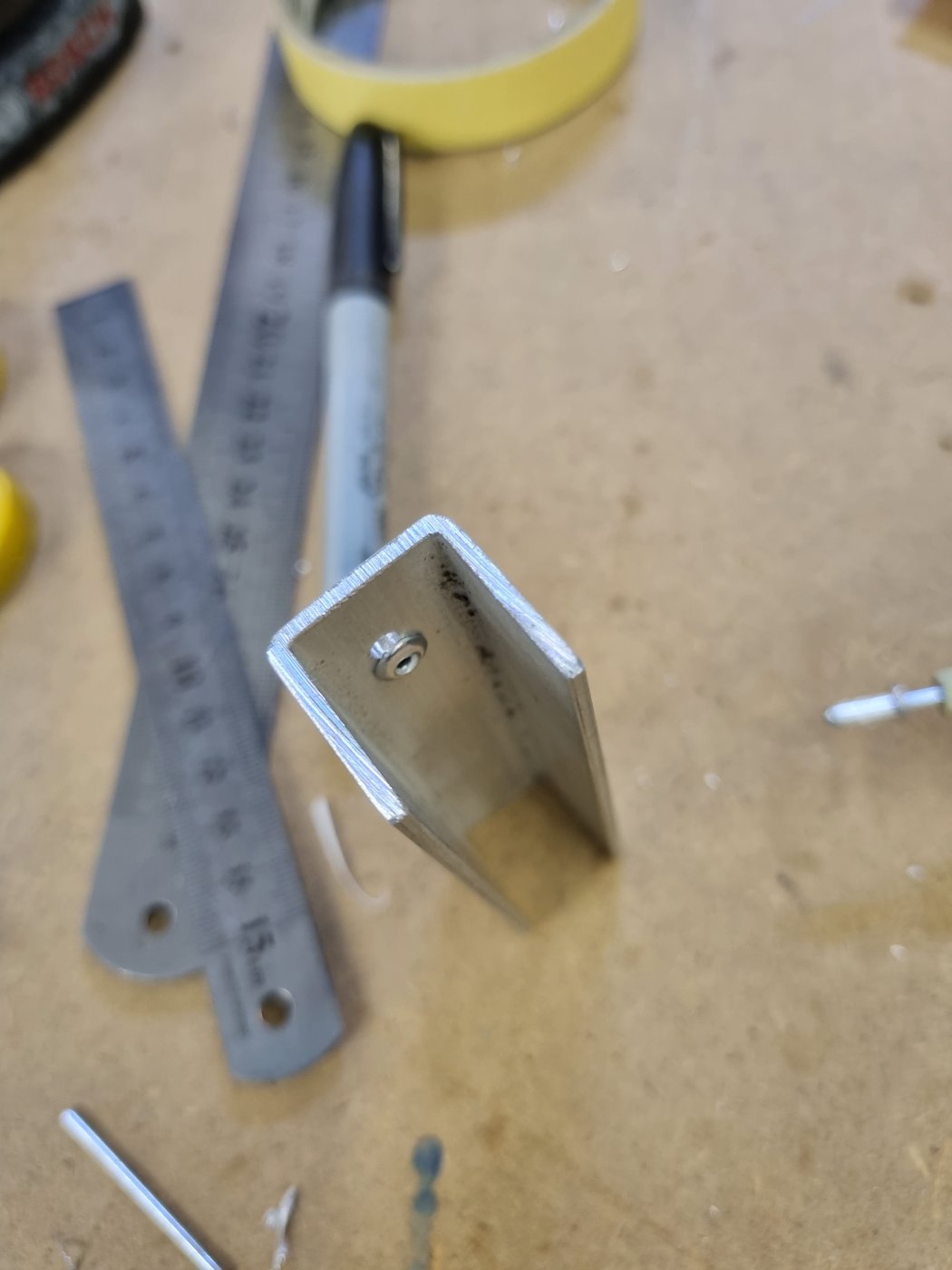

I had some drill templates made with several edge offsets so that I could easily drill the rivets holes equidistant.

spacing 1.jpg


spacing 2.jpg
drilling 2.jpg

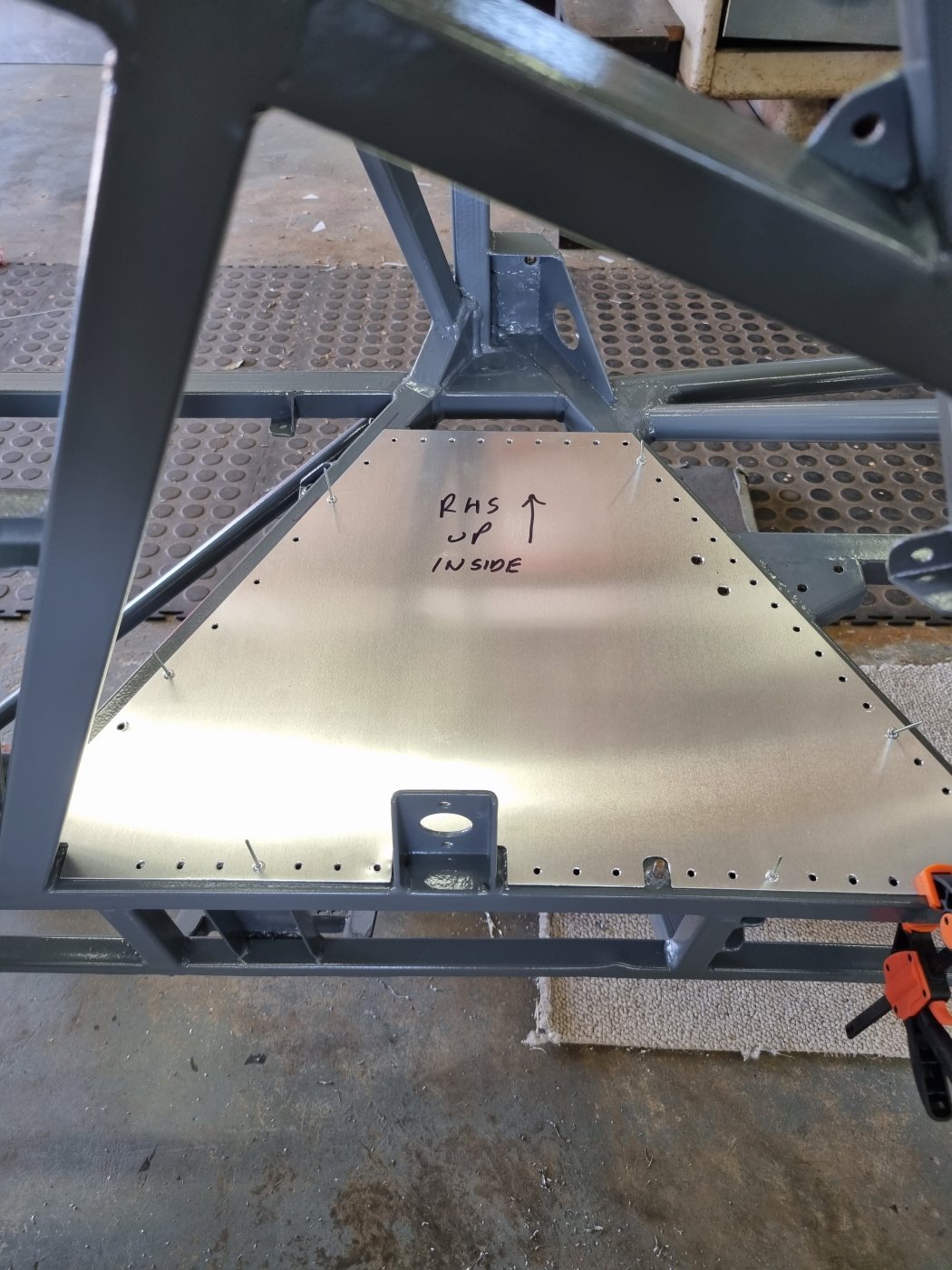

first panel.jpg

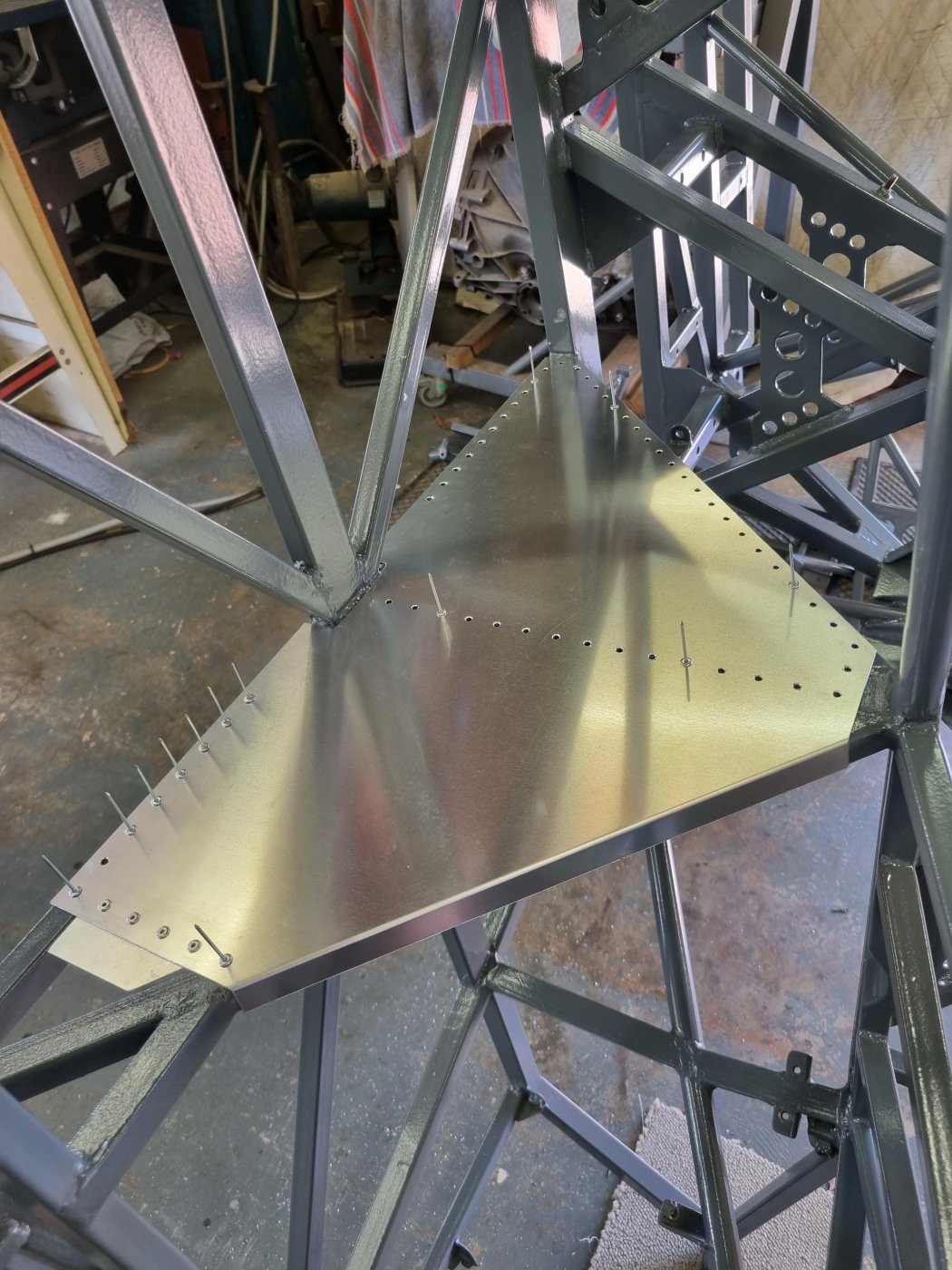

knee panel 1.jpg


Attachments

  • drilling.jpg
    202.6 KB · Views: 12
Last edited:

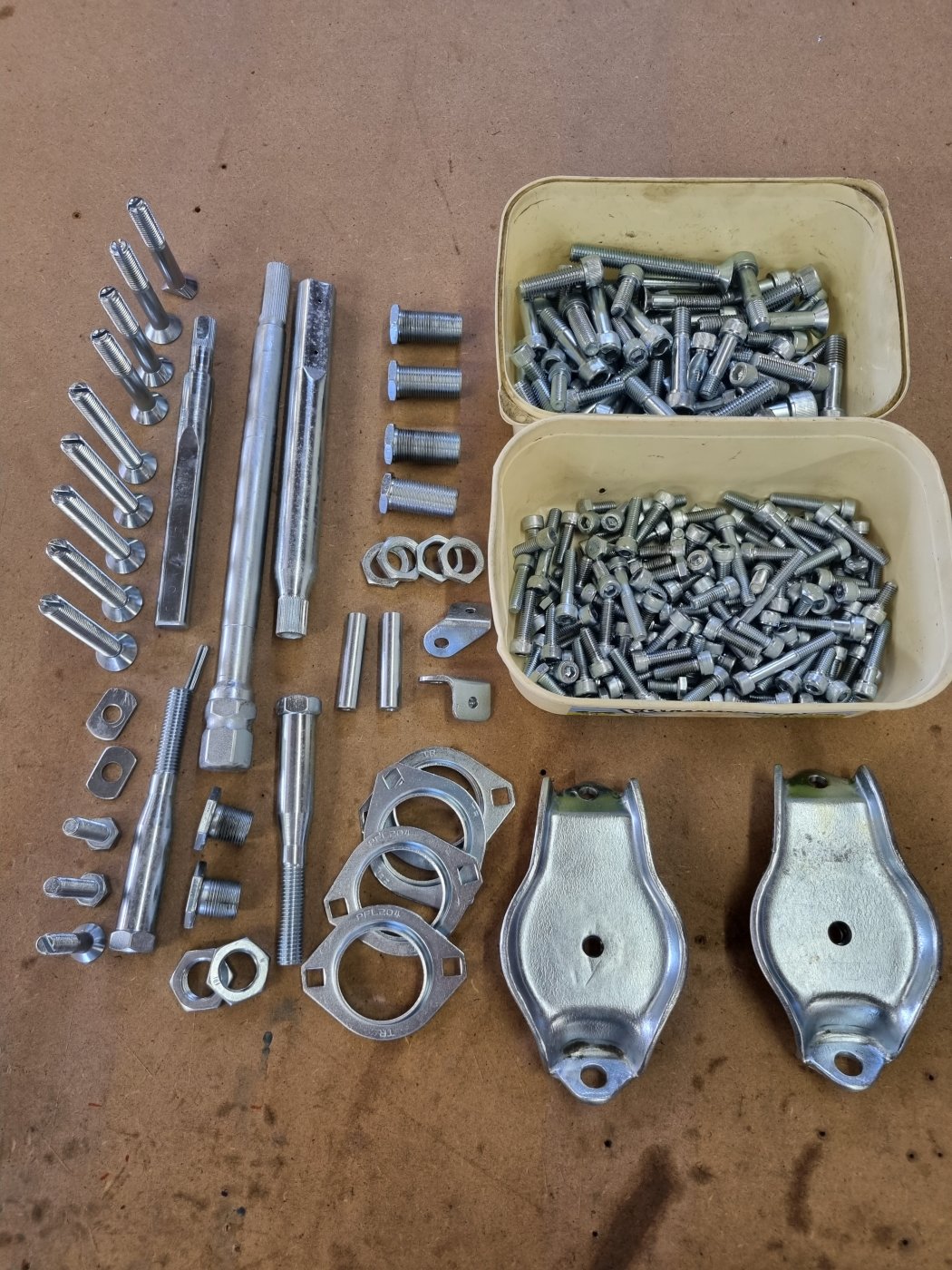

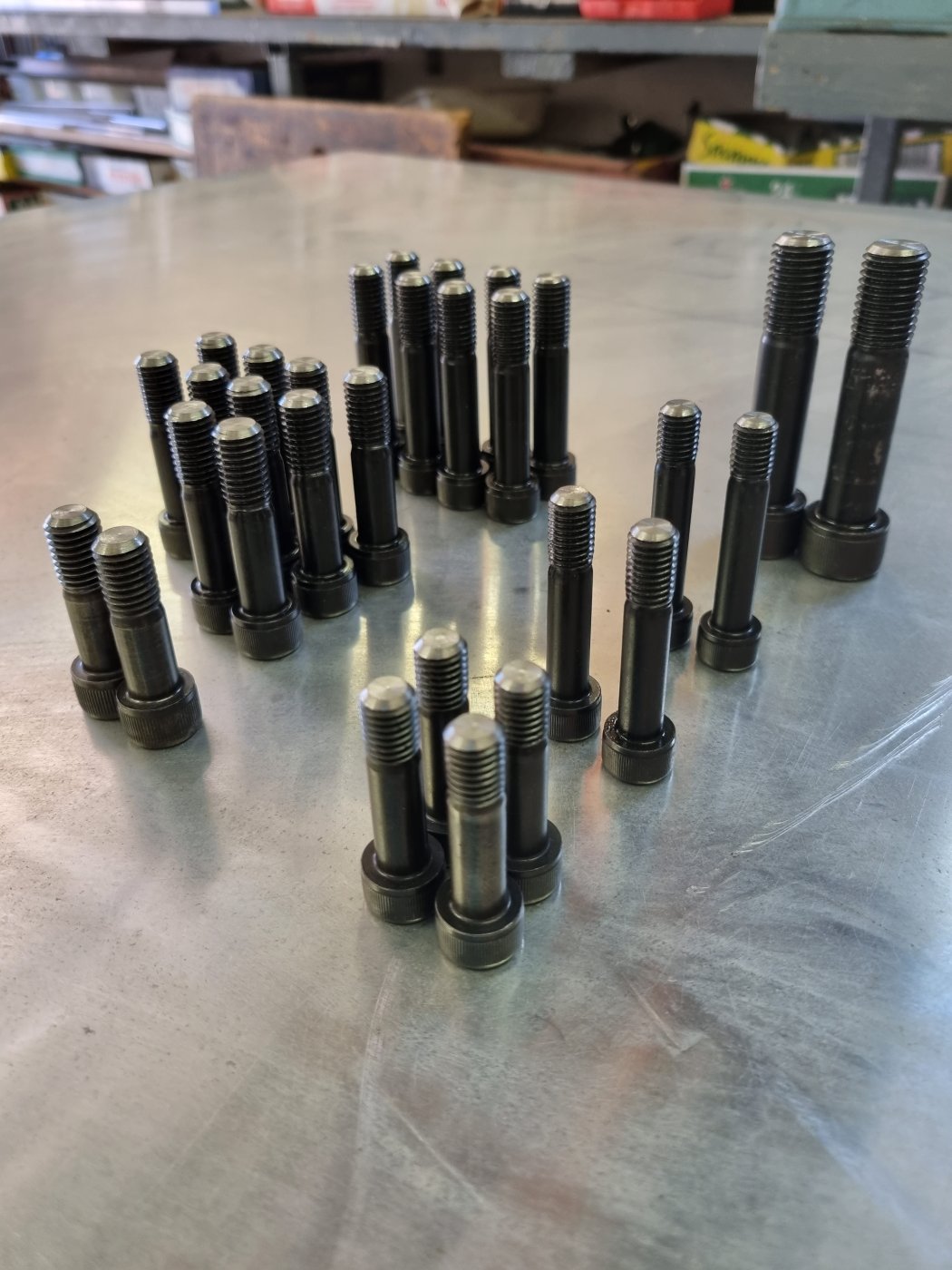

In other news, I had previously bought bolts with suitable grip lengths to suit the suspension attachments. These needed to have the threaded length shortened. Once this was done I had them plated as part of a batch of sundry small parts and other fasteners. 10 kg (22 pounds) total.
suspension bolts.jpg

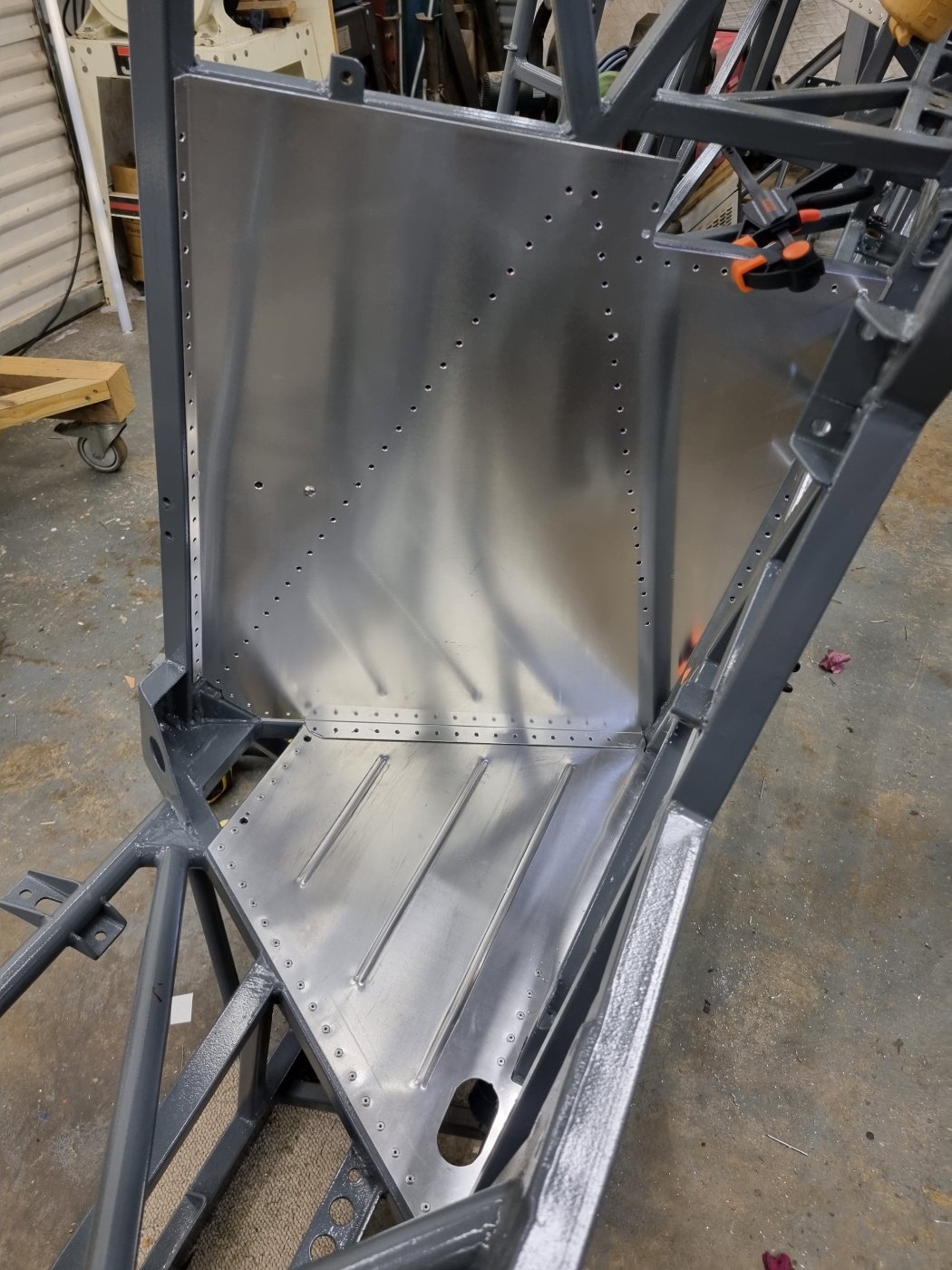

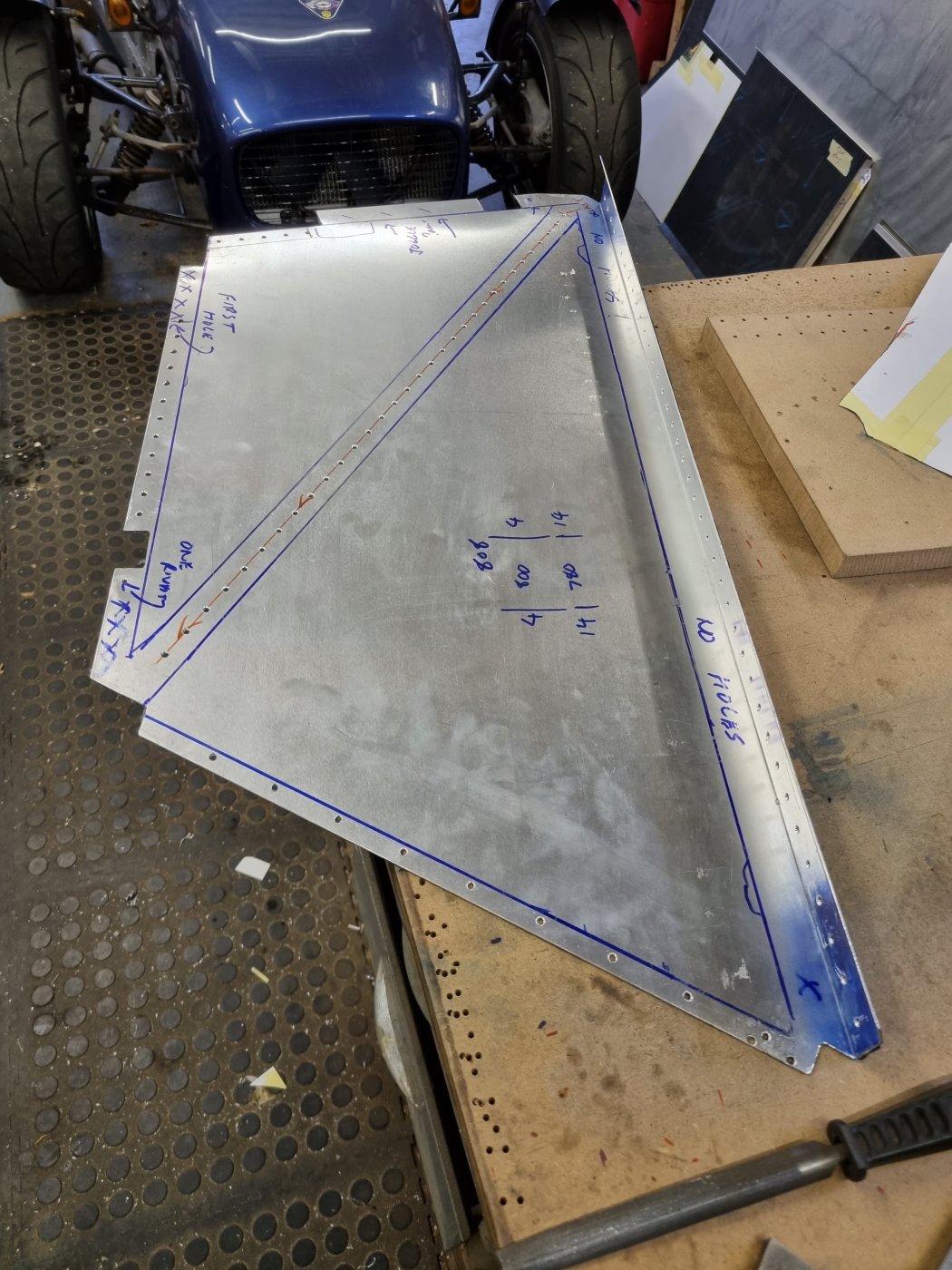

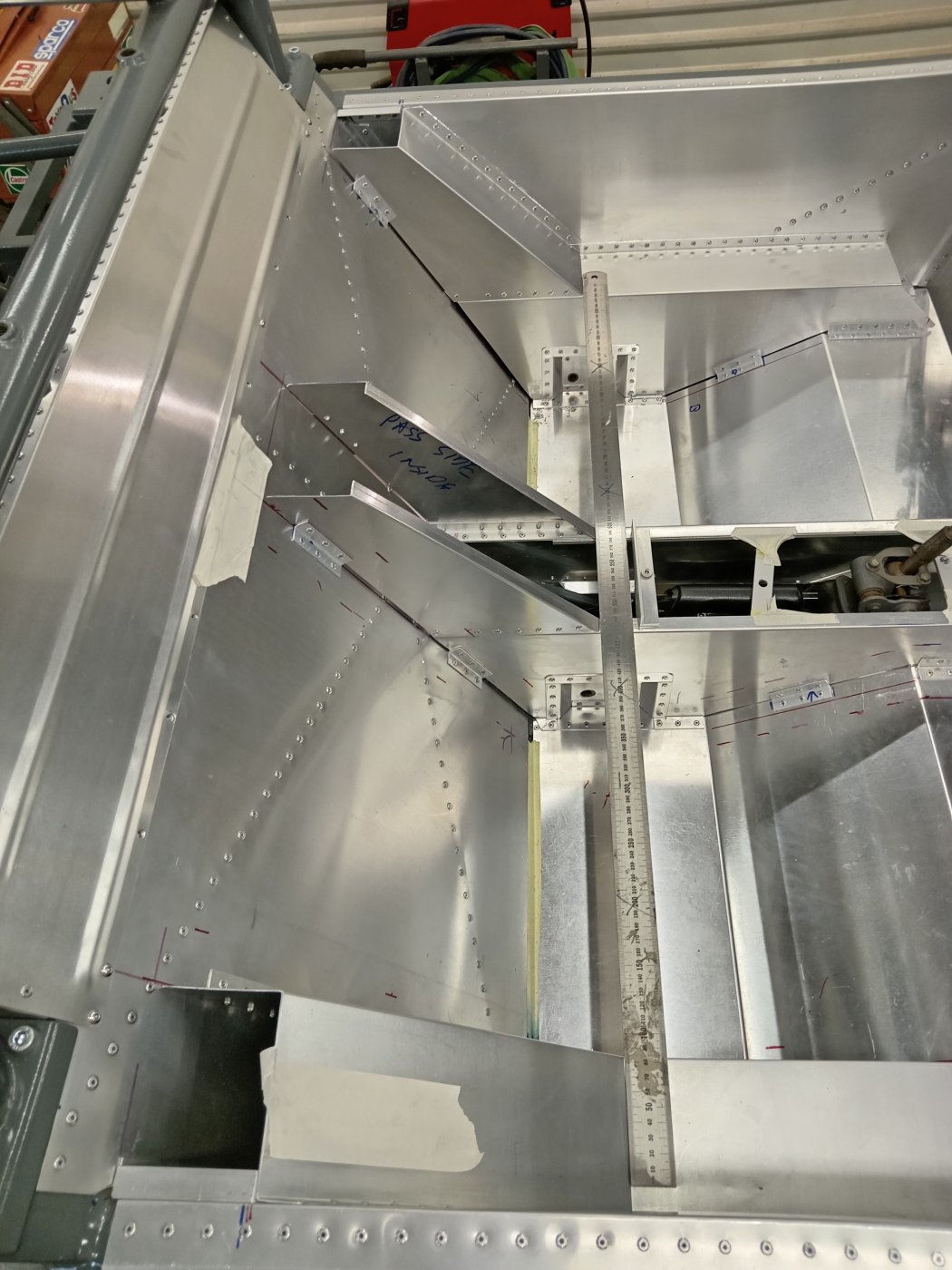

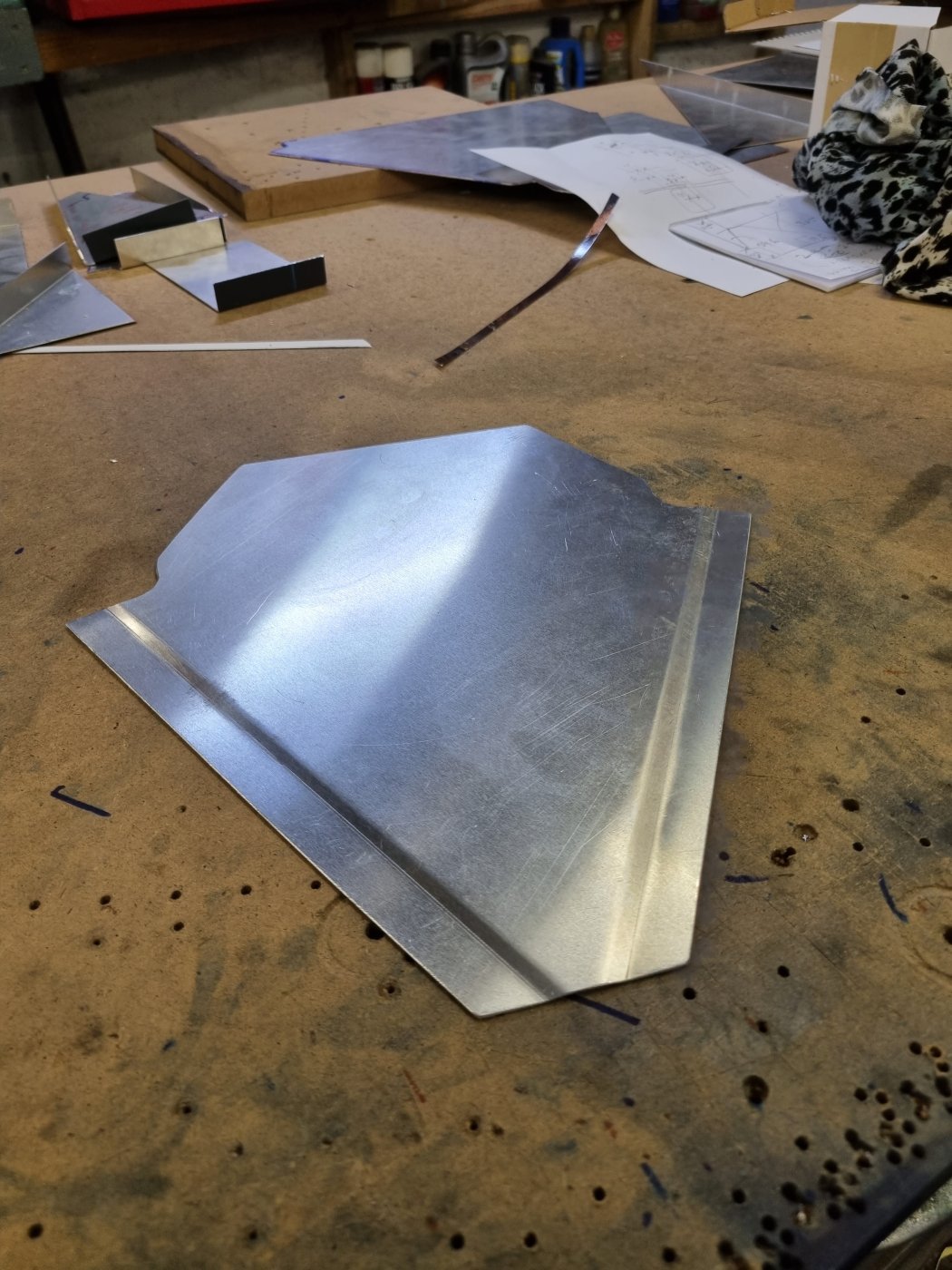

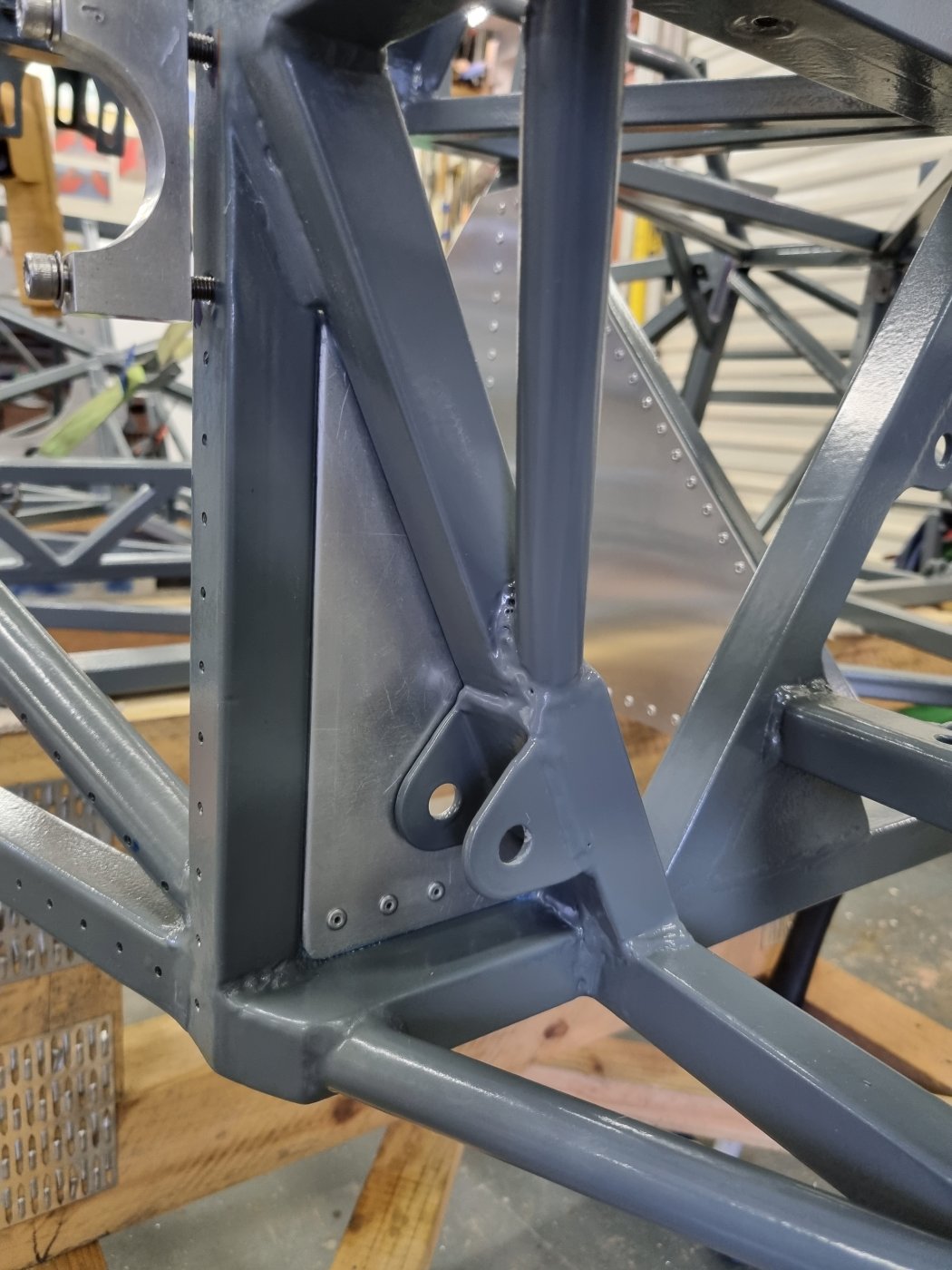

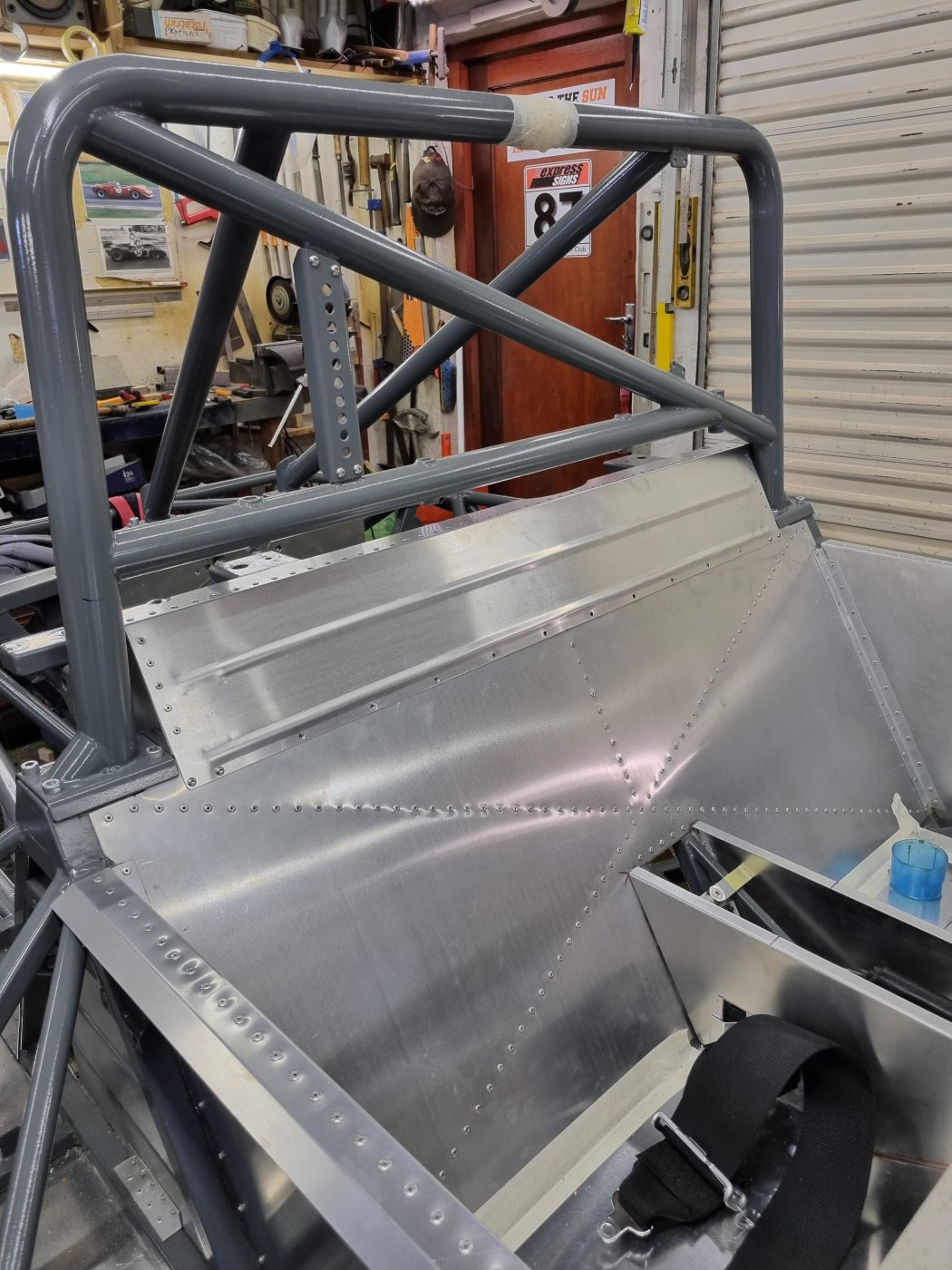

Back on the chassis paneling, my friend who does the sheet guillotining and press braking suggested that we try putting some stiffening beads in some of the panels. I like how they look.

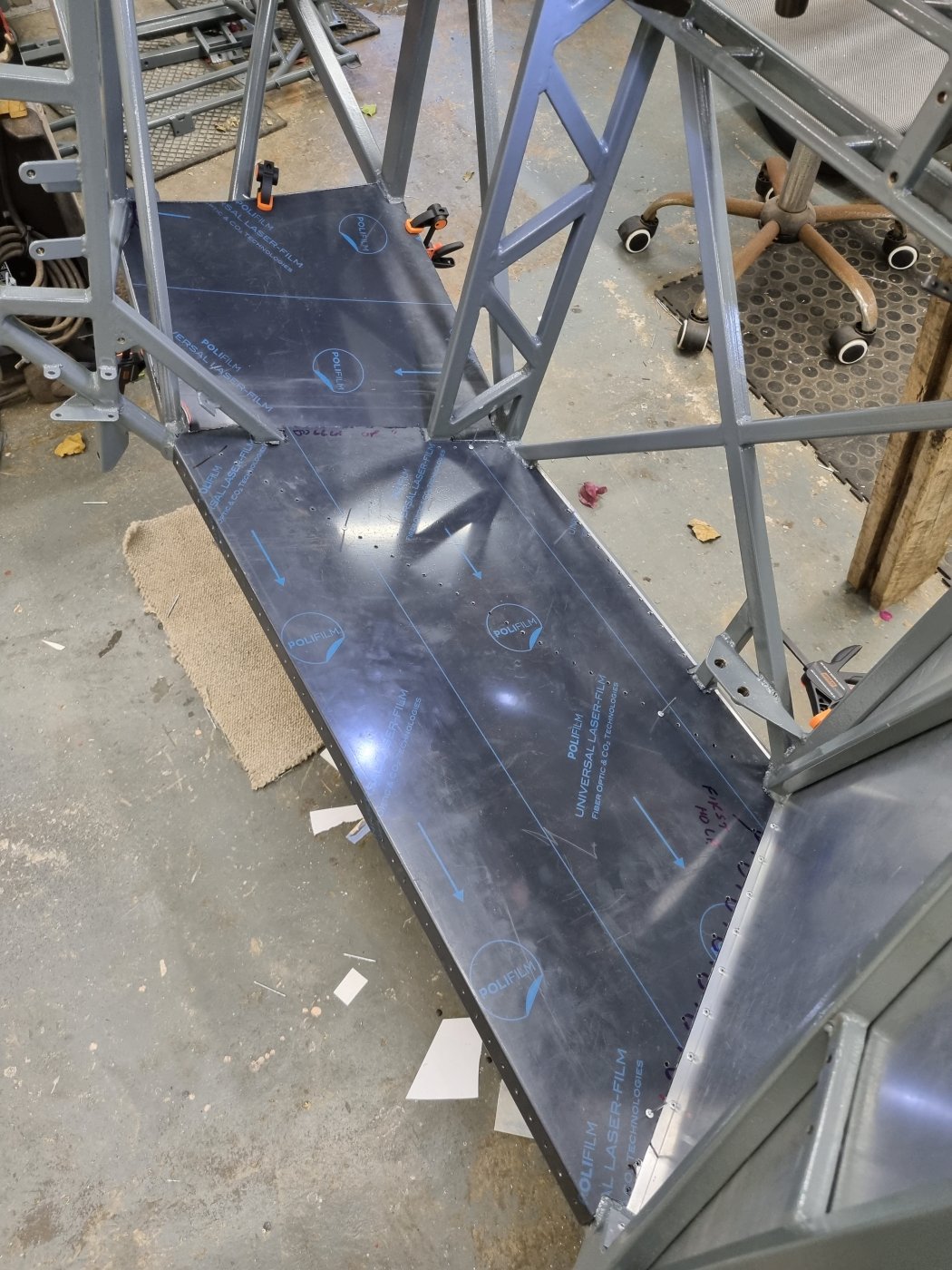

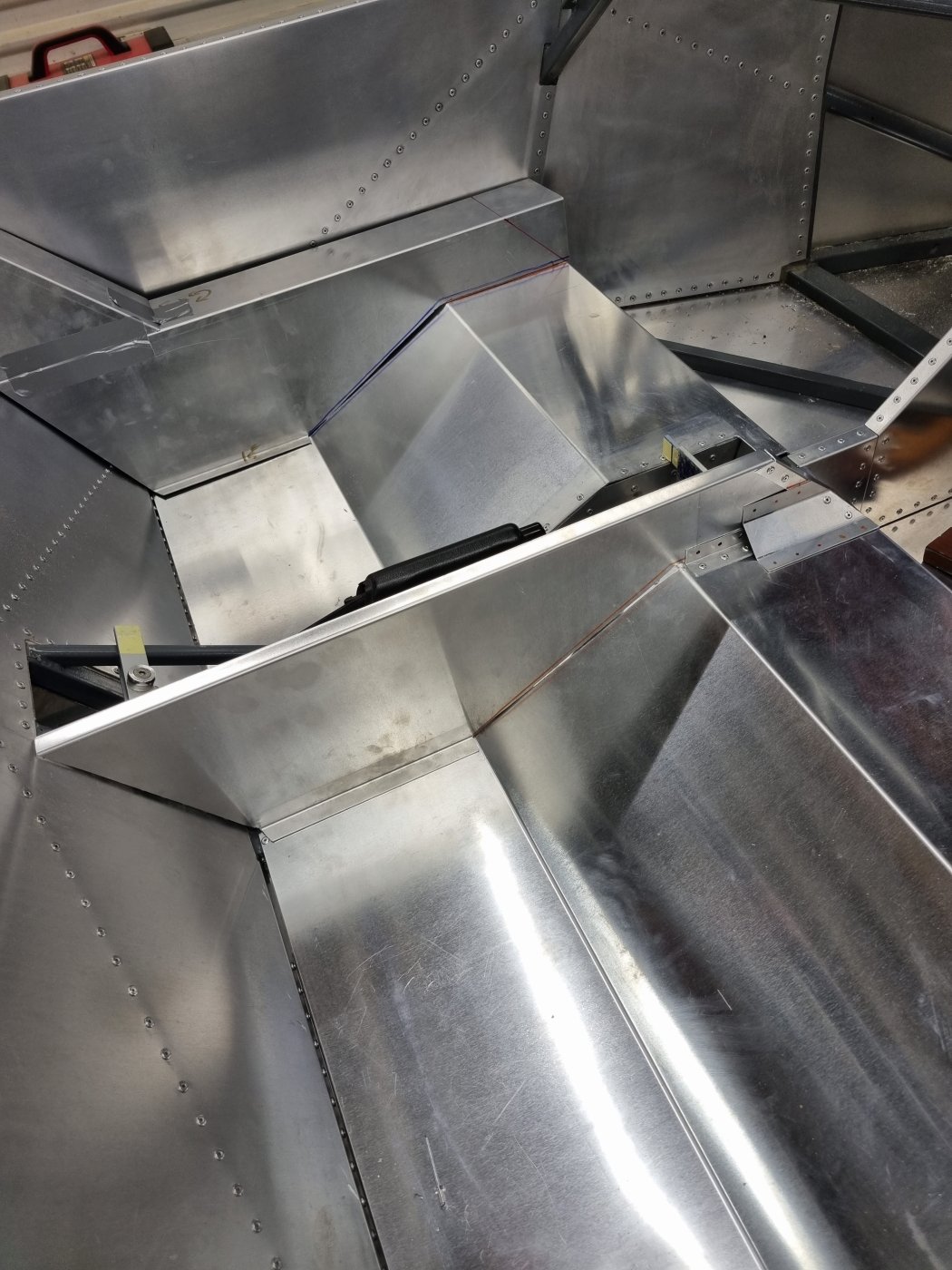

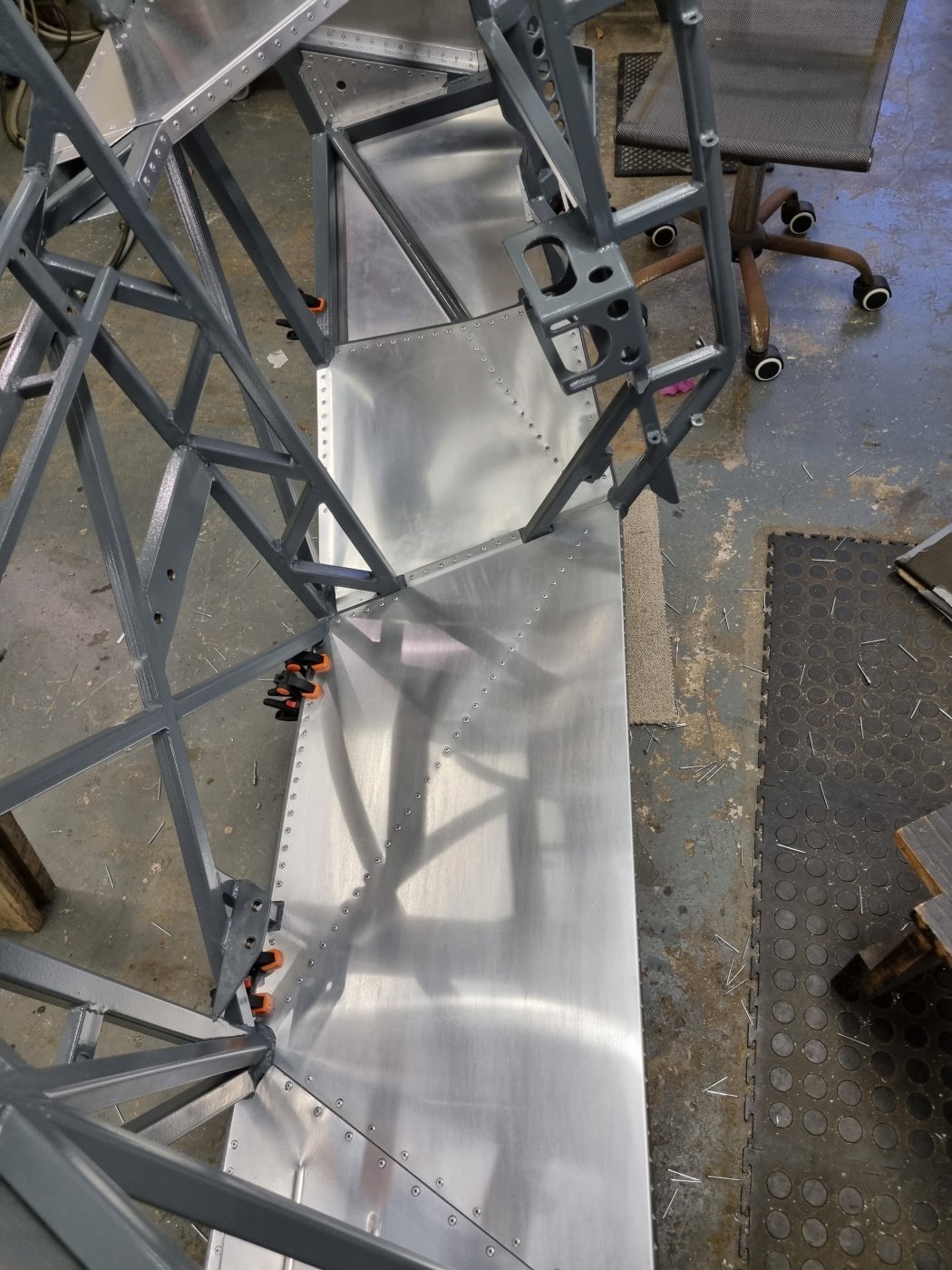

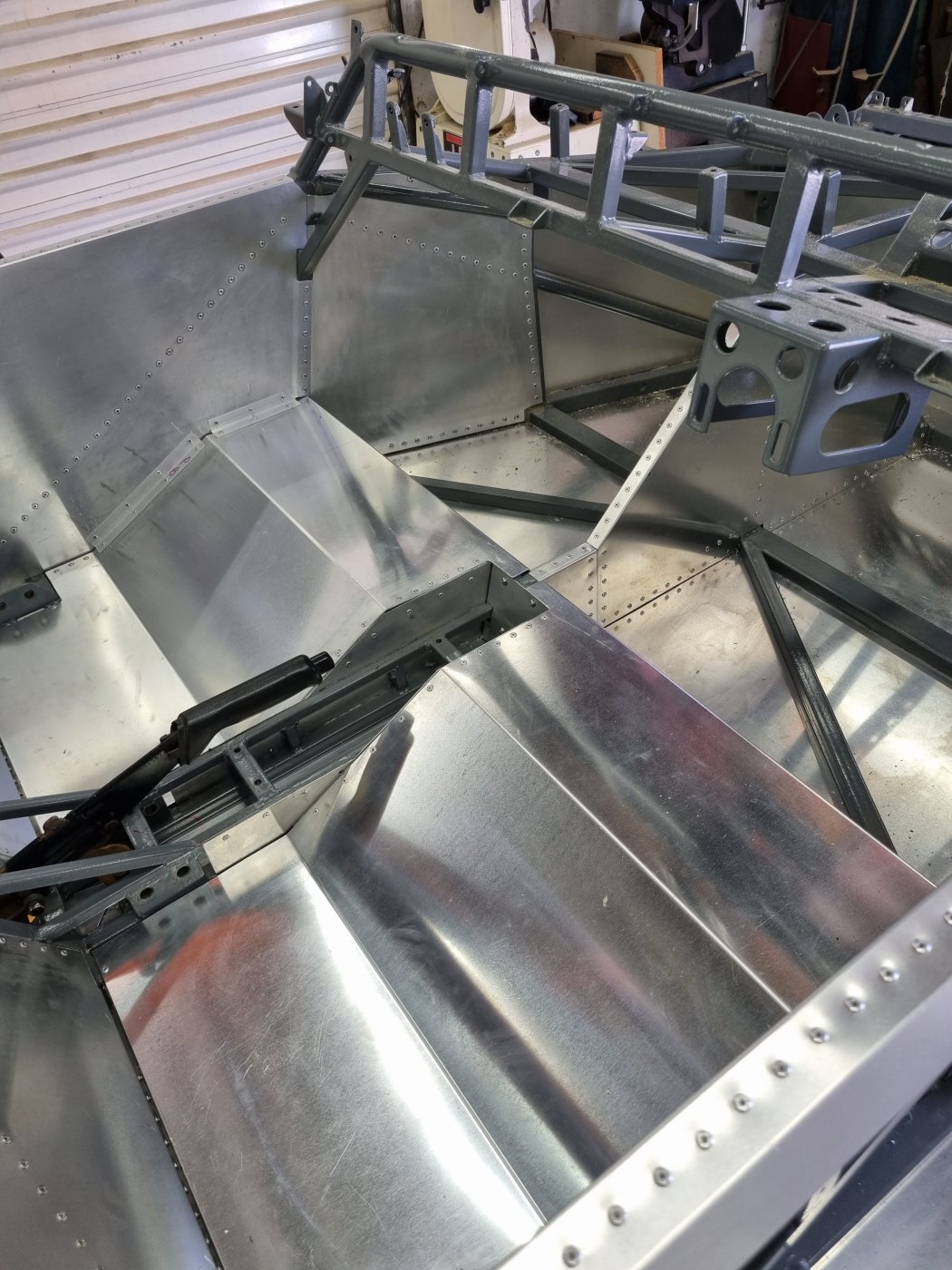

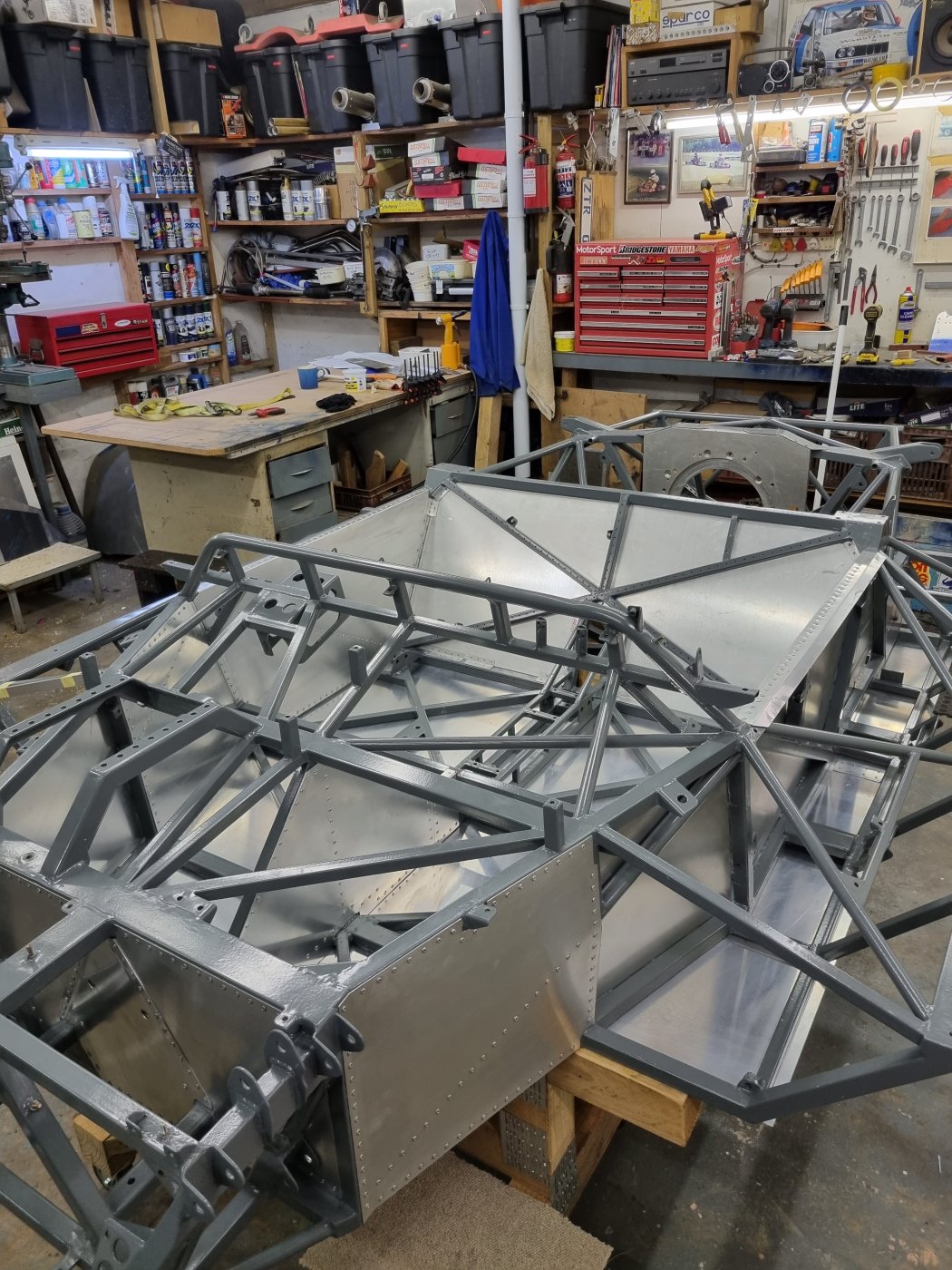

Currently I have almost finished making the left hand side inner panels, the right hand side will be quicker as they are a mirror image of the left.

left inner.jpg


left panel.jpg

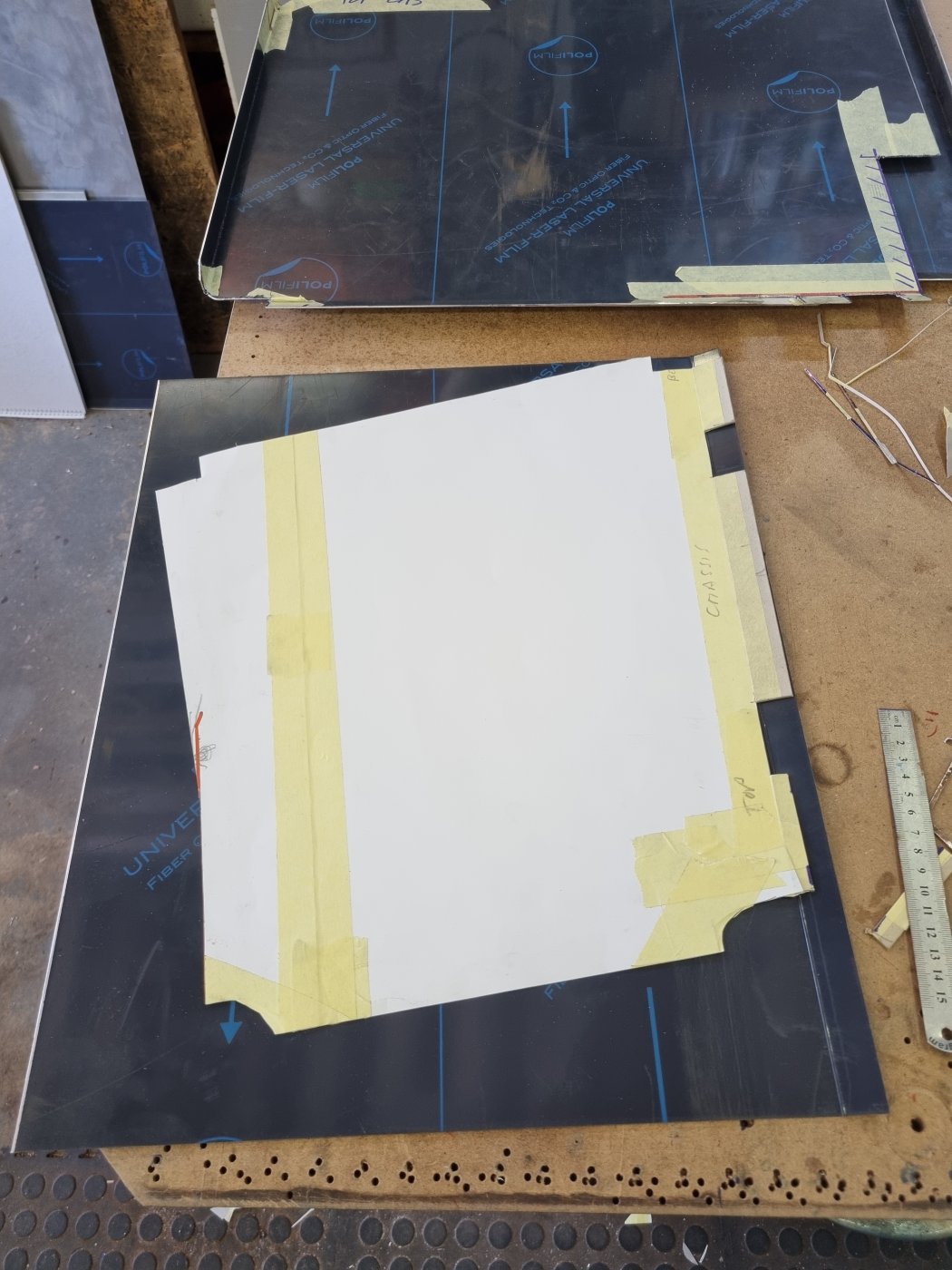

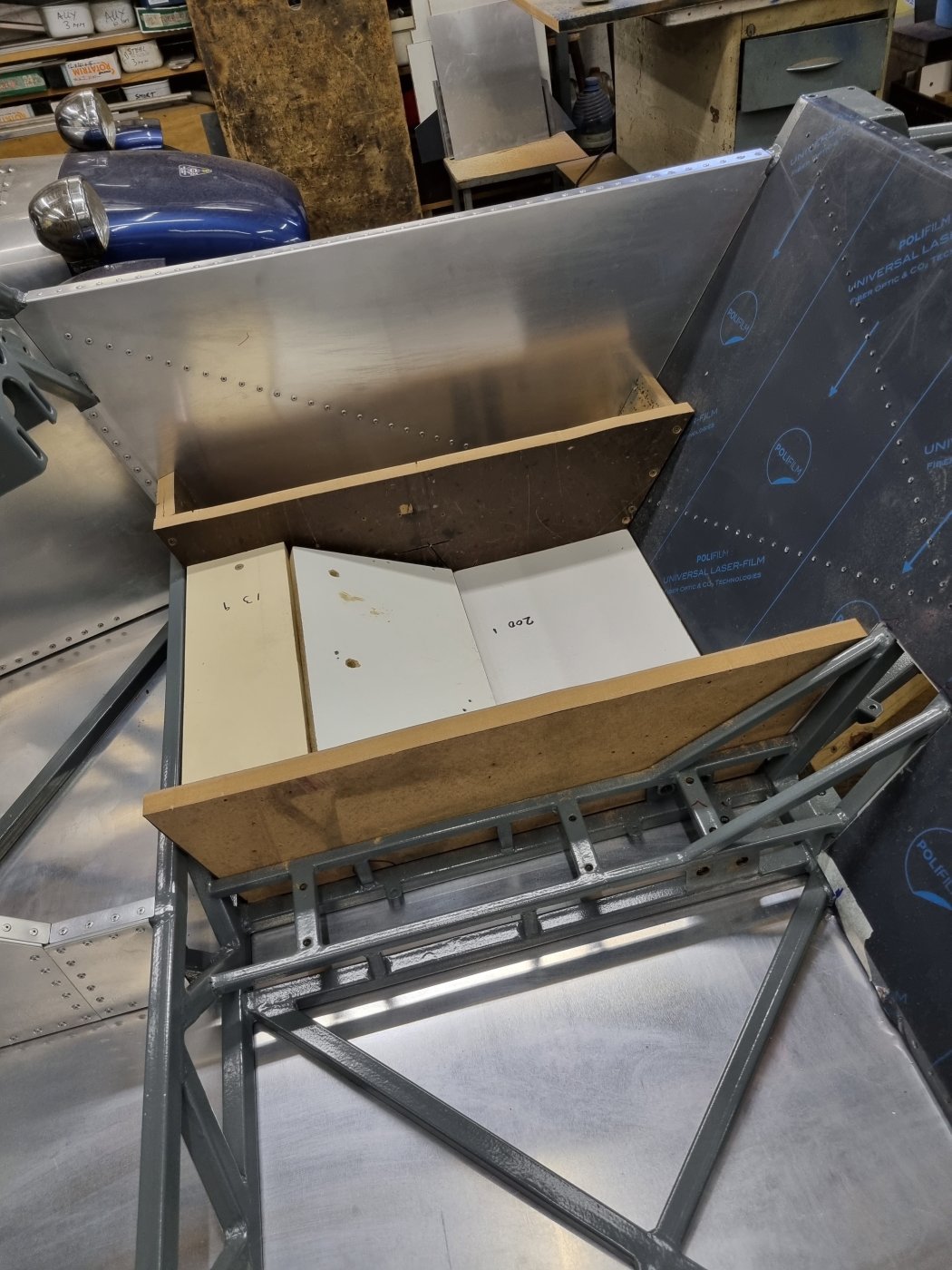

mirror template.jpg

Last edited:
