RE: Audi 5000s diesel transaxle

[Dave P]

Is anybody using the Audi 5000s diesel transaxle?
Is the gearing better?



[Ron Earp]

Have a look at the search function of the forum, you'll turn this up:

http://www.gt40s.com/forum/gt40-tec...t-boxes-what-models.html?highlight=016+diesel



[Dave P]

Ron Thanks

I read the links. Am I correct that 1984 is the starting year? The trans I found is a 1981



[Scott Good]

Re: How can you identify a particular model?

I'm looking at a gearbox that says 016.301.103 on the bellhousing but I don't see anything that tells me what specific model (5N, etc) it really is. Is there something else I should be looking for?



[Mark]

That number you have there is just the part number for the housing.



[Eric A.]

Re: How can you identify a particular model?

I'm looking at a gearbox that says 016.301.103 on the bellhousing but I don't see anything that tells me what specific model (5N, etc) it really is. Is there something else I should be looking for?

The model designation is stamped on the flat area on the top of the bell housing. It is stamped in rather than cast.



[Pete T]

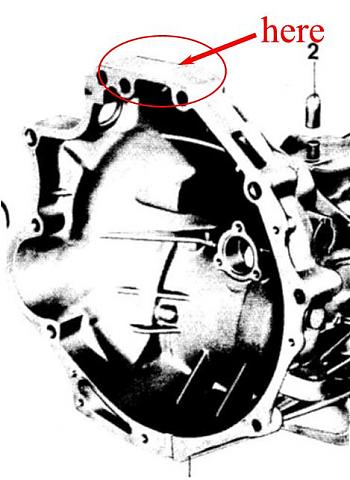

The number will be stamped here:
