Southern GT #70

Davidmgbv8

Supporter

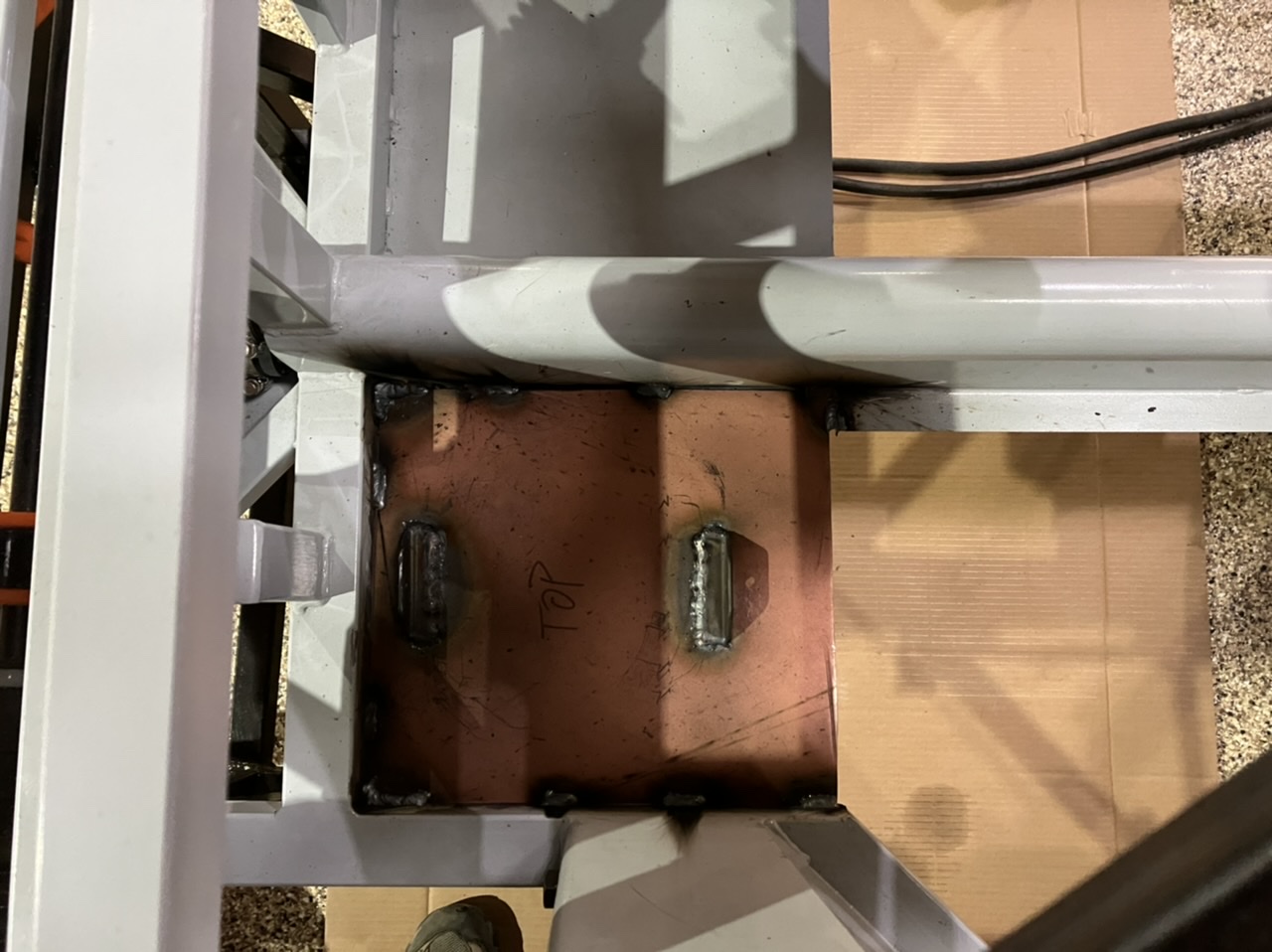

More finish welding tonight


Davidmgbv8

Supporter

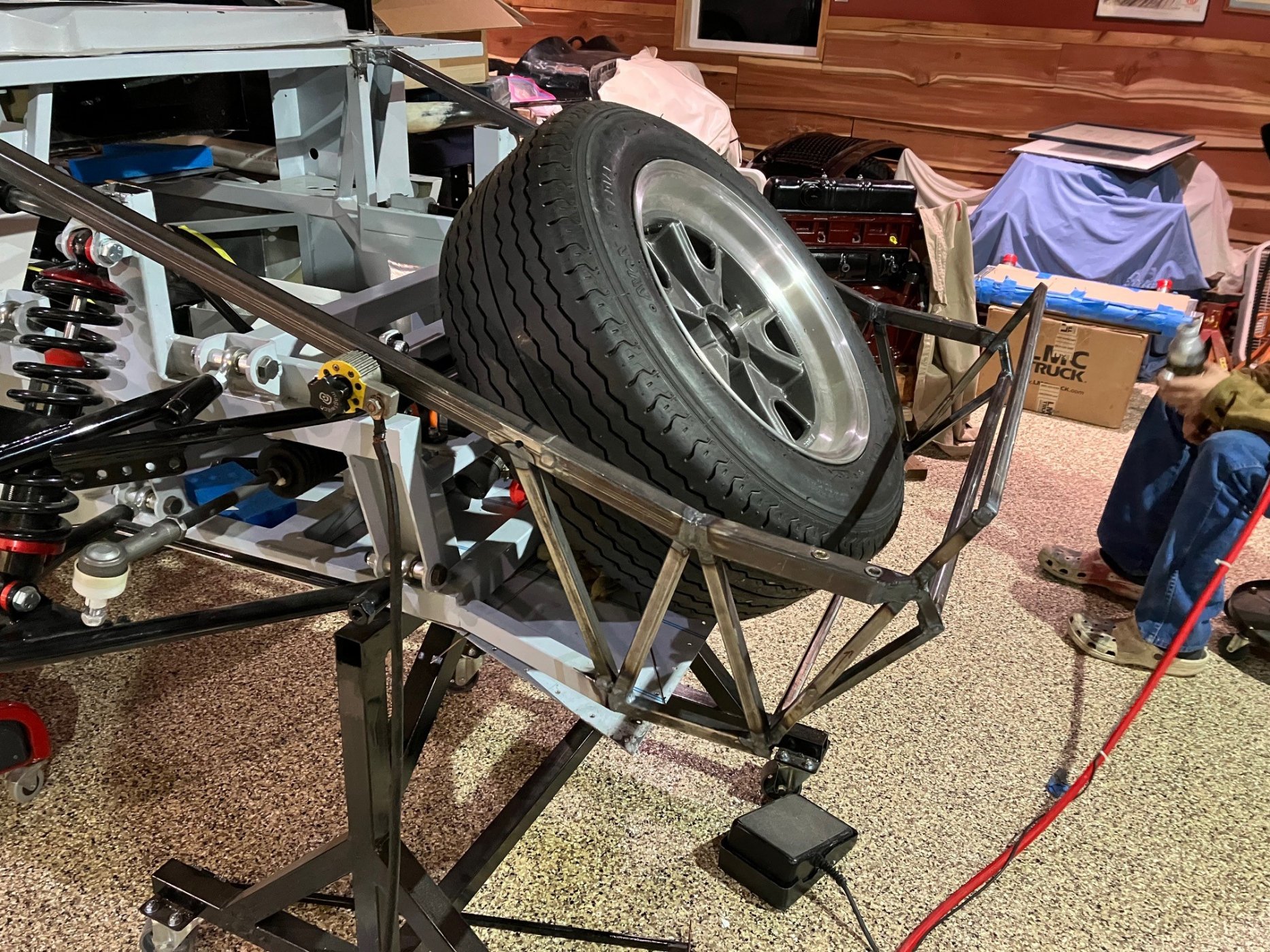

Well it looks like a tire repair kit and auto compressor will have to be carried as there is no room for a spare tire with the design of the SGT chassis. My son then asked what kind of jack came with the original cars and where was it kept? In all of my research of the original cars I have never seen the photo of a jack or where it was stored. Did the road cars have jacks???
spare tire.jpg


Davidmgbv8

Supporter
While the Austin F1 Grand Prix was playing we welded shock support tubes back in
1d1b97d7-911f-4b2f-a80e-9945f64f3f0b-jpeg.125260


Attachments

  • 1D1B97D7-911F-4B2F-A80E-9945F64F3F0B.jpeg
    339.6 KB · Views: 819

Davidmgbv8

Supporter

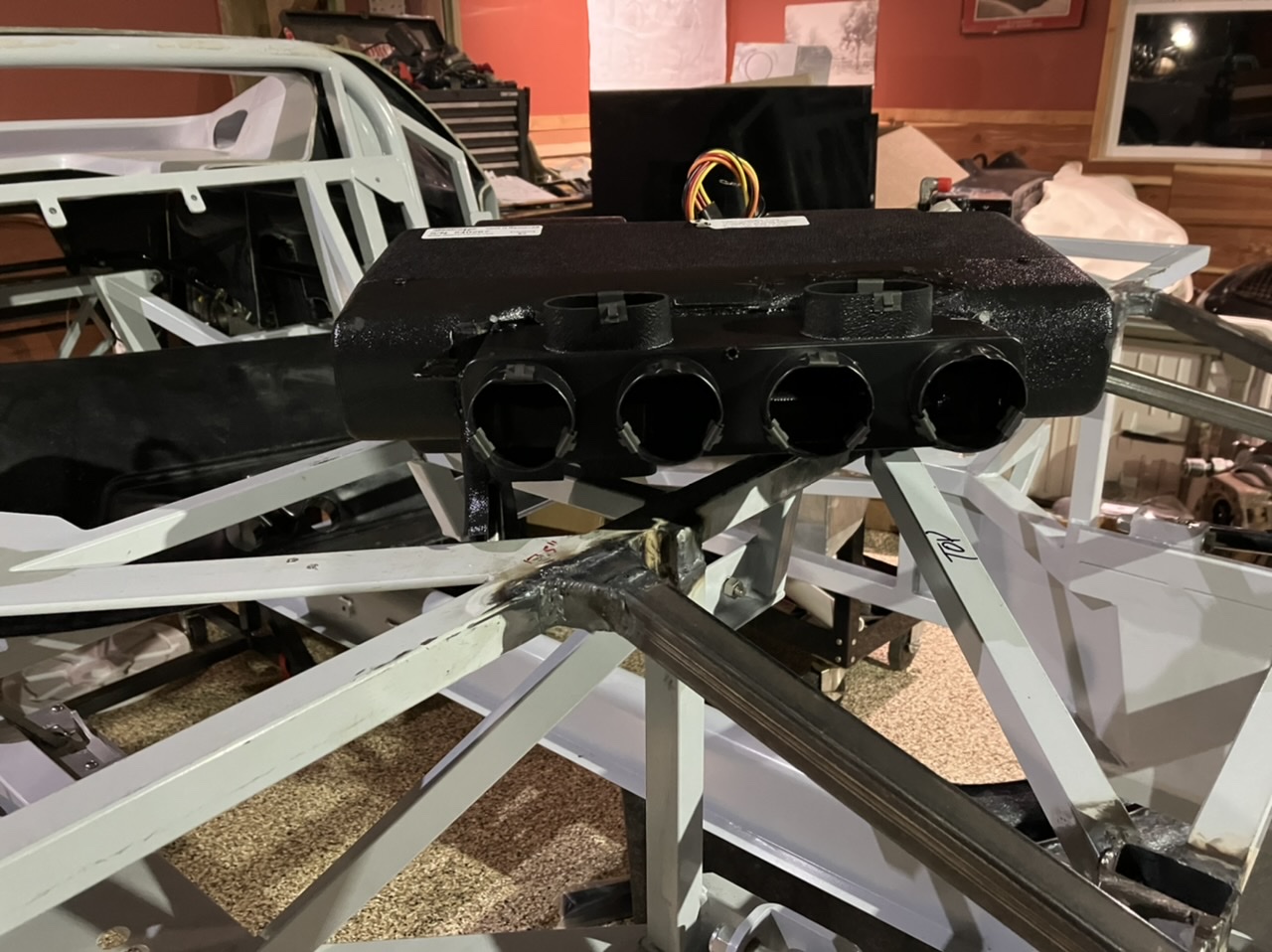

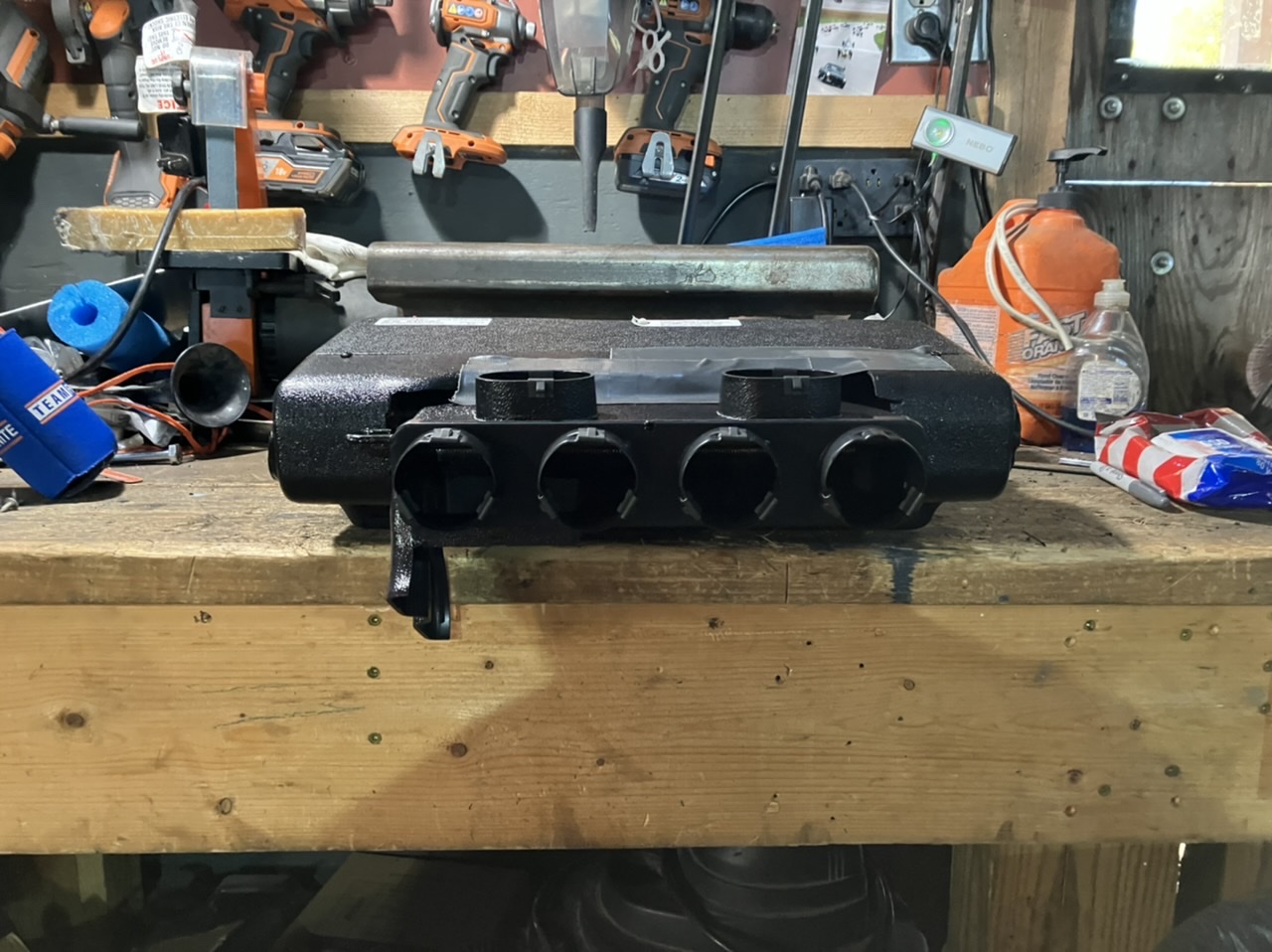

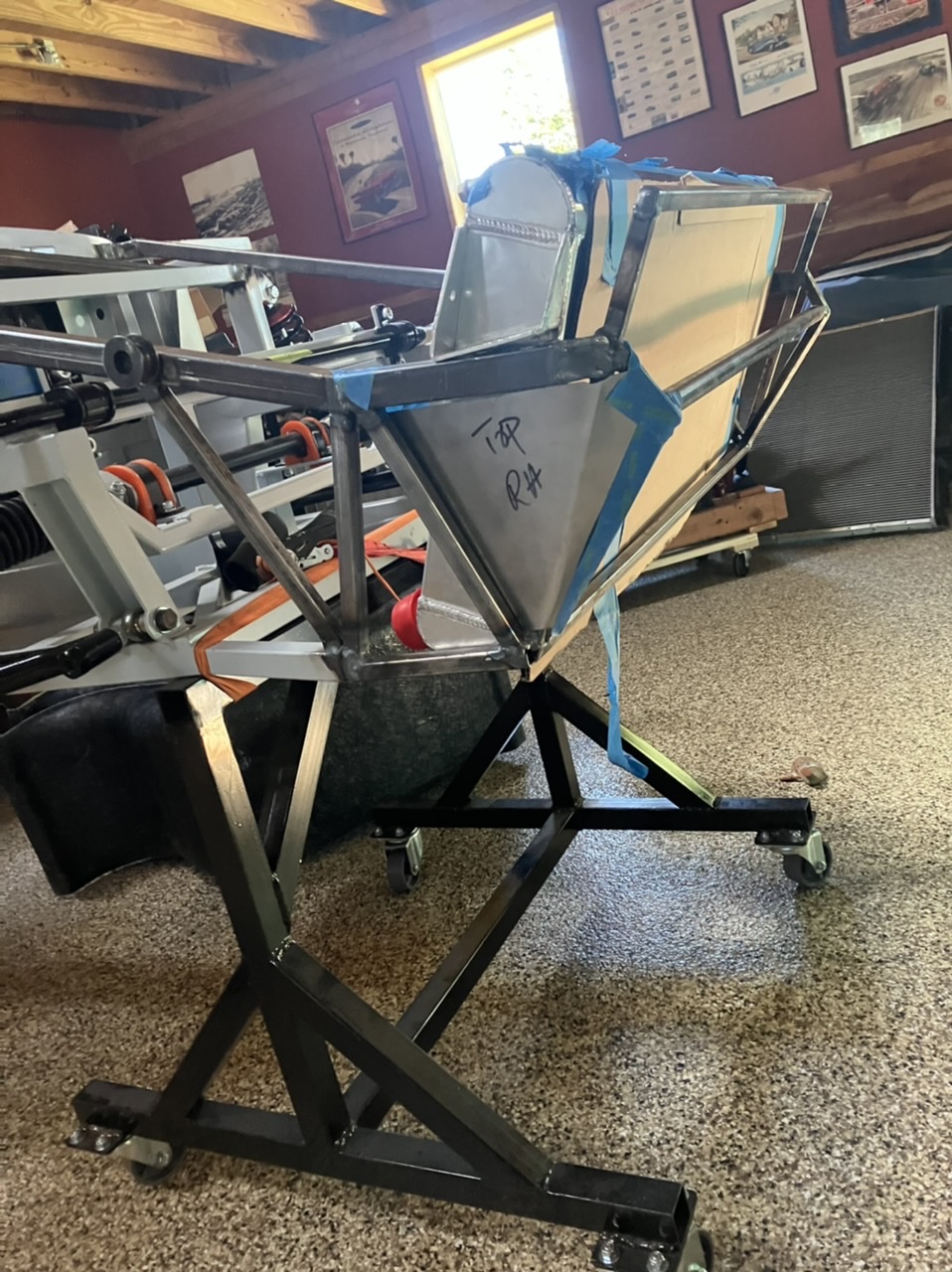

Heat A/C Defrost unit mocked up. Used an Old Air Products, compact unit with a manual defrost outlet systemthey offer for another system and have cut and fit together, next I will glass together. This puts the defrost right under the dash defrost area, yeah


Davidmgbv8

Supporter

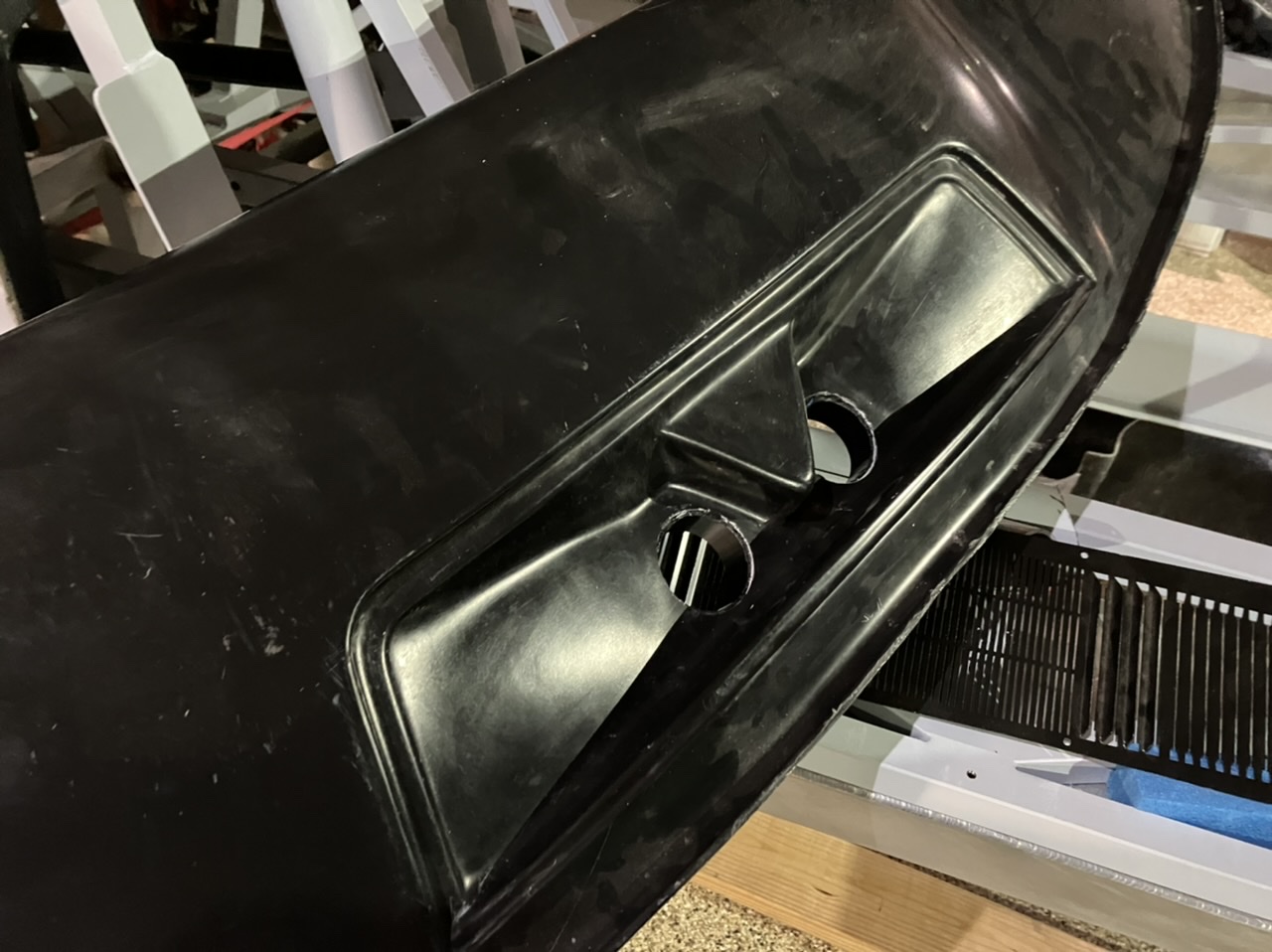

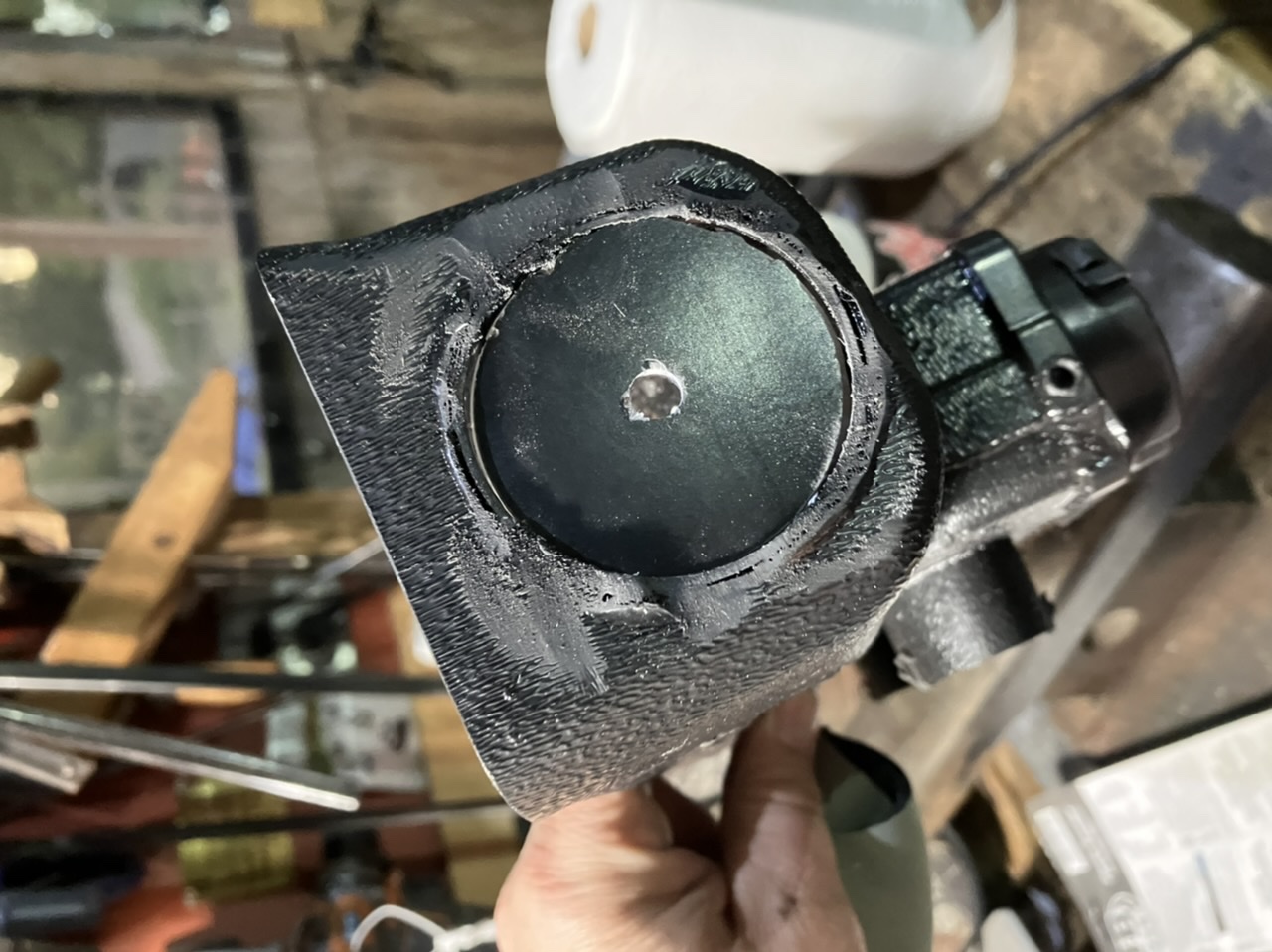

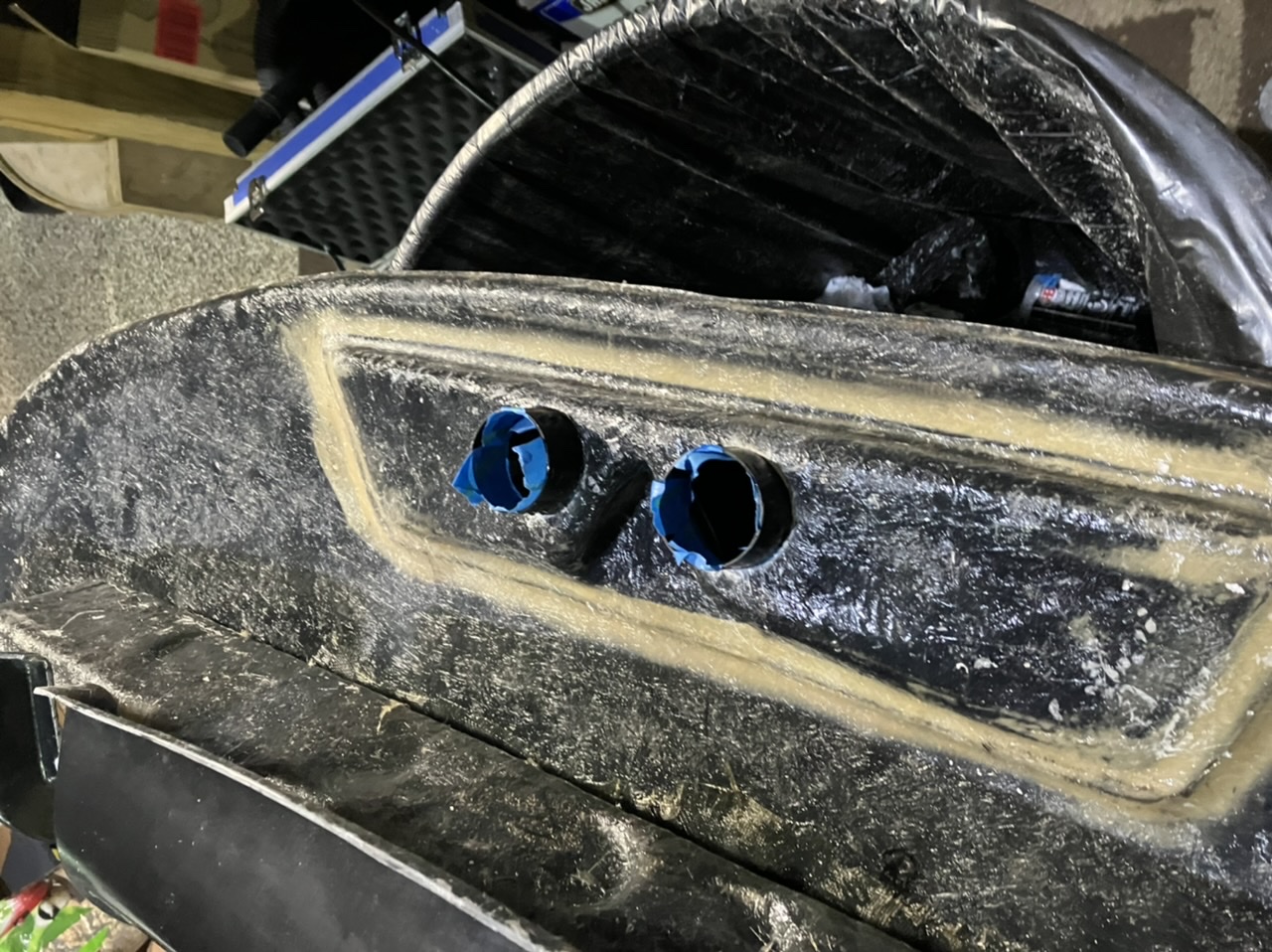

Finished epoxying my Old Air compact unit into one that will now have defrost, floor heat and be cable operated. Took the nozzles I cot off the original unit, and epoxied to my dash defrost area and used the fiberglass bits I drilled out of the dash to fill those nozzles, not the prettiest but it will work!


Davidmgbv8

Supporter

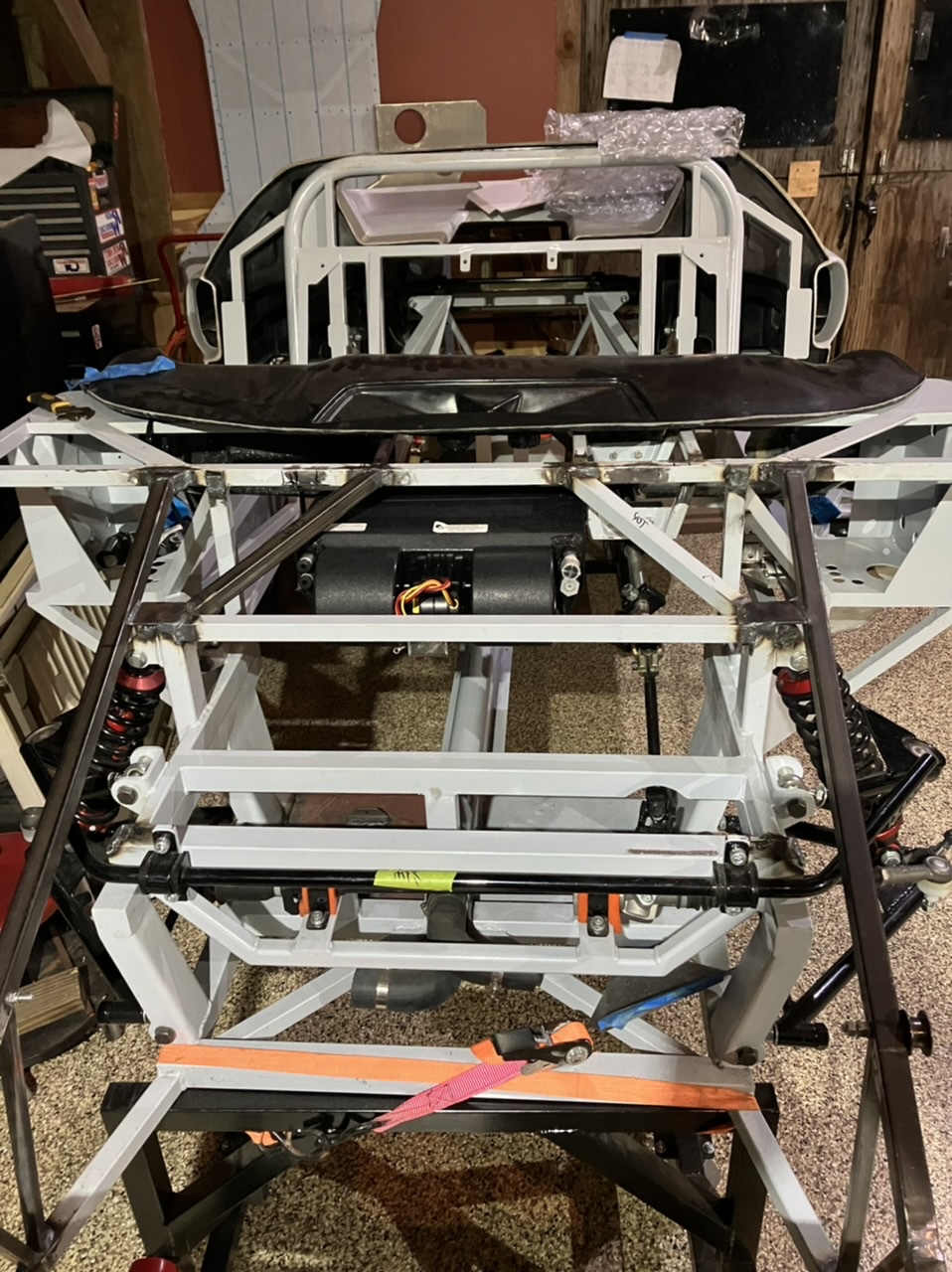

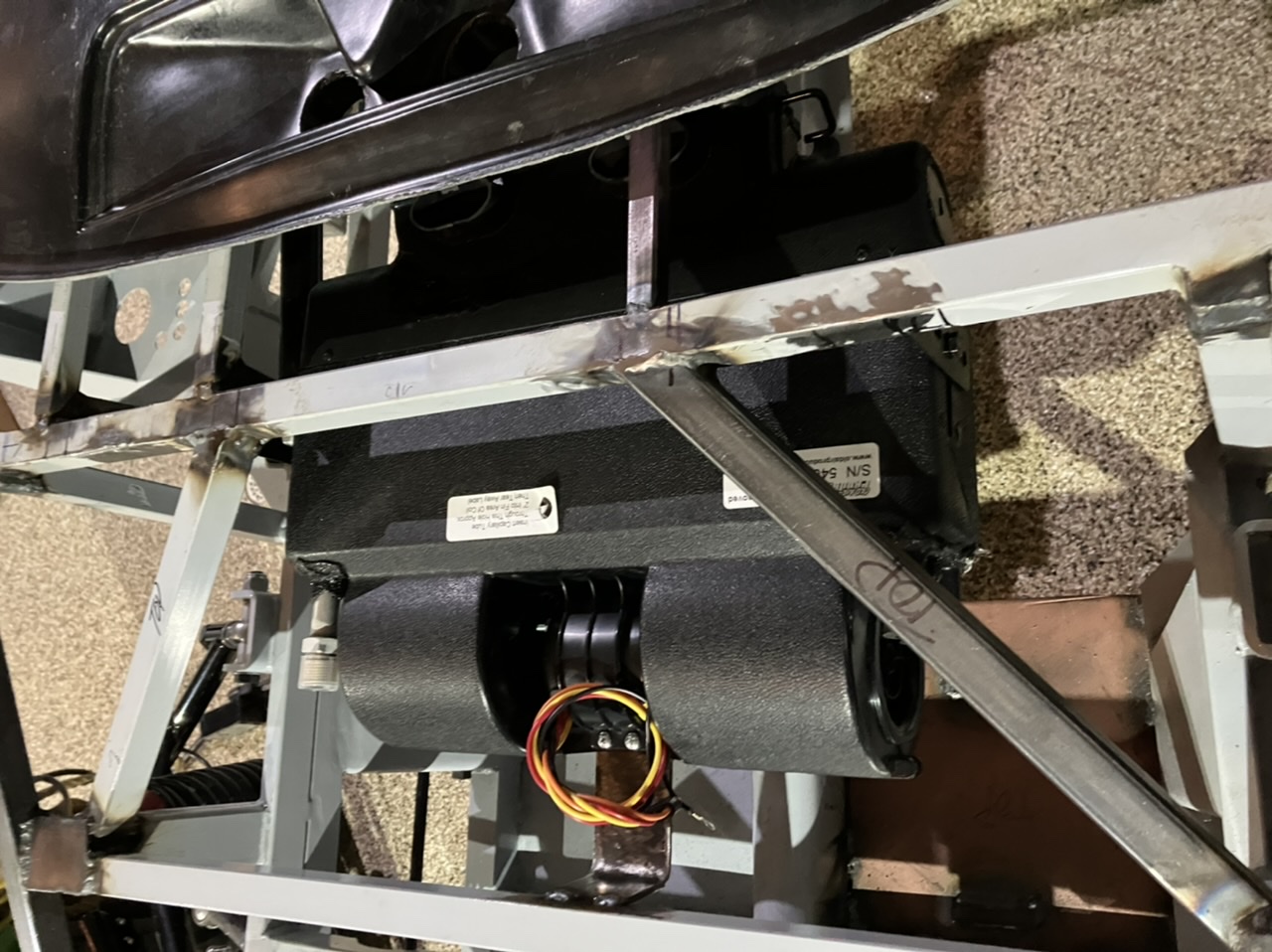

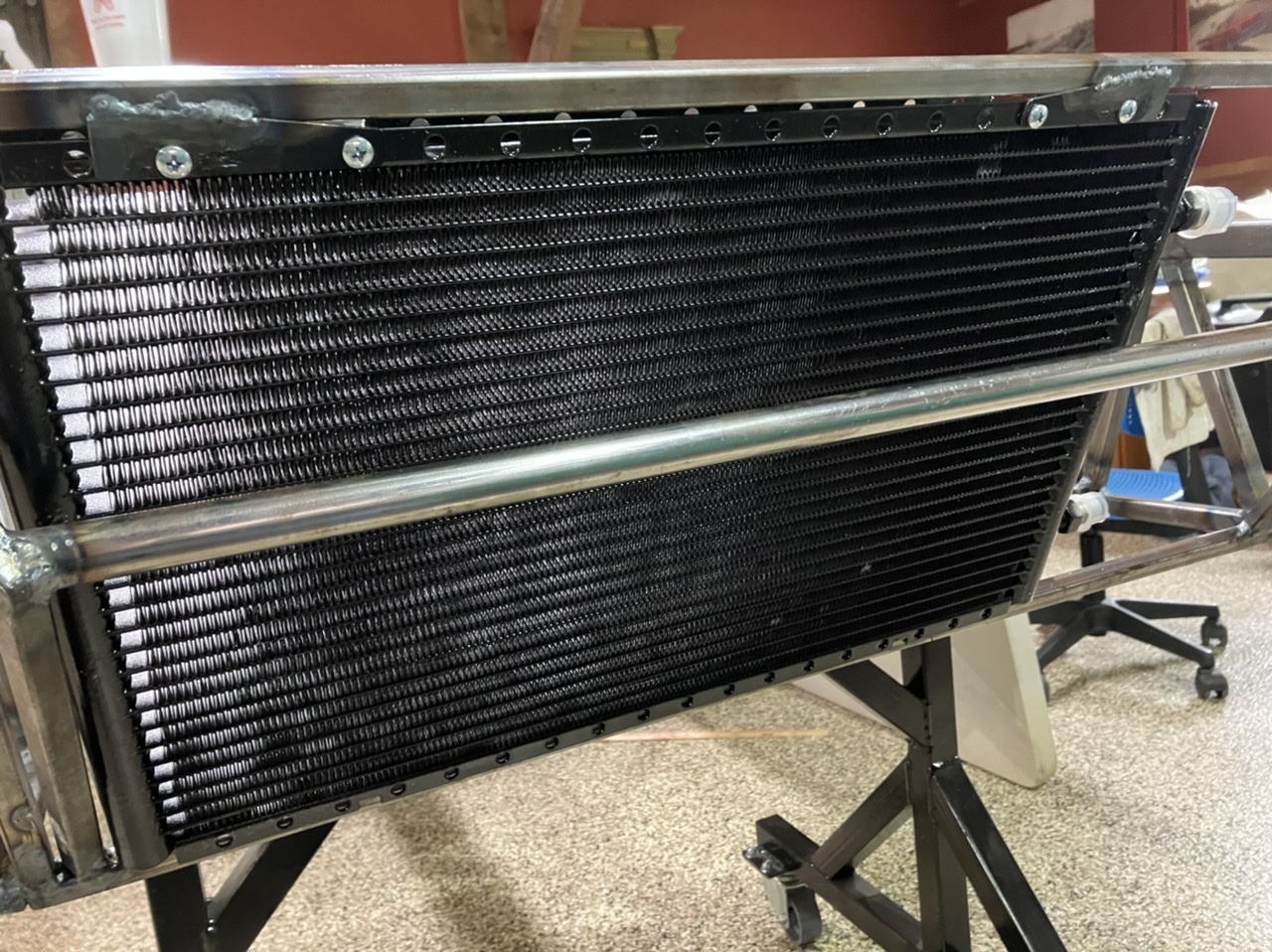

Welded up the steering column brackets as they were .75 inch to the right. Then fitting brackets for heat and a/c box.


Attachments

  • 0DA1DE71-0AD7-42AC-BF4A-7696989FE3C6.jpeg
    333.4 KB · Views: 180

Davidmgbv8

Supporter

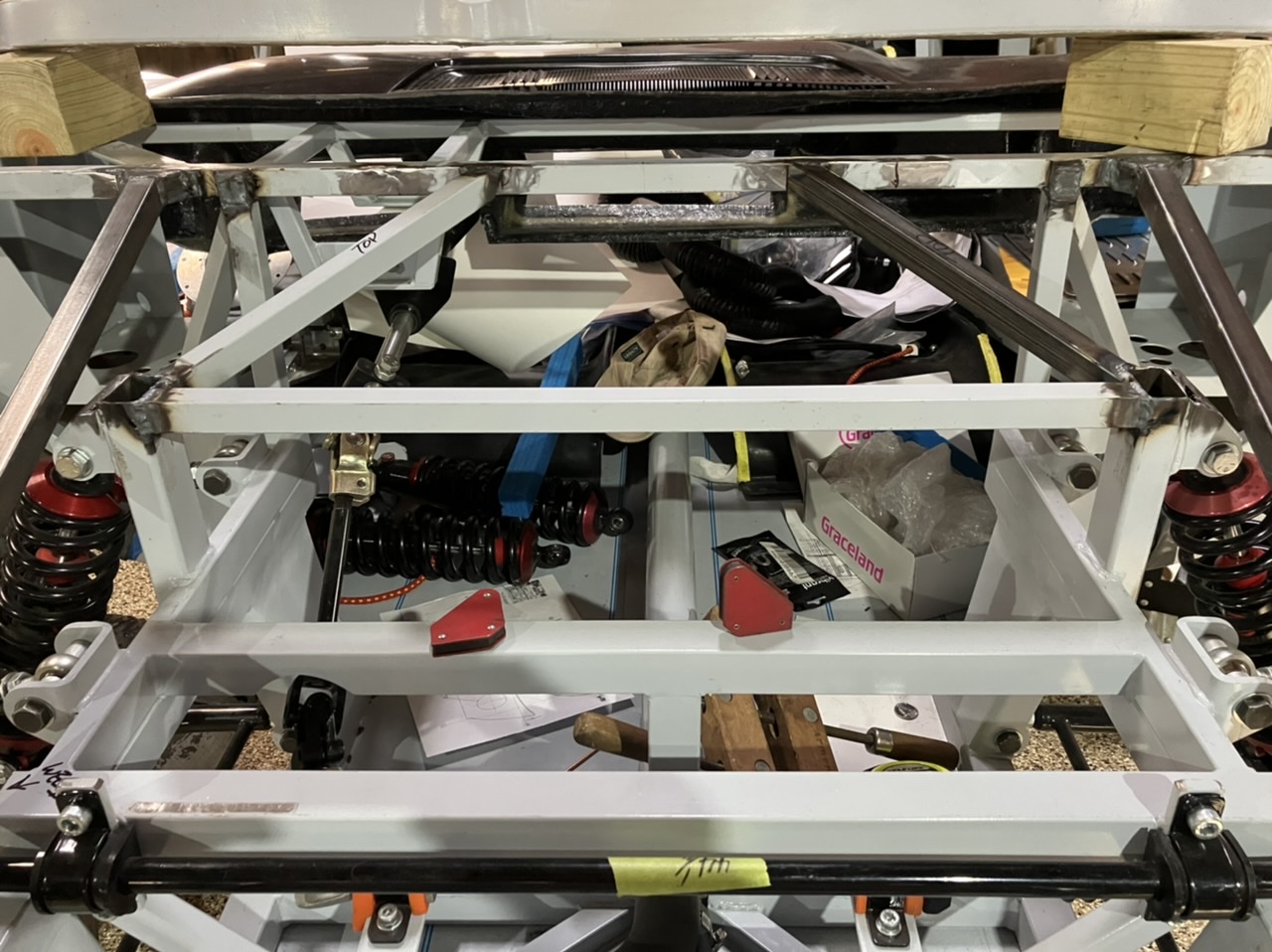

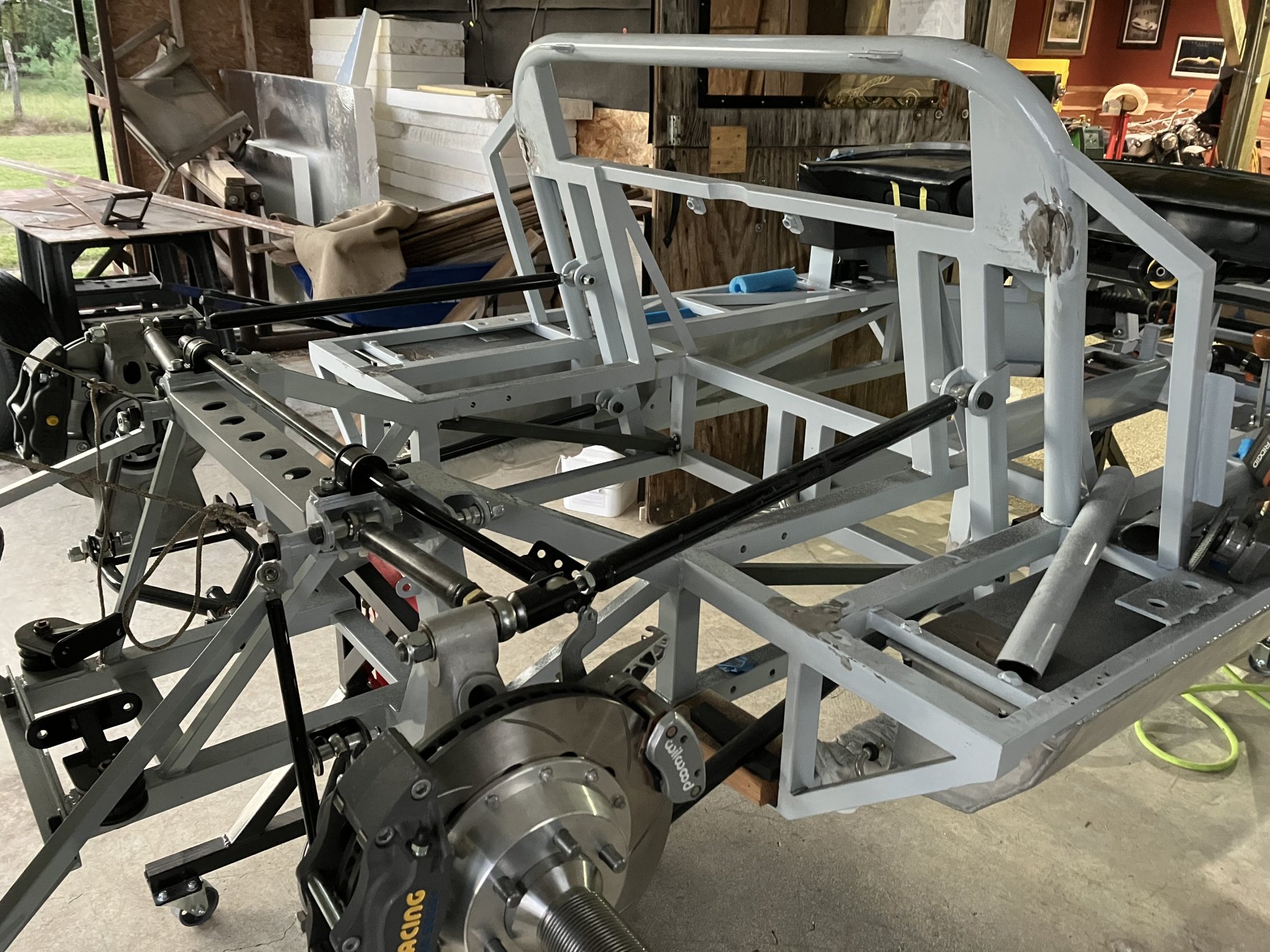

Done away with rear roll hoop down bars officially inclusive of the welds.


Attachments

  • FEFF012D-184E-4953-9DA8-355AD2CFC551.jpeg
    527.5 KB · Views: 167
  • 5A005AFD-ECA2-42E7-B2F8-8AA49497ACA2.jpeg
    383.5 KB · Views: 165

Morten

Mortified GT
Supporter
Then the roll hoop has pretty much zero function having removed its strength in triangulation, and if rolled it can just as well collapse inwards into the cockpit as into enginebay as it has only the bottom weld that supports it.


Davidmgbv8

Supporter
I agree Morten, and I value your thoughts. however there are a couple of things different about this bar. Due to the installation angle it is canted back so more likely to collapse to the rear than forward. There are also a 1" angle pieces directly welded to the roll bar and 1" indirectly connected to the bar that for the back of the cabin that also would prevent folding forward onto to the passengers but allows it to move backward toward the engine. Other considerations for making the removal is this car is not meant for racing but for street use or DE events. This car is meant to be an homage to a road car which is why I removed as it interferes with the rear clam and angle pieces that hold the slam catch assembly I have yet to fabricate and install.

If I wanted to seriously track the car YES I would put a down bar back in but INSTALL fuel cells as I am more scared of fire than roll over. I rolled a Healey 100-4 at TWS 4x before stopping on the roll bar, having to un buckle and crawl out before the corner workers could get there. I know what it is like and also how much racing 5 point belts will stretch. So I know the value of a good roll set up as it saved my life.


Davidmgbv8

Supporter

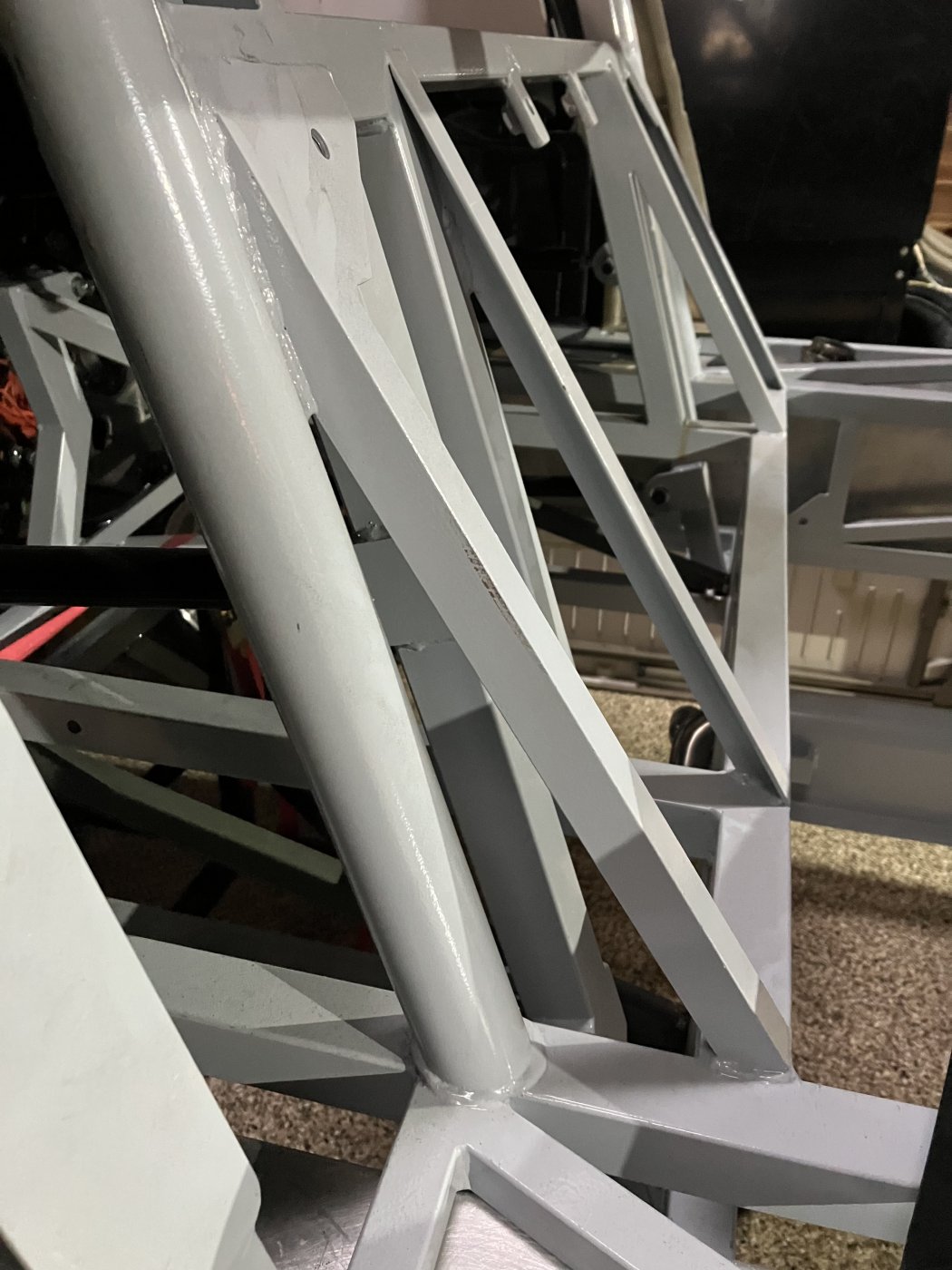

Here are the angles described above


Attachments

  • 1E4610EE-4115-4278-BA15-606D4B8730B0.jpeg
    191 KB · Views: 135
  • 7660FF49-CC10-4485-8E9A-1A6D52F9F38E.jpeg
    233.3 KB · Views: 128

Devin

Supporter
Here are the angles described above
David,

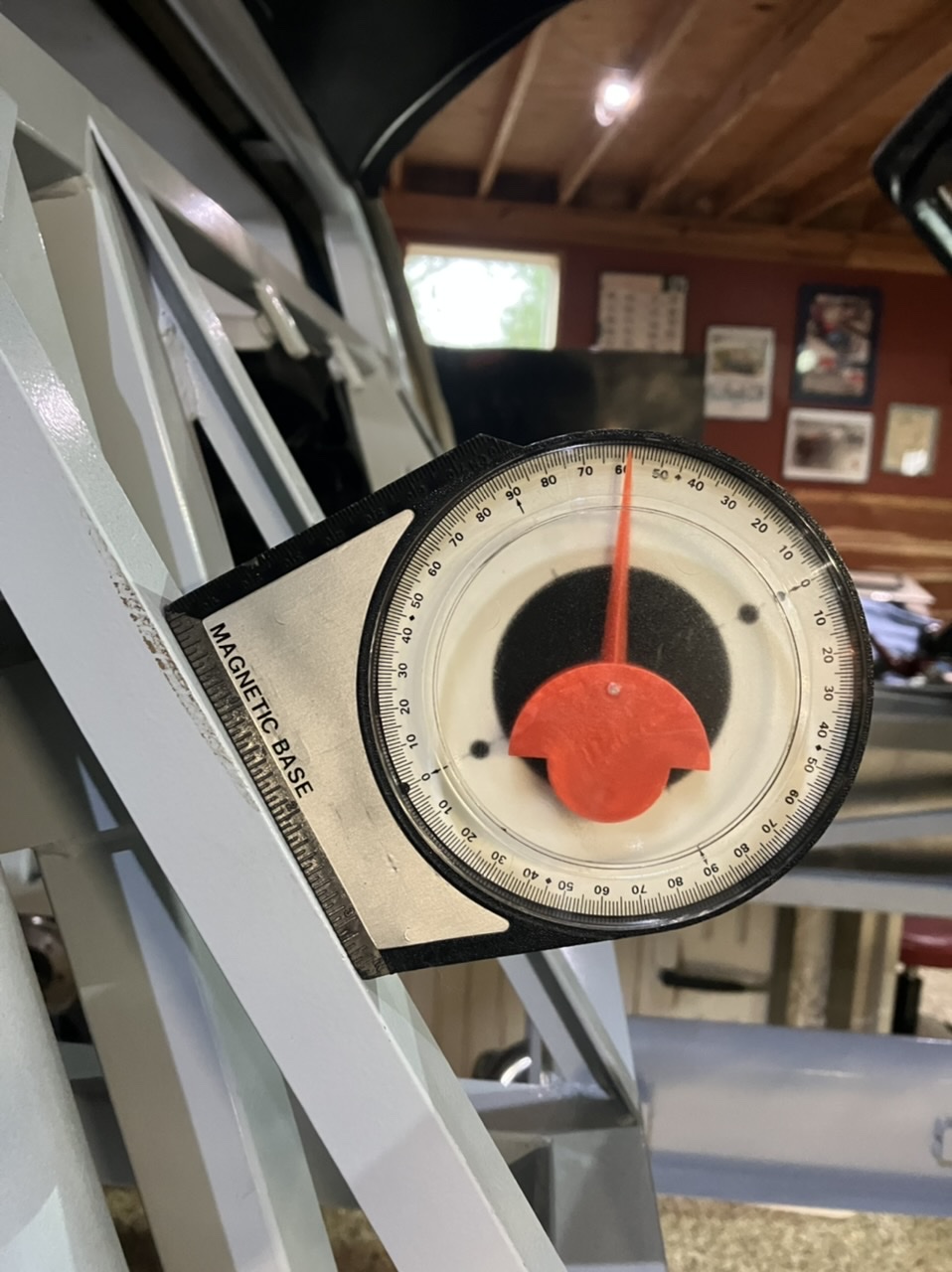

Can you verify the angle of the main bulkhead structure? Since I need to do some spider fabrication from various smaller pieces the best I can measure I get about a 75 degree angle back from the pod/floor structure. This basically parallels the back side of the door angle where it meets the spider when closed.

I have a couple sets of plans that are within +/- 5 degrees of each other.


Devin

Supporter

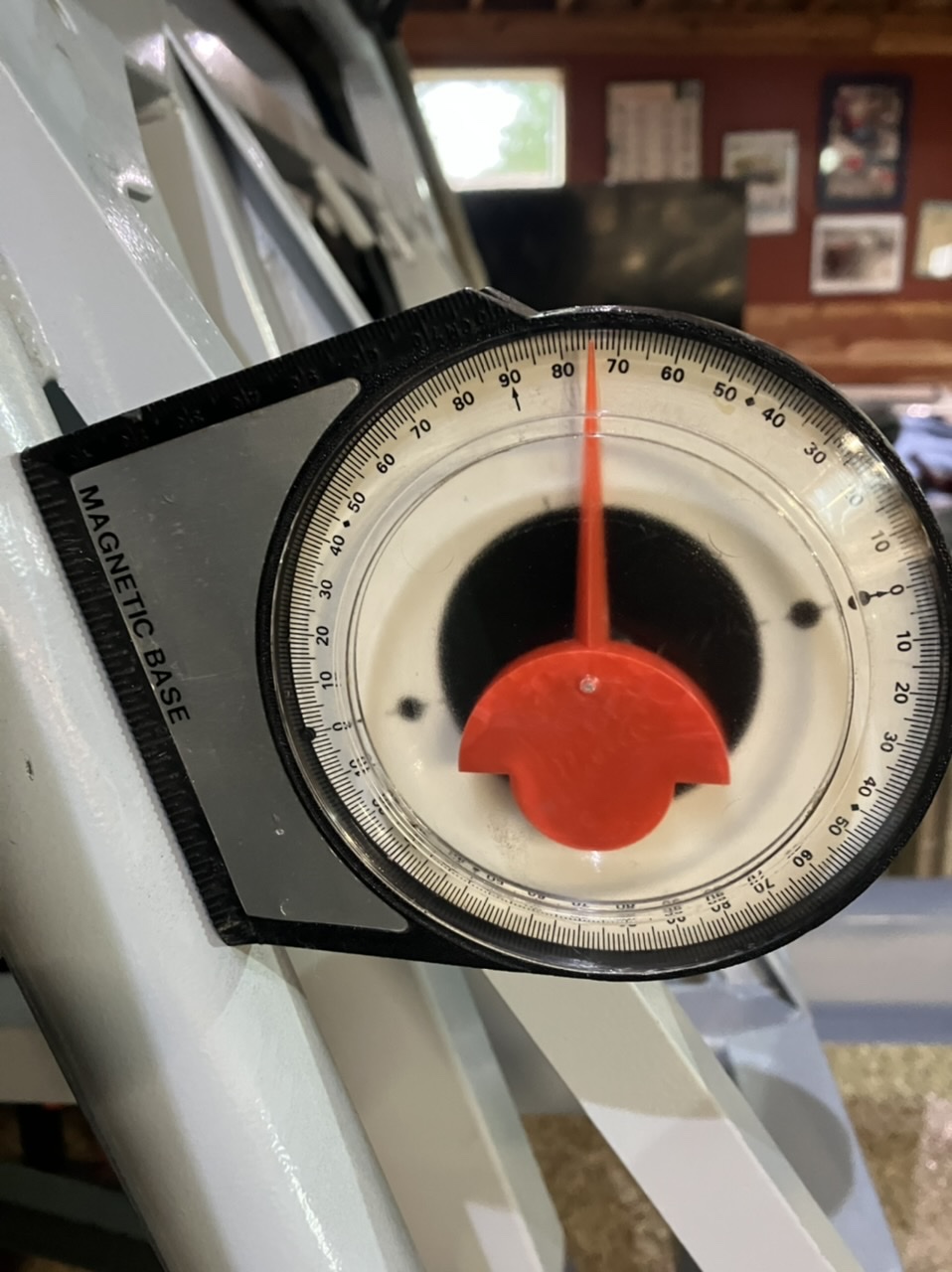

perfect! Guess my approximation was spot on. Also great info on the seatback/inner bulkhead angle too.

Devin
