Steve’s Active Power GEN II Coyote GT40

Hi Everyone,

Let me start at the beginning.

This all got started when I decided to build a car.

I’ve restored a bunch of cars over my life and I didn’t want to get into a rustbucket, I wanted start another project from scratch. So I started researching the internet and I found “kit cars”.

I started looking at Kelmark Ferraris and I started to like the Fiberfabs, but they didn’t look right. I have loved GT 40s since I was a kid but I knew the prices and I knew that I would never own one. But researching kit cars I stumbled upon the GT40 replicas but again, I thought I could never afford to build one.

I was searching eBay and craigslist and low and behold, I found a used Active Power Cars GT 40 chassis. It was a bare chassis with just the gas tanks, it was great price was only about 220 miles away so I bought it!

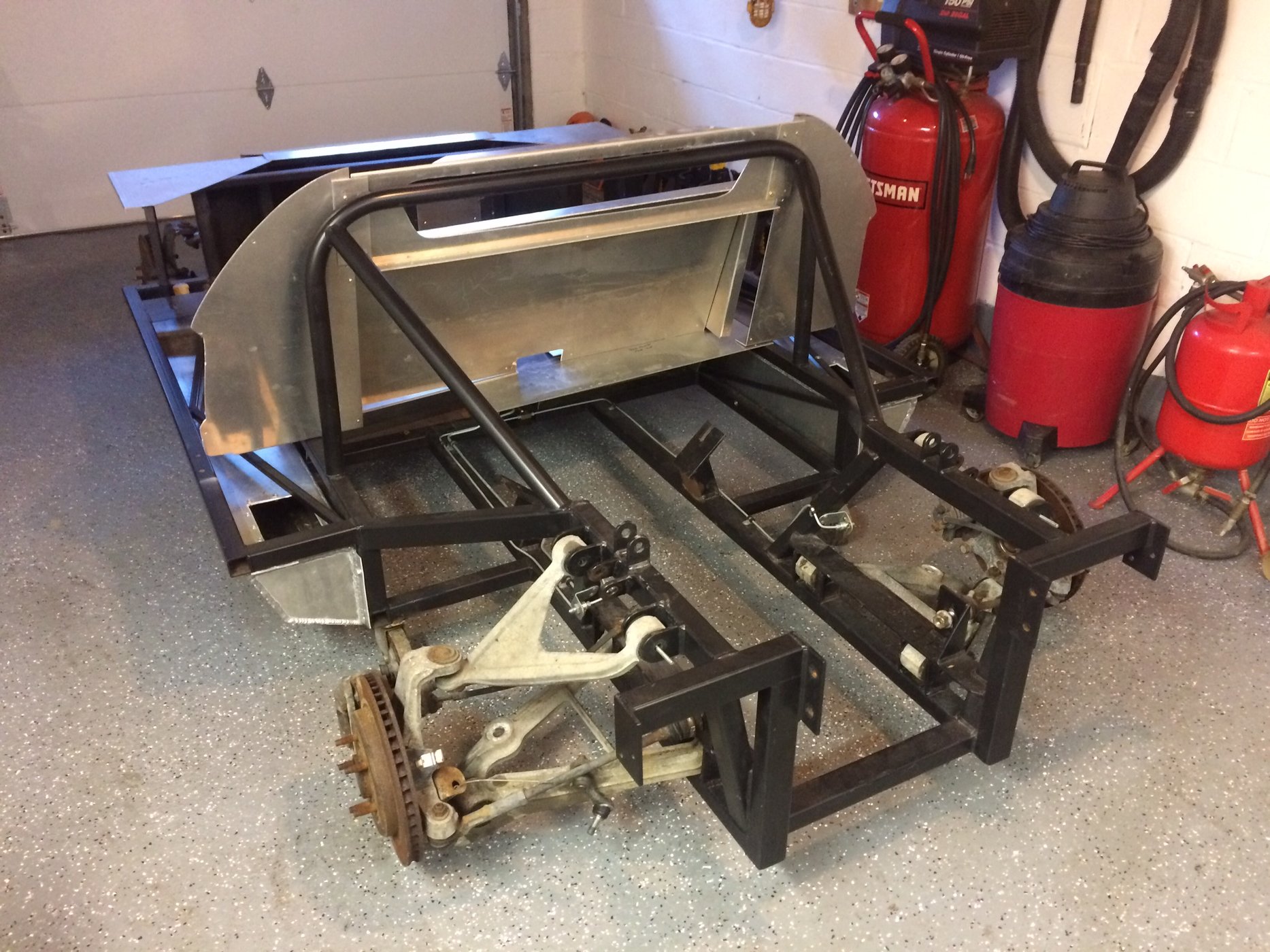

This chassis was designed for a Ford Coyote engine and a C-5 Corvette suspension. Not too far from the chassis I found a used C-5 Corvette suspension.

So I rented a truck headed down south and I picked up the chassis and the C5 suspension.

This is my FIRST complete car build so I’m a beginner. Please be patient with me.

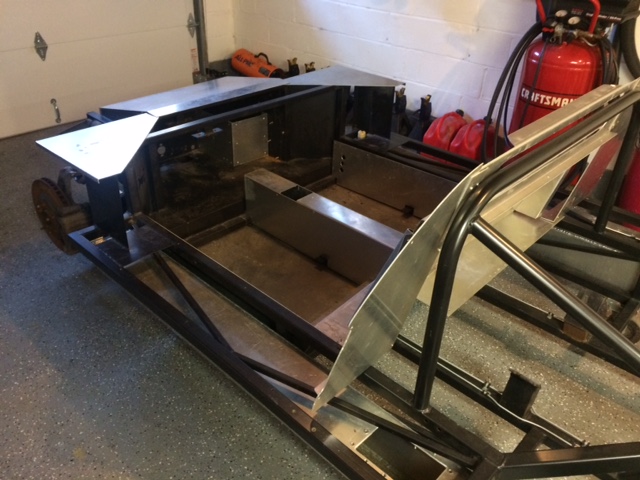

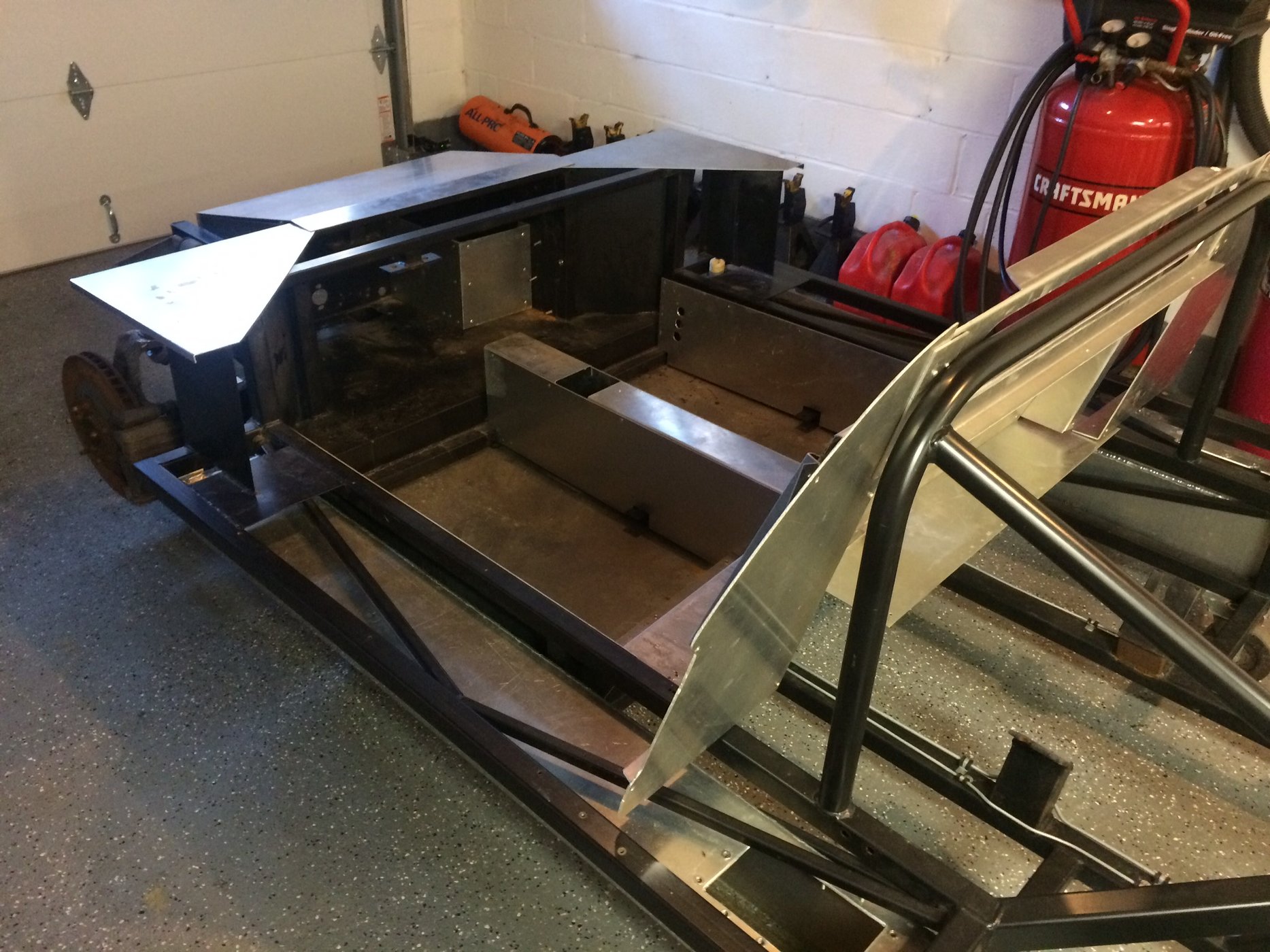

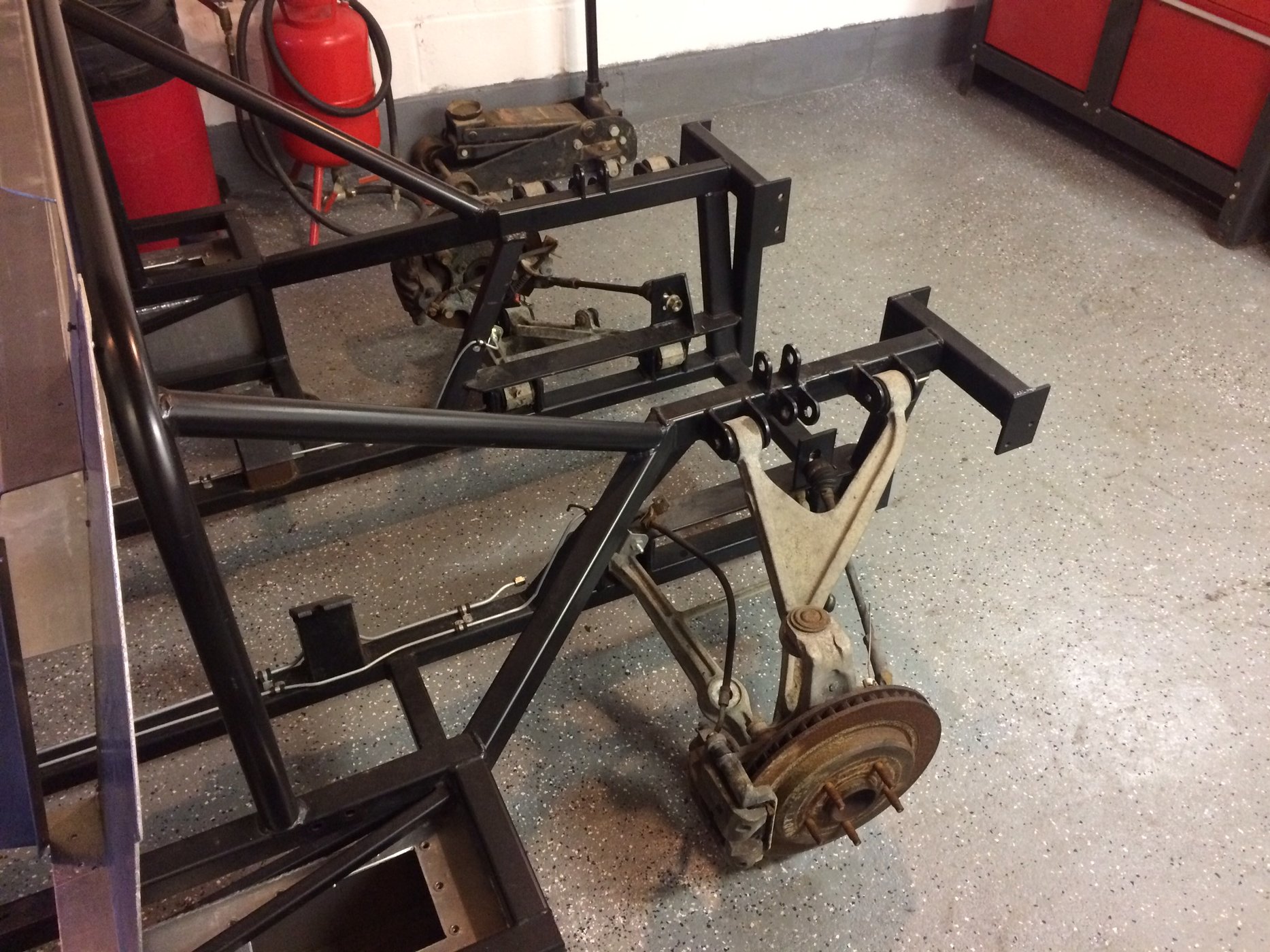

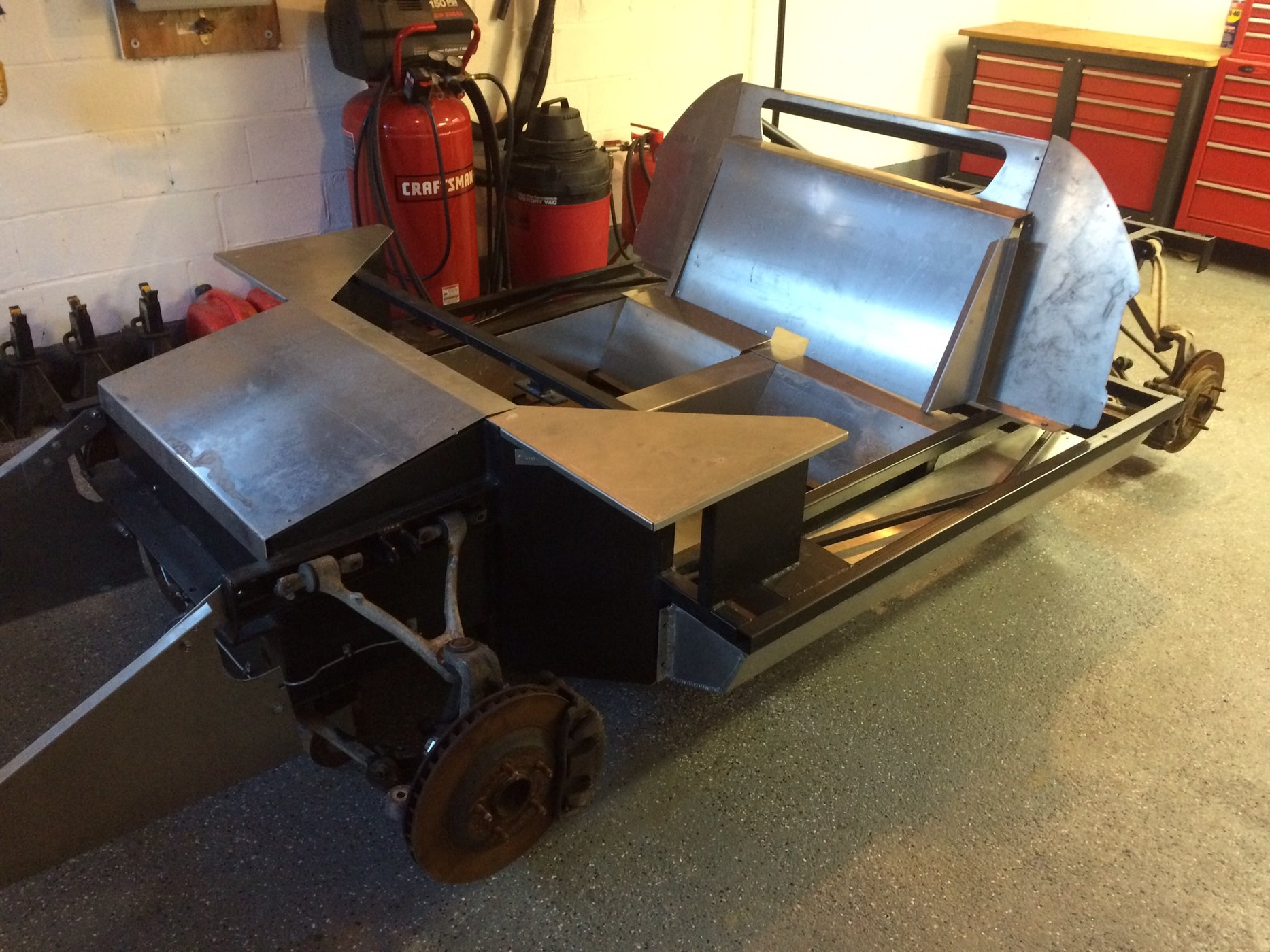

Here are the pictures from that day.


Attachments

  • 9144A748-8459-4EAC-B732-96B999728009.jpeg
    396.2 KB · Views: 669
  • 82430699-8D32-49C1-9581-6924FF1E1A77.jpeg
    456.8 KB · Views: 664
  • B3EDAC17-FADF-4F50-9B63-E76617F7FD7E.jpeg
    430.4 KB · Views: 572
  • C9C3E4DC-F57E-49A5-BFAA-0FBC0AE0847F.jpeg
    395.4 KB · Views: 582
  • EABD3C5B-F538-4E37-B473-F937722E8815.jpeg
    426.3 KB · Views: 528
  • A0B9B4DF-399D-45F8-9A8E-130040D92572.jpeg
    115.2 KB · Views: 584
  • 7969AC8B-35D2-458C-B222-70AE8D0F0C4E.jpeg
    133 KB · Views: 538
  • 0D0EBE95-407B-4148-B28C-8C8C9AC9EAB4.jpeg
    129.8 KB · Views: 587
  • D13CAB9A-7248-463B-9730-158E6960351D.jpeg
    121.3 KB · Views: 547
Last edited:

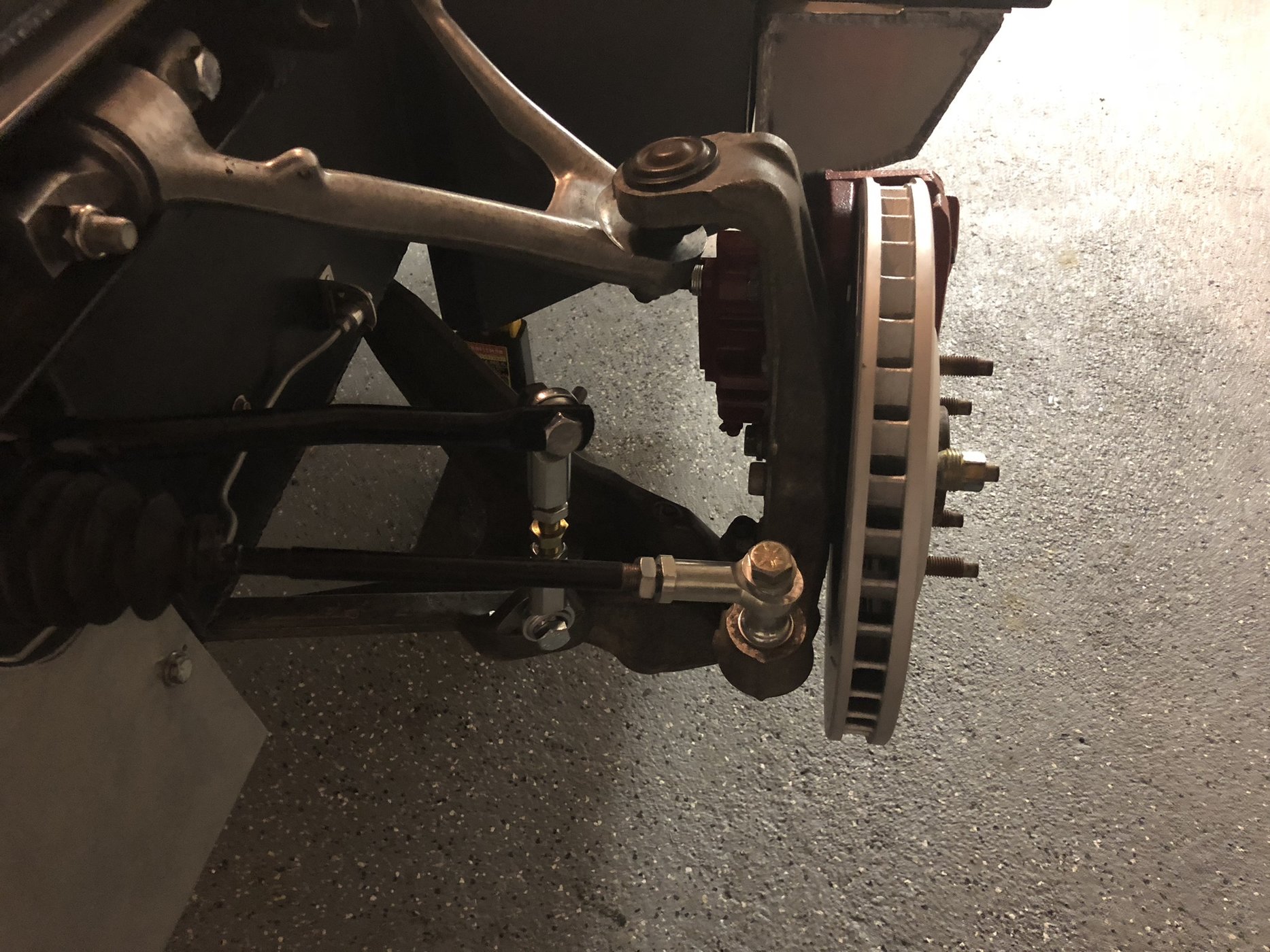

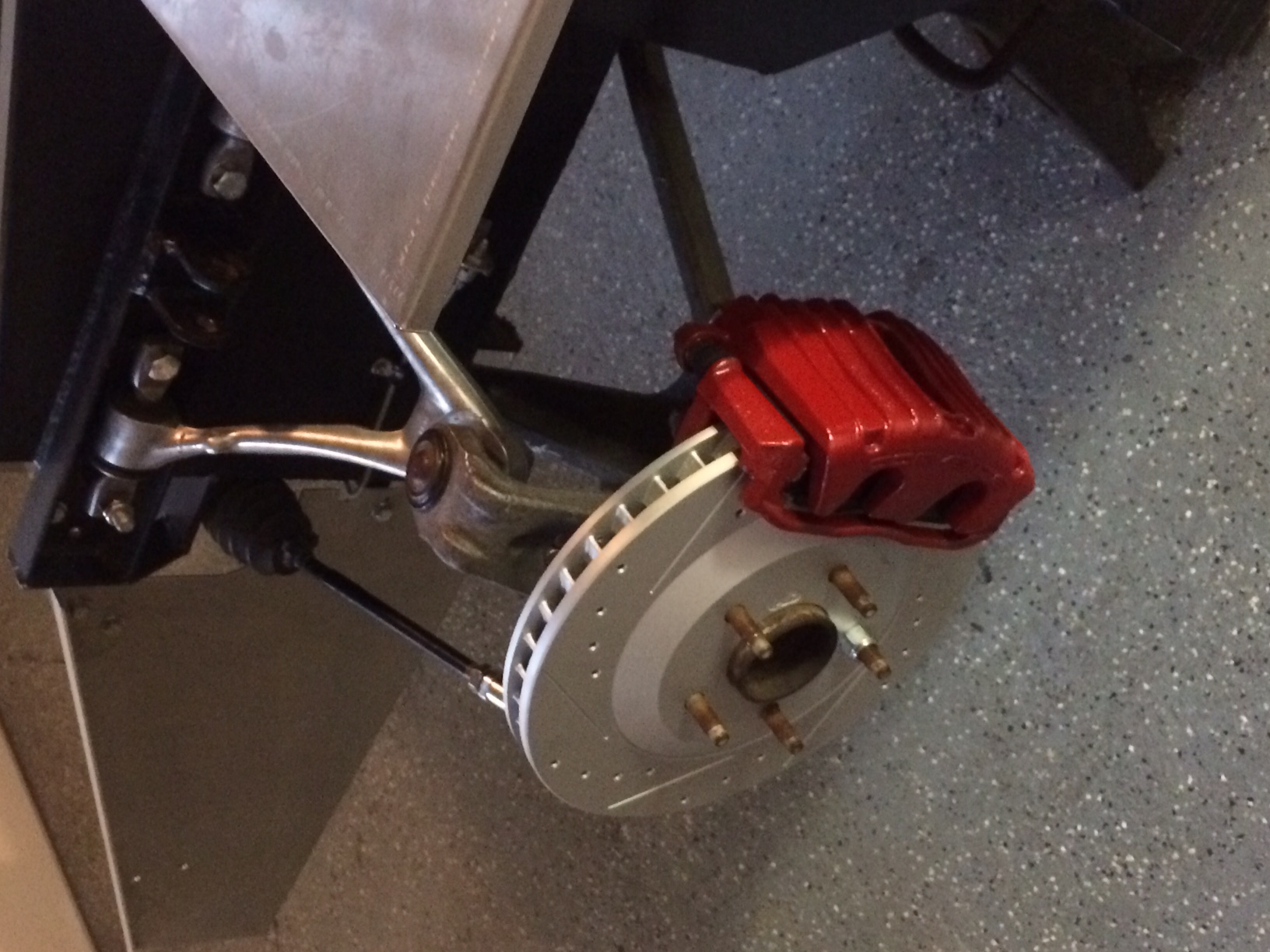

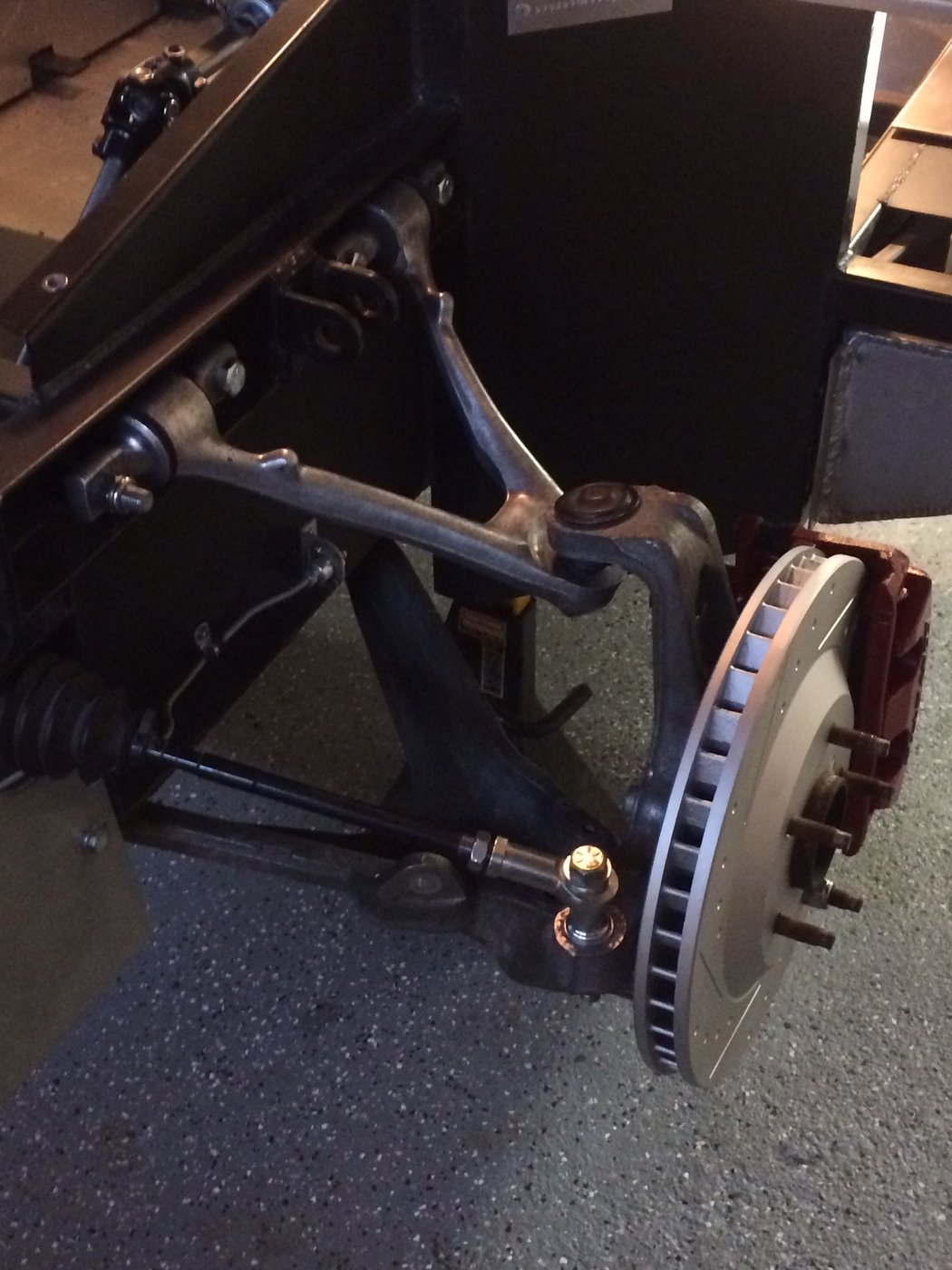

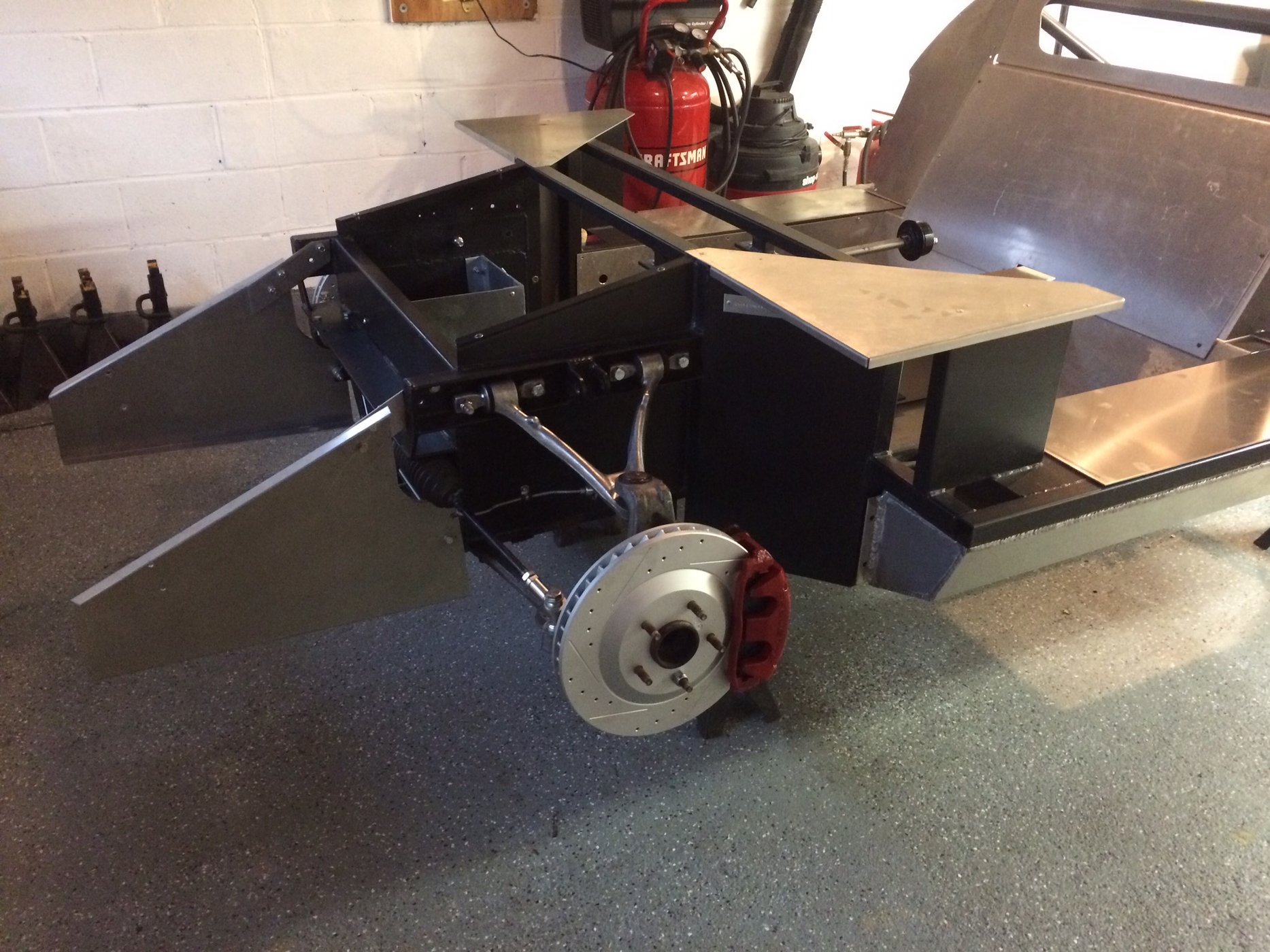

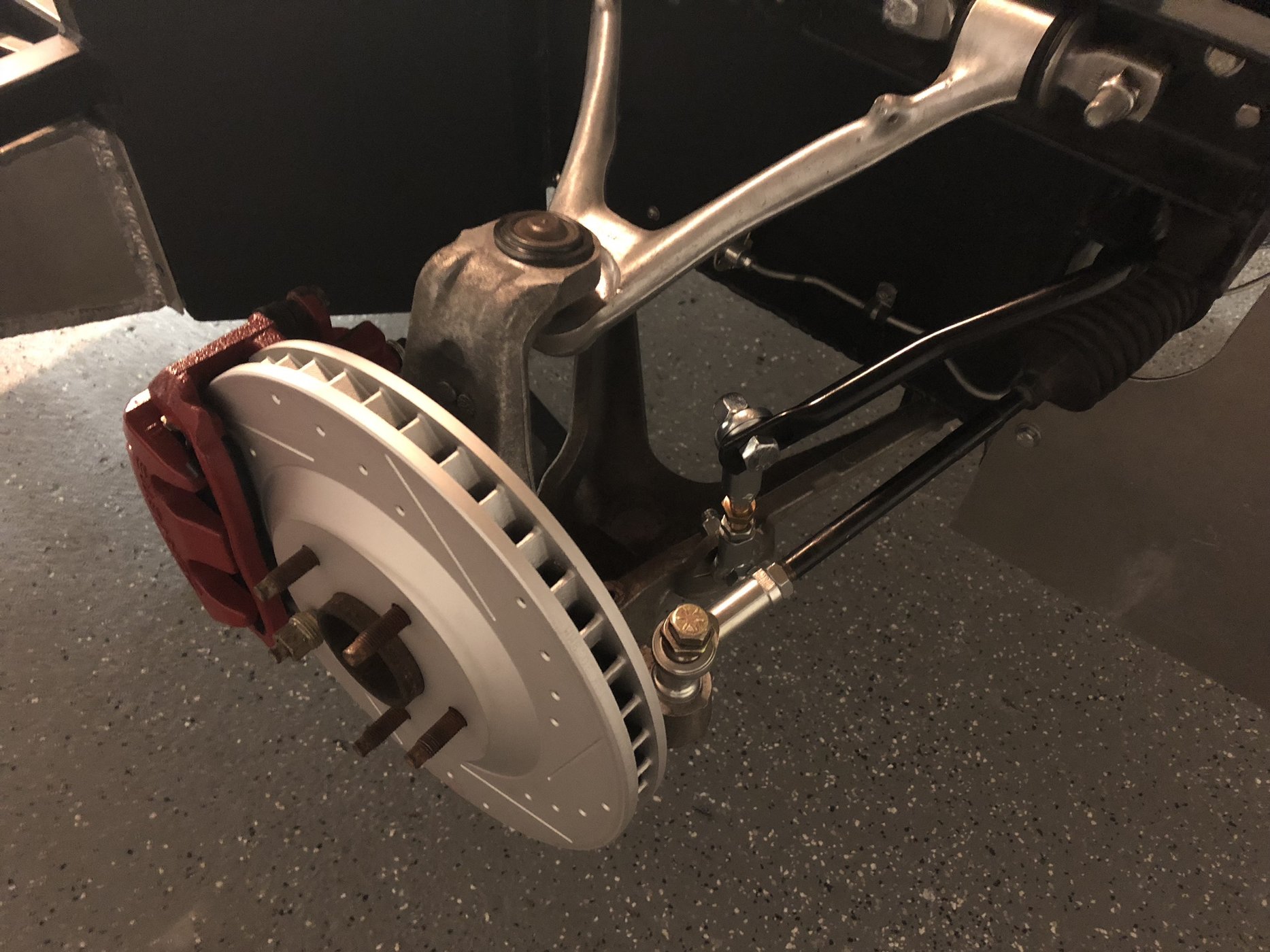

The first job was to clean up the suspension, paint the calipers and add new disks.


Attachments

  • C18047A4-E9AB-45B9-AADF-318950EBDDF6.jpeg
    196 KB · Views: 495
  • 667A1E9E-DD0A-4F46-B941-CB92336471AE.jpeg
    385.1 KB · Views: 560
  • FA335125-ED02-4842-A0D3-F2BEC0FD8576.jpeg
    460.4 KB · Views: 545
  • 05FB1E79-F2BB-40C6-86F7-C44A64205FF5.jpeg
    441 KB · Views: 532
  • ECB60A2C-EA64-4CDD-86B8-779516432C5B.jpeg
    352.2 KB · Views: 549

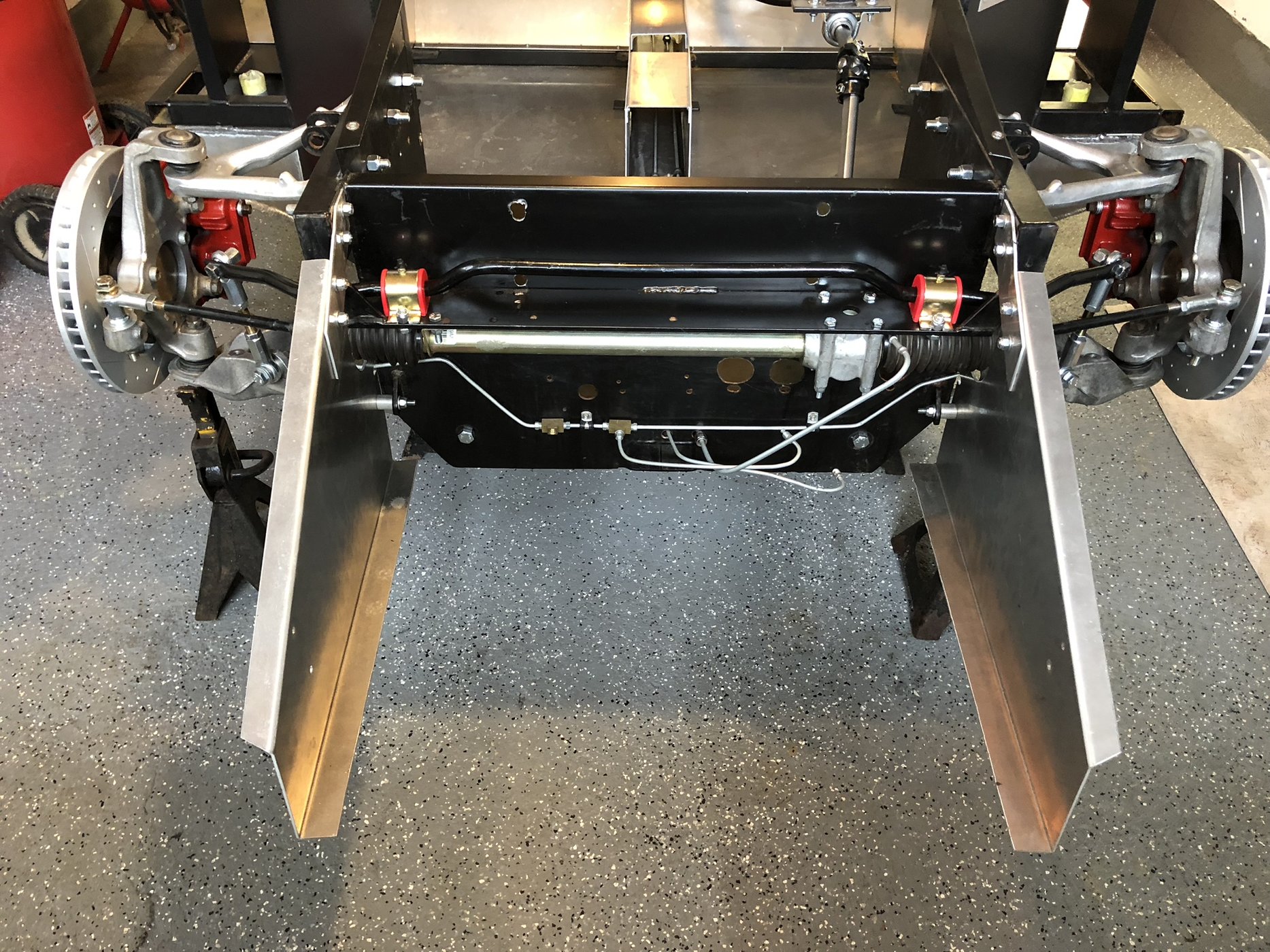

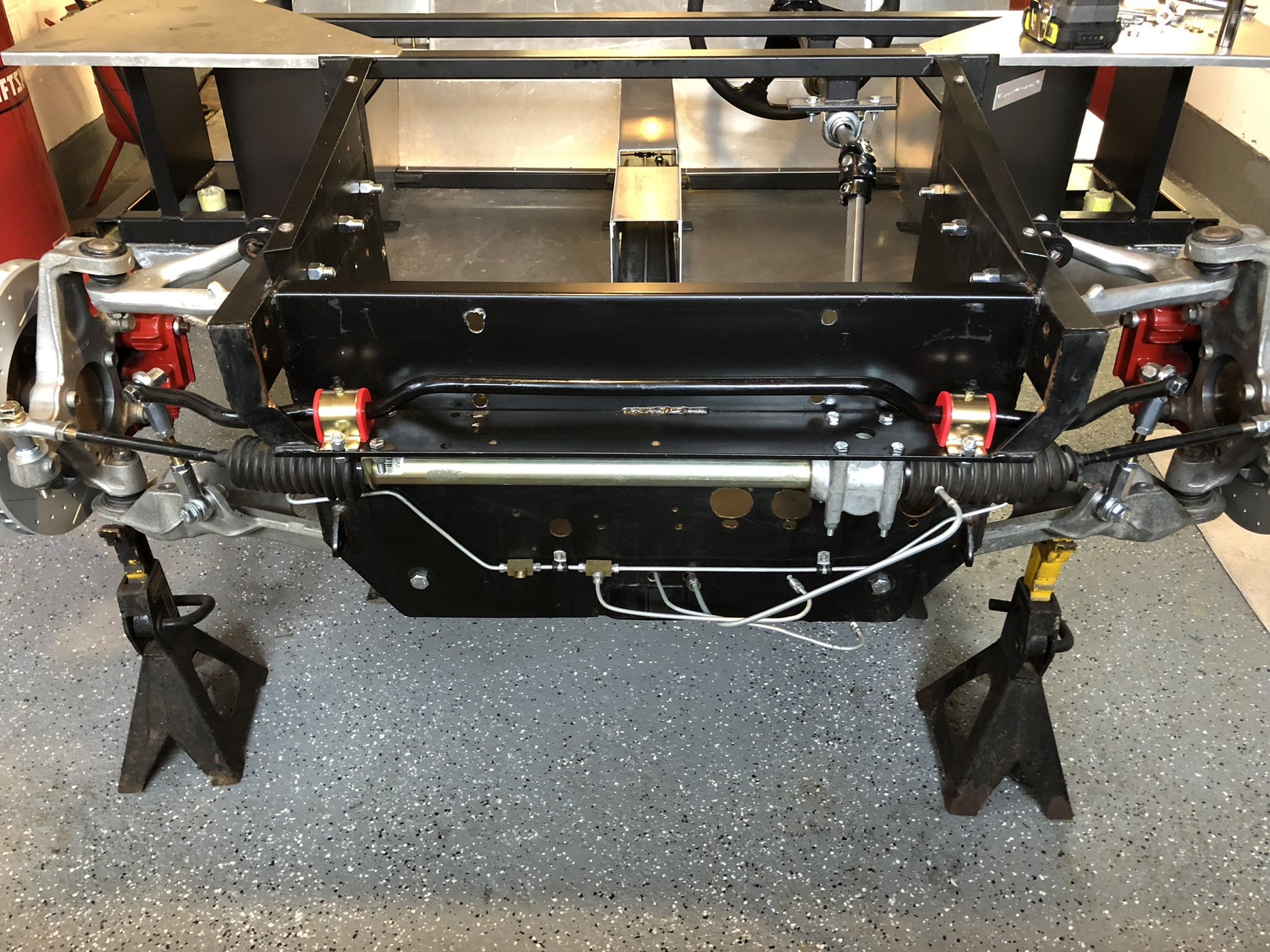

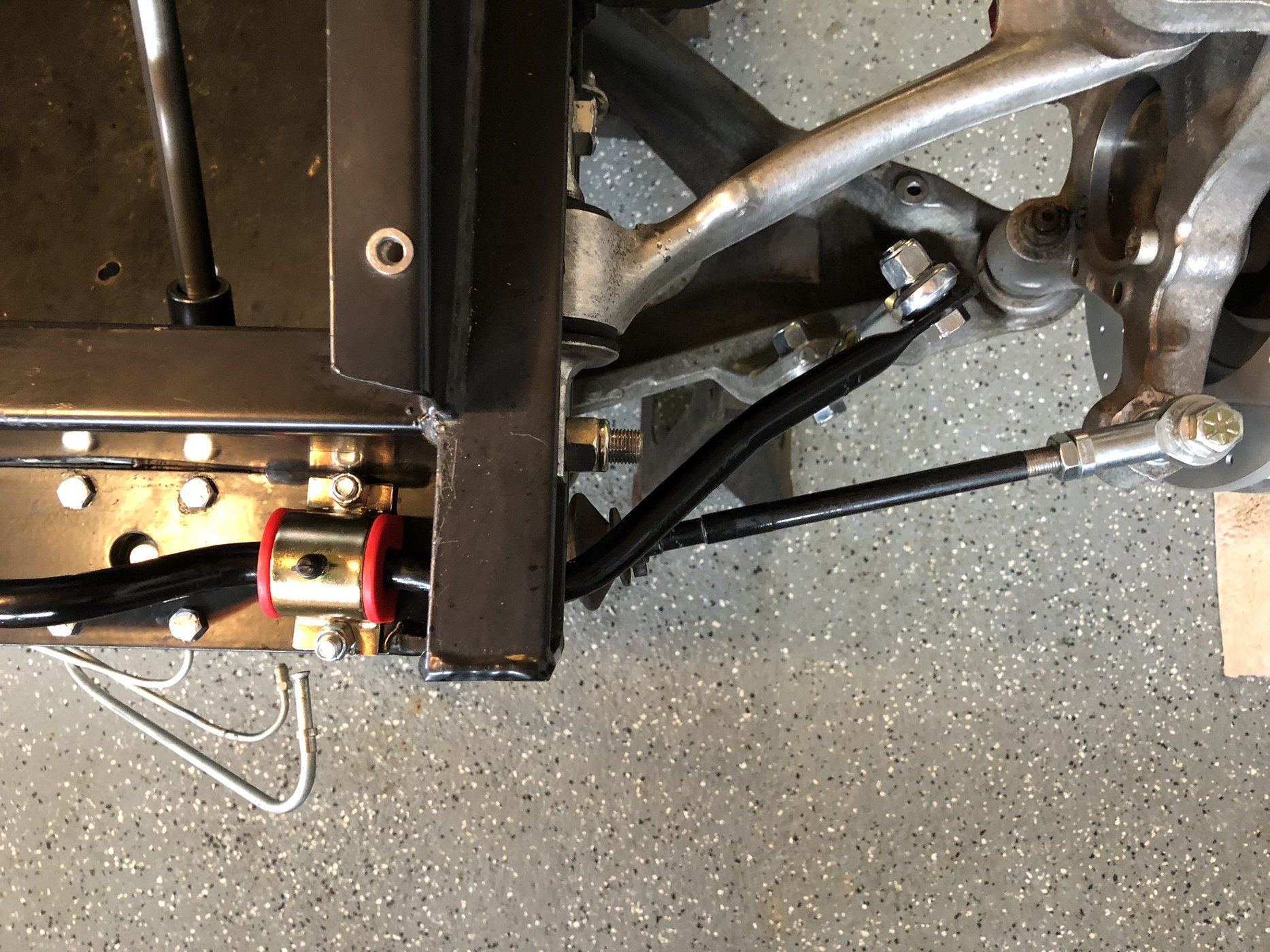

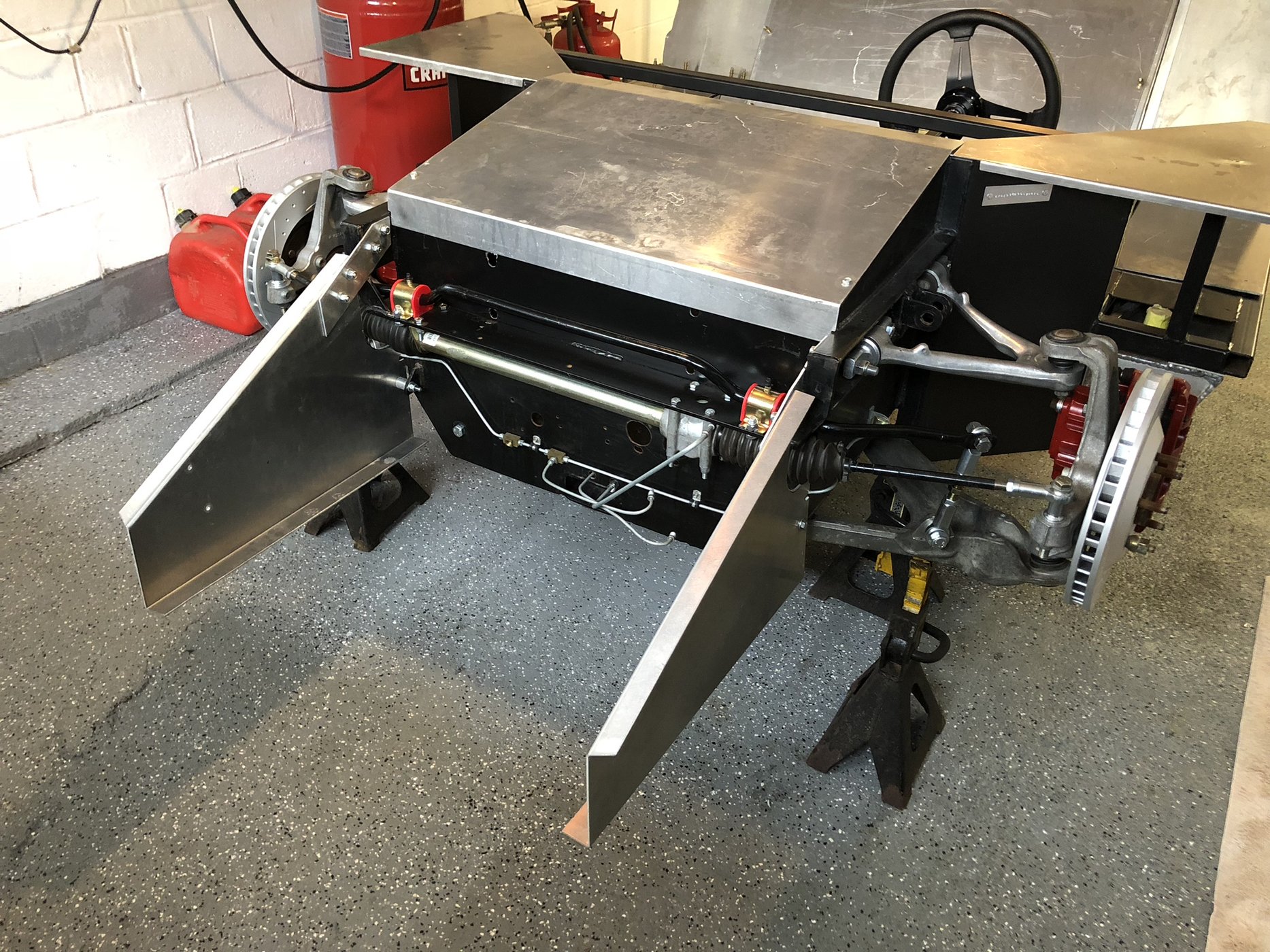

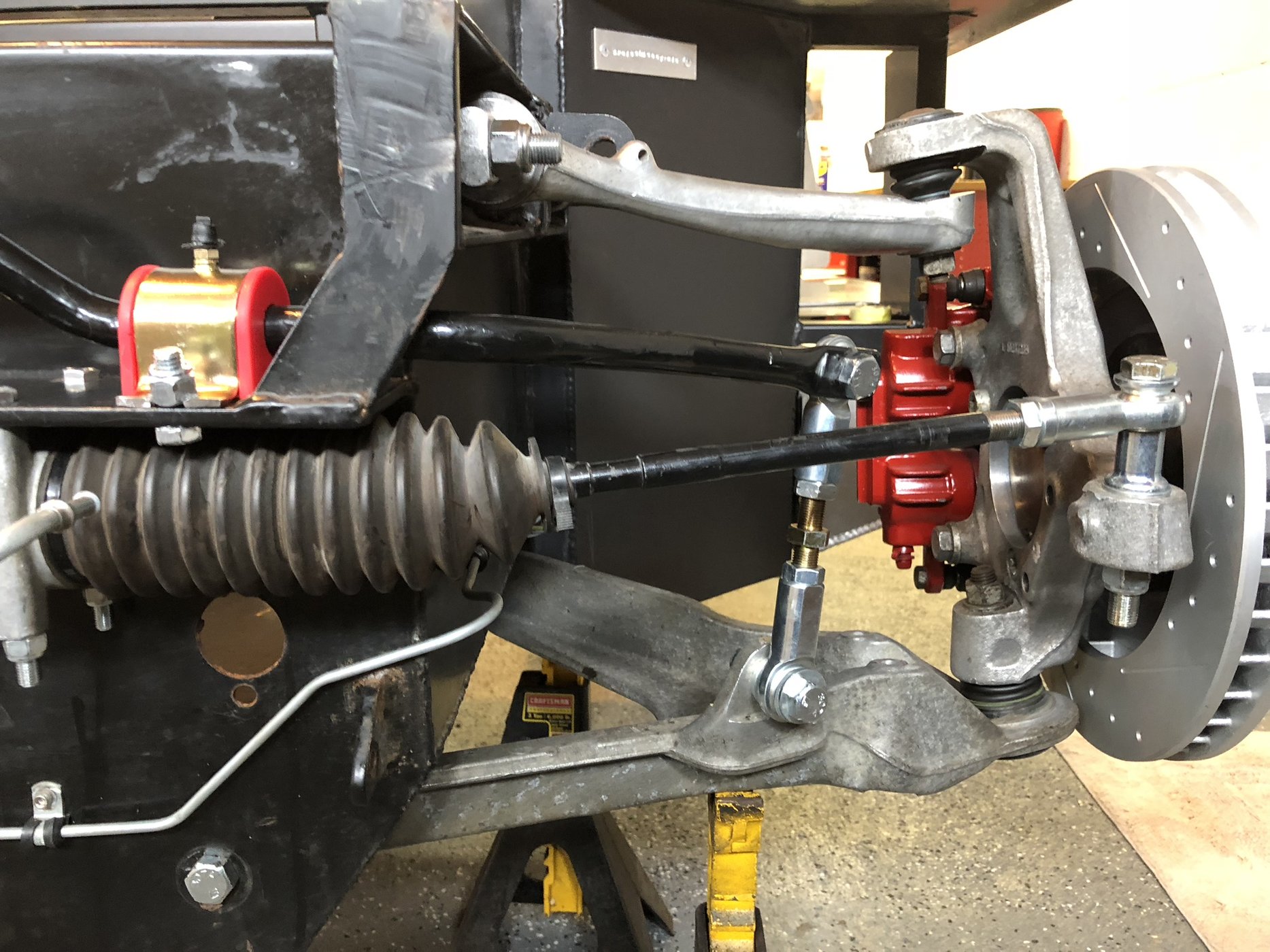

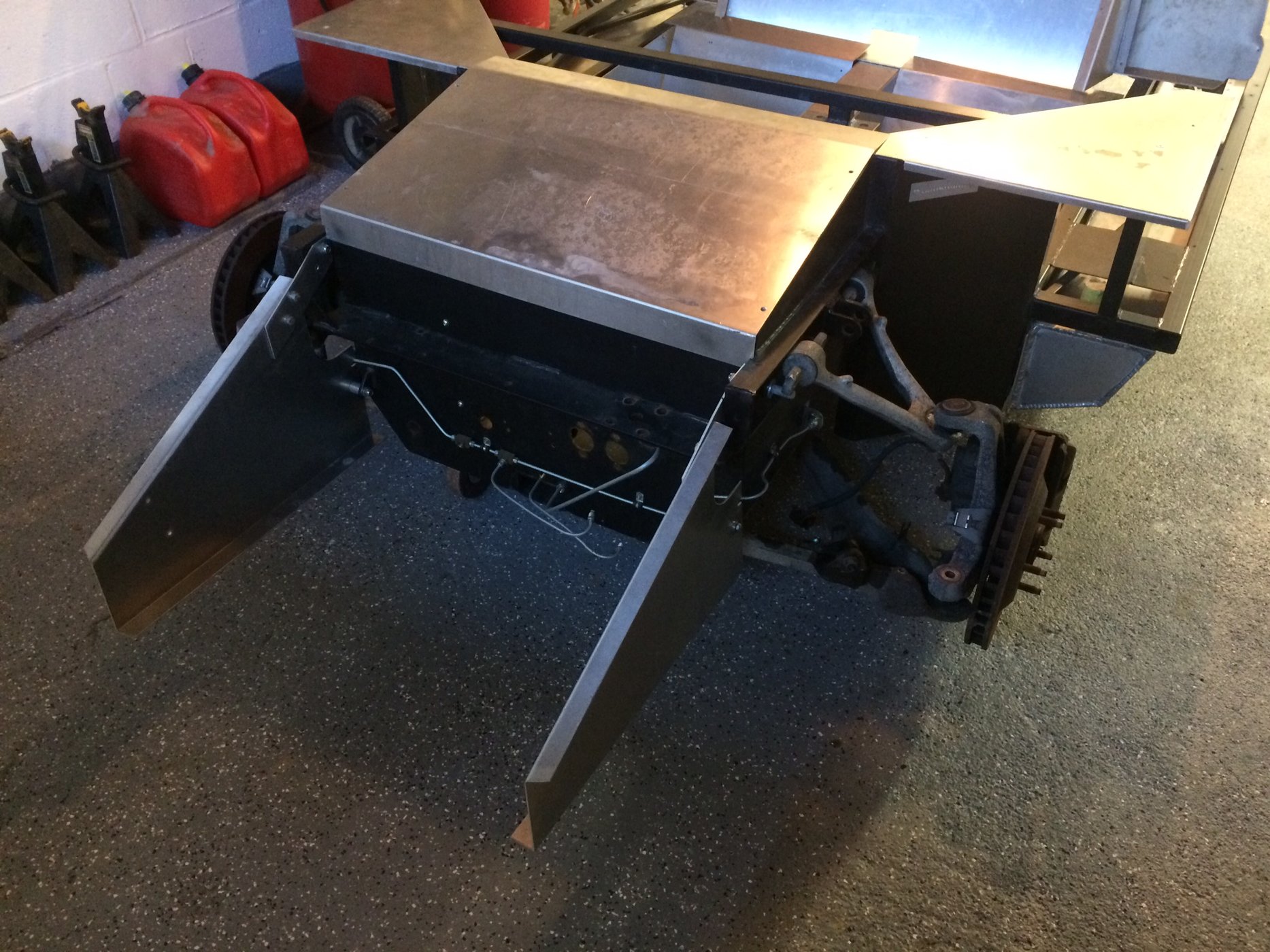

Next was adding the steering rack and the front sway bar.

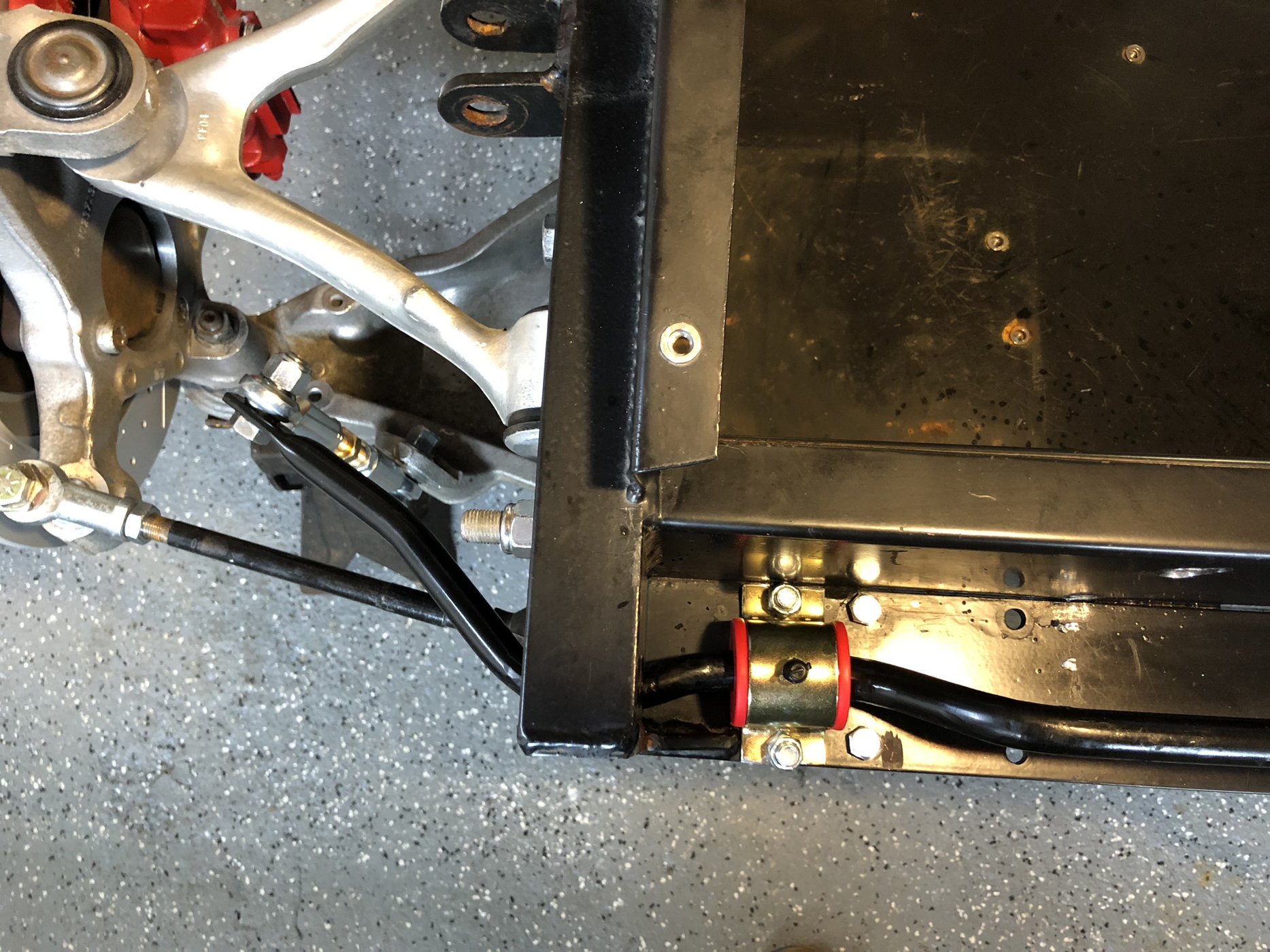

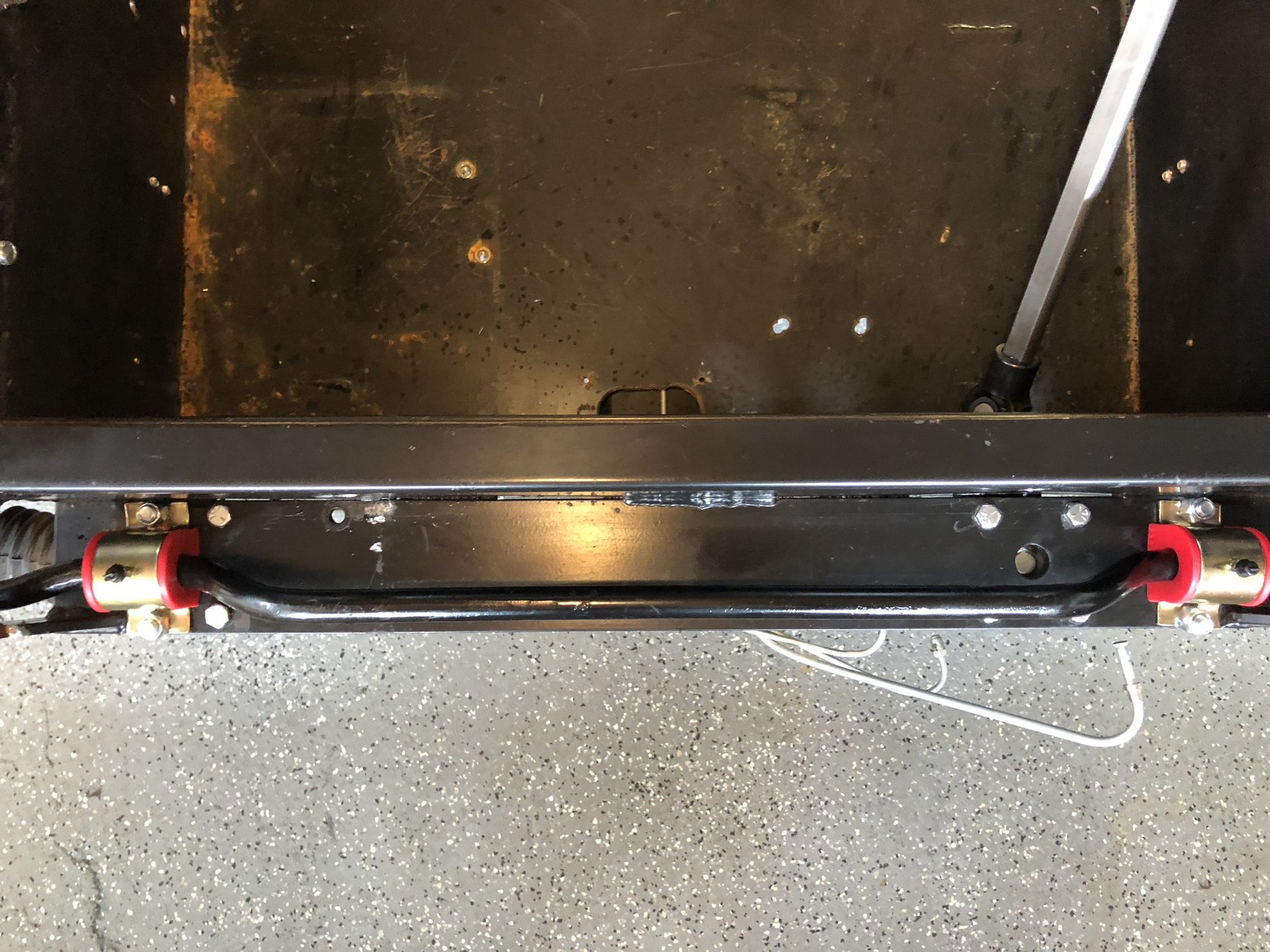

The sway bar was trial and error. I thought I could mount it horizontally but it needed to be mounted vertically because it wouldn’t have worked properly (what this means is the hump on the bar couldn’t be mounted to the firewall, it had to be mounted to the flat part where the rack is mounted. You’ll see the original holes where it was mounted).

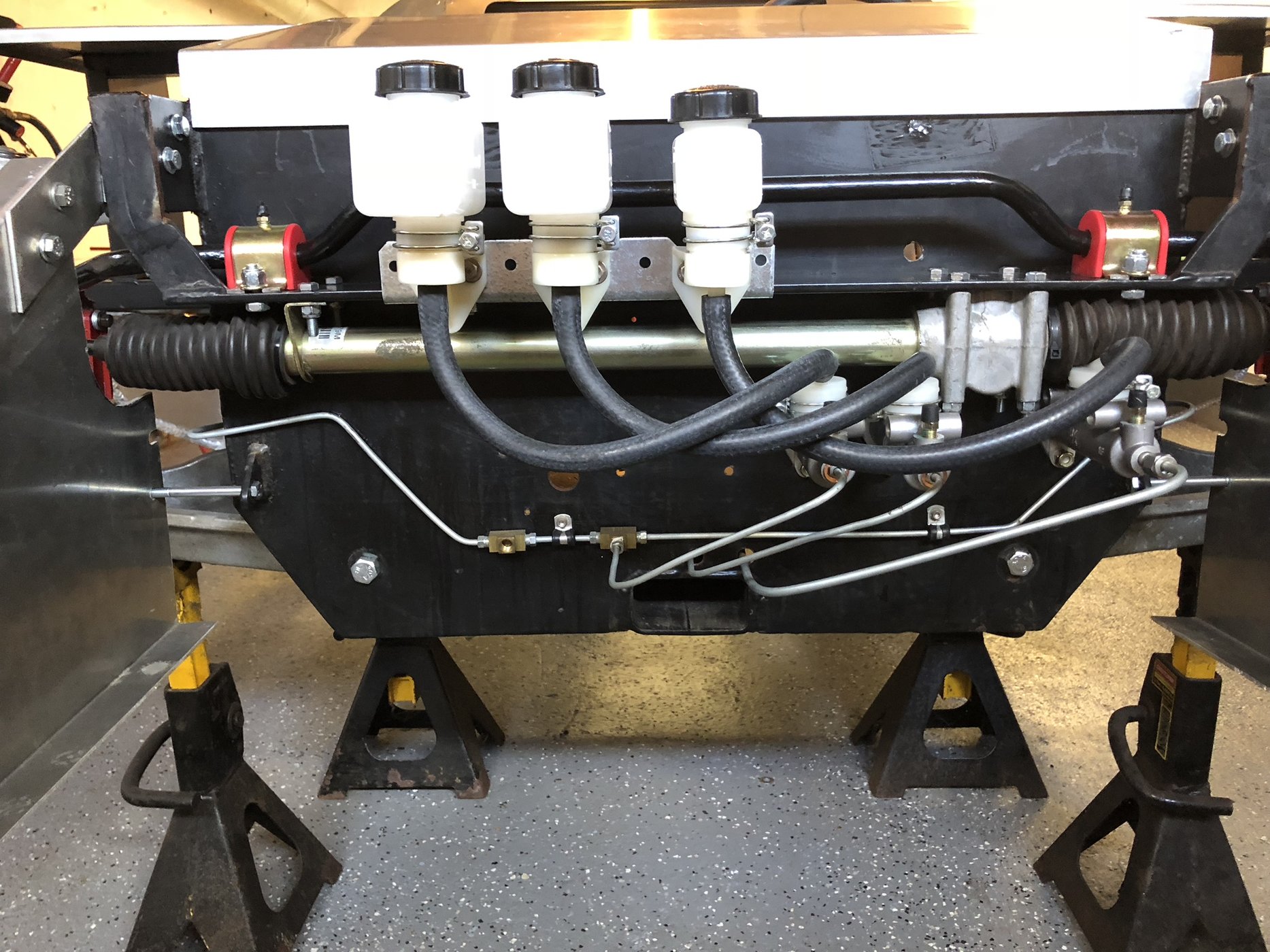

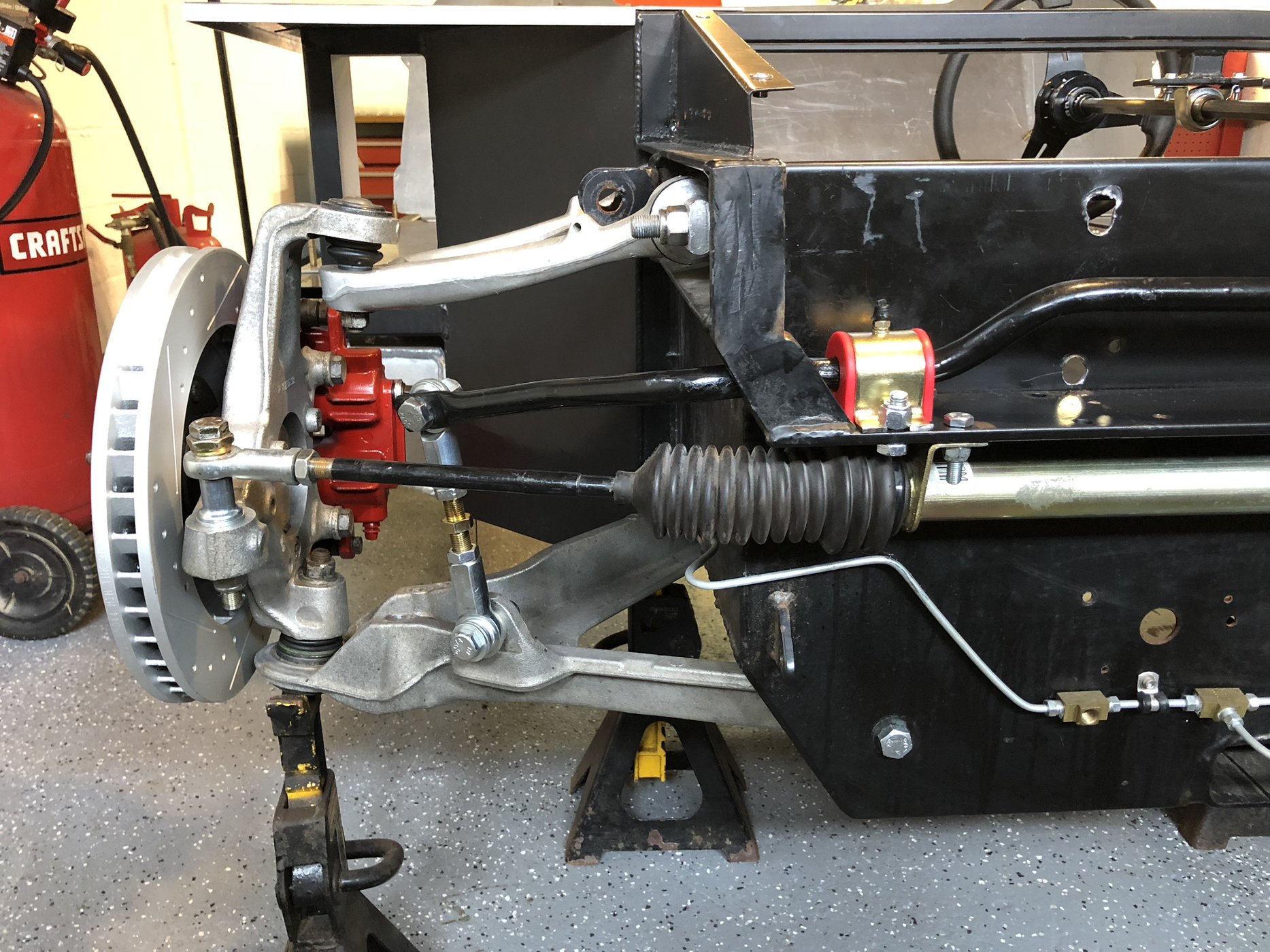

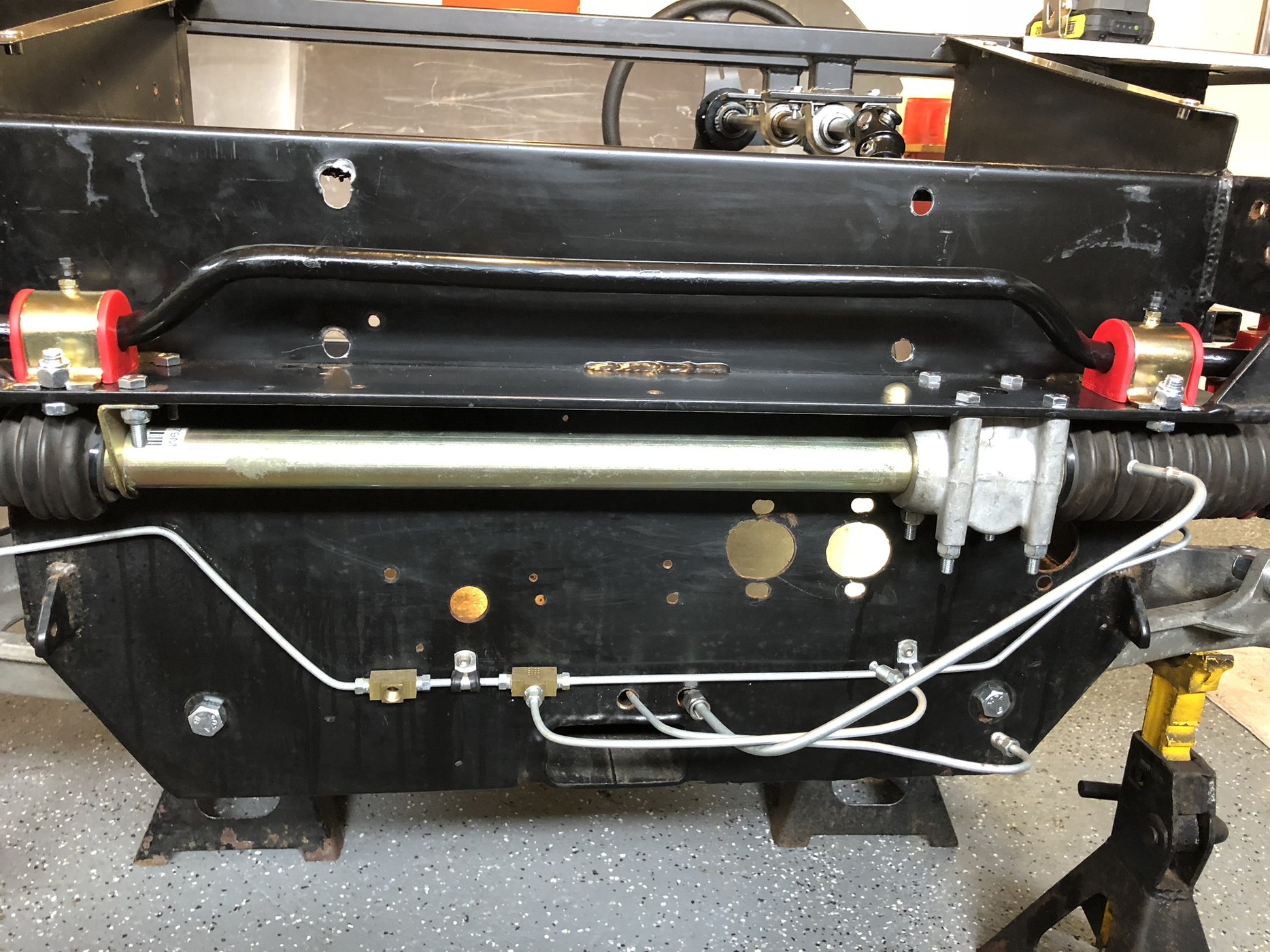

Below is the final installation with the steering rack. Unfortunately the steering rack that I bought was wrong and after I got the entire suspension mounted (rack, sway bar, steering links and brake master cylinders) I had to rip it all apart and do it all over.

You can see that it’s really tight in there. Was a pain in the ass.

But that’s what I signed up for!


Attachments

  • 5969D7D8-4C41-42AA-8267-92D6BCB3A3F8.jpeg
    557 KB · Views: 523
  • B6641153-C622-4F54-A4B6-534997CB6B60.jpeg
    432.9 KB · Views: 502
  • 719137DD-8940-4B0F-8C16-DC60EC9323EA.jpeg
    469.8 KB · Views: 520
  • CBB7537A-EBF0-4A48-9C99-0706926D01FE.jpeg
    452.8 KB · Views: 507
  • 99256DEE-5FE7-47C6-9E03-E157FF93012C.jpeg
    441.9 KB · Views: 508
  • 135653C9-0F91-4048-A401-0CED1F3B789A.jpeg
    467.1 KB · Views: 469
  • CA3A1387-0F7F-46C9-B87B-ED883D077EE9.jpeg
    406.8 KB · Views: 508
  • 10D81855-B620-4583-A59E-5ACB895A32C0.jpeg
    613.6 KB · Views: 496
  • 3C41EB38-5CAA-45D1-A9A7-7167AB5CB162.jpeg
    535.8 KB · Views: 432
  • 38A9AEEA-CDFA-4B89-92CE-D2E8B33E0302.jpeg
    605.9 KB · Views: 427
Last edited:

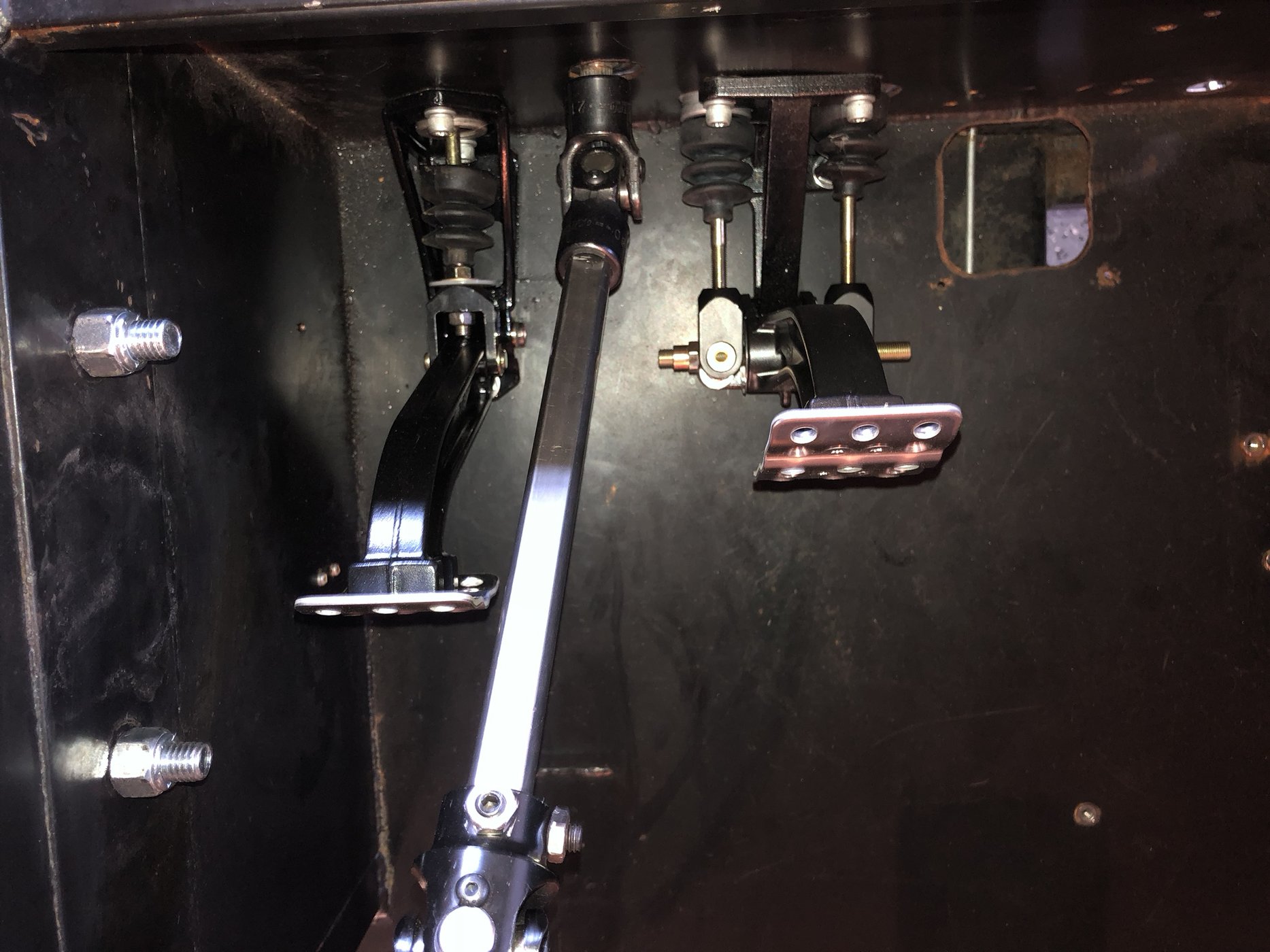

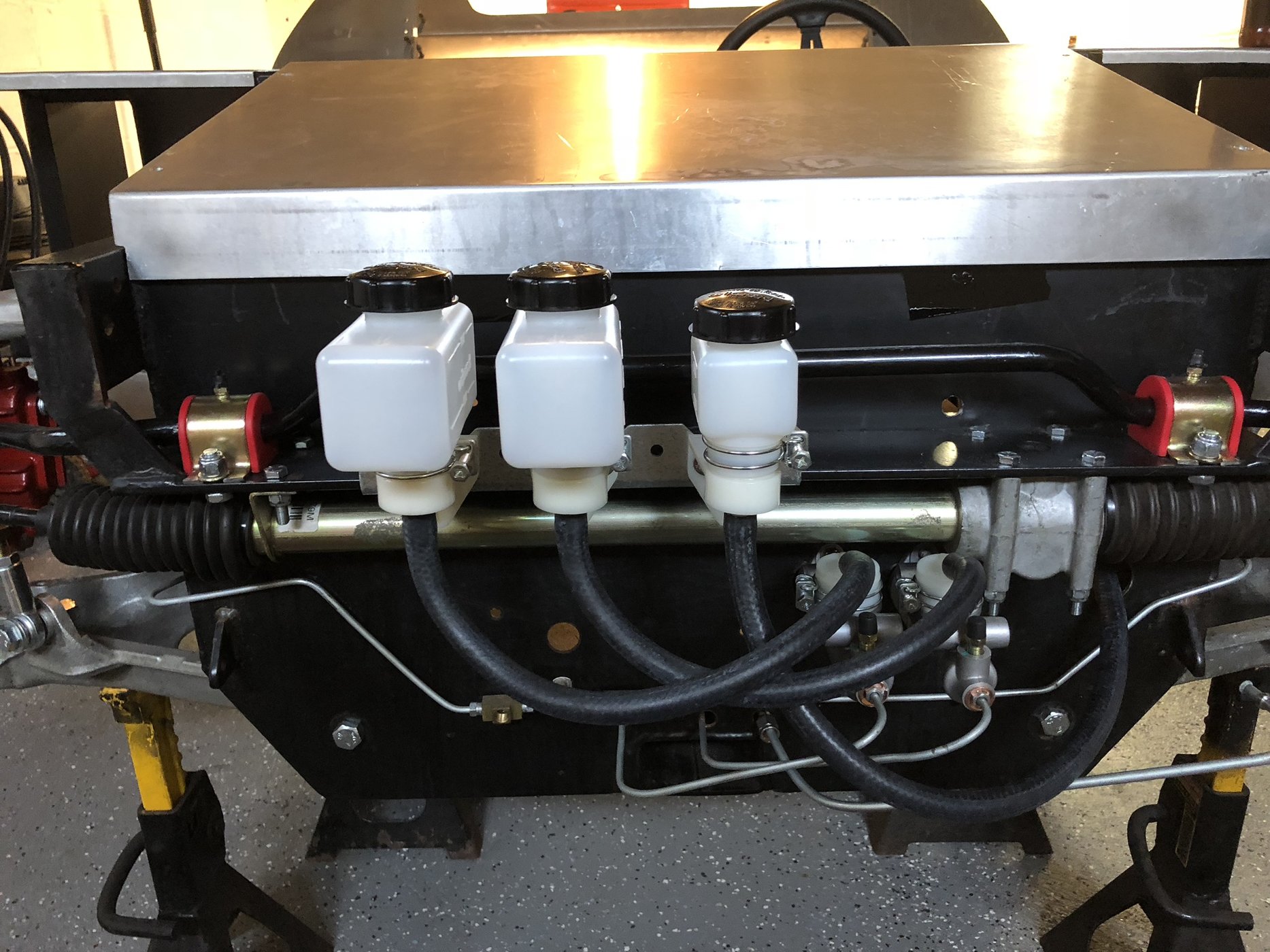

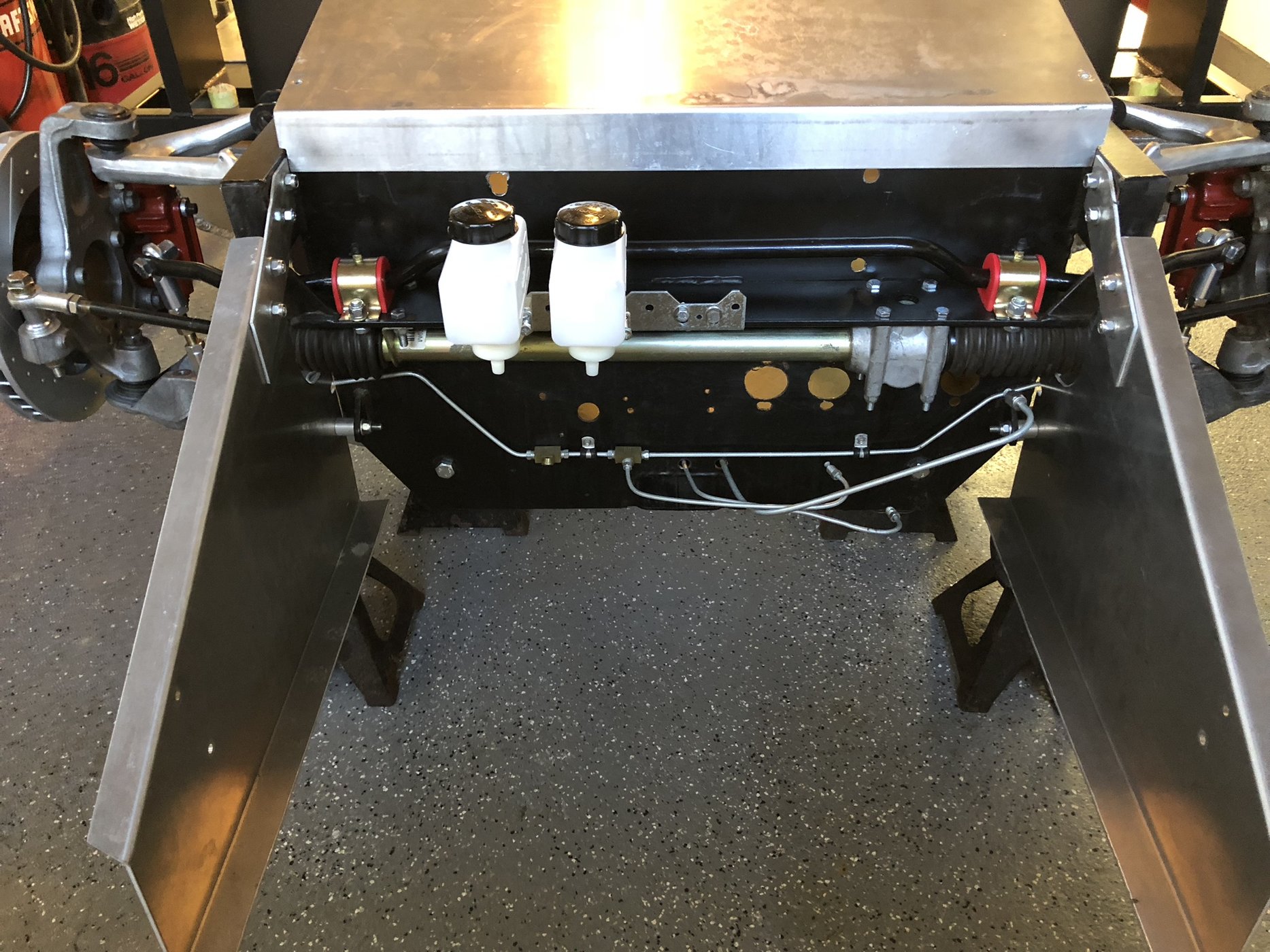

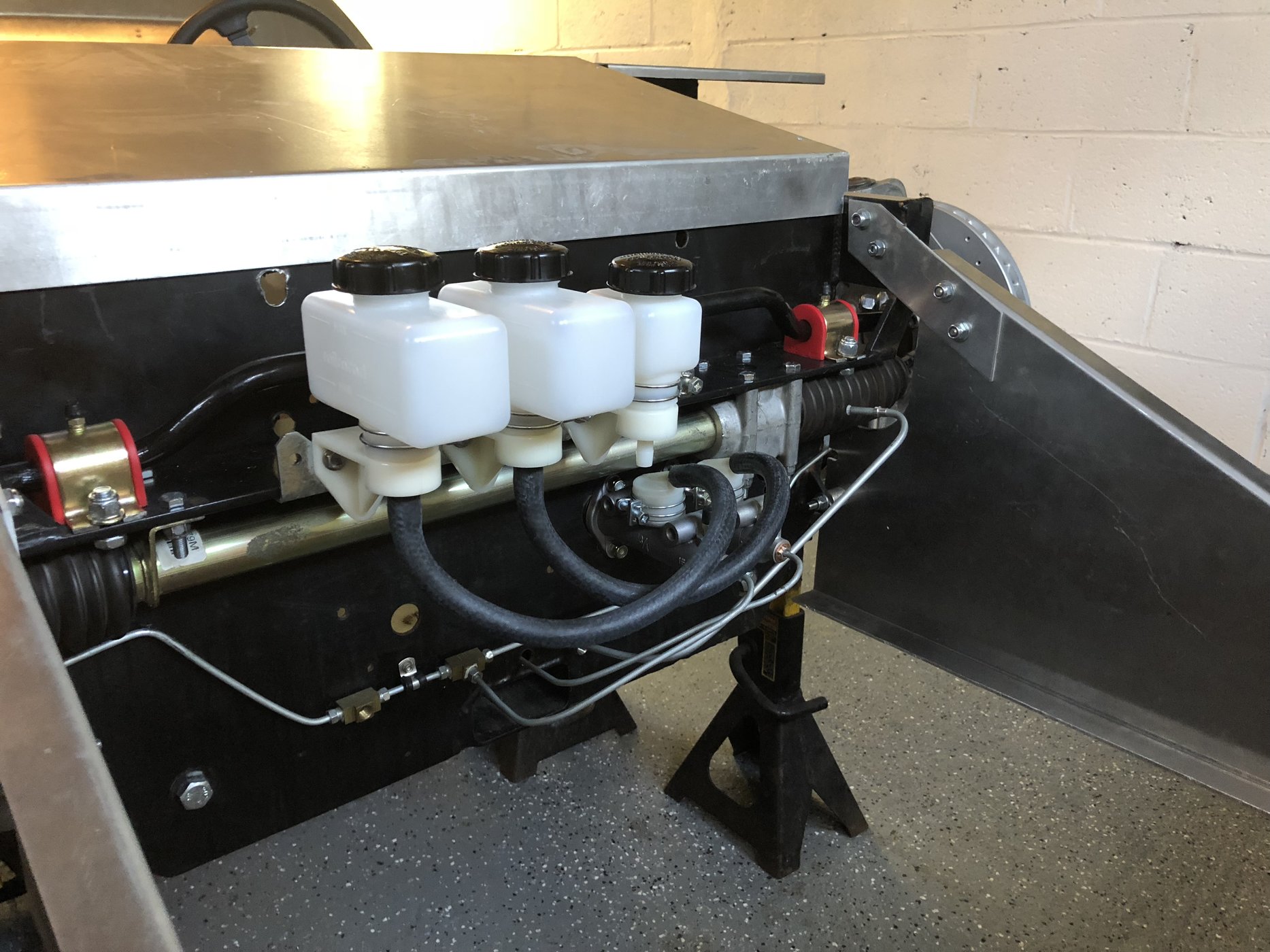

Next was making a bracket for the fluid reservoir’s and installing the master cylinders and clutch master cylinder.

I bought all new Wilwood master cylinders and pedals, the chassis was designed for these so they’re pretty much plug-and-play.


Attachments

  • D15E0621-847C-407B-8838-6EB4DF80009B.jpeg
    455.3 KB · Views: 472
  • 89D92D42-3EEB-4AEA-9A59-537B989EFBFA.jpeg
    470.3 KB · Views: 476
  • 6228BB33-9C57-4214-84D7-3F3799C9FAA6.jpeg
    360.4 KB · Views: 479
  • A348CAF1-6589-4AFD-BB93-734D4D29B88F.jpeg
    394.9 KB · Views: 463
  • A5571F49-C5AC-435E-B32E-B0E3B7BDCA0A.jpeg
    438.5 KB · Views: 465
  • D3825E2A-85C7-4AB4-B556-BB3C042D7B45.jpeg
    294.5 KB · Views: 476
Last edited:

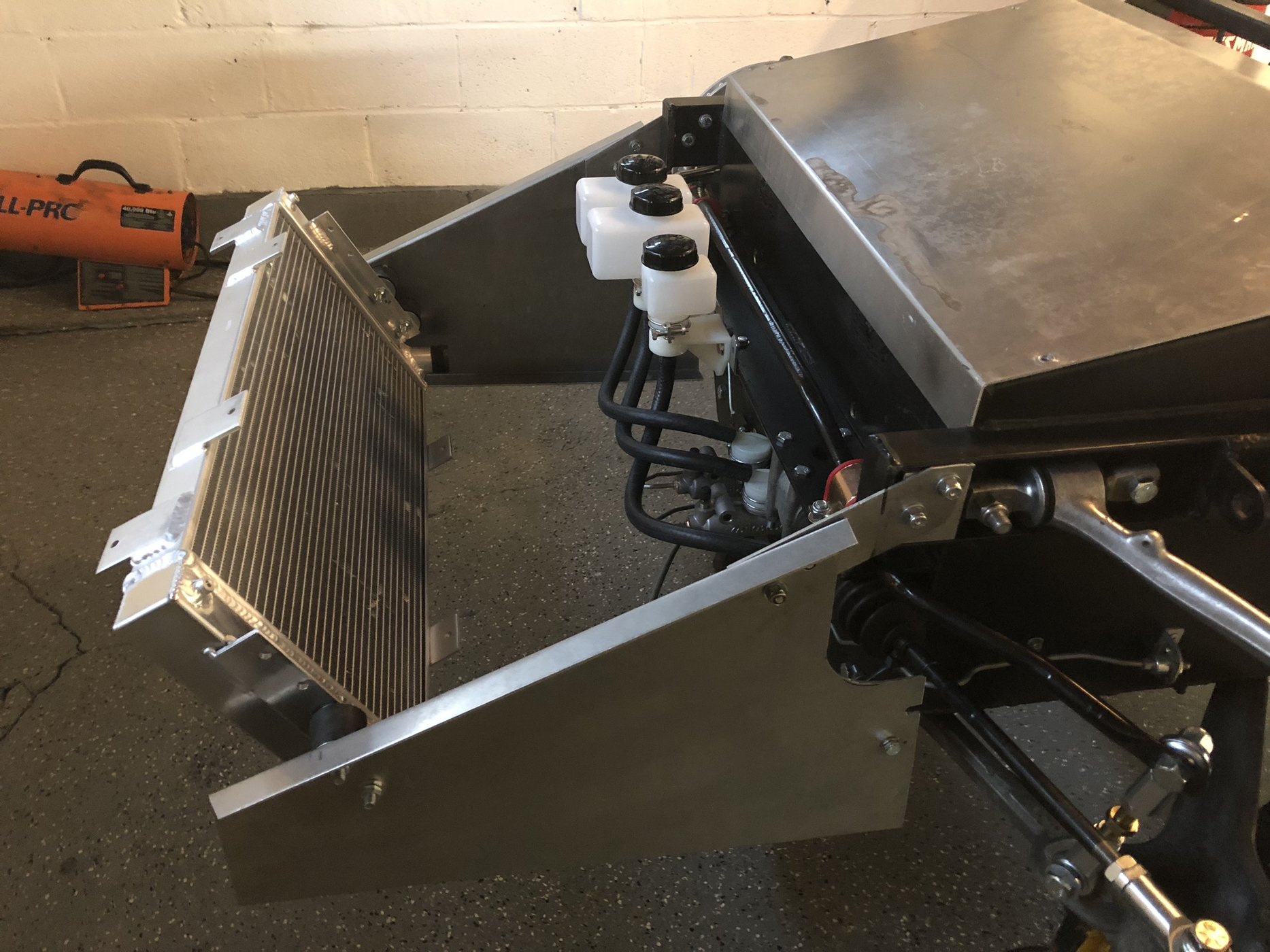

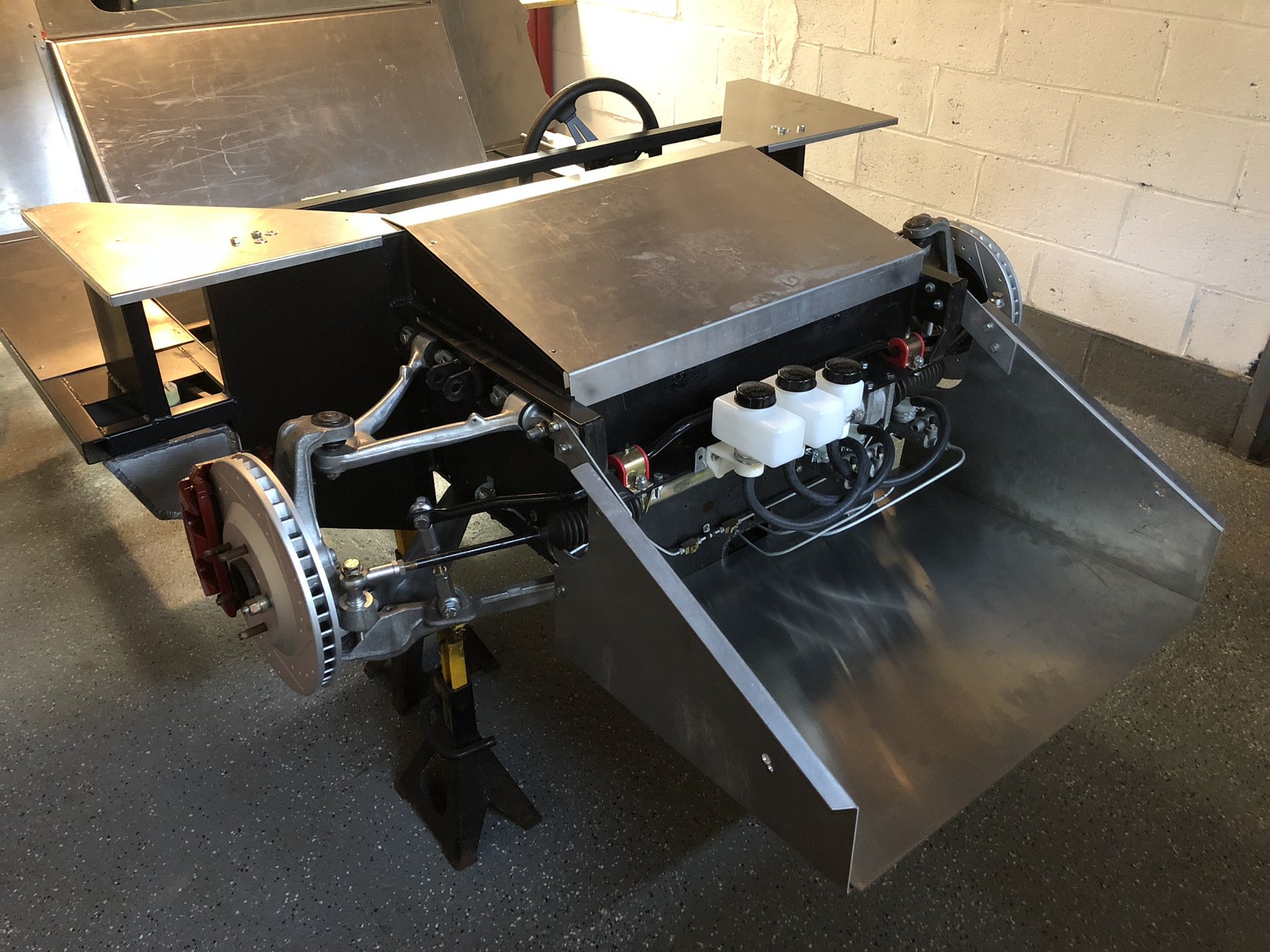

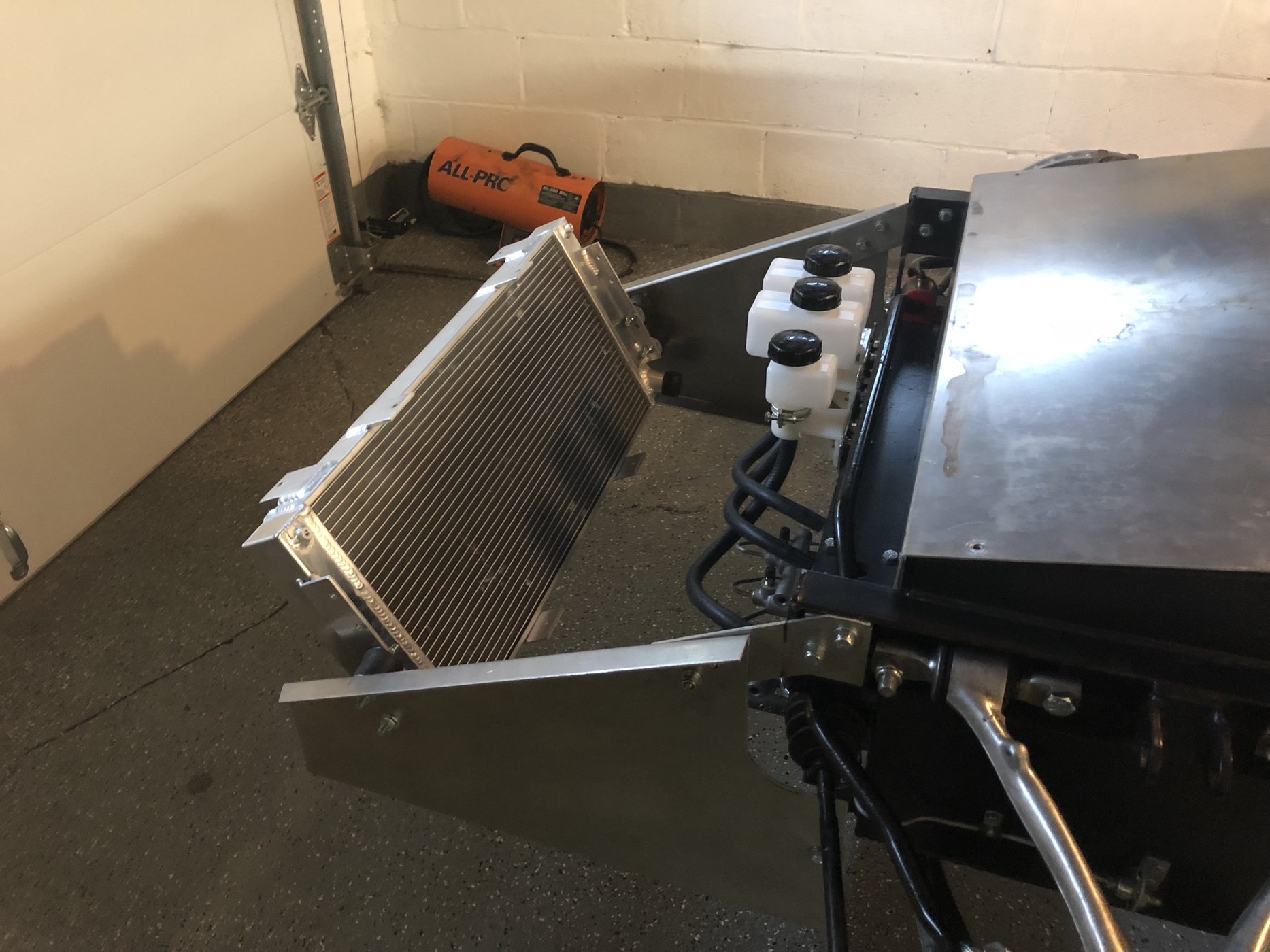

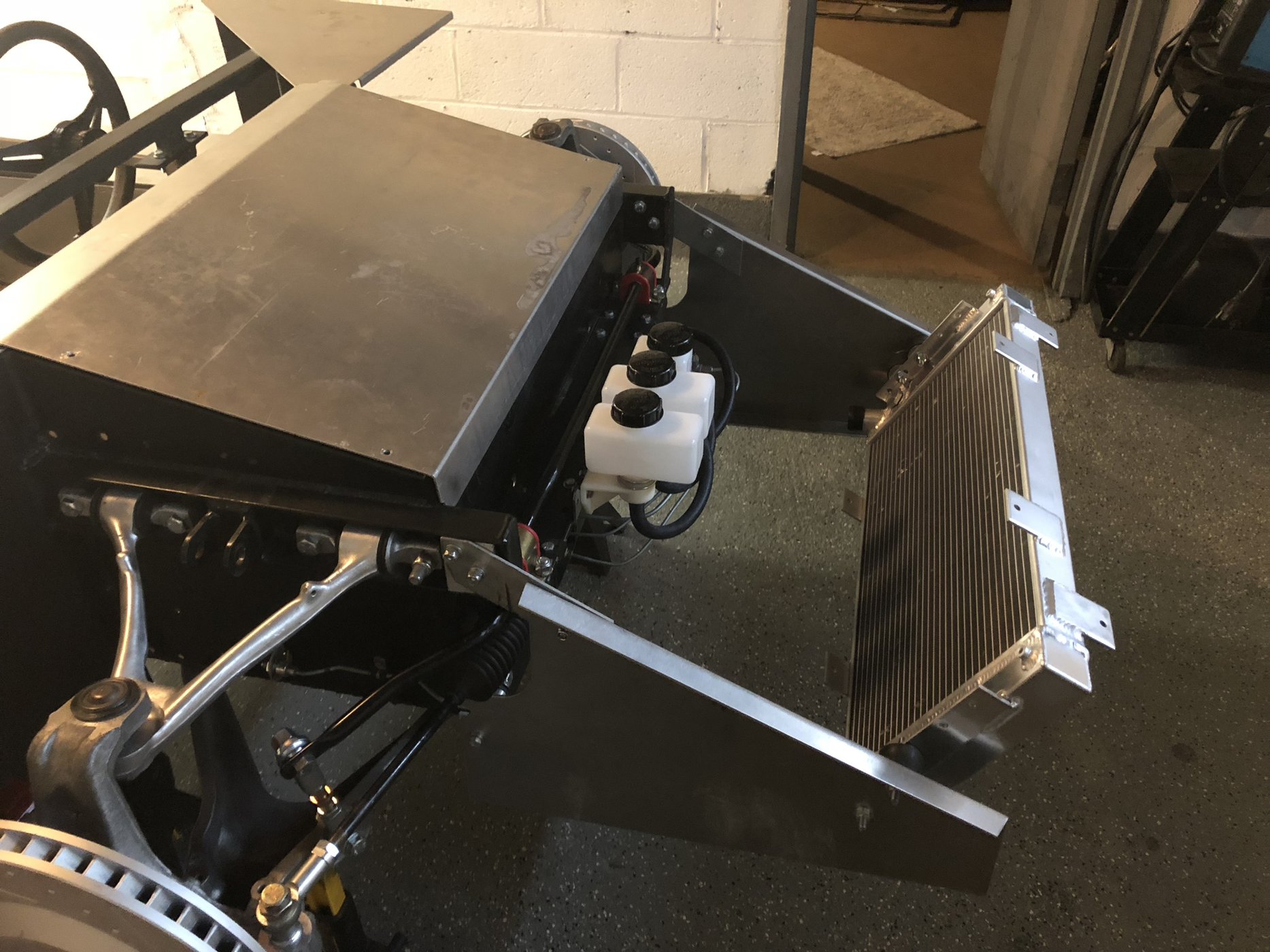

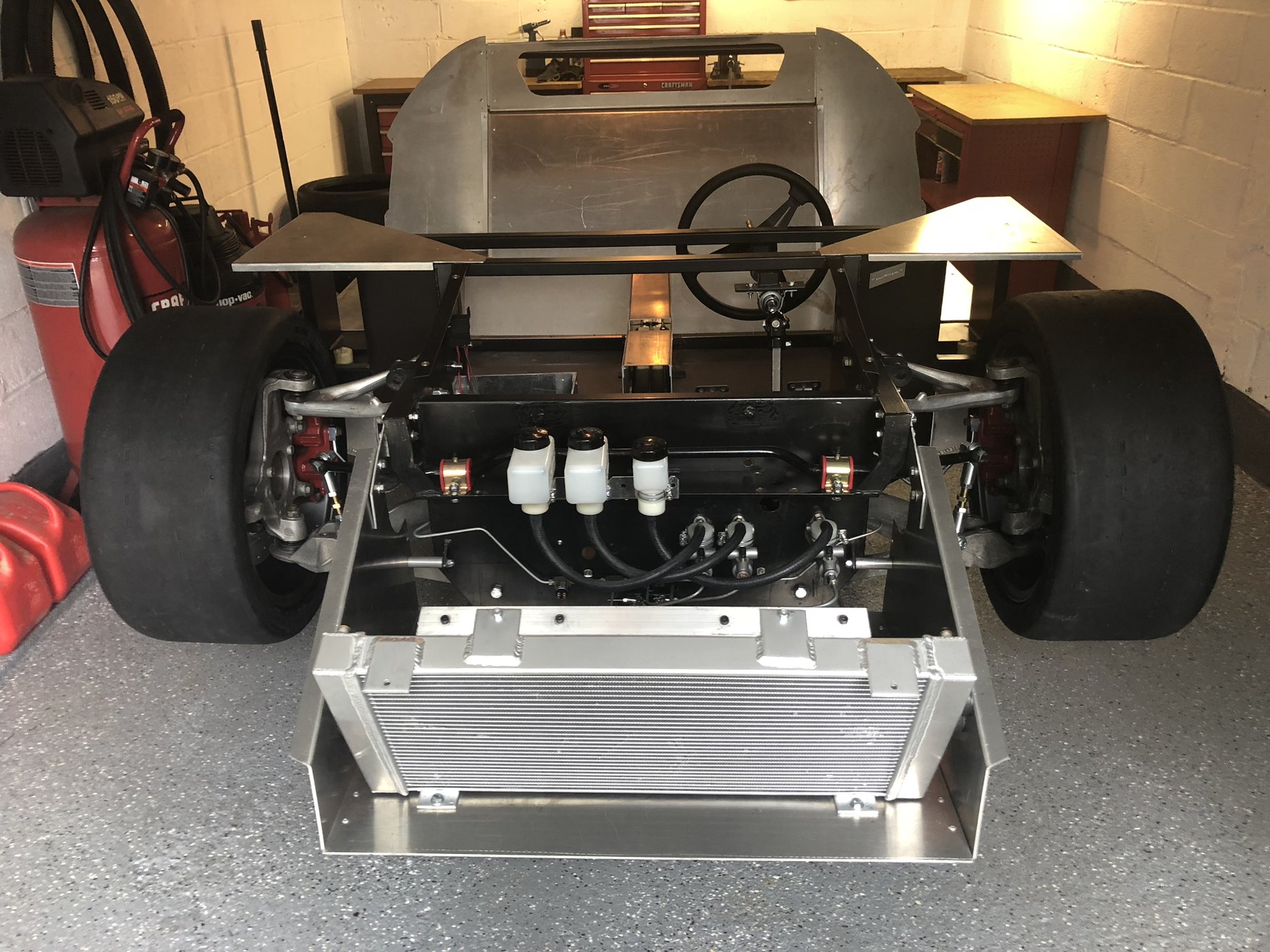

Next was to move onto the cooling system. I did a lot of research and a lot of measuring and I found a radiator from OPL that was the right size had the right connections and I bought it.

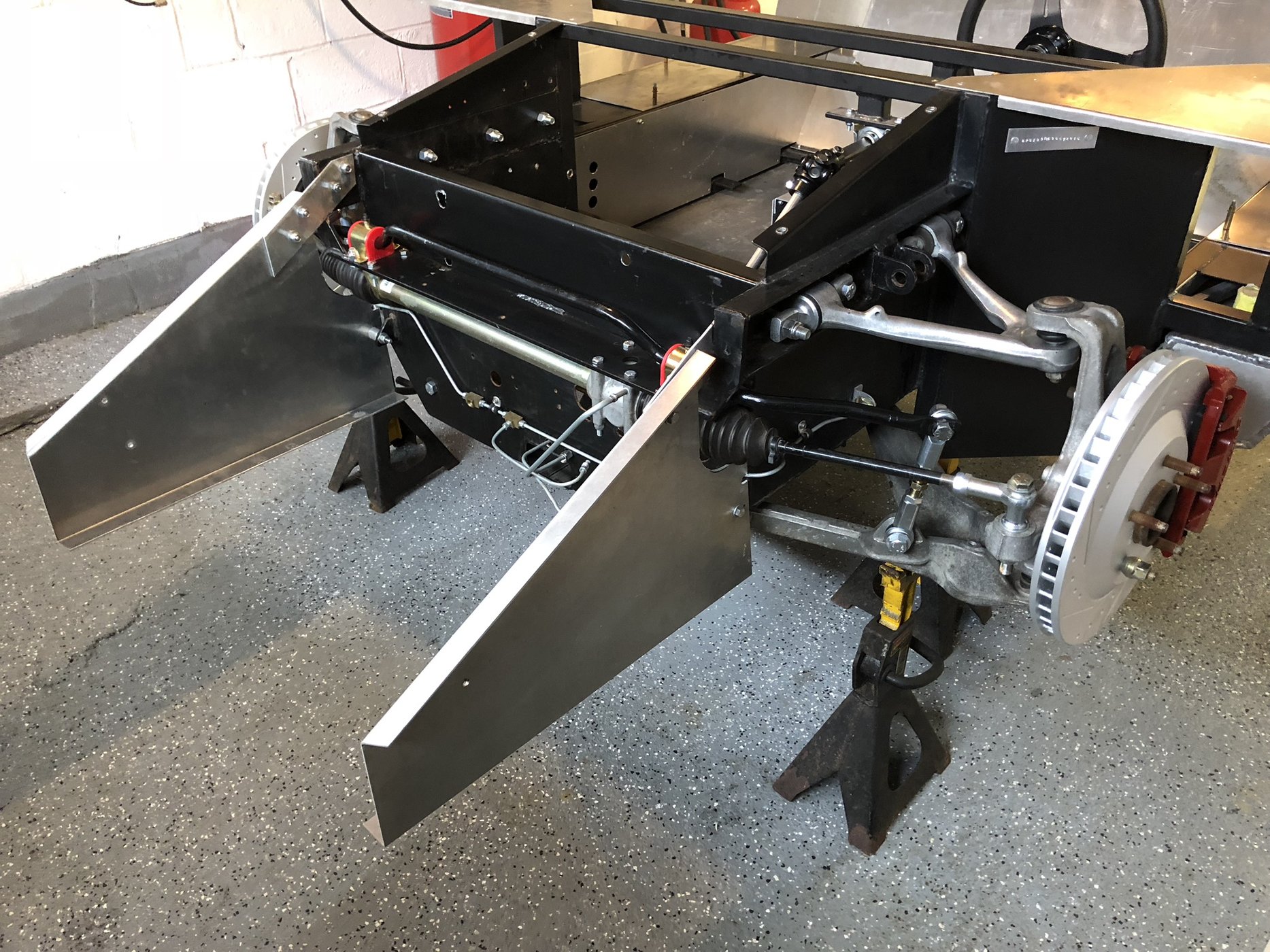

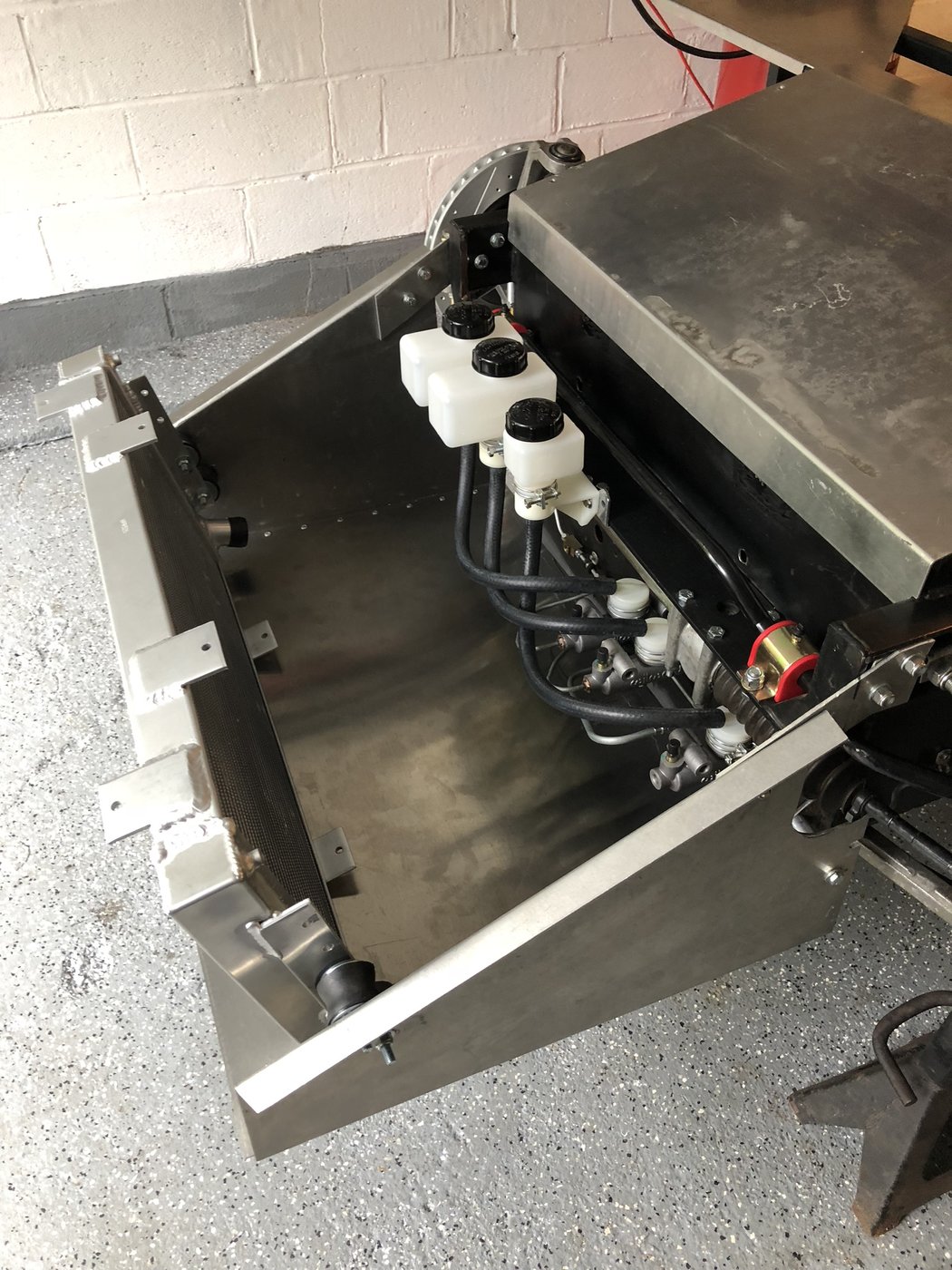

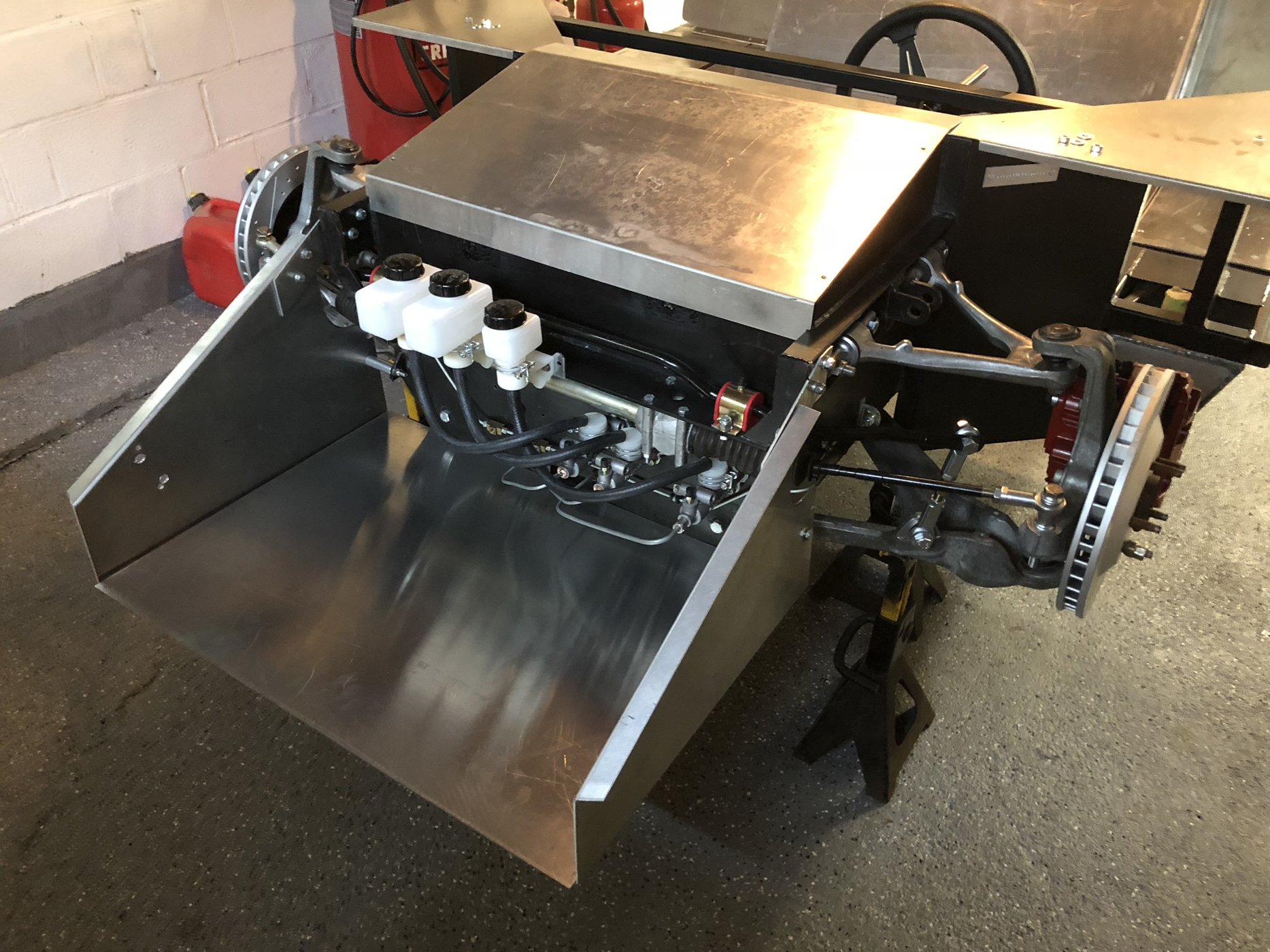

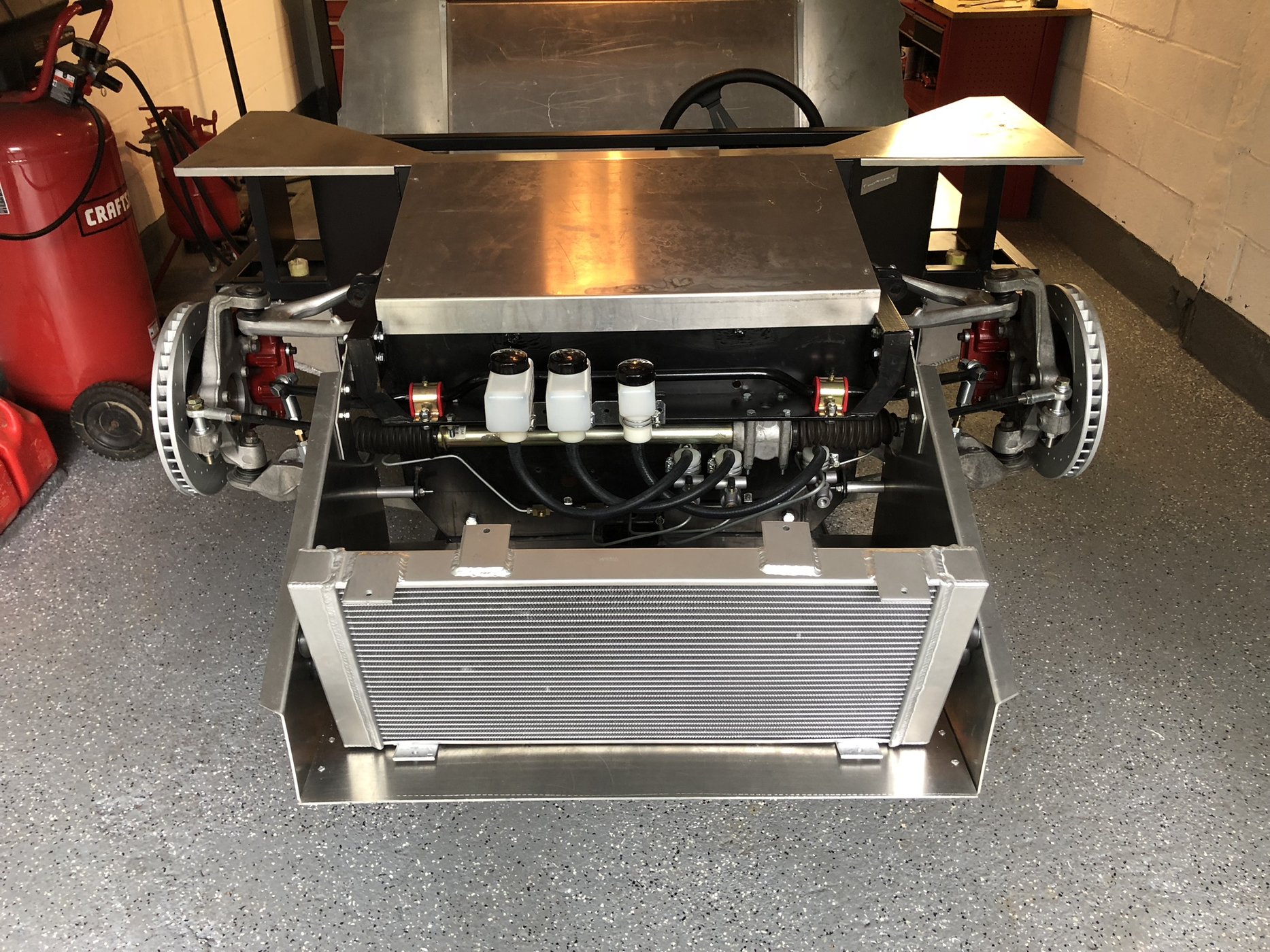

After installing the radiator I thought that it might make sense to add a bottom plate to the cooling area.

The chassis wasn’t designed for this plate, but I believe it made the whole front section stronger.


Attachments

  • 68CED000-D244-4324-8DBA-9A935CCD8E0C.jpeg
    363.6 KB · Views: 419
  • C5FD8D3F-9820-4933-BFB1-34A2E94272A1.jpeg
    327.7 KB · Views: 412
  • 4CE2B6C1-C53D-4A9C-AEAC-2B0652CC9F99.jpeg
    365.9 KB · Views: 399
  • 8042BAB9-AAD1-41E1-9180-DF2CBA31D889.jpeg
    413.4 KB · Views: 406
  • AE844FA0-0F80-408F-A219-E4BCEFDB8C5B.jpeg
    370.4 KB · Views: 396
  • 2CF7EA6E-9E4C-499A-ACD2-C7FDF6FE1179.jpeg
    440.8 KB · Views: 409
  • 28FC7A54-F8BD-4139-A4FB-8D810AFA739A.jpeg
    284.5 KB · Views: 426
  • 819EB268-C9DF-4005-AAD6-F347FE19BCE8.jpeg
    572.6 KB · Views: 415
  • A59F599A-6BBC-41D4-802E-9E02167C687E.jpeg
    352.9 KB · Views: 402

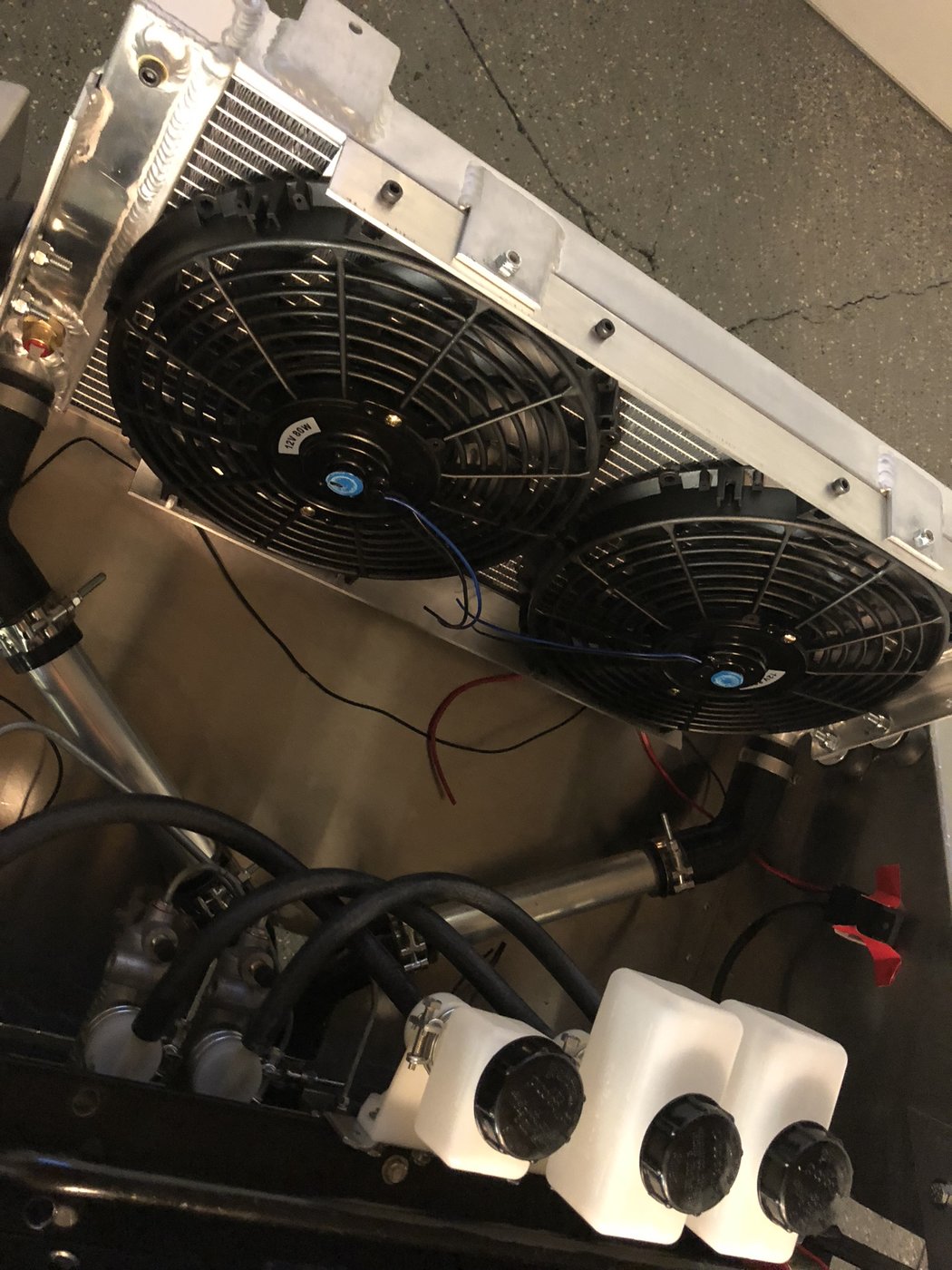

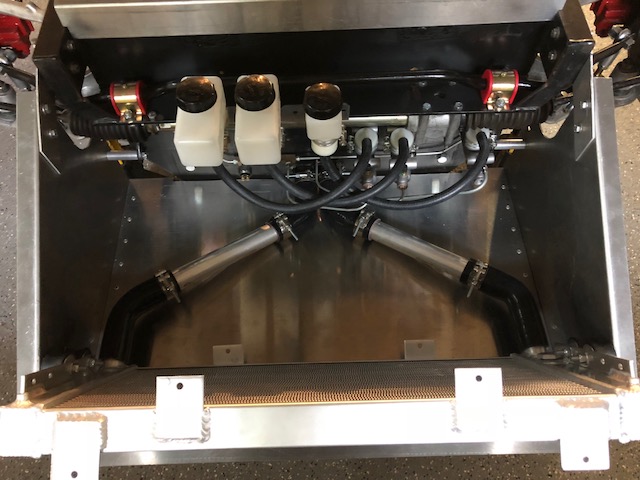

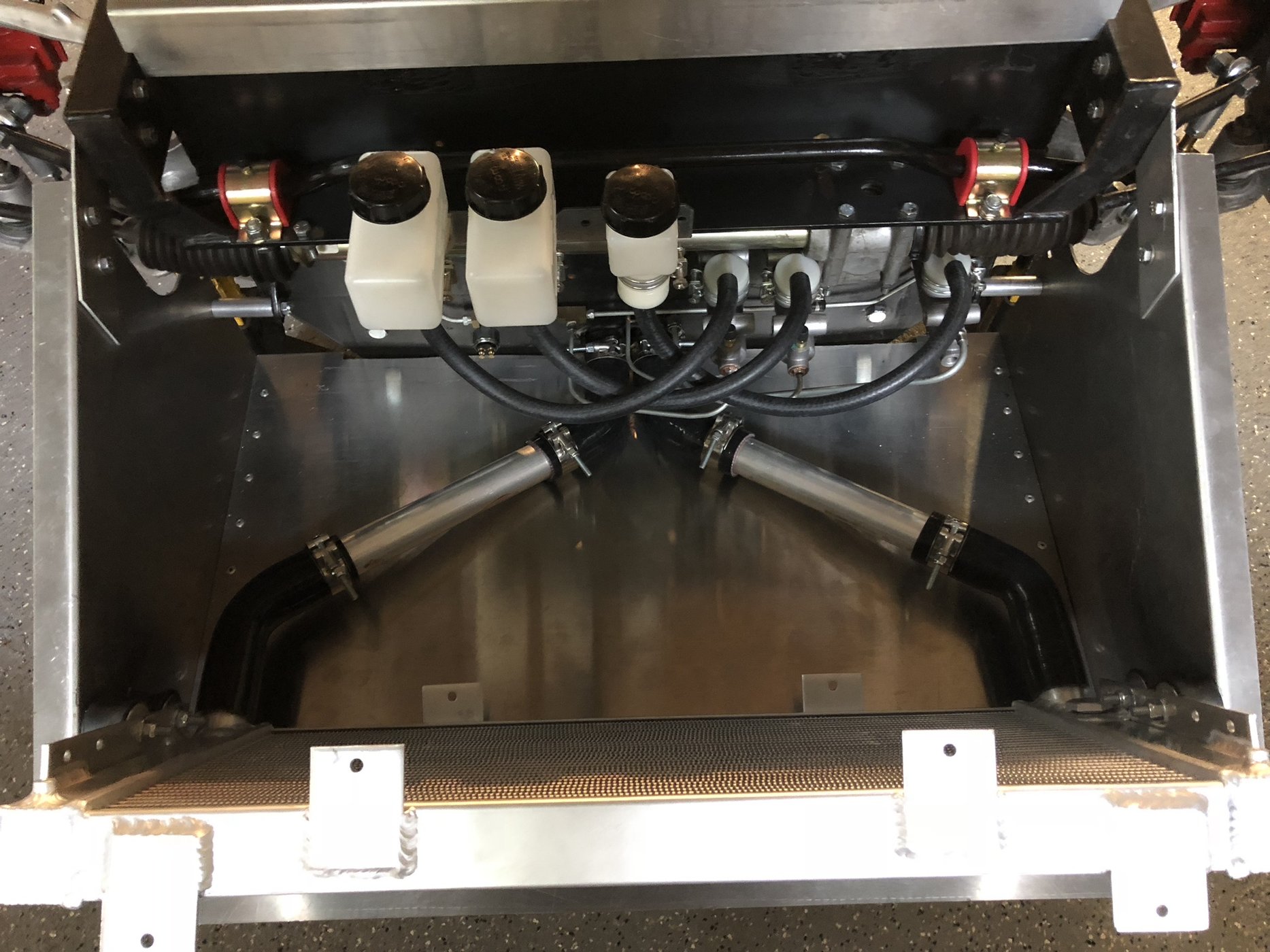

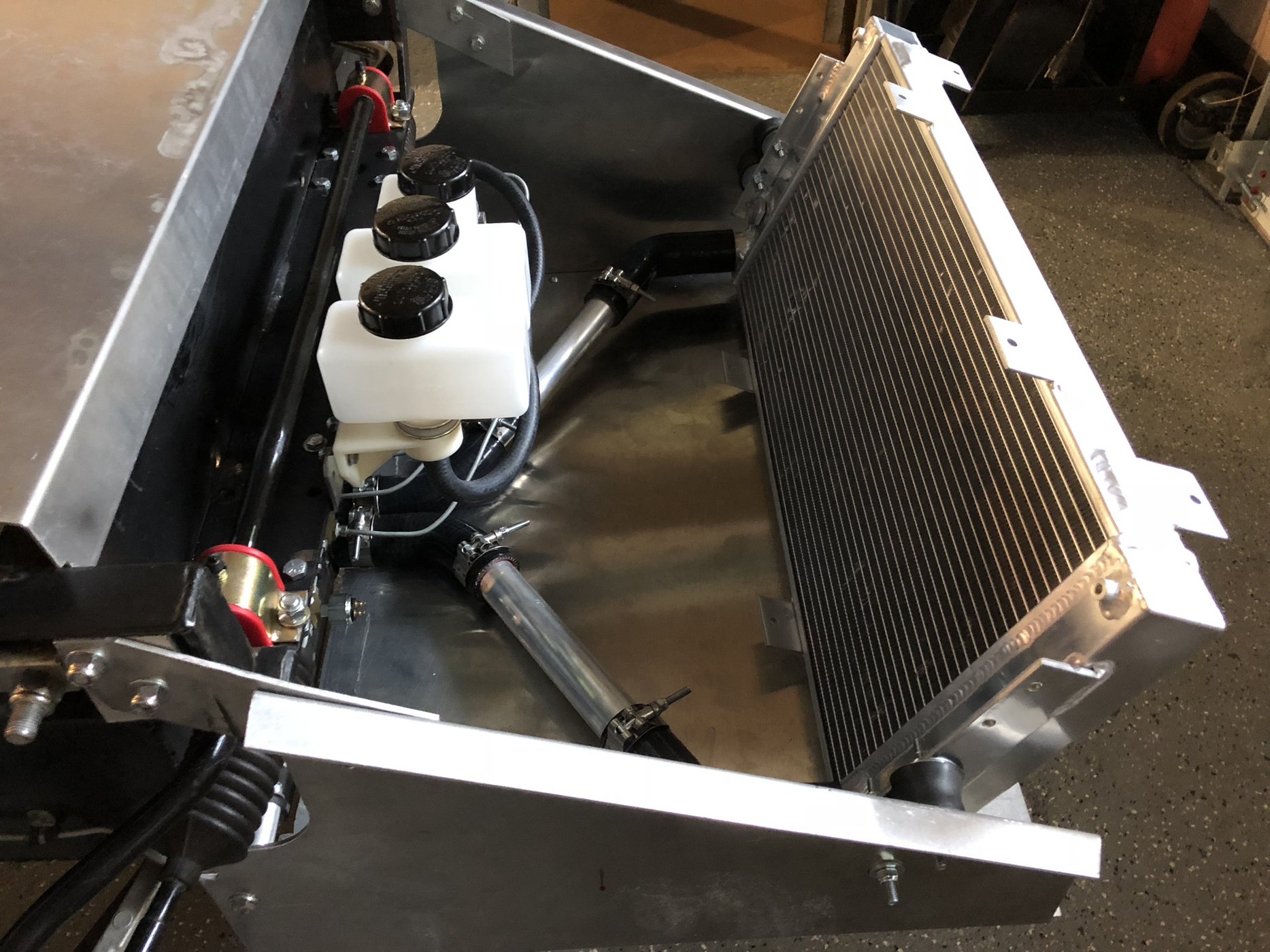

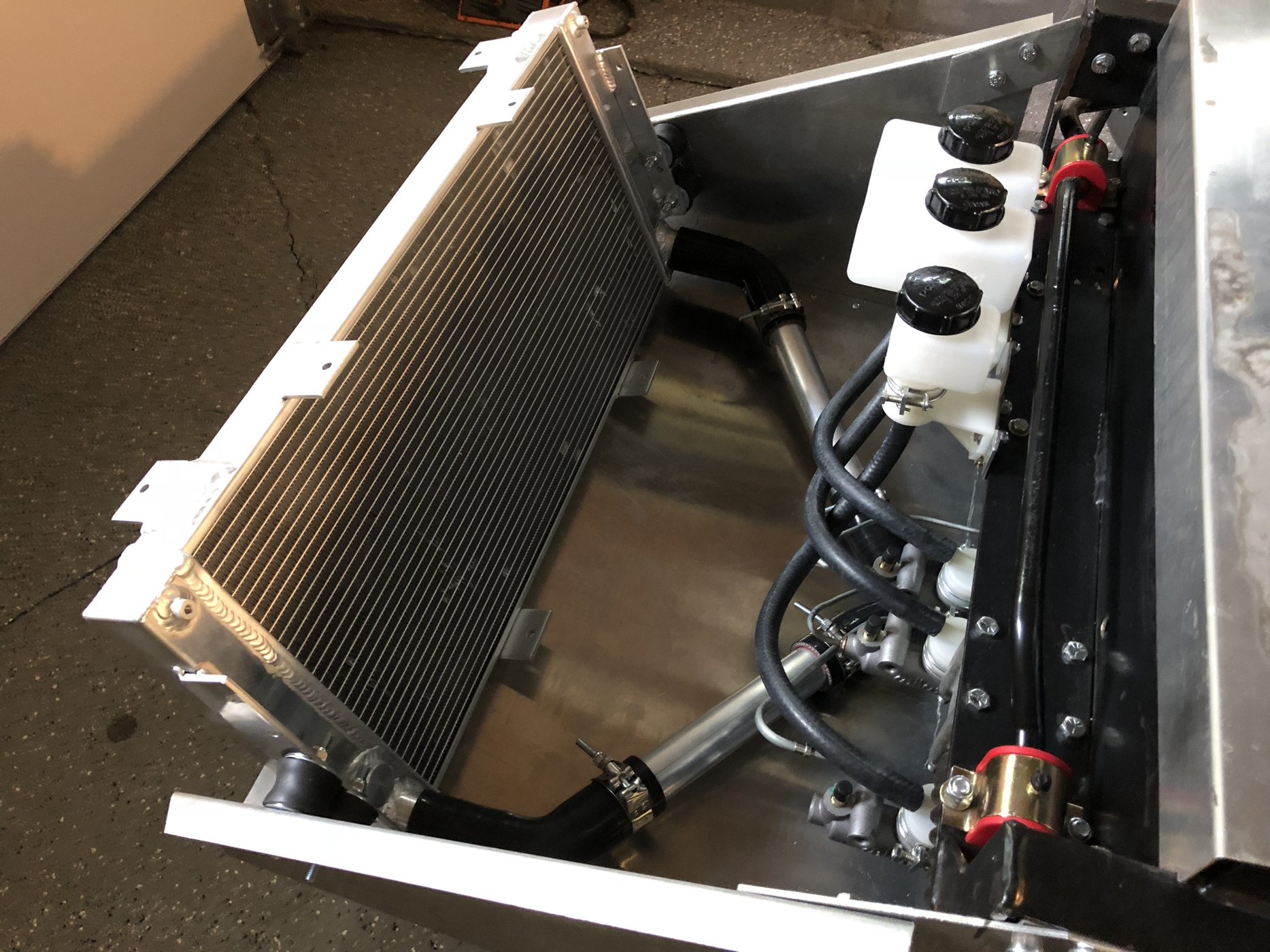

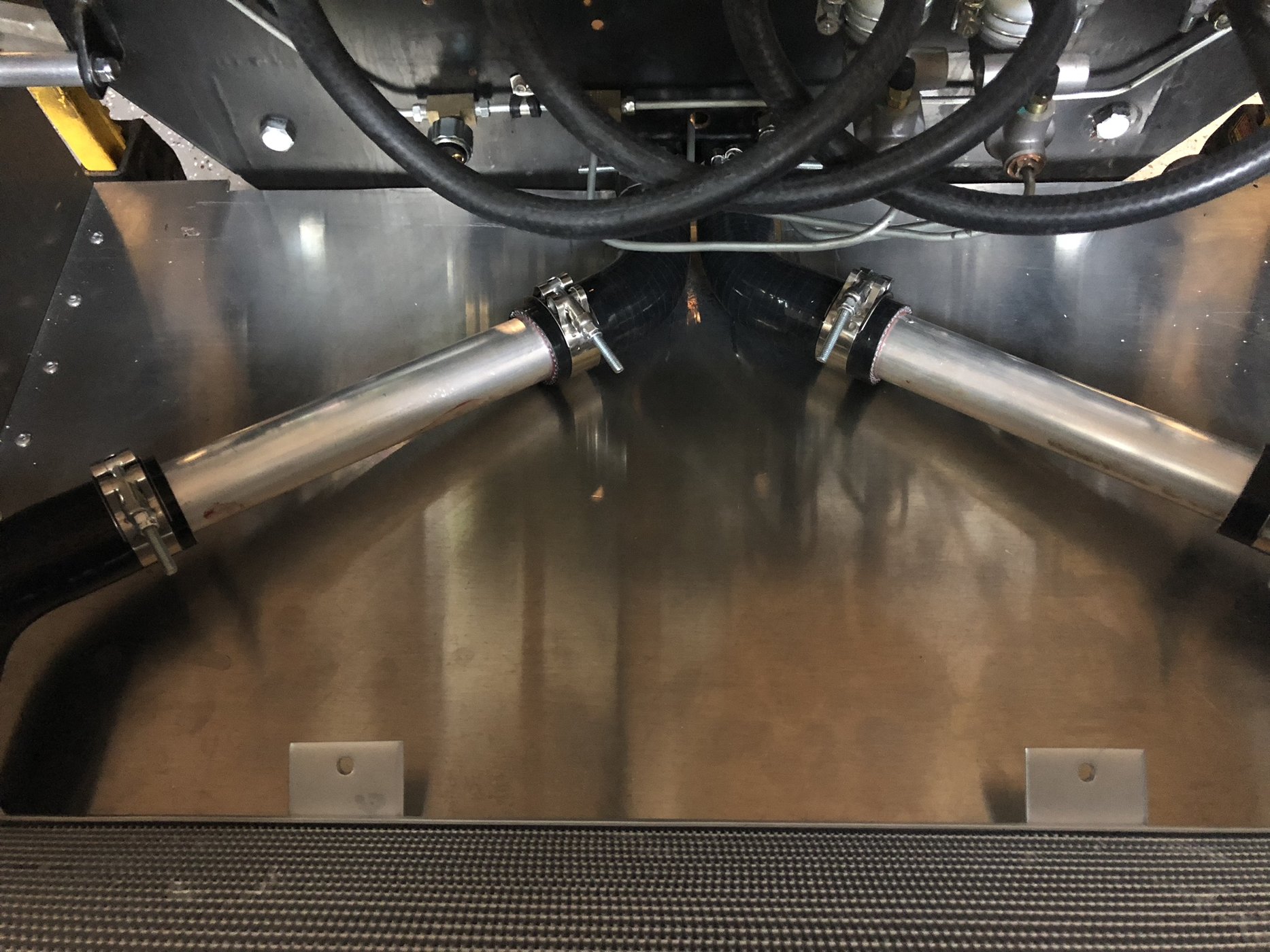

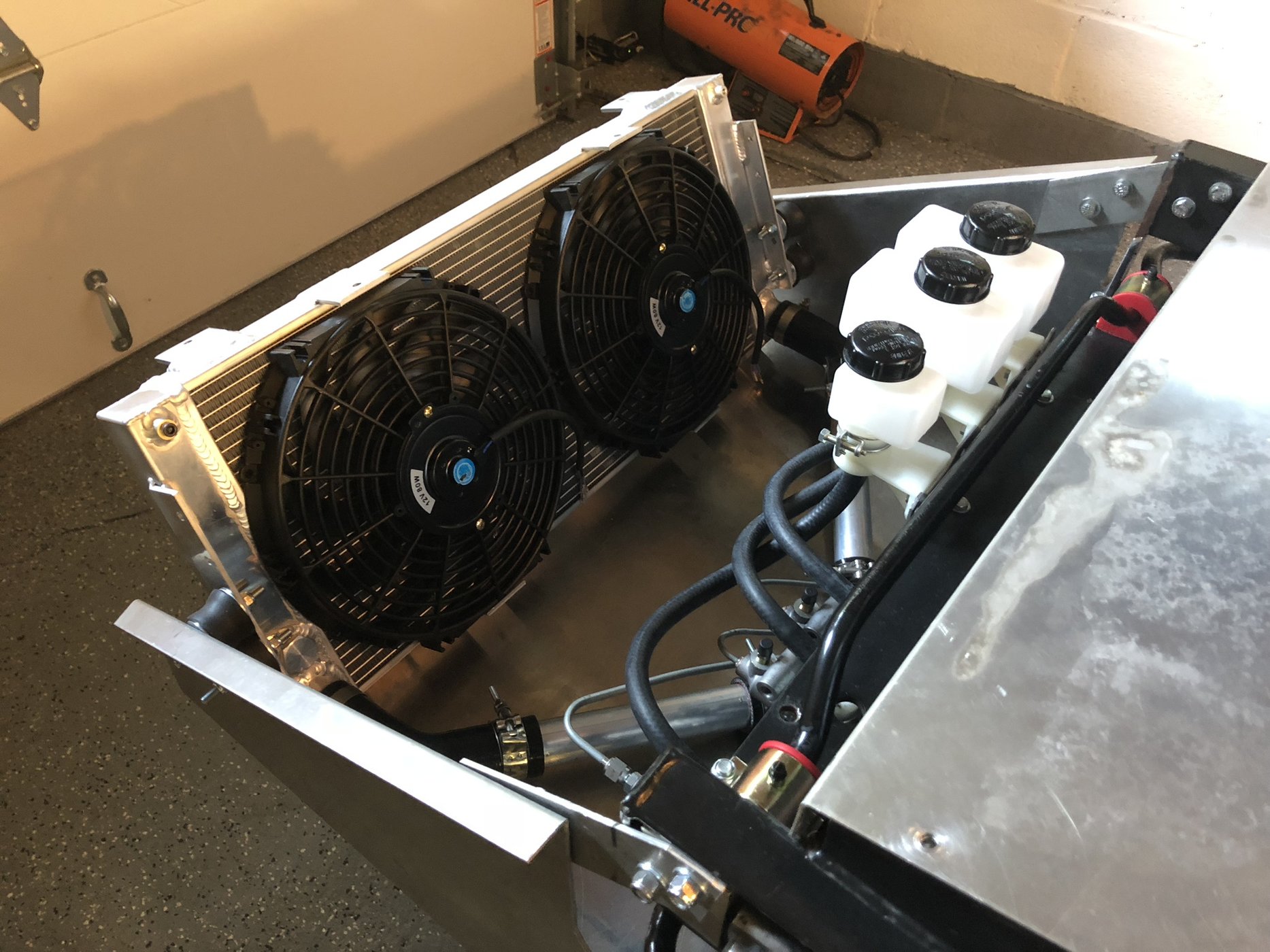

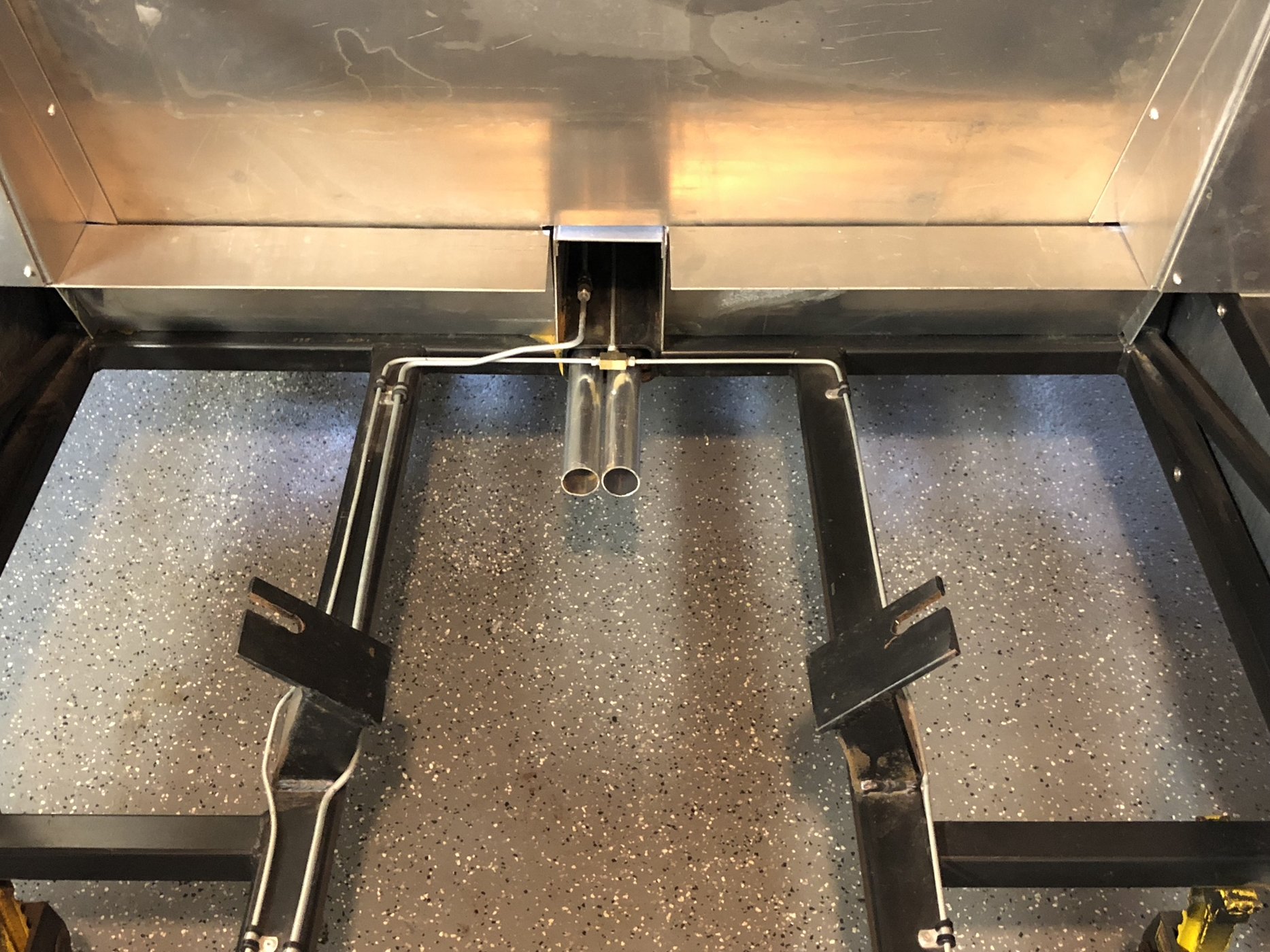

The next part of the cooling system was to buy some aluminum tubes and rubber elbows to complete the front cooling section. I also added some radiator fans. I made the bracket for the fans from aluminum angle stock.


Attachments

  • FB1E9B8B-CED4-4BBC-9DAB-49FFD312FCEC.jpeg
    432.4 KB · Views: 445
  • 561C1471-5839-4F70-A747-2B3F3CA88DCB.jpeg
    352.9 KB · Views: 437
  • 008AECB2-308D-4ABA-B382-BEB0636413A3.jpeg
    403.5 KB · Views: 429
  • ADBA081B-A742-47EC-BC80-D6EF384E5002.jpeg
    406.1 KB · Views: 413
  • 8AAD6314-5BB8-4ADD-8655-FC958E3A8AAD.jpeg
    447.3 KB · Views: 383
  • 7C41D32D-B214-4F95-9521-A047D6C26C5B.jpeg
    85.1 KB · Views: 437
  • AB7AFB61-5C88-437C-A990-33A4621B9484.jpeg
    85.9 KB · Views: 366
  • C770CCB9-F2C6-41F5-A3F1-ECCA04512A4E.jpeg
    364.1 KB · Views: 412
  • E4A78C68-A9CC-467E-A2AA-D2C50870C3D8.jpeg
    232.9 KB · Views: 365
  • 379A0D4D-8D18-4054-A7C7-21798732AC58.jpeg
    435.3 KB · Views: 463
Last edited:
With the front end complete minus the shocks (I had to save my money for those), I moved on to the shift mechanism.

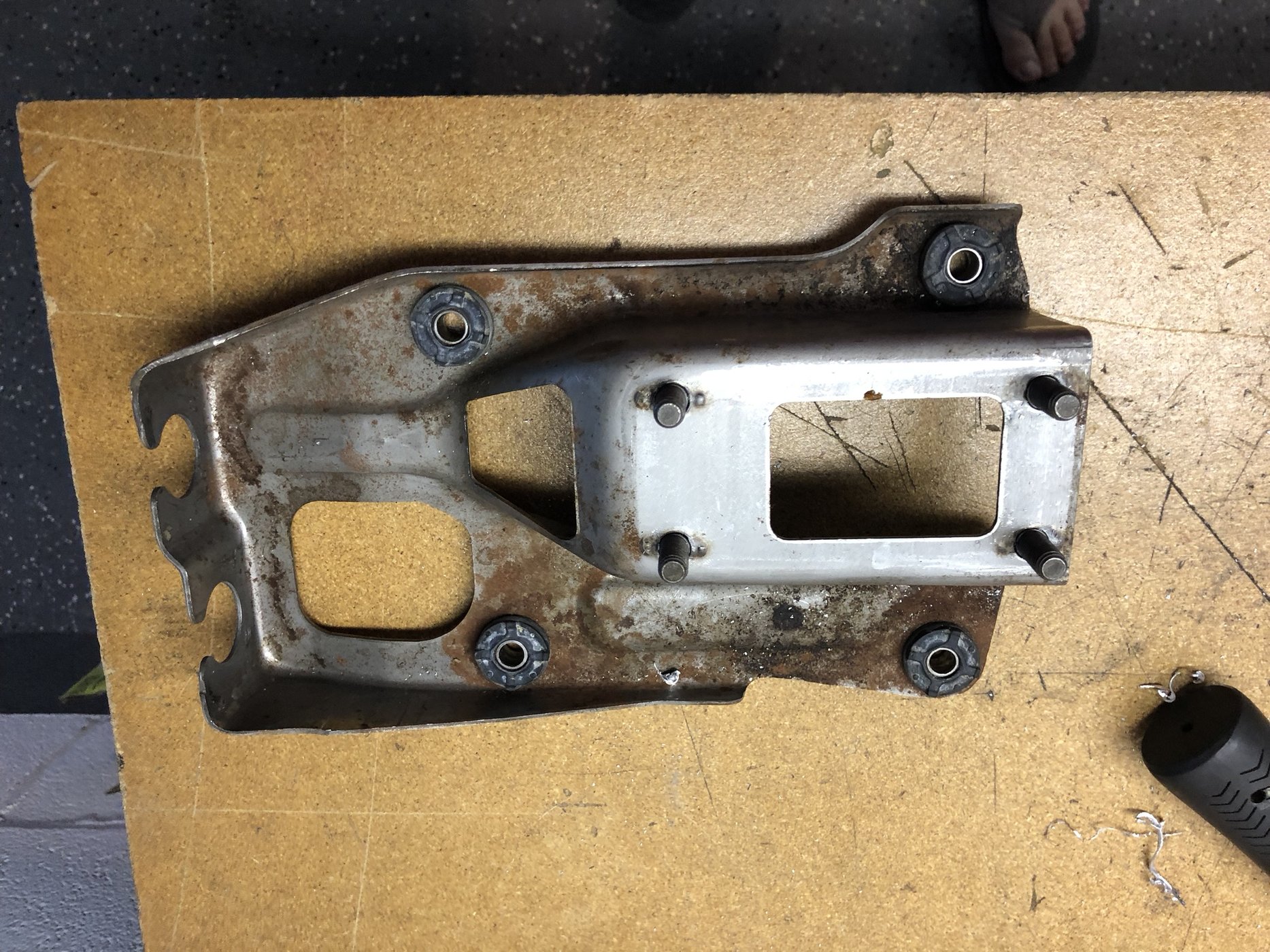

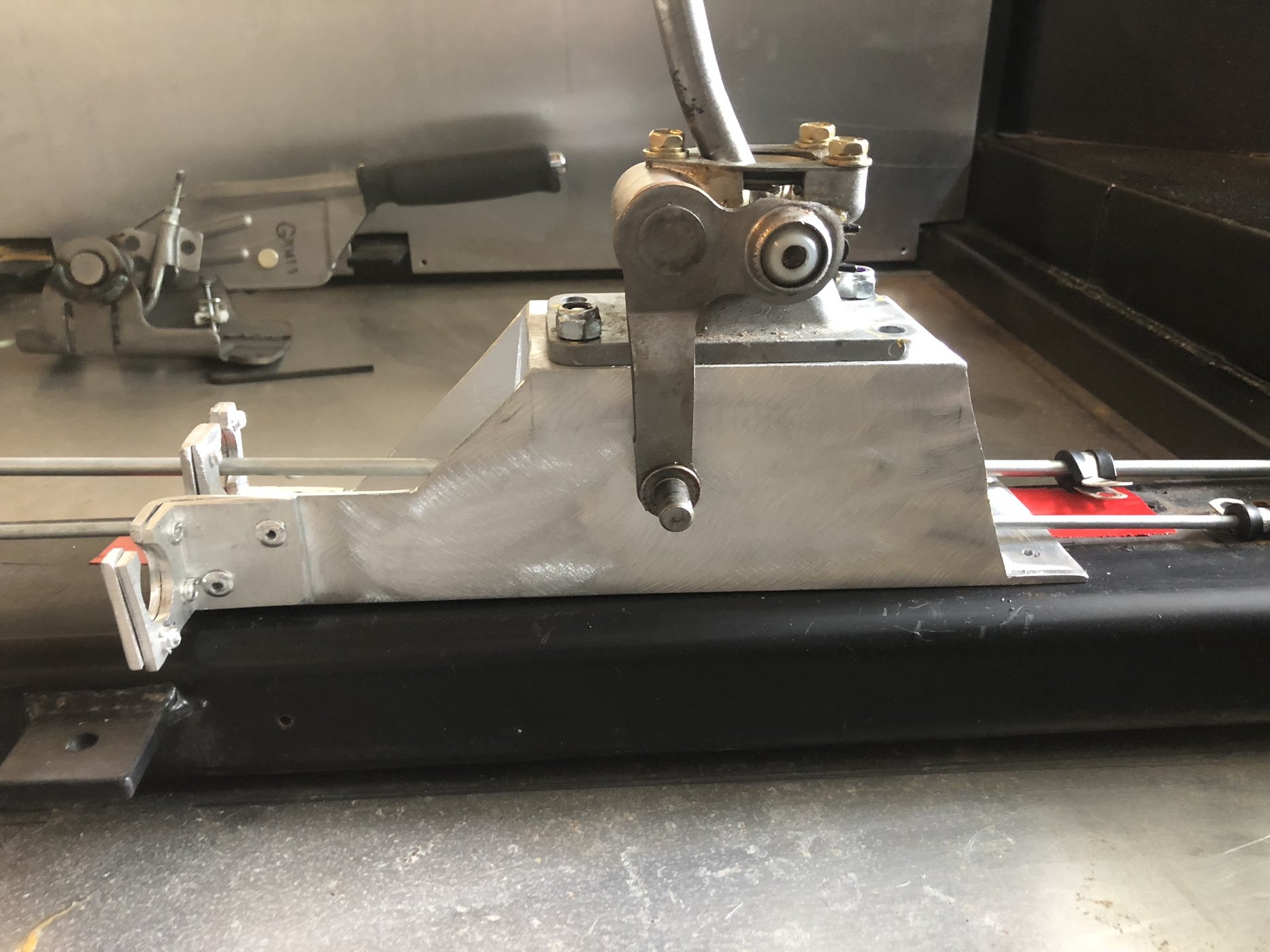

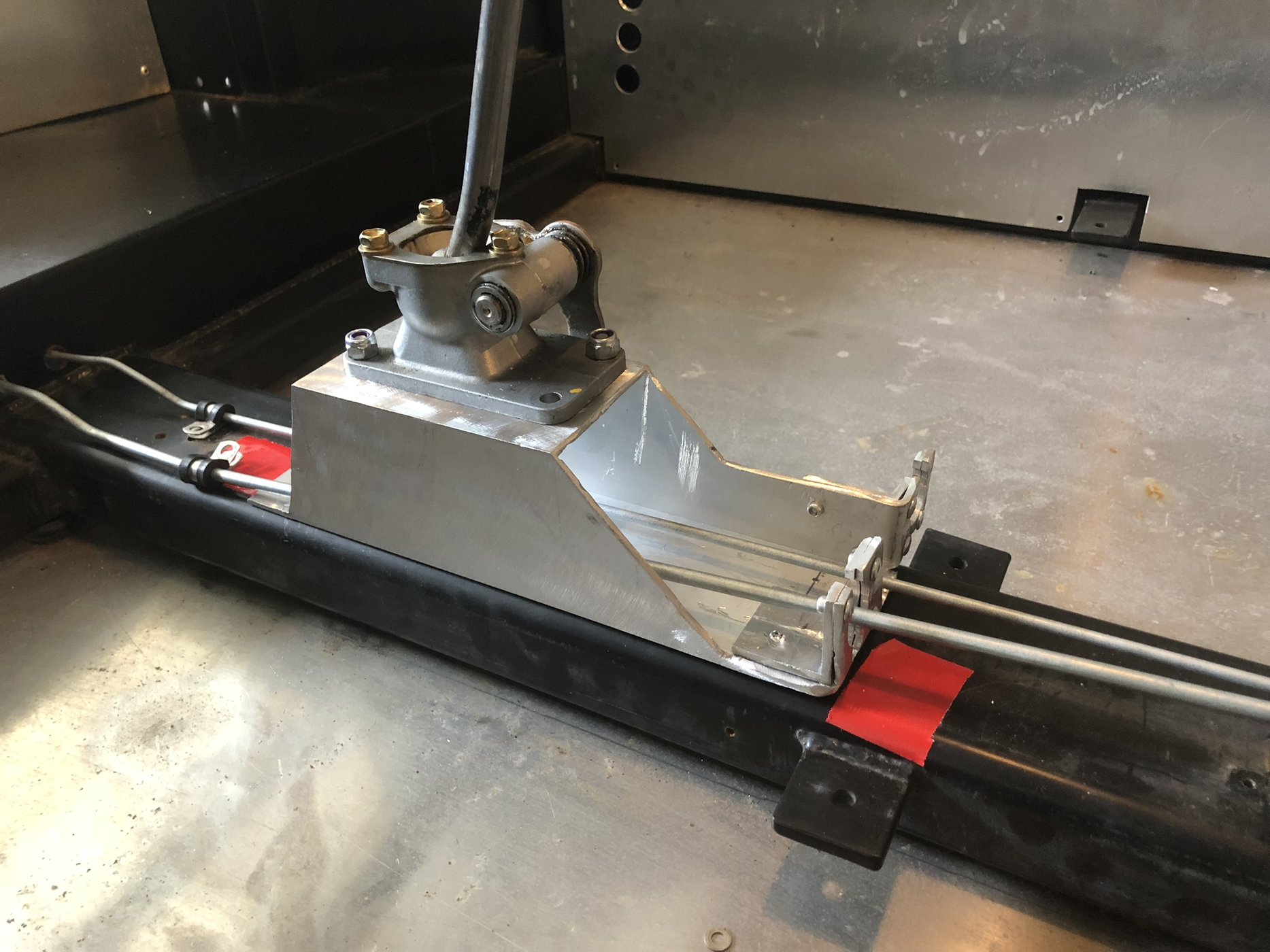

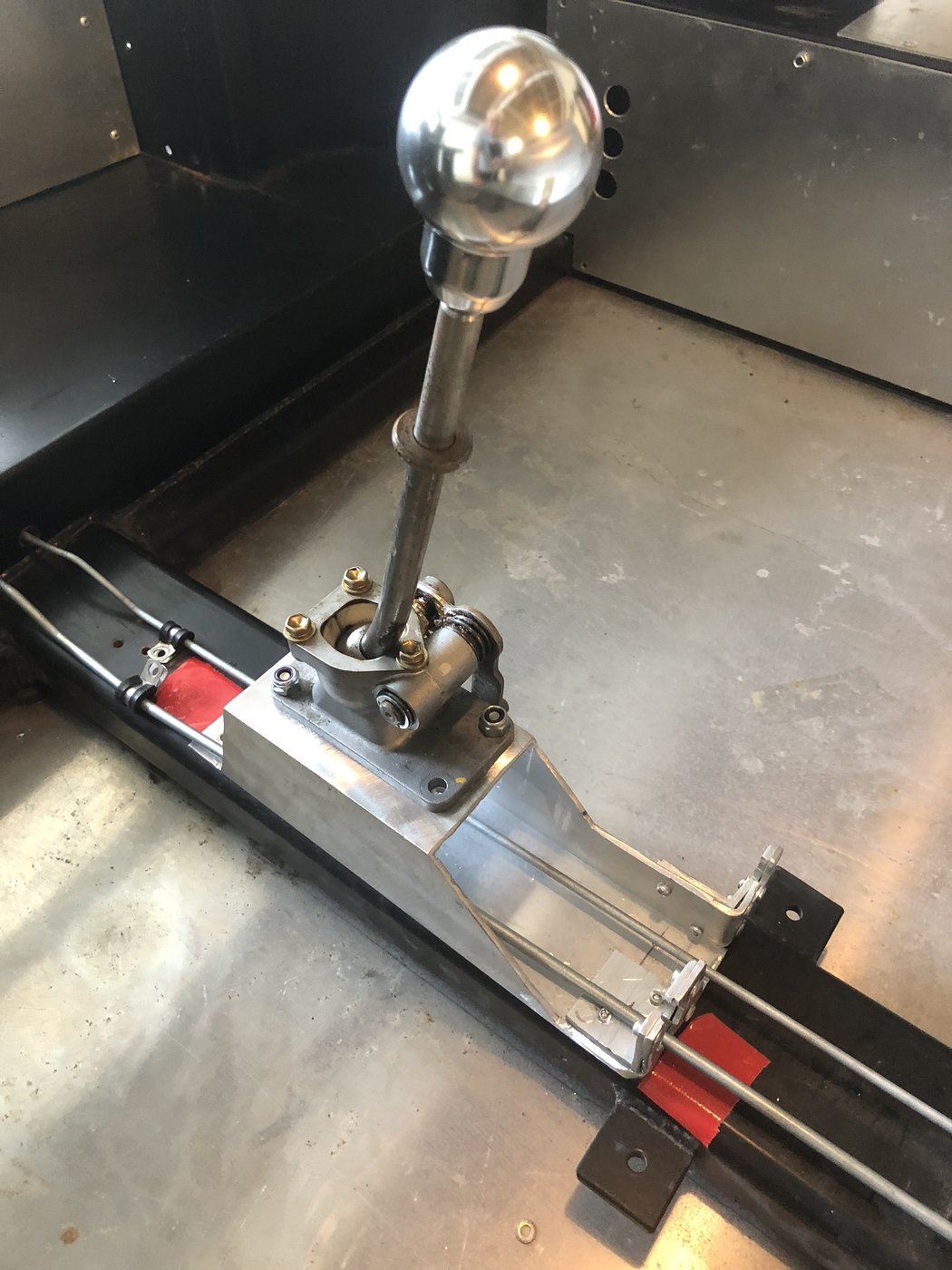

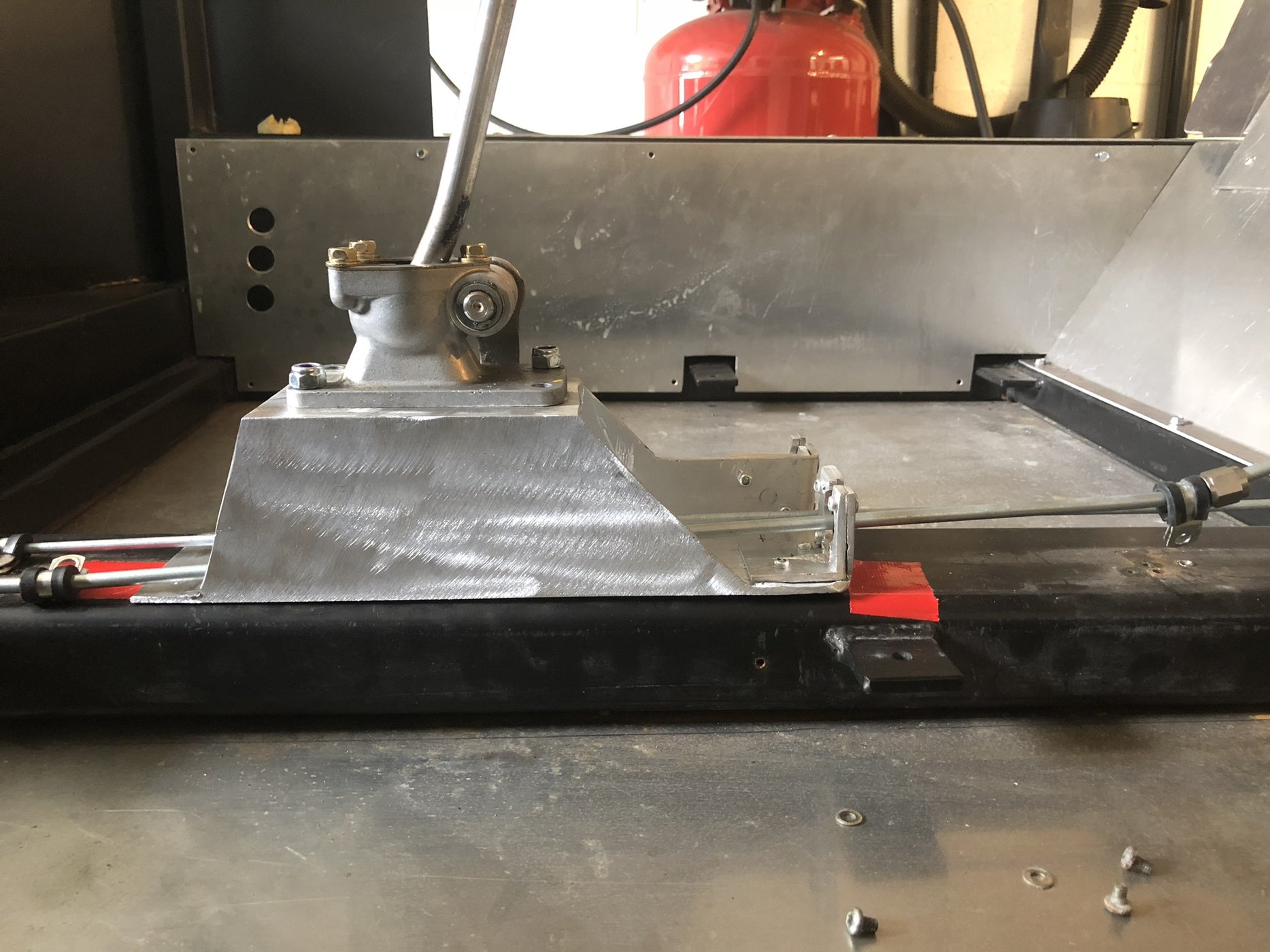

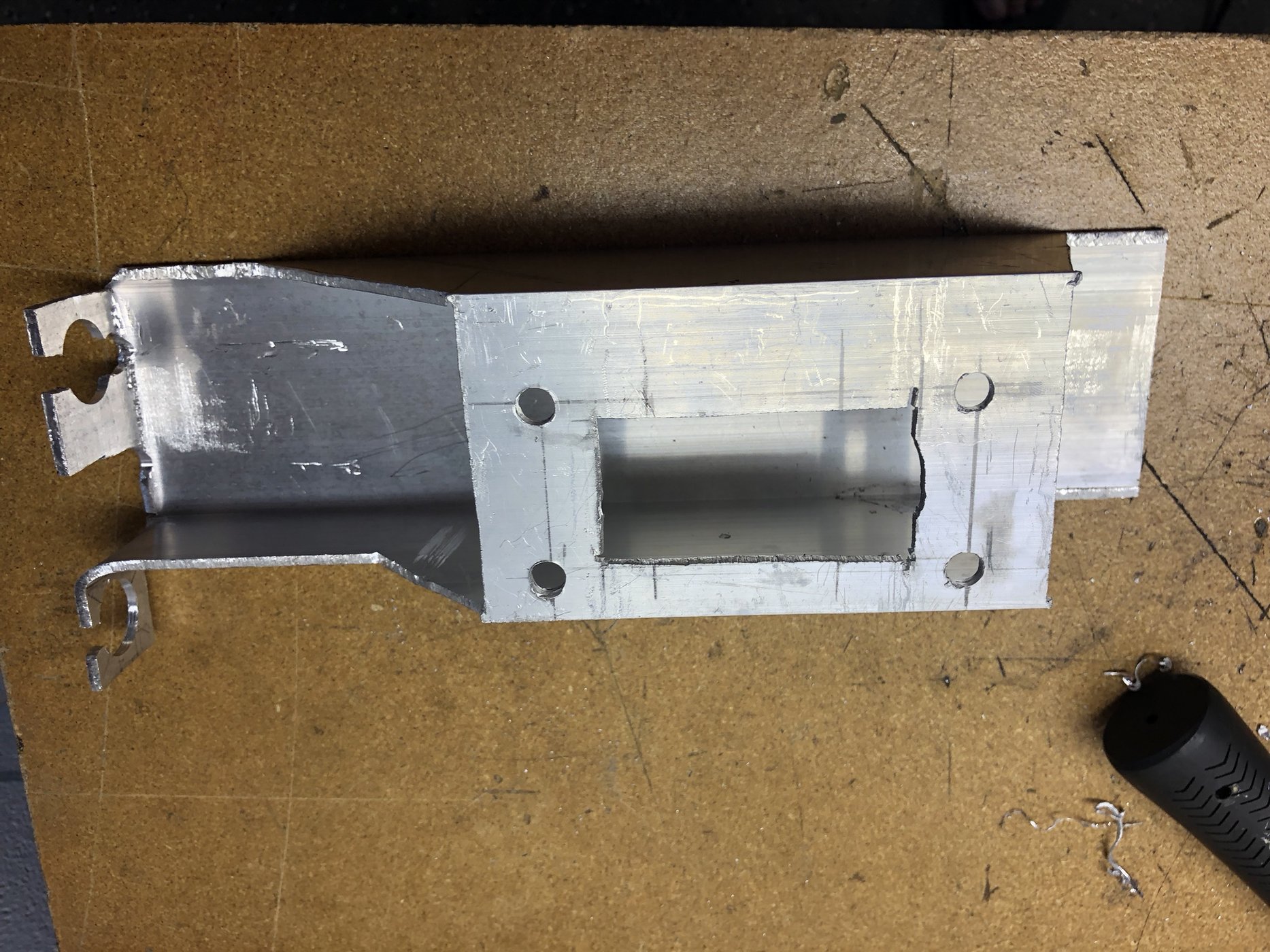

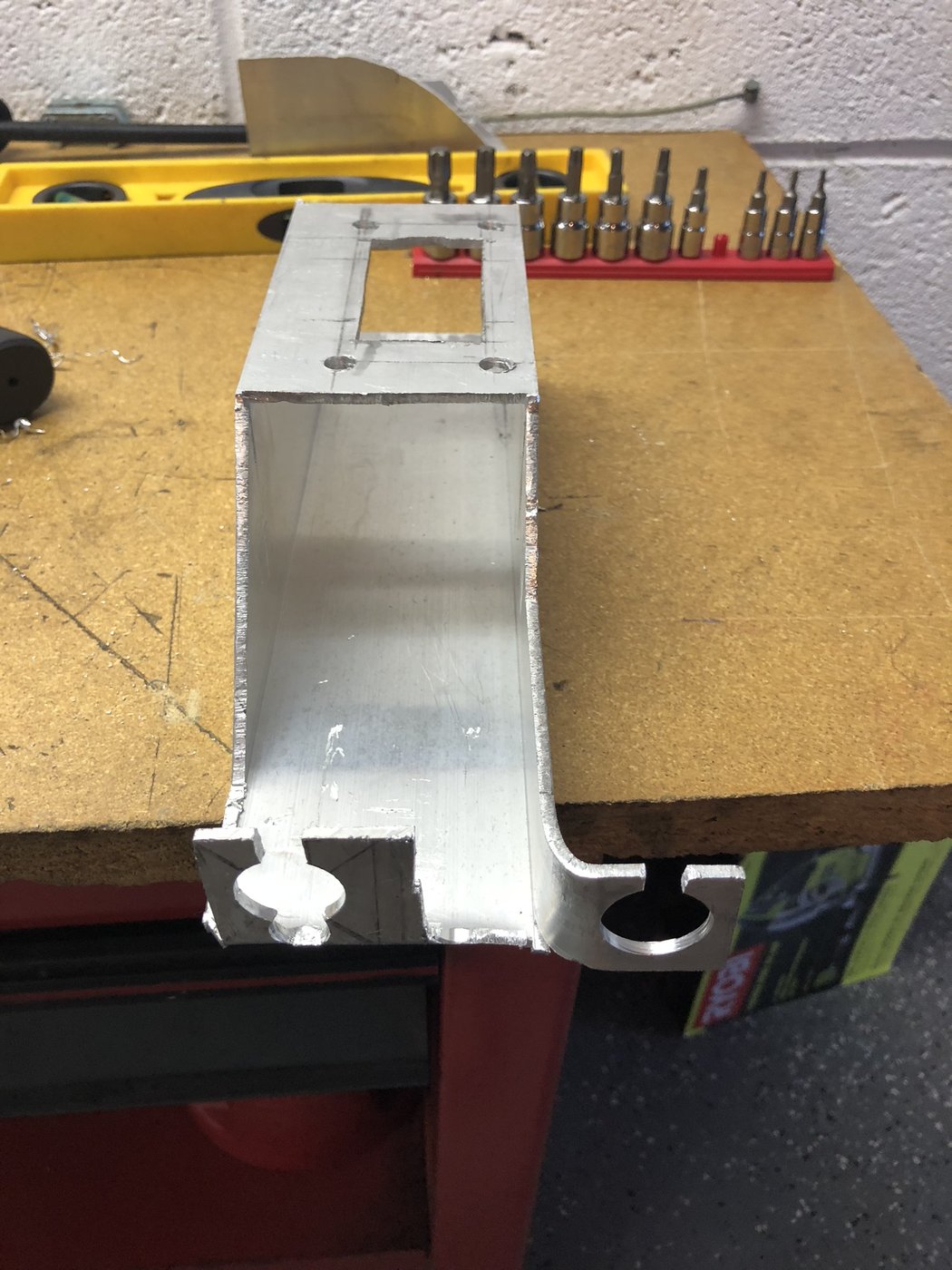

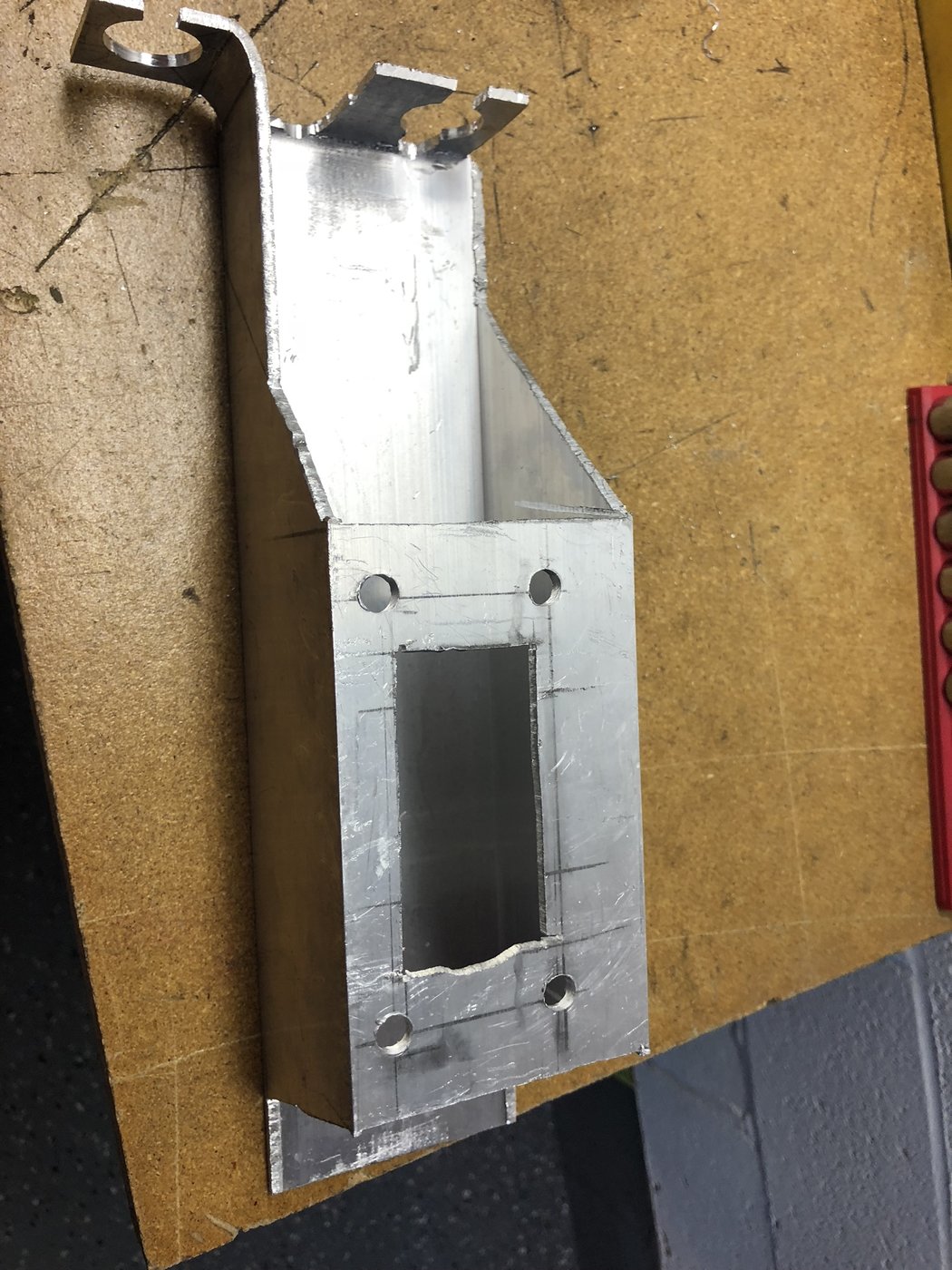

Researching on this site, I bought a Toyota shifter and made the mount to raise it off of the deck with a piece of extruded square aluminum.

It’s not fancy, but I made it myself!


Attachments

  • 37633937-0BF7-4285-BEBA-17FDCCE5FBA6.jpeg
    562.2 KB · Views: 454
  • D0F14EE0-CFF0-4FC1-93E0-CEC8286FAA84.jpeg
    467.4 KB · Views: 428
  • 404B4B60-46E4-451A-94CE-32A0C6324019.jpeg
    220.7 KB · Views: 434
  • 9867E6CC-E296-460D-8DA2-8E41F2AE49C8.jpeg
    263.8 KB · Views: 445
  • 52AEECA1-5EF0-45CE-8462-5DEA4928D88D.jpeg
    305.6 KB · Views: 443
  • BB2AD295-758F-4582-B75E-F57EF179575D.jpeg
    337.4 KB · Views: 435
  • 38E37250-B667-411B-B59F-1CE11D5E6018.jpeg
    323.1 KB · Views: 464
  • 4A469CA1-CB49-4B0F-8FB8-7F72C3FA8366.jpeg
    195.8 KB · Views: 460
  • 1671A1F3-C925-46F7-B81F-6B730C658DE0.jpeg
    285.2 KB · Views: 442

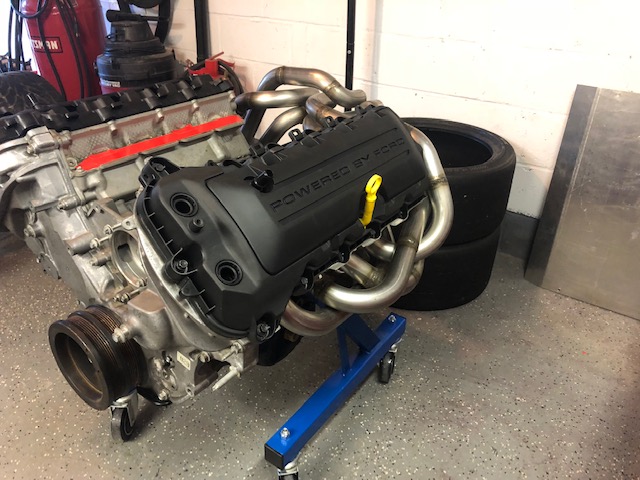

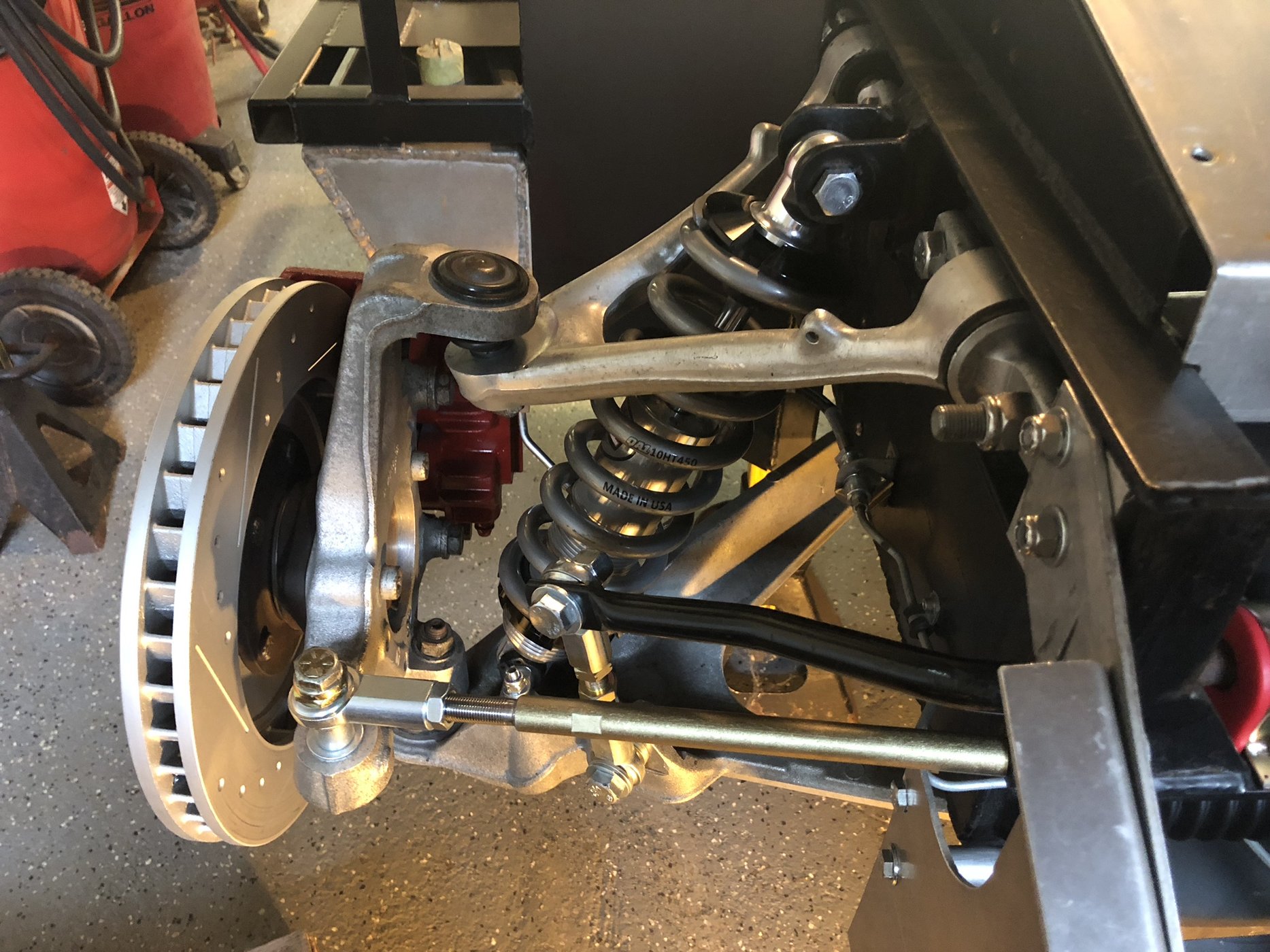

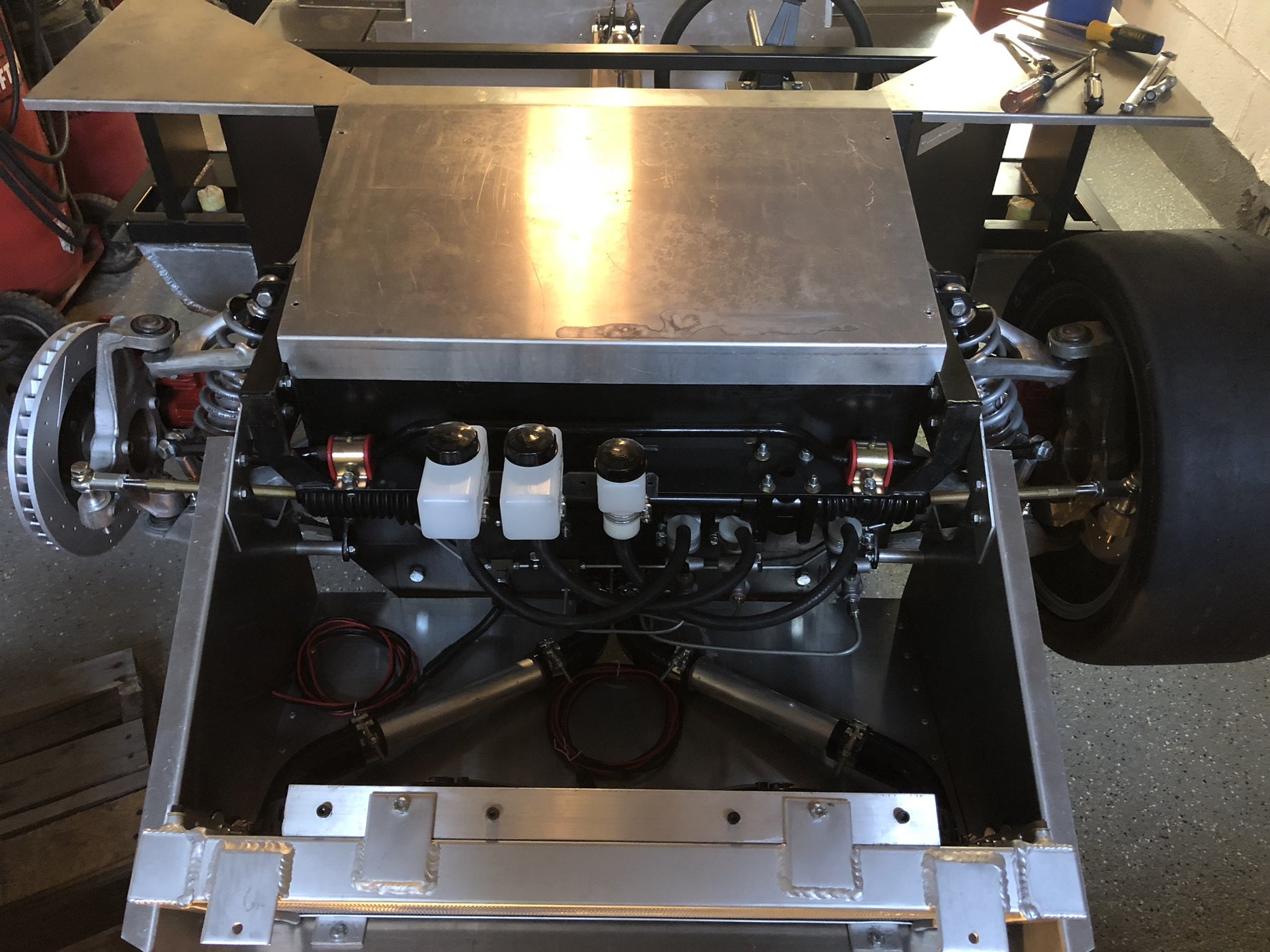

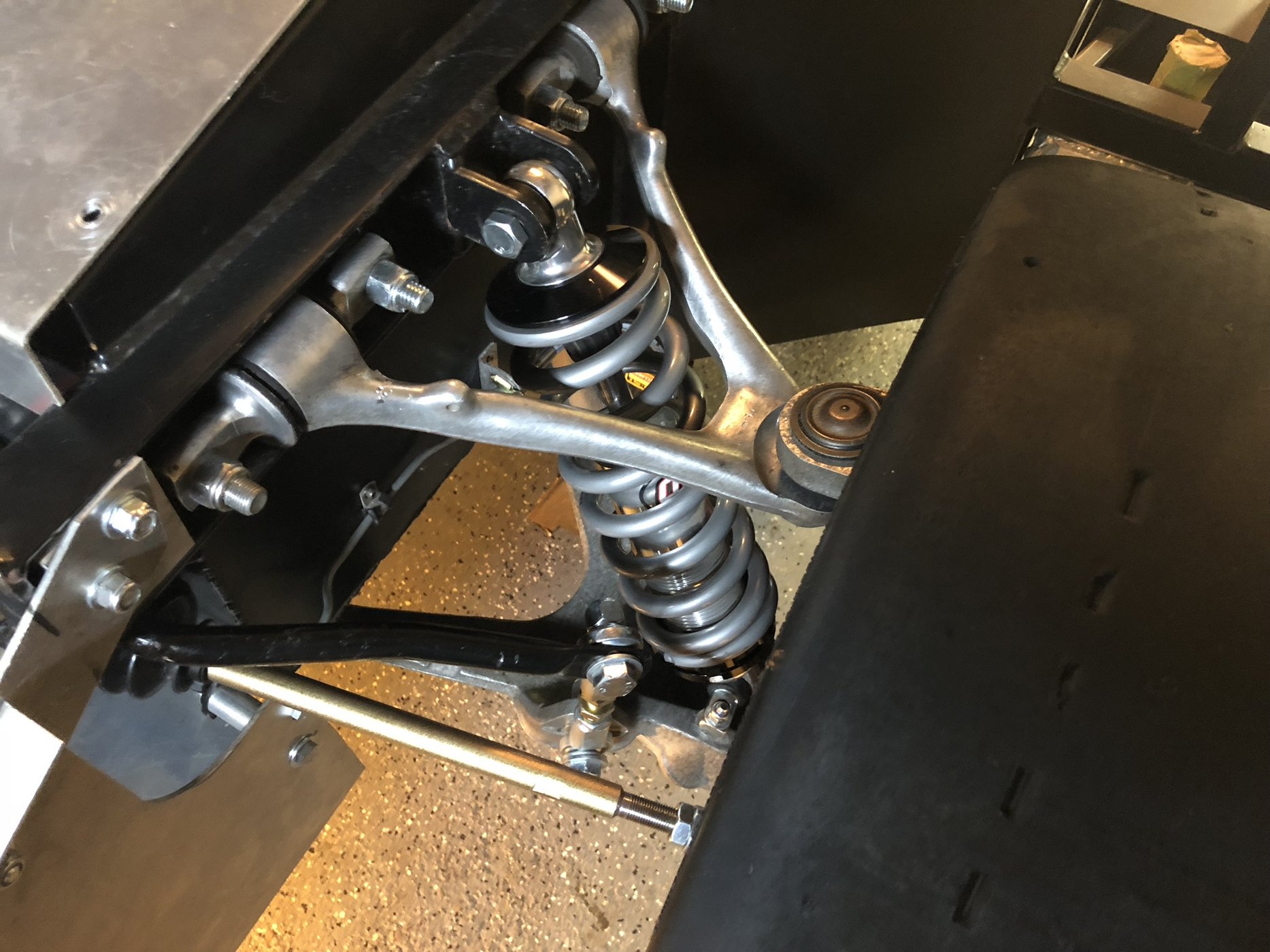

The shocks came and I installed them this morning. I’m going to take it off of the jack stands as soon as I get the motor on an engine stand because it’s in the way.

But I have a rolling chassis!

9 months and I’m actually further along than I thought I’d be at this point!


Attachments

  • C3CC183A-63AC-4E86-A0B2-7ED0DC477495.jpeg
    344.1 KB · Views: 444
  • 097EF3E3-6FE7-4186-B22D-A142076BE967.jpeg
    383.8 KB · Views: 464
  • B0015110-901E-4A05-A077-67FB7F7F09CE.jpeg
    510.5 KB · Views: 467
  • E5B2E35E-D1AB-4368-86CF-F2A629450F76.jpeg
    485.9 KB · Views: 485
  • 25F486A5-9EBC-495F-9E2B-B499F2097D6F.jpeg
    423.8 KB · Views: 511

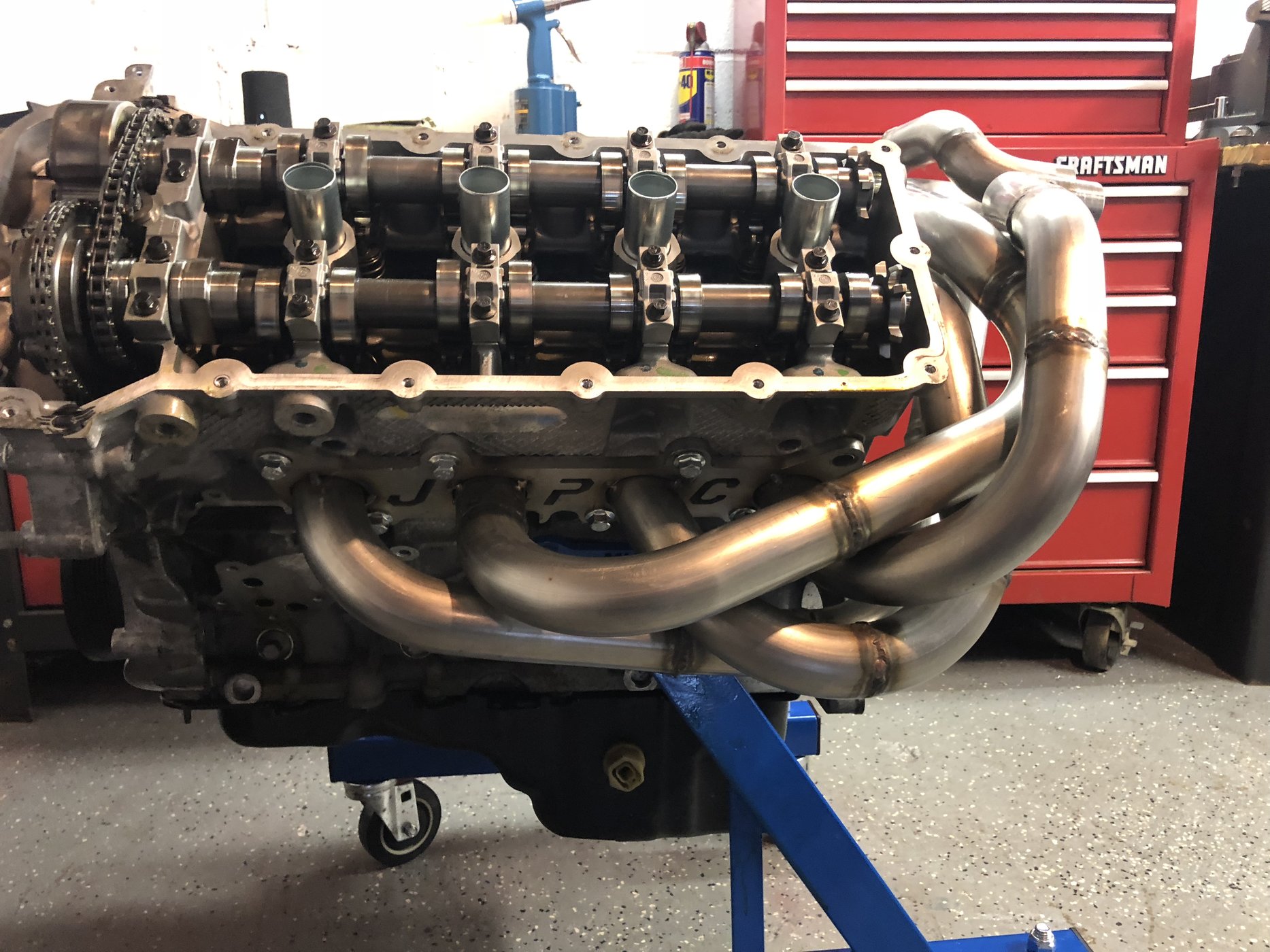

This is real now!!!


Attachments

  • F13EF9A3-7CC8-4991-89A3-F8B4F8F56B11.jpeg
    472.7 KB · Views: 500
  • C111E903-FAC0-46C3-952C-499E1C621CA3.jpeg
    491.4 KB · Views: 535
  • 81FCA518-2C4C-43D3-A0B9-174AA27C3DDD.jpeg
    408.5 KB · Views: 534

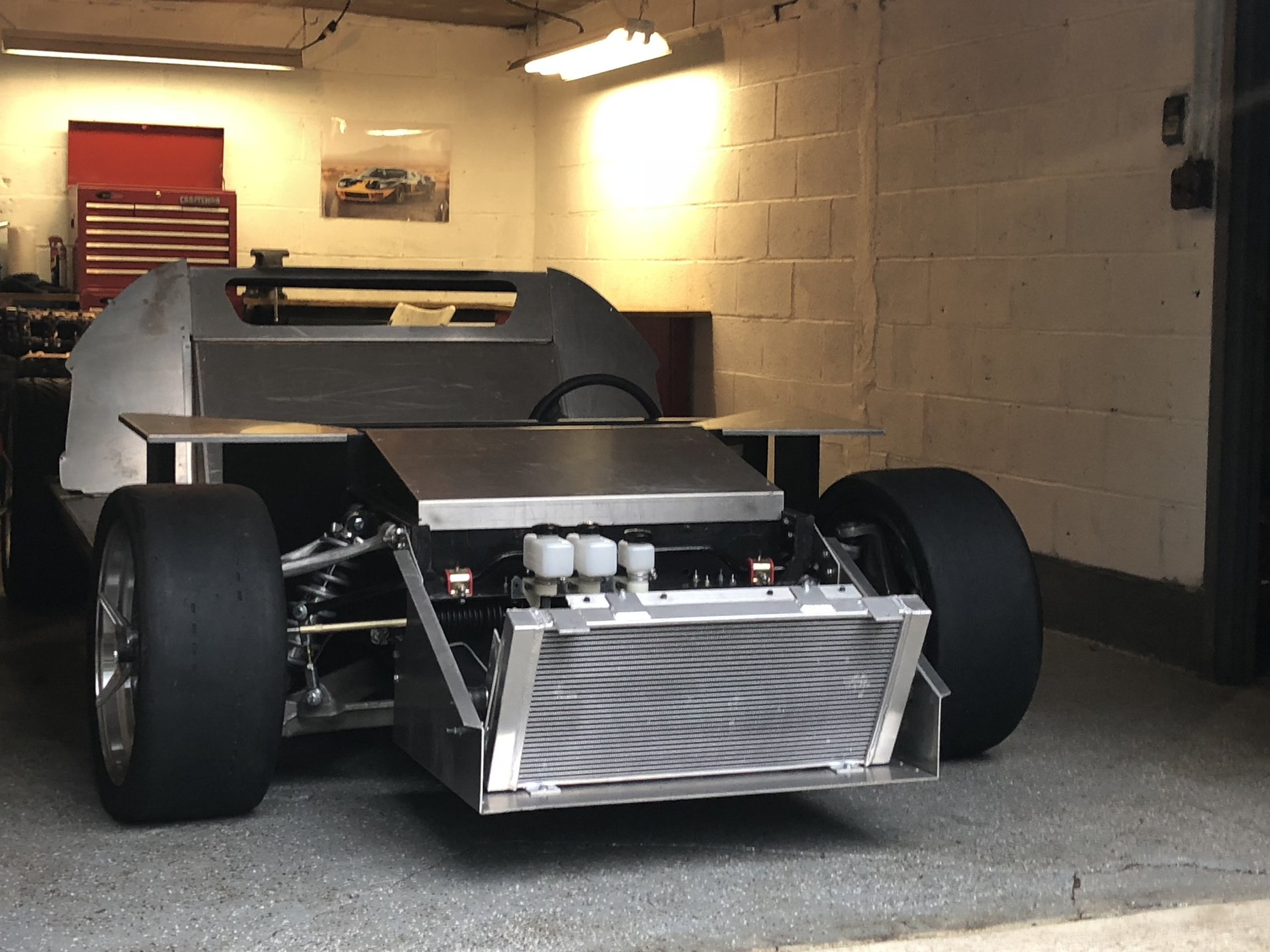

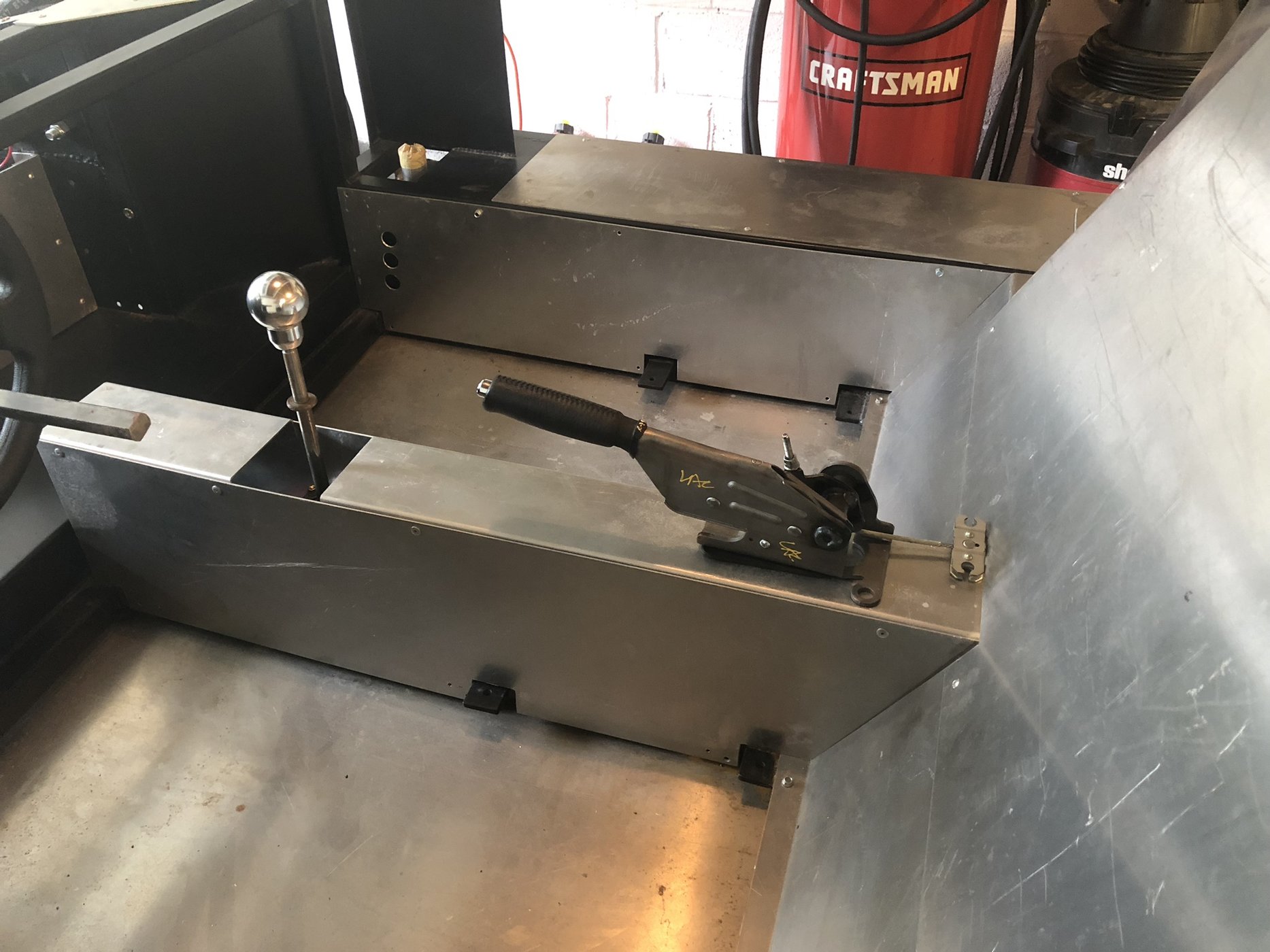

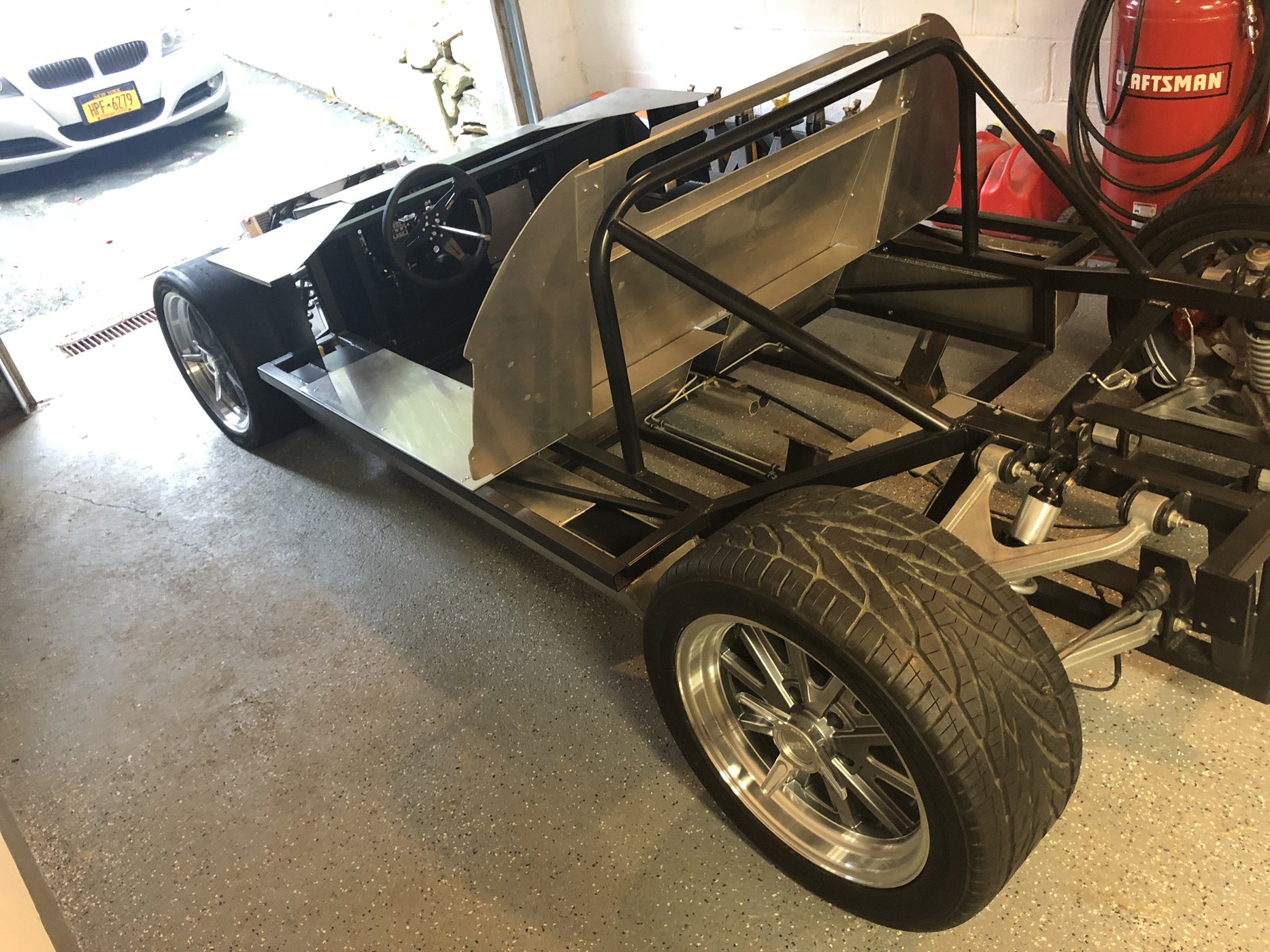

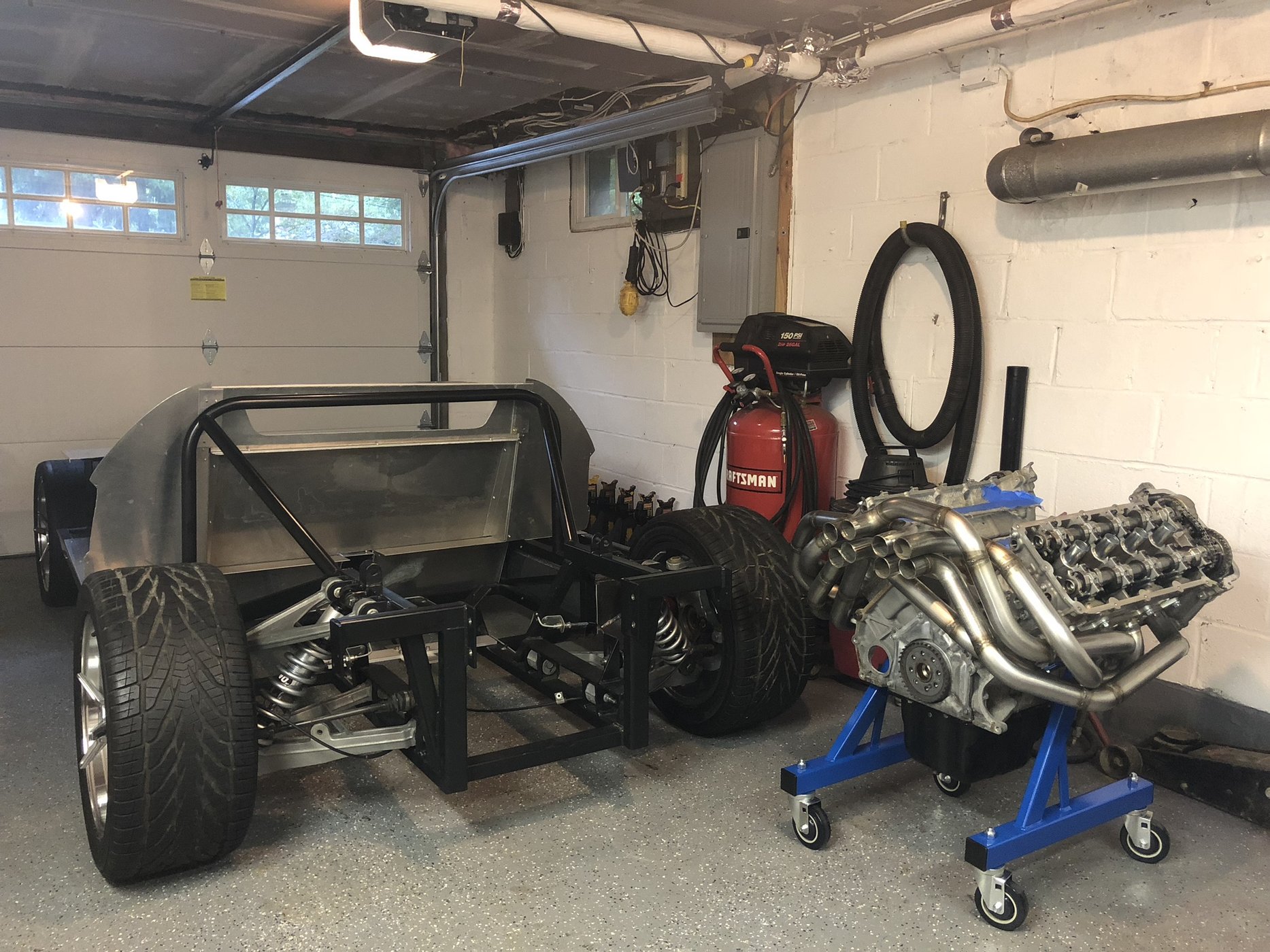

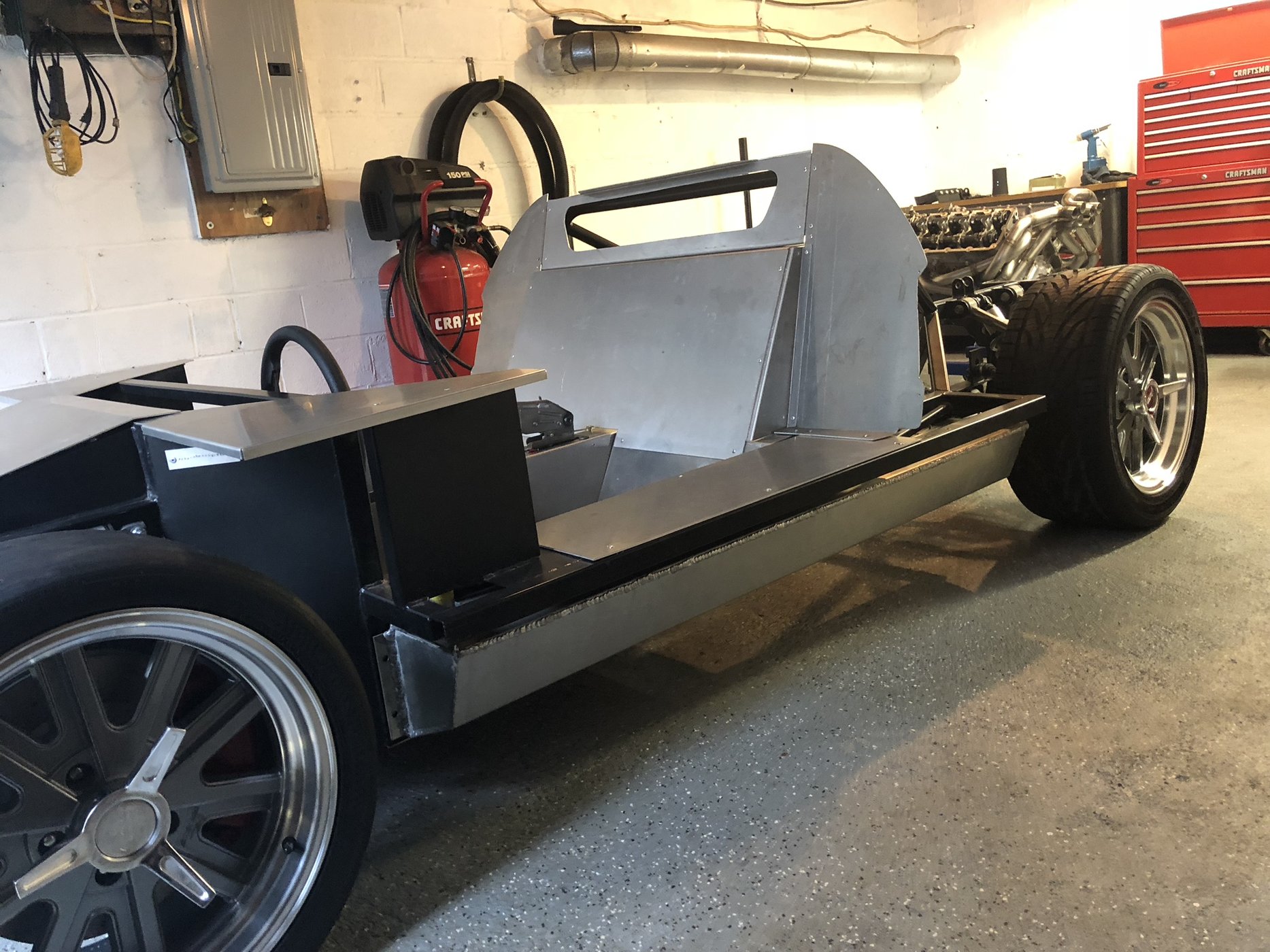

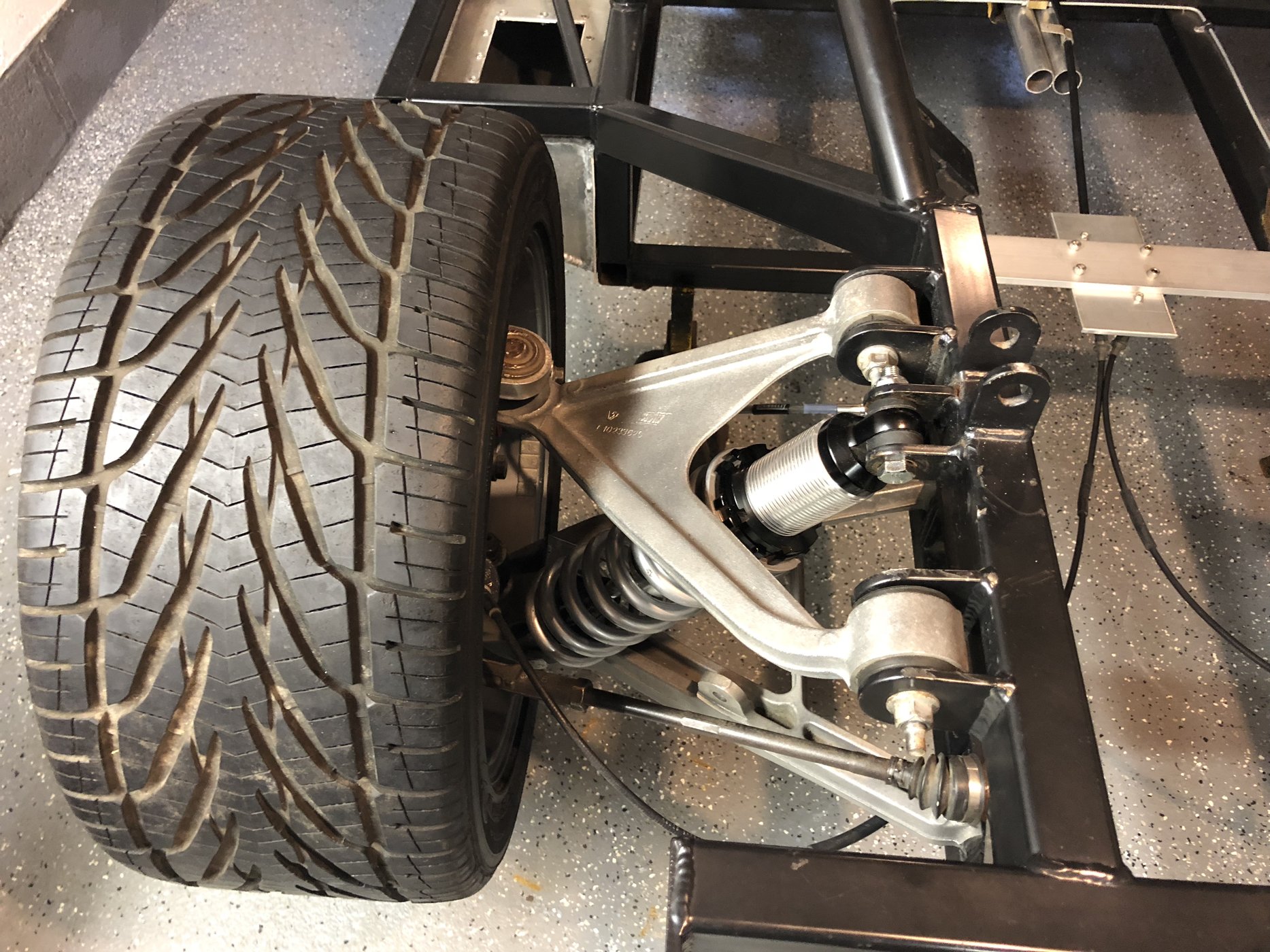

Got her off the jack stands for the first time ever. I now have a working rolling chassis.


Attachments

  • A3636F1E-0443-4B5E-AA8A-815BA8D7899E.jpeg
    331.5 KB · Views: 477
  • 21BF72EA-0CDB-4511-9CDC-A8CD10E5EA87.jpeg
    422.1 KB · Views: 534
  • BBDBAACE-1233-4161-8504-B1D24B8A8097.jpeg
    487 KB · Views: 544
  • F8619018-6547-47D7-8951-8F13B1E3D880.jpeg
    484.6 KB · Views: 527
Steve, I like what you did adding the front bottom plate giving it better support and strength. How did you attach it to the existing two supports. Thanks

Steve, I like what you did adding the front bottom plate giving it better support and strength. How did you attach it to the existing two supports. Thanks

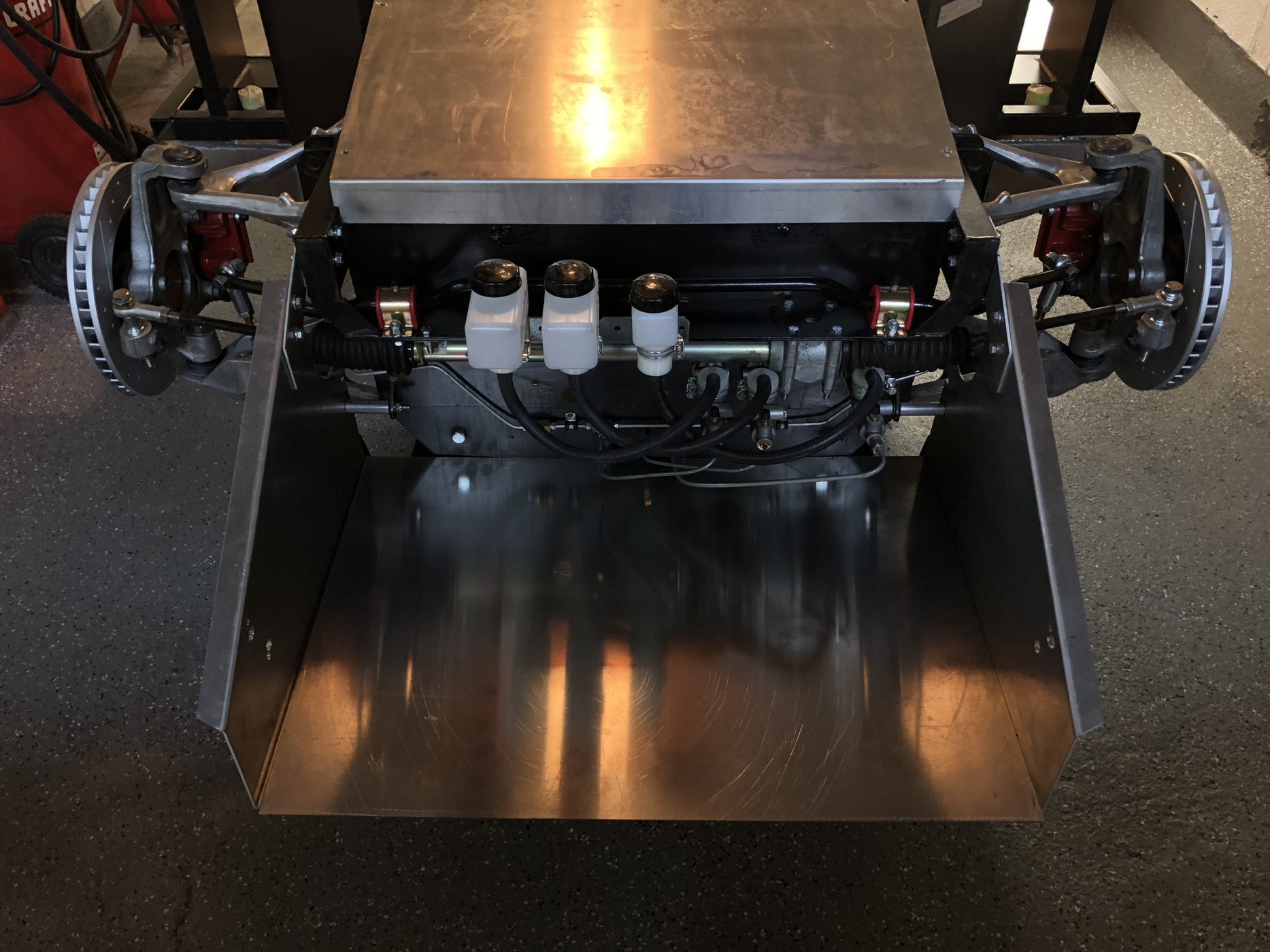

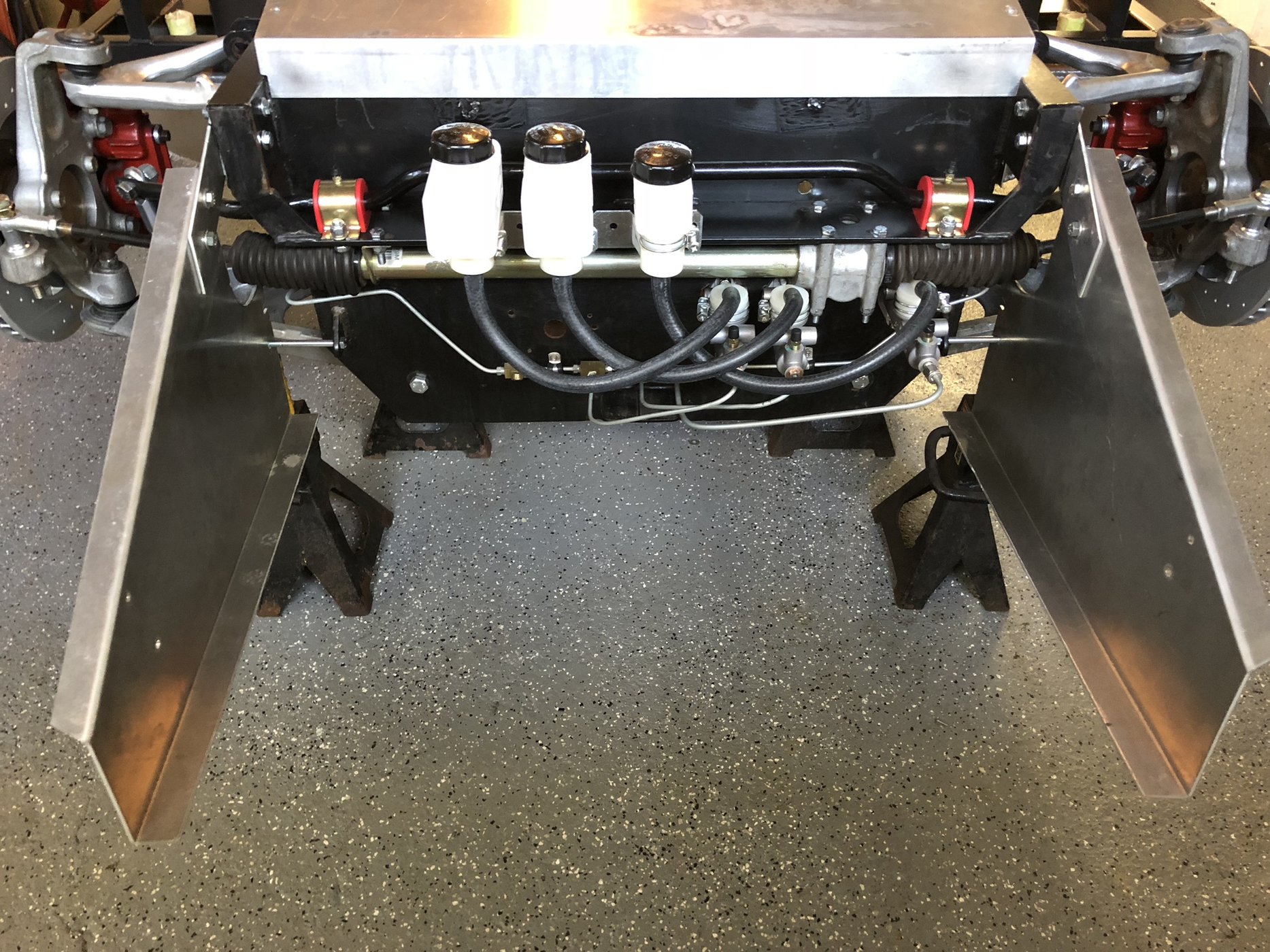

Thanks George. The original side plates had about a half inch bend at the bottom. I just got a piece of stock aluminum and riveted it.

You can see the bend in the picture below.


Attachments

  • 64CDA433-A182-493F-B1FE-3D81723217DB.jpeg
    542.3 KB · Views: 541

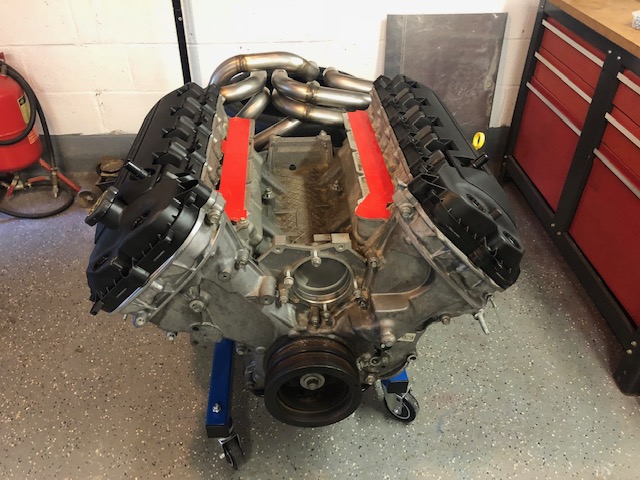

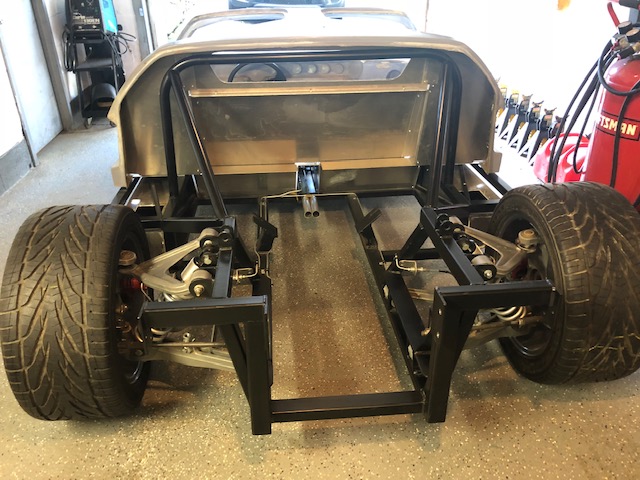

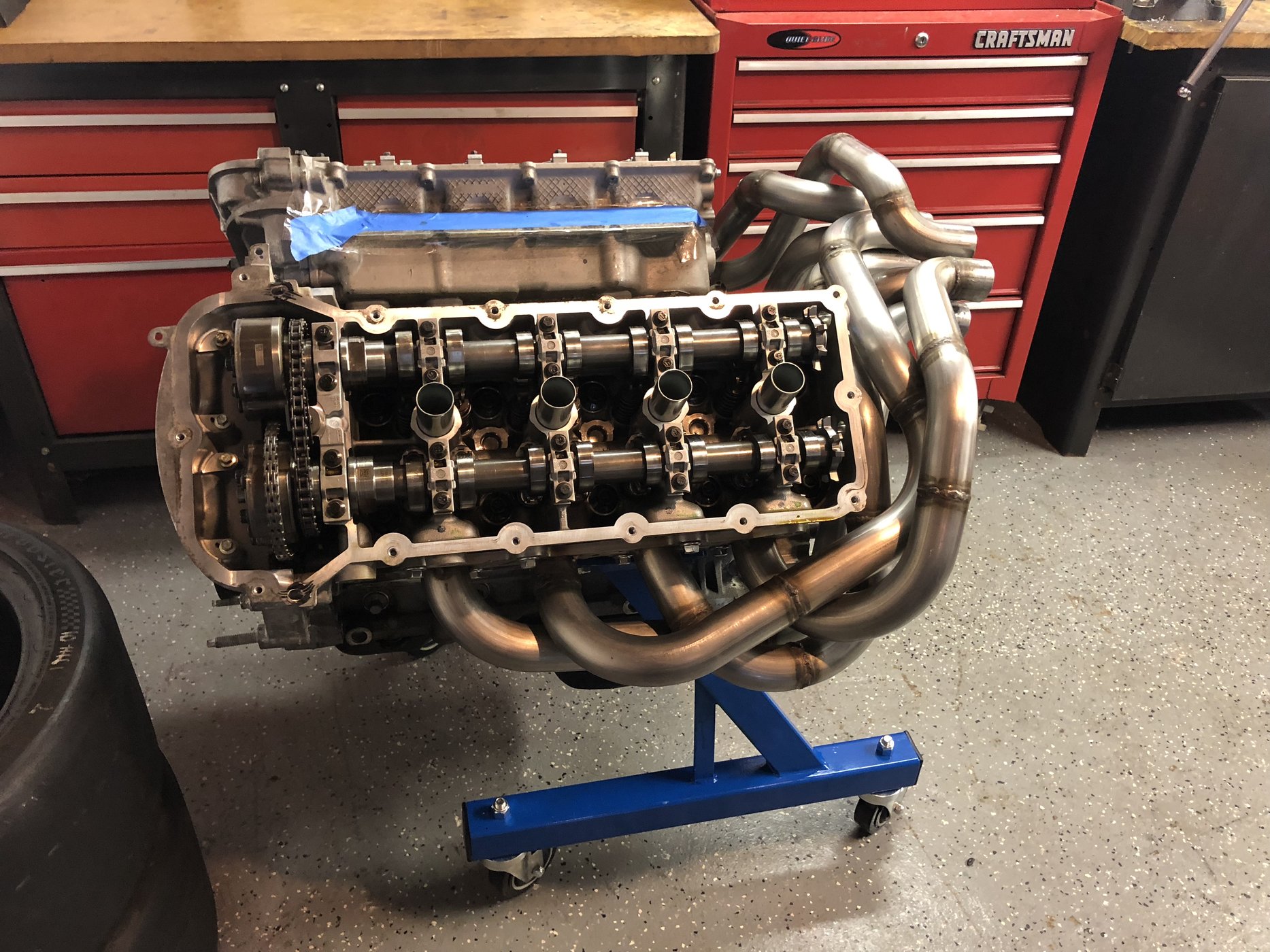

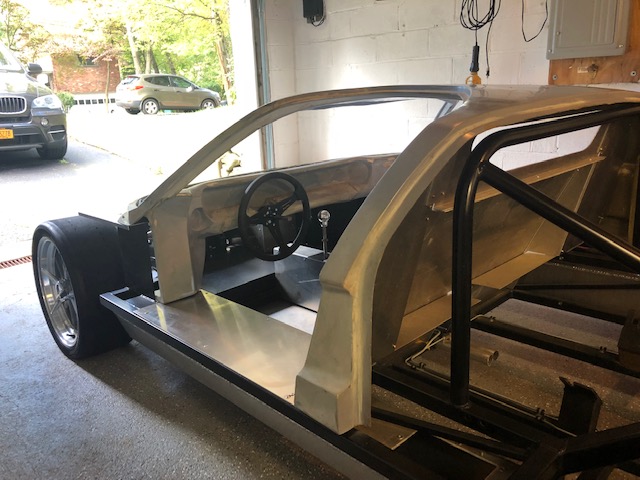

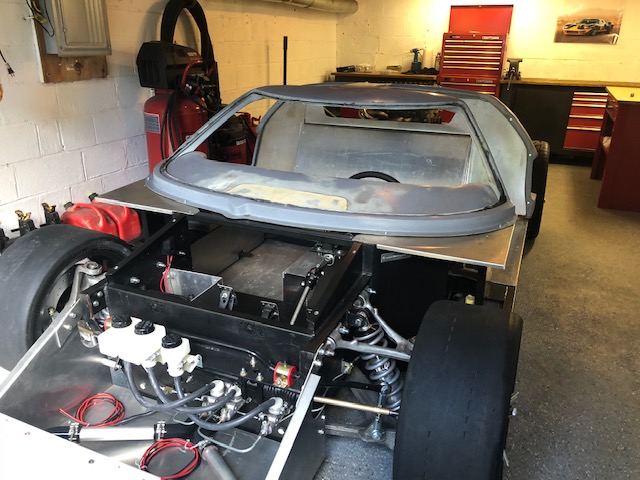

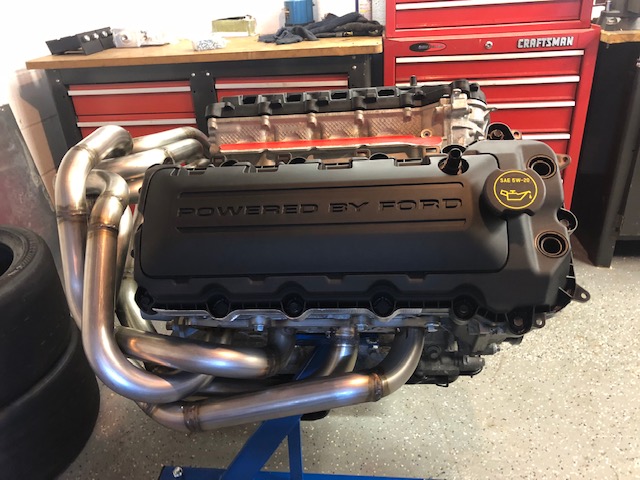

I thought it was real when I got my engine and I put the chassis on the ground for the first time.

But I was mistaken...

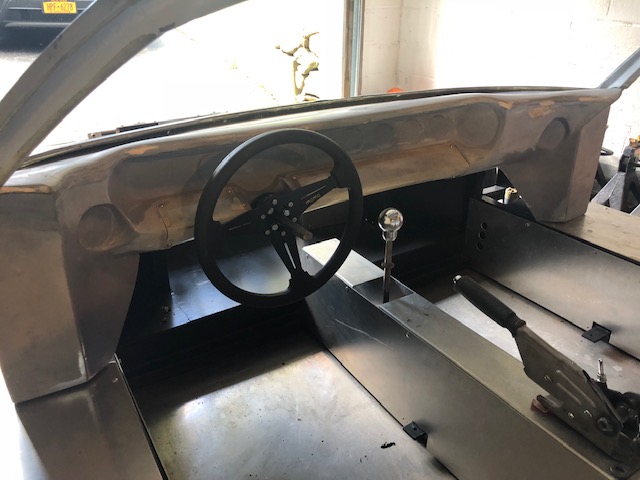

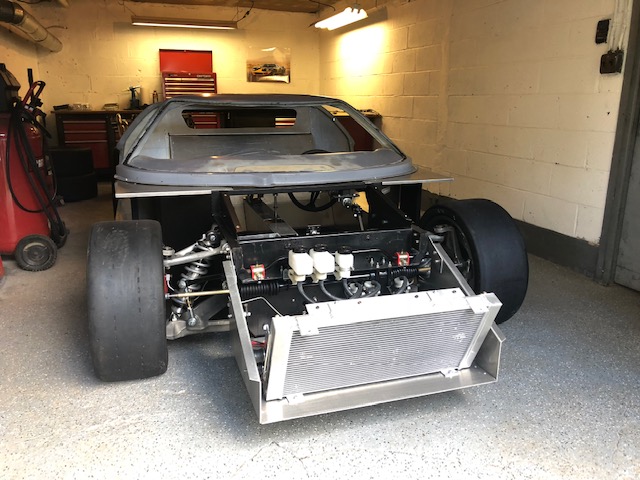

Nothing makes it real until to add your first body section!!!


Attachments

  • D7F96668-F04D-4D9C-88E1-CBF31956D58F.jpeg
    105.1 KB · Views: 515
  • A91E029E-EC12-41C0-B777-4819CC783BA0.jpeg
    103.9 KB · Views: 484
  • E87B9D3F-6685-45AF-8466-81018C1749C1.jpeg
    107.1 KB · Views: 480
  • 15856B7B-E50F-4139-88AC-95273C541E1E.jpeg
    71.4 KB · Views: 506
  • 9F8DBDB0-A1CC-4ECE-A9A2-D8A67FAD23A0.jpeg
    97.3 KB · Views: 476
  • 60ADBB58-57B7-407F-94D7-CE65F8EC0C76.jpeg
    115 KB · Views: 492
  • B0A89EDA-5779-4707-808F-87CF002FDE1B.jpeg
    141.4 KB · Views: 534
  • BB24FAA0-A3B0-4068-8DDC-7FE2F7D9B223.jpeg
    106.4 KB · Views: 513
  • 54254293-43C7-4A91-8CAD-938526402C96.jpeg
    103.3 KB · Views: 485
Hi guys, I’m also working on an Active Power. It was delivered on the 5th and just finished installing all new bushings and ball joints. The New brakes and rotors should be arriving this week and installed on the weekend. Steve you are doing a great job and thanks for your pictures. I use them as a guide for my build.

Hi guys, I’m also working on an Active Power. It was delivered on the 5th and just finished installing all new bushings and ball joints. The New brakes and rotors should be arriving this week and installed on the weekend. Steve you are doing a great job and thanks for your pictures. I use them as a guide for my build.
Haha, thanks George, but this is my first build from scratch. Not sure anyone should use my pictures as a guide!
