induction manifold with throttle bodies

[ali grey]

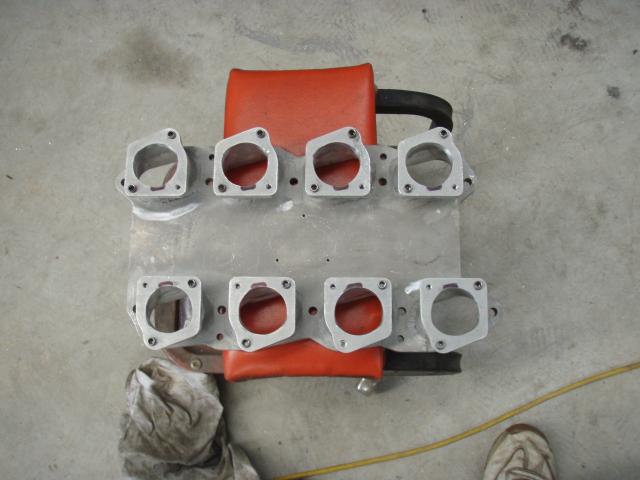

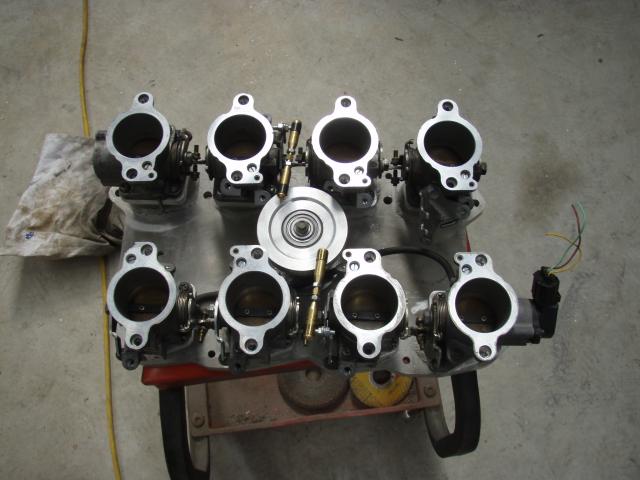

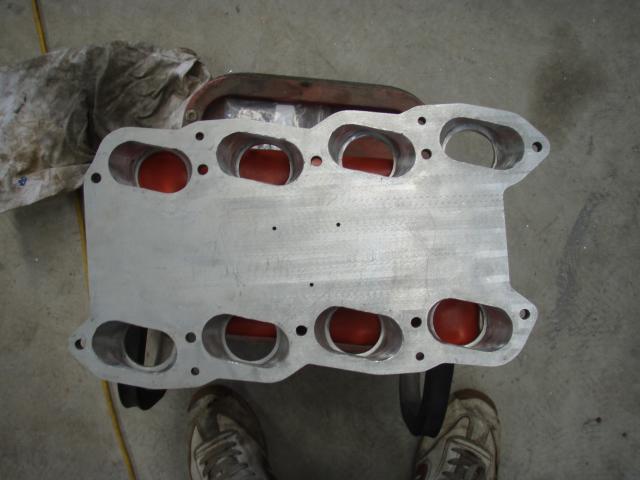

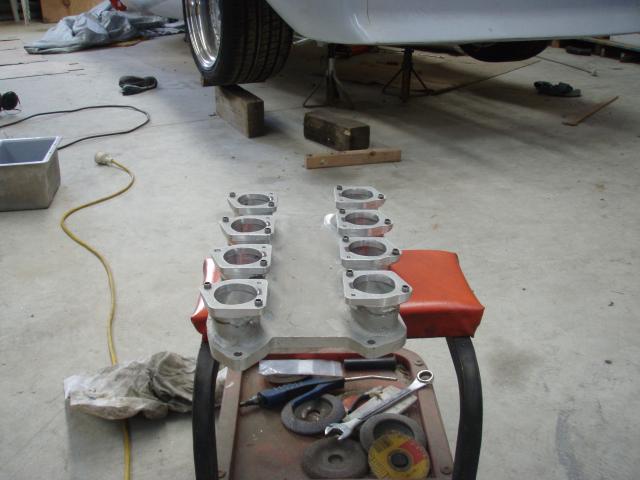

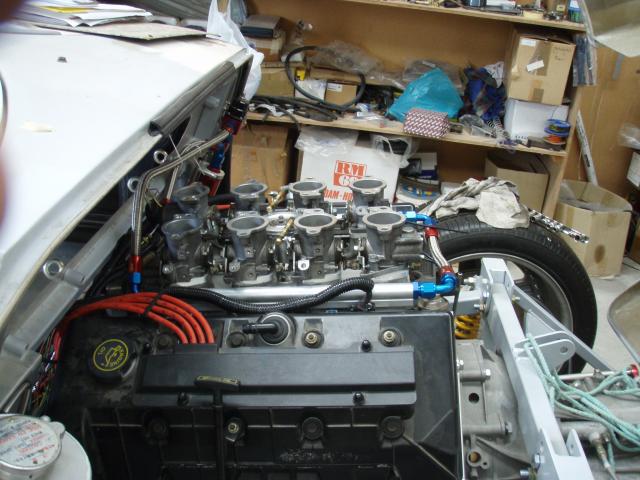

i made this up for my 96-98 quad cam 4.6 , the throttle bodies are from a 2.0 toyota engine.i have not run the engine yet so not sure wether it works .



[egoman/ Shawn Wedge]

Are you going to put a flat plate on top and then install trumpets? This actually looks quite easy to install air cleaners on.



[ali grey]

at this stage i plan on ram tubes/trumpets and filter socks.i like the old school look in the back window.
cheers Ali



[Andy Green]

A very nice bit of engineering. No doubt a lot cheaper than a set of Webers.
Keep up the good work :thumbsup:
Regards
Andy



[ali grey]

by the time i put some trumpets on and not counting my time this setup should owe me around nzd 1750.i could not buy a manifold to suit my engine anyway and im pleased with the end result.
cheers Ali



[ali grey]

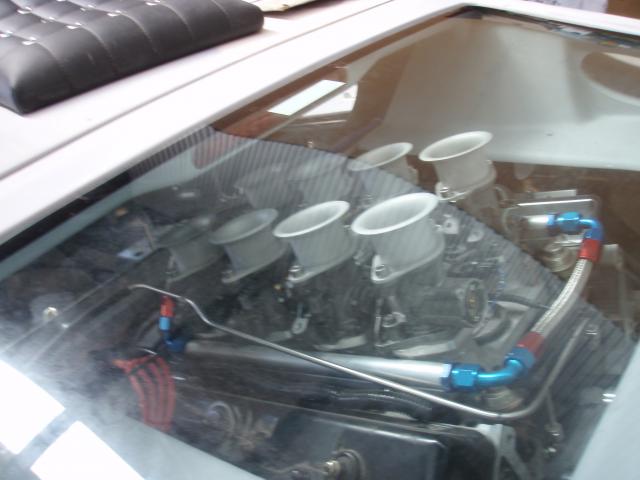

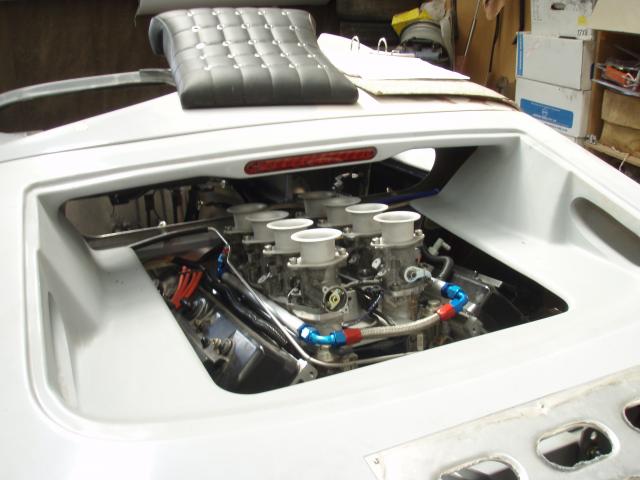

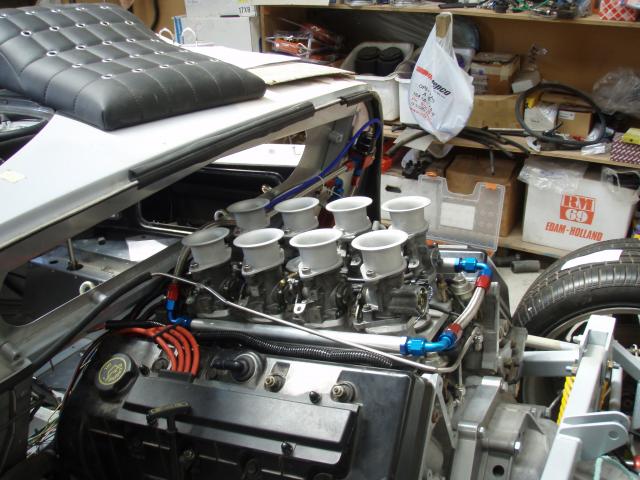

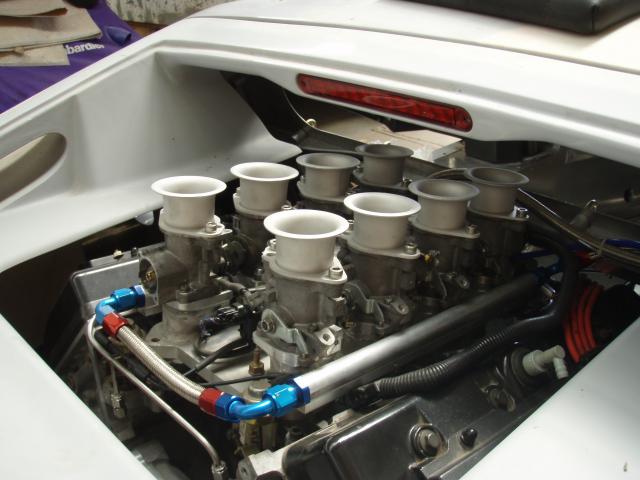

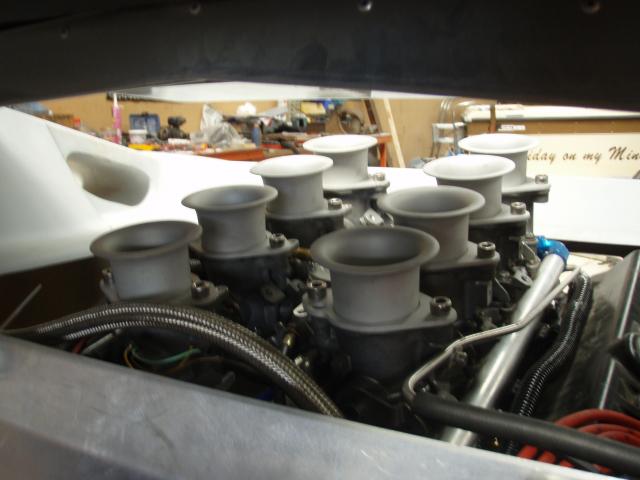

got some trumpets made to top off my induction system,not sure wether to polish or anodise them.



[egoman/ Shawn Wedge]

Dont touch them they look good in the natural finish.



[Tobias]

those tb:s look very interesting!!.. I would really like too know wich toyota 2.0l enigne they come from.. seems too be a simple and inexpensive way too get a weber style injection system...



[ali grey]

Hi Tobias,
there are two engines you can get them from toyota 4age 101 silvertop and 4age111 blacktop,the blacktop ones are preferable they are 44mm dia instead of 42mm dia.
cheers Ali



[Tobias]

thank you!!



[Steve26]

Hi Ali,
first of all NICE WORK!! I have access to these throttle bodies as well and was going to try to do what you are doing so can you please keep me up to date on what's required and how it works? Thank you and once again nice work.:stunned::thumbsup:

Steve



[ali grey]

Hi Steve,
ask away and i will try and answer,probably will not fire my engine up until the new year all things going well.this credit crunch will not help though,just have to push my arm further under the mattress i suppose.
cheers Ali



[flatchat(Chris)]

Very innovative Ali, I like your work --- I bet its big fat mattress:laugh: too



[ali grey]

Hi Chris,
its thinning out and still got to buy ecu and loom and tune, a bundle of snakes ,finish the inside and paint and finish everything once it is painted.but i think i am seeing the light at the end of the tunnel.
cheers Ali
