hey, ive been away for a bit but my car is about ready for a drifting session soon. who here is running this audi 016 with what shifter? I have a Toyota corolla shifter with cables and I'm not sure what the shift pattern would be...lol...feeling like a dumbass here but I need some help please and thank you...pics would help also!
audi 016 shifter set up
- Thread starter dice23
- Start date
This should sort it for you.
AUDI 016 /5000 SHIFT PATTERN
1-3-5
2-4-R
Looking from the drivers side at the shift rod.
In-CCW = 1
In-CW = 2
Middle-CCW=3
Middle-CW= 4
Out-CCW = 5
Out- CW = R - Reverse requires a slightly longer throw than 2 and 4.
and
Cable-Shift - Audi 5000

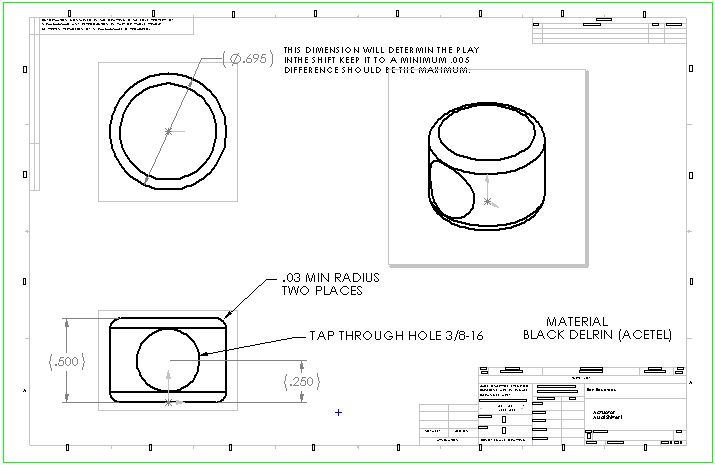

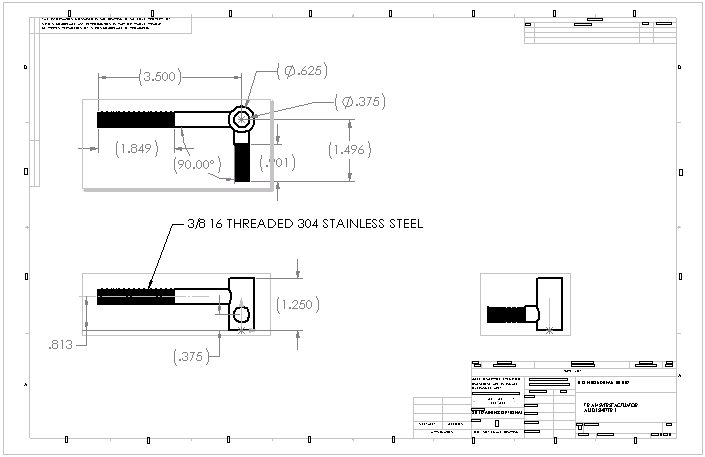

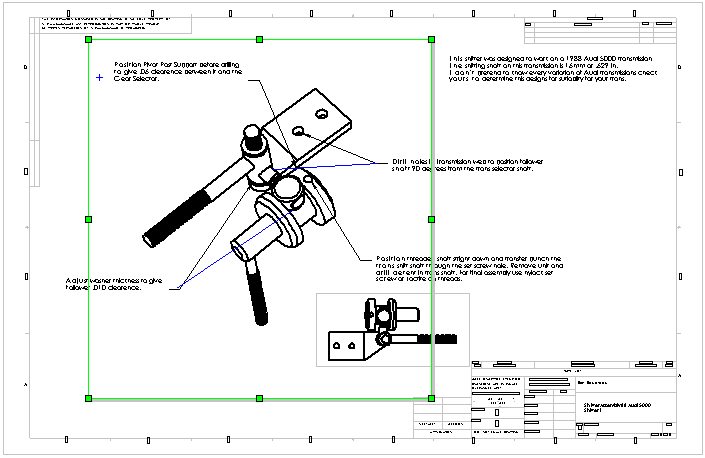

and you will need this plate also available here Kwiker Cars | Making the replica car a little better
AUDI 016 /5000 SHIFT PATTERN
1-3-5
2-4-R
Looking from the drivers side at the shift rod.
In-CCW = 1
In-CW = 2
Middle-CCW=3
Middle-CW= 4
Out-CCW = 5
Out- CW = R - Reverse requires a slightly longer throw than 2 and 4.
and
Cable-Shift - Audi 5000
and you will need this plate also available here Kwiker Cars | Making the replica car a little better
Last edited:
I made a rod change set up for mine simple as, just used a couple of bits from an early model Mini gear shift
like this
http://i144.photobucket.com/albums/r197/Monty155/Steinard MK2/Porscheshiftmechanism_zpsbd3c9190.jpg
and looking from the back
http://i144.photobucket.com/albums/r197/Monty155/Steinard MK2/Porscheshiftmechanism2_zps3fe67a14.jpg
works a treat.
john
like this
http://i144.photobucket.com/albums/r197/Monty155/Steinard MK2/Porscheshiftmechanism_zpsbd3c9190.jpg
and looking from the back
http://i144.photobucket.com/albums/r197/Monty155/Steinard MK2/Porscheshiftmechanism2_zps3fe67a14.jpg
works a treat.
john
