SGT Handbrake bar and cables

[Phil H]

I'm struggling to find any useful pictures on peoples build treads on how the SGT handbrake bar bits, and how the cables are fitted at the handbrake ends.
Handbrake handle and rods are fitted. I'v got the cable holding bar ready to go in and finally the cables have arrived so any advise or photos would be greatly received.
Want to get them fitted so i can finally drop my engine in, been waiting for the cables since end of October last year.



[Sam Boyers]



[Sam Boyers]

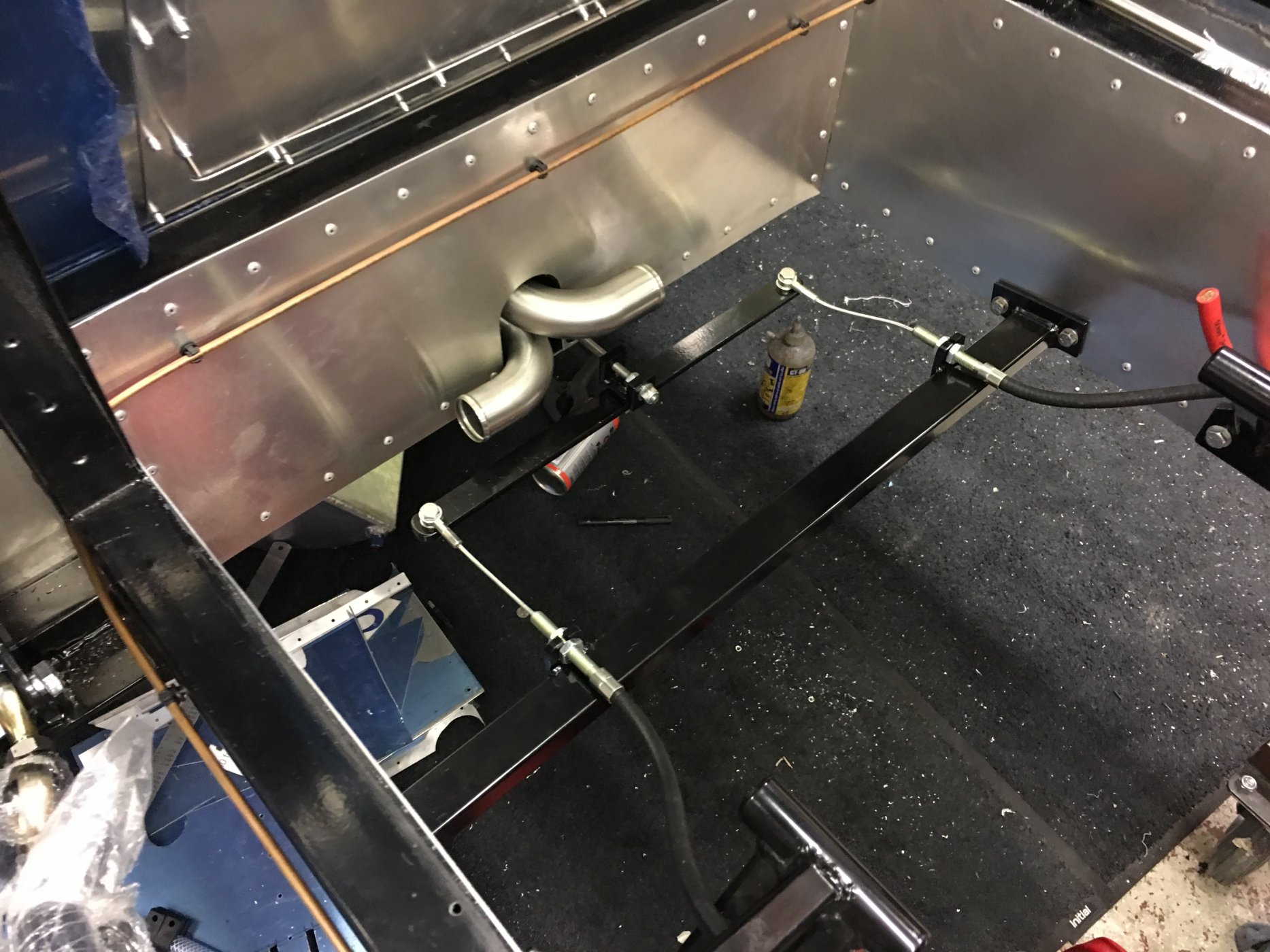

Hope this helps
Sam



[Phil H]

perfect



[murf]

Hi Sam seen pics .I gather you drilled through the panel and the box section to.mount the handbrake mechanism .could you drop me a message with dimensions.from coolant pipe panel to mount holes.and could I ask where you sourced cables.
Thanks shaun



[Phil H]

Shaun
The bars position depends of which cables you get. Talk to speedy cables, thats where mick got them mode, i paid £100 delivered for a pair. You need to let them know the type of handbrake caliper's you're using so they fit the right end. They have drawings for the cables mick used to have made up.



[murf]

Cheers Phil!meant to reply ages ago
