fuel tank vents

#1

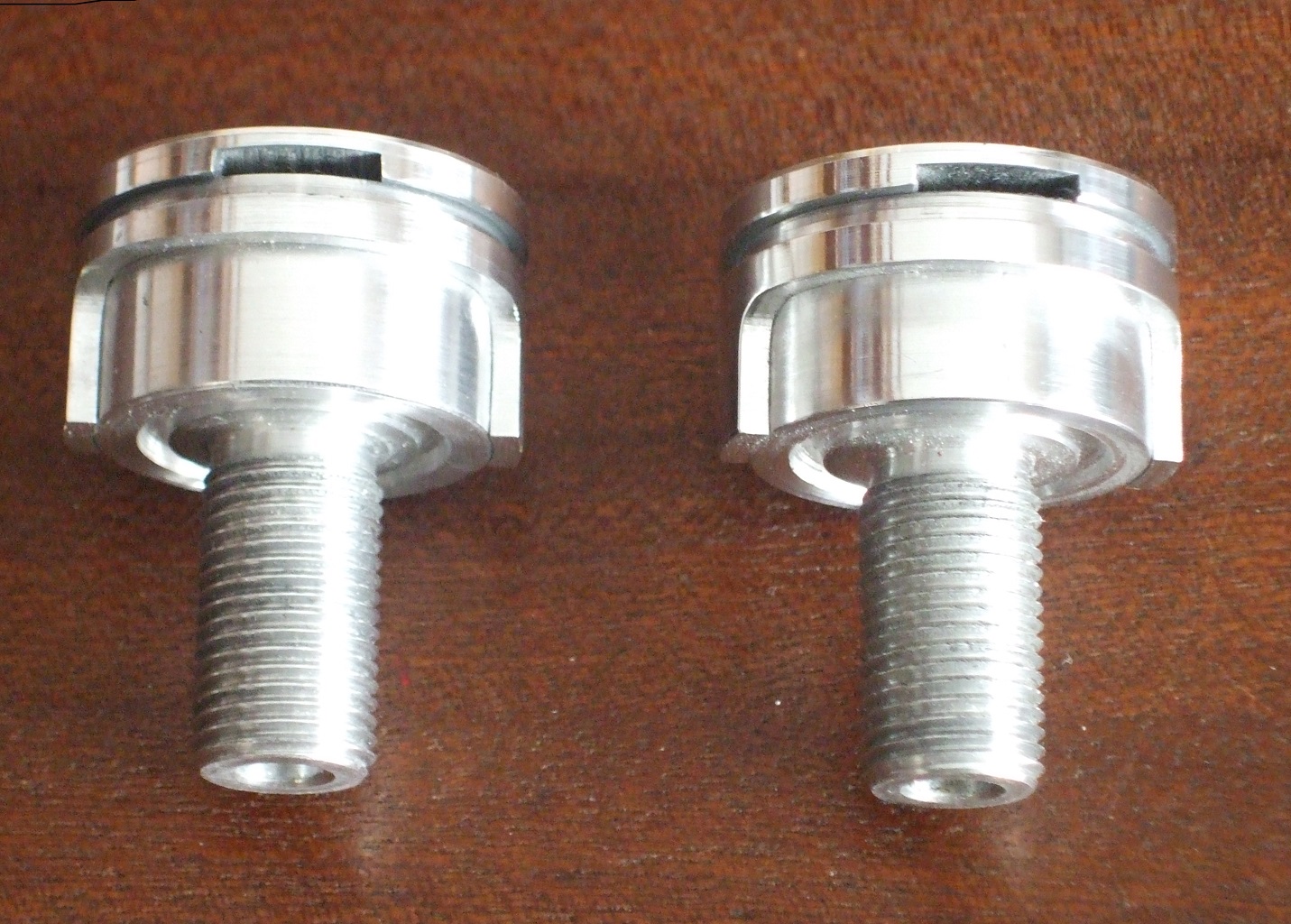

I noticed in a picture of Graham Hill standing beside a GT40 with the front clip open and next to the off side filler cap is a small object which I had not seen before so I looked in the book Ford GT40 Production and Racing History individual chassis record by Trevor Legate and in the exploded view section on page 202 it shows the complete fuel system including valve none return units ( key number 5 part number 106292) I am not sure if these valves ( two shown in the book) were fitted to all the cars or perhaps just the road cars but I made a pair and they work great. Can anyone comment on this please.
Attached Thumbnails


Attachments

JimmyMac

Lifetime Premier Supporter
Lifetime Supporter
#5
We use them.

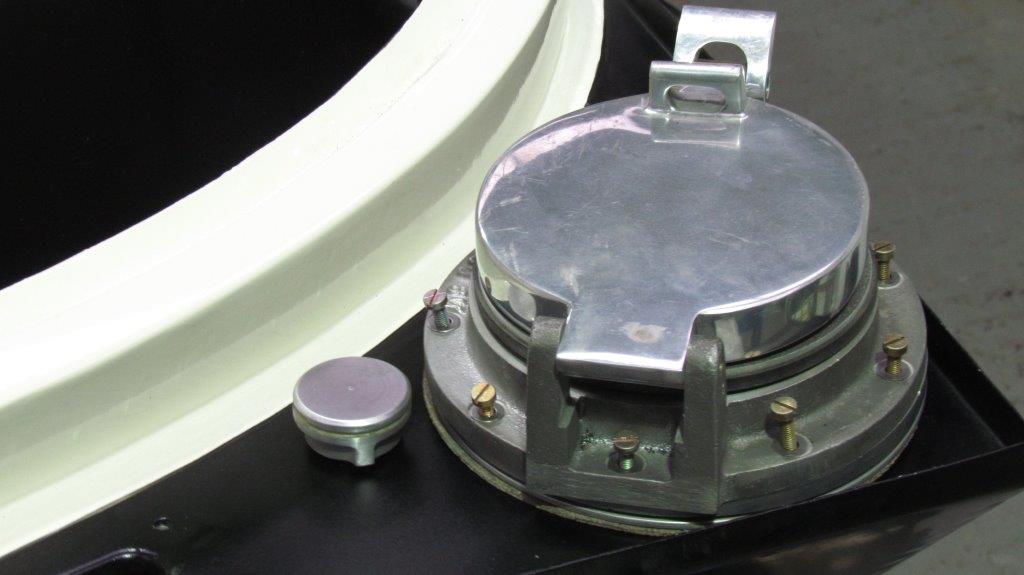

They are filler vents so require a non-return ball valve upstream to prevent them becoming drains if the car overturns.


Attachments

#8
I noticed in a picture of Graham Hill standing beside a GT40 with the front clip open and next to the off side filler cap is a small object which I had not seen before so I looked in the book Ford GT40 Production and Racing History individual chassis record by Trevor Legate and in the exploded view section on page 202 it shows the complete fuel system including valve none return units ( key number 5 part number 106292) I am not sure if these valves ( two shown in the book) were fitted to all the cars or perhaps just the road cars but I made a pair and they work great. Can anyone comment on this please.
Attached Thumbnails
Very nice work Brian.

They were fitted to all GT40s with the original bag tanks.

Regards,
