GT40 CAD project

[Ole Nylende]

Information; None of this cad data or anything else posted is going to be forwarded, sold or anything.
If you want to do a similar thing you are free to try, if you are in possession of a substantial amount of fav prints feel free to contact me.

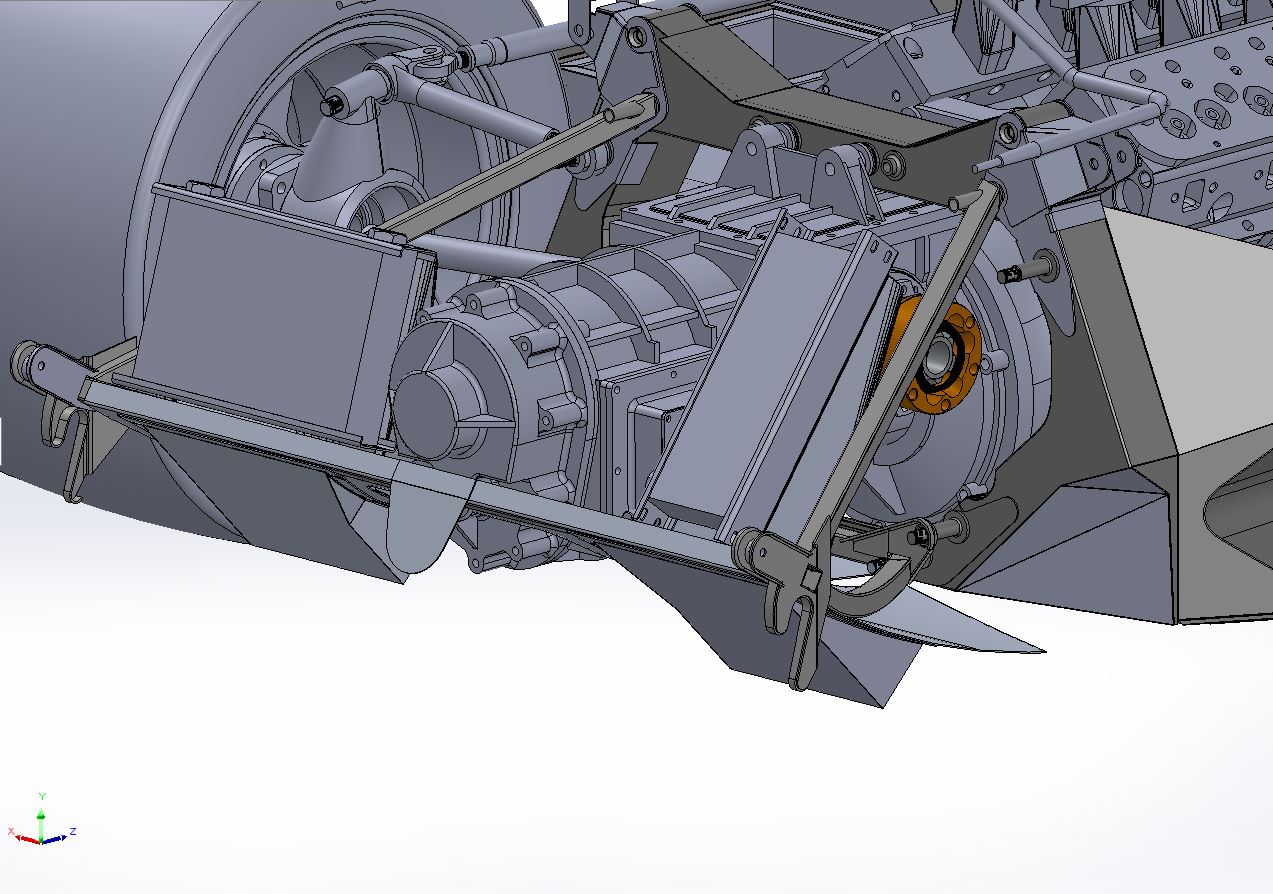

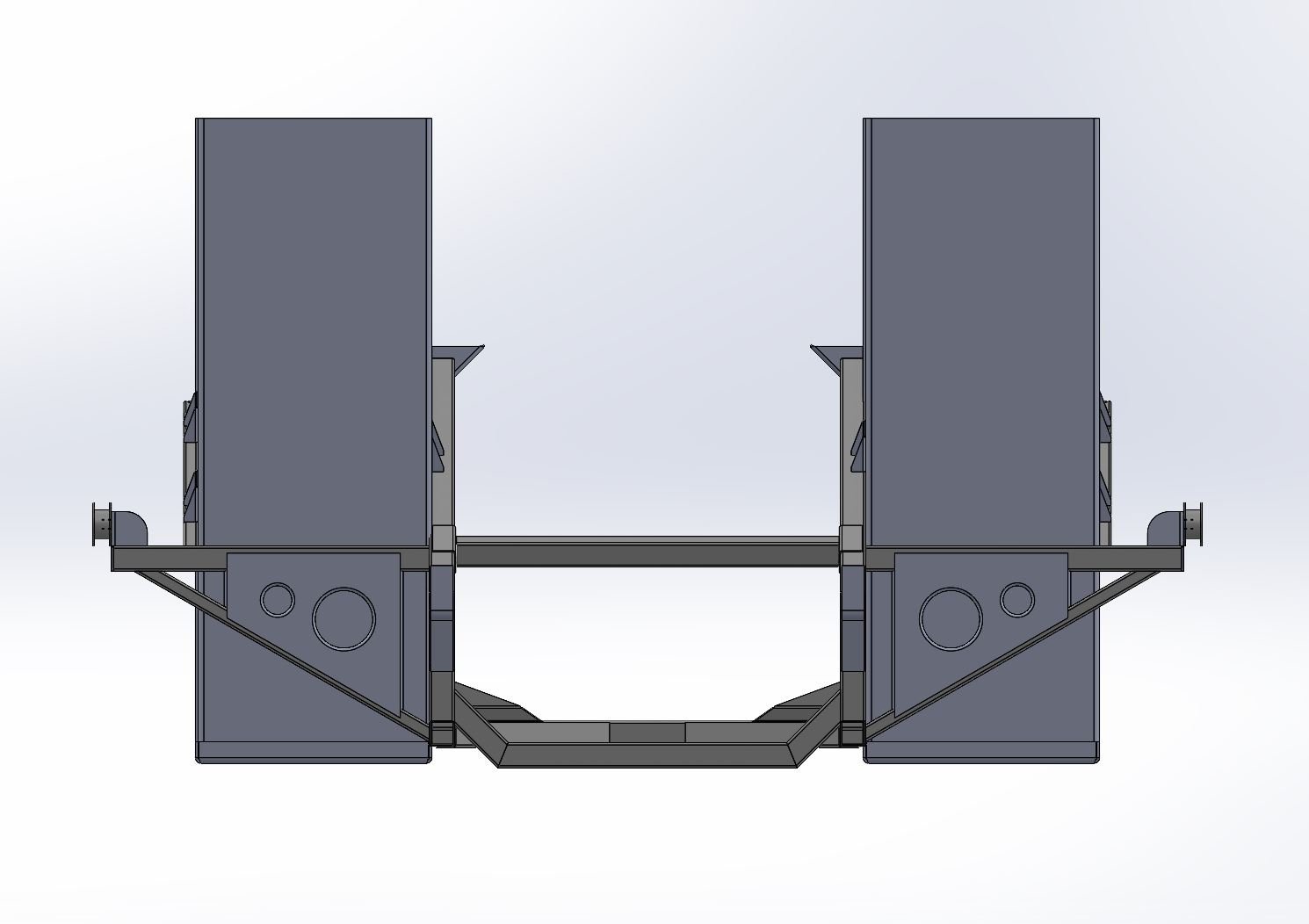

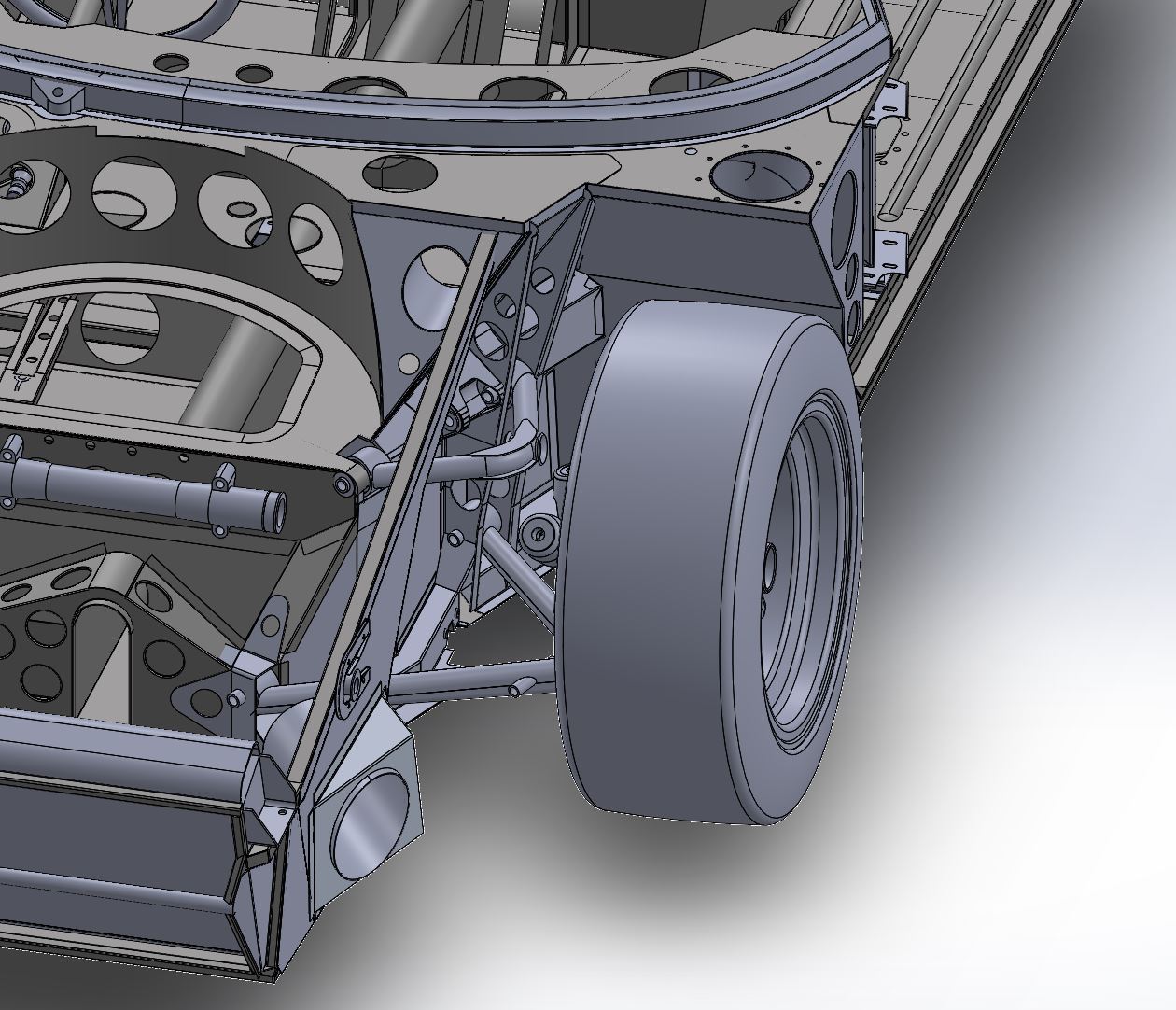

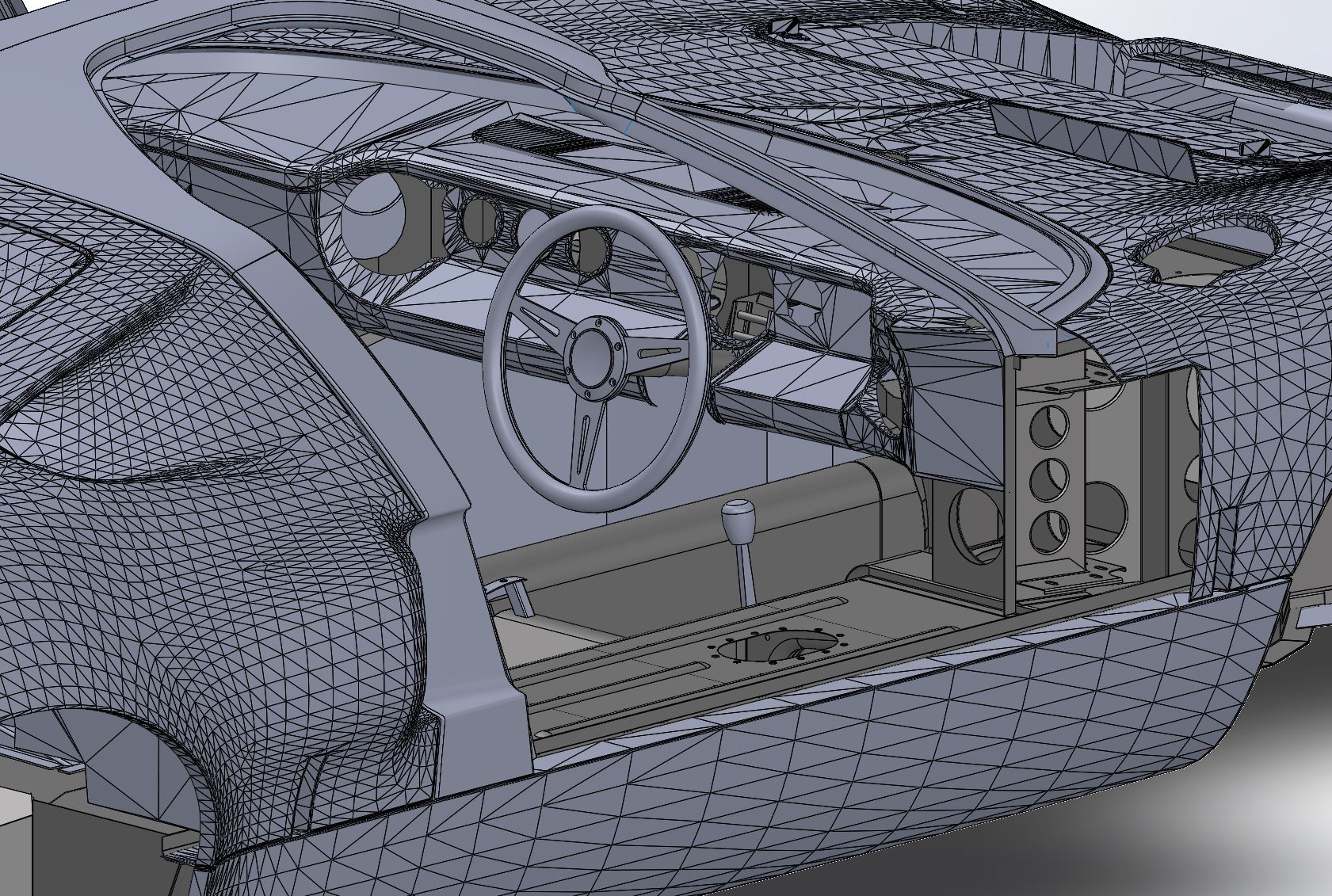

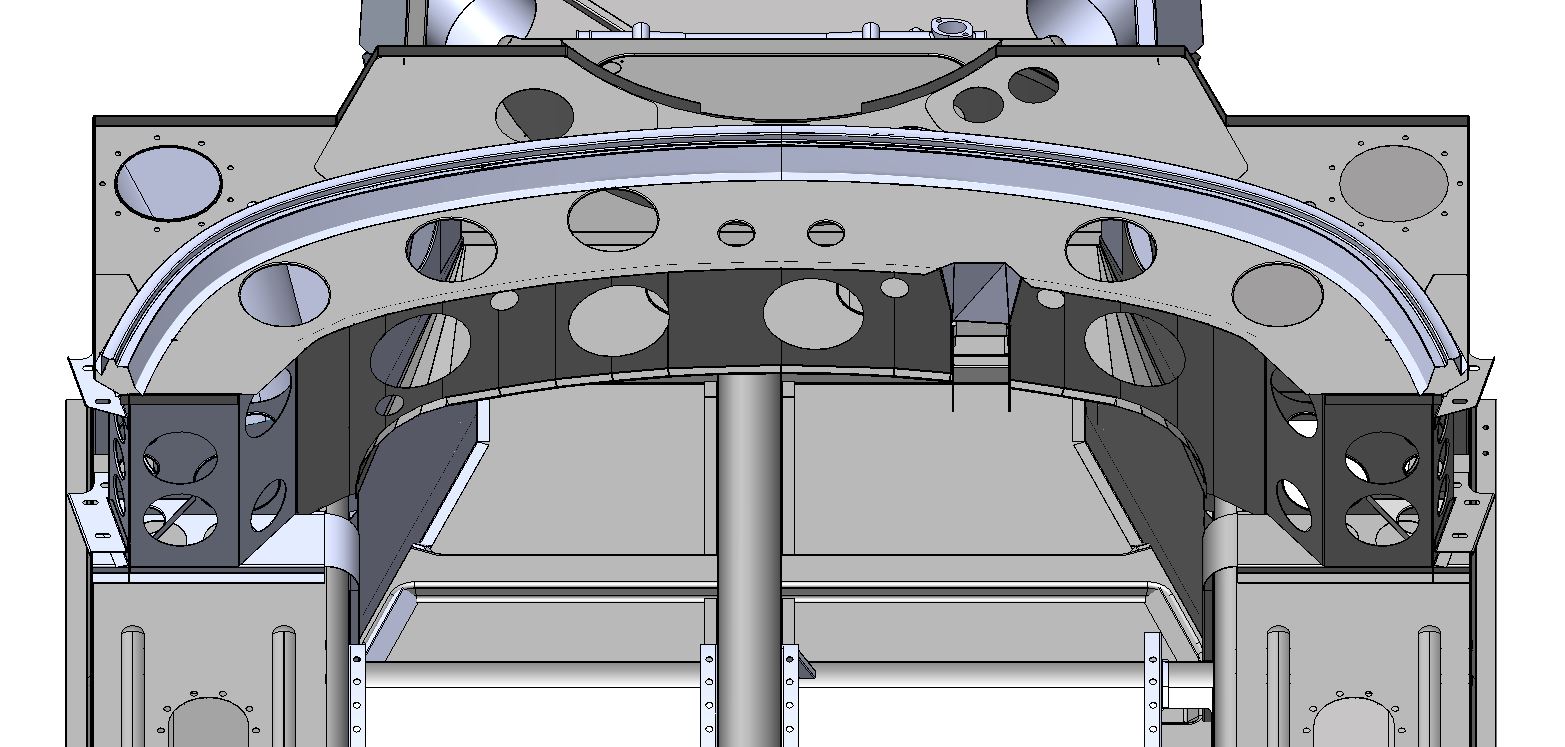

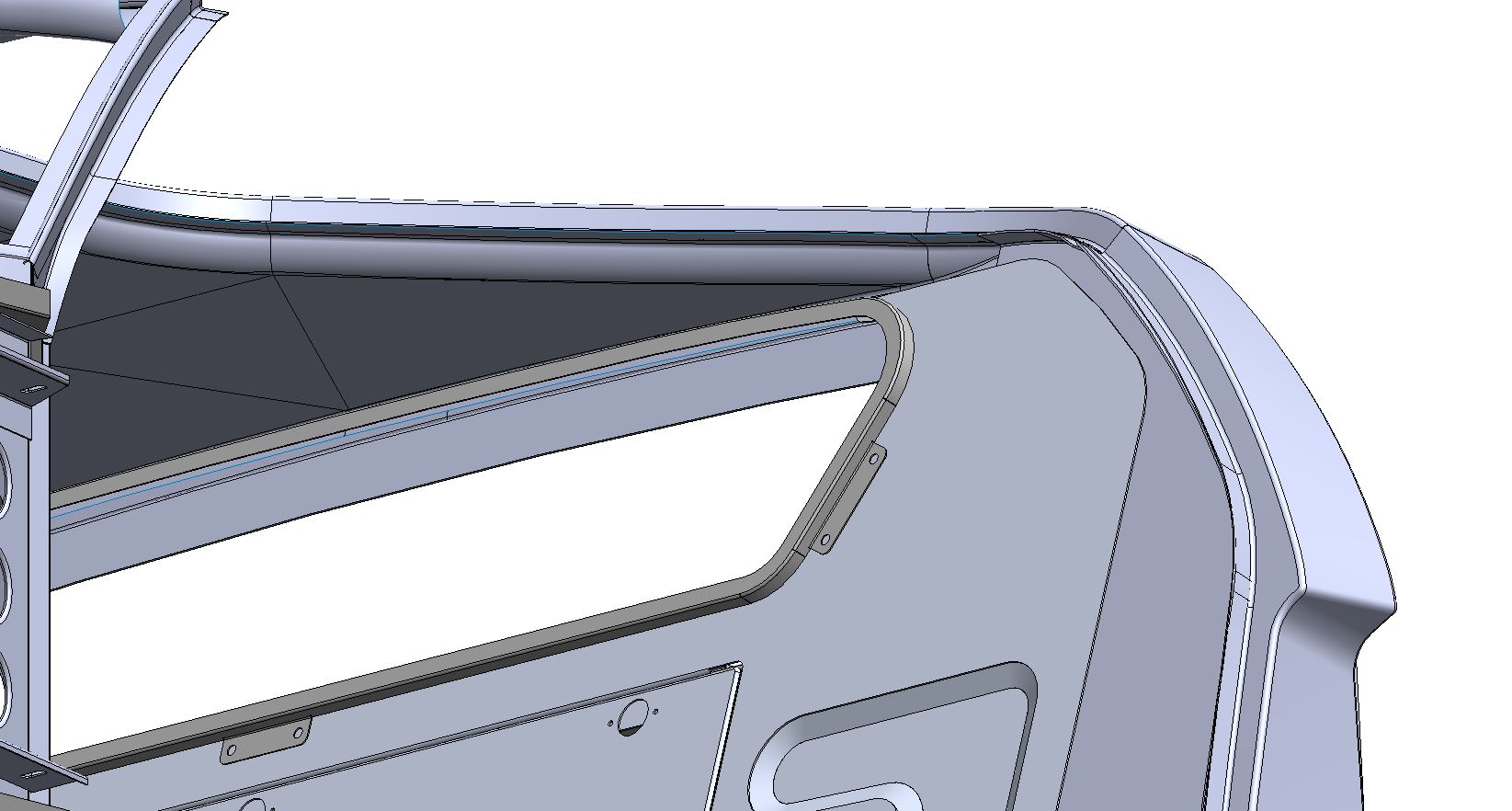

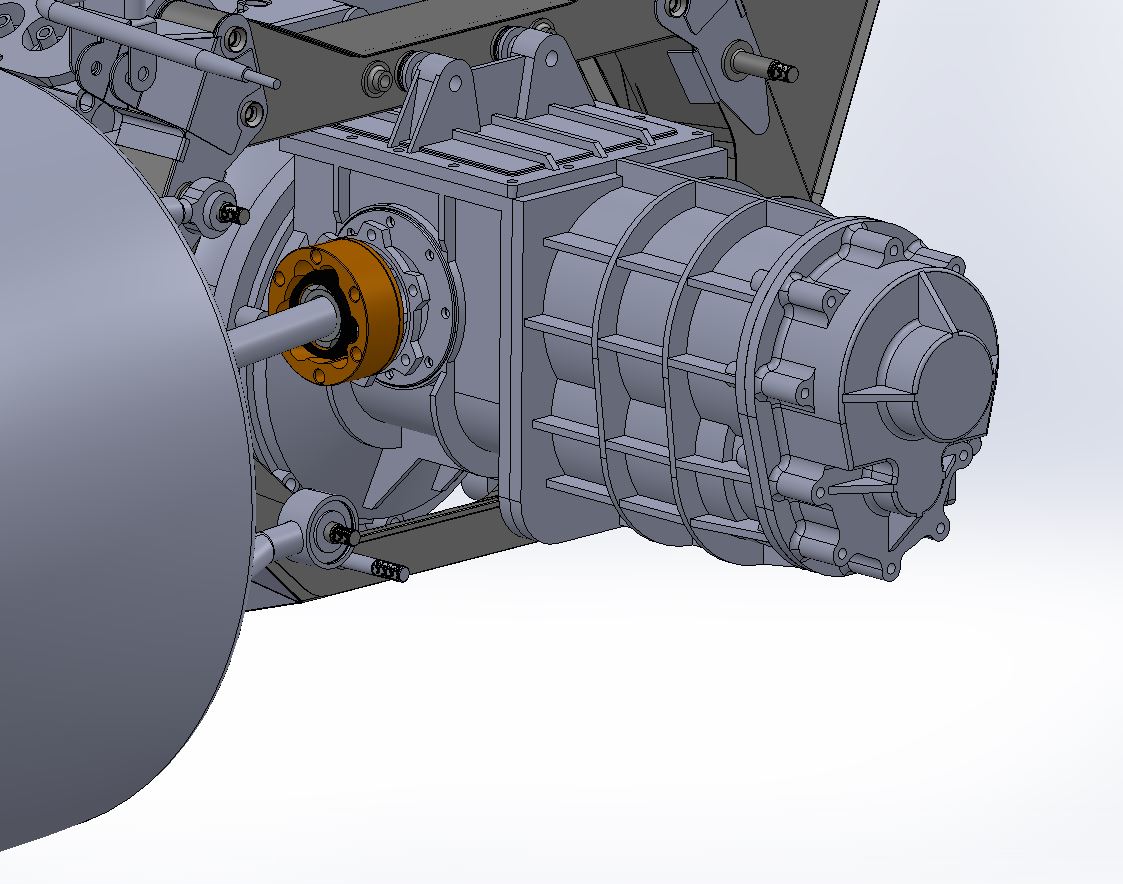

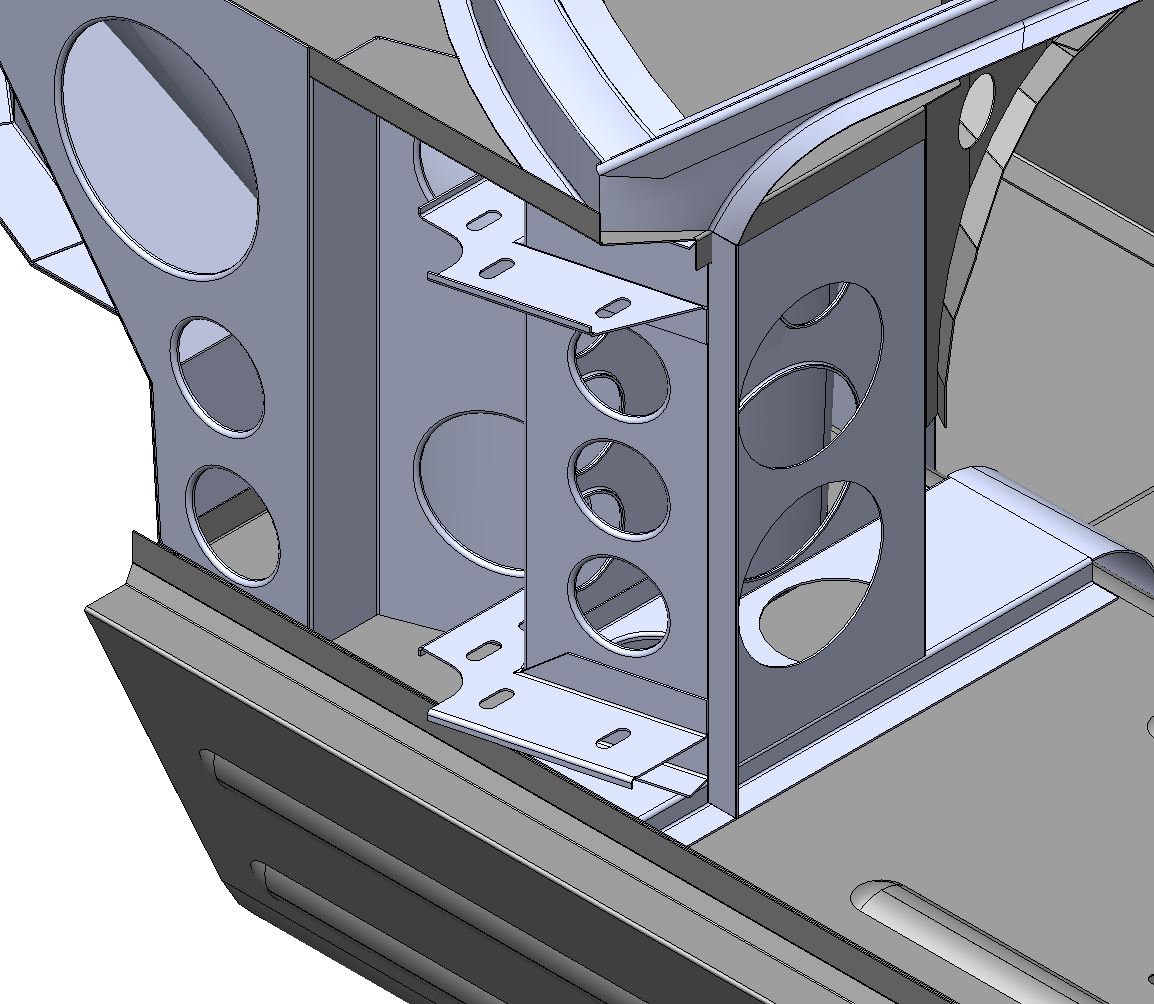

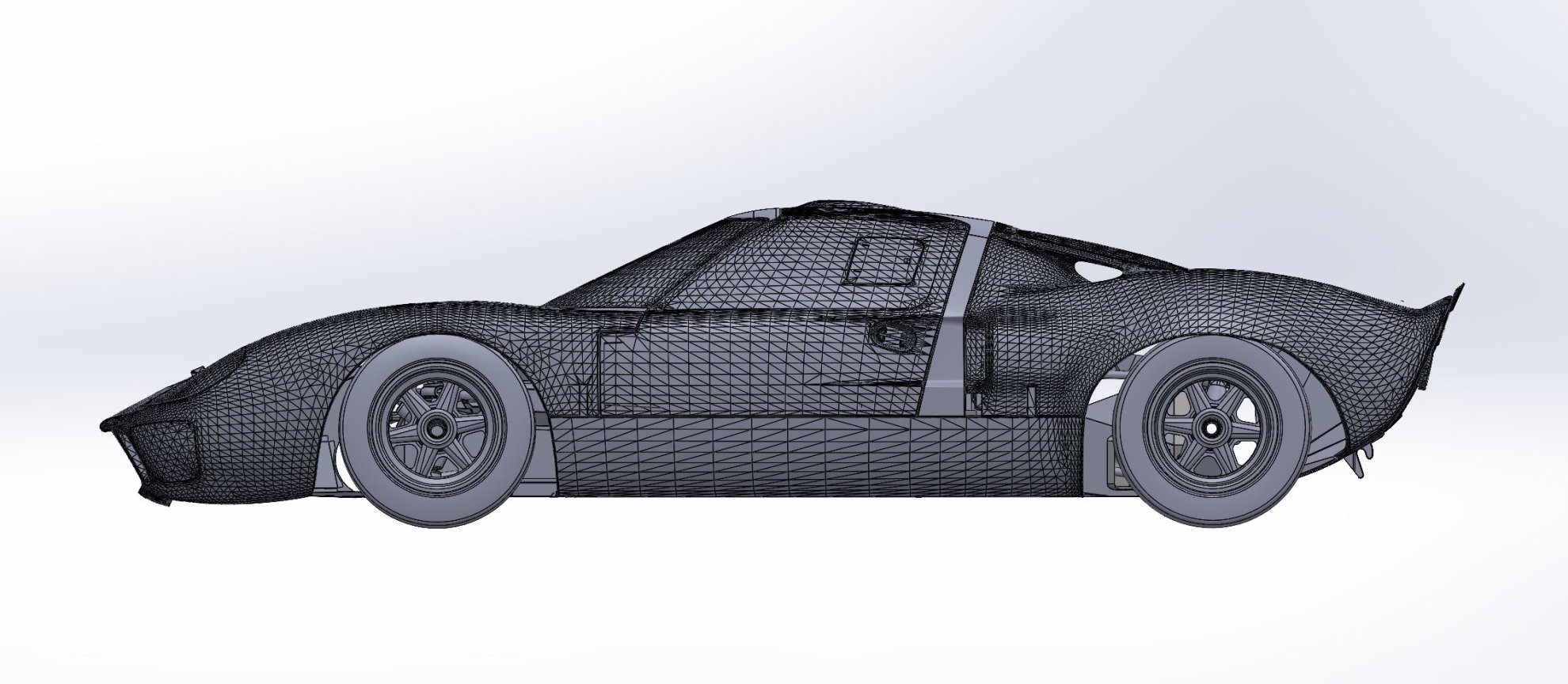

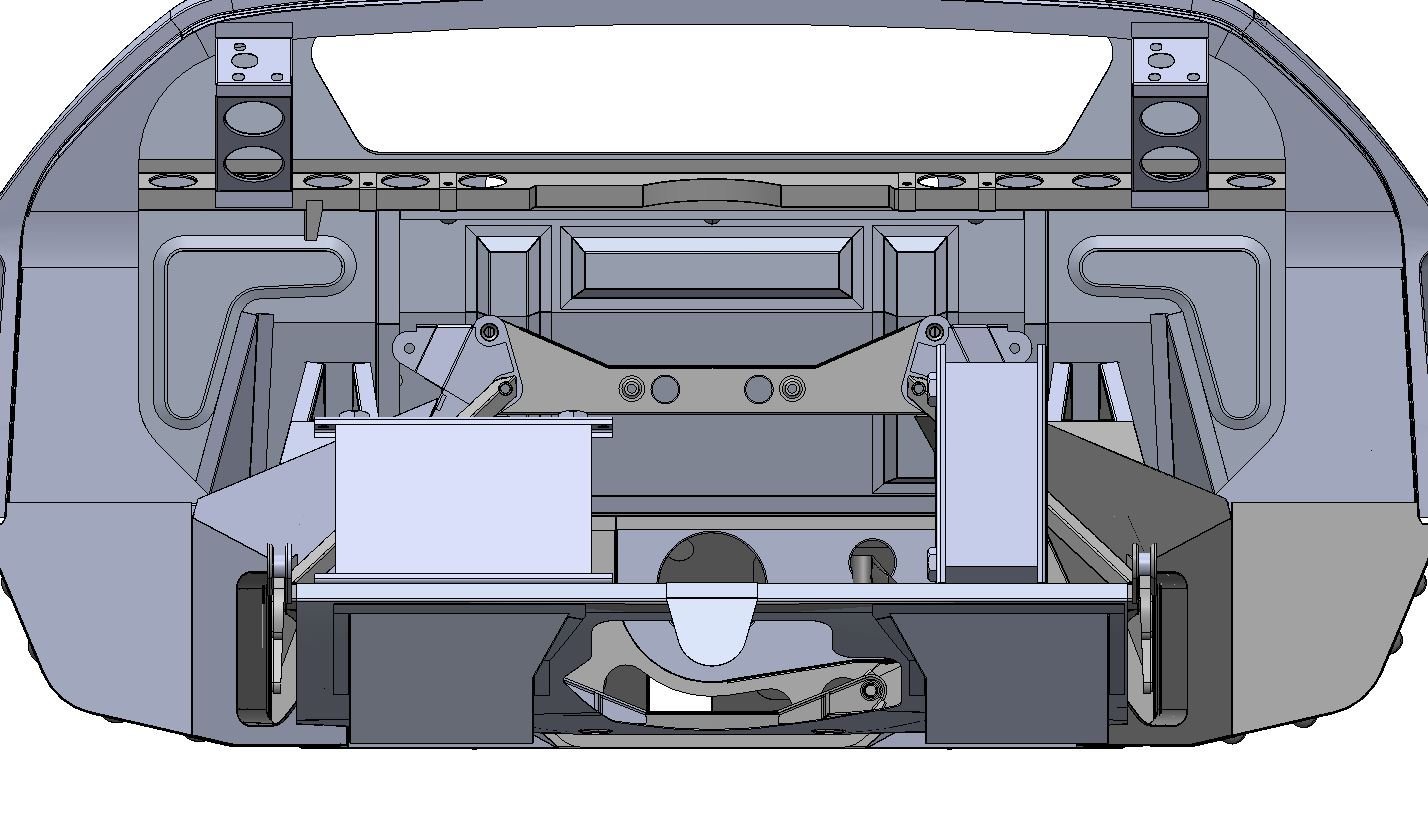

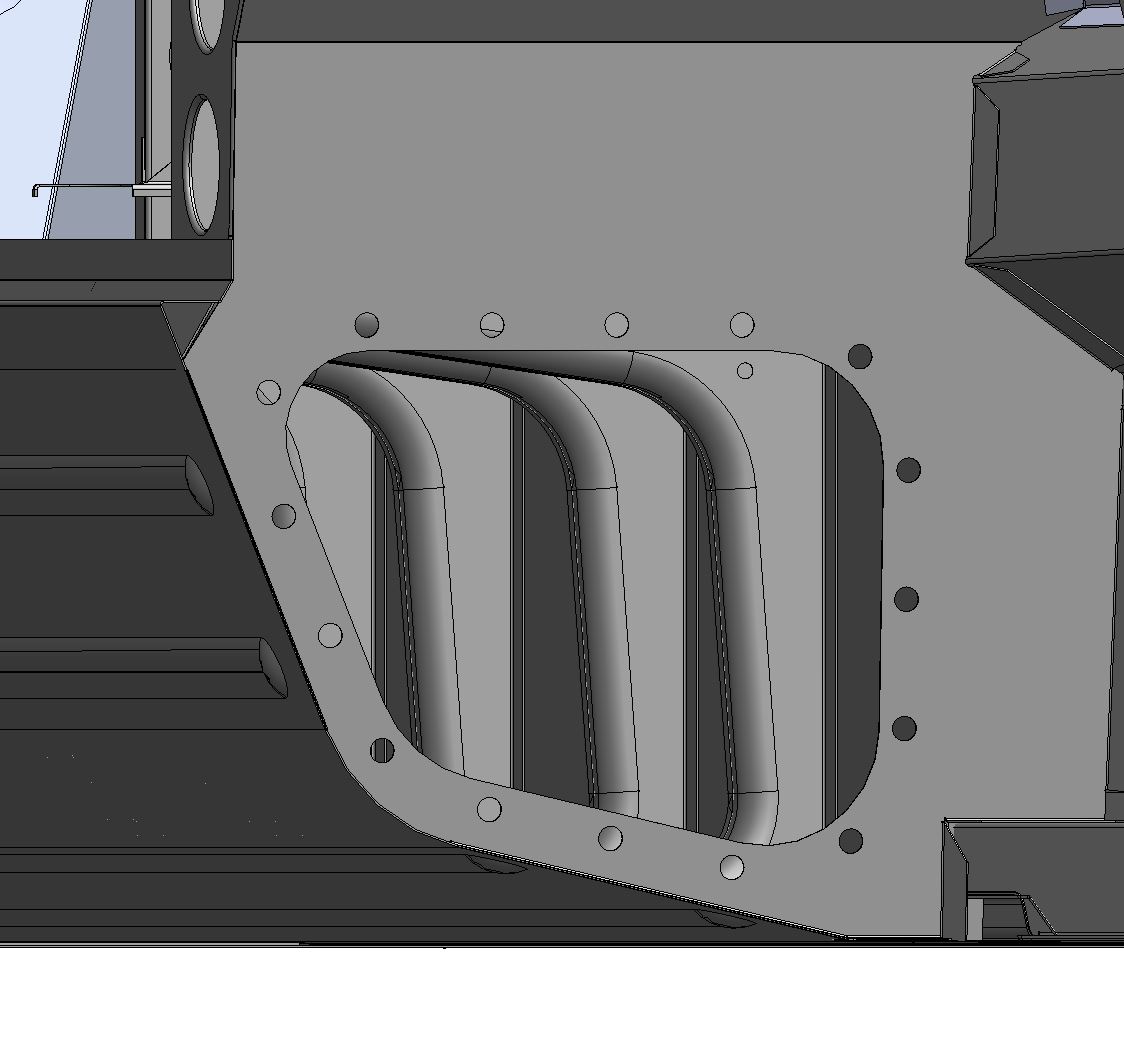

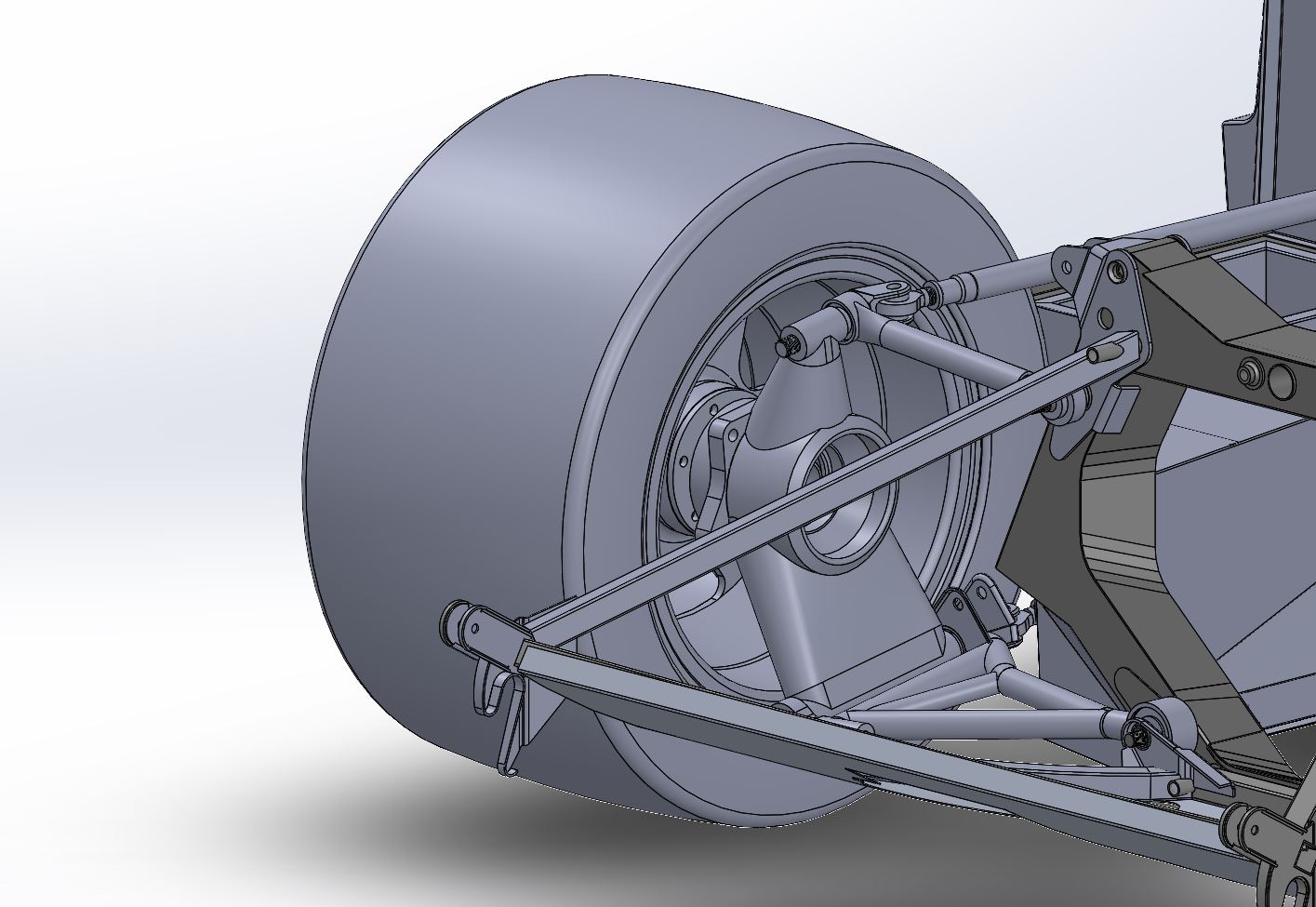

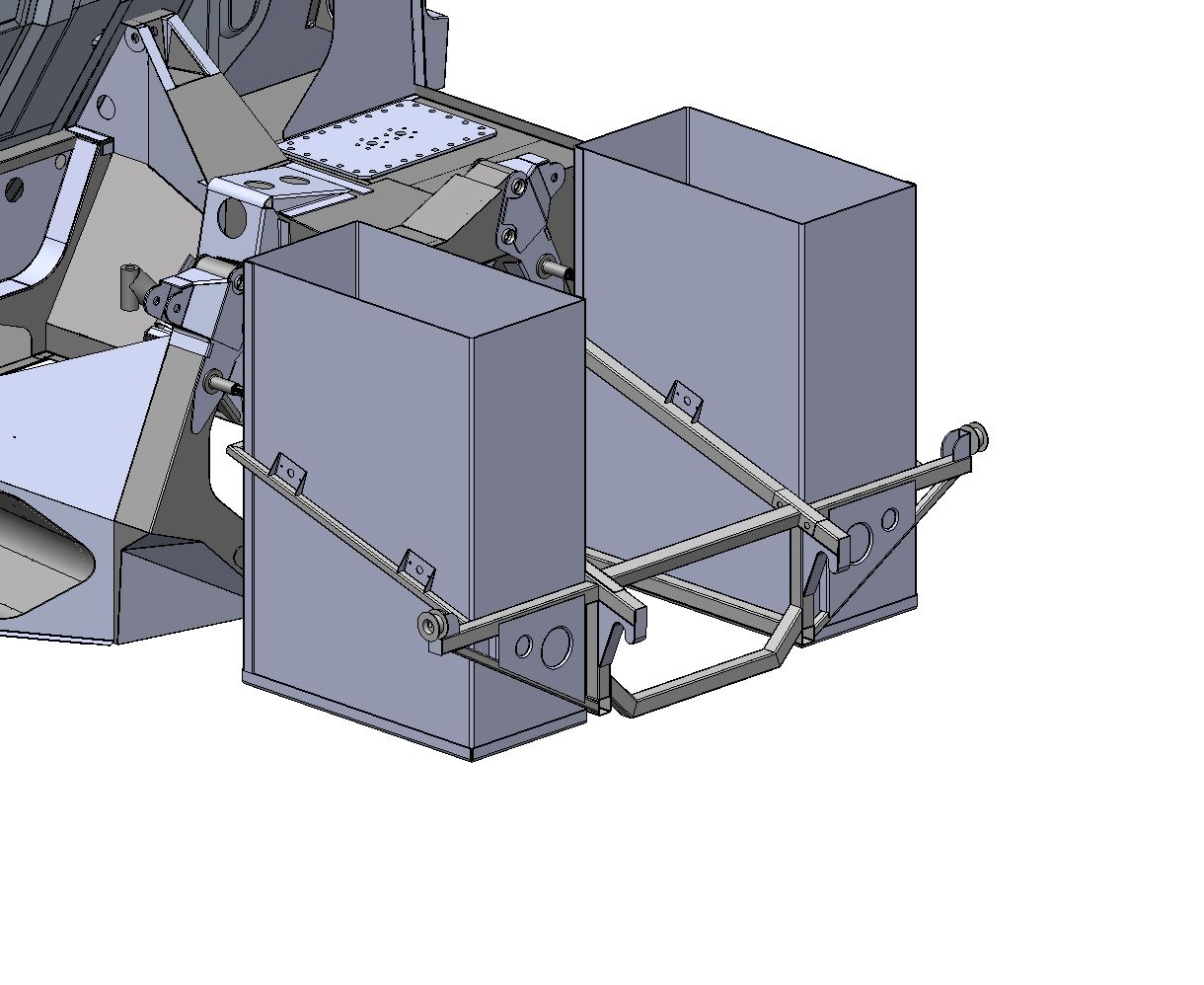

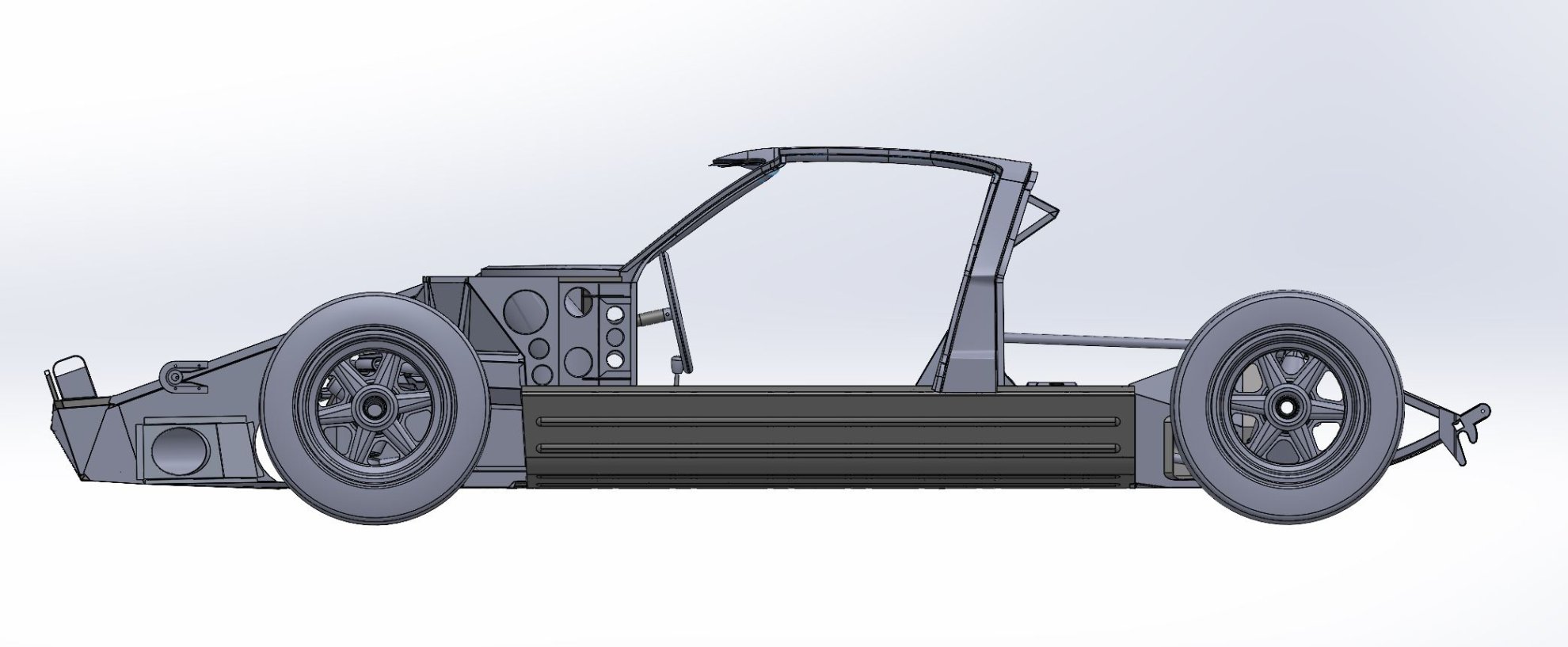

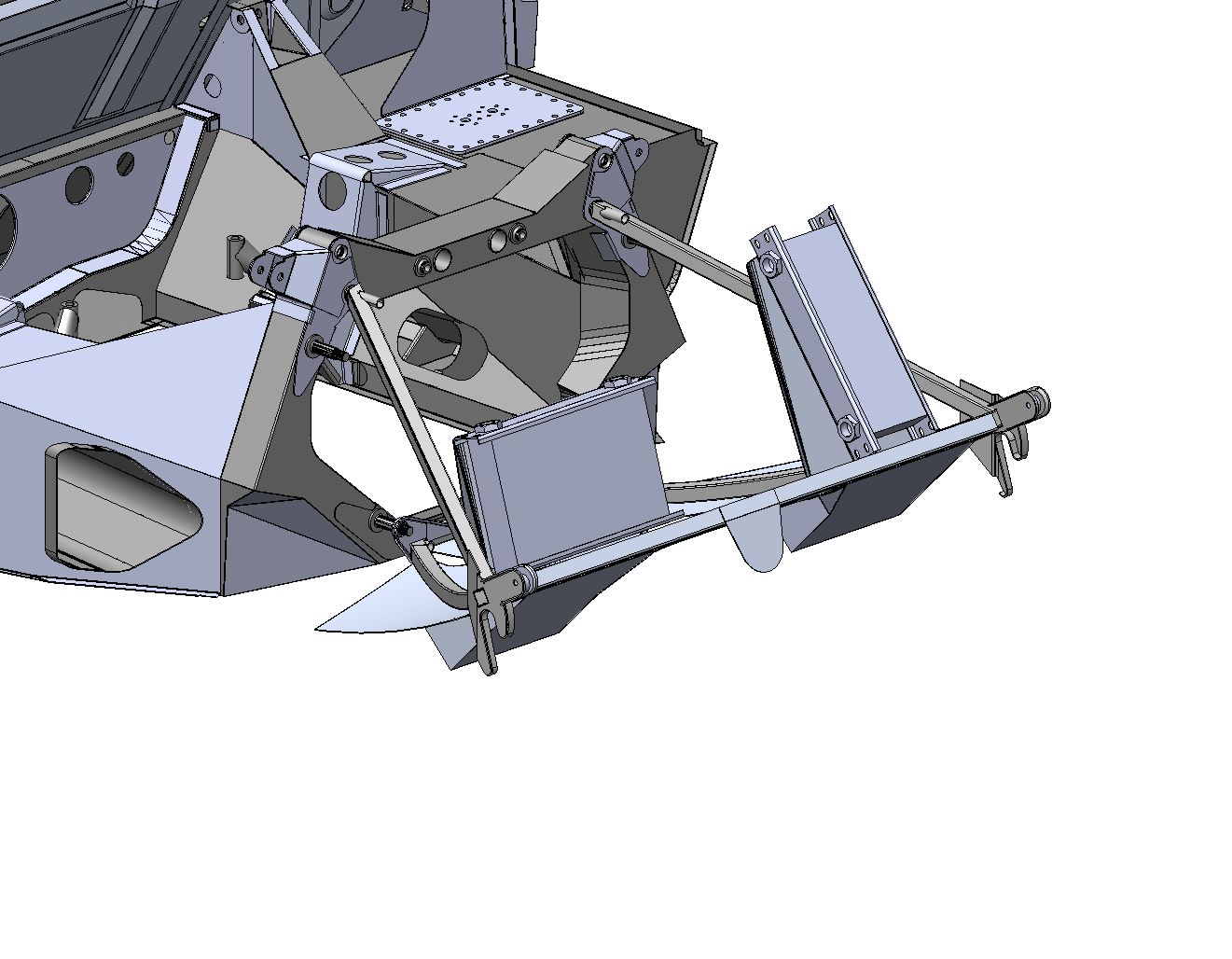

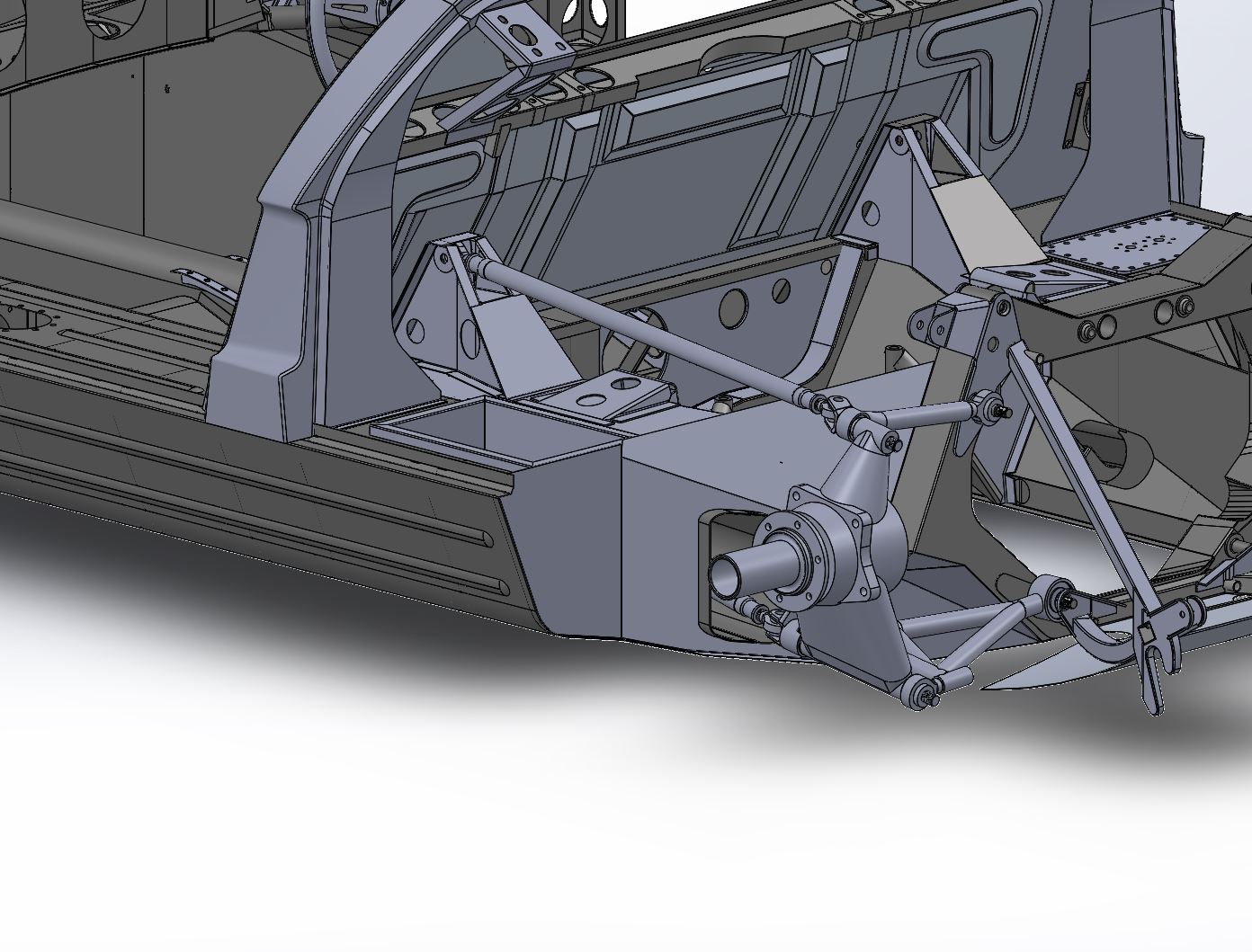

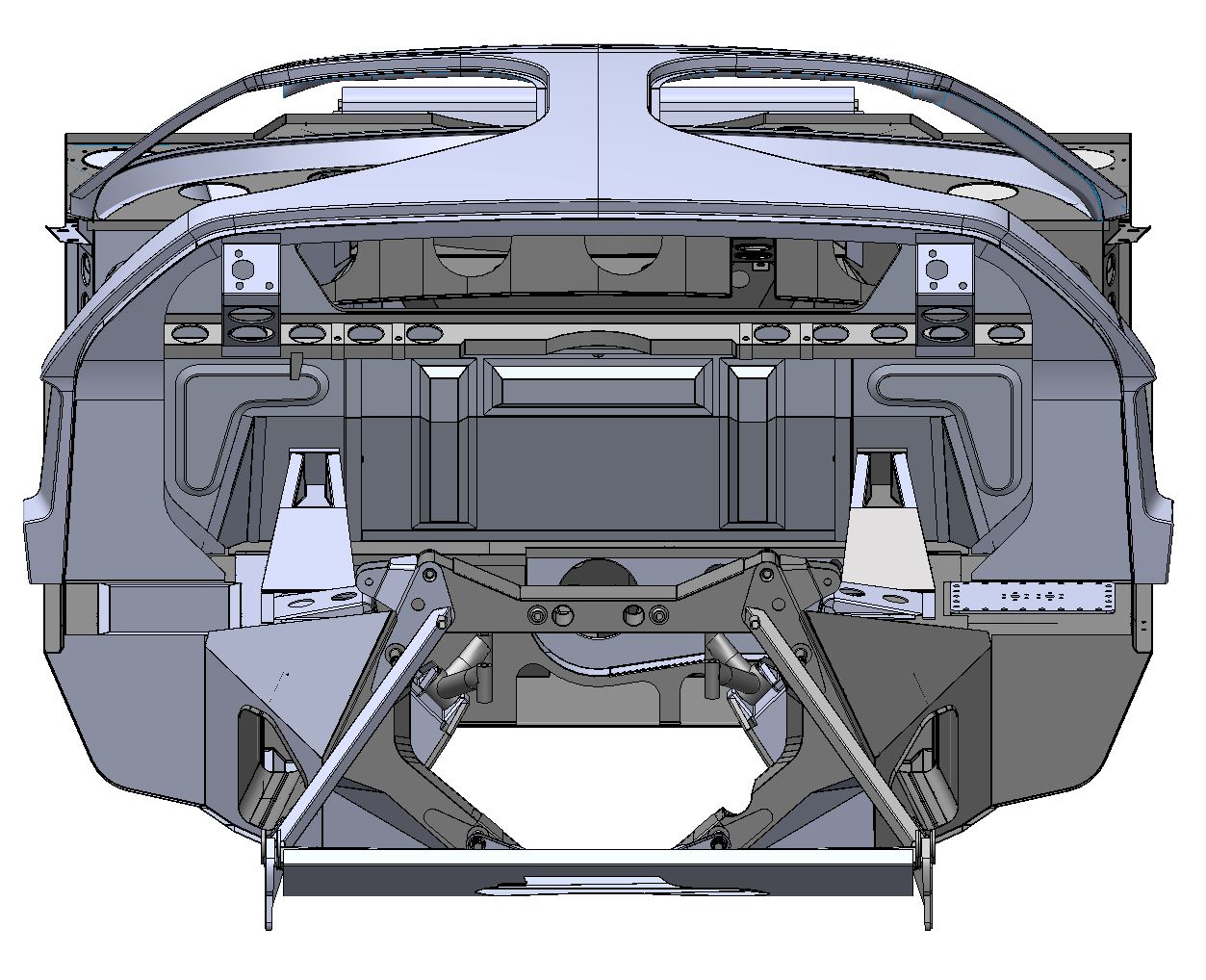

Thought i'd post a few screenshots from my cad model.
It has taken countless hours, i don't even want to know how many hours i have spent on it.
It is a work in progress so still bits and pieces to be added and minor adjustments to be made.

All of this is based on the prints available online, some prints around on this forum and the gt40 uncovered book.
And alot of pictures of varius original cars.

Those who know this chassis well might spot a few flaws and changes. Nothing drastic should deviate from the original.



[Ole Nylende]

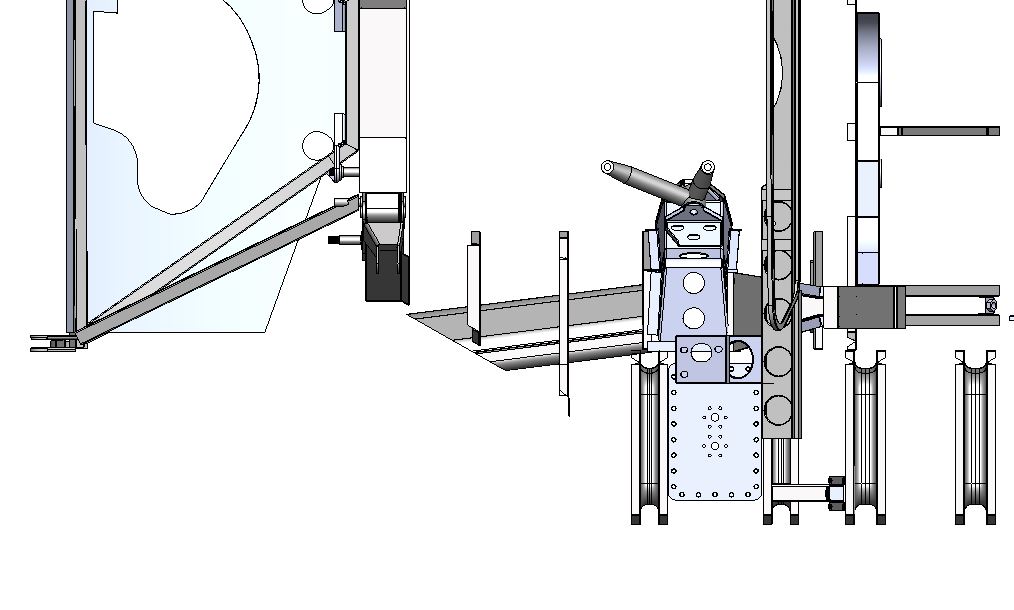

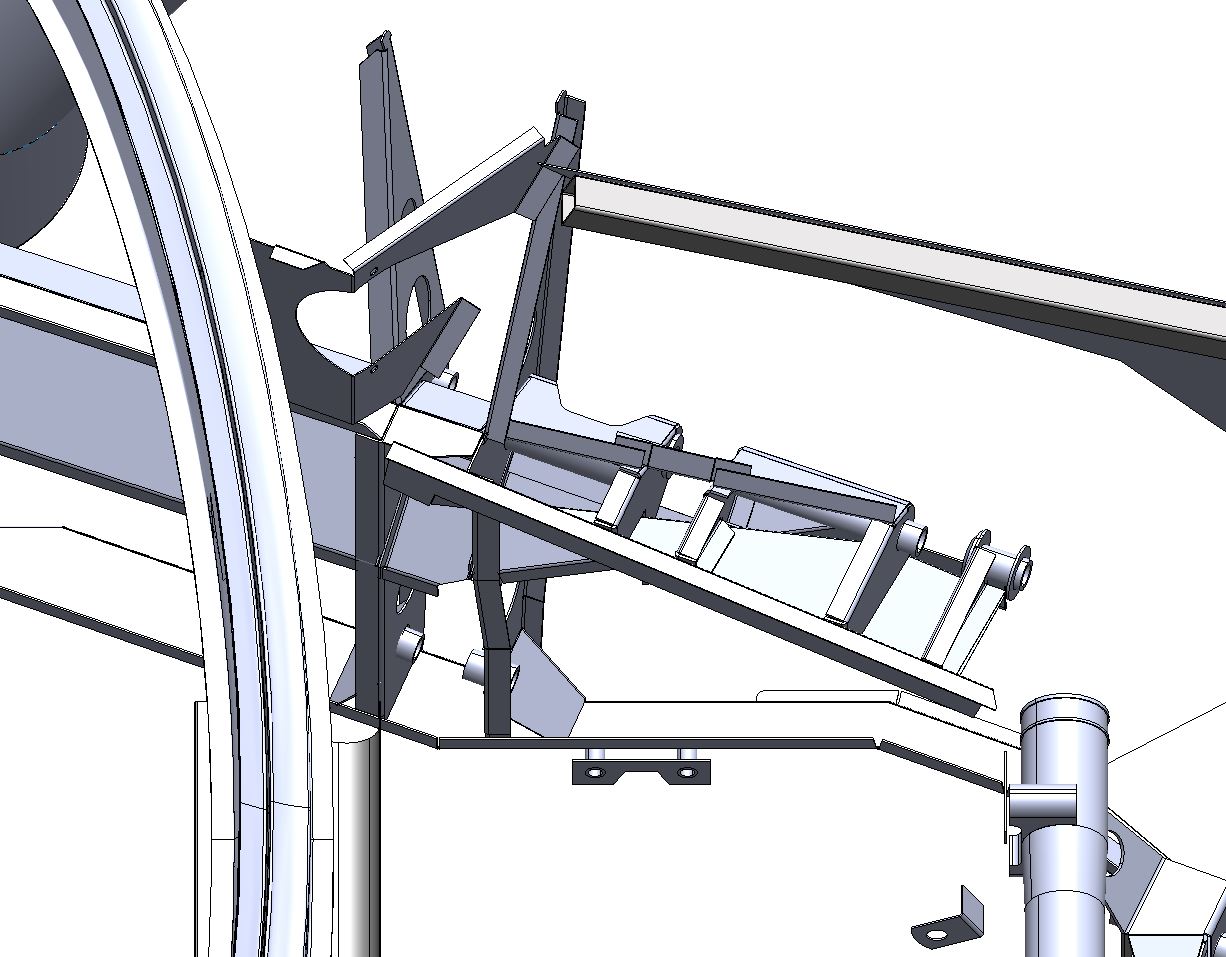

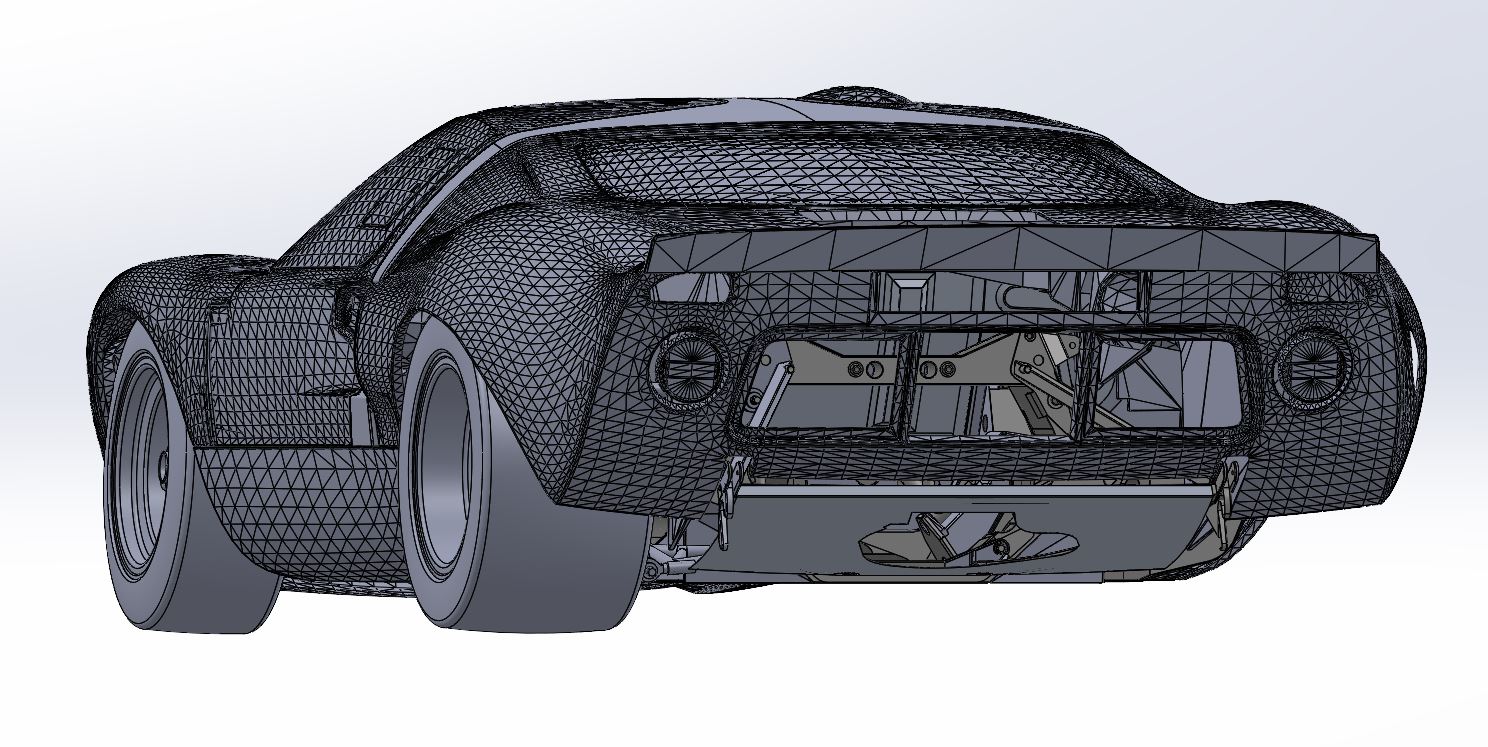

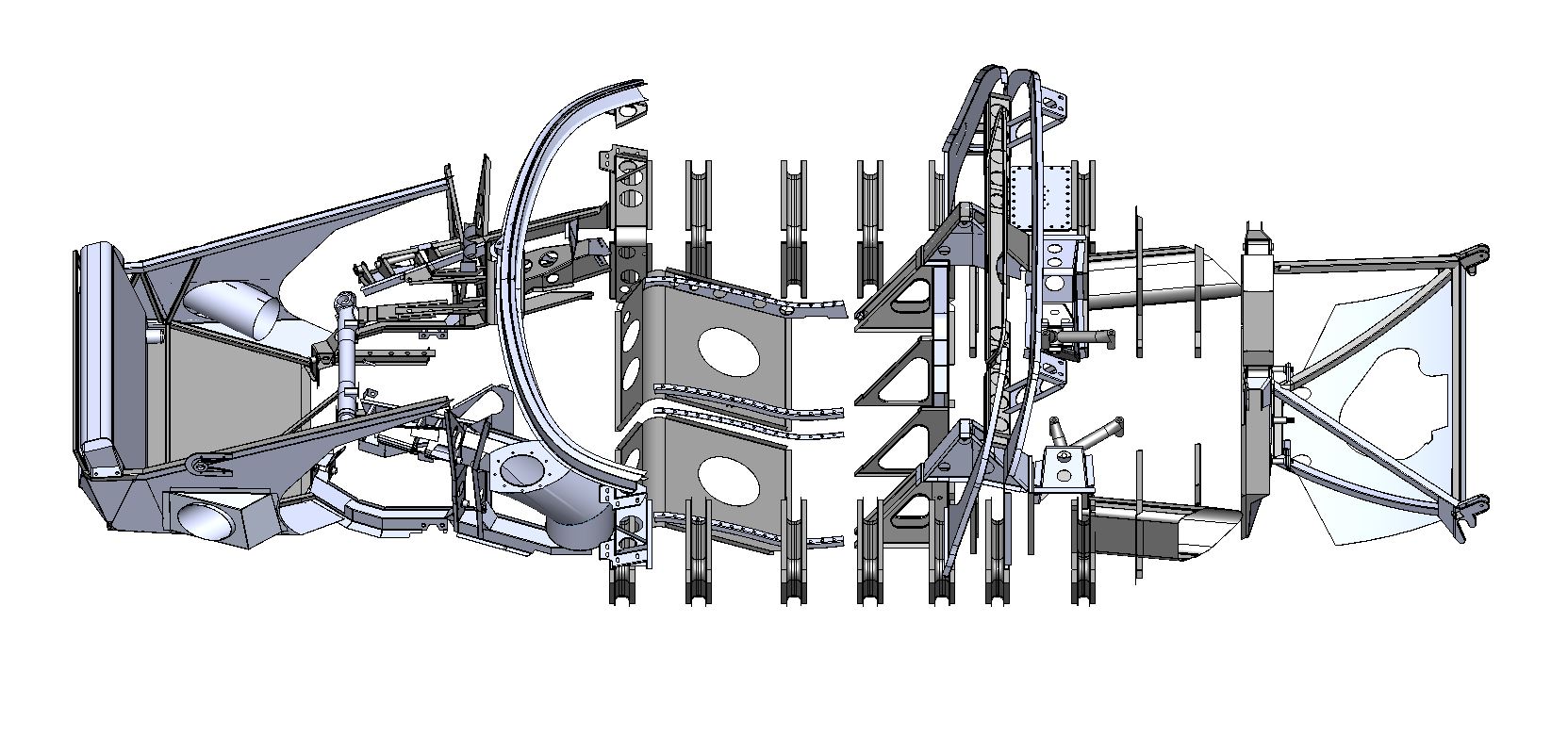

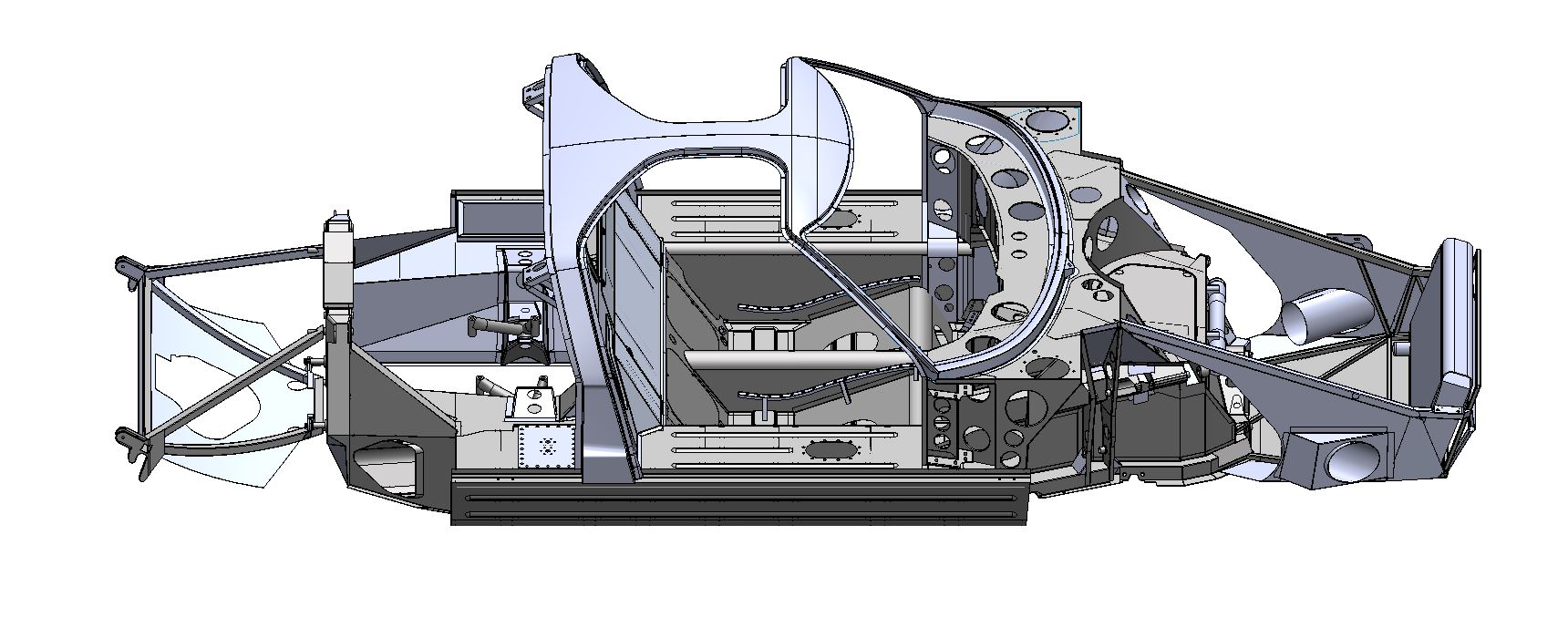

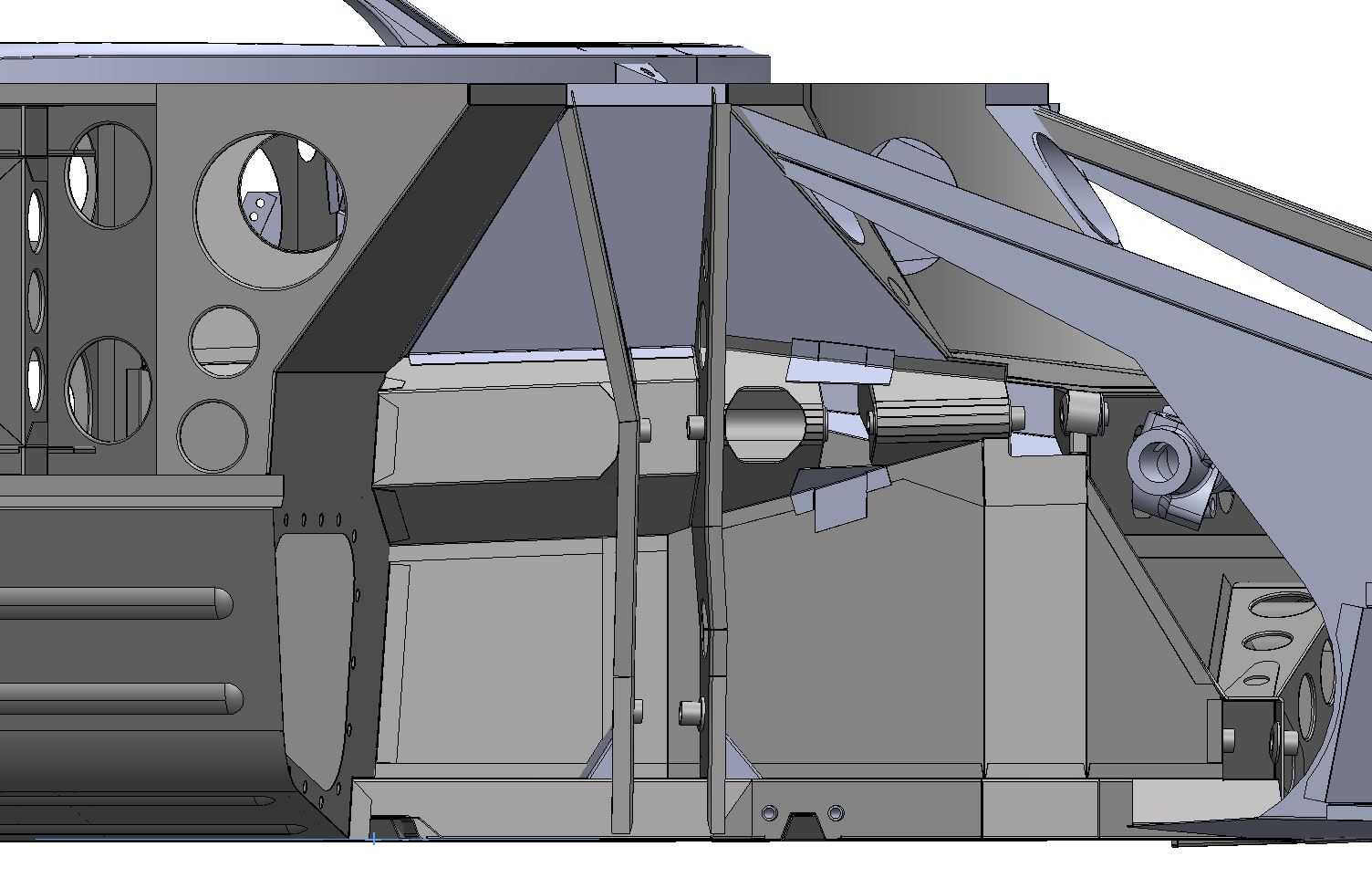

Some more



[Ian Anderson]

Wow, you certainly have a talent there!



[Ryan L]

Amazing work, I'm more impressed with how quick you get it done. Whatever the hours are that you have in it, I'm sure I would be about double to achieve the same thing.

I can't keep up with you that is for sure.



[Tony]

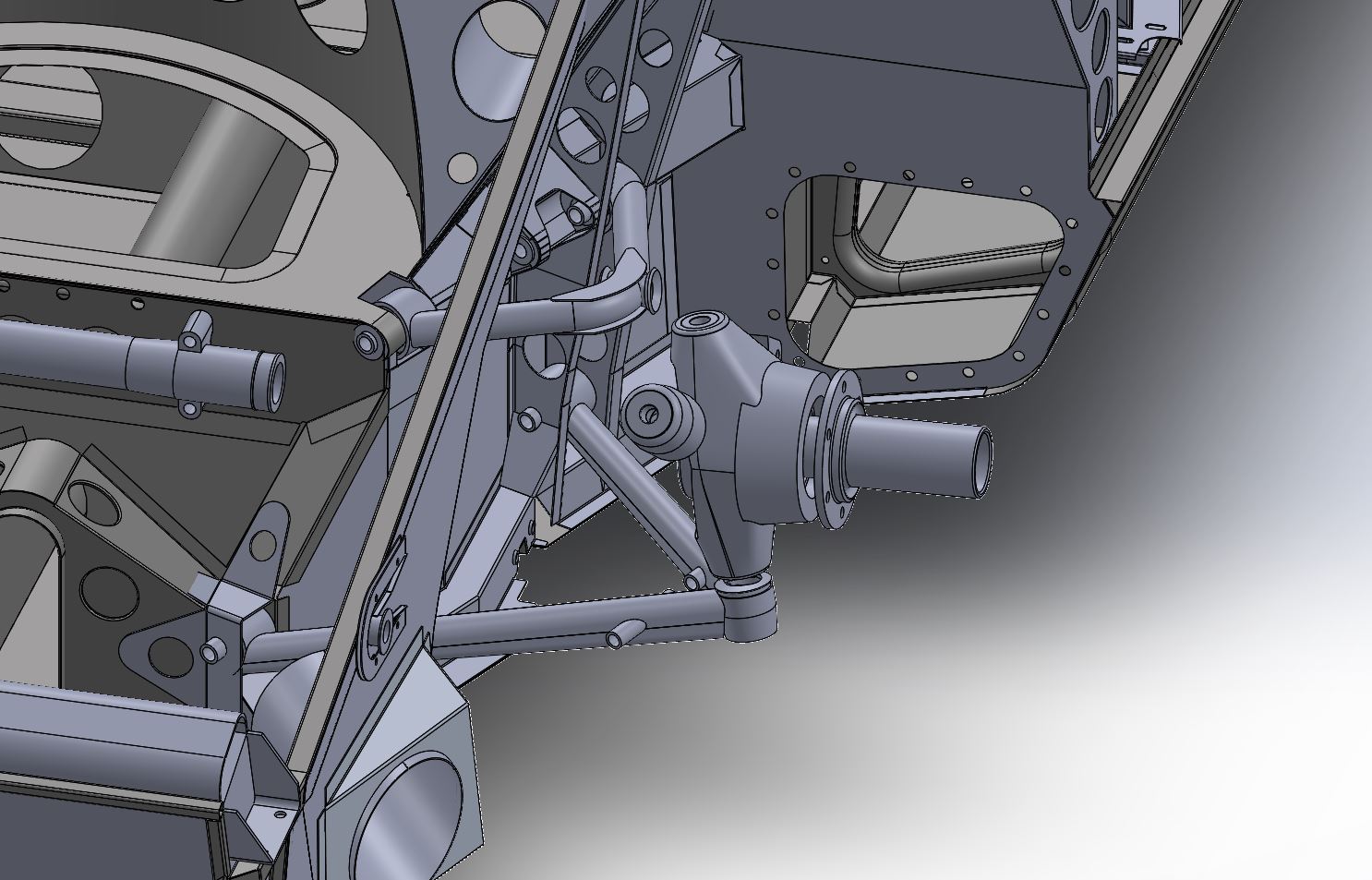

Certainty amazing work! Would you to see some more shots of around the front suspension support area.



[John Shand]

Great work, I tried to do this back in the day, but didn't have the time, or skills, Having built several chassis, looks familiar , only comment some radius should be larger, great work, have you used any original drawings ? thanks John



[Ole Nylende]

Great work, I tried to do this back in the day, but didn't have the time, or skills, Having built several chassis, looks familiar , only comment some radius should be larger, great work, have you used any original drawings ? thanks John

Thanks

Most of this is based on the prints available and a couple of handfulls which aren't available online.
Could be that some radius'es is off.
The bits i dont have prints for is based on photos, measurements etc.

I have done alot more to this model lately, it is still a work in progress and will be for a couple of months more (atleast)
