Gulf Livery no.6 Le mans

[Will benz]

Hi everyone, We have been asked to paint a GTD40 for a client in the no.6 Le mans winning gulf livery.
My quest for help leads me to ask if anyone can assist us with the strip dimensions for the orange and dark blue stripes.
Any help would be hugely appreciated!



[Morten]

painting gulf

Hello. what width is the belt royal blue.in the car P1075? now my car is in the paint shop. Sorry, but I do not speak english. Grzegorz.

www.gt40s.com

Will this help?



[Brian Kissel]

Welcome to GT40S Will. Hopefully someone can help you with the information you seek.
Enjoy the forum.

Regards Brian



[Mike Pass]

If you buy one of these

FORD GT40 16 ENCYCLOPEDIA OF SUPERCARS MORE LISTED free uk postage | eBay

<p dir="ltr" style="margin-top:0; margin-bottom:0;">Encyclopedia of supercars part of a series all colour with pull out section. Many more listed. </p>

www.ebay.co.uk

there is a big double page top view image of the No6 car P1075 and other good pics.
Cheers
Mike



[Will benz]

A huge thanks to everyone who replied so quickly, this site is a hugely valuable source of info.



[Bill Kearley]

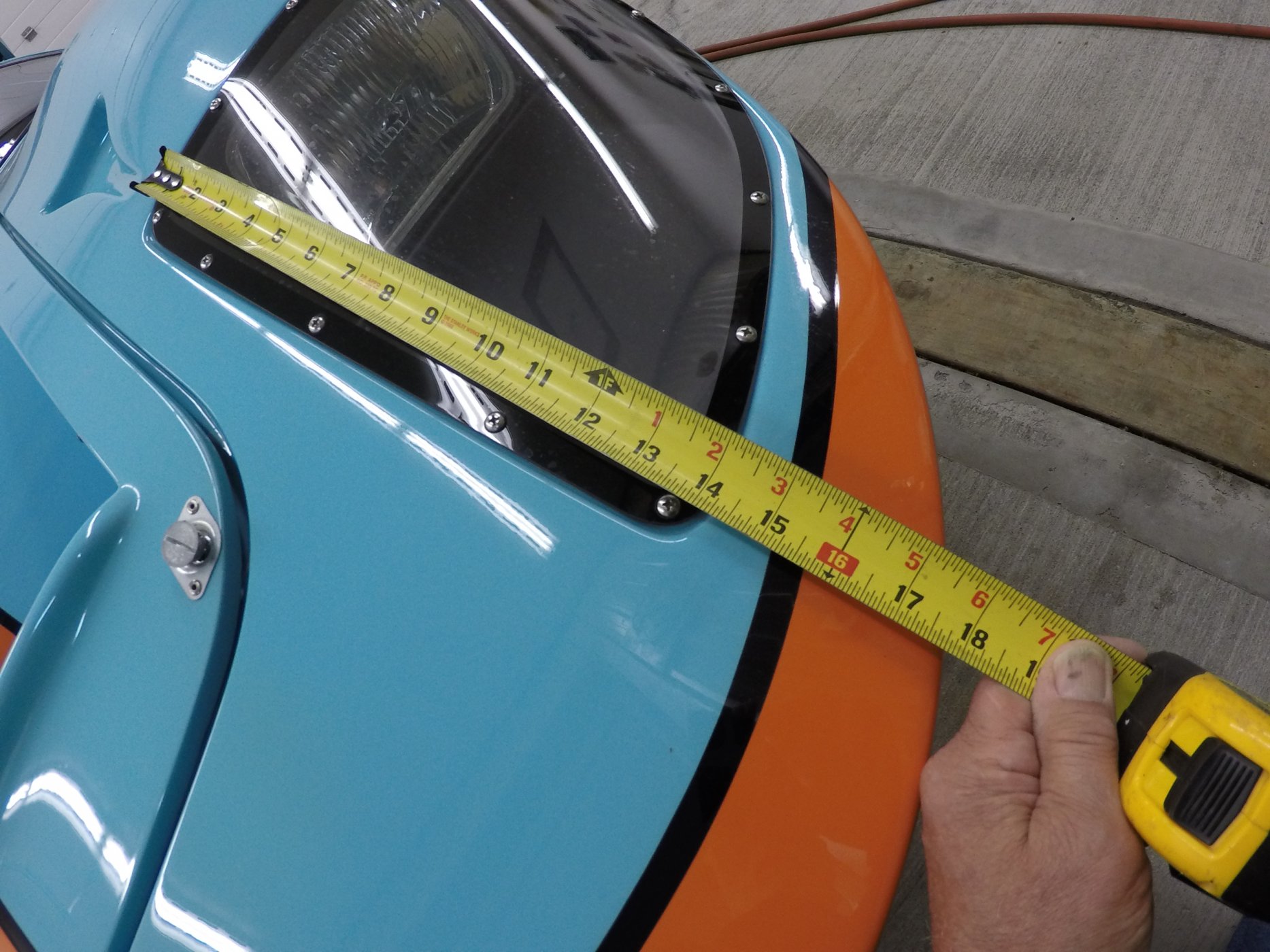

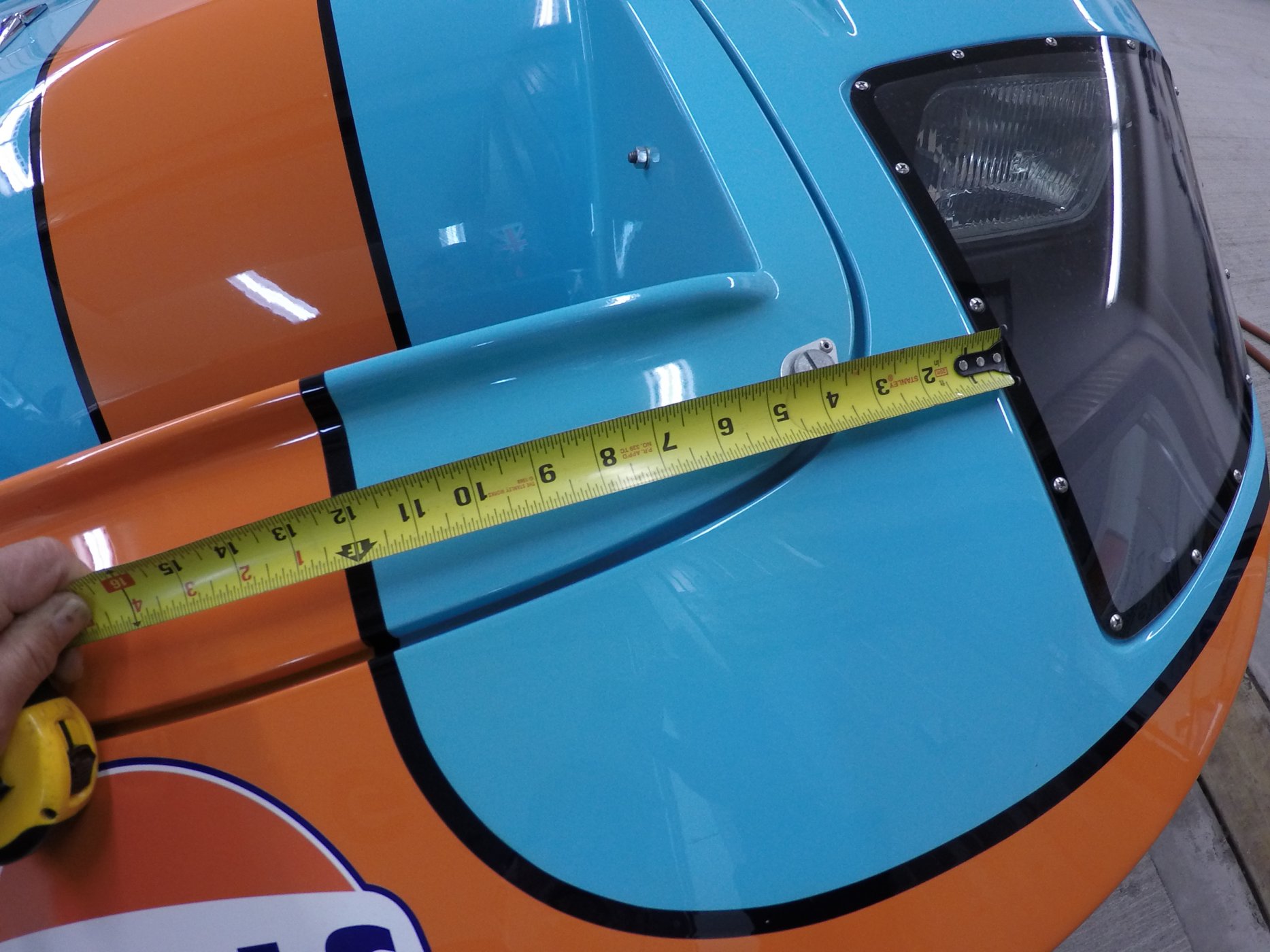

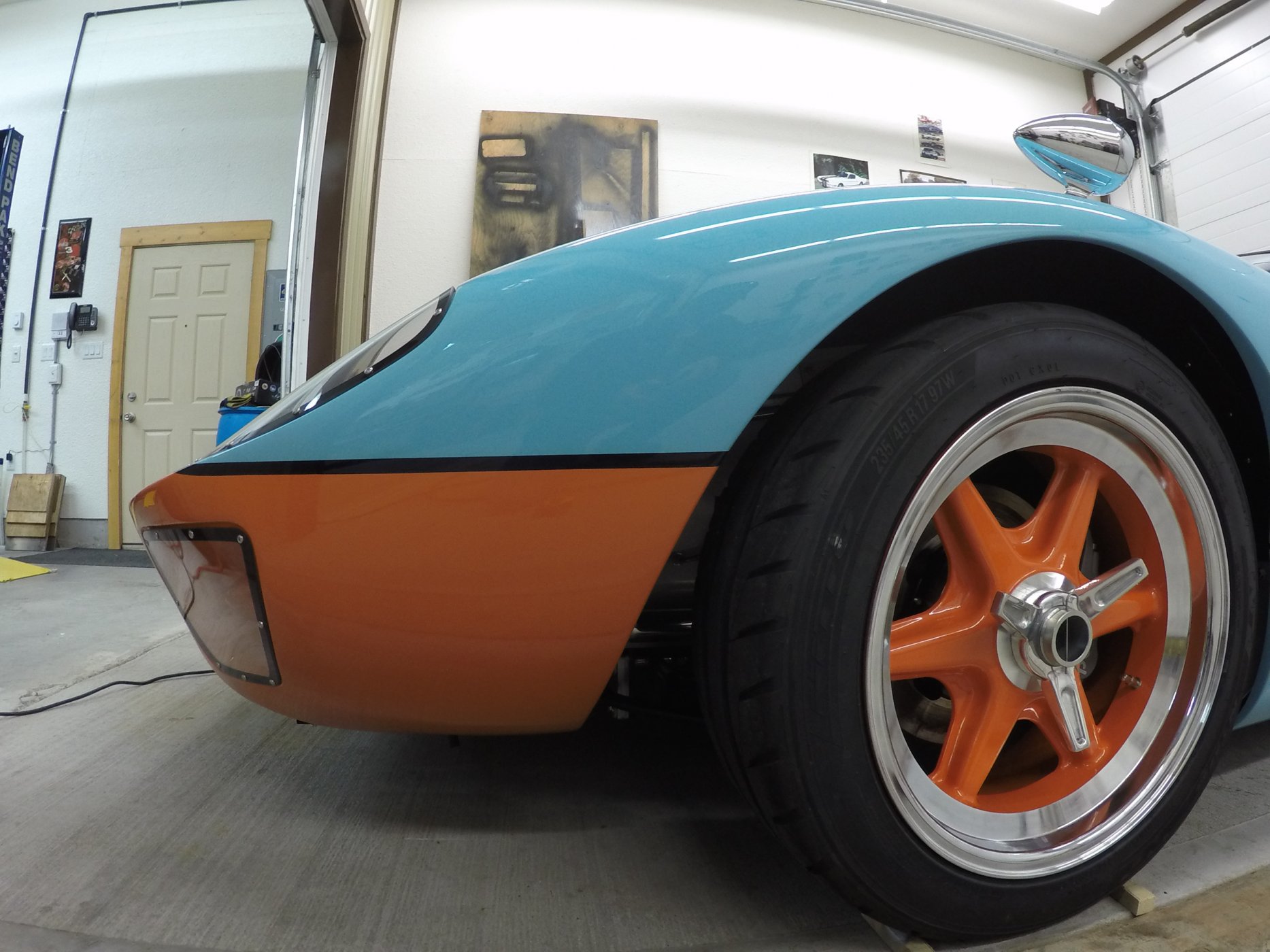

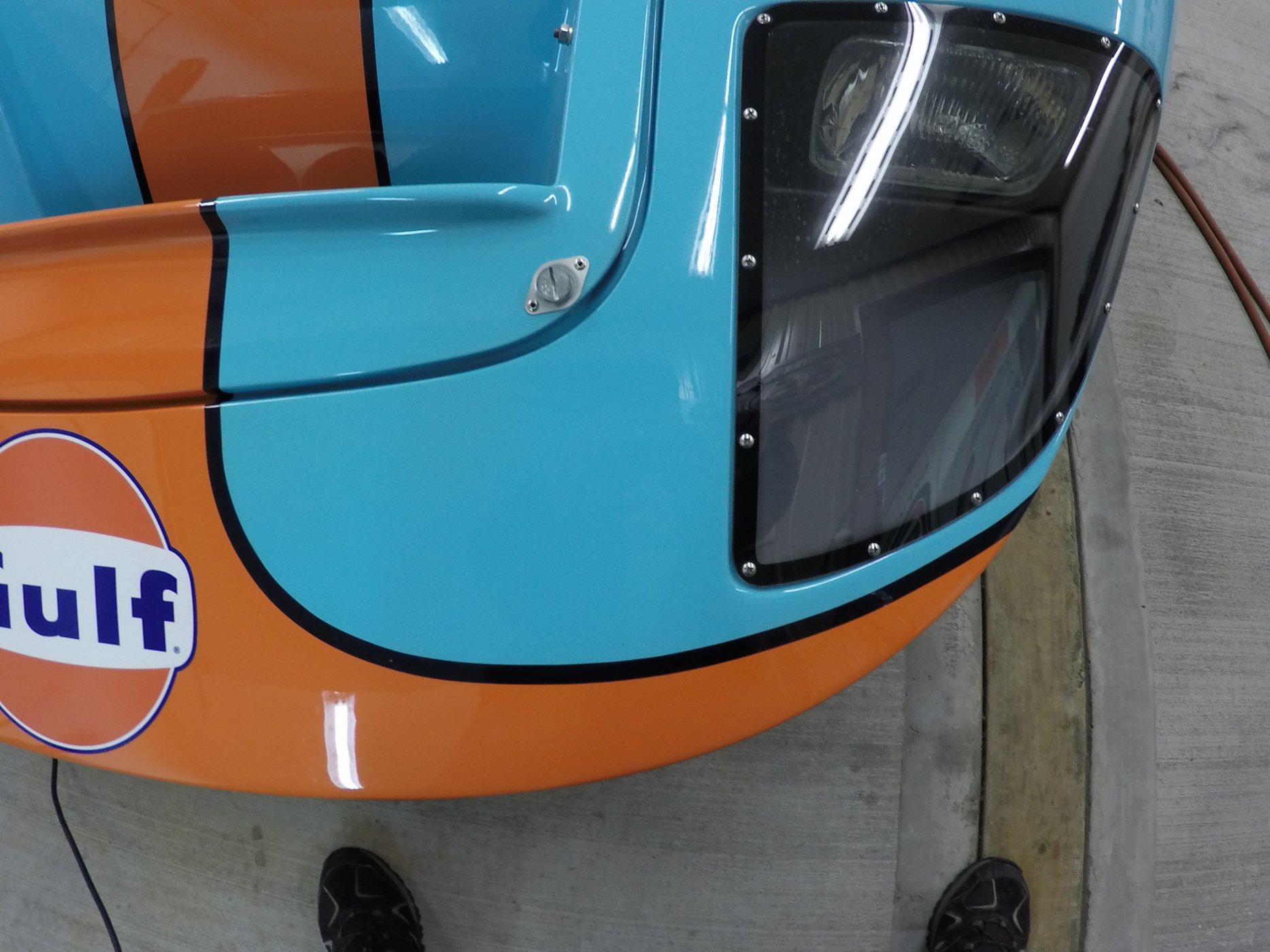

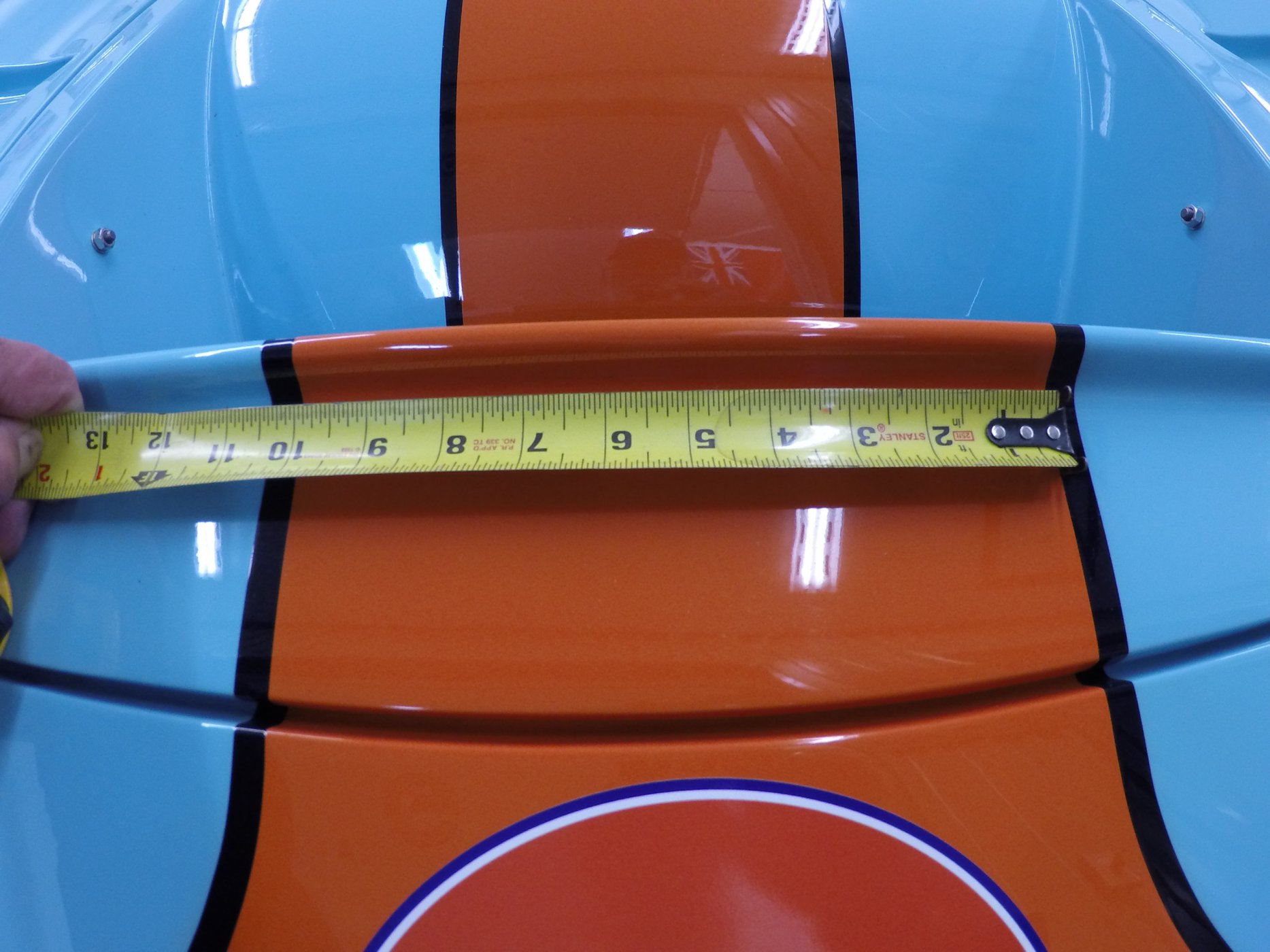

Will, have a look at my build site.



[Jim DellaNeve]

Will, have a look at my build site.

Thanks, where did you buy your stickers? I have ordered some from Raceline in Canada but havent received them in over a month and they dont answer their phone or emails.



[Bill Kearley]

They came from CAV. Sit down when you ask for pricing. They wanted $ 400.00 for 1 # 6 roundel



[Allan Feldman]

If you buy one of these

FORD GT40 16 ENCYCLOPEDIA OF SUPERCARS MORE LISTED free uk postage | eBay

<p dir="ltr" style="margin-top:0; margin-bottom:0;">Encyclopedia of supercars part of a series all colour with pull out section. Many more listed. </p>

www.ebay.co.uk

there is a big double page top view image of the No6 car P1075 and other good pics.
Cheers
Mike

Mike the picture in this publication is not of P/1075 Its Bell & Colvell (Martin Colvell) P1084.



[Jim Craik]

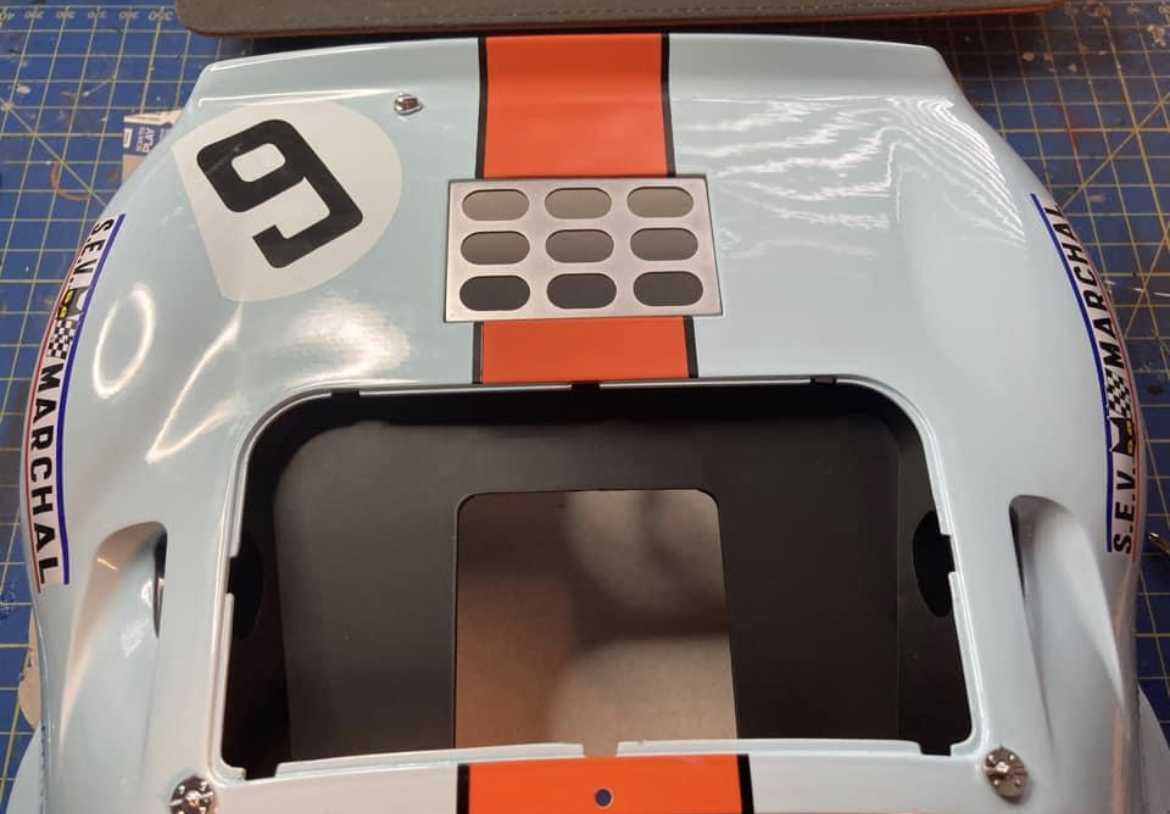

A little known bit of trivia, the rear deck roundel on P/1075 at Le Mans 1969 was oddly cut off like this model.



[Kev Farrington]

The roundel shape that I and others copied was because it simply ripped when it was fitted. Richie Bray, the JWAE mechanic who fitted it told me that.



[Glenn M]

The roundel shape that I and others copied was because it simply ripped when it was fitted. Richie Bray, the JWAE mechanic who fitted it told me that.

That's brilliant! All the technical reasons that have been given for its shape..... and it was just the bloke putting it on accidentally ripped it! Classic!
