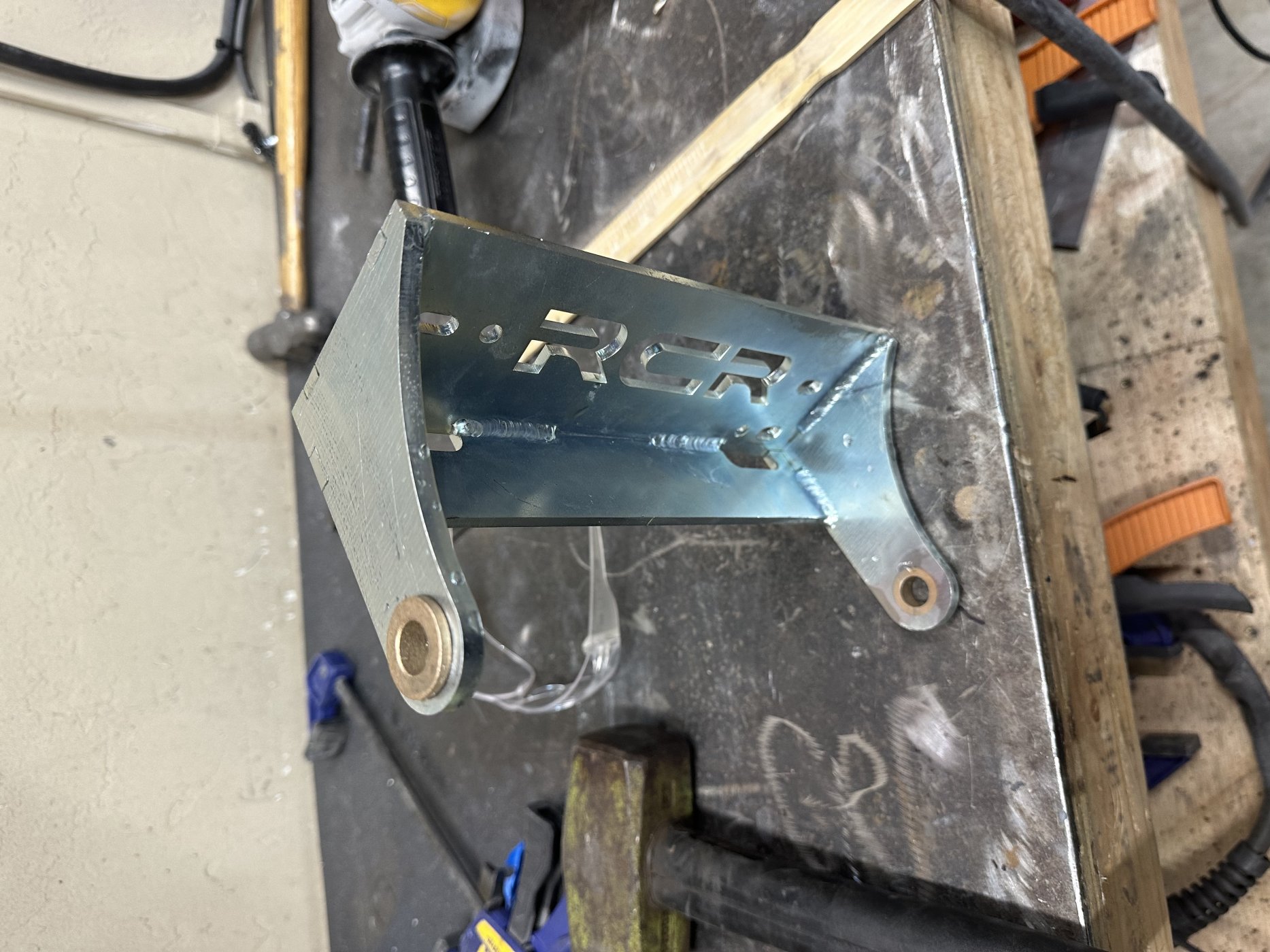

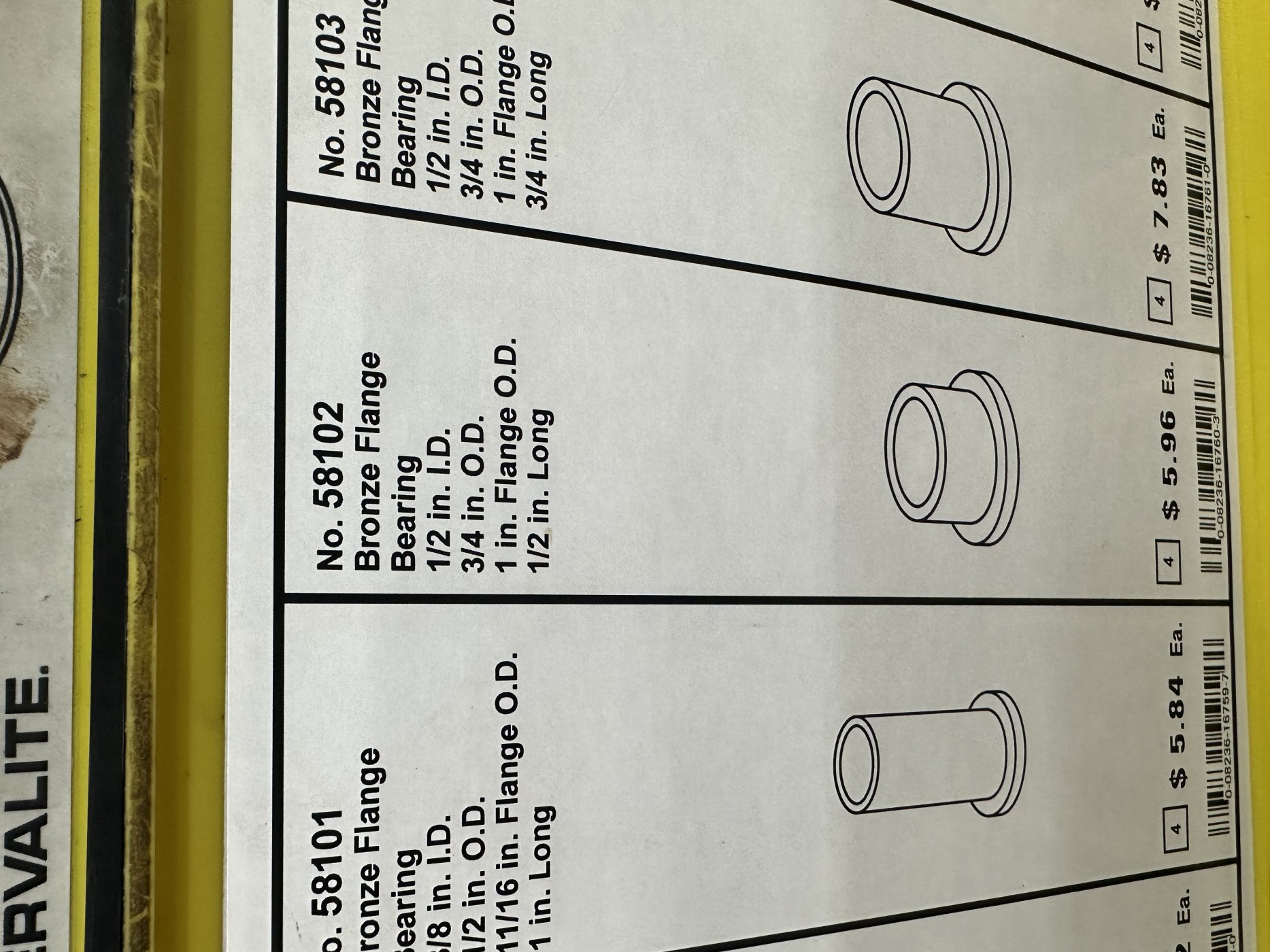

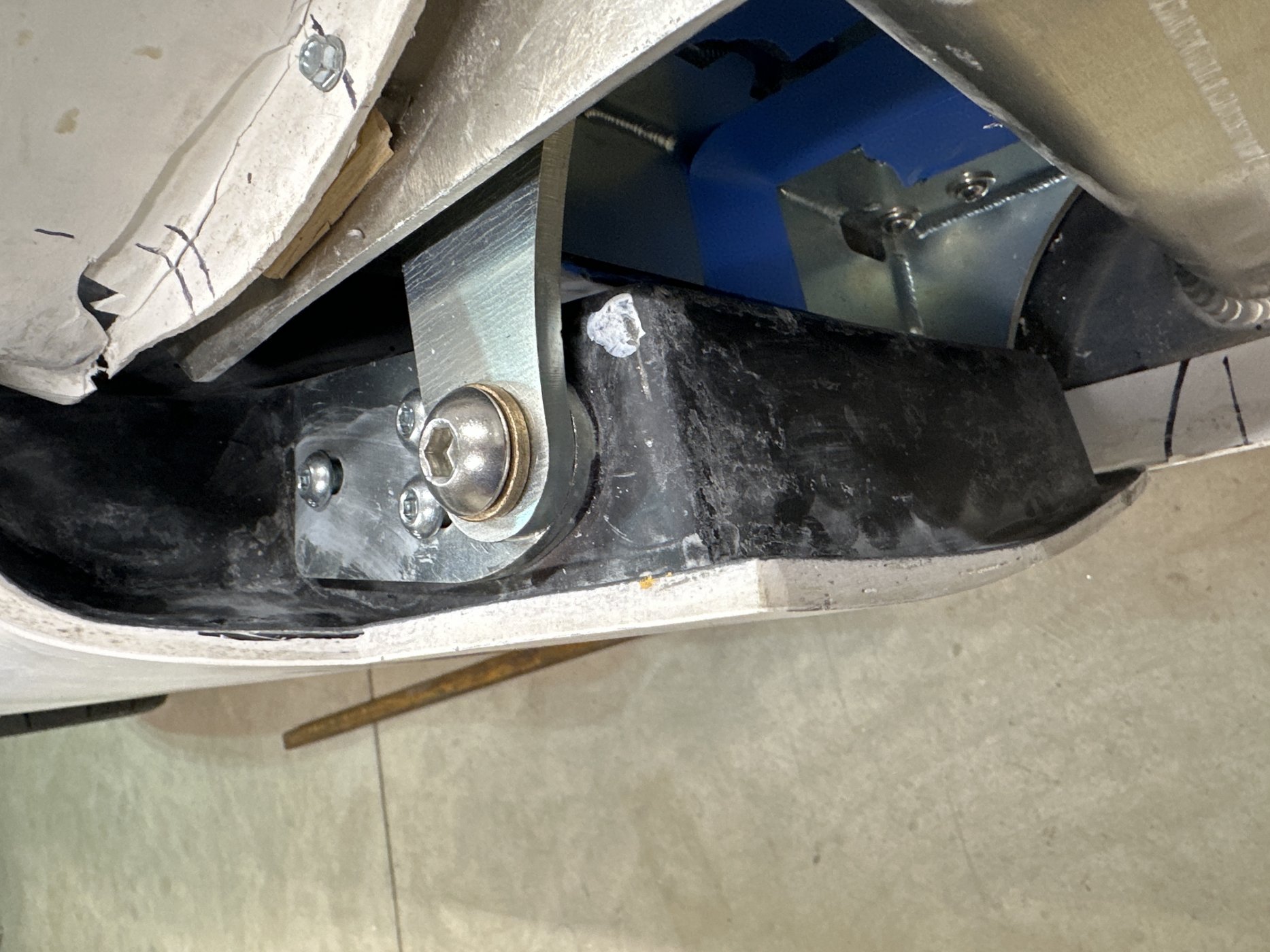

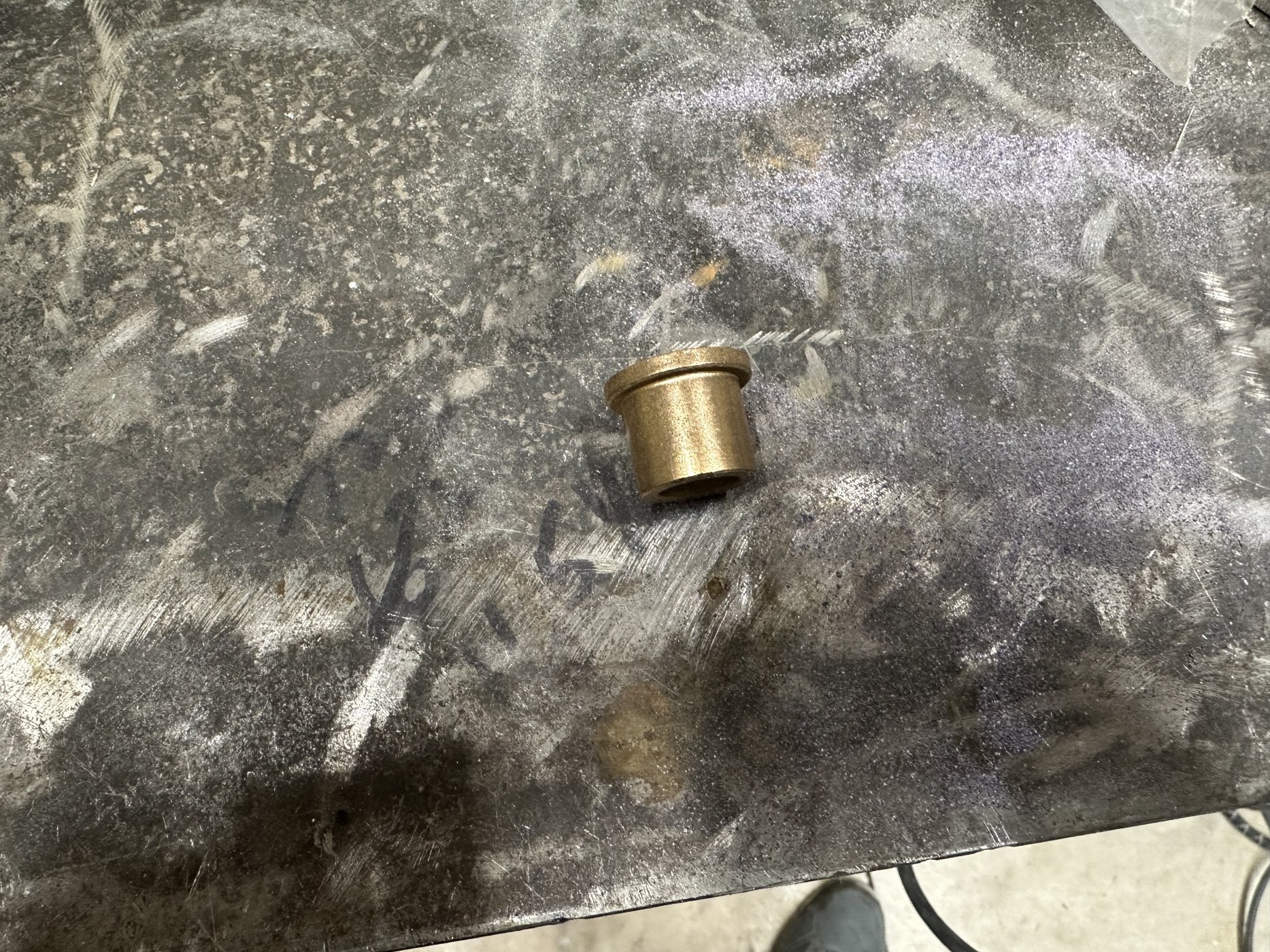

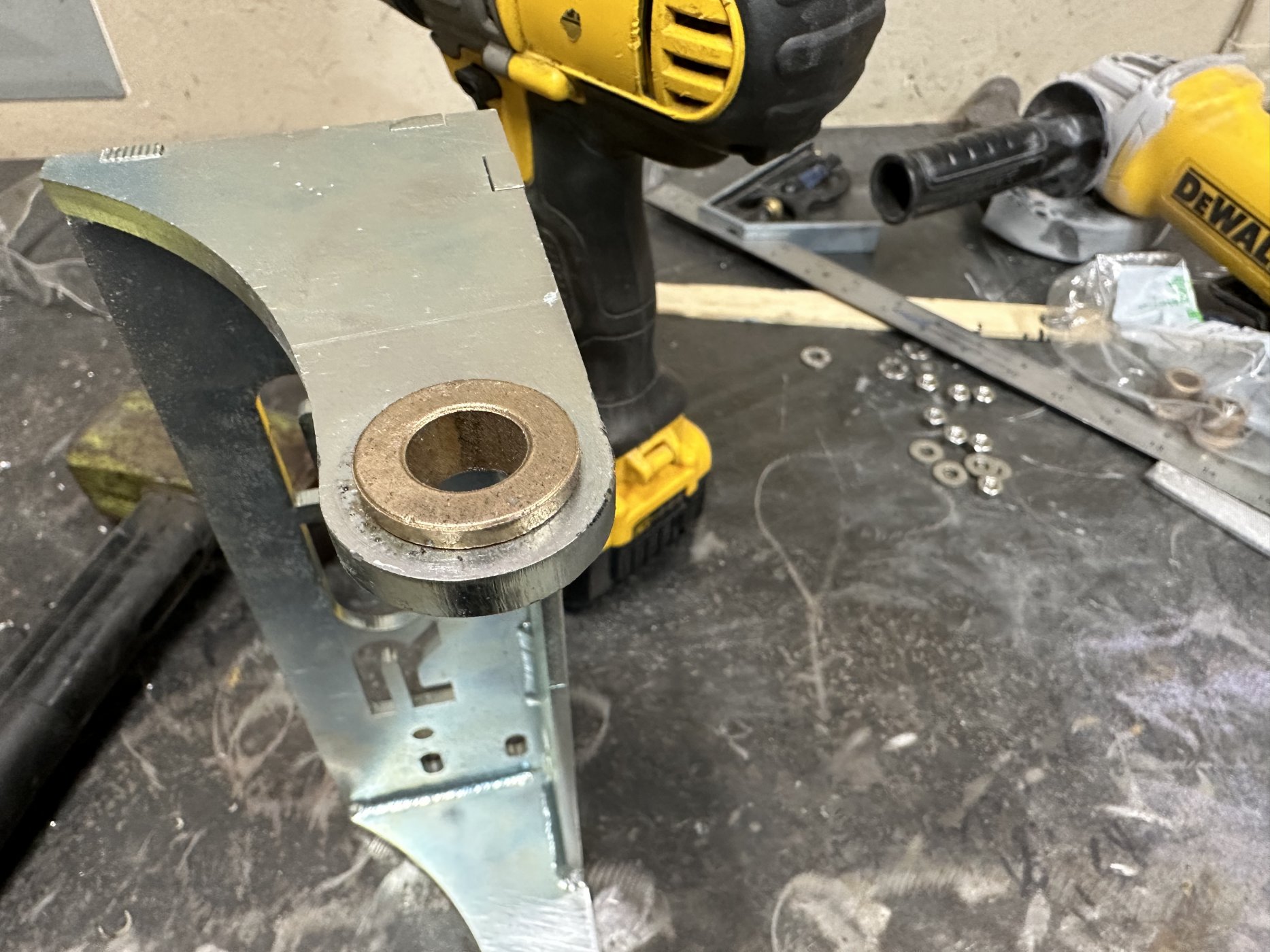

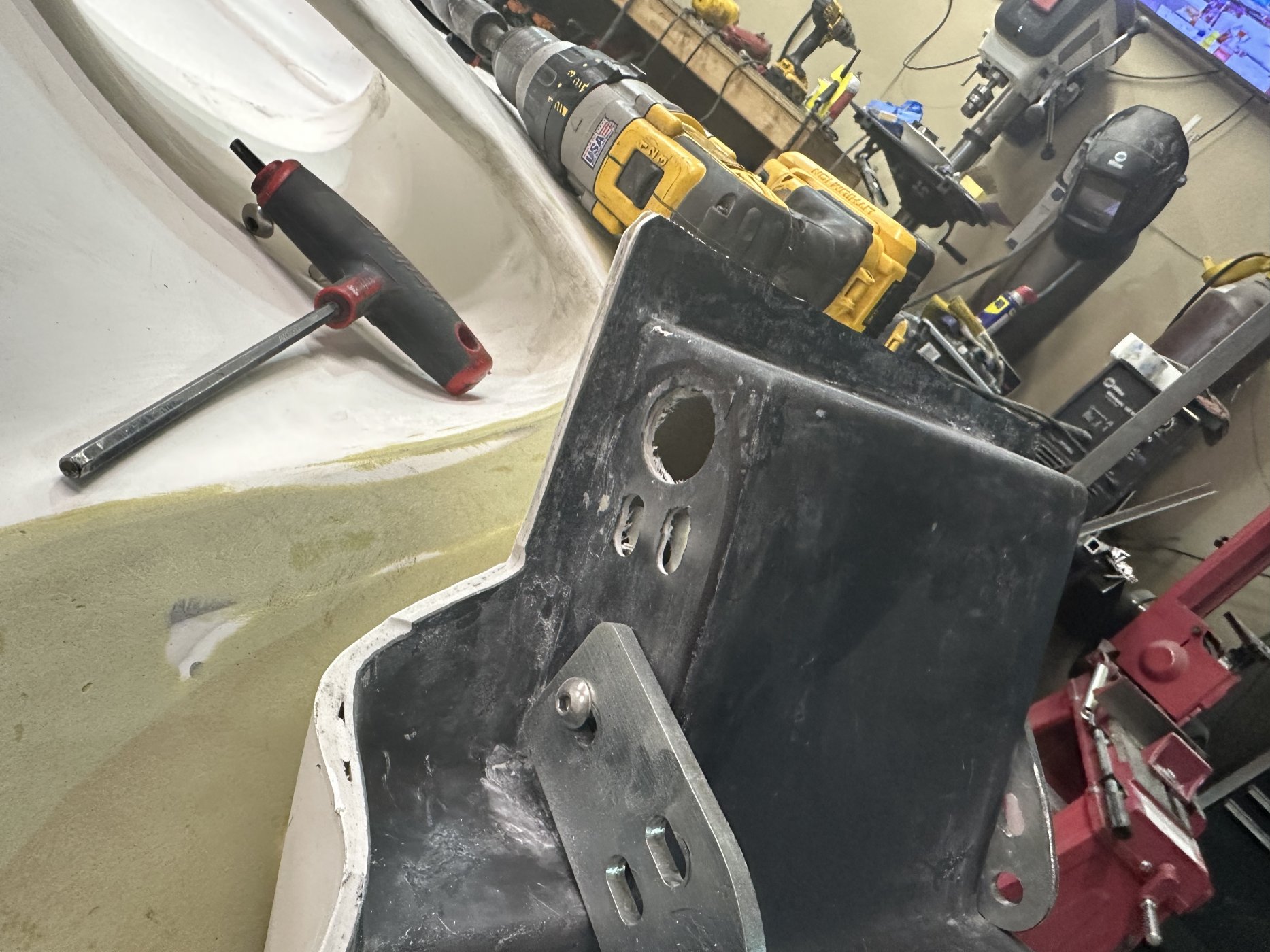

I decided to add bushings to the door hinges as seen in Randy’s build. I went with the bushings when I noticed a lot of slack in the hinge system. The bushings tightened everything up and makes for a smooth opening door.

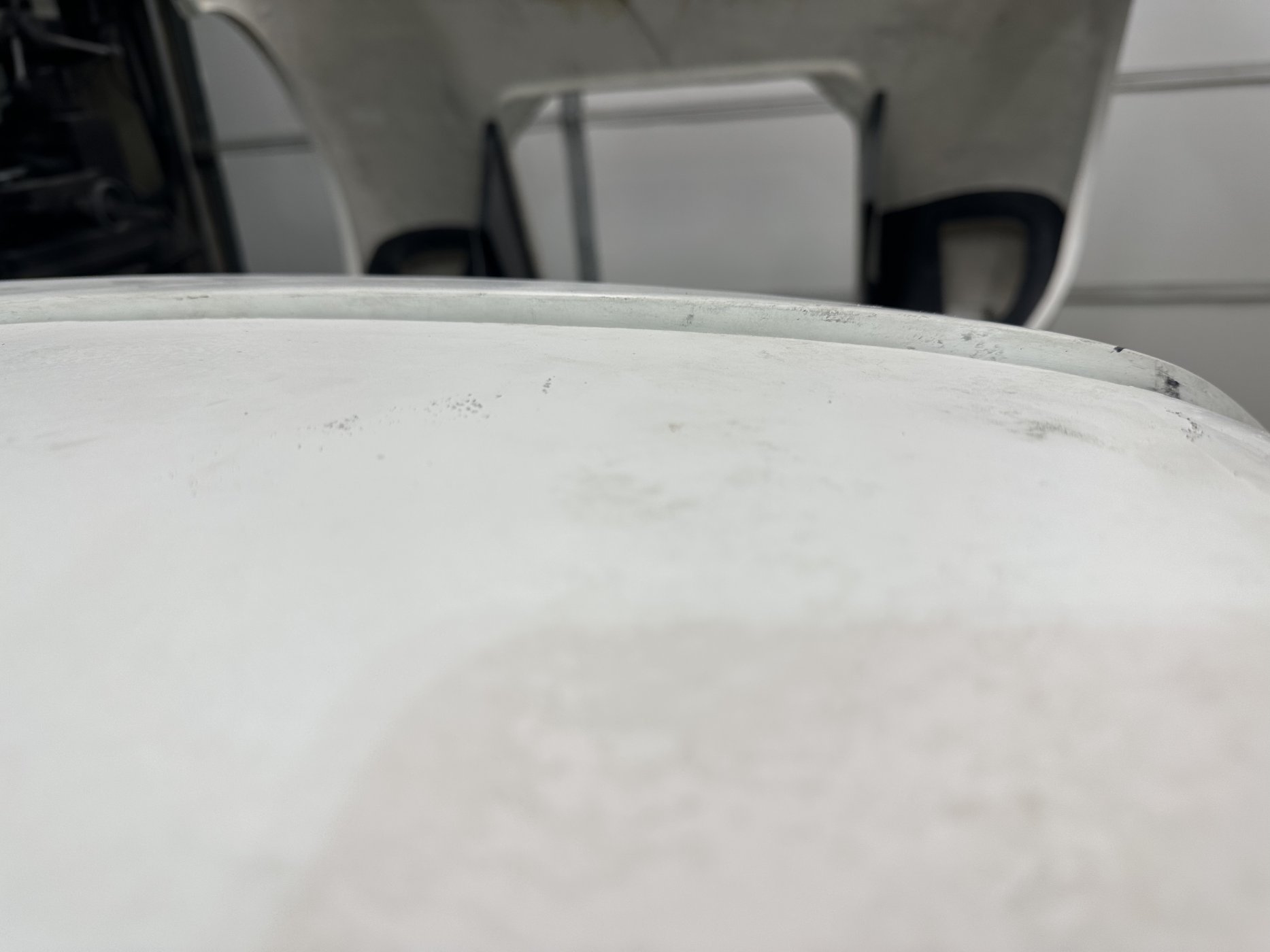

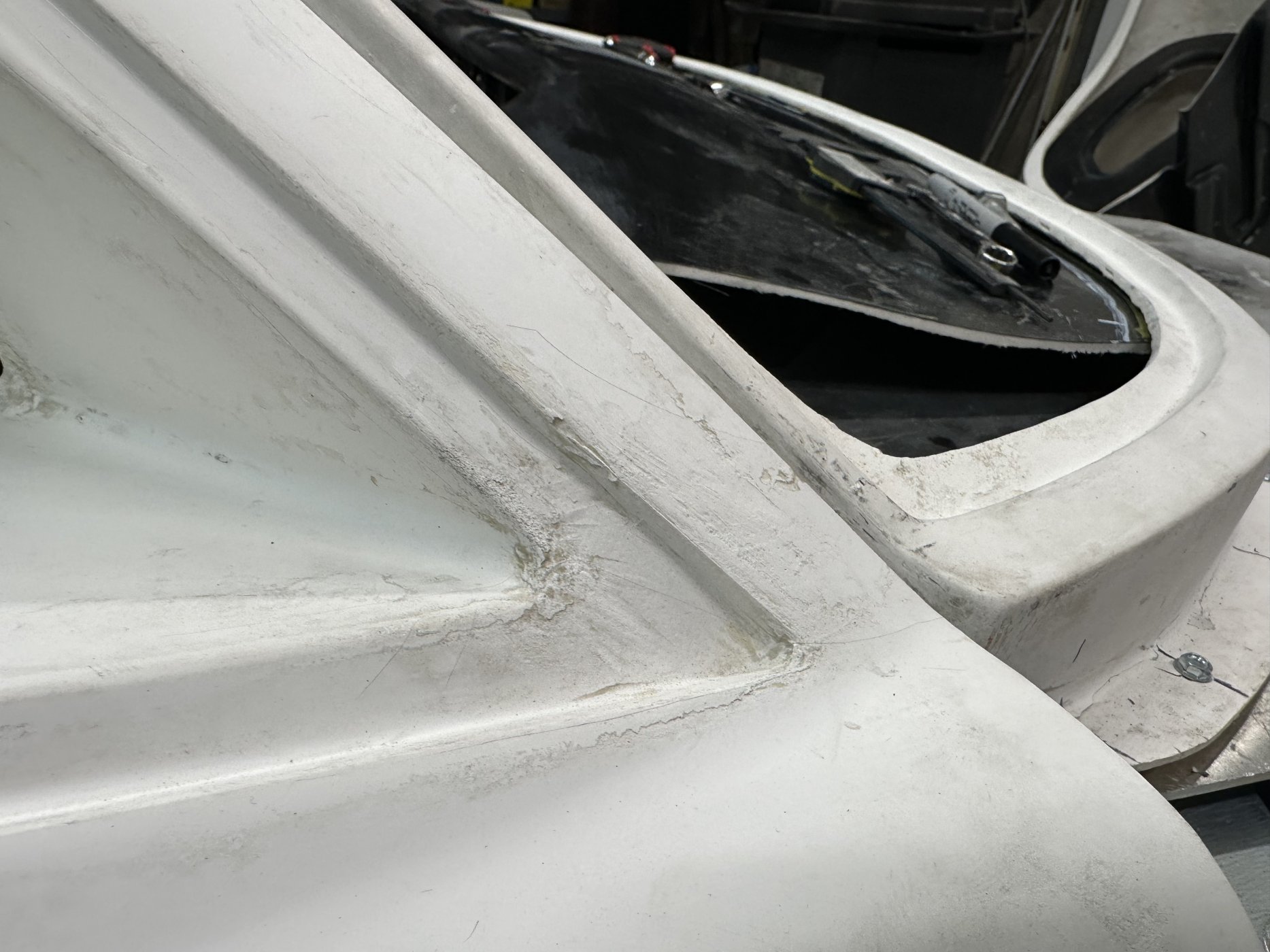

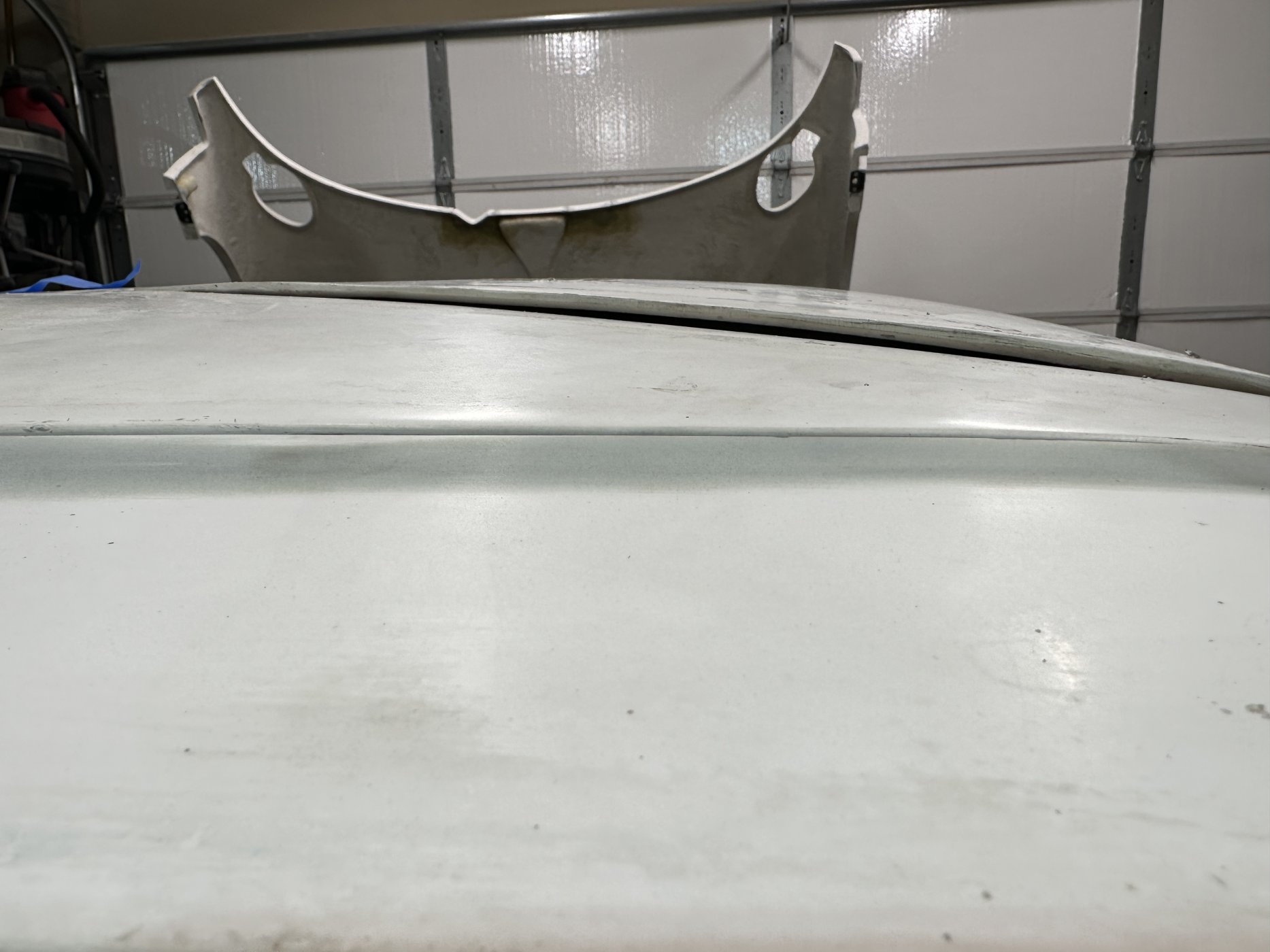

These doors are going to require quite a bit of patience to make fit properly. The driver door sets pretty good, but the passenger door doesn’t seem to line up with the spider properly. I’m going to check a few things on the spider and the door before moving forward with the doors.

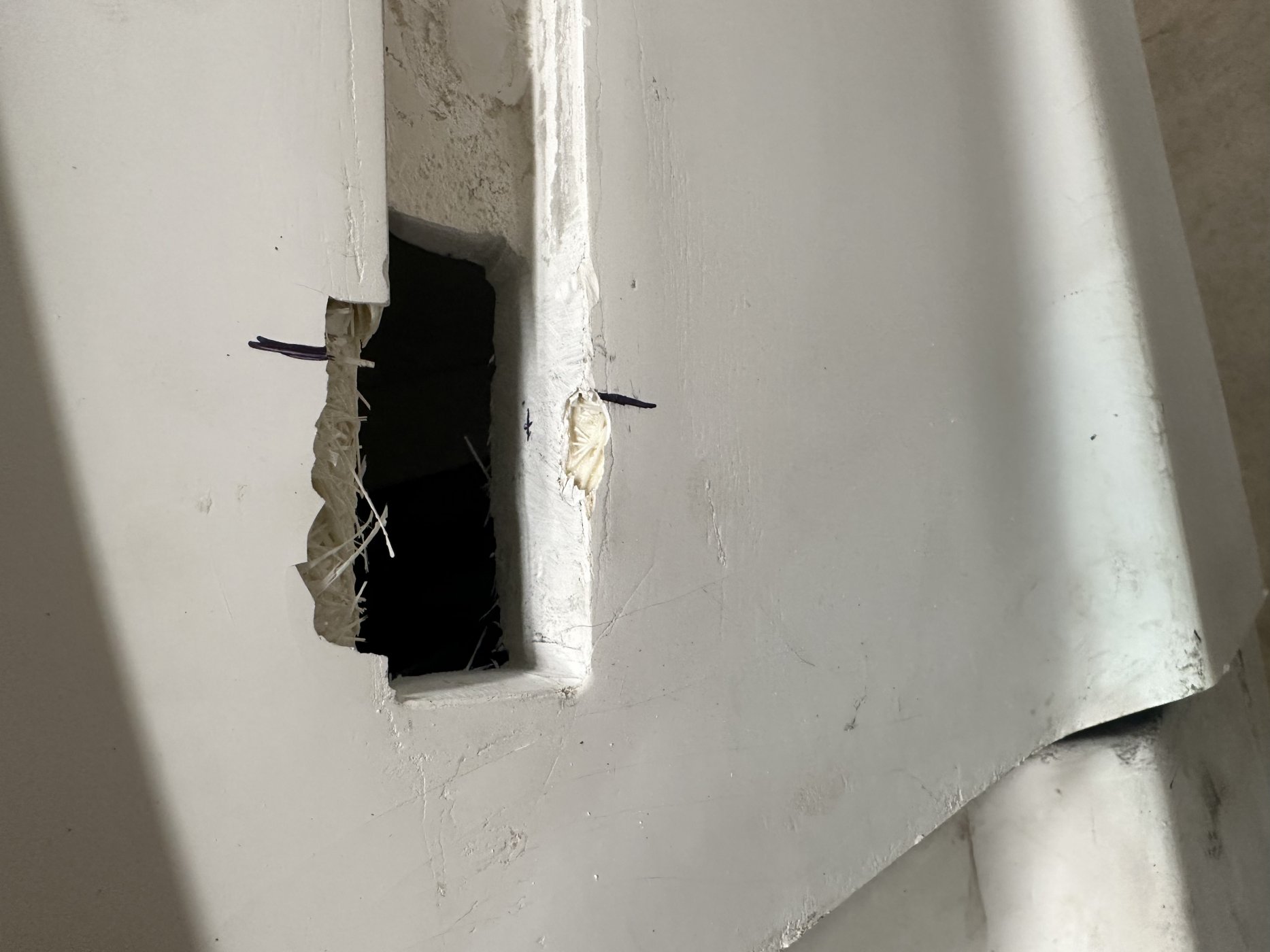

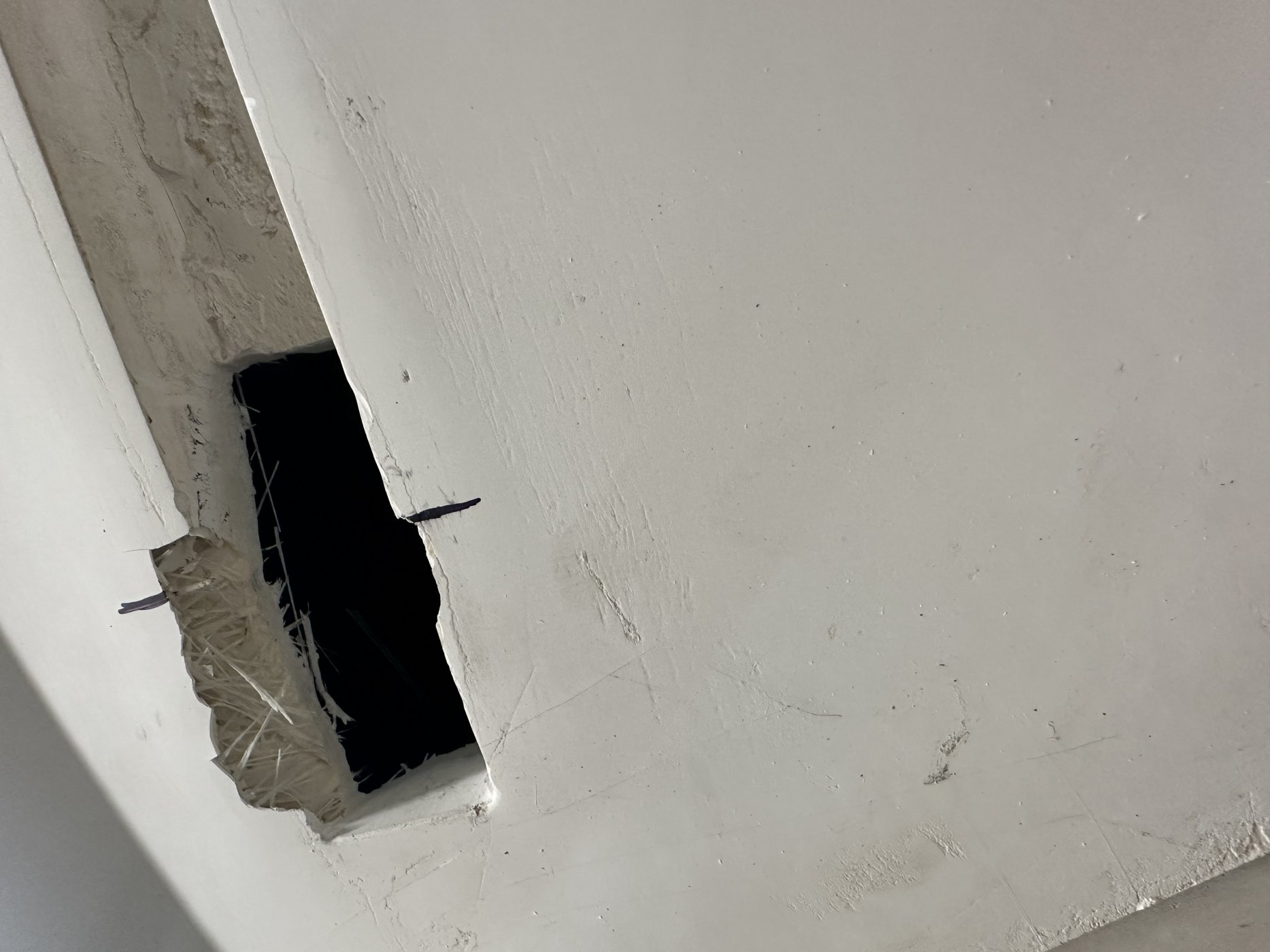

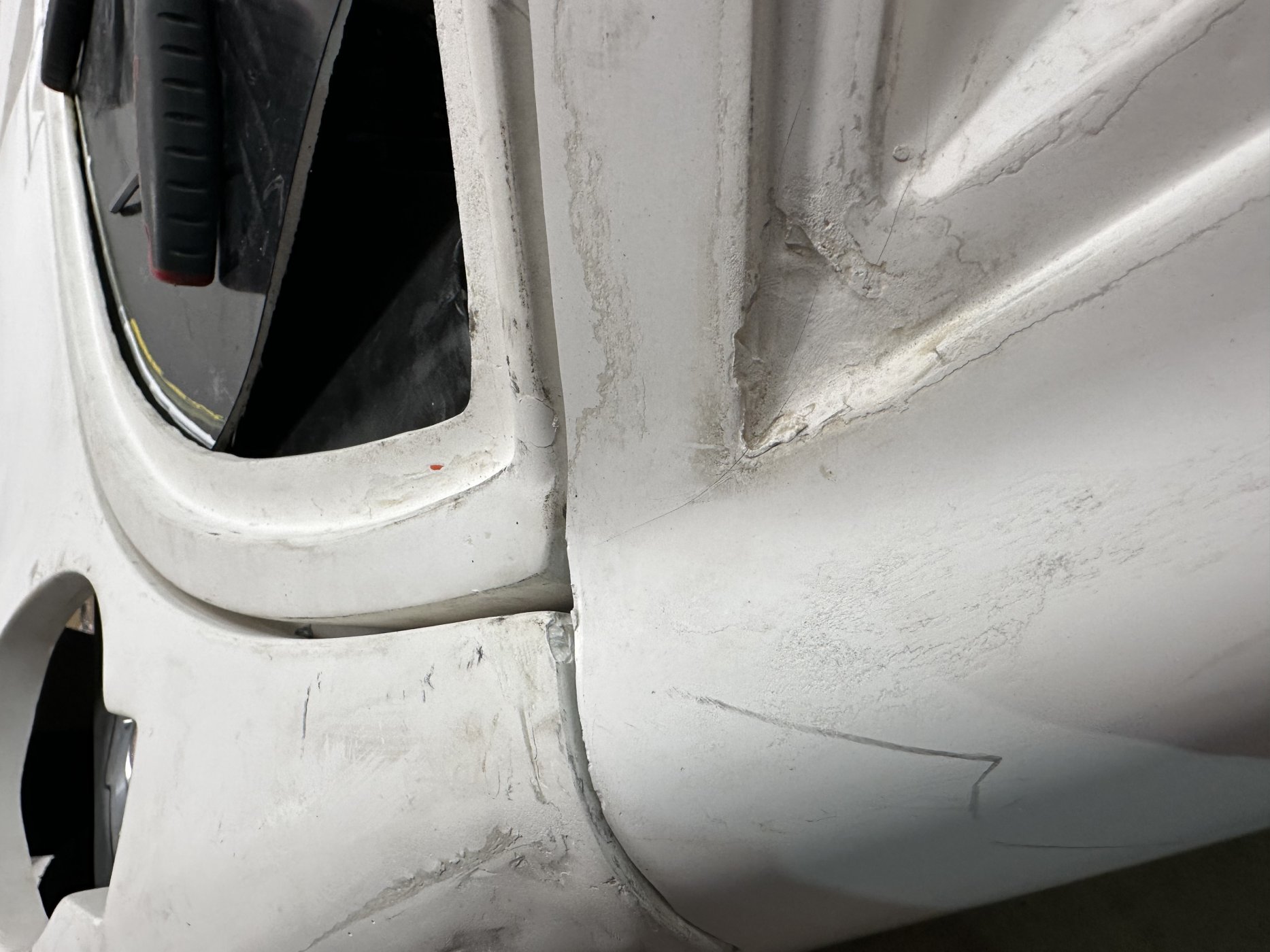

Unfortunately I found several air bubbles when cutting the hole for the handles. I’m going to look at reenforcing the handle pivots with some sort of angle iron. I don’t like the idea of fiberglass as a pivot point.


Attachments

  • E44D9B08-F1E7-4CE1-A518-A647D821D4D2.jpeg
    806.2 KB · Views: 365
  • 1080DF33-E5E8-4E65-80FE-8D95B0655806.jpeg
    372 KB · Views: 363
  • 142DC661-2BE4-410B-A08A-7A628F6D1CC1.jpeg
    372 KB · Views: 322
  • FF030C0D-30B1-416E-8F02-0D4E3CDAD377.jpeg
    416 KB · Views: 306
  • FD6A582B-0208-4118-88CE-3BC80B36DF51.jpeg
    394.2 KB · Views: 300
  • C52C97BD-B8FD-4DD2-AF84-026E1D92A0FB.jpeg
    212.4 KB · Views: 295
  • CF12455F-B6B2-44F8-BF56-09E5EE21CEF6.jpeg
    129.8 KB · Views: 290
  • E907F10A-36EC-4240-A660-D7646BB5E7A6.jpeg
    307.8 KB · Views: 289
  • 5F359617-B08B-49FB-9E70-5BA768358FD6.jpeg
    293.5 KB · Views: 299
  • image.jpg
    367.9 KB · Views: 324

Sean S.

Supporter
Couple more pictures showing the doors.


Attachments

  • 151EB12D-BFE7-46AD-BCAE-DBD75E4BFF91.jpeg
    208.6 KB · Views: 320
  • 2063DD73-2293-463E-B338-AFCA2D408424.jpeg
    221.1 KB · Views: 304
  • 15E68825-92EC-4558-AB86-1773E737600C.jpeg
    129.8 KB · Views: 343

Randy V

Moderator-Admin
Staff member
Admin
Lifetime Supporter
Looks good - with noted exception of the air bubbles…. I used a single long bolt for my top&bottom hinge points as my door surfaces where the hinge plates bolt on were not parallel And I had a bit of binding there. The single bolt forced the hinge point to be in the exact same plane top to bottom…. Door handle hinge point - yeah, someone did not have any sort of durability in mind by just anchring the door handle with a bolt glassed into the door. I found some channel iron that gave me an incredibly durable pivot point.
BTW - air pockets:
I found hundreds of air bubbles in my body. I literally took a small welding chipping hammer to open all them up that I could find. The Gelcoat cannot be trusted to not open up to expose a bubble.. You don’t want that to happen after it has been painted…


Sean S.

Supporter
Looks good - with noted exception of the air bubbles…. I used a single long bolt for my top&bottom hinge points as my door surfaces where the hinge plates bolt on were not parallel And I had a bit of binding there. The single bolt forced the hinge point to be in the exact same plane top to bottom…. Door handle hinge point - yeah, someone did not have any sort of durability in mind by just anchring the door handle with a bolt glassed into the door. I found some channel iron that gave me an incredibly durable pivot point.
BTW - air pockets:
I found hundreds of air bubbles in my body. I literally took a small welding chipping hammer to open all them up that I could find. The Gelcoat cannot be trusted to not open up to expose a bubble.. You don’t want that to happen after it has been painted…

Thanks Randy,

I was debating on trying 1 long bolt as well. I was thinking it would beef the feel of the door up even more. I was also thinking this would allow me to install tubing inside the door at the hinge point. I could then tie that into the anti intrusion system I plan to add to the door. I would like the door to have some steel tieing it together from the hinge to the latch.

Sean


Randy V

Moderator-Admin
Staff member
Admin
Lifetime Supporter
Thanks Randy,

I was debating on trying 1 long bolt as well. I was thinking it would beef the feel of the door up even more. I was also thinking this would allow me to install tubing inside the door at the hinge point. I could then tie that into the anti intrusion system I plan to add to the door. I would like the door to have some steel tieing it together from the hinge to the latch.

Sean
Exactly what I did for my anti-intrusion beams…
link:: http://www.gt-forty.com/GT-Forty/DOORS/Pages/Doors-Anti-Intrusion.html
Take a look.. It really helped bring it all together. I won’t say that the doors were as solid as a late model sedan, but they were at least as solid as a Honda Civic or better. Door adjustment did not change either. You could slam it a hundred times (exaggerating) and they’d still close with a nice click-click…

I decided to add bushings to the door hinges as seen in Randy’s build. I went with the bushings when I noticed a lot of slack in the hinge system. The bushings tightened everything up and makes for a smooth opening door.

These doors are going to require quite a bit of patience to make fit properly. The driver door sets pretty good, but the passenger door doesn’t seem to line up with the spider properly. I’m going to check a few things on the spider and the door before moving forward with the doors.

Unfortunately I found several air bubbles when cutting the hole for the handles. I’m going to look at reenforcing the handle pivots with some sort of angle iron. I don’t like the idea of fiberglass as a pivot point.
I have this same exact problem in the same exact place. Passenger door rear part of the roof is too high .... trying to come up with a solution. let me know if you figure anything out.


Randy V

Moderator-Admin
Staff member
Admin
Lifetime Supporter
Looking and sounding fabulous!!!!
Make sure you have your gaskets in place for the doors and rear clip before you finalize their fitting...


Sean S.

Supporter

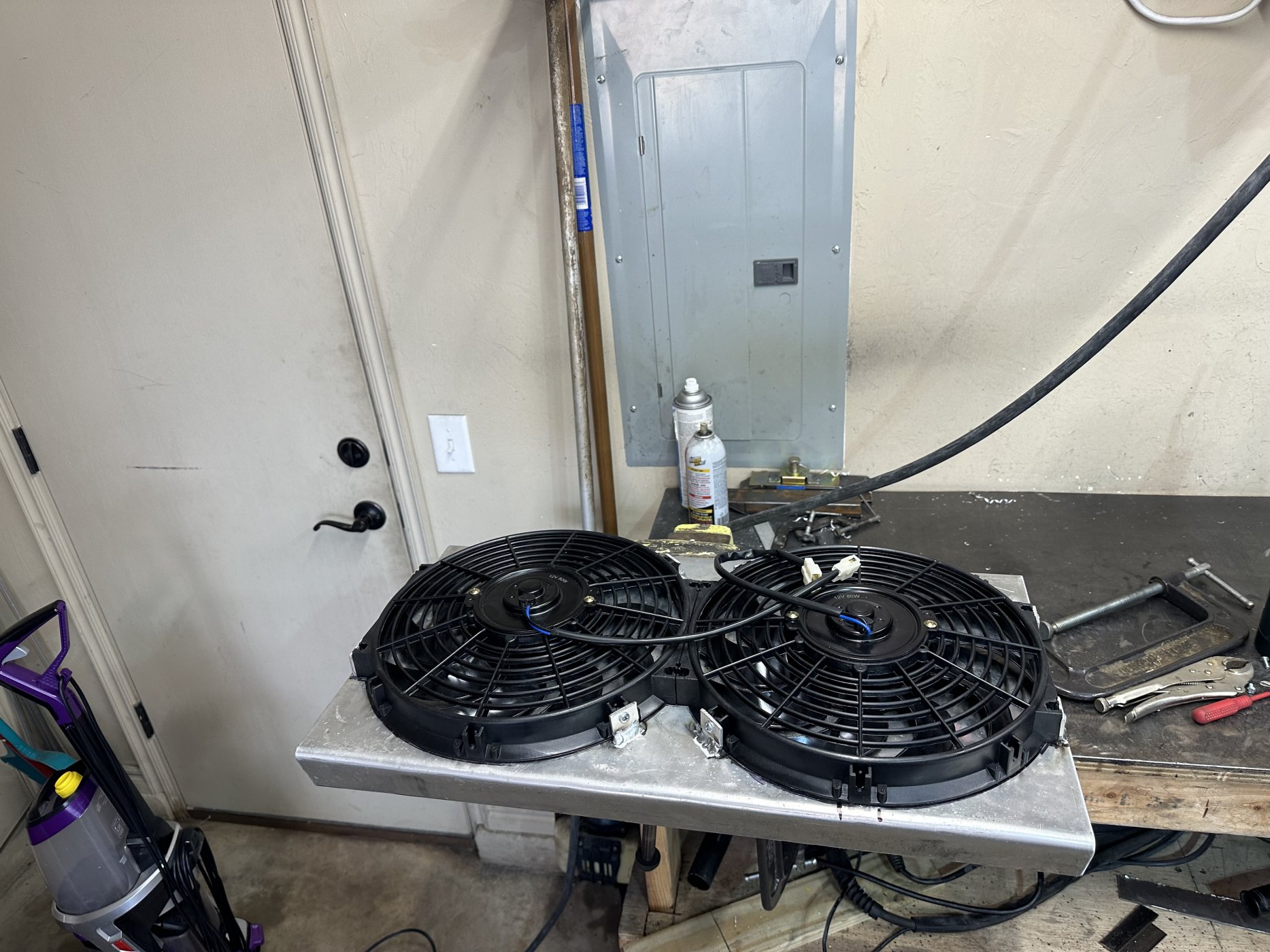

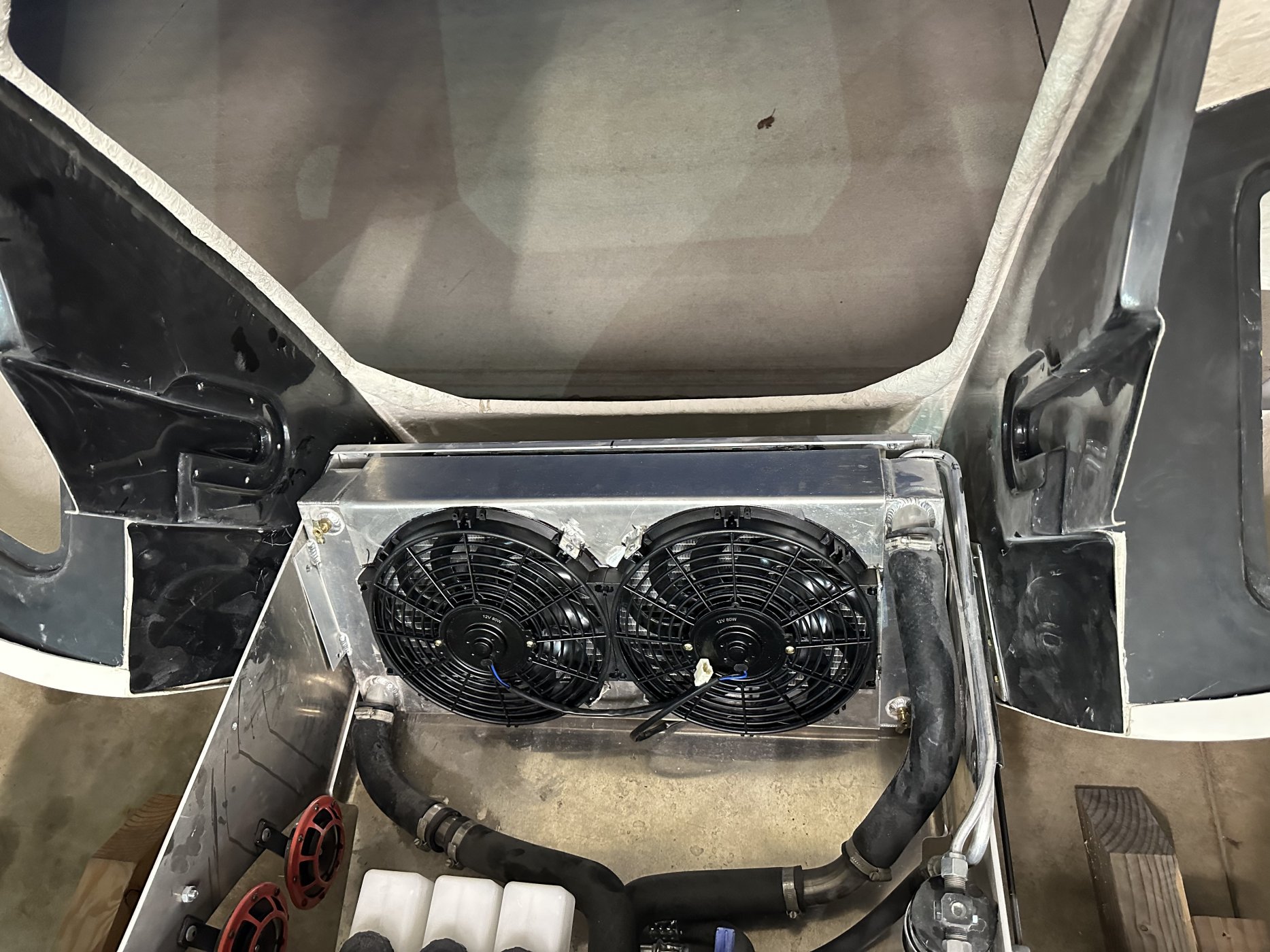

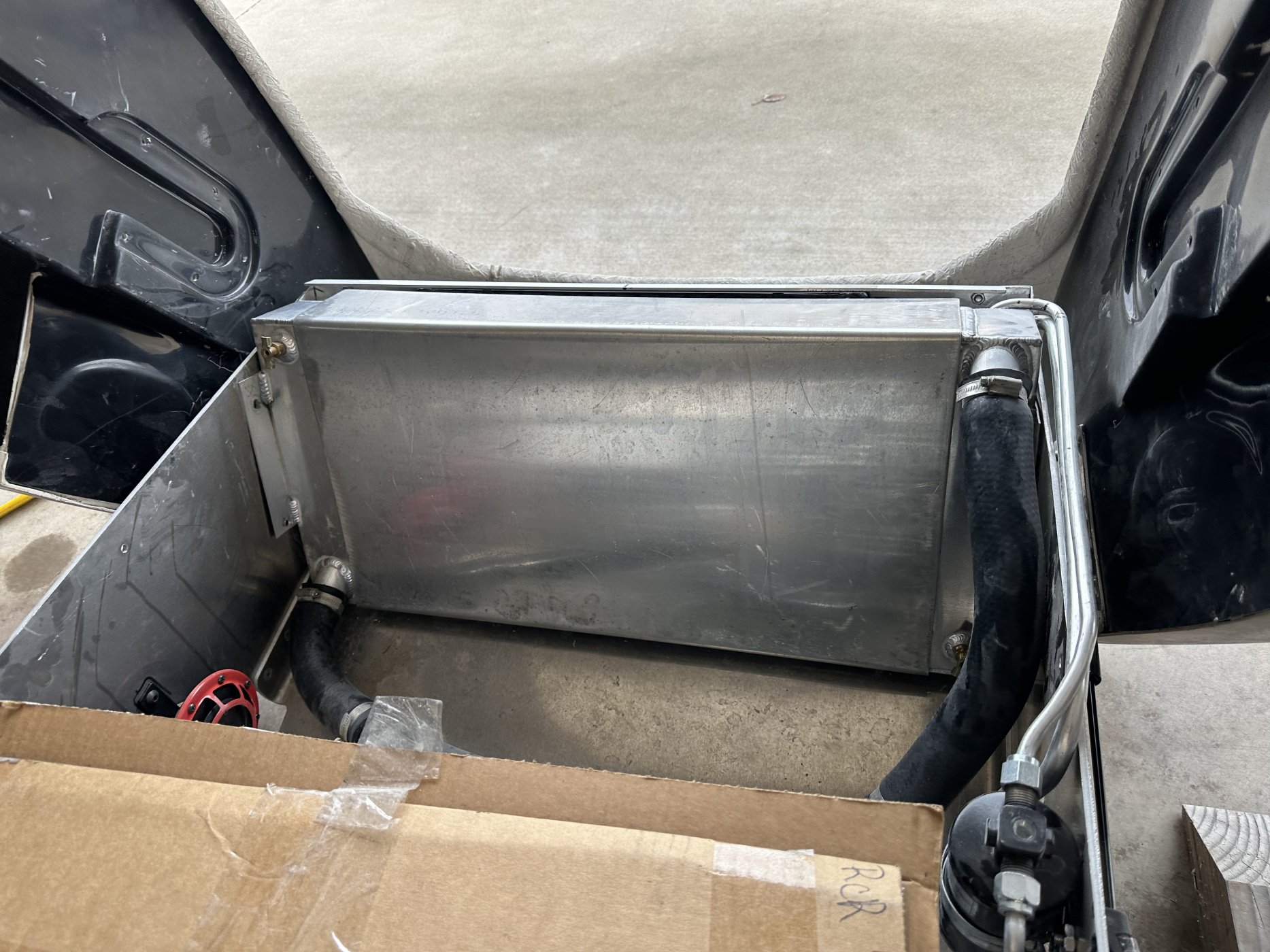

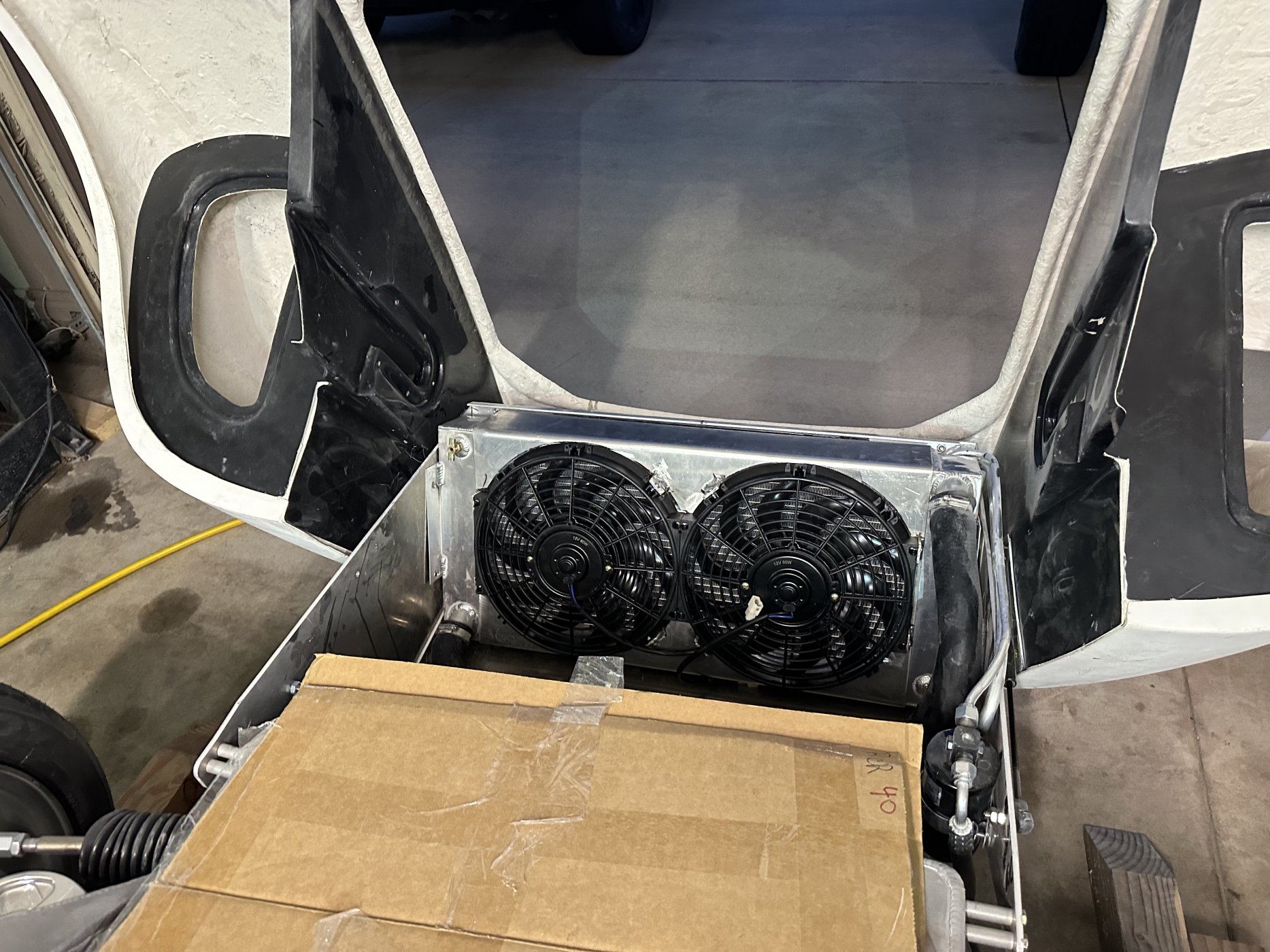

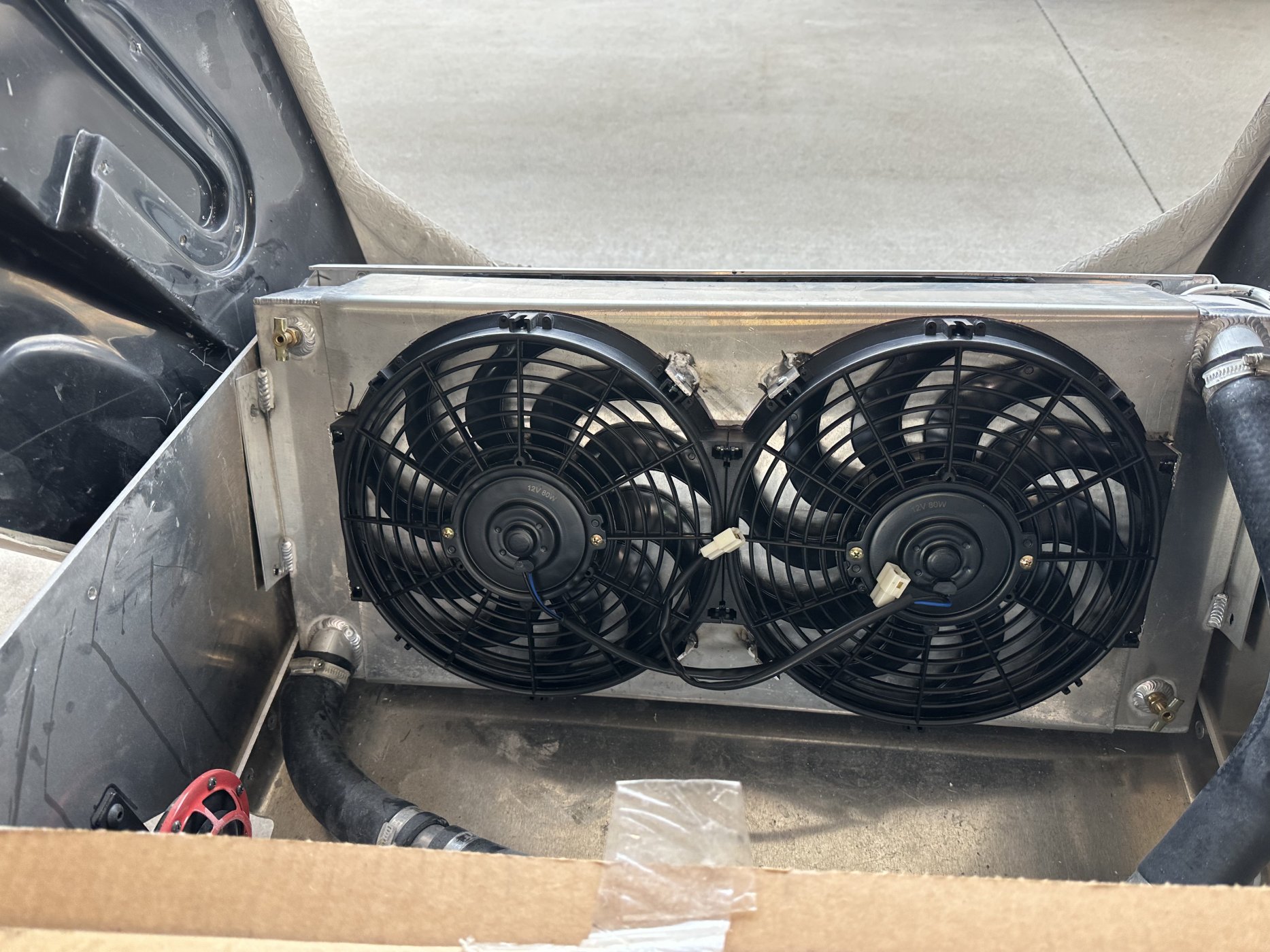

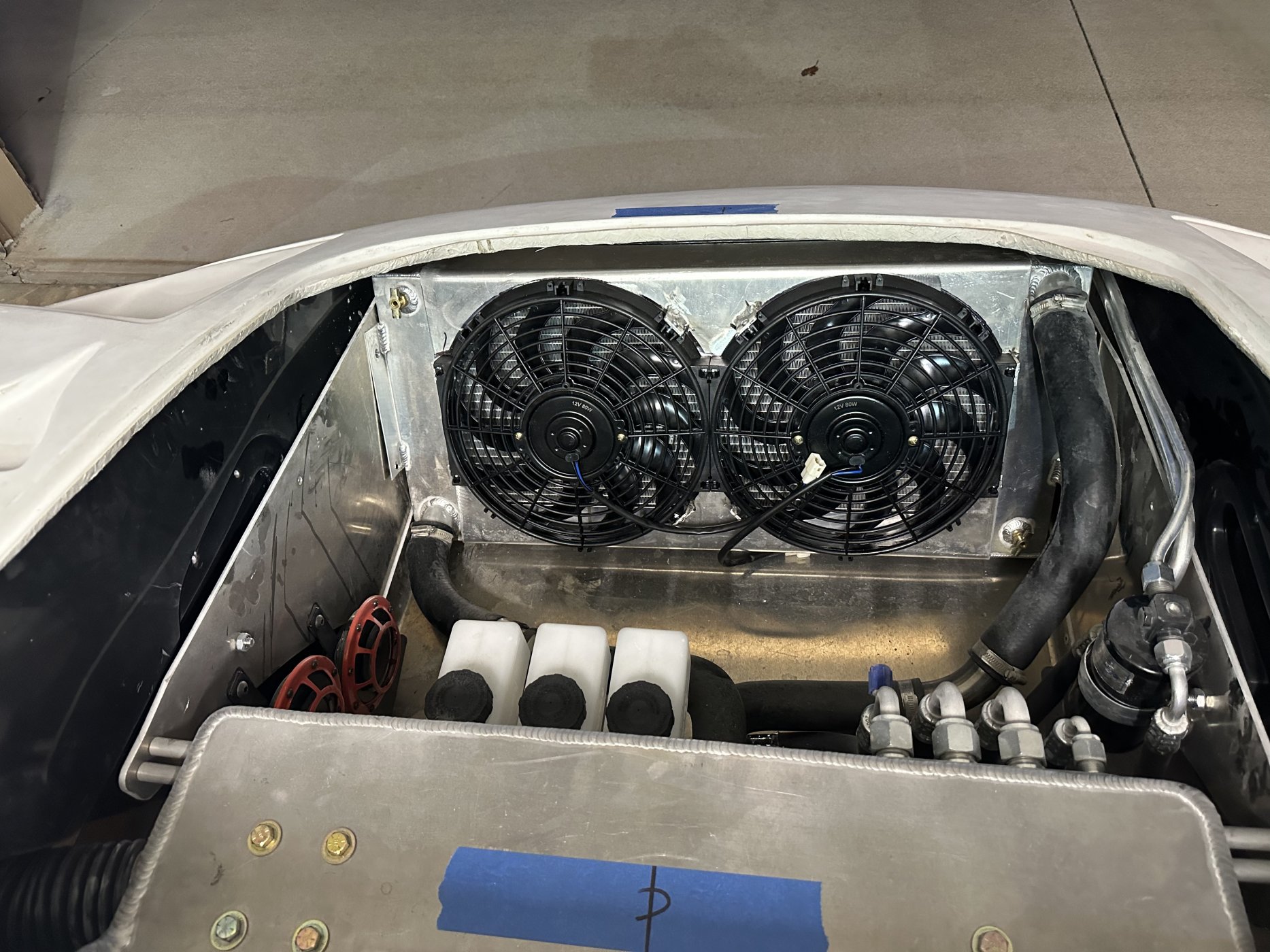

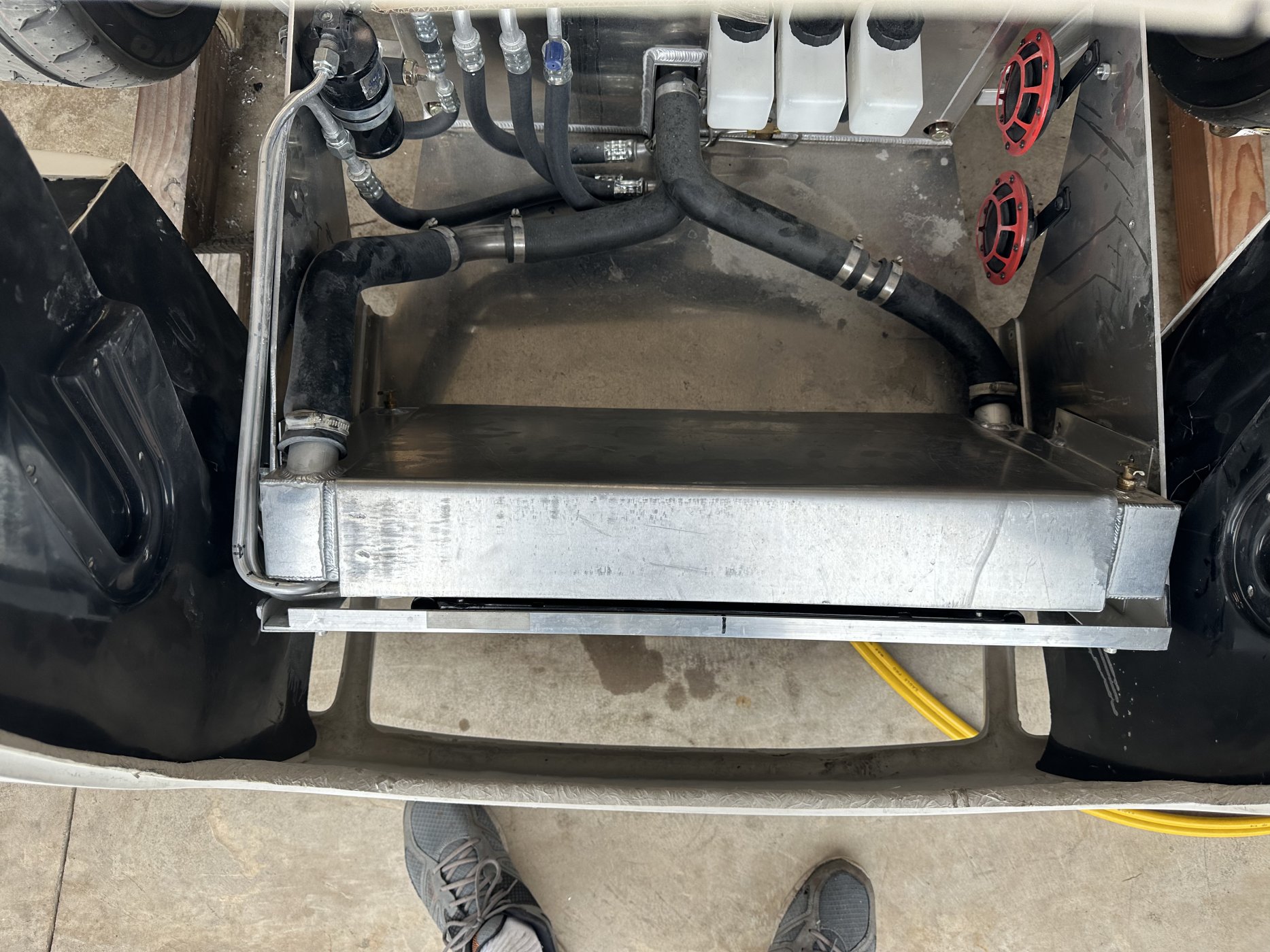

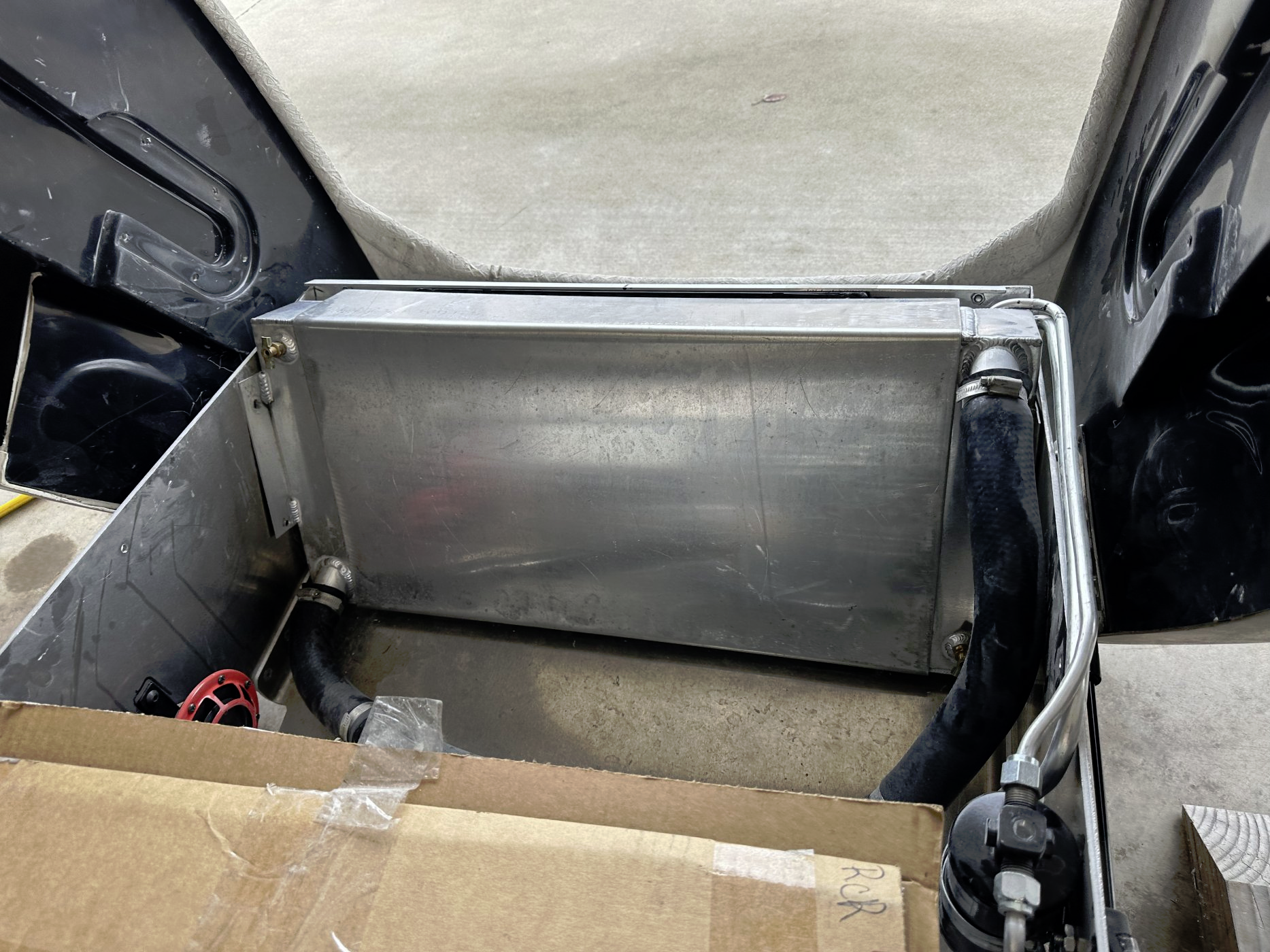

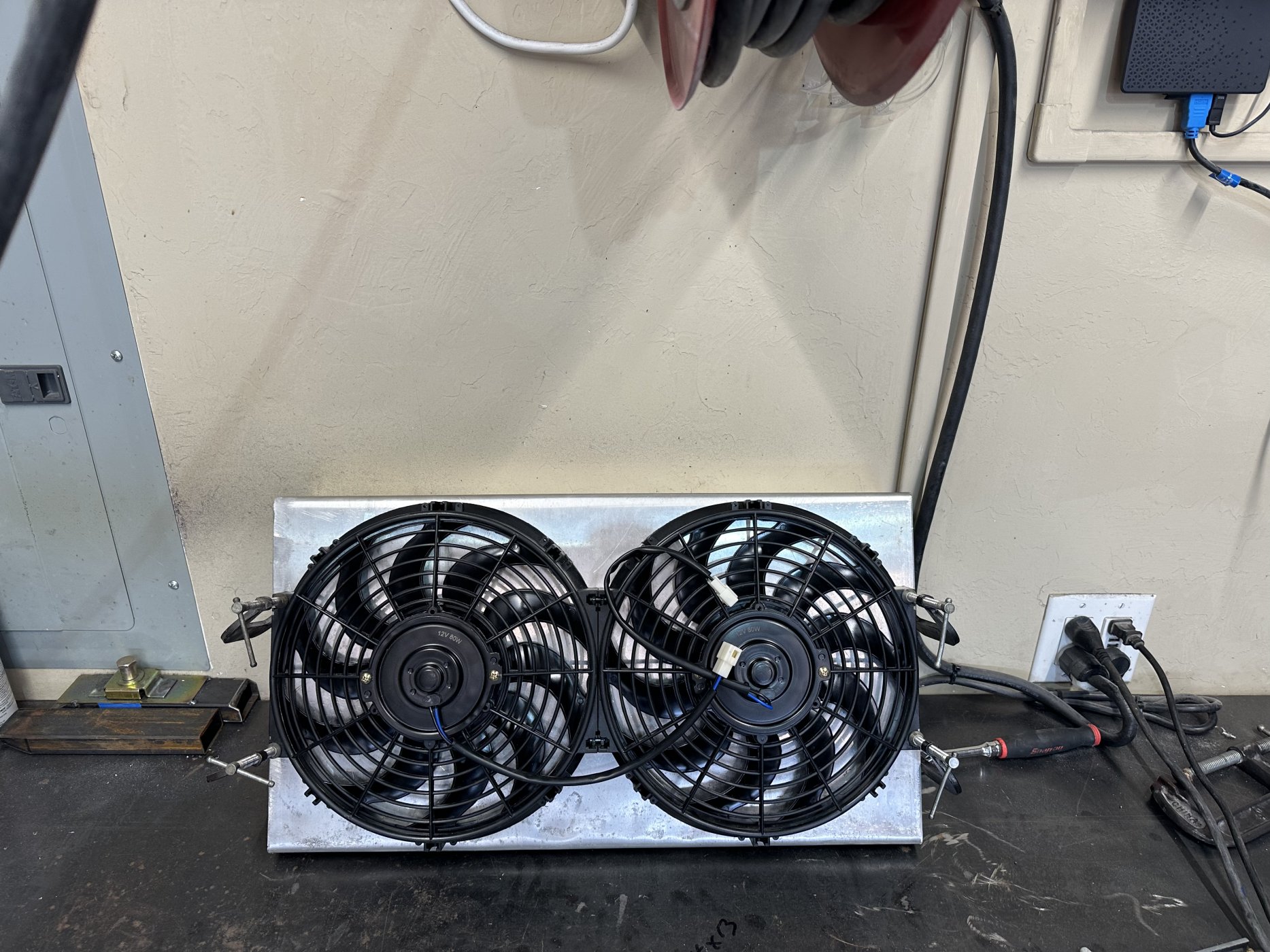

I decided to fabricate a radiator shroud to help air flow while idling. This allows the fan blades to be positioned 1 1/4” off the radiator fins. I had originally planned to make some rubber flaps that could open at high speed to improve air flow while driving, but I think I will hold off for now and see how the engine temps react.


Attachments

  • 88B160DC-1F00-4B8F-9E62-9E1FF771F096.jpeg
    473.9 KB · Views: 277
  • 75F4D702-9658-4C39-9FB2-66400F2390C6.jpeg
    414.7 KB · Views: 267
  • A3207361-D015-4B43-B5DA-613DBE1BBE85.jpeg
    412 KB · Views: 265
  • 8E785FC0-F8D5-48E6-B6C8-41A598B0D574.jpeg
    438.9 KB · Views: 260
  • 8475C975-5F04-492B-BBDD-B611F3725C51.jpeg
    435 KB · Views: 256
  • DB85FD1E-68A9-4F97-AF9D-38BD780C2AEC.jpeg
    452.1 KB · Views: 262
  • FD9A1872-68E2-47E2-9FB9-F9D964B660B9.jpeg
    448.6 KB · Views: 256
  • 461B5BE2-5FAC-4A9D-93E5-ECFA41E3F73E.jpeg
    436.2 KB · Views: 322

Sean S.

Supporter
Nice work Sean. That thing sounds great.

Are you planning to do the body work and paint? I always dread that part. Makes such a mess.
Thanks Rob.
I plan to do the body work. But I don’t think I have the paint job I want in me these days. I plan on having someone else paint it. I still have some research to do to find someone.

sean


Sean S.

Supporter
Sean

What’s the specs on your wheels and tires? Brand?

Your build is coming along nicely keep up the great work.

Devin

Hi Devin

I’m not sure if the brand that RCR uses. But they are replica BRMs 17x10 on the rear with Toyo Proxes R888 315/35R17 rubber and 17x8 on the front with Toyo Proxes R888 225/45 r17 rubber. I will likely go a lower profile on the front to solve a rubbing issue, but I haven’t gotten to where I can research that yet.

Sean


Sean S.

Supporter

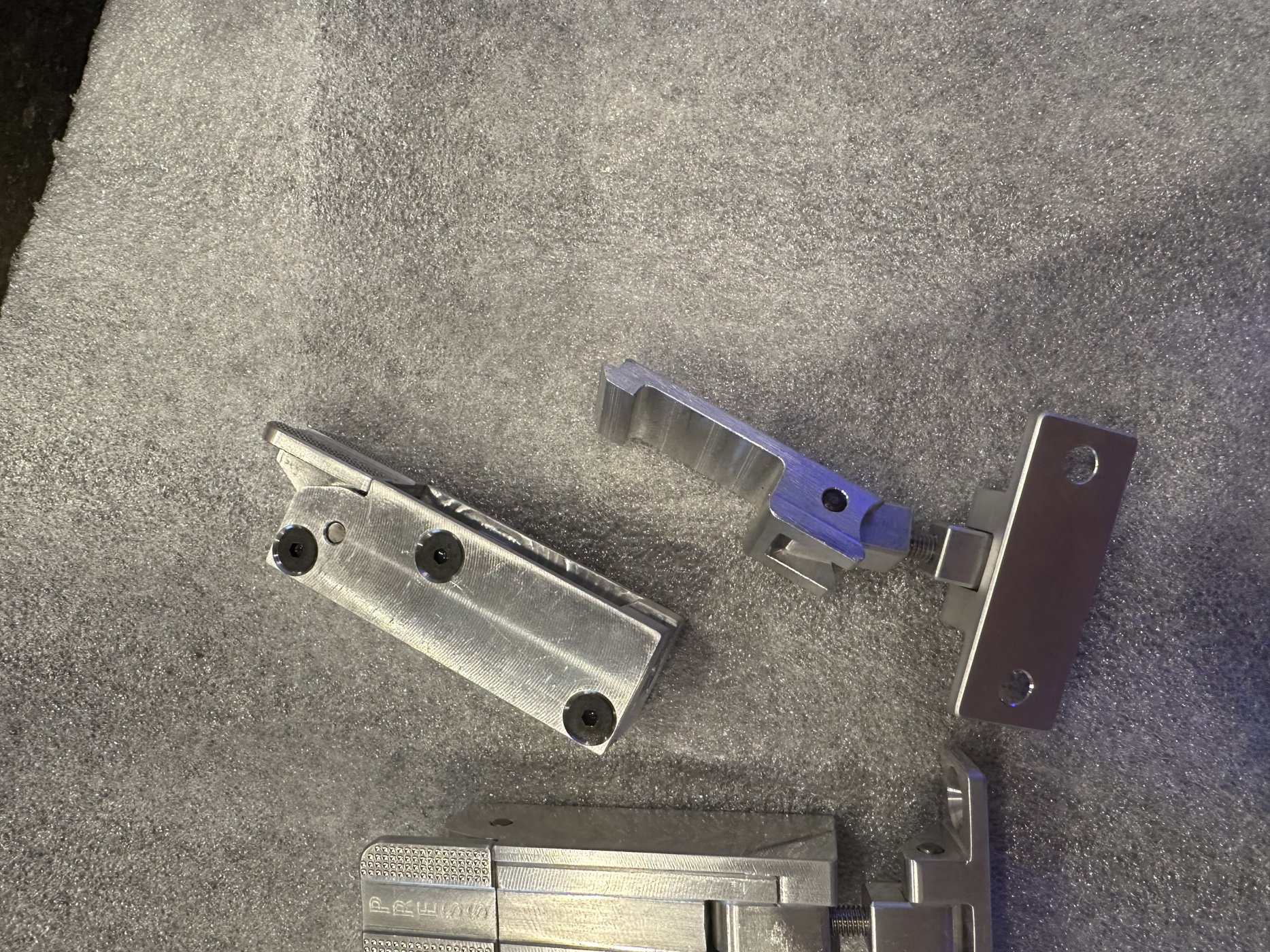

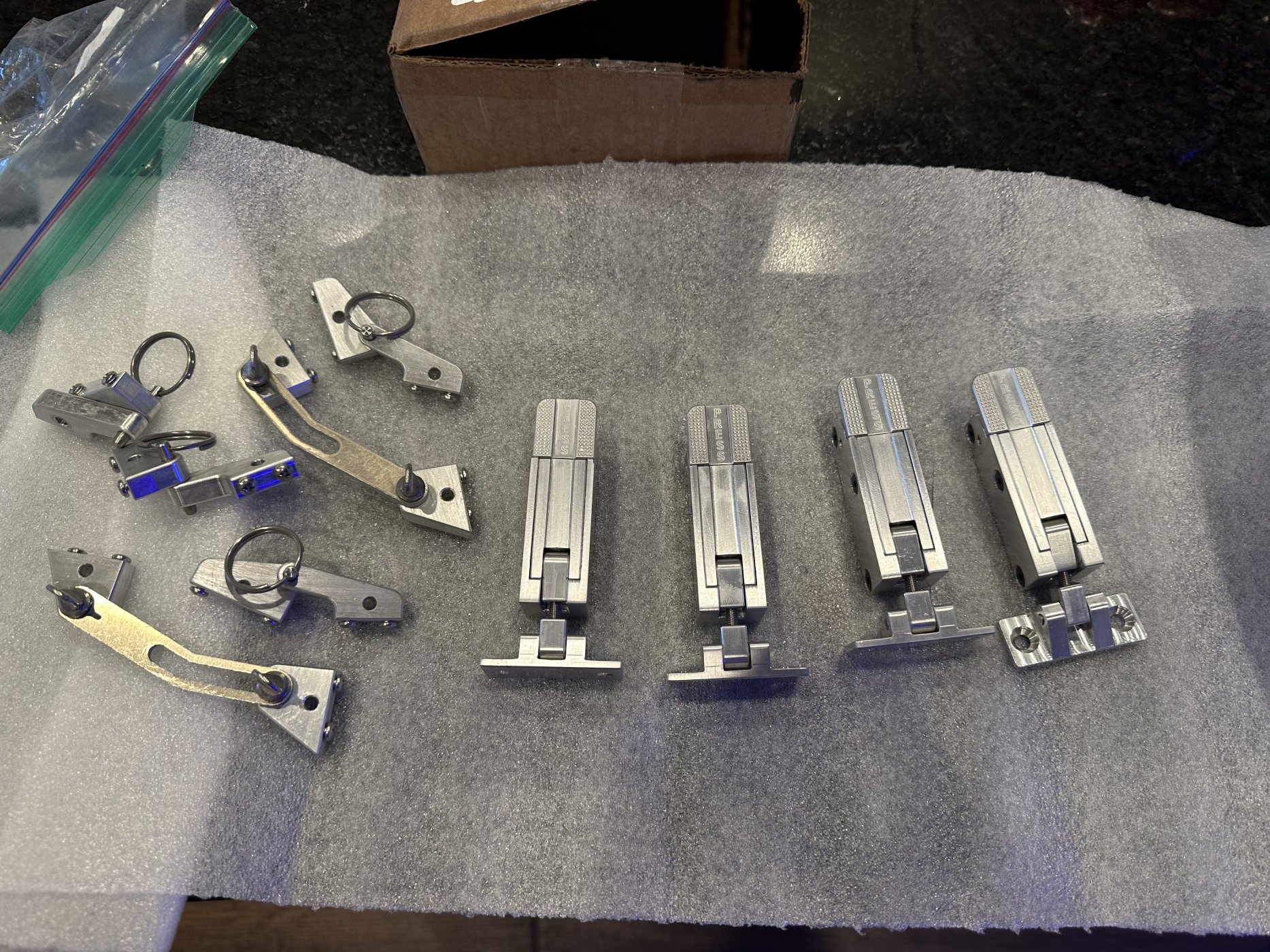

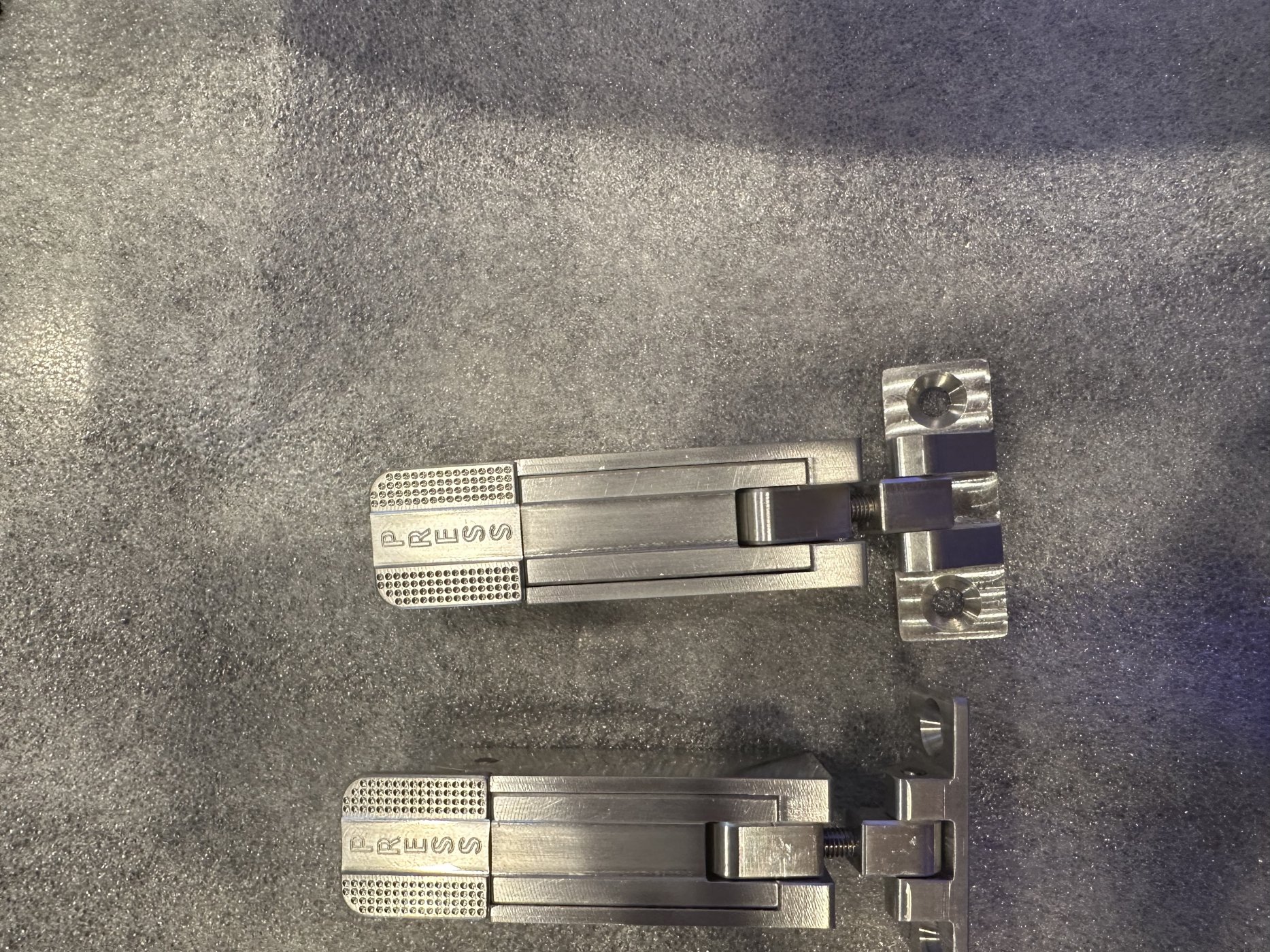

Just received my hartwell latches and window vent hardware from RCR. Very well made items for sure!
