Progress Update.

This is a brief Carbon Cub status report. The fuselage is substantially complete, nearing the time for fabric.

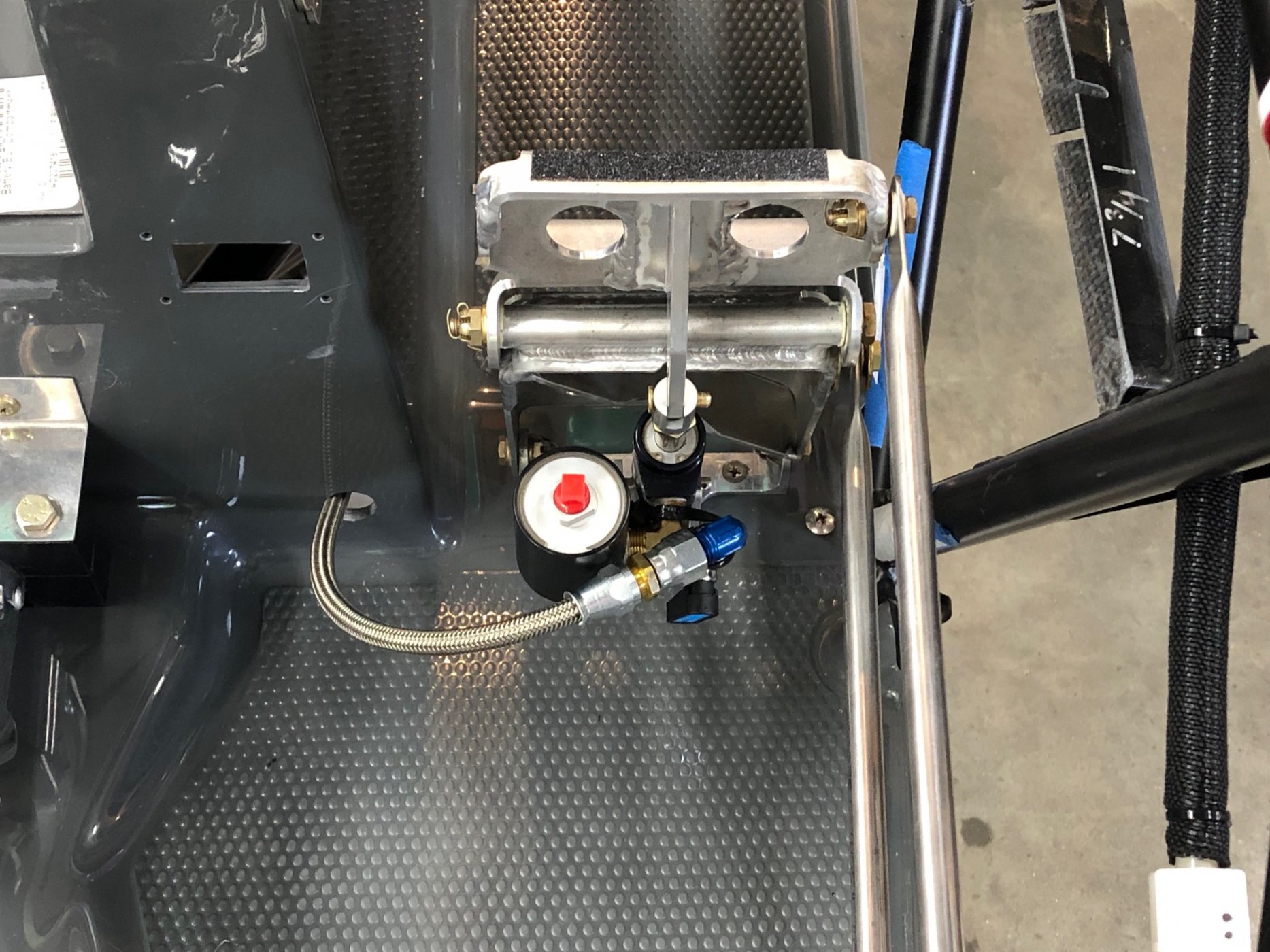

The brakes have been upgraded with stainless steel rather than plastic lines and Grove fluid reservoirs.

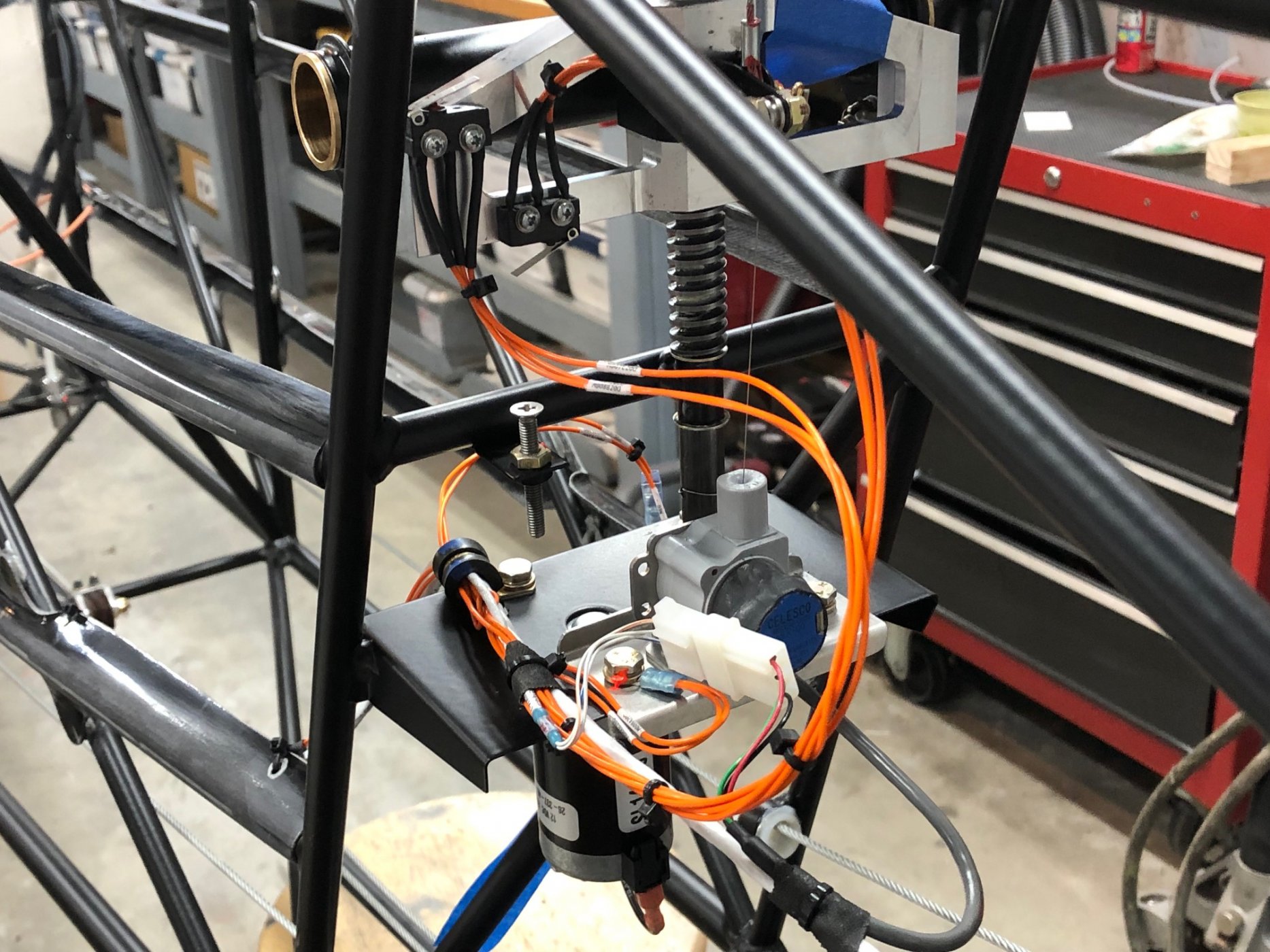

The trim motor required some extra work. The motor and jack screw are rigidly connected, so alignment is critical. When initially assembled the motor groaned but worked. I suspect most builders would let it go since it was fully functional, but we opted to take it apart and see if it could be improved. After a bit of adjustment of the hole on the mounting plate and adding shims to assure the motor shaft and jack screw were aligned, it operates more smoothly.



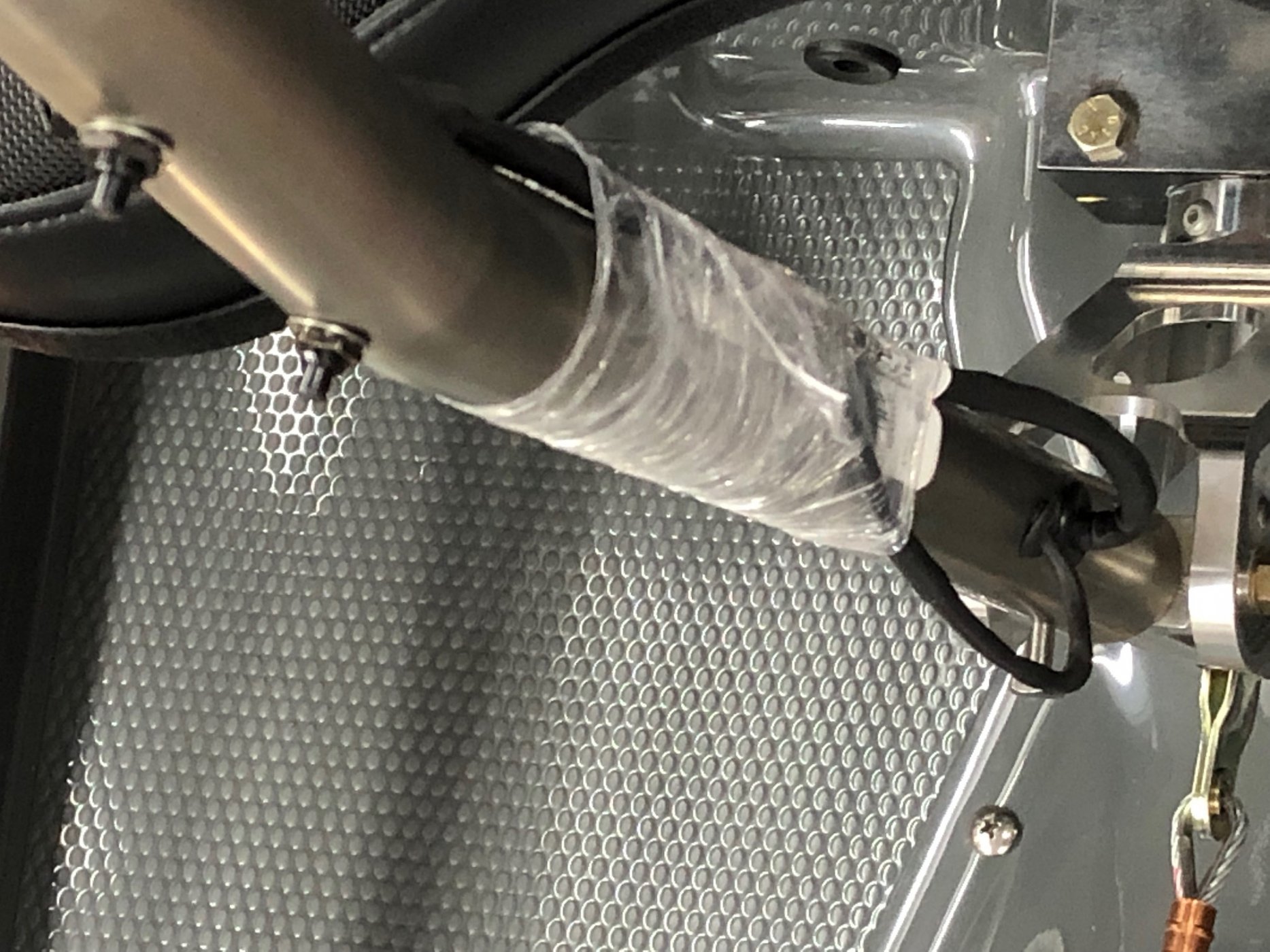

A second switch for the auto pilot kill function was added to the control stick. This was a bit like performing surgery working inside a long tube without disturbing the existing wiring, but it eventually came together.

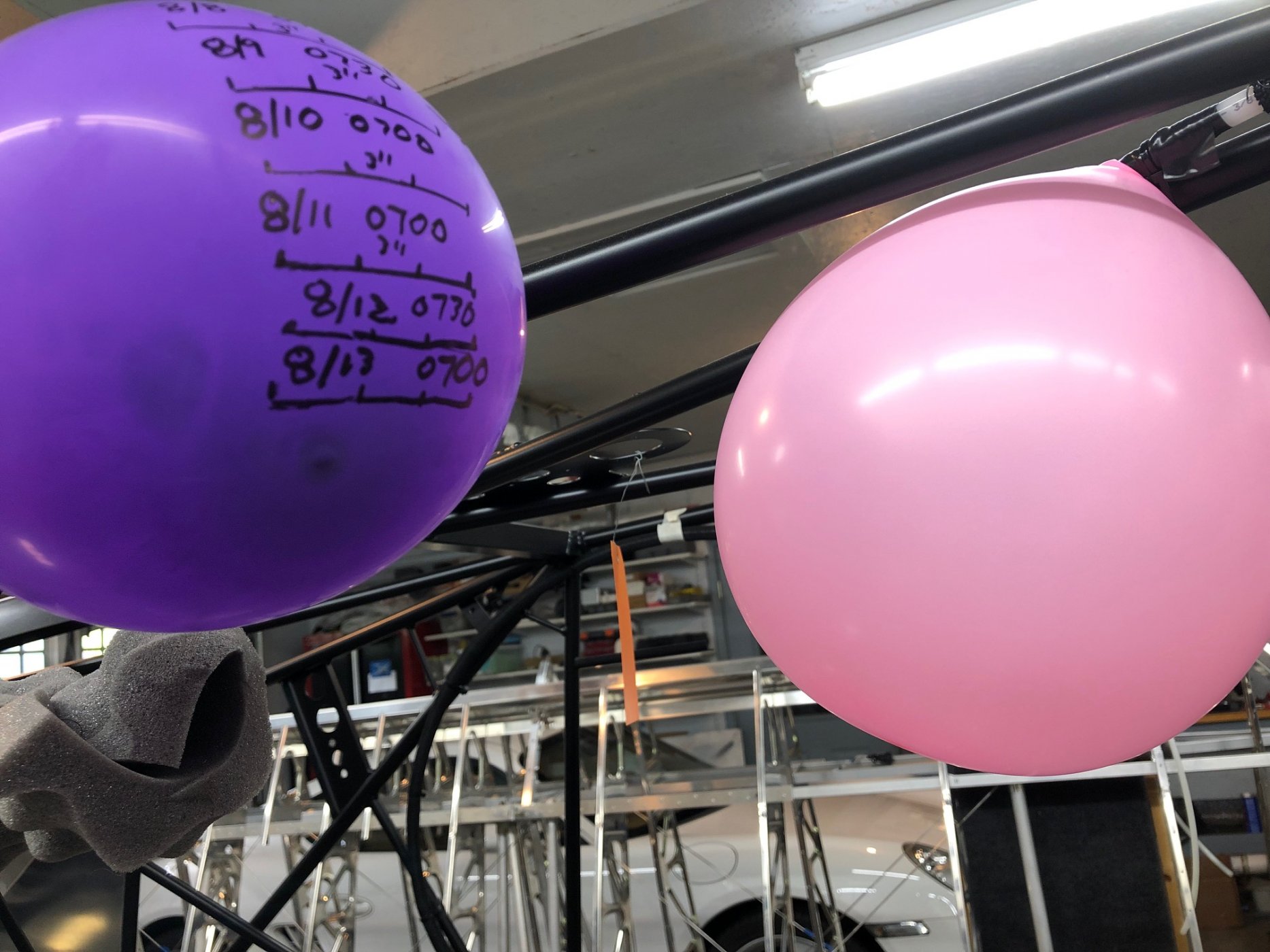

The fuel system has numerous connections and checking for leaks is critical, since many of the connections will not be accessible once it is covered. The balloon test is our preference. Once the balloon held air for a week we were satisfied the connections were good.



I am designing and fabricating a rear seat that will match the front and replace the sling seat that comes with the plane. It is offered as a $6000 option, but for that sum I figure it best to do it myself. It has been a great opportunity to learn more about the mill. It will be the subject of a detailed post when finished. So far I have about forty hours into that project. It is really holding up progress on the rest of the plane!

More details can be found at the Cubcrafters Forum.

https://forum.cubcrafters.com/showthread.php/1791-Chuck-and-Ryan-s-Build-Tips/page21


Eight months since the last post on this forum, and so much progress to report. More details can be found on the Cubcrafters forum site. https://forum.cubcrafters.com/showthread.php/1791-Chuck-and-Ryan-s-Build-Tips?p=27698&viewfull=1#post27698

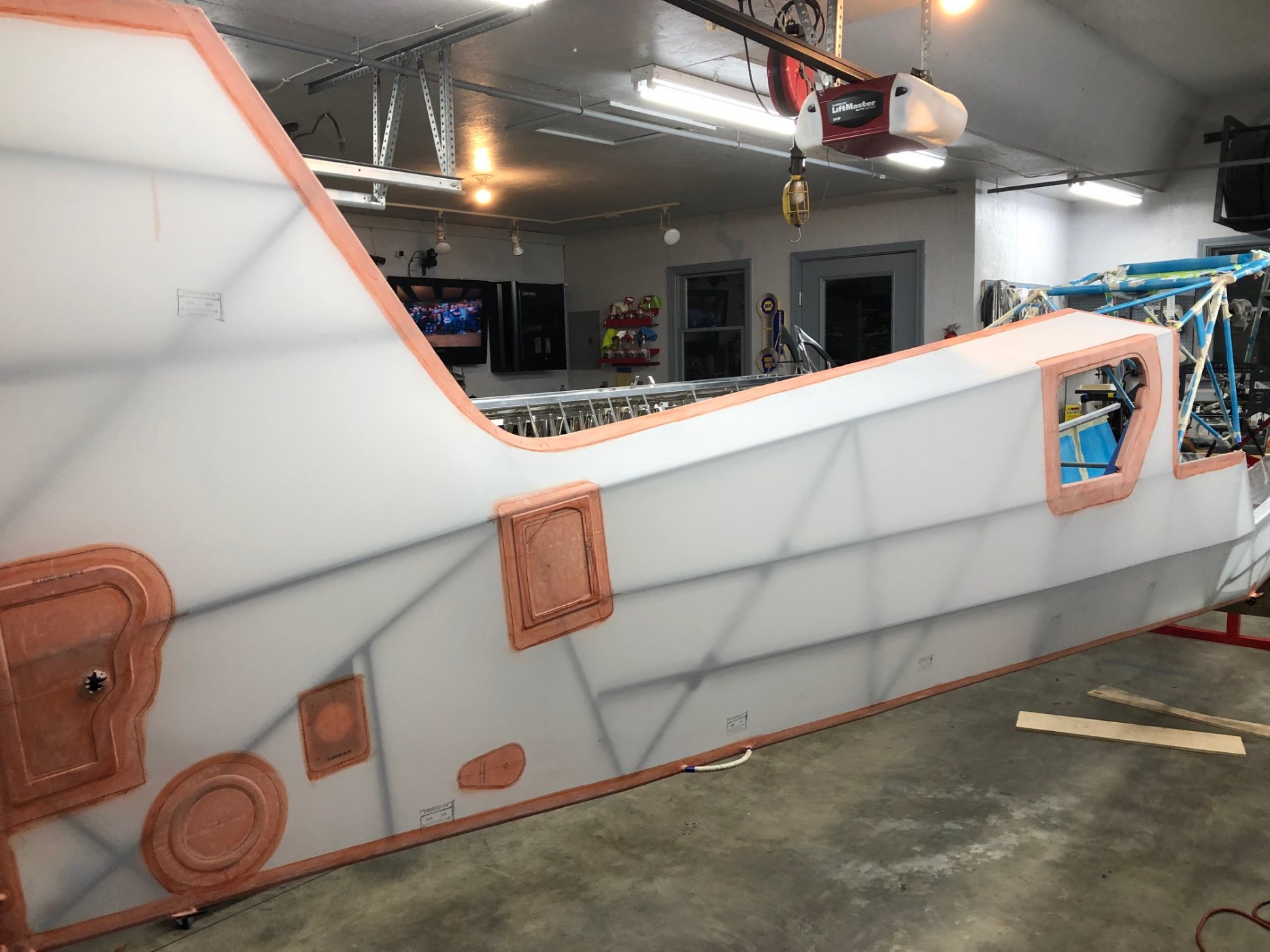

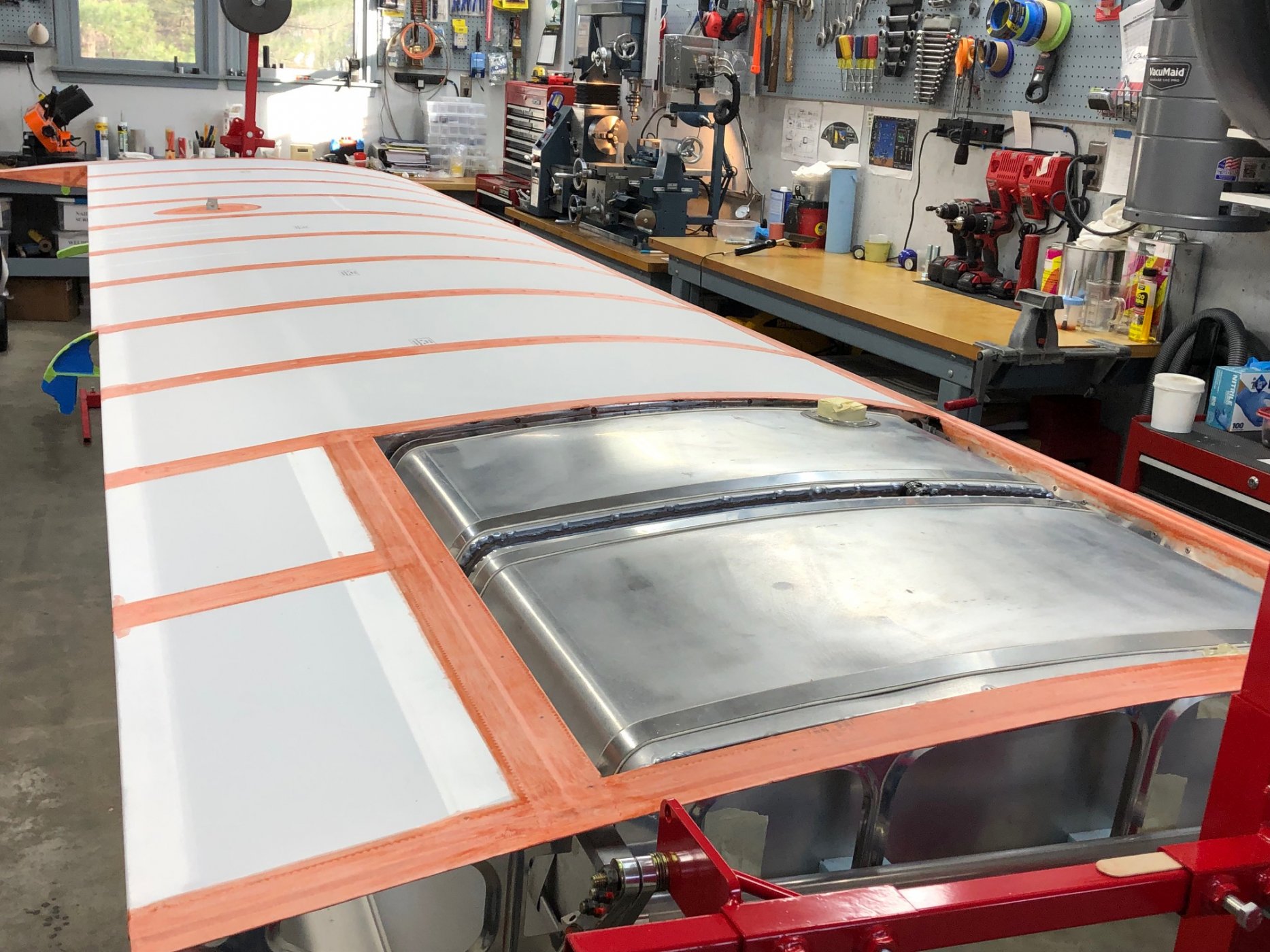

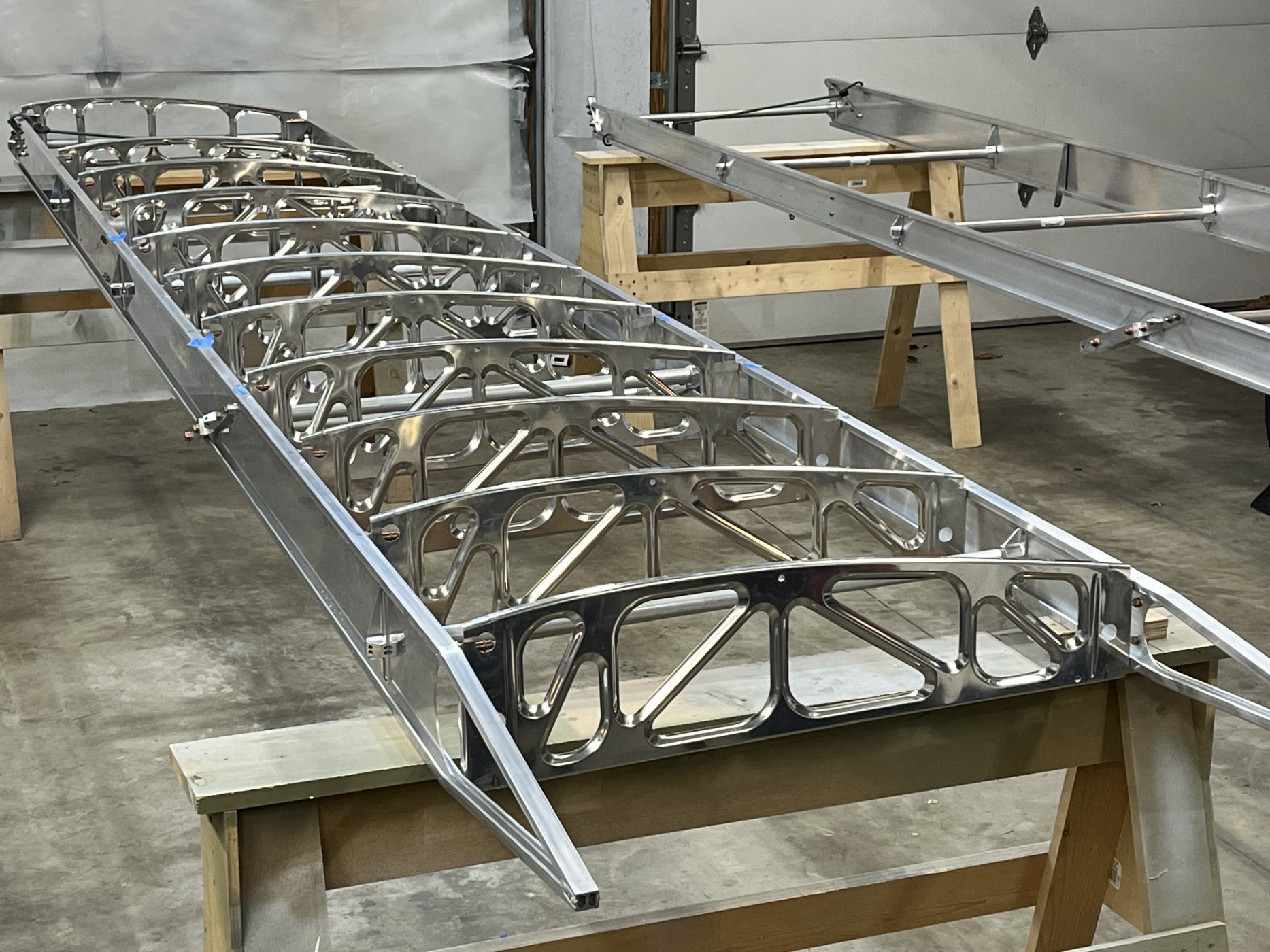

Presently the fuselage and one wing are covered and ready for paint with one wing and the tail feathers remaining. Paint will start once the weather breaks, likely in late February. That delay may prompt some work on the Jaguar for a month or so.

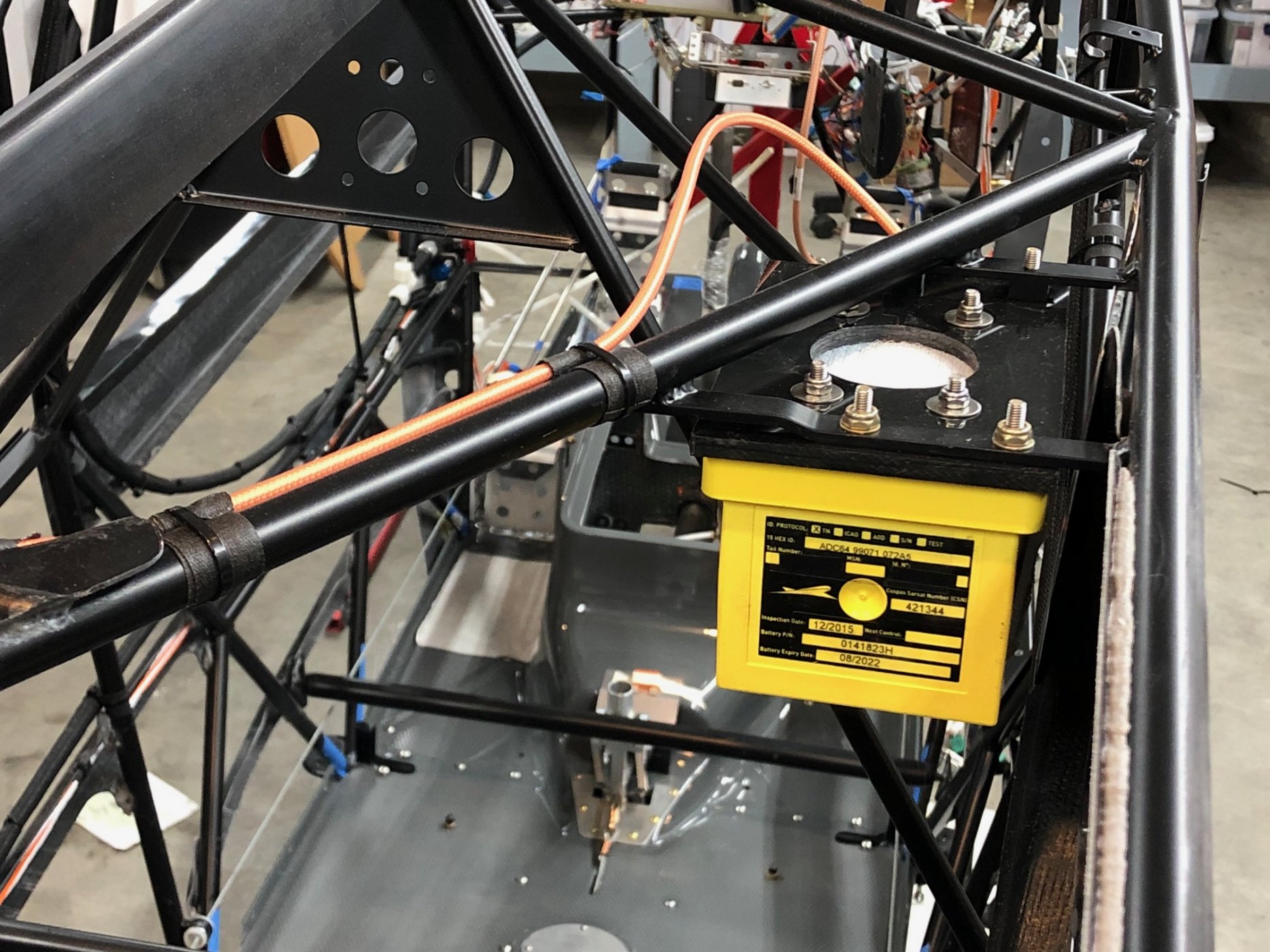

The Cub is equipped with a Kannad ELT (emergency locator transmitter). We euphemistically refer to it as the device that permits one’s remains to be located promptly in the event of a crash. It transmits two frequencies: 121.5 and 406 MHz, the later of which is to a satellite. On the Carbon Cub it is located under the pilot’s seat in a area that is surrounded by carbon fiber, which does not pass radio waves very well and thus impairs the internal GPS receiver. This led to a lively discussion and some interesting R and D to resolve issues with both the location of the unit and a separate issue with the tuning of the ELT antenna, covered in detail at the link above. Fascinating discussion if anyone is interested.

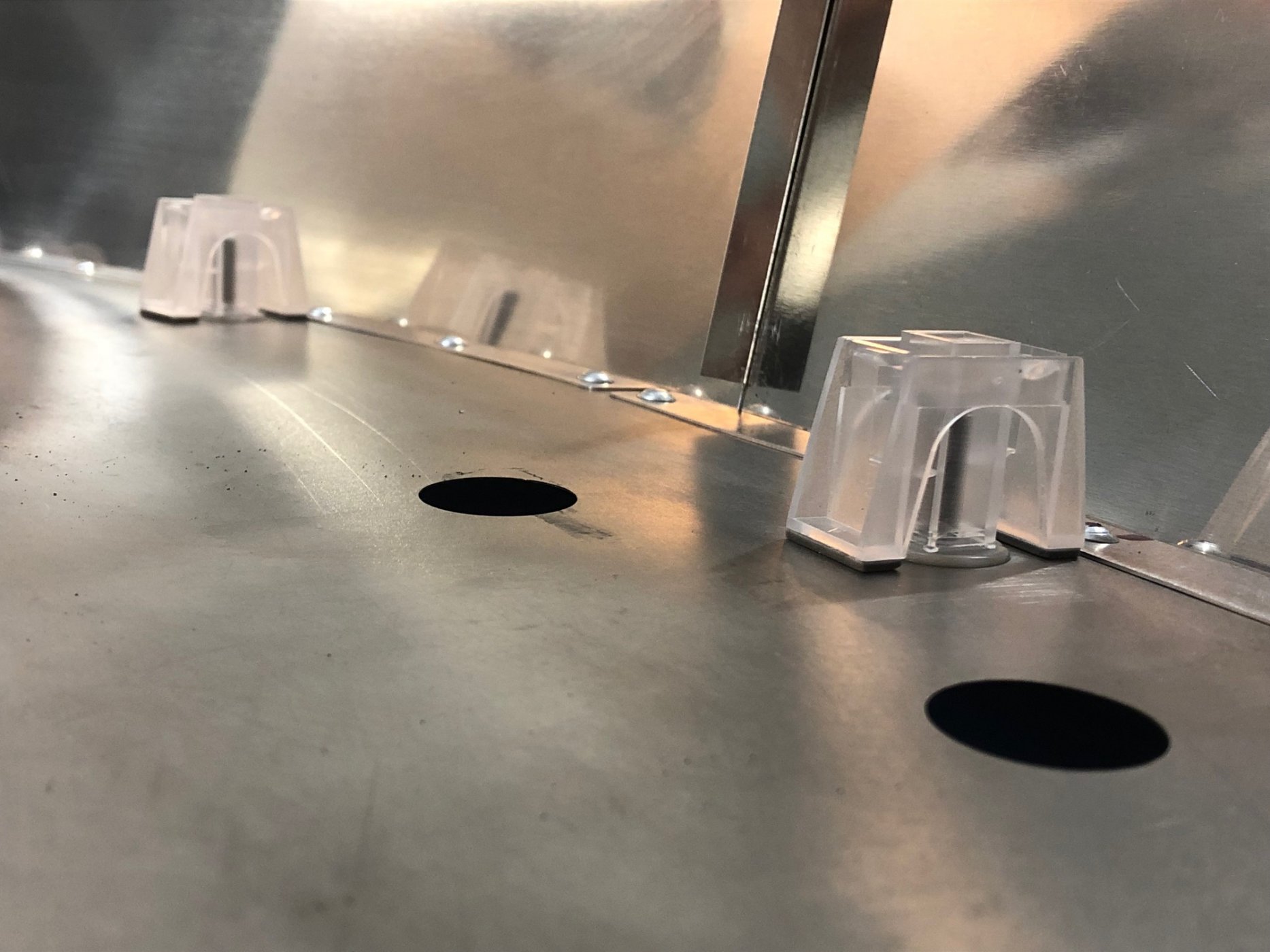

The boot cowl is the aluminum structure that covers the front end just aft of the fire wall. The fire wall is stainless steel. It is constructed with counter sunk rivets and precision with the assembly is critical. The back side of the fire wall is covered with a think piece of insulation. Based on experience with that insulation coming loose on the last plane, Click Bond screws were added to afford a good mechanical connection. Those that have read the GT40 build blog may recall that Click Bond screws were used to create attachment points for the insulation under the rear clip.

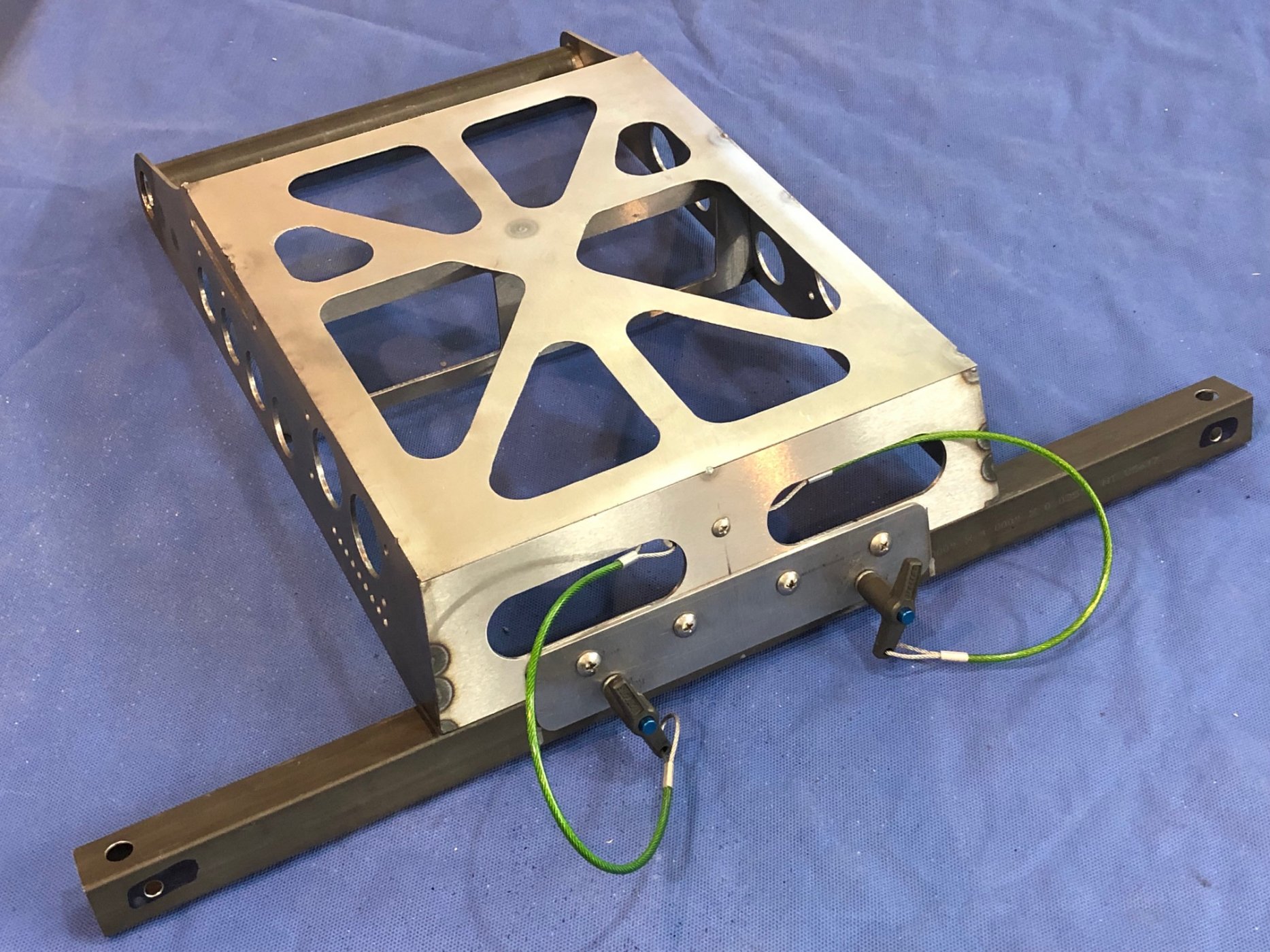

Design and construction of the rear seat support has been a major time-consuming project, but using the mill to cut and drill holes in precise location proved invaluable. It is essentially finished and ready for installation once painted. This project literally saved us thousands of dollars over the cost of the factory option.

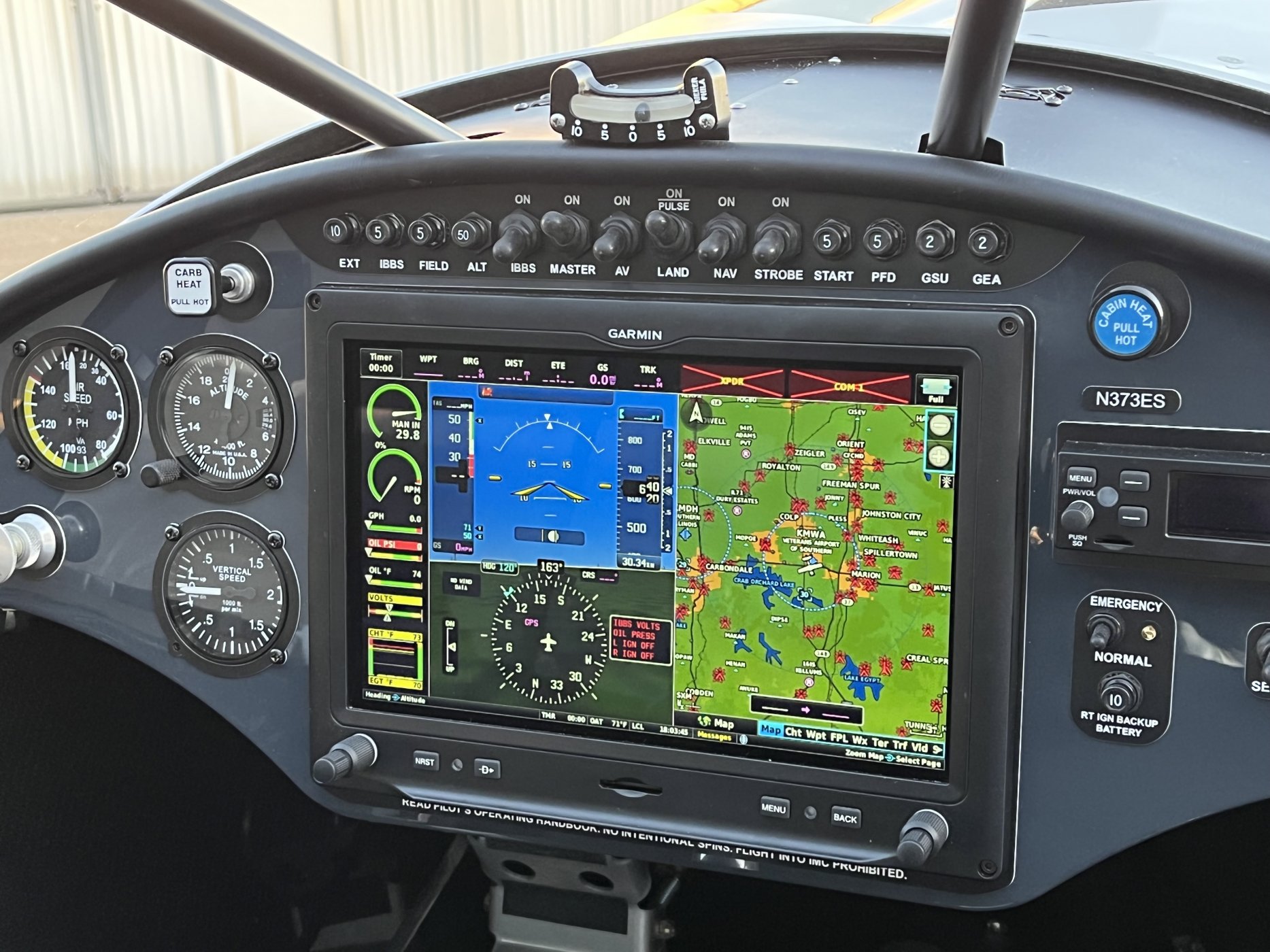

Typically, the panel is wired after the fabric is in place and painted. This time we instead preliminarily wired it before to confirm everything was functioning properly while there was good access to the wiring. A third steam gauge was added so we now have rate of climb, air speed, and altitude, all of which are redundant with the G3X glass panel. I still like analog gauges.



So many projects, so little time.

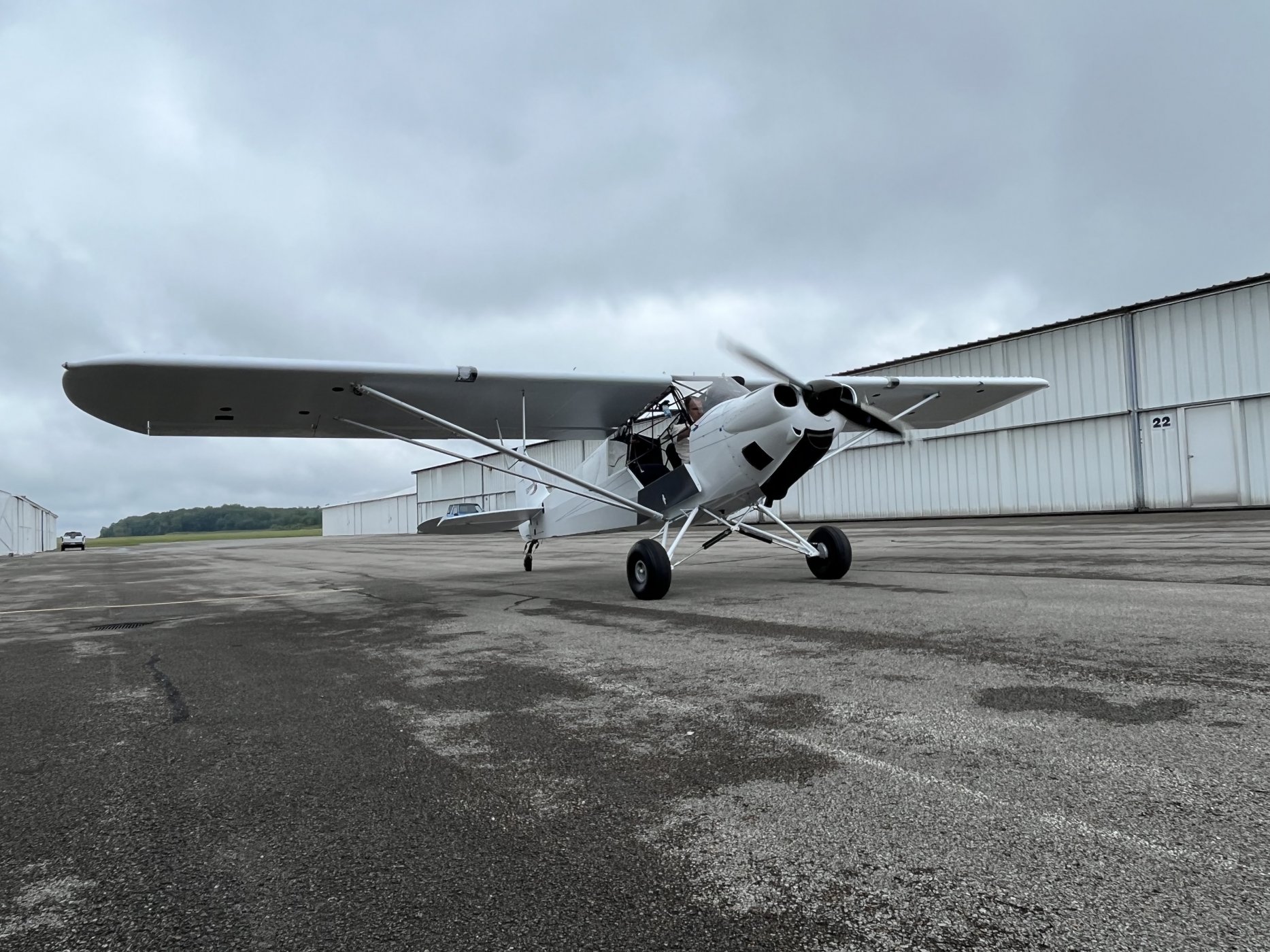

The Carbon Cub has been nearing completion. Ryan came and helped with the weights and balances measurements and the fuel flow, critical to final completion and inspection by the FAA. He then started up the engine and taxied a bit. Hope to have it officially signed off and fully completed in a couple of weeks.
