Converting a GT40 into a Dino 206SP

Re: German GT40 interpretation

Hallo Axel

Oder wie wärs mit etwas GTX1 mässigem Heck. ;)
Hi Urs
ja, hab ich auch schon überlegt, aber es soll doch mehr ein klassischer Racer werden, late 60ies style mit patina, so wie ein Roadster den Ford hätte bauen können zu der Zeit, weil ich die eigentlichen Roadster von damals irgendwie nicht mag....

for our english speaking friends:

I love the GTX1, but I decided to go for a classic racer style with patina, something which could have been built by Ford at that time, cause the original Roadsters from the late 60ies do not really convince me with their design, although I love the clean design of the very first roadster very much...

Re: German GT40 interpretation

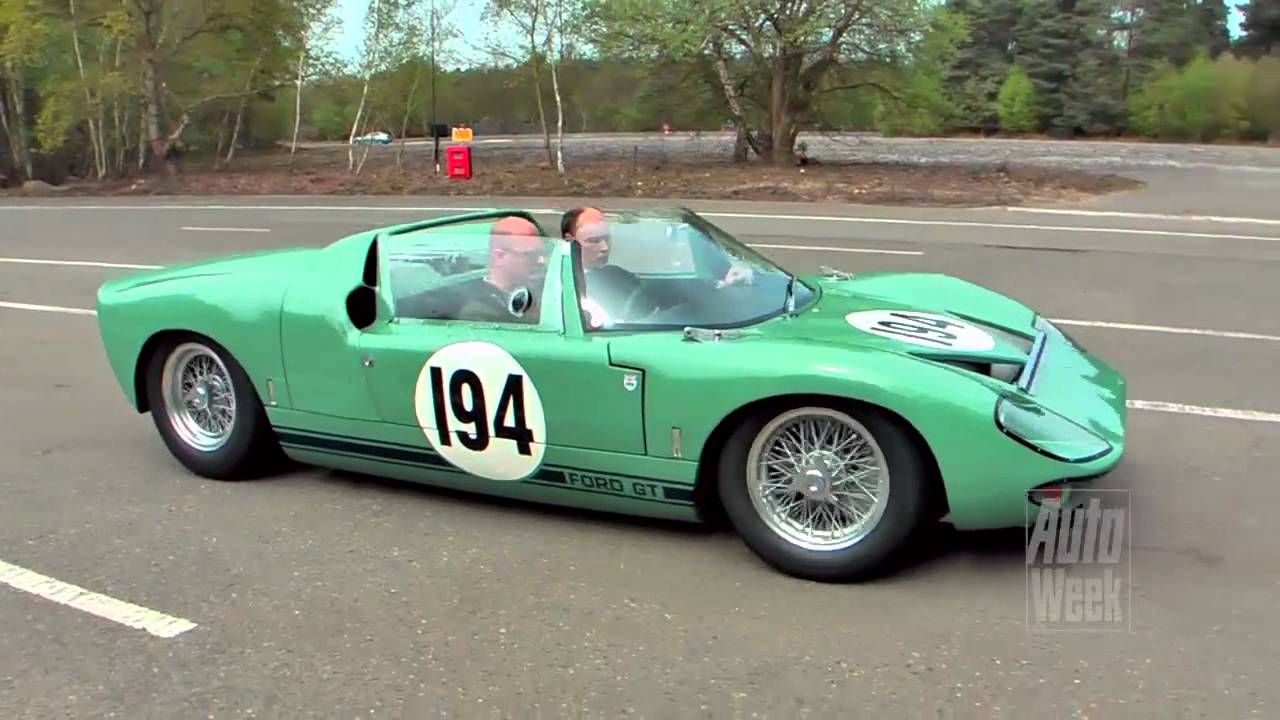

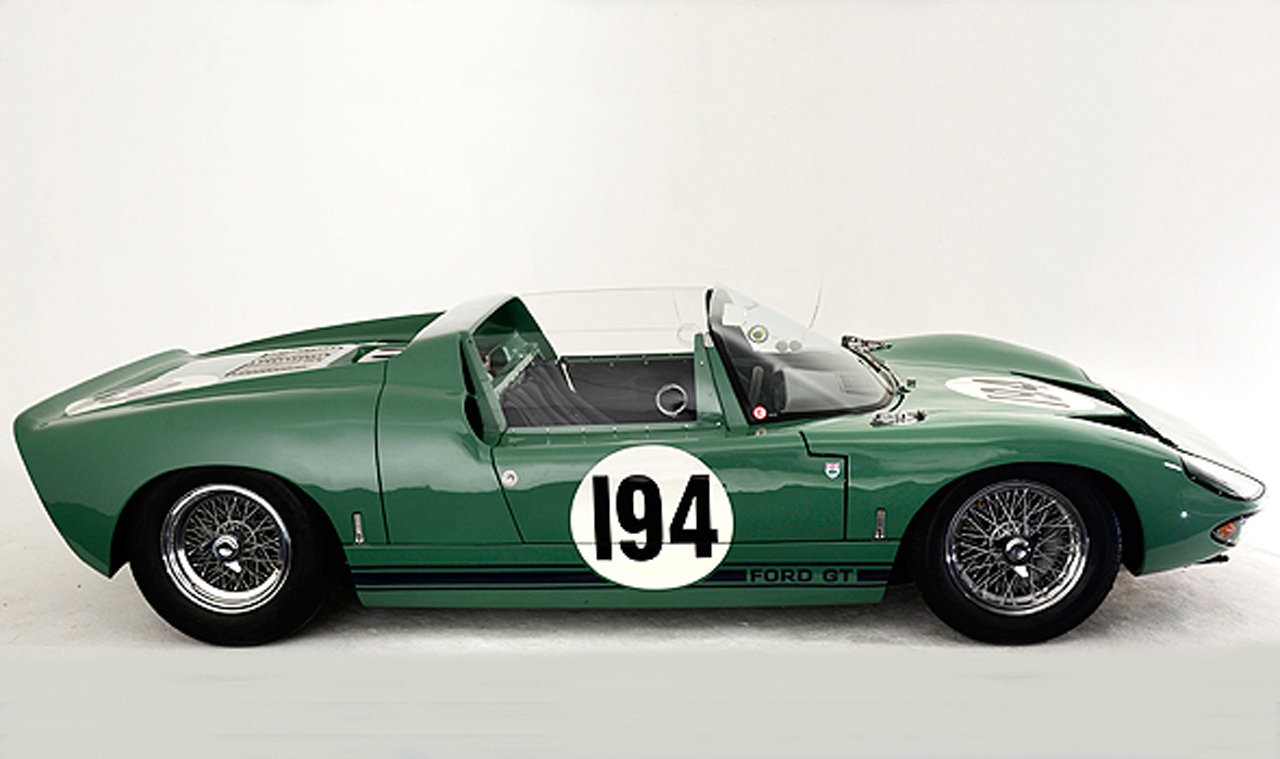

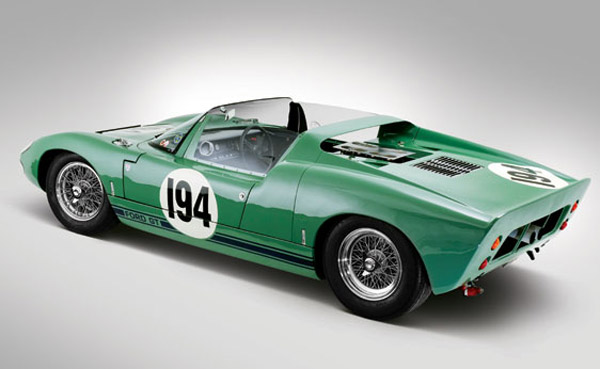

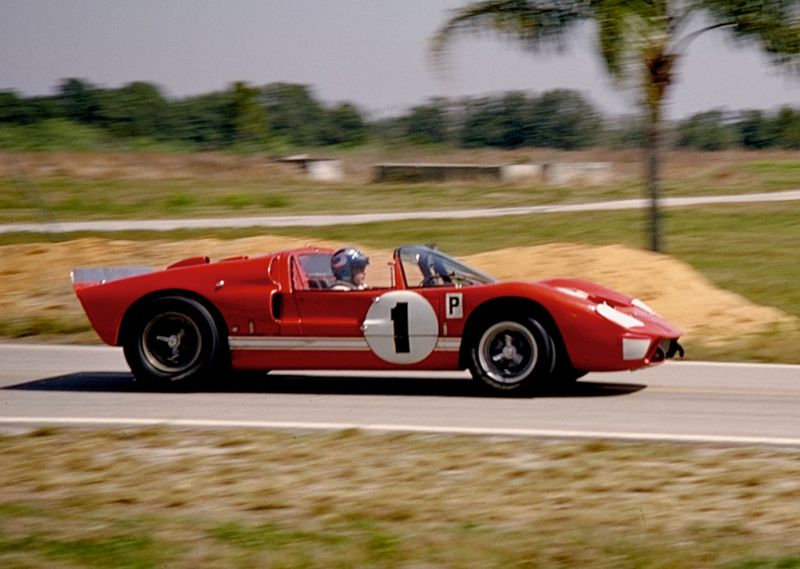

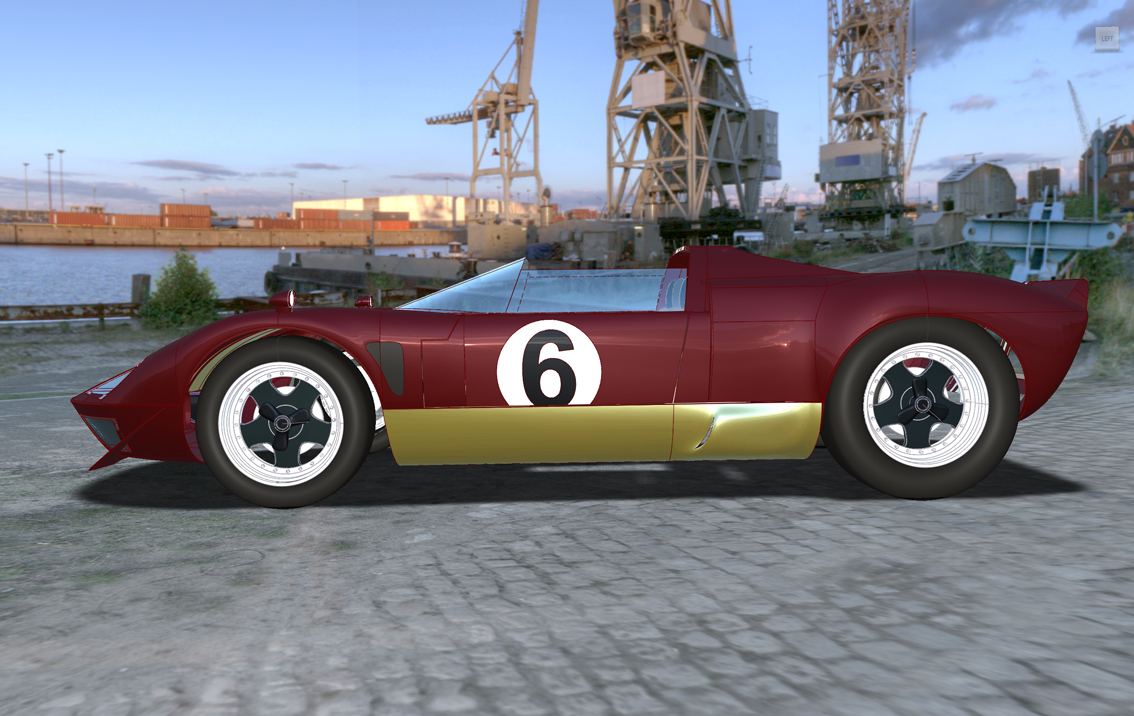

here is a comparison between the 3D, the original roadster, and my car.

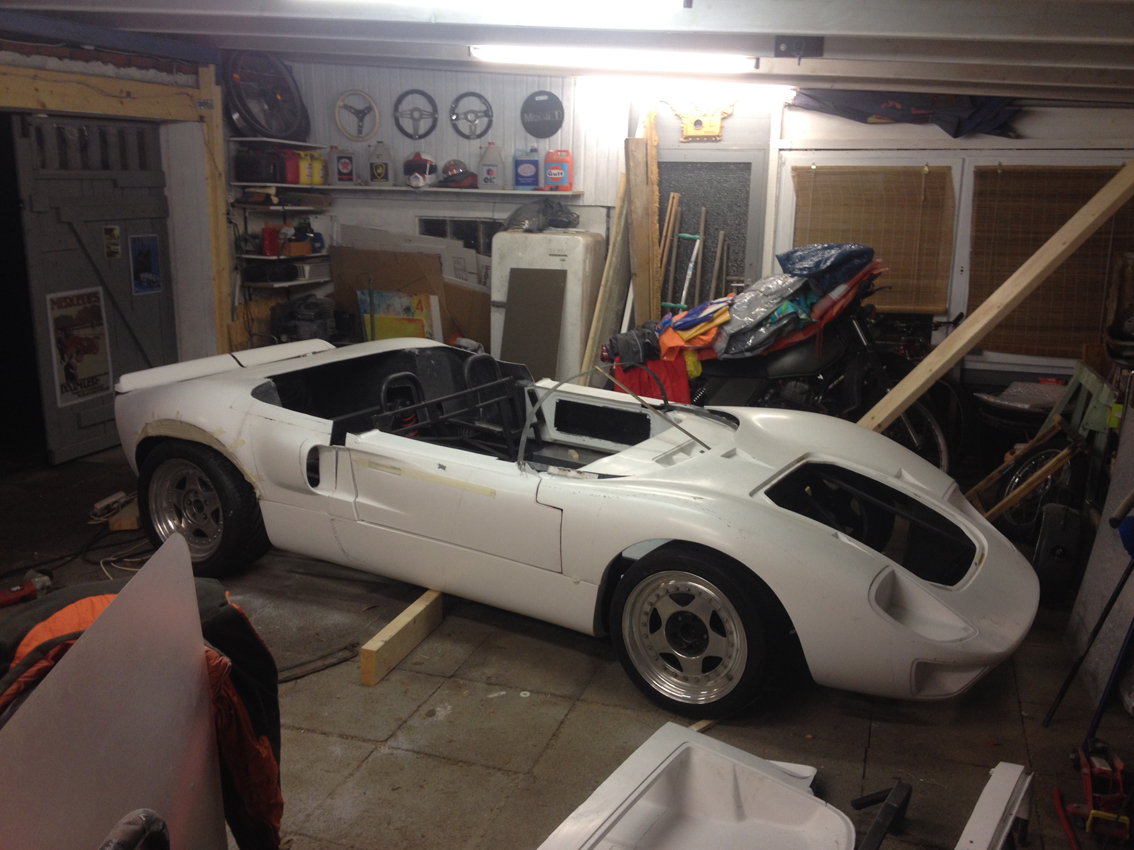

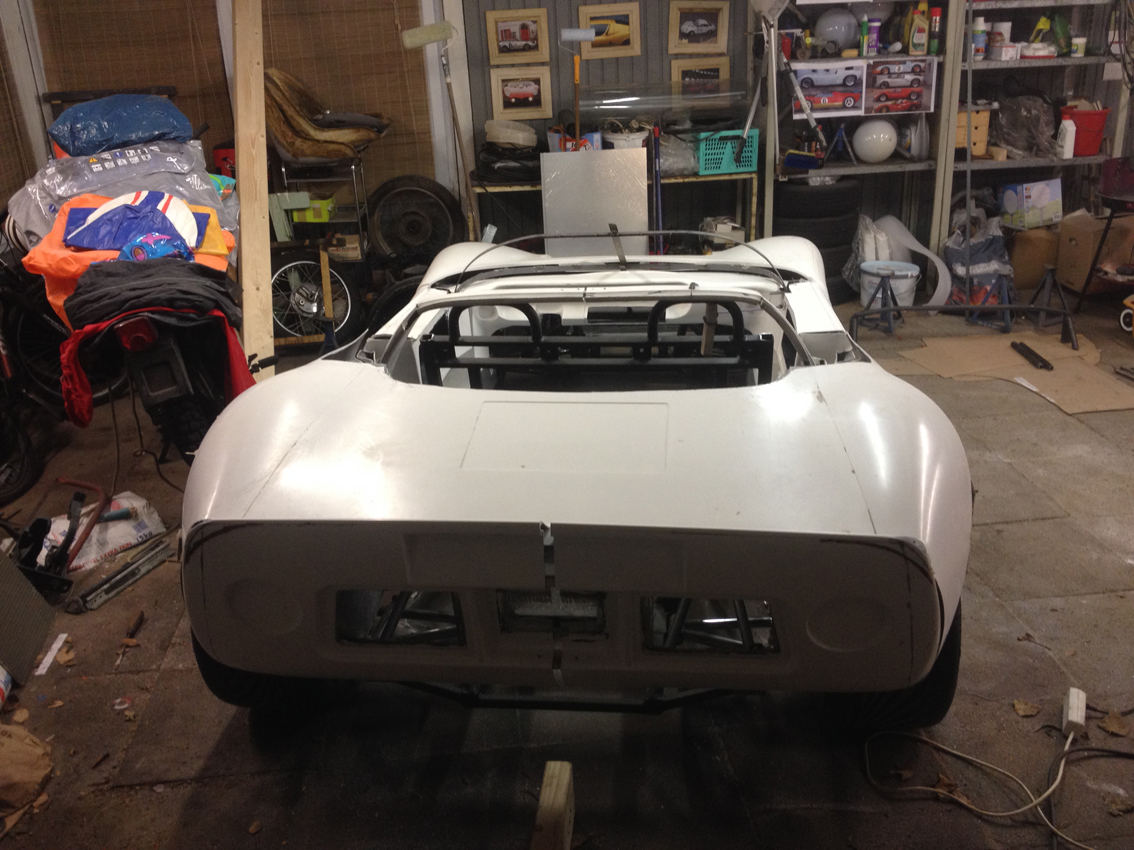

What worries me is that my frontend looks like it has a tendency to "hang down"...
Wonder if I should rebuilt this or if this a minor issue because you will not notice after adding lights, lightcovers and paint...


Attachments

Keith

Moderator
Re: German GT40 interpretation

Personally, I don't think it does. It's the lower light cover's edge that is not parallel to the ground I think that causes the illusion of a 'droop-snoot'. Try some tape stuck on to square the opening off, parallel with the ground, and re-take the photo. I then think the front end will appear as in the other examples.

If you hadn't have mentioned it, chances are no-one will have noticed.

If you want to modify the lower light opening, that would be far easier to 'square-up' compared with the rest of the front end which I think looks fine.

Nice job.

Re: German GT40 interpretation

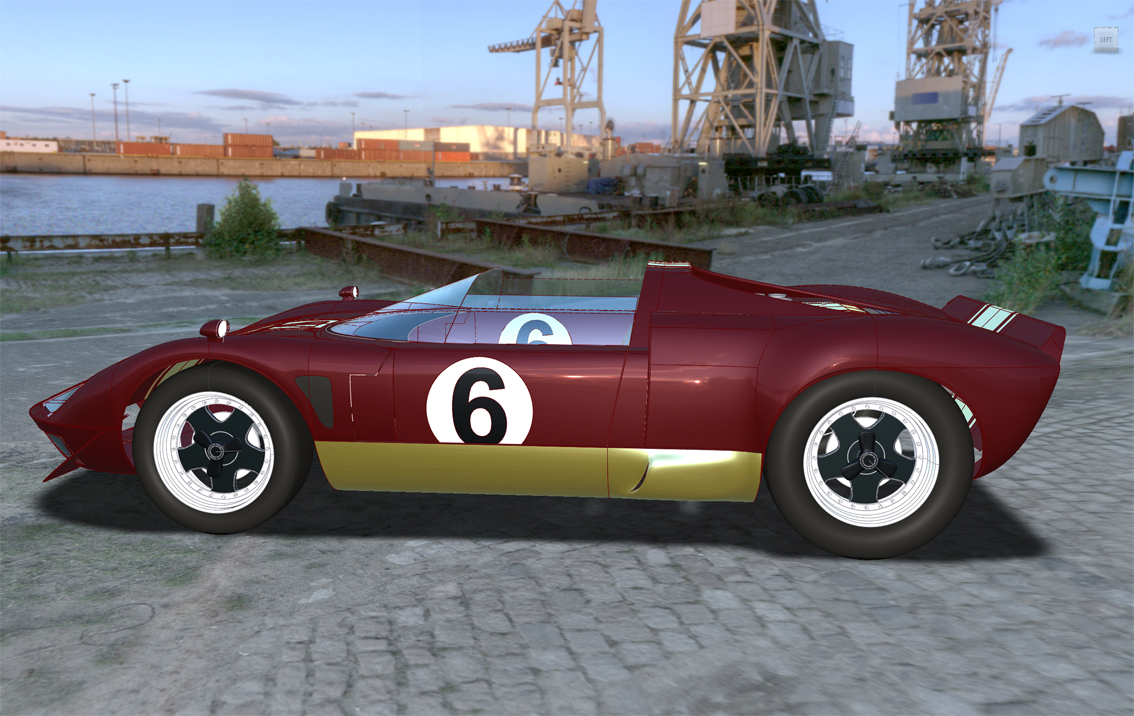

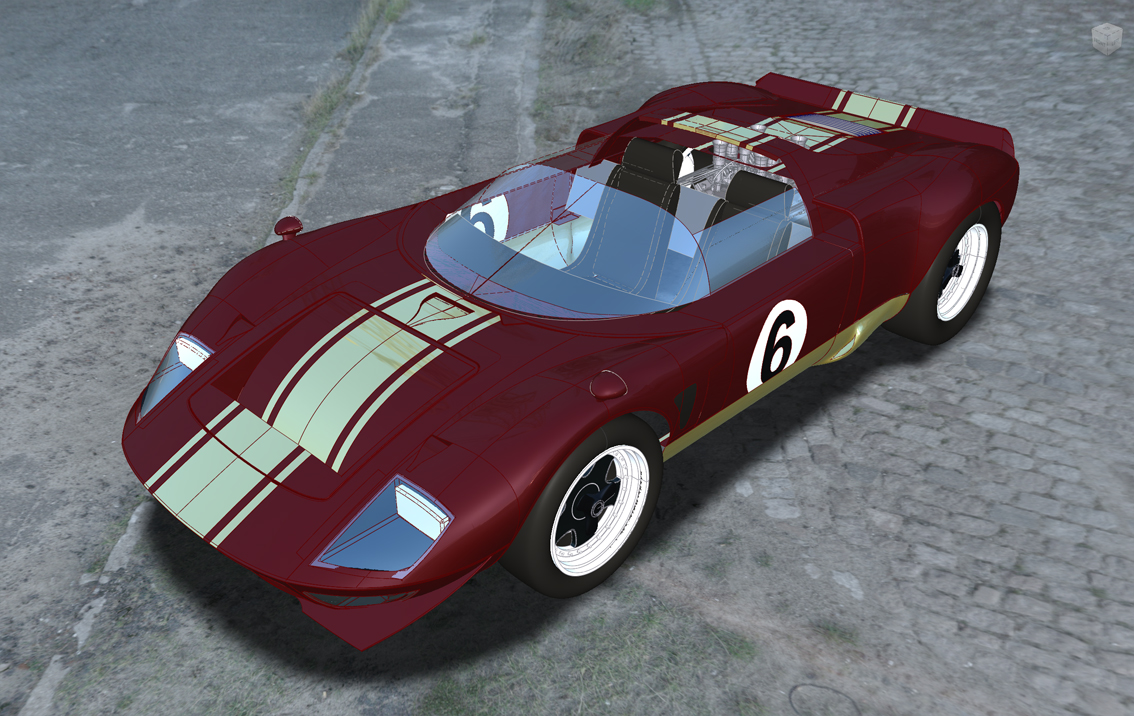

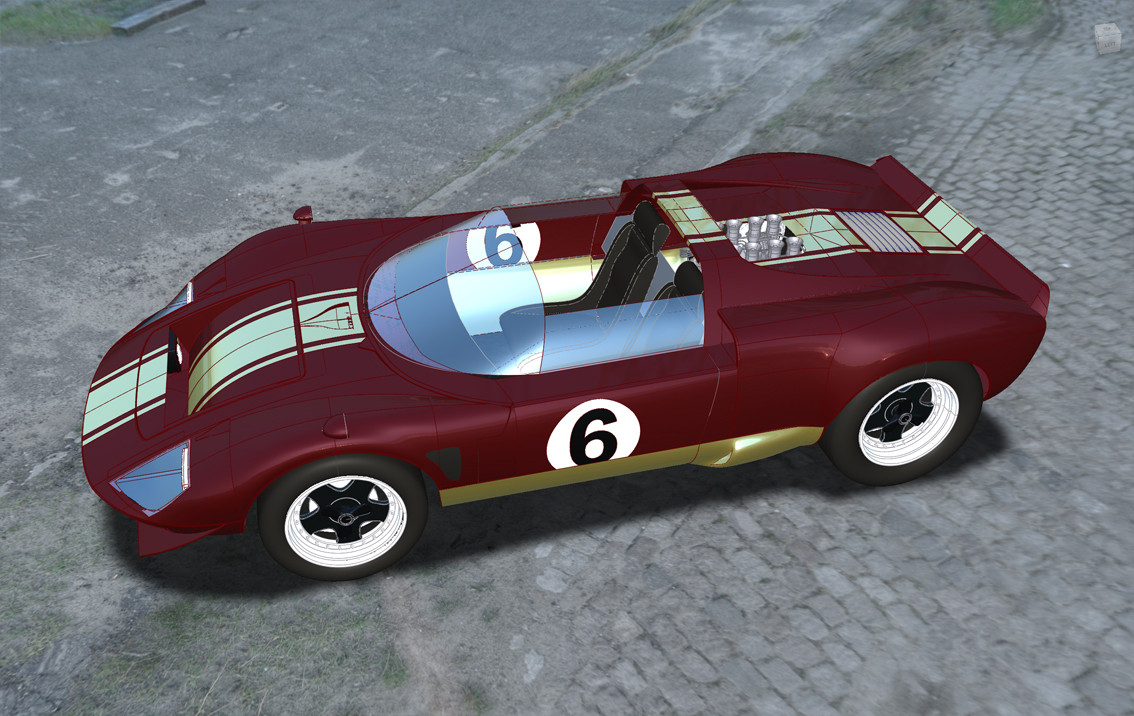

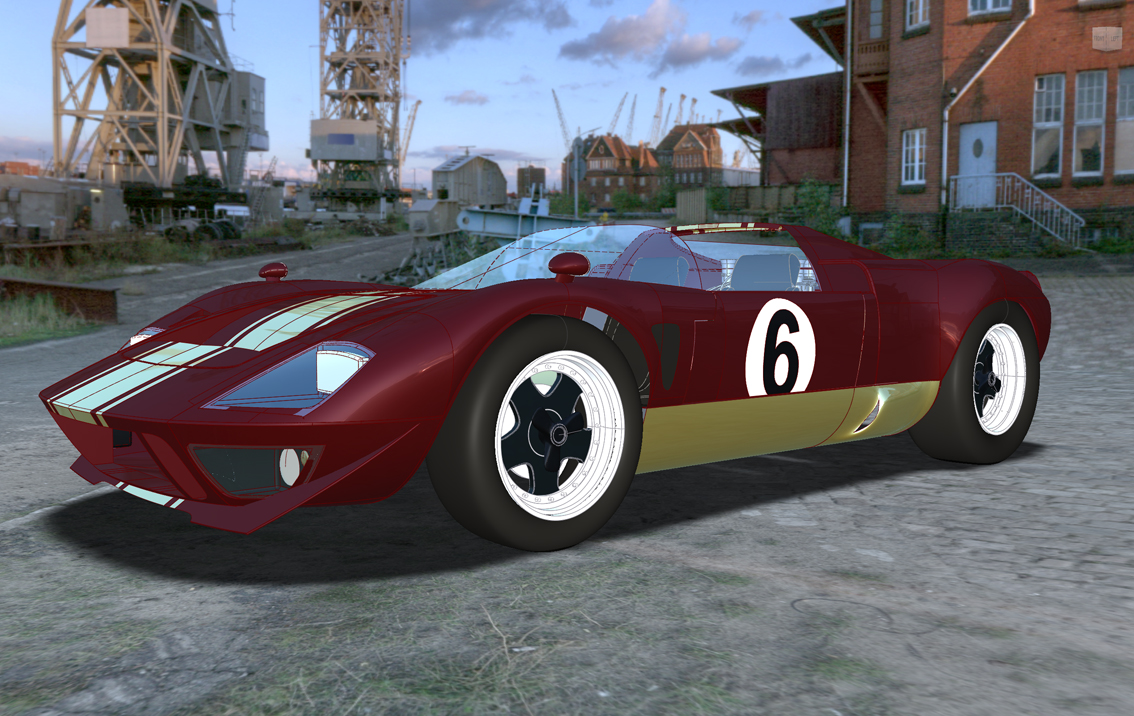

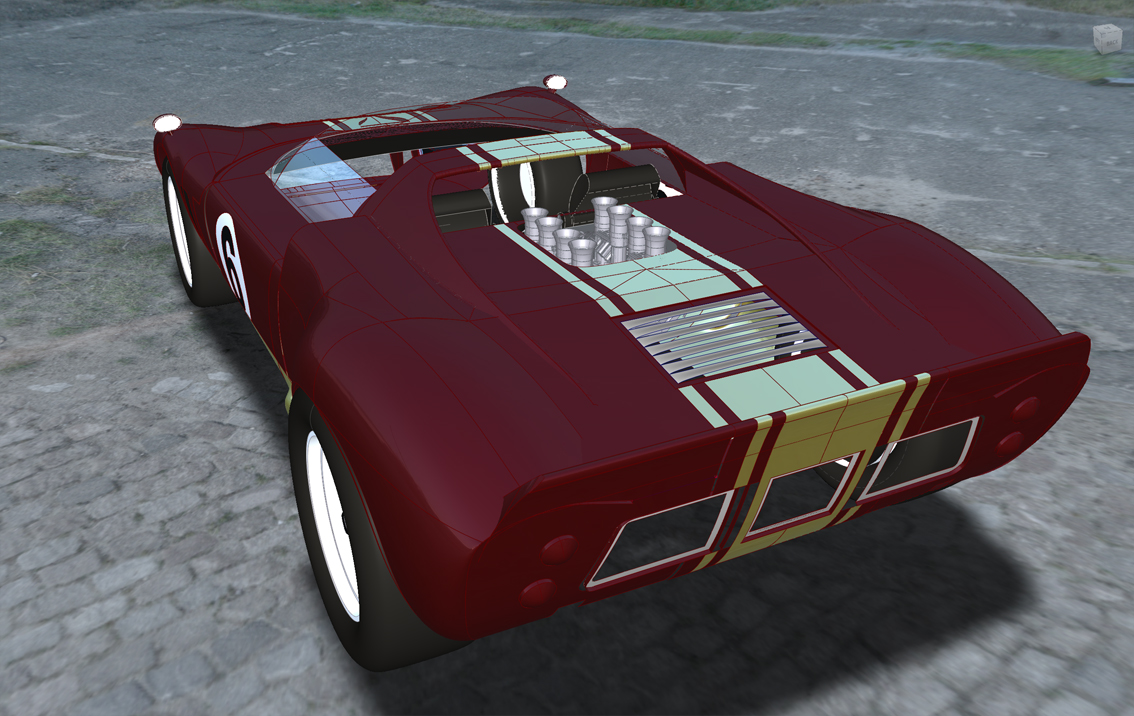

It is a better model now, worked out the rear fenders with the upper vents, and improved some other bits, and darkend the red colour ;-)
Wish I would have more time and my workshop would be much warmer so I can transfer my ideas into the real car...


Attachments

Re: German GT40 interpretation

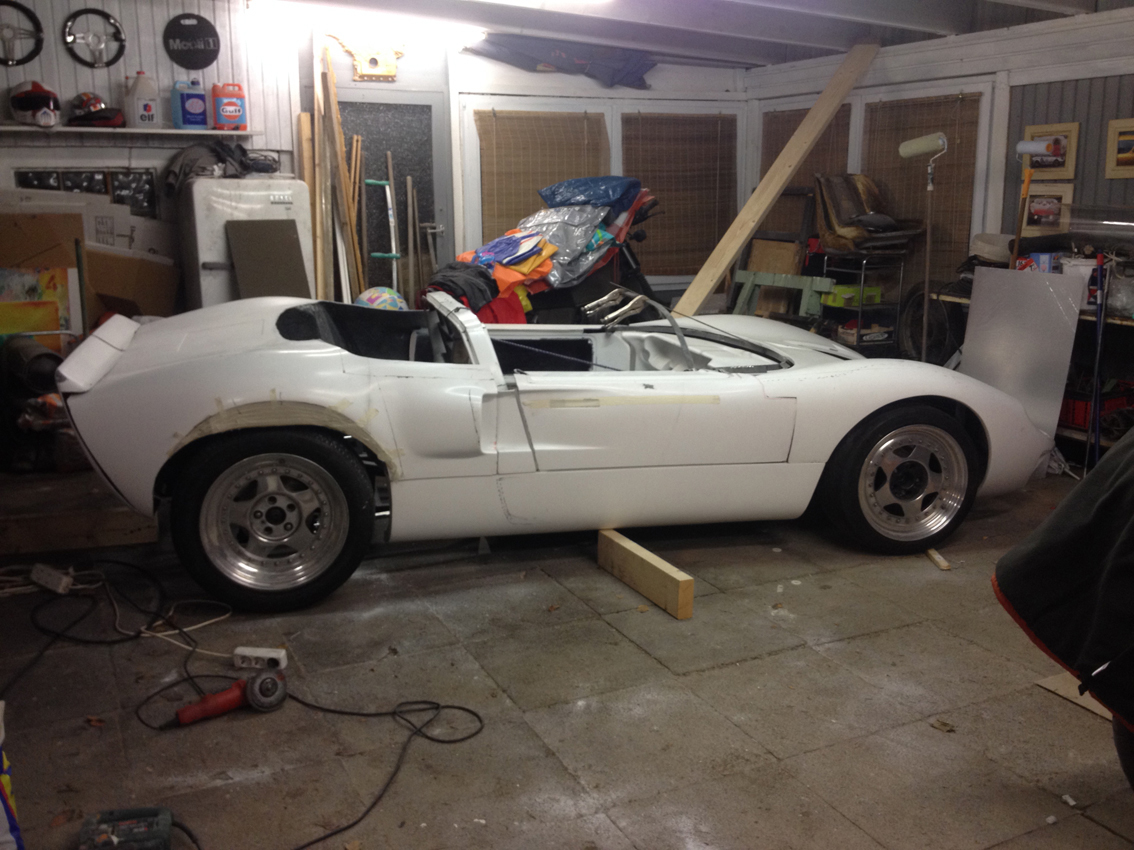

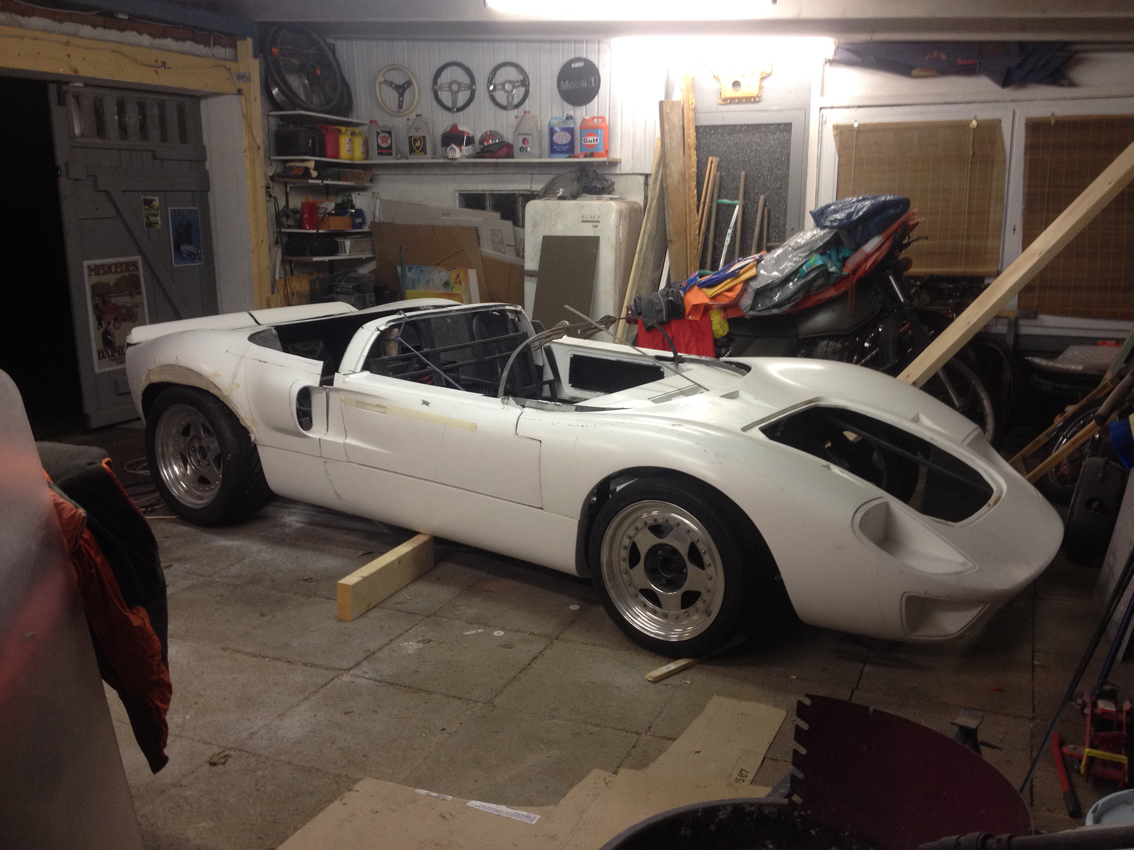

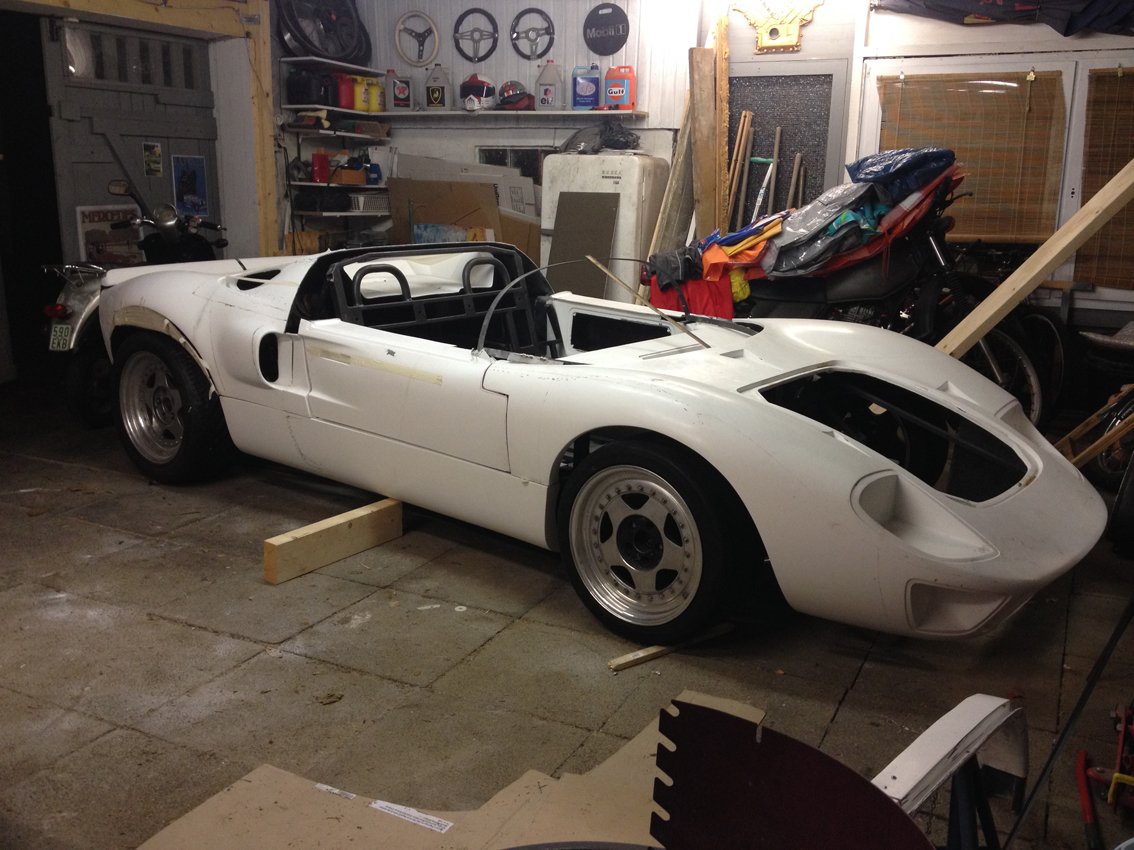

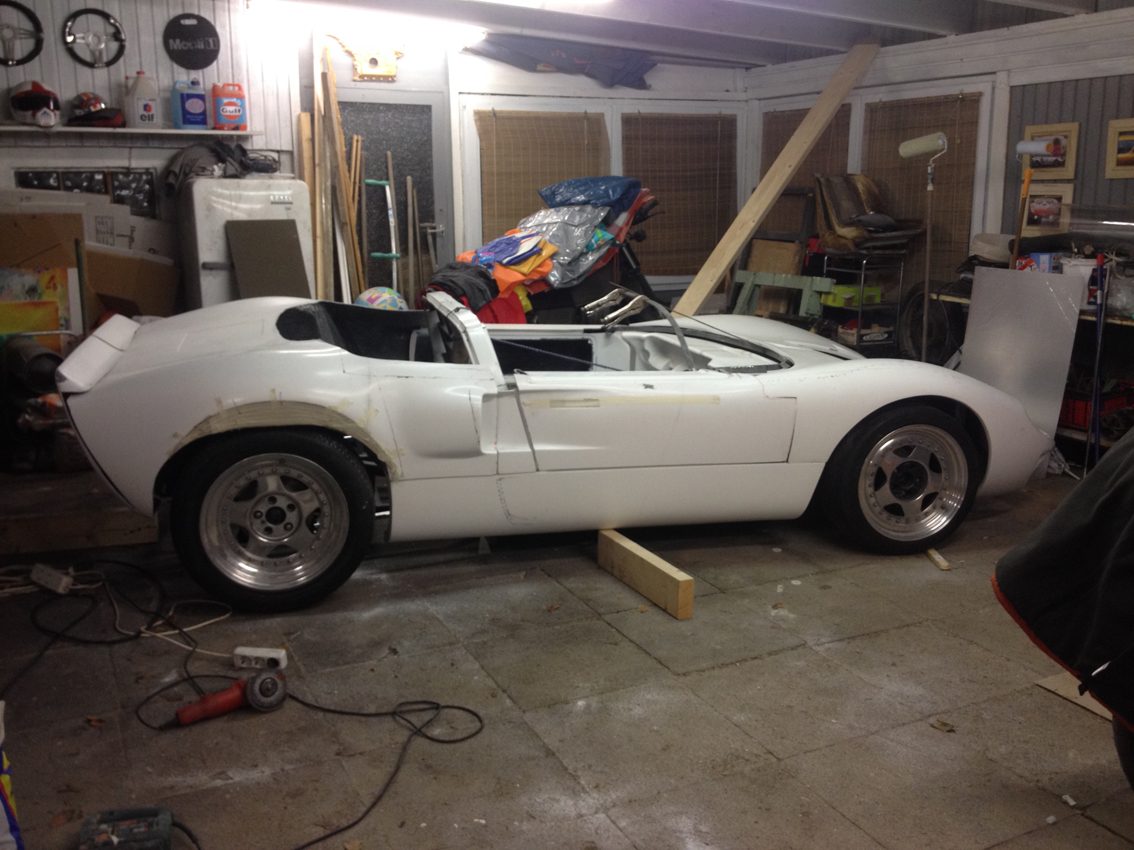

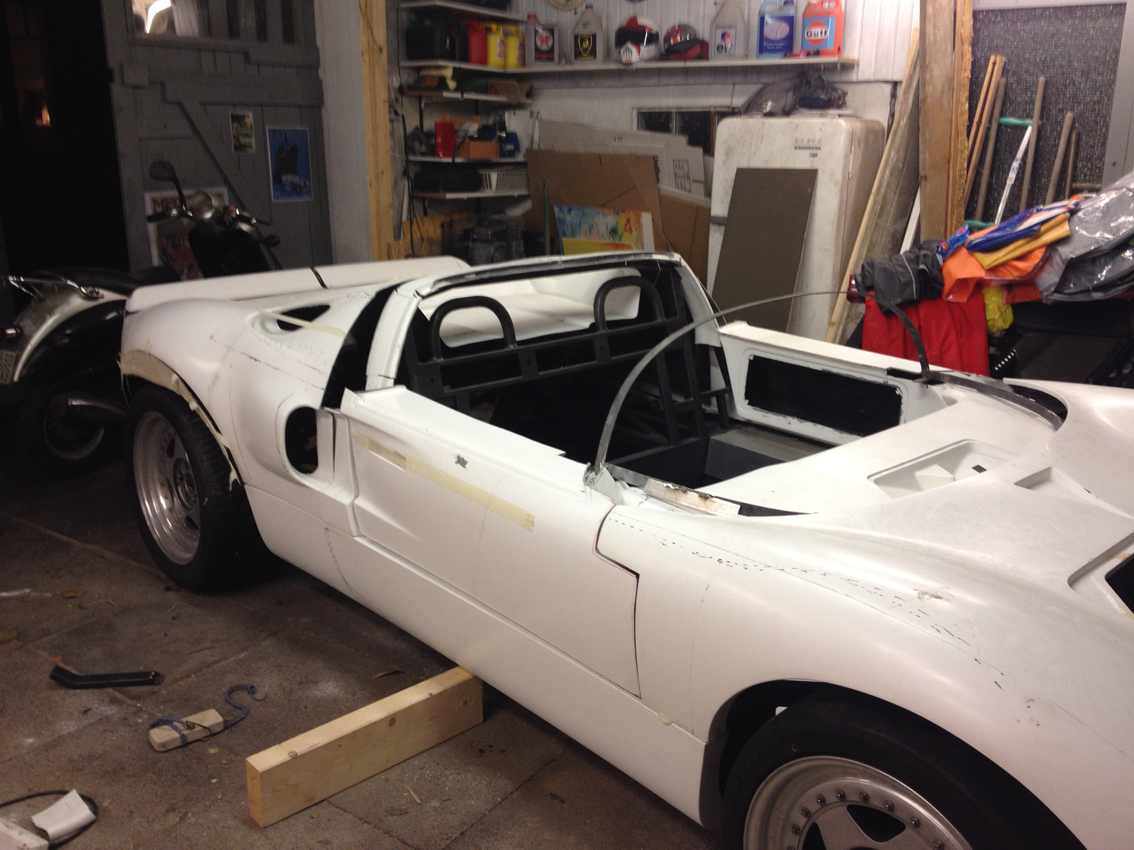

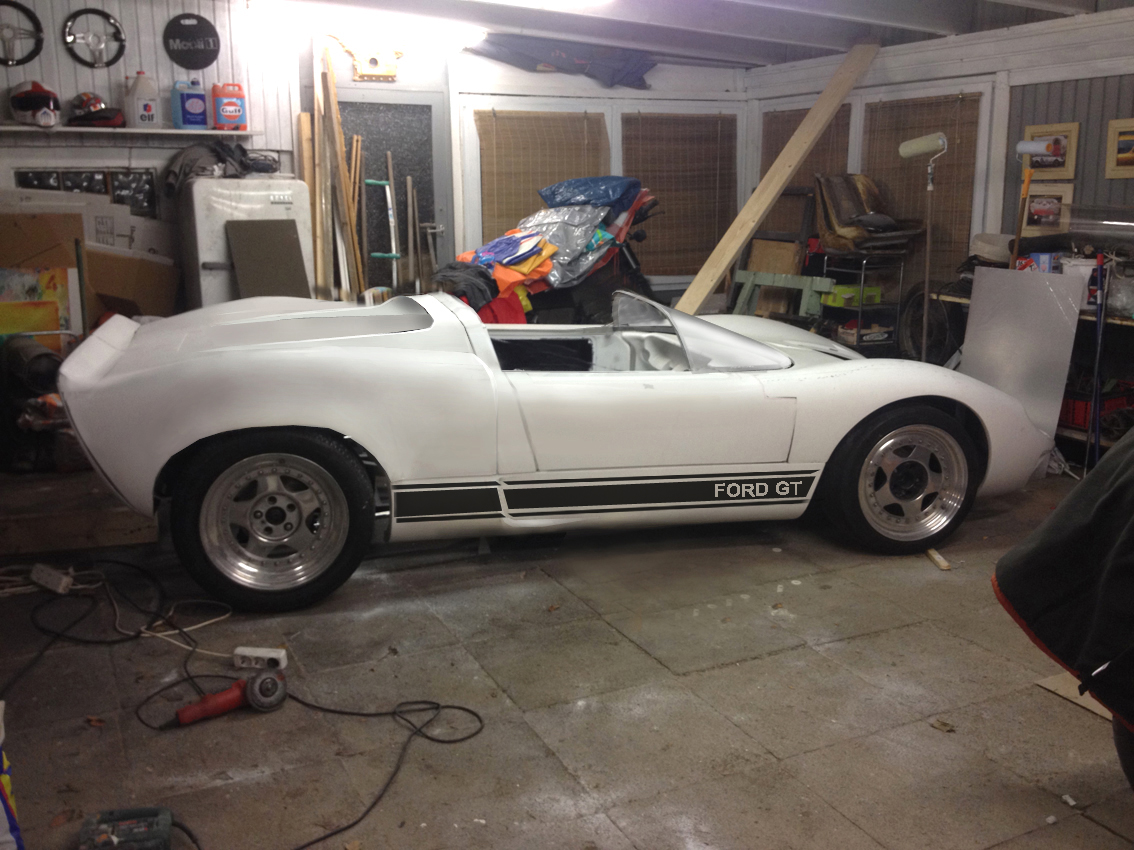

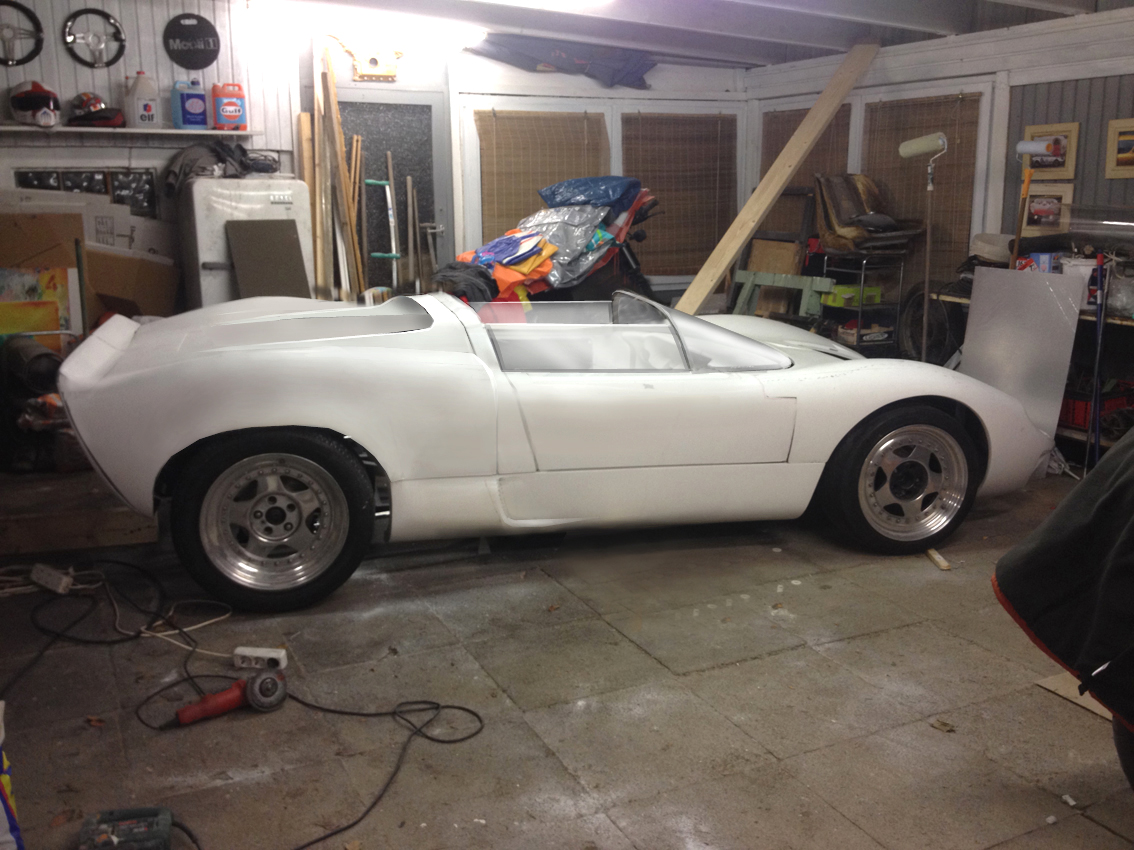

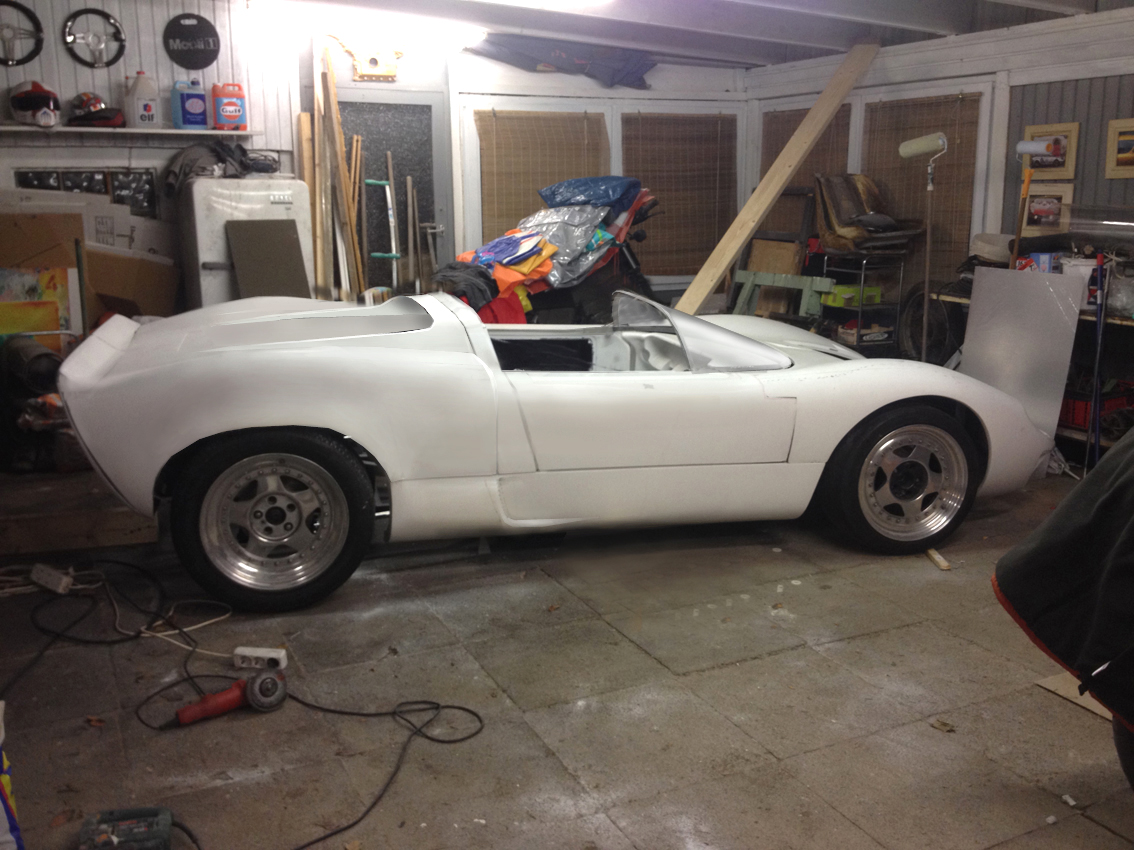

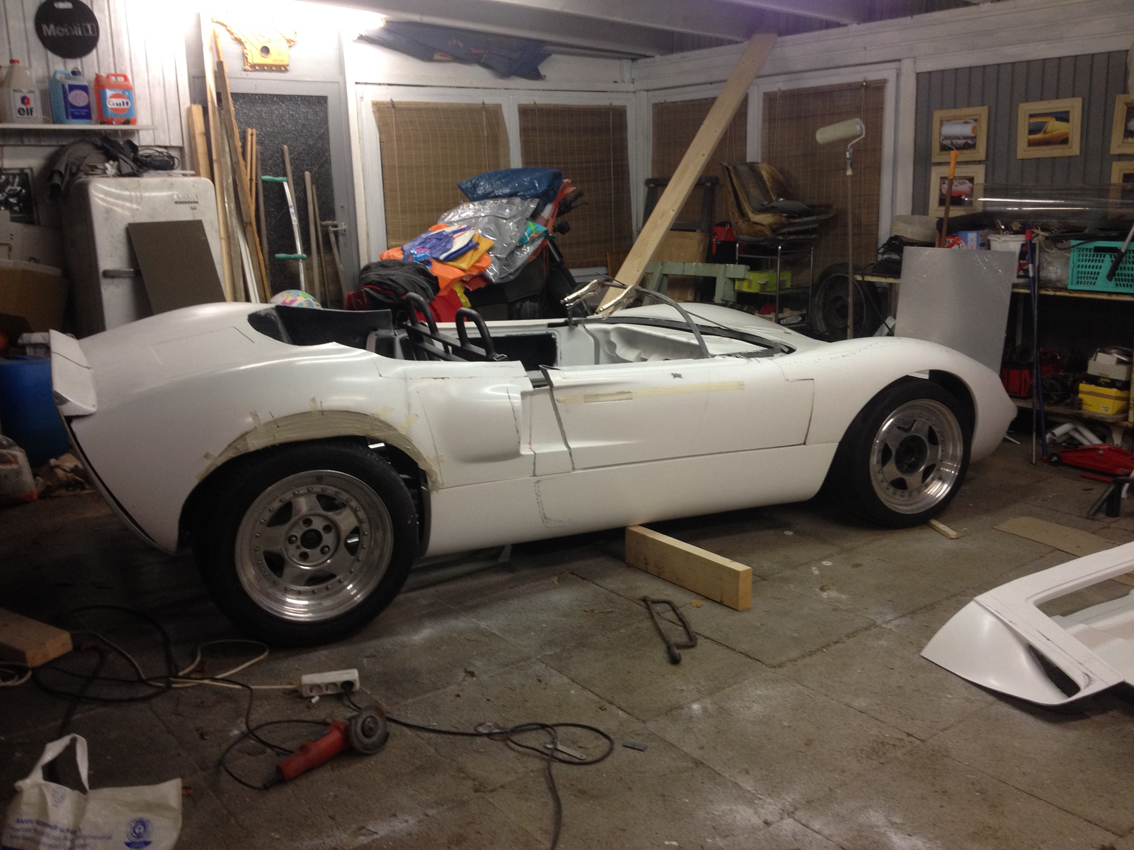

starting to modify the b-pillar, and removed it after I have noticed I cannot keep the upper frame...it is too wide :-(

This is the moment when you realize how much work it will be...and when you realize now there is no way back...!

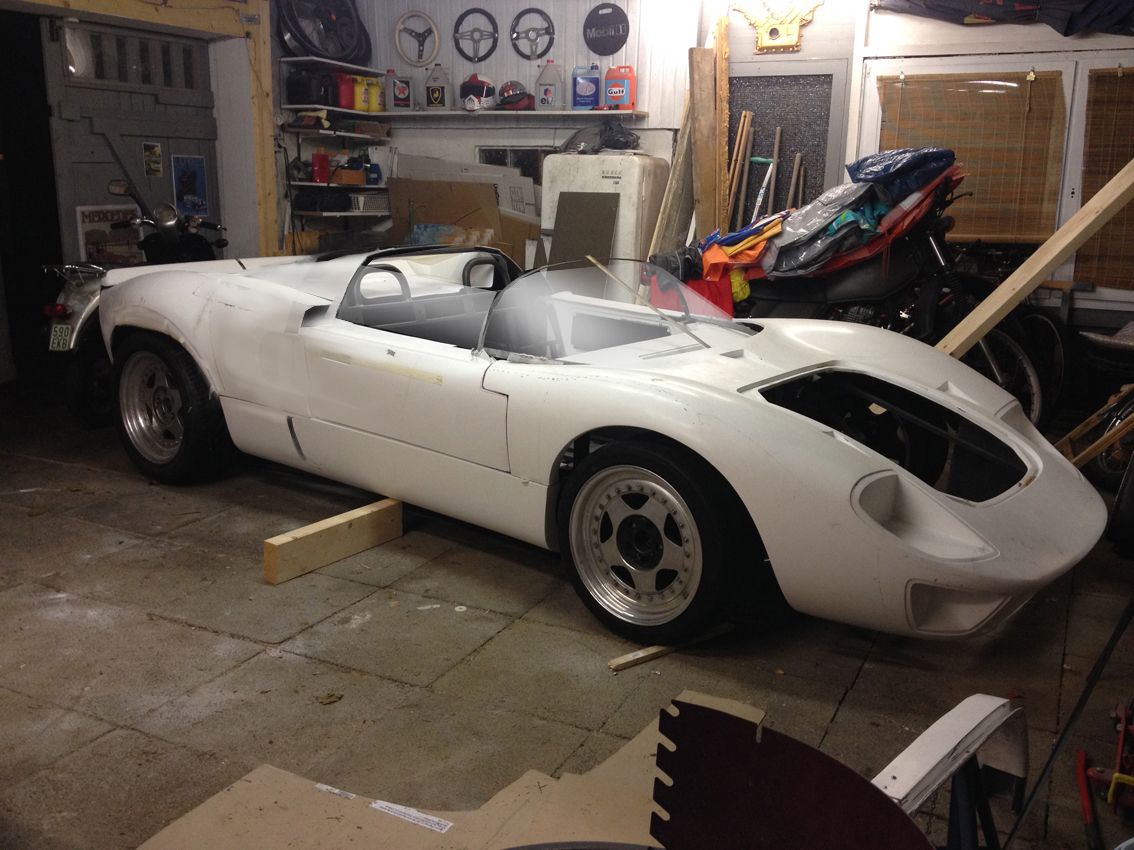

Am I going the right way? I always try to convince me with photoshop experiments...


Attachments

Last edited:

Keith

Moderator
Re: German GT40 interpretation

I think the project is fantastic. I would want one of these..

As for Mark, he is the foremost expert on car dismantling. He used to have a very nice Ferrari P4 replica and now all he has is a pile of pieces... :)

Re: German GT40 interpretation

I think the project is fantastic. I would want one of these..

As for Mark, he is the foremost expert on car dismantling. He used to have a very nice Ferrari P4 replica and now all he has is a pile of pieces... :)
hahaha...what has he done...??


Ian Anderson

Lifetime Supporter
Supporter
Re: German GT40 interpretation

In post 47

I prefer the first pictures

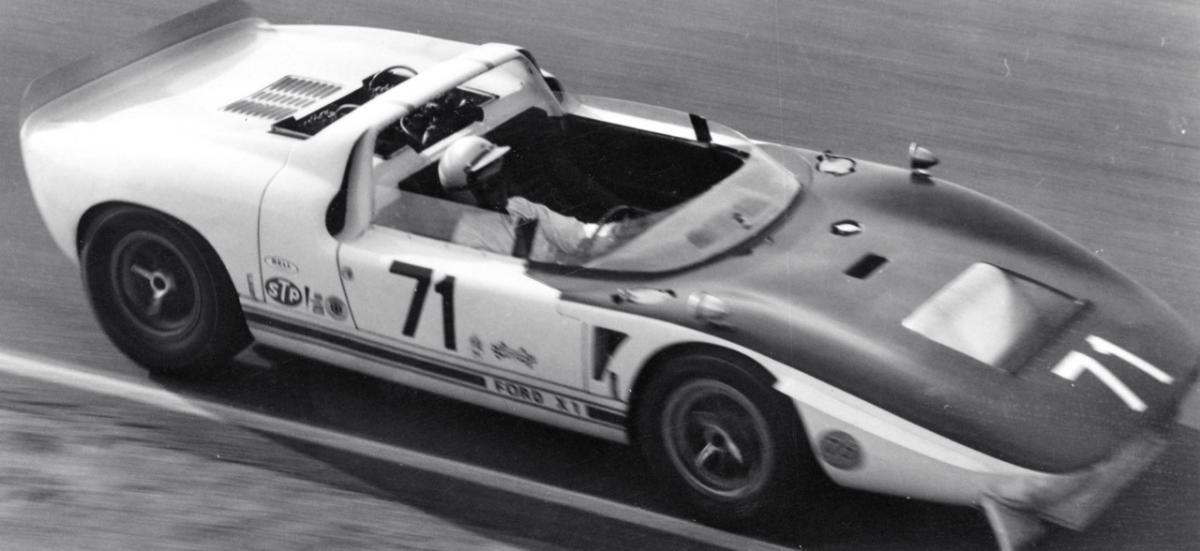

The last one I think the rear clam shell looks too much like a Lola T70

Ian

Re: German GT40 interpretation

In post 47

I prefer the first pictures
The last one I think the rear clam shell looks too much like a Lola T70

Ian

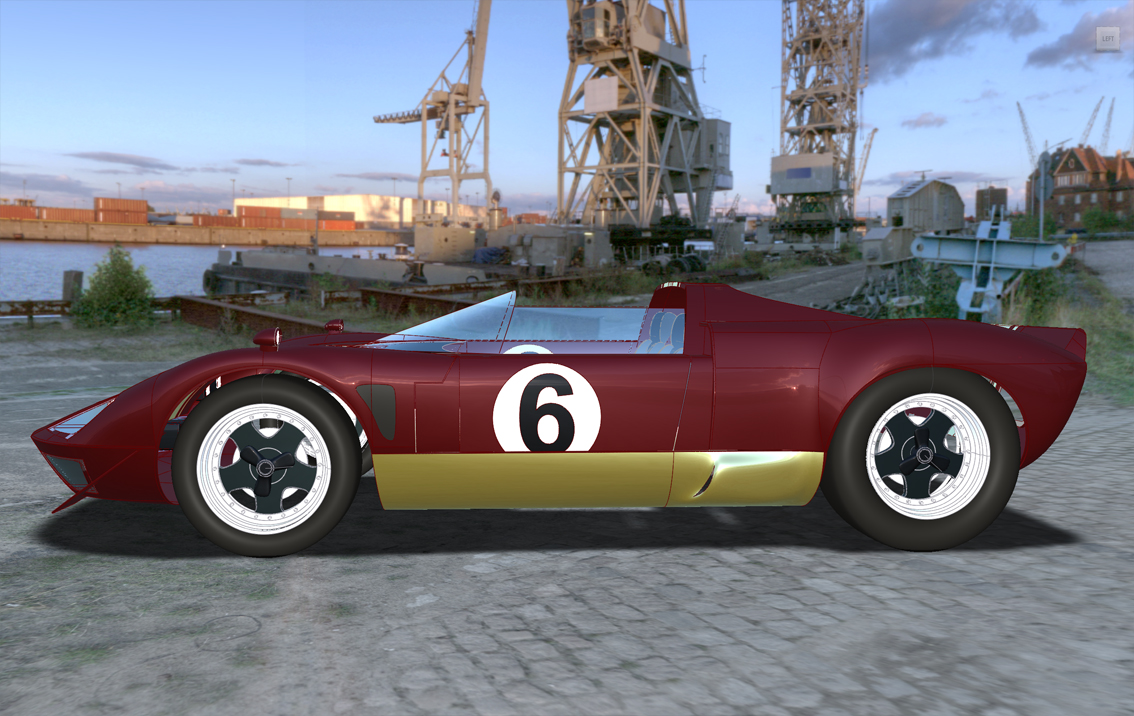

...better now? ;-)

You're right Ian, this is definitely an area I will play around with, may be I'll do it closer to the original with the double vents, I can check this with a simple card mock-up at the car now!


Attachments

Last edited:

Keith

Moderator
Re: German GT40 interpretation

...better now? ;-)

You're right Ian, this is definitely an area I will play around with, may be I'll do it closer to the original with the double vents, I can check this with a simple card mock-up at the car now!
Sehr gut!

Re: German GT40 interpretation

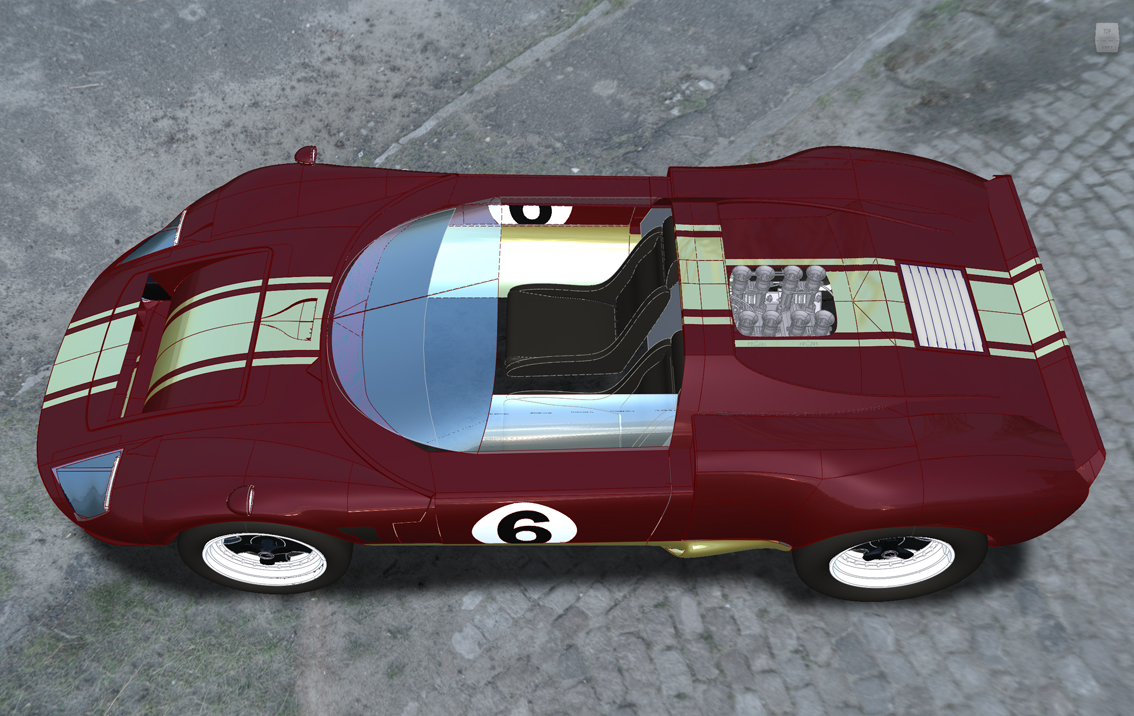

From the historic point of view there is a strong link between Lola and the GT40, I guess all of you know that the Lola GT MK6 did inspire Ford to use it as a base for the first GT40s...and the T70 vents are indeed very similar to my last designs if you see the pics!
Can't wait to try out all the different ideas with some mock-ups at the car, if time wouldn't be a problem...


Attachments

Re: German GT40 interpretation

Hello
I'm Michael and the GT40 fanatics of the Axel writes.
I'm just a little disappointed that Axel people in Poland is in a poor light. You were there, why did not you checked?
They have to improve a lot of work to put car body from KVA / Hermsenn to make useful to frame.
I myself have already invested over 4 years in my GT40. I have taken the sample frame and body pattern from Germany. I have 99% of parts for my GT40 - incl Hartwell latches and fuel tank caps.
I put my photos when the car is ready.
Regards
Michael

Re: German GT40 interpretation

Hallo Michael
Das ist richtig, ich war da und hatte mir die Sachen angesehen, allerdings war von der Karosserie zu dem Zeitpunkt nichts zu sehen außer dem gespachtelten urmodell.
Euer Rahmen ist aus vernünftigem Material und gut geschweißt, allerdings wurden einige Löcher für die Querlenker schief gesetzt und mussten nachgearbeitet werden, und dass gebrauchte und verrostete uniballs und Schrauben verwendet wurden hat mich noch mal mehrere hundert Euro gekostet die auszutauschen.
Einige konstruktive Tipps von mir:
der hintere obere Querlenker ist viel zu lang und vor allem länger als der untere Querlenker, welches bedingt dass das Hinterrad beim einfedern in positiven Sturz geht, was fahrdynamisch Mist ist!
Der geschraubte querträger für die Aufnahme des oberen querlenkers ist eine ungeschickte Konstruktion, man muss so bei Montage von Motor und Getriebe immer die Hinterachse auseinander nehmen. Das habe ich in Verbindung mit einem kürzeren Querlenker geändert.
Eure mittelkonsole ist zu breit, man sitzt derartig schief im Fahrzeug wegen der pedalerie, so dass ich die wieder entfernt habe.
Gestalterisch ist bei der Karosserie im Vergleich zum GT40 eure Front zu kurz und die Kotflügel vorne zu rund und zu hoch ausgeformt.
Eure Windschutzscheibe sitzt steiler als beim original und einige Linien stimmen nicht.
Euer Heck ist zu lang und hängt zu weit runter und die hinteren radauschnitte sind zu rund und zu groß.

Mir war das egal da ich eh vieles für den Umbau zum Roadster ändere, aber für jemanden der eine gute GT40 Replik sucht ist da doch noch einiges zu verbessern, zumal ihr preislich nicht weit weg vom Tornado seid.

Versteht mich nicht falsch, euer Auto ist nicht schlecht! Ich denke der Hermsen war da wohl auch nicht die beste Vorlage!
Gruß, Axel
