Jimmymac & Alistair's Cars

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

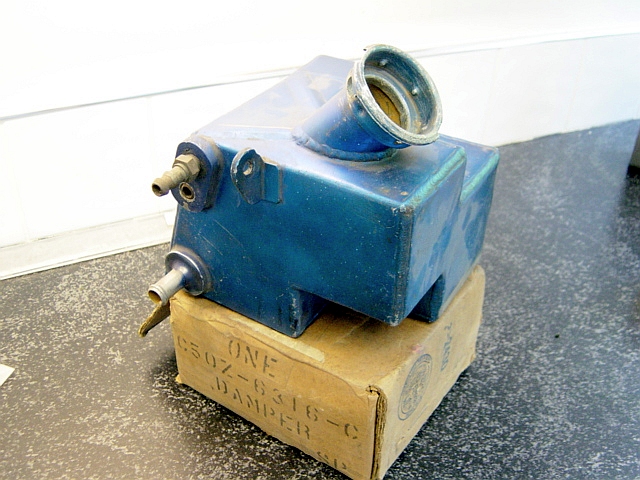

We have an original coolant expansion tank to copy, (rather overpressurised and useless).
The pressure caps are the large commercial type and those stamped aluminium necks are obsolete so I had to make billet alloy necks to suit.


Attachments

  • Original Expansion Tank.jpg
    Original Expansion Tank.jpg
    207.4 KB · Views: 1,679
  • Expansion Tank Necks 02.jpg
    Expansion Tank Necks 02.jpg
    267 KB · Views: 1,374
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

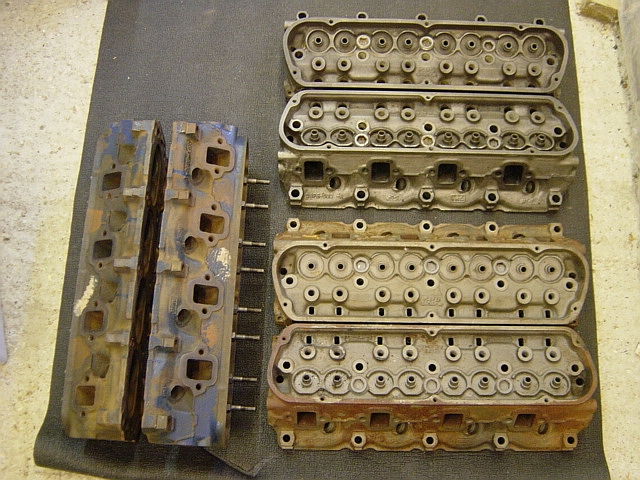

Three pairs of original heads, all C6FE's.
One pair are stamped by Mondello and another by Valley Head Services.
The corrosion is but a flash rust after I gave them a bit of a steam clean last year.
Jac Mac gave me a full indent of the correct Fomoco parts for these and now they are off for complete restoration and rebuilding with new parts.
These rare heads are necessary for historic racing.


Attachments

  • C6FEs Before Restoration.jpg
    C6FEs Before Restoration.jpg
    237.8 KB · Views: 1,609
Last edited:

Rick Muck- Mark IV

GT40s Sponsor
Supporter
re: Jimmymac & Alistair's Cars

We have an original coolant expansion tank to copy, (rather overpressurised and useless).
The pressure caps are the large commercial type and those stamped aluminium necks are obsolete so I had to make billet alloy necks to suit.


Fran Kress had a nice repro of the tanks available. He may still have some.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

I did know about Fran's excellent work.

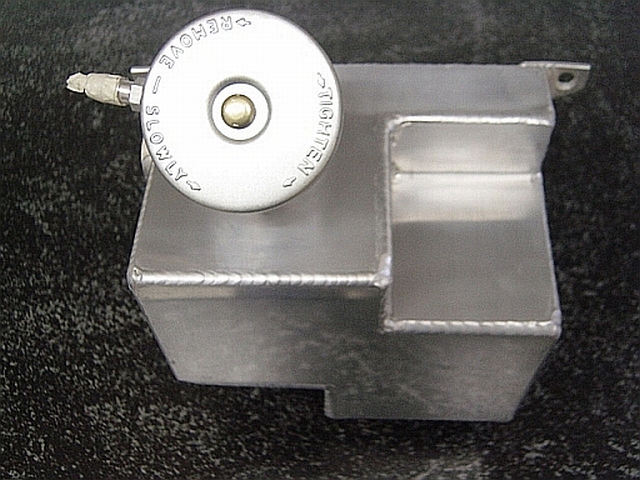

Here's one I made a few years ago with the same cap and a square back.


Attachments

  • Coolant Expansion Tank 01.jpg
    Coolant Expansion Tank 01.jpg
    218 KB · Views: 1,327
re: Jimmymac & Alistair's Cars

VERY NICE work,,,,

A question (not about the car) about "ALI",,, is this "Ali" as in Aluminum or Ali as in Ali Baba?! just curious about my "relatives" being involved in the Auto industry:)


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Greetings O' Great One,:bow::sultan:
"Ali" in this thread is my buddy, although his real name could be Ali Baba as he has introduced me to quite a few thieves in the past.
I would not buy a carpet from him either.

Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

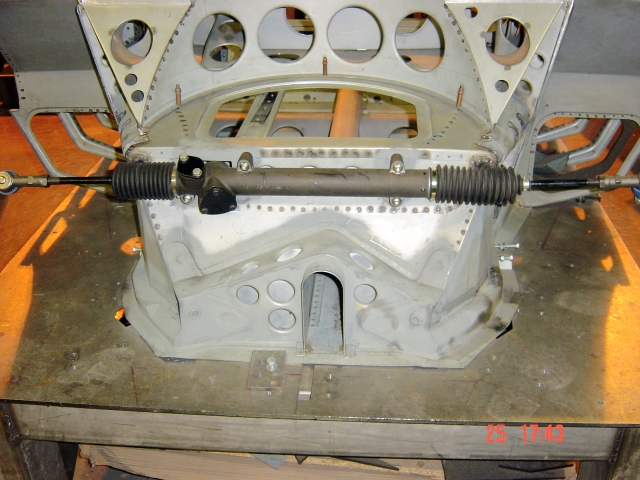

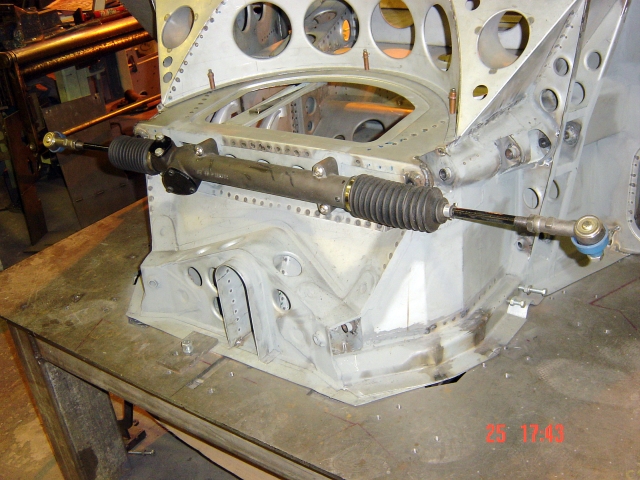

Trial fitted the steering rack today before doing final spot welds to box in the top of the scuttle and dash.


Attachments

  • Steering Rack Trial Fit 003 - 25th OCT.jpg
    Steering Rack Trial Fit 003 - 25th OCT.jpg
    232.6 KB · Views: 1,670
  • Steering Rack Trial Fit 25th OCT.jpg
    Steering Rack Trial Fit 25th OCT.jpg
    243.4 KB · Views: 1,572

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Ali's assembling his car for racing and I'm doing the road car.

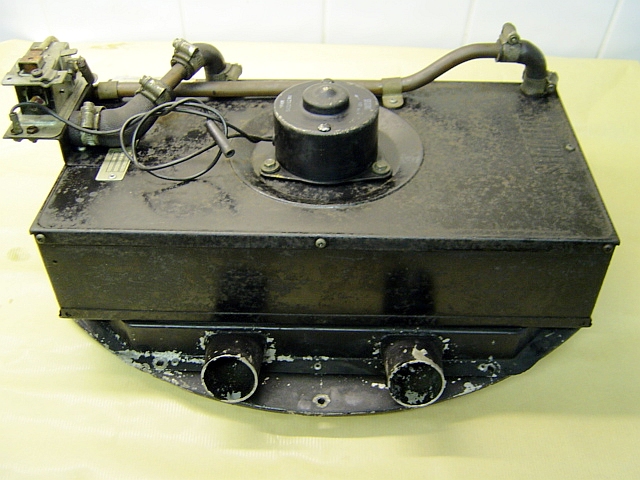

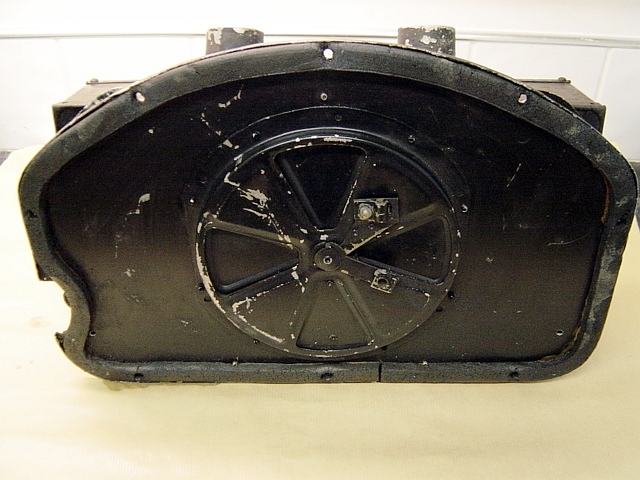

There were two versions of the top panel to the scuttle. (part #2621)

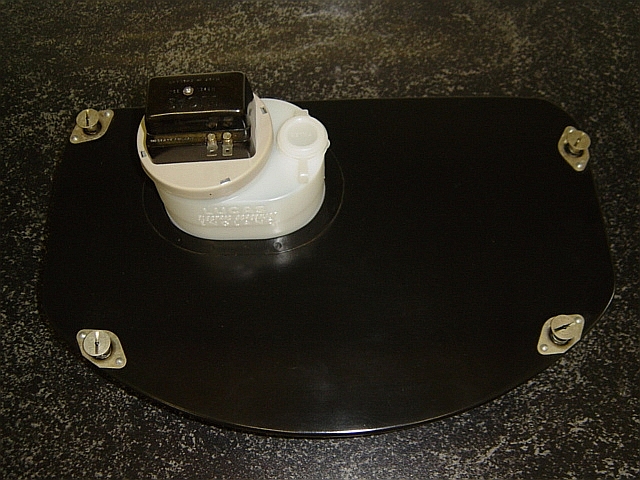

The race version had the screen wash recess and the road version had the heater vent mounting plate with the iris vent.
Both of these panels are the same size and interchangeable. Here are the two different parts. Both originals.

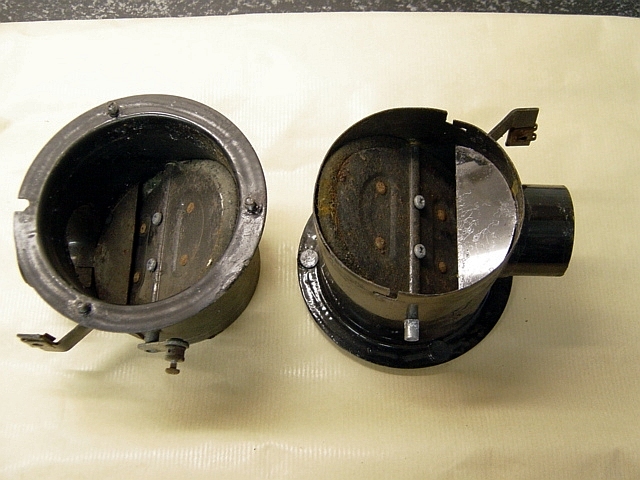

I will also fit butterflies to control the air flow to the cockpit.


Attachments

  • Original Heater 002.jpg
    Original Heater 002.jpg
    197.7 KB · Views: 1,348
  • Original Heater 003.jpg
    Original Heater 003.jpg
    199.8 KB · Views: 1,230
  • Air Vent Butterfly 001.jpg
    Air Vent Butterfly 001.jpg
    189.1 KB · Views: 1,205
  • SCREEN WASH.jpg
    SCREEN WASH.jpg
    225.3 KB · Views: 1,258
Last edited:
re: Jimmymac & Alistair's Cars

James and Ali

Swiss guys are not the fastest ones, but also from Switzerland congratulations to this great piece of work and automotive history you will bring back to live again.............

Regards Marcel.


Fran Hall RCR

GT40s Sponsor
re: Jimmymac & Alistair's Cars

Super stuff Jimmy...
your cars will be more original than just about any original left out there I think...:thumbsup:


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

I received a message asking about the rear end.

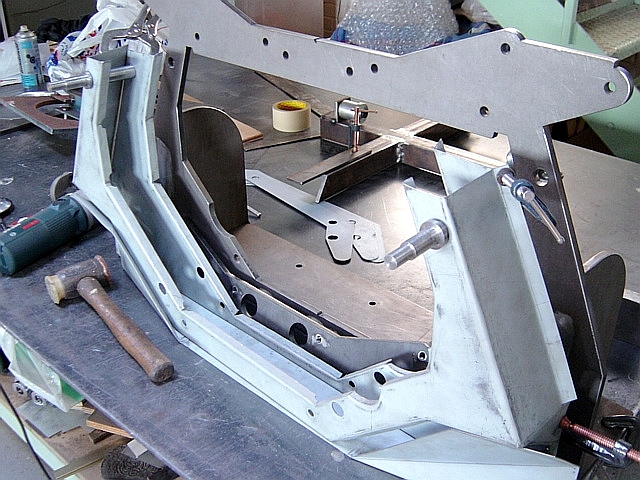

Here are a couple of shots of the first piece Mirage made for this tub and recent progress.
The complete monocoque was reverse engineered by Ray and Steve prior to cutting and bending sheet. The jigs are all co-ordinated to accurate set-screw holes in the flat table.
The tub is completely assembled on the steel table and every part is jig fitted ensuring highly accurate and repetative work. Tolerances over the tub length are +/- 0.5mm
A mock-up of the rear cradle is fitted to the rear post jig.
Incidentally, the darker cross brace on the bulkhead is another original piece from the 60's. Several original parts were used in conjunction with the GAs and surveys from original cars to finalise this design.


Attachments

  • REAR COLLAR.jpg
    REAR COLLAR.jpg
    254 KB · Views: 1,711

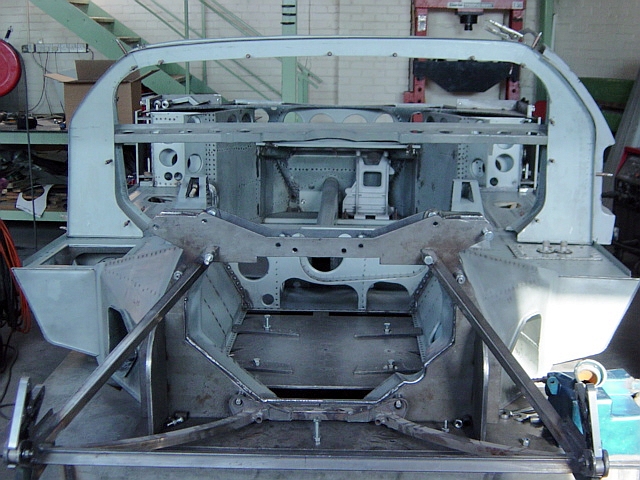

  • REAR JIGS 01.jpg
    REAR JIGS 01.jpg
    225.4 KB · Views: 1,927

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Thanks,
Some more shots taken at the weekend.

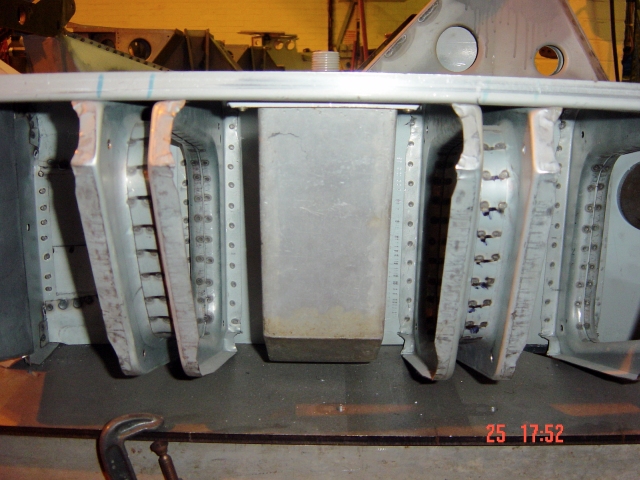

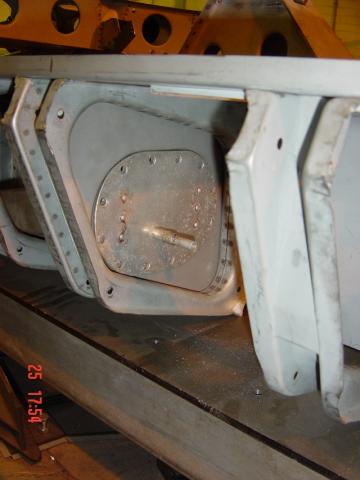

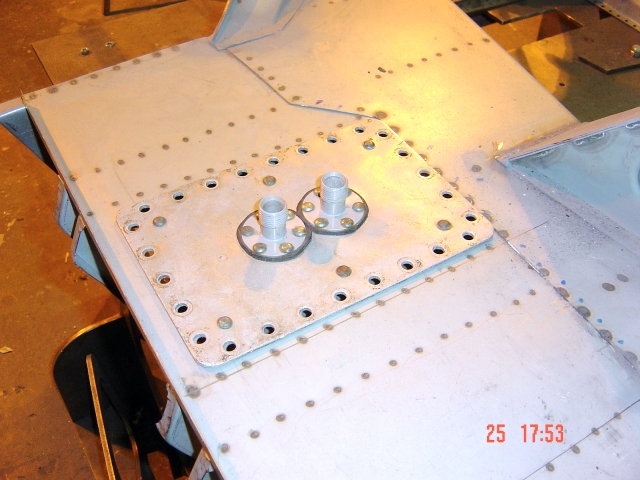

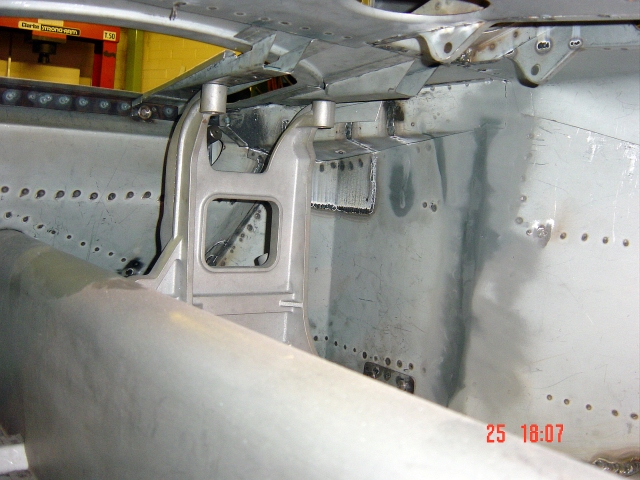

The new alloy pedal box and those old surge tanks fit perfectly. We have new replacement tanks on the go presently.
I have got to get the pedal boxes machined before I start on the gear shift assemblies this weekend.


Attachments

  • Pedal Box Fit.jpg
    Pedal Box Fit.jpg
    207.3 KB · Views: 1,447
  • Surge Tank Top Plate 02.jpg
    Surge Tank Top Plate 02.jpg
    215.8 KB · Views: 1,393
  • Surge Tank Fits.jpg
    Surge Tank Fits.jpg
    213.5 KB · Views: 1,494
  • Surge Tank 02.jpg
    Surge Tank 02.jpg
    22.8 KB · Views: 1,333

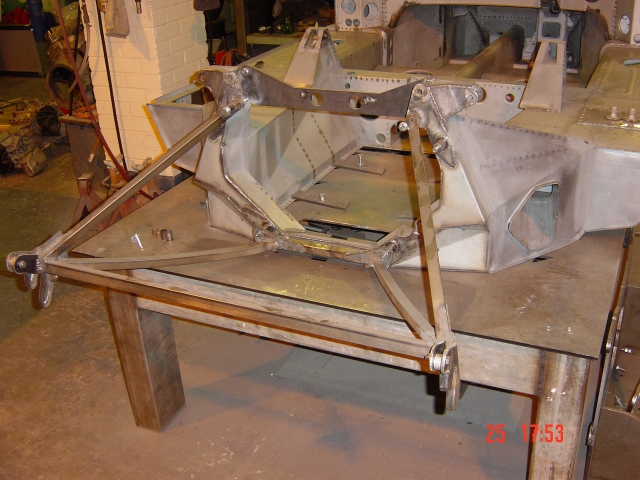

  • Rear Cradle.jpg
    Rear Cradle.jpg
    228 KB · Views: 1,478
Last edited:
re: Jimmymac & Alistair's Cars

Great work, the very best. I’m interested in the area where the lower rear control arm goes forward into the triangular tube. Do you have any pictures of the area before the outside sheet metal was installed, maybe even before the triangular tubing went in? What does the forward pivot structure look like and how far forward does the triangular tube go. Again great work and thanks for sharing.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Richard,
I have got some pictures of these areas on file somewhere and will post them for you as soon as I find them.
The lower radius arm tunnel does not reach very far into the side box.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

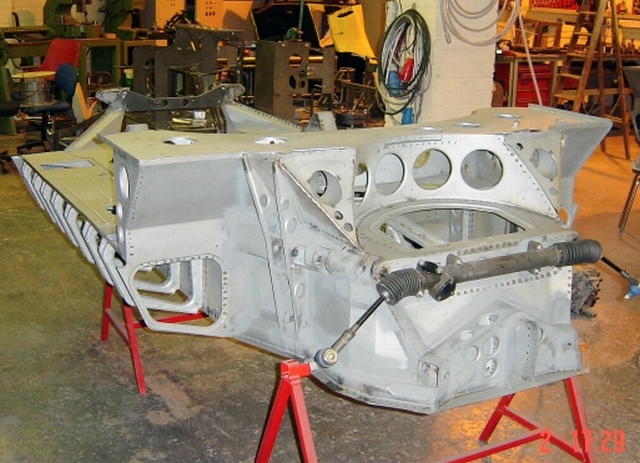

Progress on my tub today.

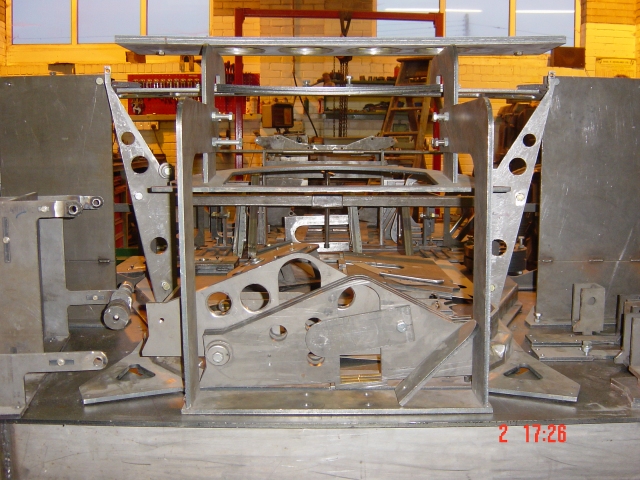

Also some shots of the tooling and jigs which took Ray and Steve eighteen months of long days in preparation to build the first batch of tubs.


Attachments

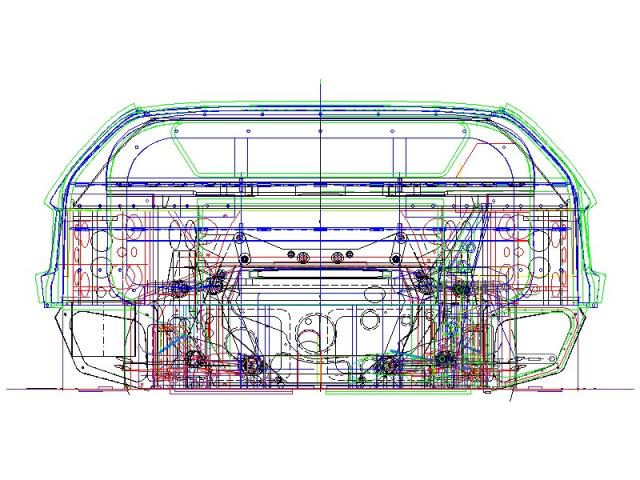

  • CAD 001.jpg
    CAD 001.jpg
    65.1 KB · Views: 1,733
  • Jigs & Press Tools 01.jpg
    Jigs & Press Tools 01.jpg
    211.4 KB · Views: 1,609
  • Jigs & Press Tools 02.jpg
    Jigs & Press Tools 02.jpg
    244.7 KB · Views: 1,556

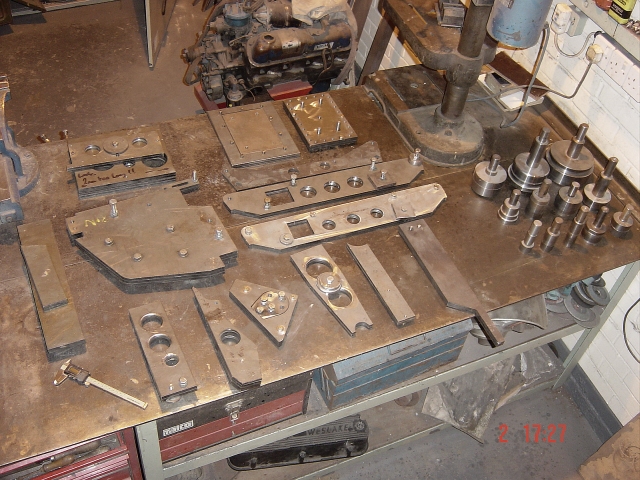

  • Jigs & Press Tools 03.jpg
    Jigs & Press Tools 03.jpg
    261.3 KB · Views: 1,532

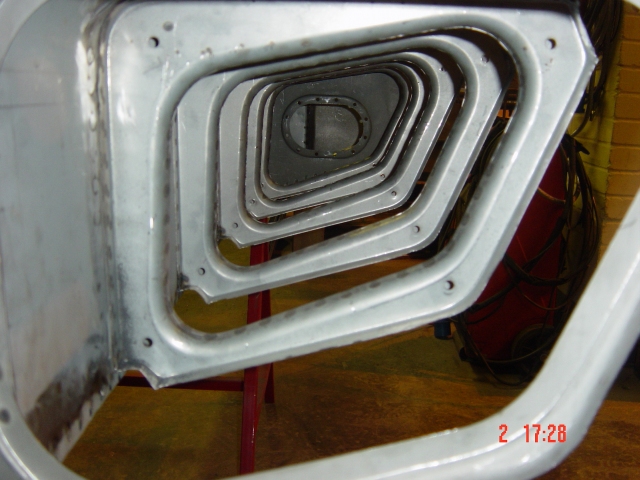

  • Sponson Through.jpg
    Sponson Through.jpg
    191.1 KB · Views: 1,451
  • Tub 2nd November.jpg
    Tub 2nd November.jpg
    221.2 KB · Views: 1,578
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

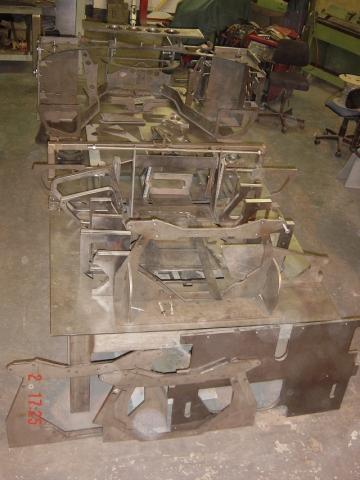

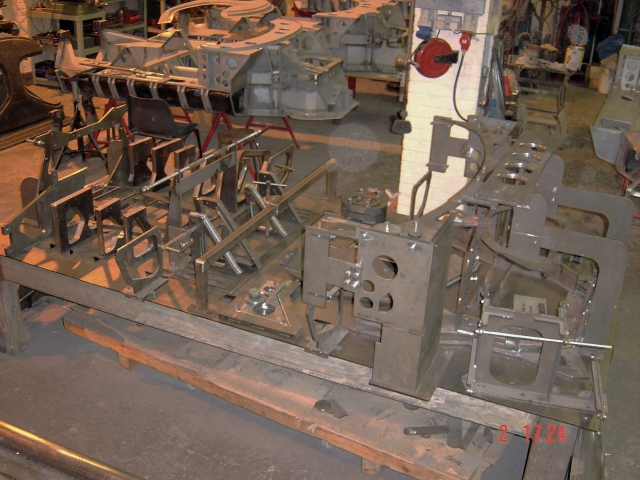

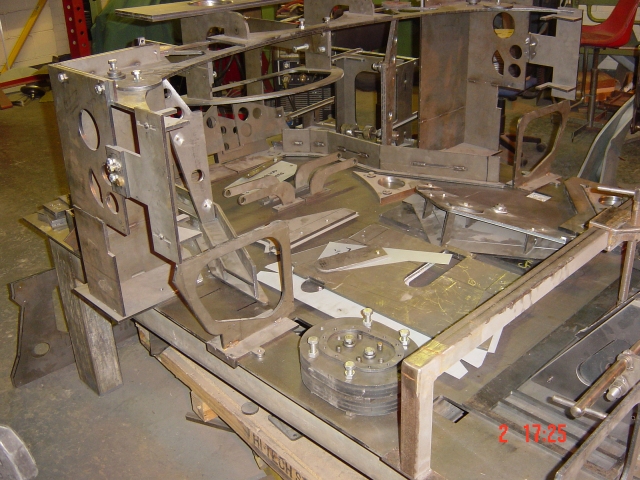

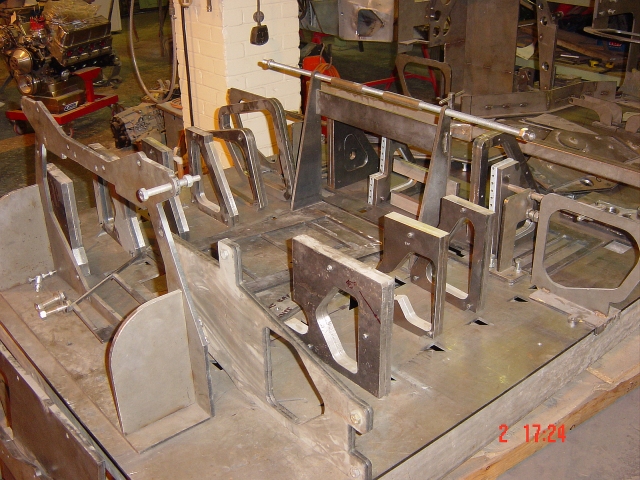

Here are some more shots of the Mirage table and fabrication jigs.
All parts were AutoCad clash checked with the chassis design and cut at the same design revision and tolerances with the platework.

Permission given by Mirage.


Attachments

  • Table 01.jpg
    Table 01.jpg
    245.9 KB · Views: 1,467
  • Table 02.jpg
    Table 02.jpg
    29.9 KB · Views: 1,673
  • Table 04.jpg
    Table 04.jpg
    251 KB · Views: 1,387
  • Table 05.jpg
    Table 05.jpg
    260.8 KB · Views: 1,350
  • Table 06.jpg
    Table 06.jpg
    28.8 KB · Views: 1,368
