Jimmymac & Alistair's Cars

re: Jimmymac & Alistair's Cars

Hi Jimmy, Ray and Steve

its nice to see this heading in the right direction and I'm pleased to see the quality and accuracy coming to fruition.

best regards to all concerned

Chris Melia.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

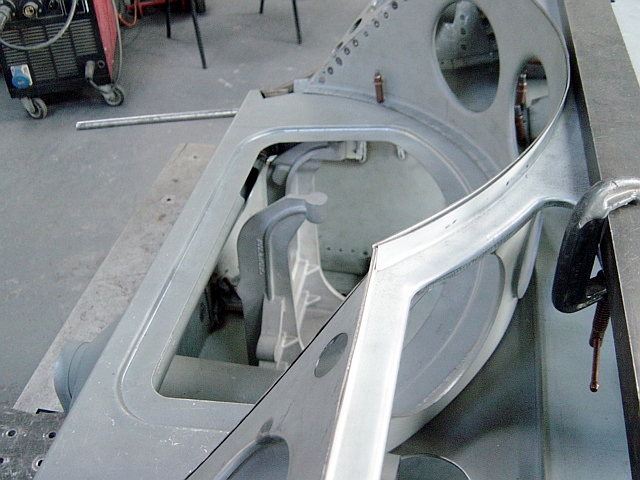

Front scuttle fit-up before spot welding


Attachments

  • Front Scuttle.jpg
    Front Scuttle.jpg
    210.6 KB · Views: 1,576
re: Jimmymac & Alistair's Cars

Thank you for sharing these with us

When we spoke some while ago regarding header tanks I wrongly assumed your massed collection of parts was for a MK1 !

I shall follow this thread with interest.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Karl,
Cheers for that , I was glad to help.
A considerable amount of the parts were the same on the MK1, II, III's and Mirages. The tubs were essentially the same arrangement with modifications. For example, the Mirage tub had a different front scuttle which was squared off, omitting the scallop. Chassis 1074-1076 were Mirage tubs and set up like this.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

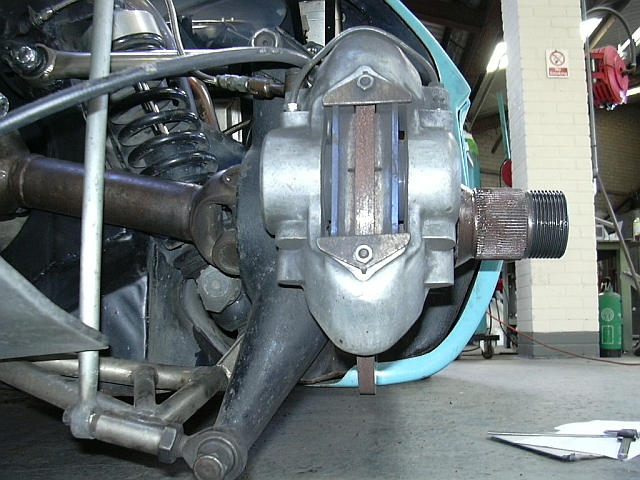

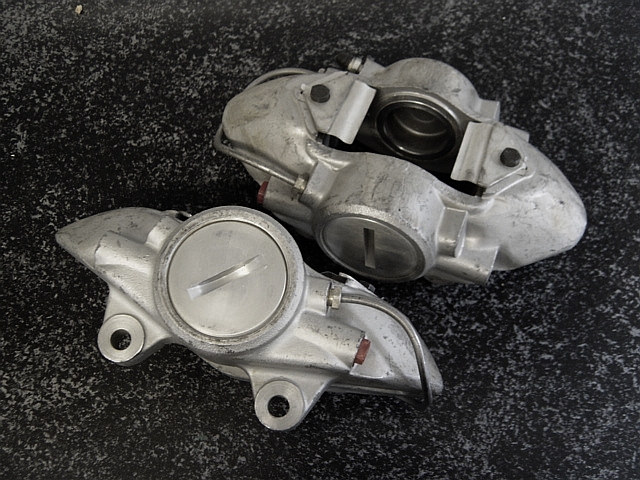

A rear caliper on one of the original cars in the workshop and my new old stock pair just delivered.
These are needed for FIA and Heritage racing approval


Attachments

  • Rear Brake Caliper.jpg
    Rear Brake Caliper.jpg
    262.1 KB · Views: 1,468
  • Original Girling BR Rear Calipers.jpg
    Original Girling BR Rear Calipers.jpg
    221.8 KB · Views: 1,368

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Fitting the rear bulkhead next week and anxiously awaiting the panels.

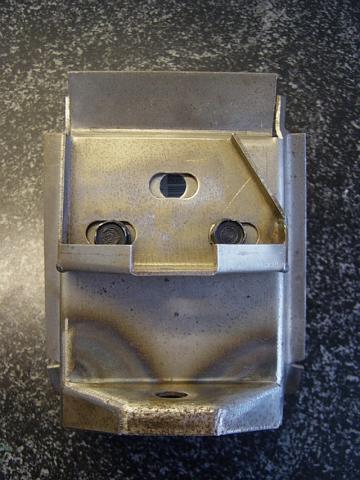

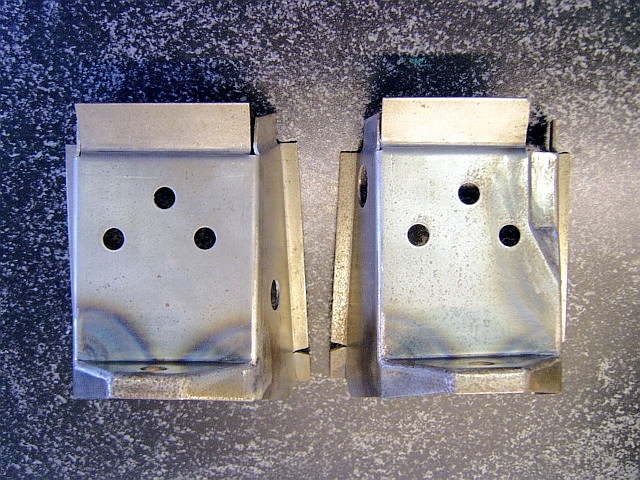

In the meantime we are adding the engine support haunches.
These two fabrications are OEM parts again ~ much better than converting drawings to metal.


Attachments

  • Engine Support Haunches.jpg
    Engine Support Haunches.jpg
    256.4 KB · Views: 1,228
  • Engine Support Haunch 01.jpg
    Engine Support Haunch 01.jpg
    33.7 KB · Views: 1,120
Last edited:
re: Jimmymac & Alistair's Cars

James, what kind of calipers are the originals there? Girling? Ate? Used on other vehicles of the period? Are they alloy or steel? Is the removable back for cleaning the bore and puck, or, just a necessity for machining the bore?

Thanks.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Cliff,
They were Girlings and the screw plug was a cap on the centre-boring through the two sides for the cylinders.
I have another old pair somewhere with pignose plugs but the calipers are the same.

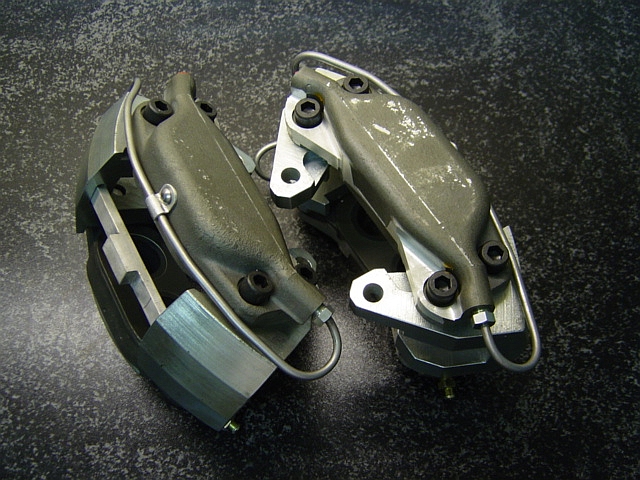

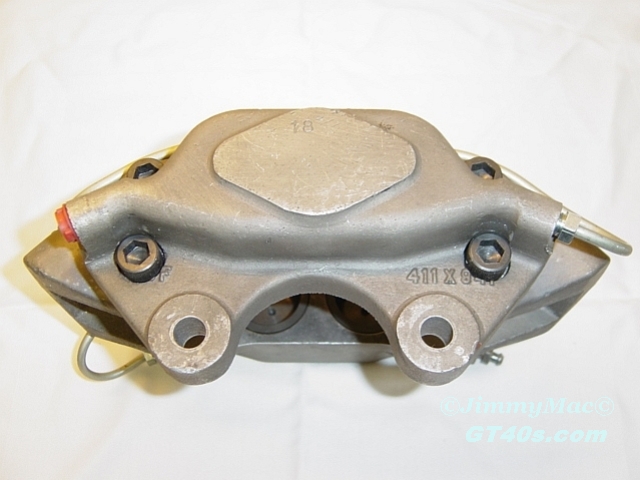

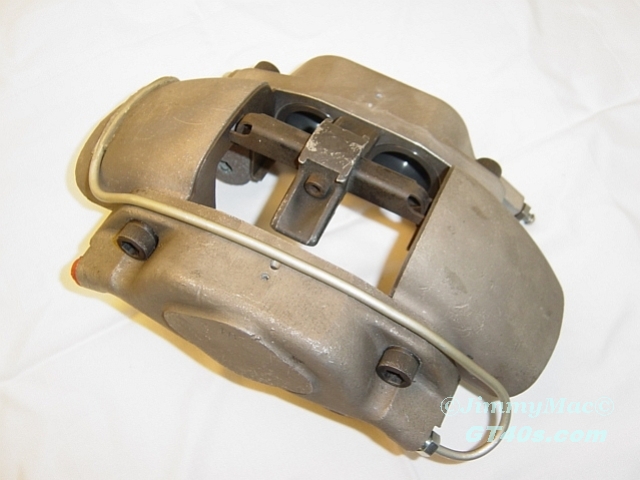

They are alloy and were used on a few other cars of the period before the 4 pots and ventilated discs came in. The photos below shows the later 4-pot Gulf calipers


Attachments

  • Brakes - Front 1 (1).jpg
    Brakes - Front 1 (1).jpg
    167.3 KB · Views: 961
  • Brakes - Rear Caliper.jpg
    Brakes - Rear Caliper.jpg
    217.7 KB · Views: 979
  • Brakes - Front 2 (1).jpg
    Brakes - Front 2 (1).jpg
    170.4 KB · Views: 979
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

I've been playing in my sand pit again this weekend.

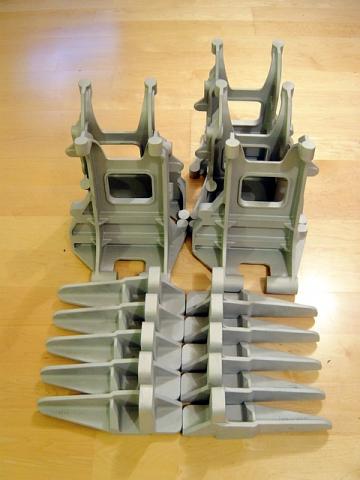

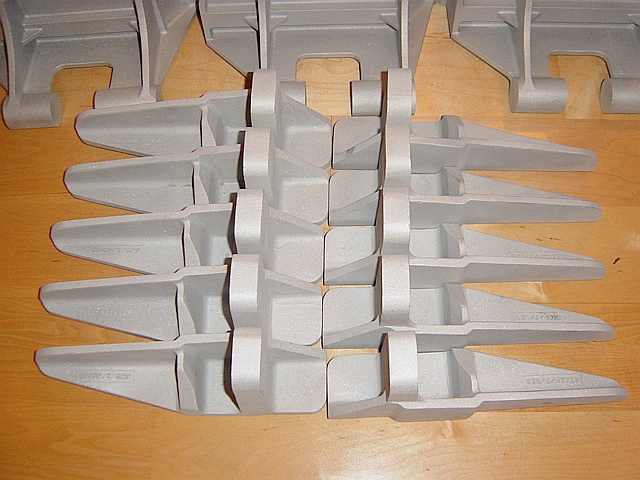

Some more pedal boxes and R/H gear shift brackets, and very contented with the results. Heat treated L169 alloy.


Attachments

  • Castings 23 Nov 2008.jpg
    Castings 23 Nov 2008.jpg
    24.4 KB · Views: 1,286
  • Gear Shift Castings 23 Nov 2008.jpg
    Gear Shift Castings 23 Nov 2008.jpg
    221.1 KB · Views: 1,185
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

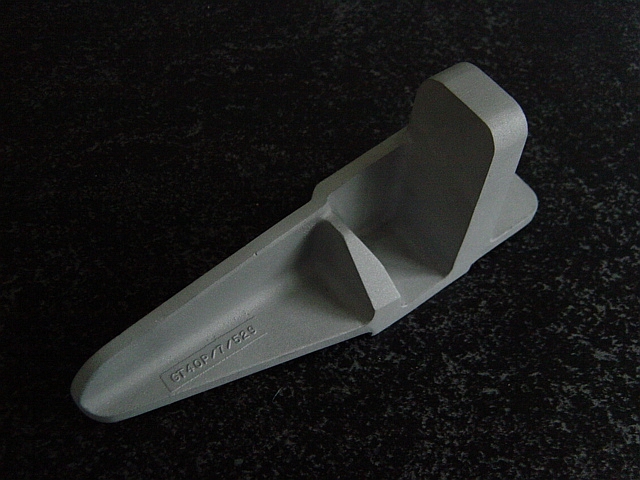

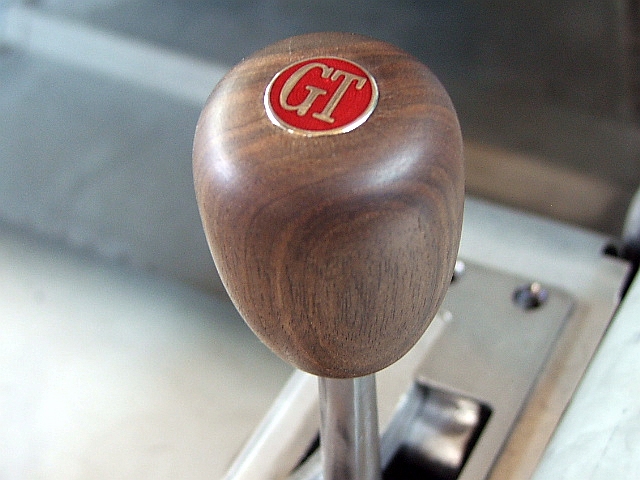

Gear Shift ~ Main Components


Attachments

  • Gear Shift Casting.jpg
    Gear Shift Casting.jpg
    188.5 KB · Views: 1,139
  • Gear Shift Knob.jpg
    Gear Shift Knob.jpg
    184.1 KB · Views: 1,198
  • Gear Shift Gate Assembly.jpg
    Gear Shift Gate Assembly.jpg
    274.3 KB · Views: 1,255
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

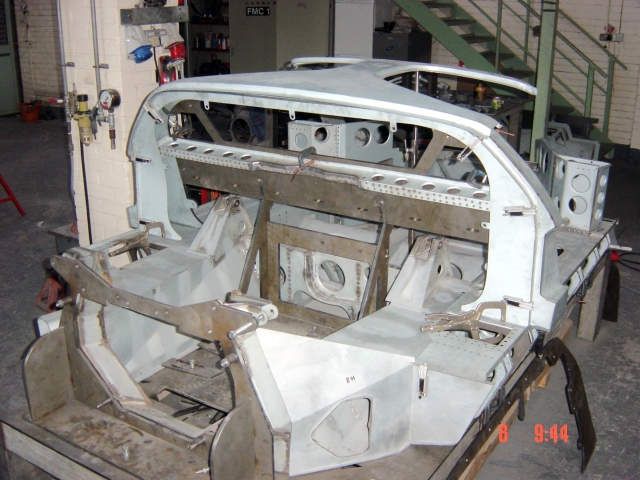

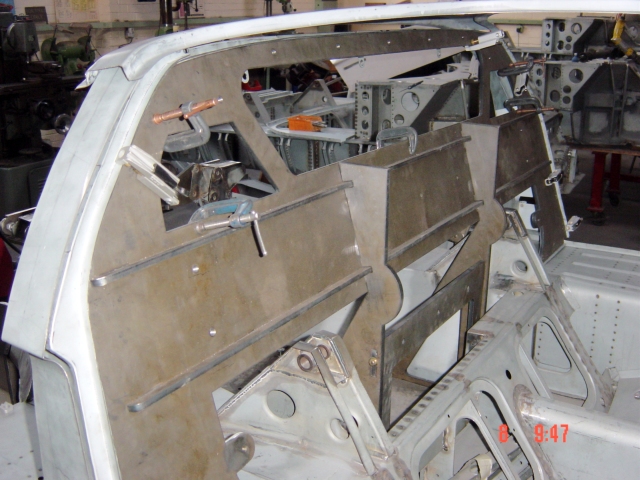

Trial Fitting a roof and bulkhead.
Accuracy prevails, I don't think that jig is going to move anywhere !


Attachments

  • JIG  8th Dec 2008.jpg
    JIG 8th Dec 2008.jpg
    232.3 KB · Views: 1,570
  • Jig 02 8th Dec2008.jpg
    Jig 02 8th Dec2008.jpg
    217.5 KB · Views: 1,456
Last edited:

JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

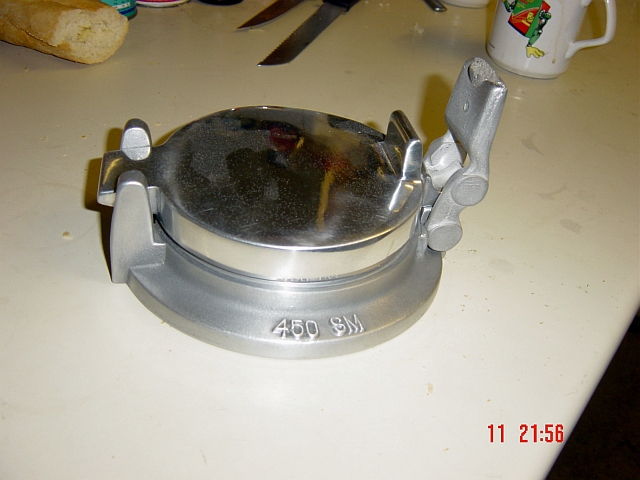

First pop at a fuel cap "during Ray's tea-break"

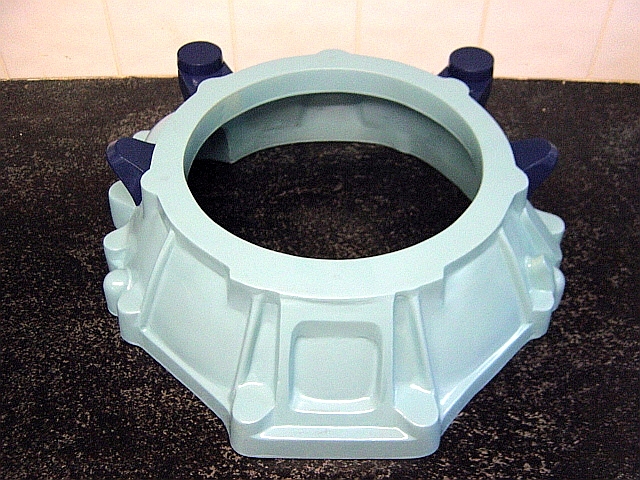

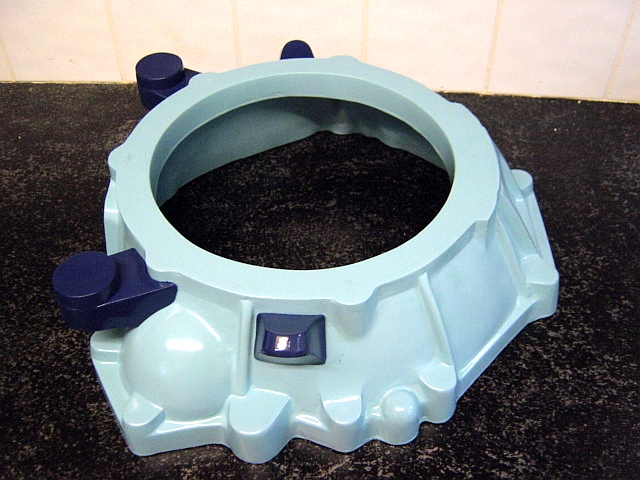

Also shown are the patterns which I made for a seven-bolt ZF bellhousing. The boxes were made and poured this weekend and the first castings are in the oven this evening.


Attachments

  • Fuel Cap.jpg
    Fuel Cap.jpg
    181.1 KB · Views: 1,182
  • Bellhousing Pattern Final 03.jpg
    Bellhousing Pattern Final 03.jpg
    264.7 KB · Views: 1,142
  • Bellhousing Pattern Final 02.jpg
    Bellhousing Pattern Final 02.jpg
    237.9 KB · Views: 1,107
Last edited:
re: Jimmymac & Alistair's Cars

Hi James,

I realy like the header tank. Do you think there is a chance to purchase one for my car ?

Thanks
TOM


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

Tom,
These pieces will not be sold individually as we are trying to concentrate our efforts on the tubs for the moment.
You have PM however.


JimmyMac

Lifetime Supporter
re: Jimmymac & Alistair's Cars

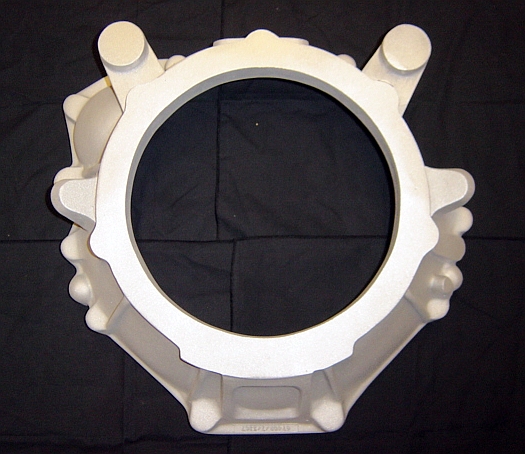

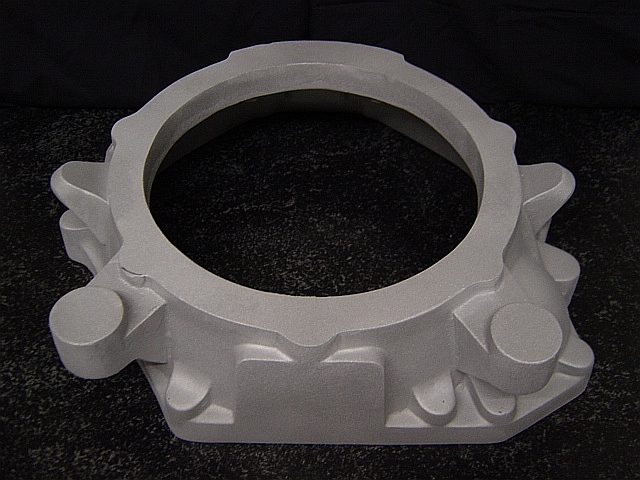

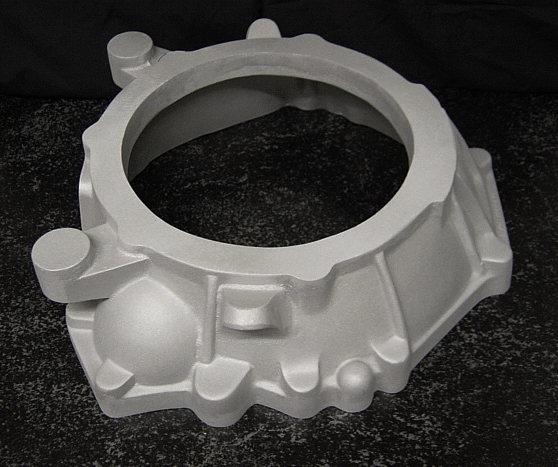

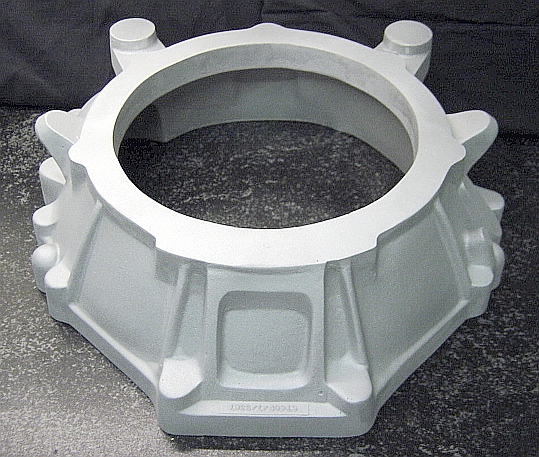

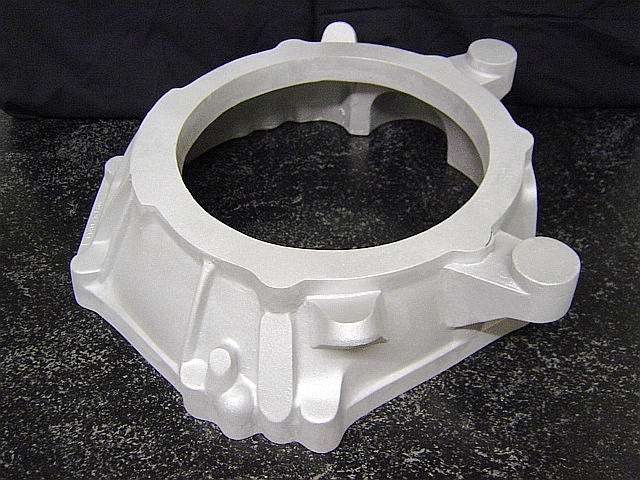

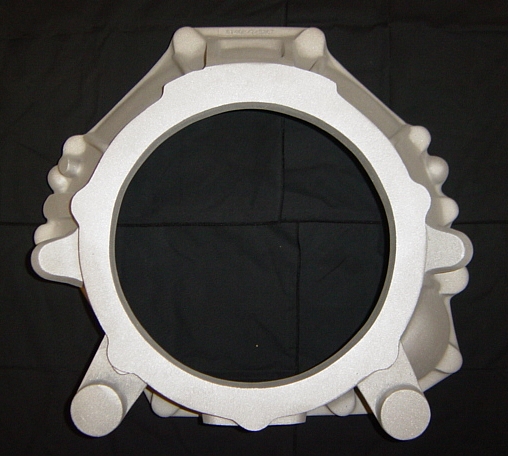

The bellhousings turned out nicely. My shrinkage calcs were exact and no dressing has been done yet (They don't require any).
One more problem solved so I hope the guys like them....
I am starting on the 4-bolt version this weekend


Attachments

  • Bellhousing 001.jpg
    Bellhousing 001.jpg
    142.7 KB · Views: 887
  • Bellhousing 002.jpg
    Bellhousing 002.jpg
    262.6 KB · Views: 849
  • Bellhousing 003.jpg
    Bellhousing 003.jpg
    214.3 KB · Views: 891
  • Bellhousing 004.jpg
    Bellhousing 004.jpg
    166.8 KB · Views: 882
  • Bellhousing 005.jpg
    Bellhousing 005.jpg
    174.1 KB · Views: 857
  • Bellhousing 006.jpg
    Bellhousing 006.jpg
    220.9 KB · Views: 852
Last edited:
re: Jimmymac & Alistair's Cars

Nice work as always James. I have just got back from a visit to Mirage to talk about the modifications needed to replicate those done by Ford on the MK.II.

It was good to see all the monos lined up there, (the rear bulkhead construction is well underway), Also I noticed that the cars under build are ALL of a slightly different specification depending on which car/era of GT40 is being modelled. That is what I call attention to detail!

Photos in a bit when I have downloaded the camera.

Cheers

Craig
