I have a GTD (center shift USA car) with the original Lotus Esprit shifter and translator (piece on gearbox) First the nylon bits in the shifter are worn out and second I've never really liked how the Lotus system works.

Has anyone ever found a alternative shifter(part in cockpit) that would work with the lotus translator. I seam to remember something about a Toyota MRX shifter working but I can't find much of anything on the subject. Or has anyone every converted a Renault R21 to a different cable shift system that worked well instead of the Lotus parts?

I want to keep the cable system because converting to a center shift rod system just would be too much work.

Hi Howard,
The UN1 Esprit gearshift is not a bad set-up when everything is working properly. Parts are available and new bushes made to rebuild the translator if you wish to continue with this route.<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com

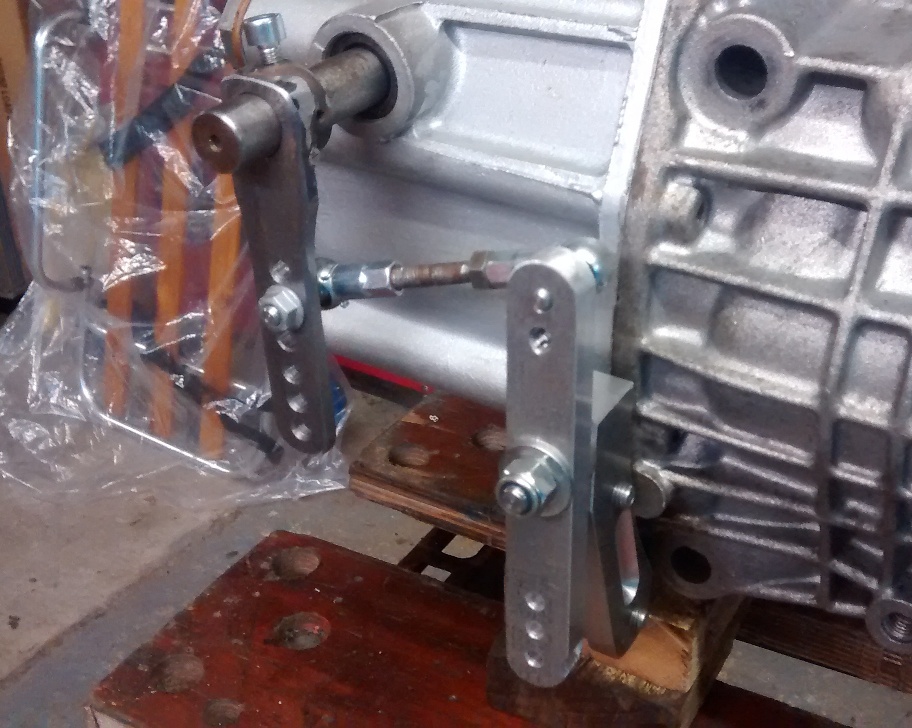

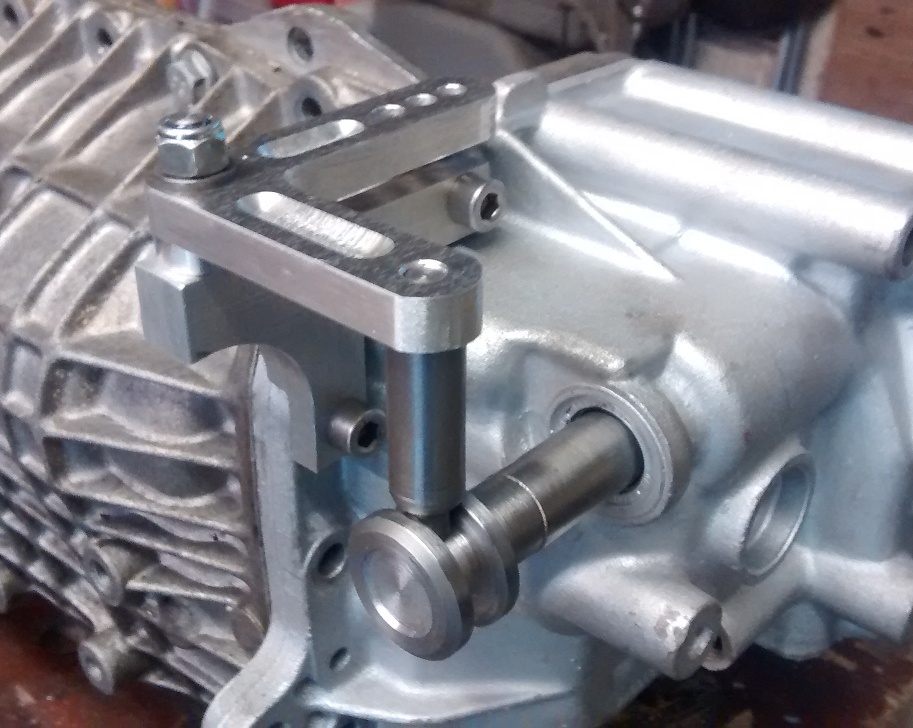

FONT><BR><FONT face=Arial><FONT size=3>The linkage on the top gives the cross-gate, whilst the second linkage on the side does the fore-aft movement. Ideally the second linkage would not be required, but it is needed to work with the Ford Focus gear lever. I believe that a T<
<st1:place w:st="on">oyota</st1:place> shifter would get around this issue, i.e gear lever needs to push cable when selecting 1<SUP>st</SUP>.<o:p></o:p>

<o:p></o:p>
Hope this helps<o:p></o:p>
Regards,<o:p></o:p>
Andy<o:p></o:p>


Attachments

  • Cross-gate shift.jpg
    Cross-gate shift.jpg
    209.6 KB · Views: 630
  • Fore-aft shift.jpg
    Fore-aft shift.jpg
    226.3 KB · Views: 739

Howard Jones

Supporter
Andy, the focus shifter is meant to be placed behind the transmission with the cables running forward whereas the gt40 layout has the opposite layout with the cables running rearward.

Also the focus has R down and to the right. The Renault/lotus has R down and to the left.

Does placing the shifter and the cable run direction in the GT40 in the opposite direction of the focus fix this or is it simply a linkage corrected issue. Or am I missing something (most likely answer)

Do you have pictures of the shifter layout in the cockpit you could share? Your transaxle linkage is very similar to the layout I made the G50 in my SLC so I get that.

Thanks for your help.

Hi Howard,

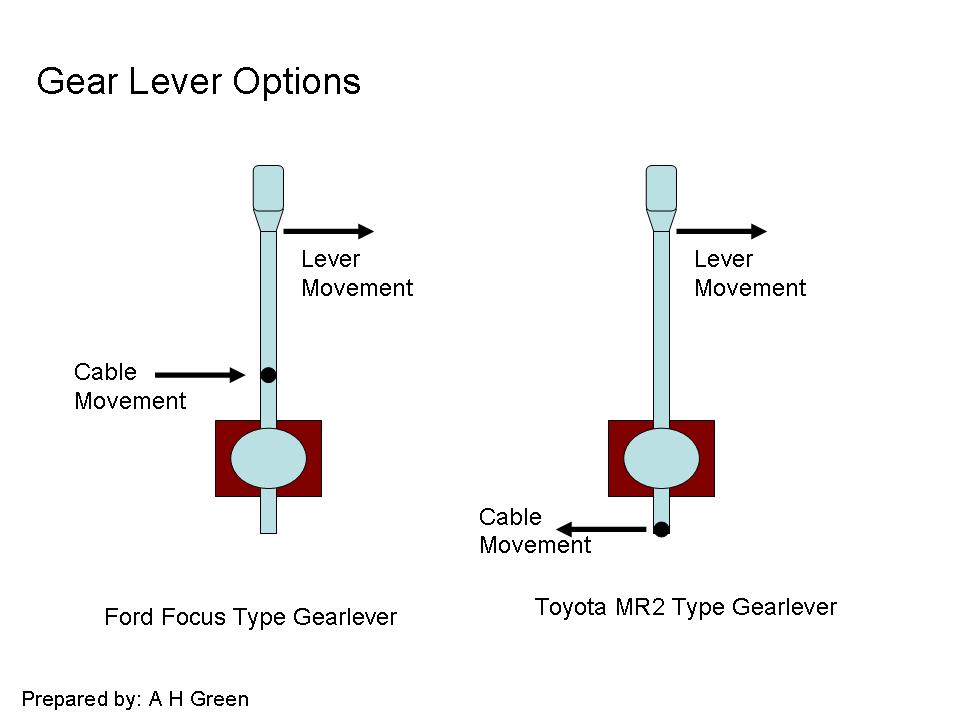

Unfortunately I don’t have photos of the particular shifter we used on this installation. Regardless of where the shift lever is positioned relative to the transmission, its down to how the cables pull relative to the shift levers on the transmission and how the shift lever is set out. The attached depiction hopefully gives an easier explanation of the differences between different shifters
<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com<img src=" /><o:p></o:p>
Also going back to your original email, about the Esprit translator on the transmission, it is unique in that it uses both cables (one cable pushing, the other pulling) to give the cross-gate. It may work with an early Renault shift lever, but I’ve no idea which one<o:p></o:p>
<o:p></o:p>
Regards,<o:p></o:p>
Andy<o:p></o:p>


Attachments

  • Gear Lever Options.jpg
    Gear Lever Options.jpg
    41.4 KB · Views: 797
Last edited:

Howard Jones

Supporter
Andy, that's pretty much what I was thinking, yet couldn't seam to put into words. Thanks for that. I think I will just make my own system based on the general layout of the one in my SLC and this shifter. The pictures you posted has given me a good place to start at the gearbox.


Attachments

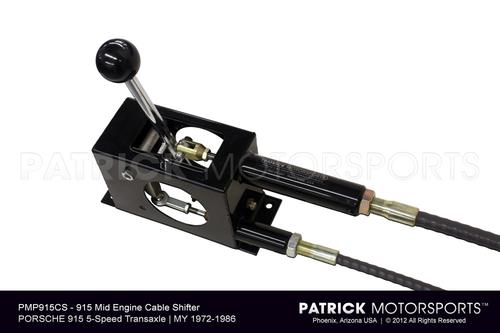

  • PMP915CS_915-CABLE-SHFTER_PATRICK-MOTORSPORTS.jpg
    19.6 KB · Views: 842
Howard,


I have been running a Toyota MR2(the early squareish ones) shifter in my Porsche 914 since forever, it was the easiest of things to set up. It's shift action was perfect for my UN1, and the linkage is all ABOVE the bottom pivot and with a really good set of cables and rod ends, it will shift superb.


Henry.


Howard Jones

Supporter

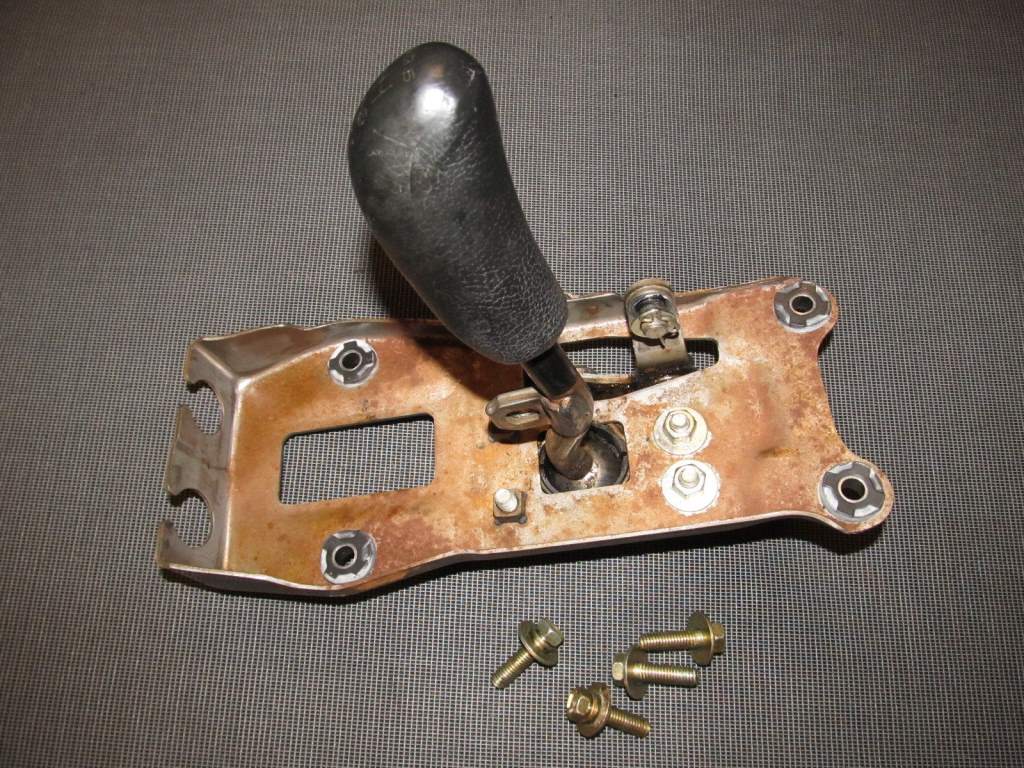

There you go Henry, I get one of those and make my own gearbox pieces. This one?


Attachments

  • IMG_3470_96be7978-3f57-48f6-9a1b-3b7bb8f52062.jpg
    154.2 KB · Views: 611
  • IMG_20141001_172740_681_0.jpg
    112.1 KB · Views: 624
Yep, bang on Howard, that's the one.

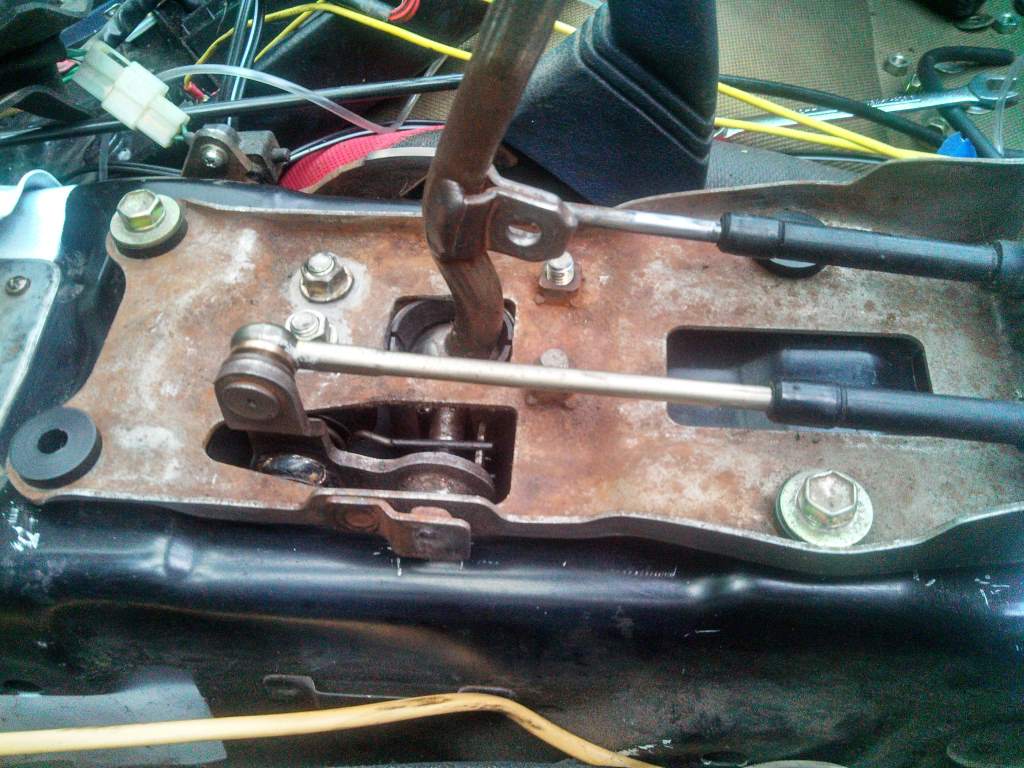

I'll try find a picture of my set up, it's a lot simpler than most rigs out there, I'm surprised people get so complicated with it. In saying that, a GT40 may have different constraints to my 914.
