Widebody RCR40

I have finally got this done and can now continue on the RCR40. 4.5 years of way more then I anticipated. LSx powered, mustang 2 front, 4 link rear, all that stuff.


Attachments

  • IMG_1126.JPG
    311.6 KB · Views: 1,042
Haven't been posting but have been working. Brief overview:


- Body fitup

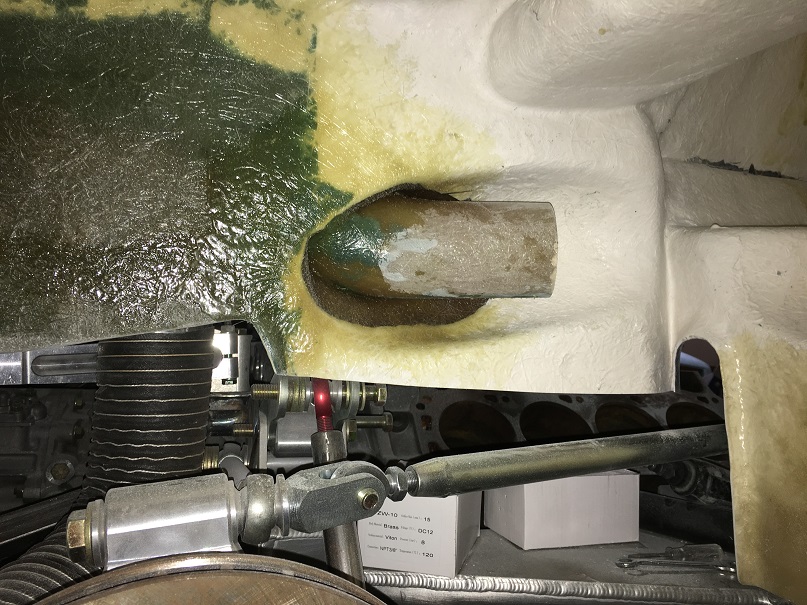

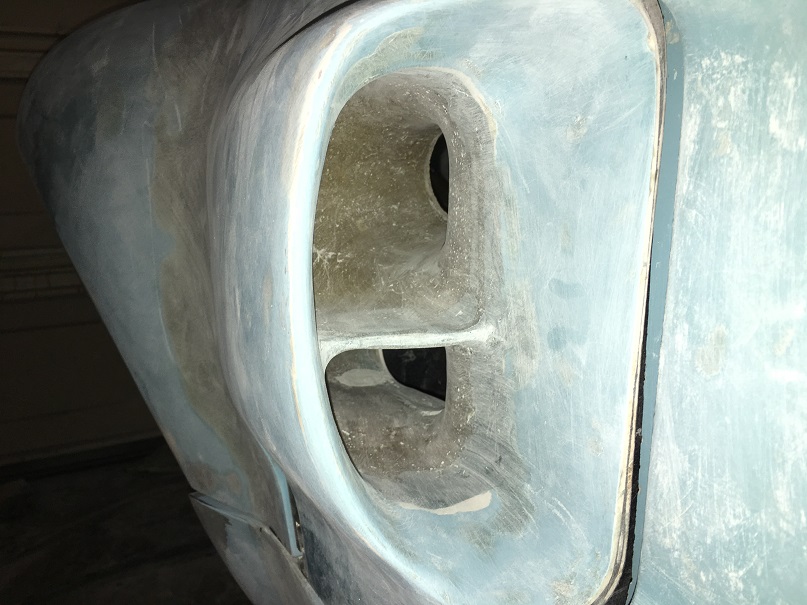

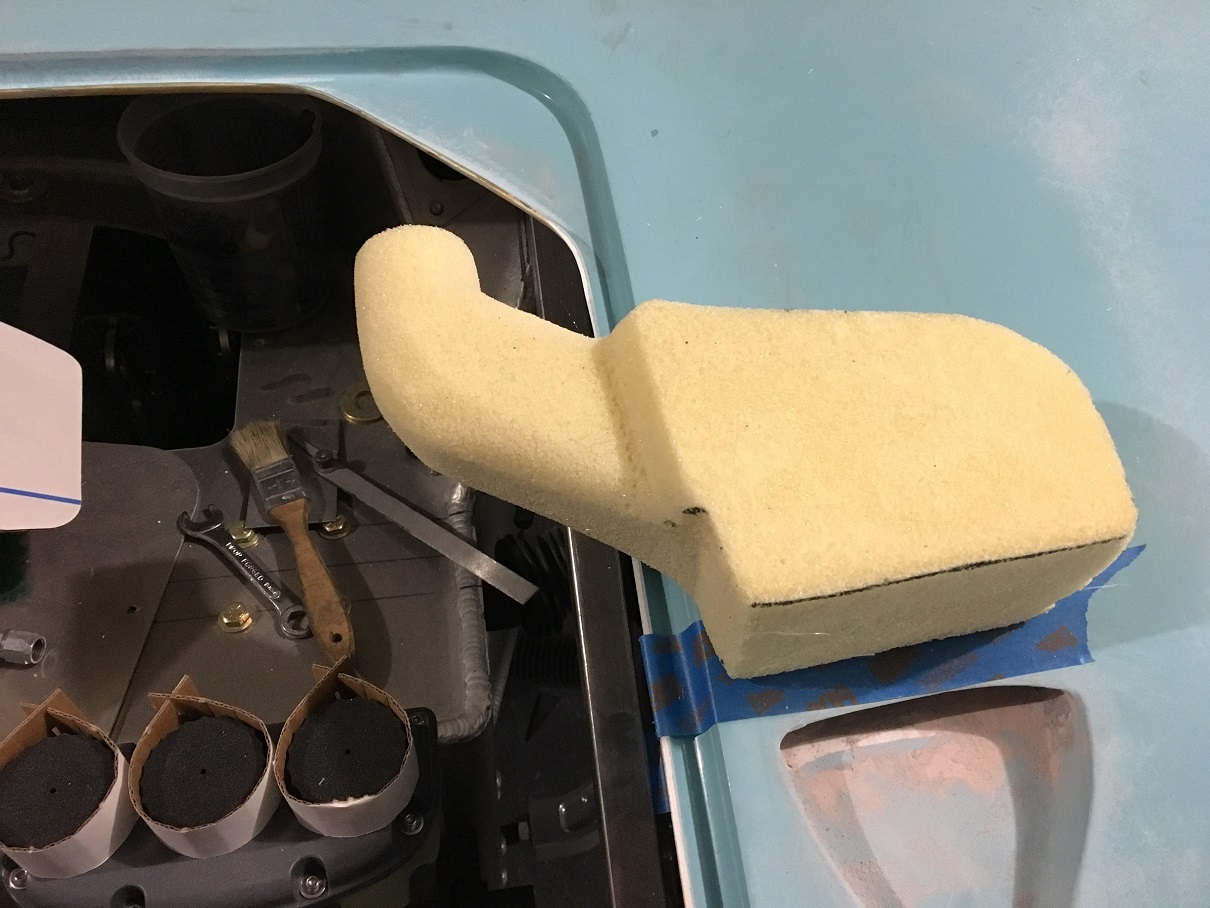

- Adding front cool air ducts

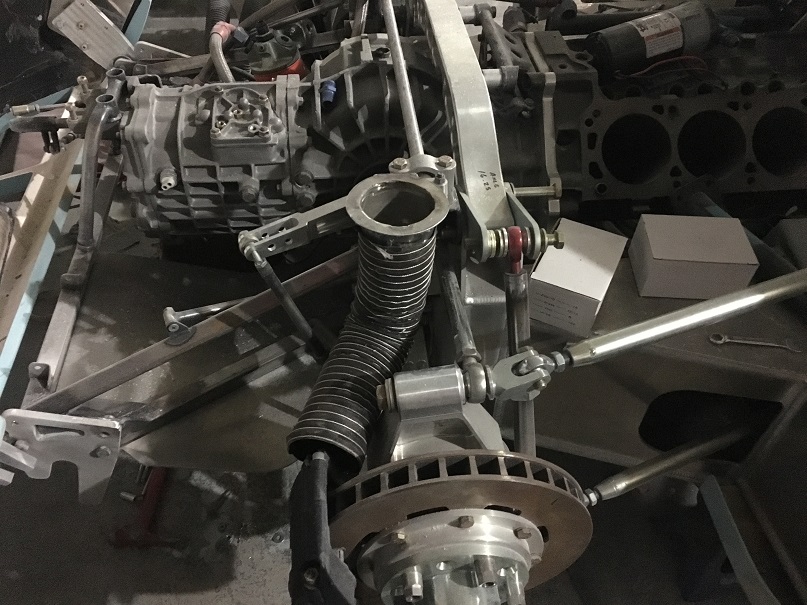

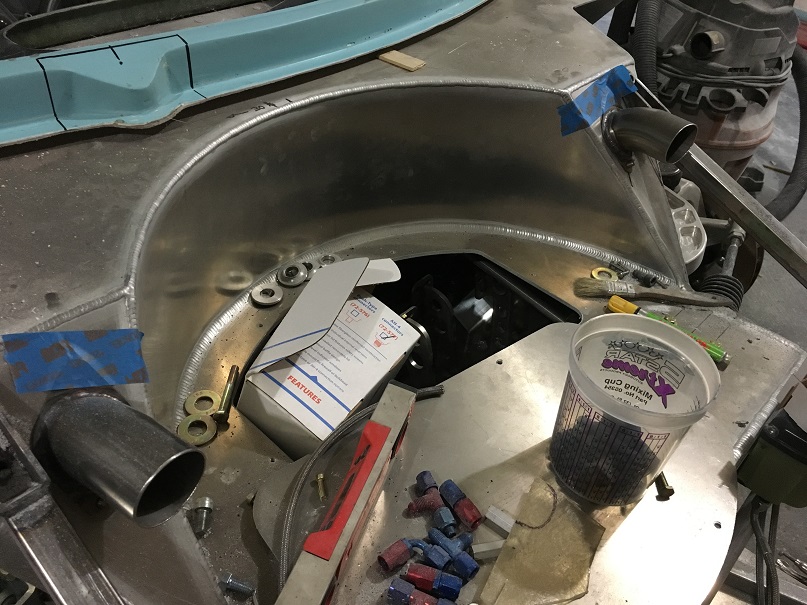

- Adding rear brake ducting

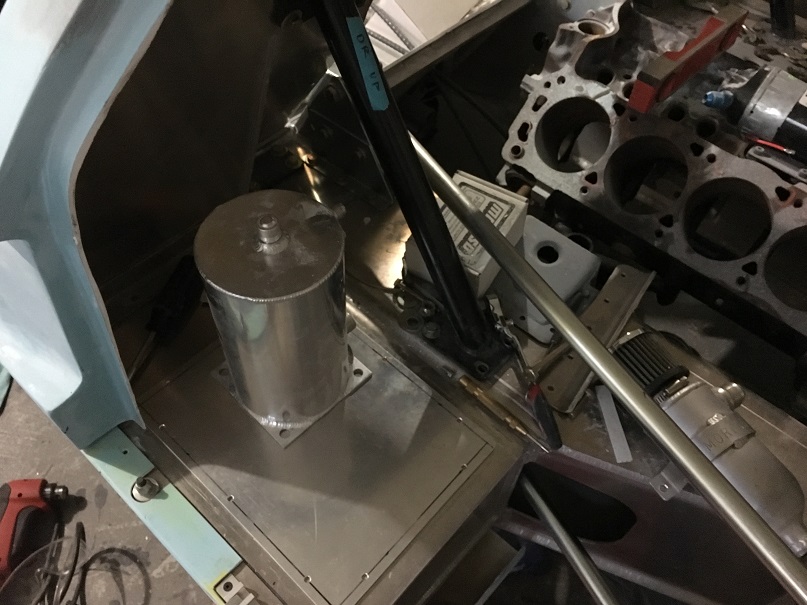

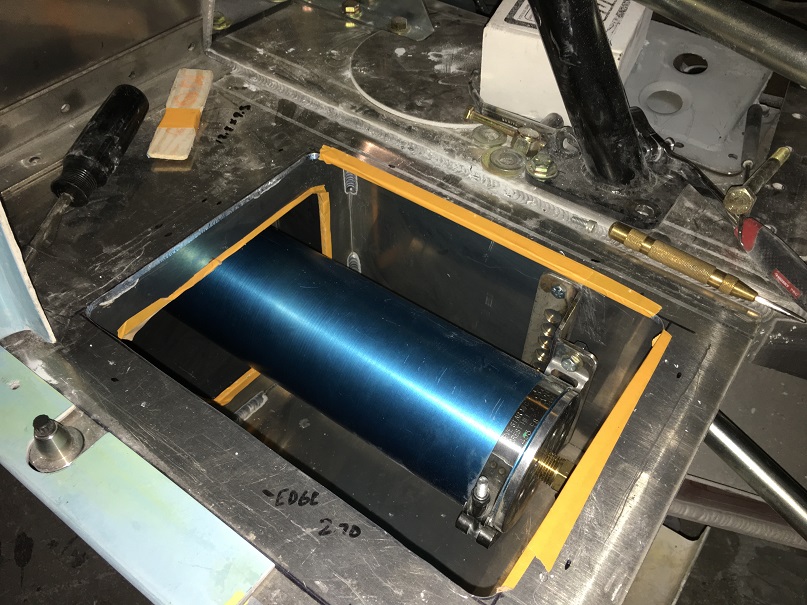

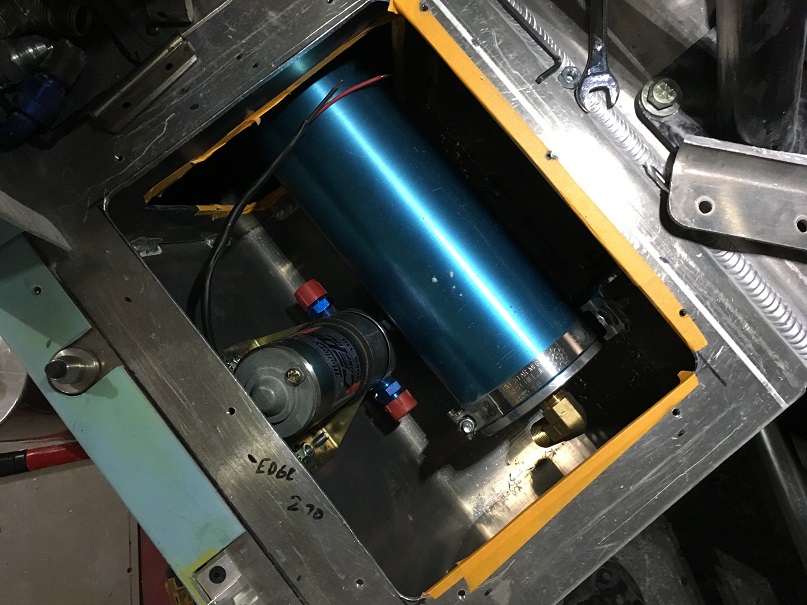

- Adding 3qt Accusump

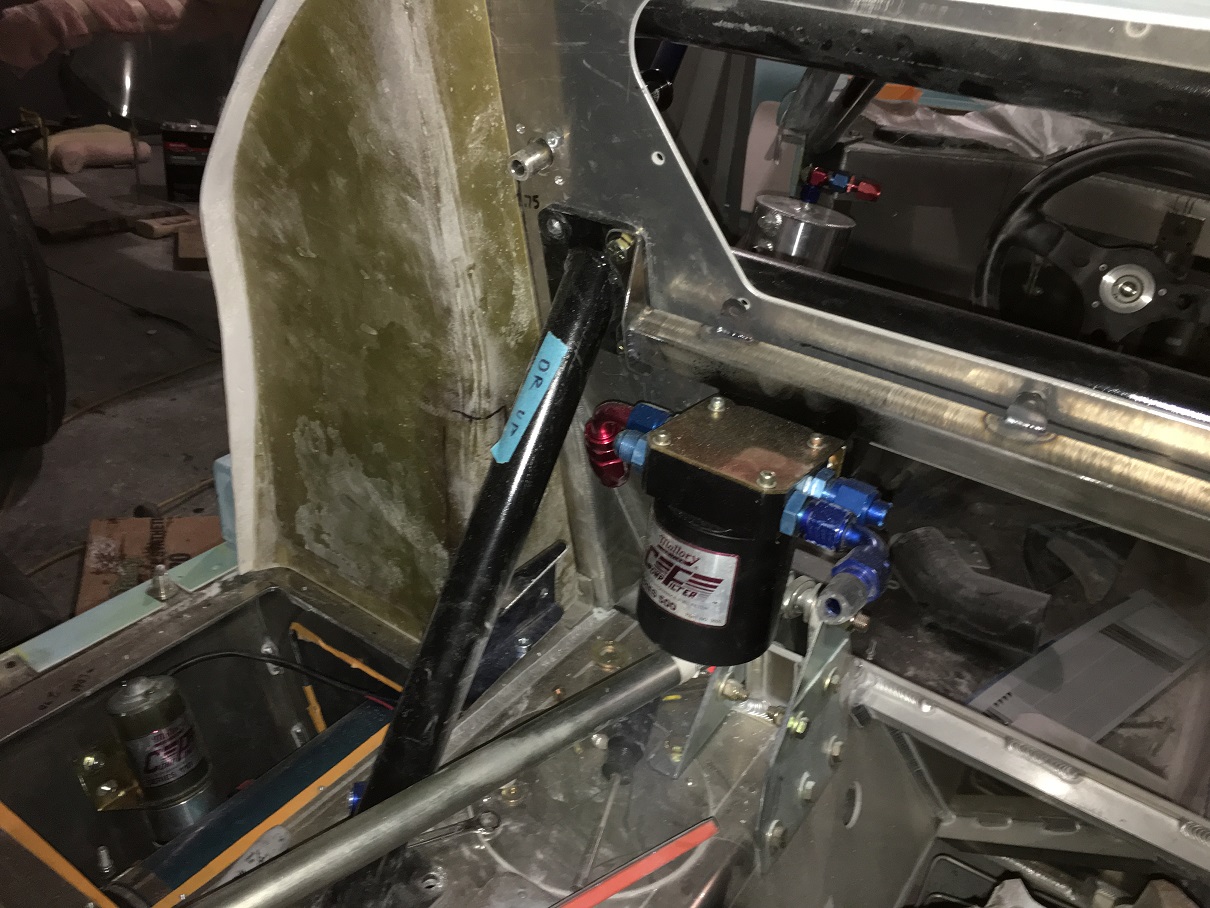

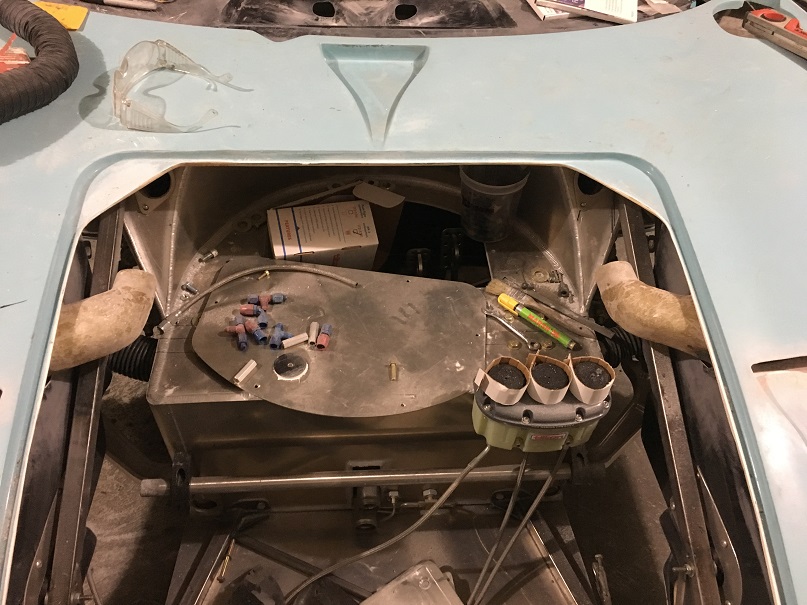

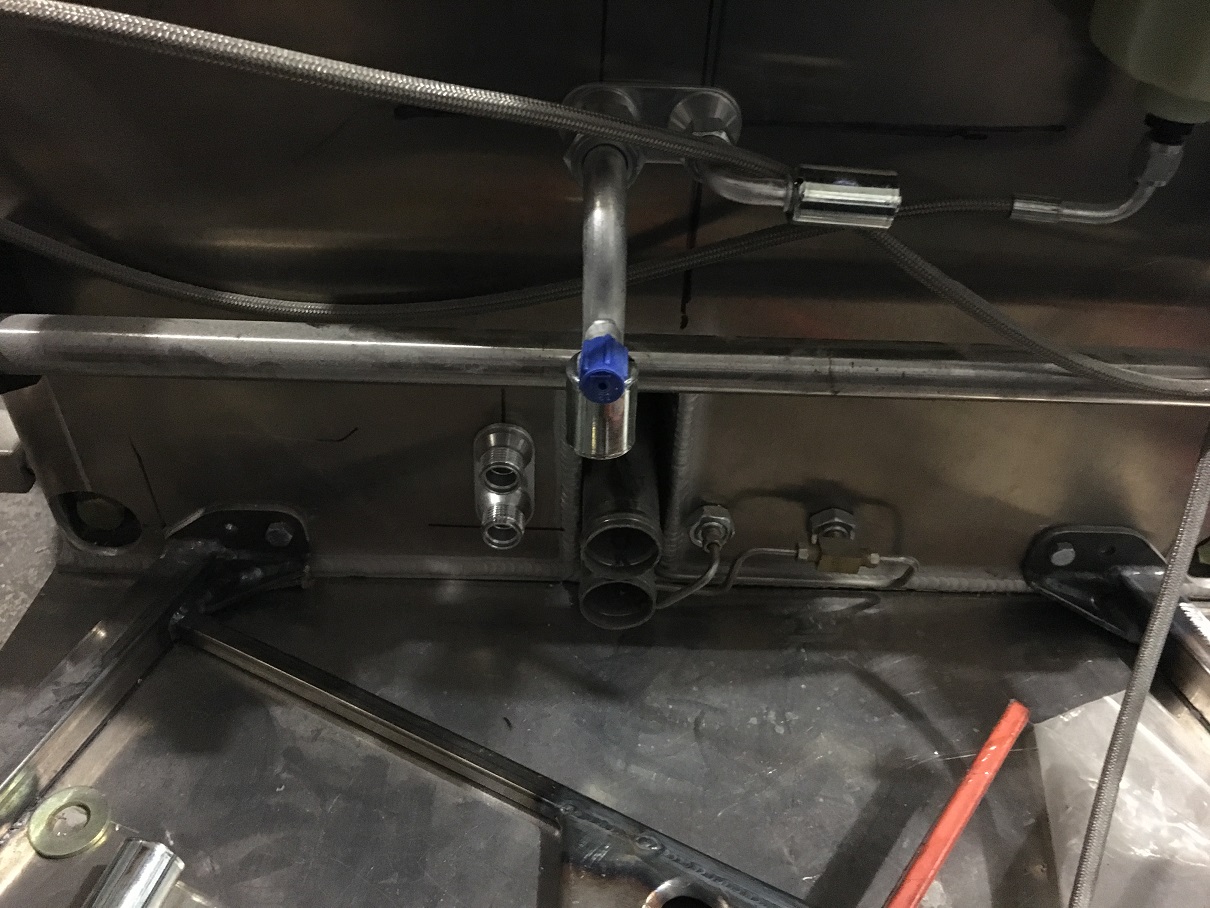

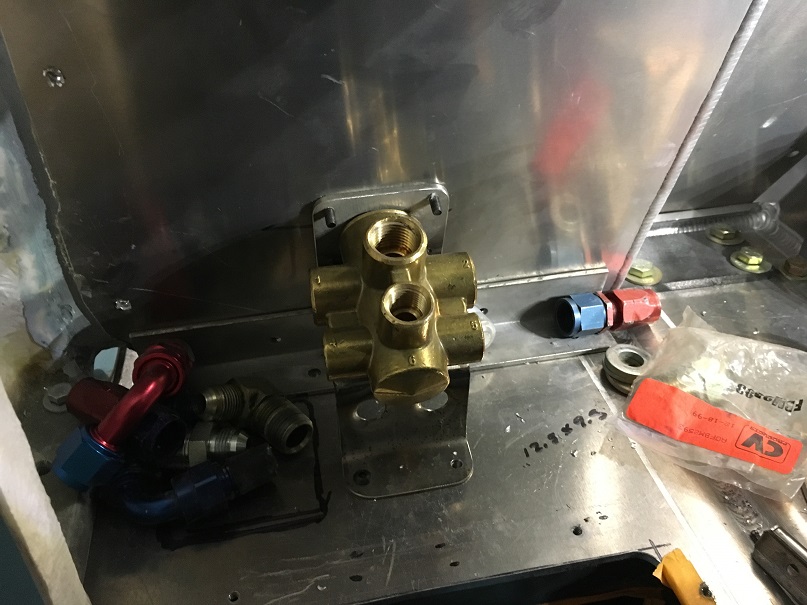

- Fuel system
- More gadamn body fitup

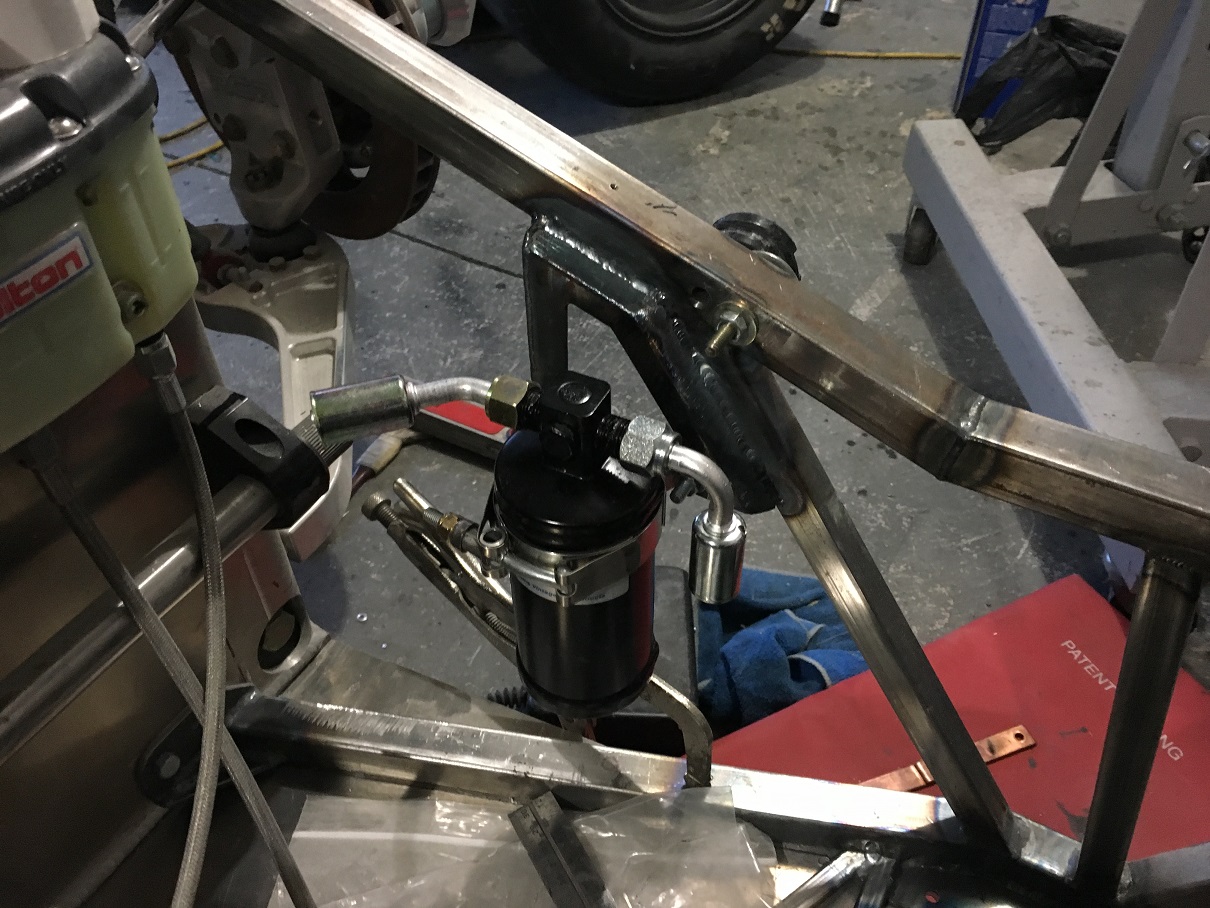

- Engine bay peripherals

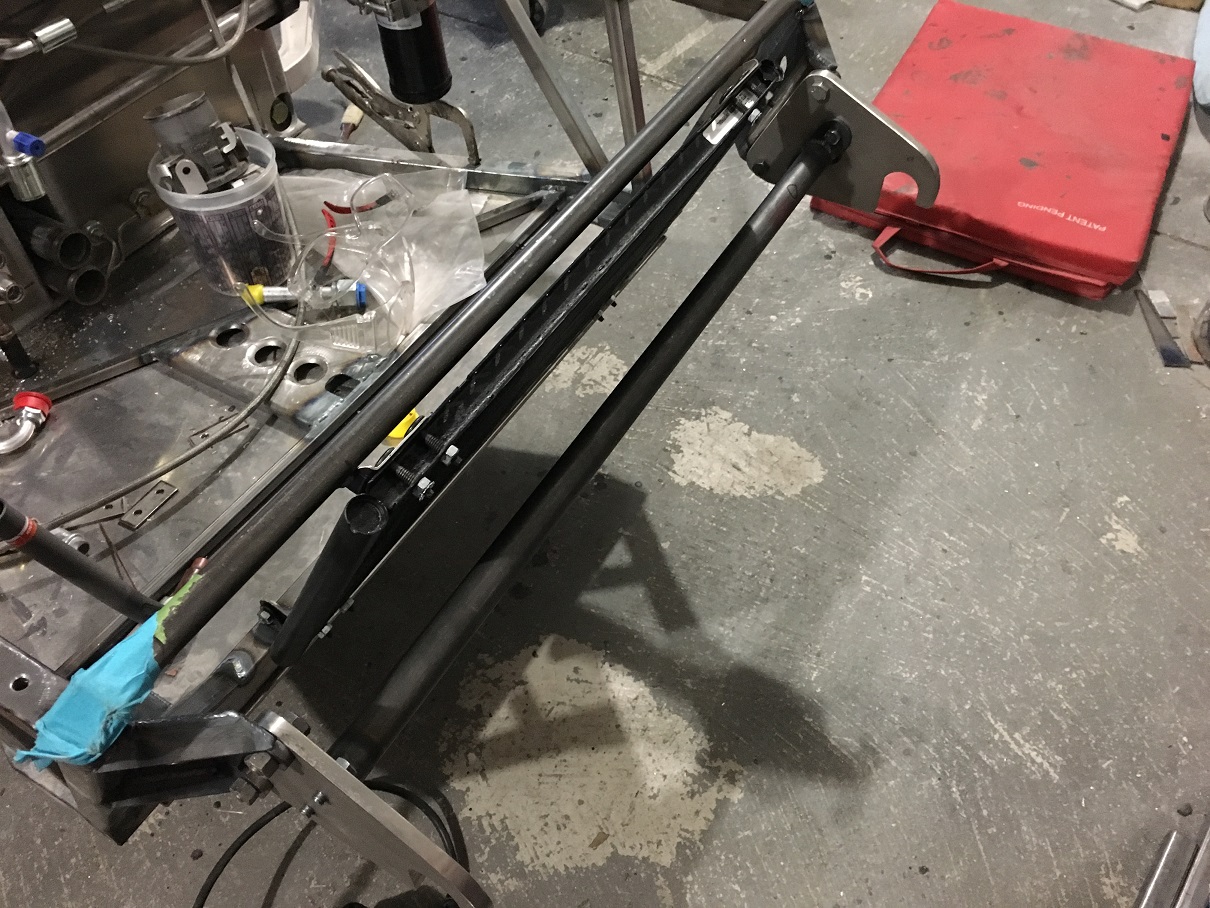

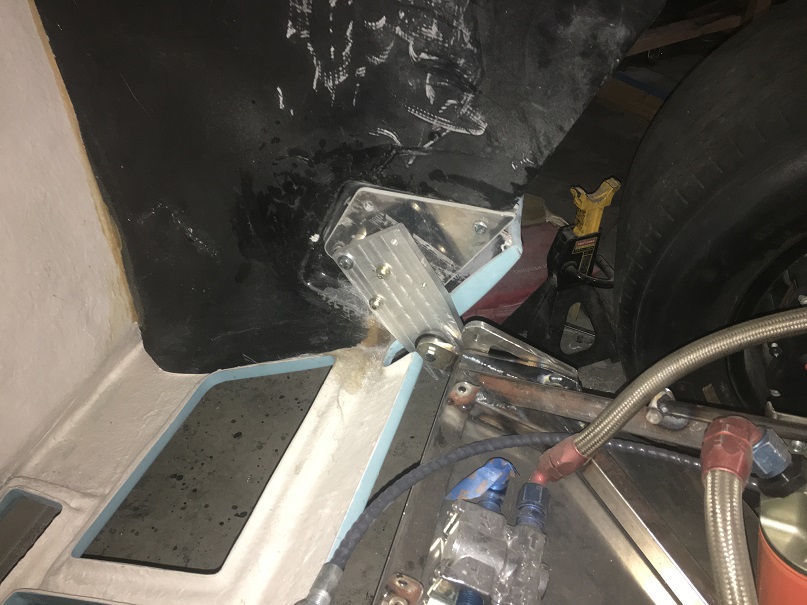

- Rear clamshell mounts


Attachments

  • IMG_1188.JPG
    297.5 KB · Views: 763
  • IMG_1197.JPG
    176 KB · Views: 732
  • IMG_1198.JPG
    192.5 KB · Views: 760
  • IMG_1240.JPG
    158.1 KB · Views: 794
  • IMG_1241.JPG
    113.2 KB · Views: 756
more...


Attachments

  • IMG_1279.JPG
    141.6 KB · Views: 781
  • IMG_1280.JPG
    199.7 KB · Views: 752
  • IMG_1296.JPG
    135.8 KB · Views: 746
  • IMG_1322.JPG
    222.4 KB · Views: 714
smore...


Attachments

  • IMG_1324.JPG
    153.1 KB · Views: 701
  • IMG_1323.JPG
    175.5 KB · Views: 746
  • IMG_1325.JPG
    157.1 KB · Views: 690

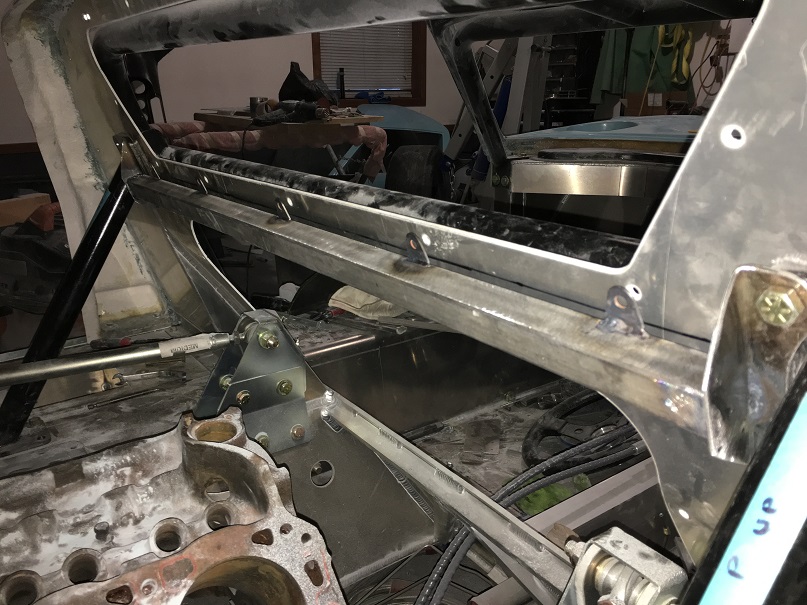

  • IMG_1330.JPG
    197.1 KB · Views: 743
  • IMG_1334.JPG
    211.4 KB · Views: 727
Yep...


Attachments

  • IMG_1335.JPG
    156.3 KB · Views: 642
  • IMG_1356.JPG
    183.8 KB · Views: 673
  • IMG_1354.JPG
    138.4 KB · Views: 628
  • IMG_1355.JPG
    140.3 KB · Views: 637
  • IMG_1357.JPG
    148.3 KB · Views: 703

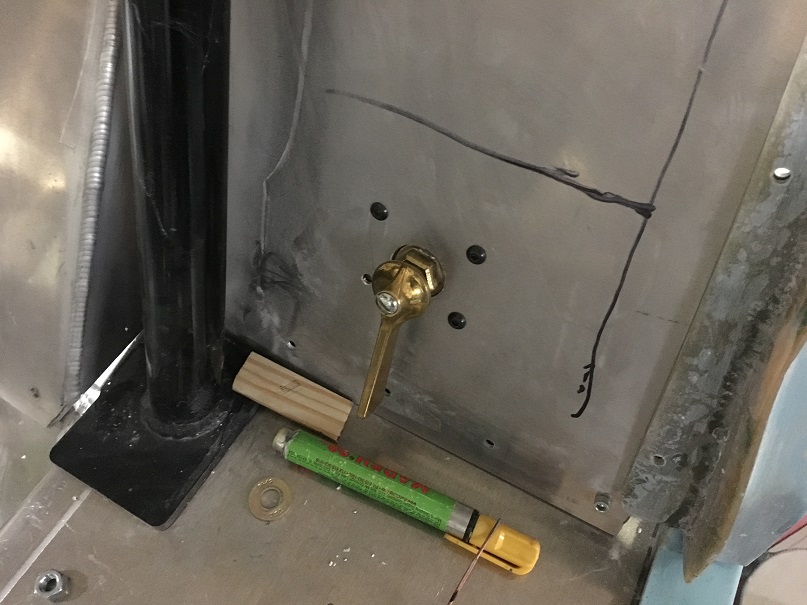

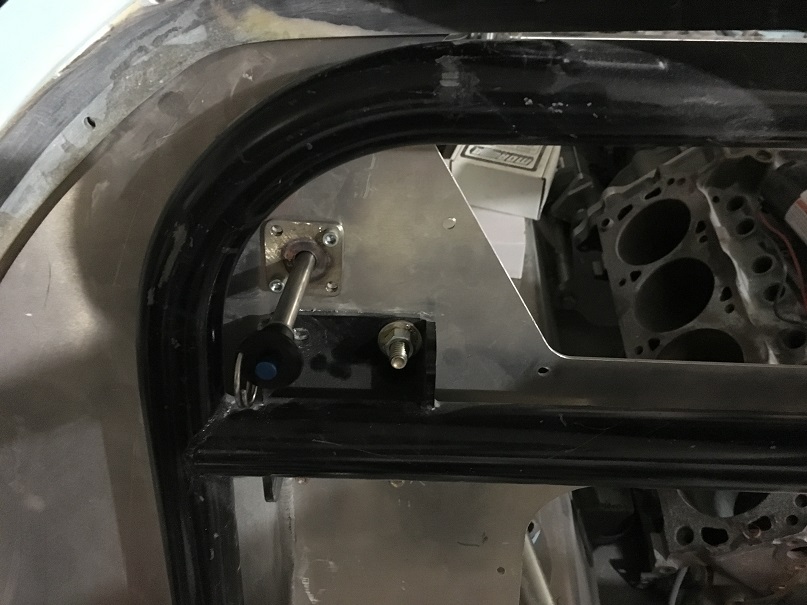

forgot the windshield wiper flip and opening the vent


Attachments

  • IMG_1264.JPG
    133.6 KB · Views: 757
  • IMG_1265.JPG
    126.2 KB · Views: 690
More.

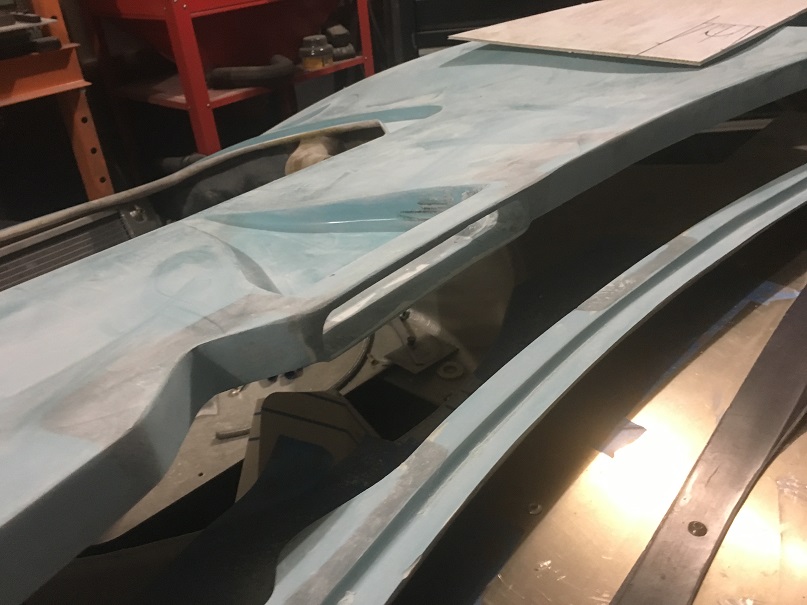

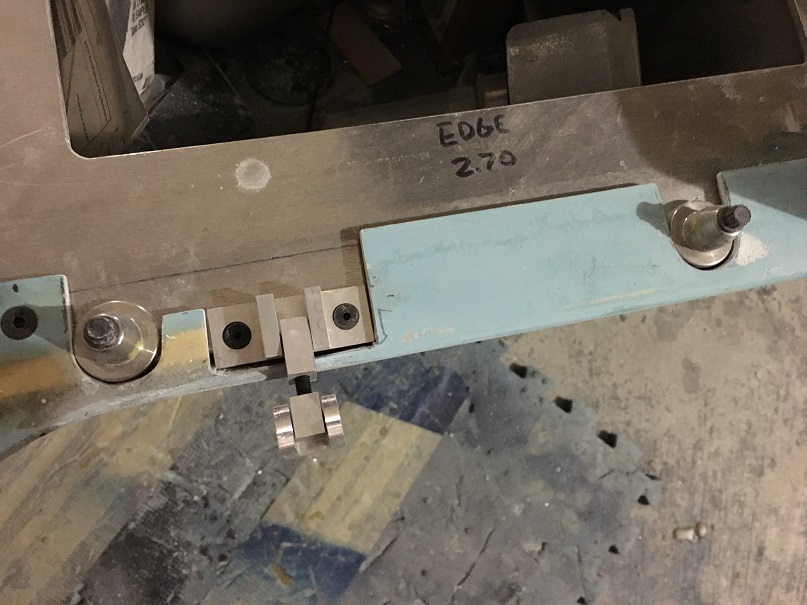

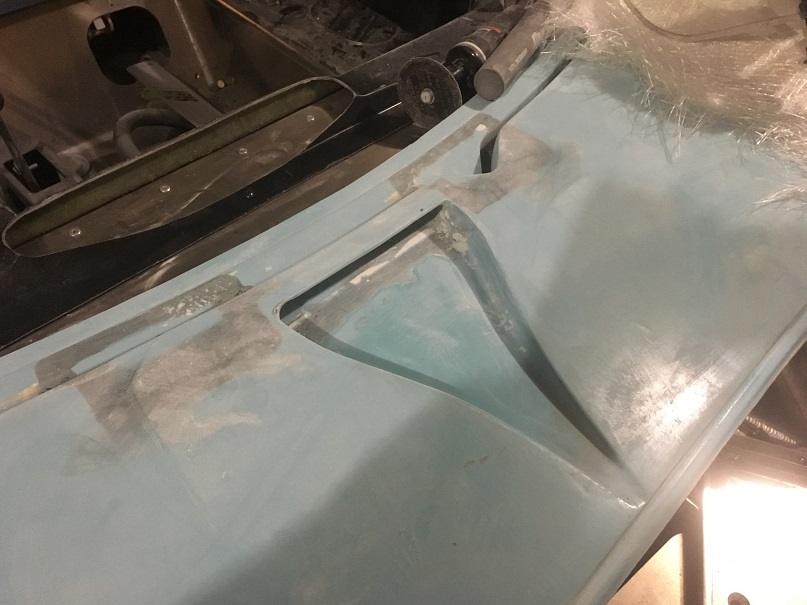

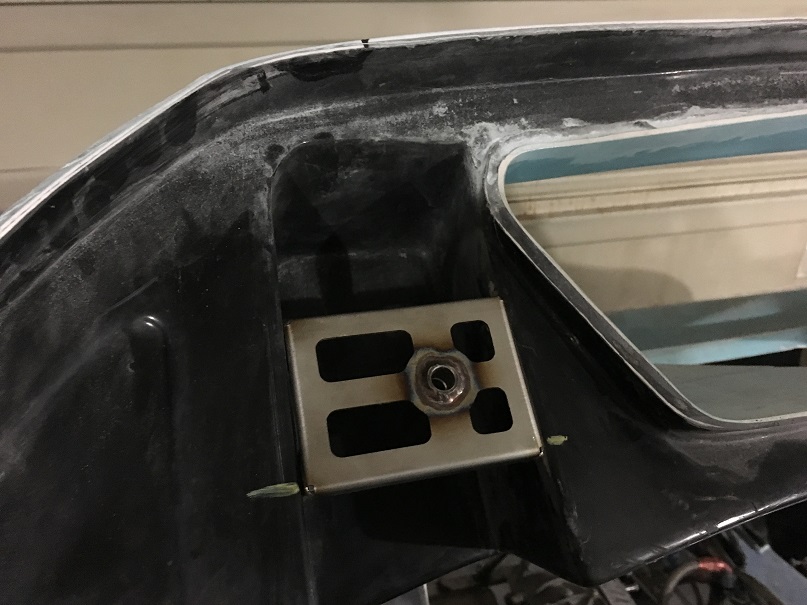

This is a standoff molded to the top of the defrost vent that holds both the edge of the dash and the end pieces to make the dash removable

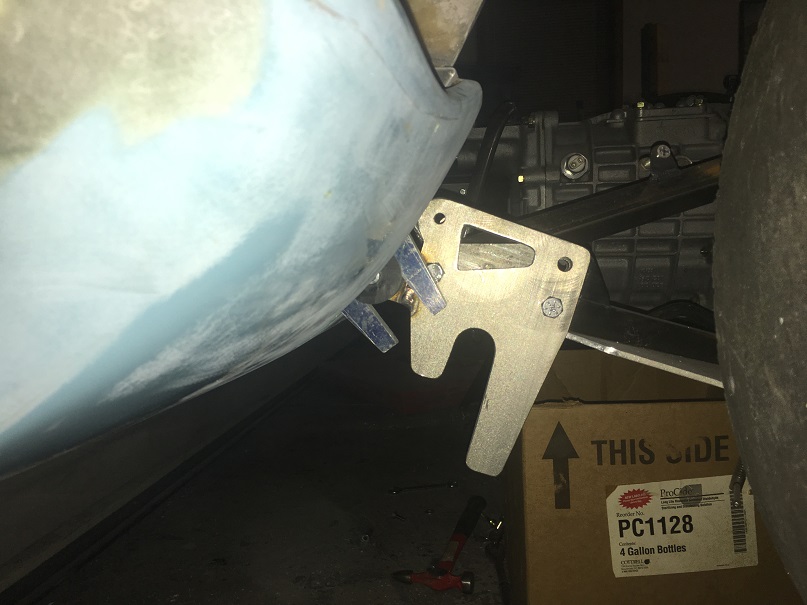

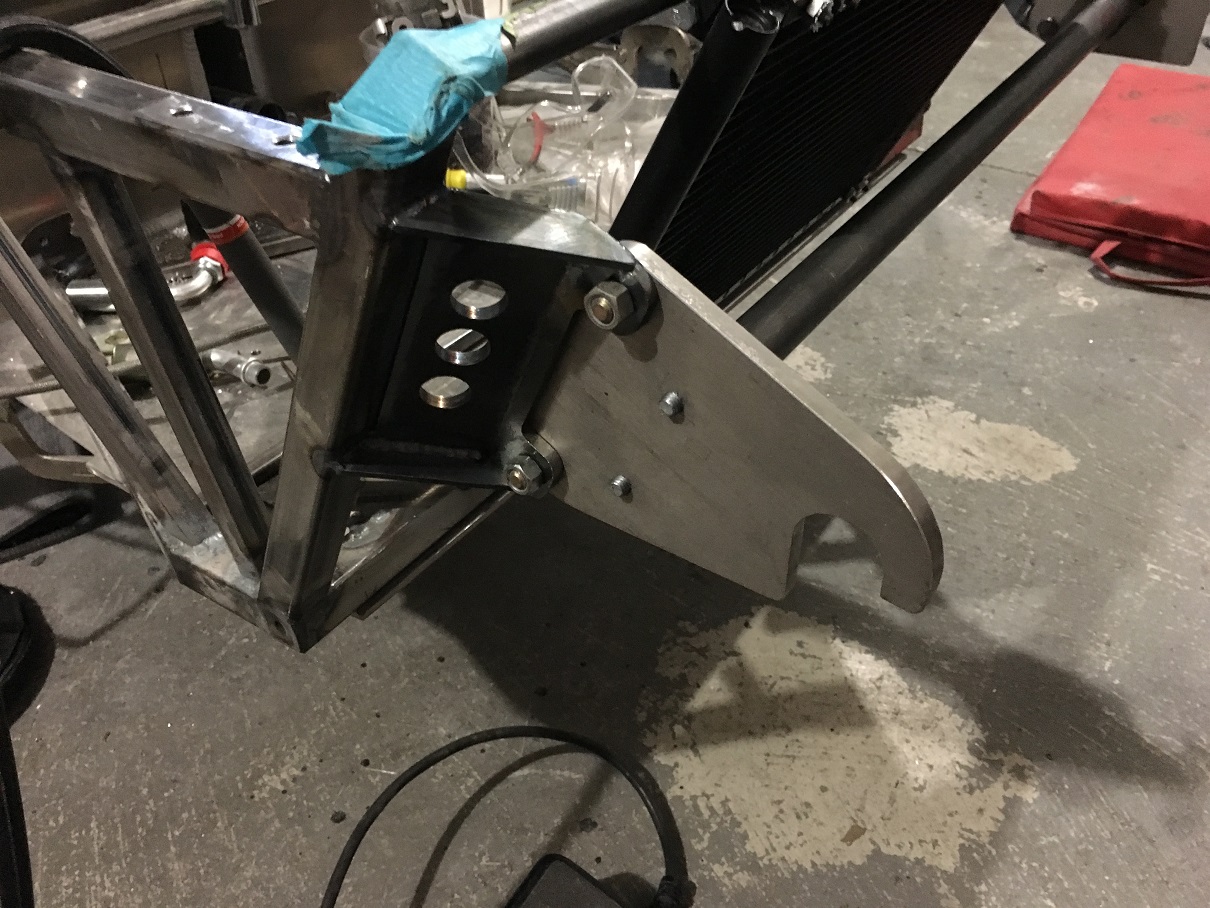

Wanted to do a different version of the front jack pickup points. Front pieces are cut from 3/8" stainless and all parts can be removed if I like

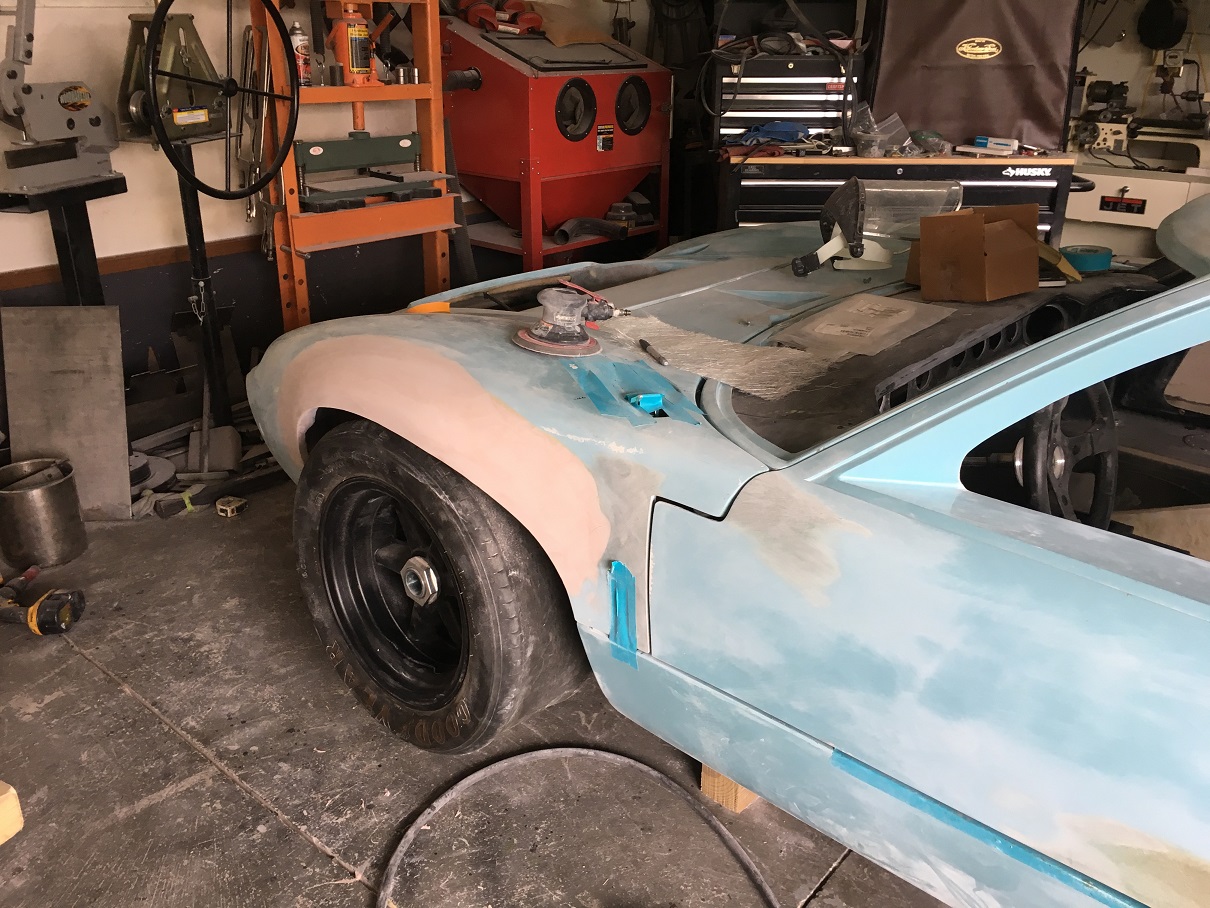

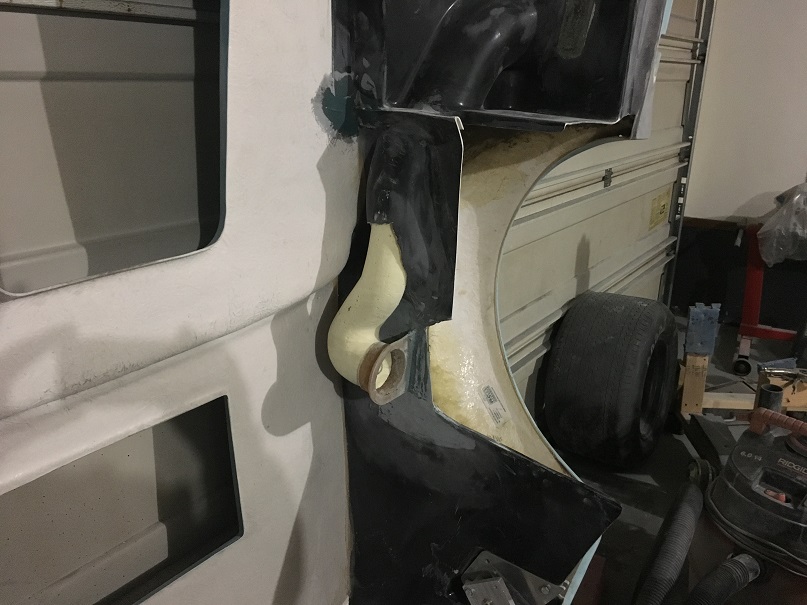

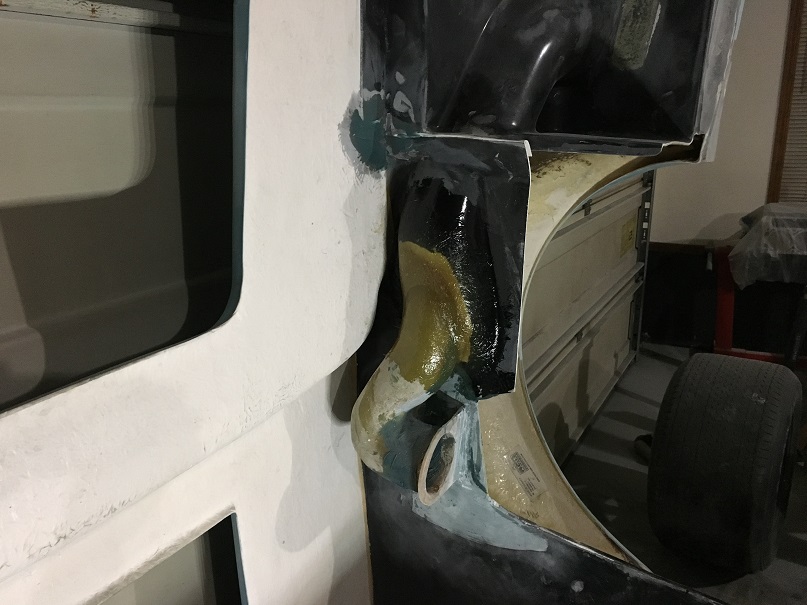

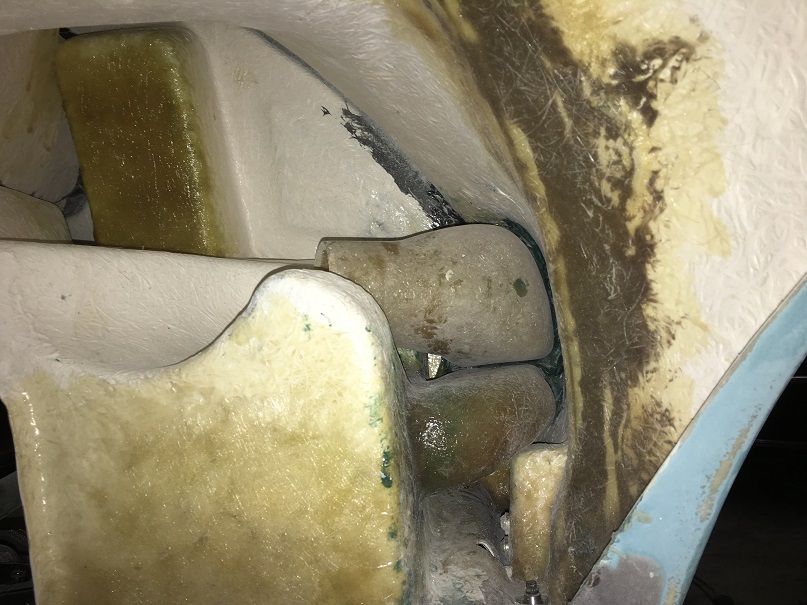

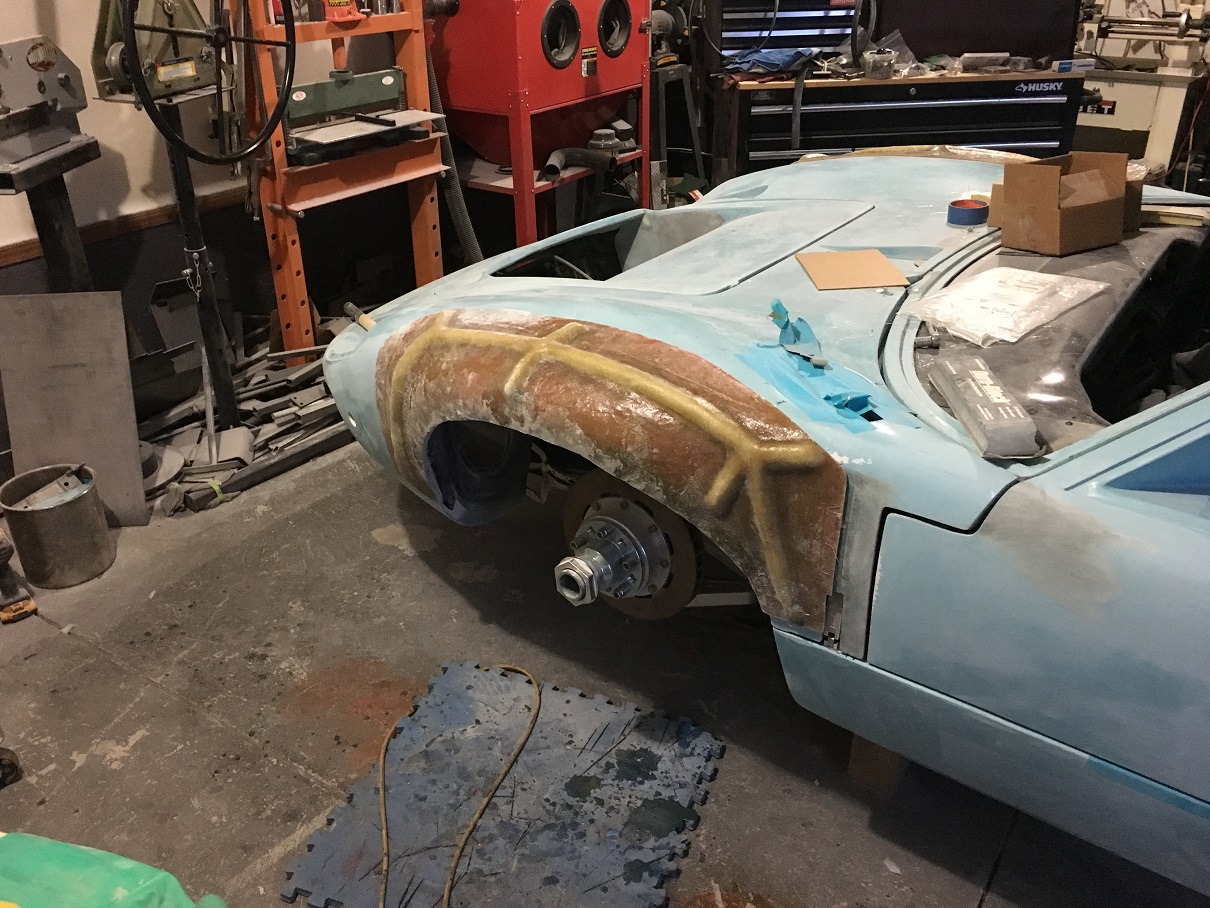

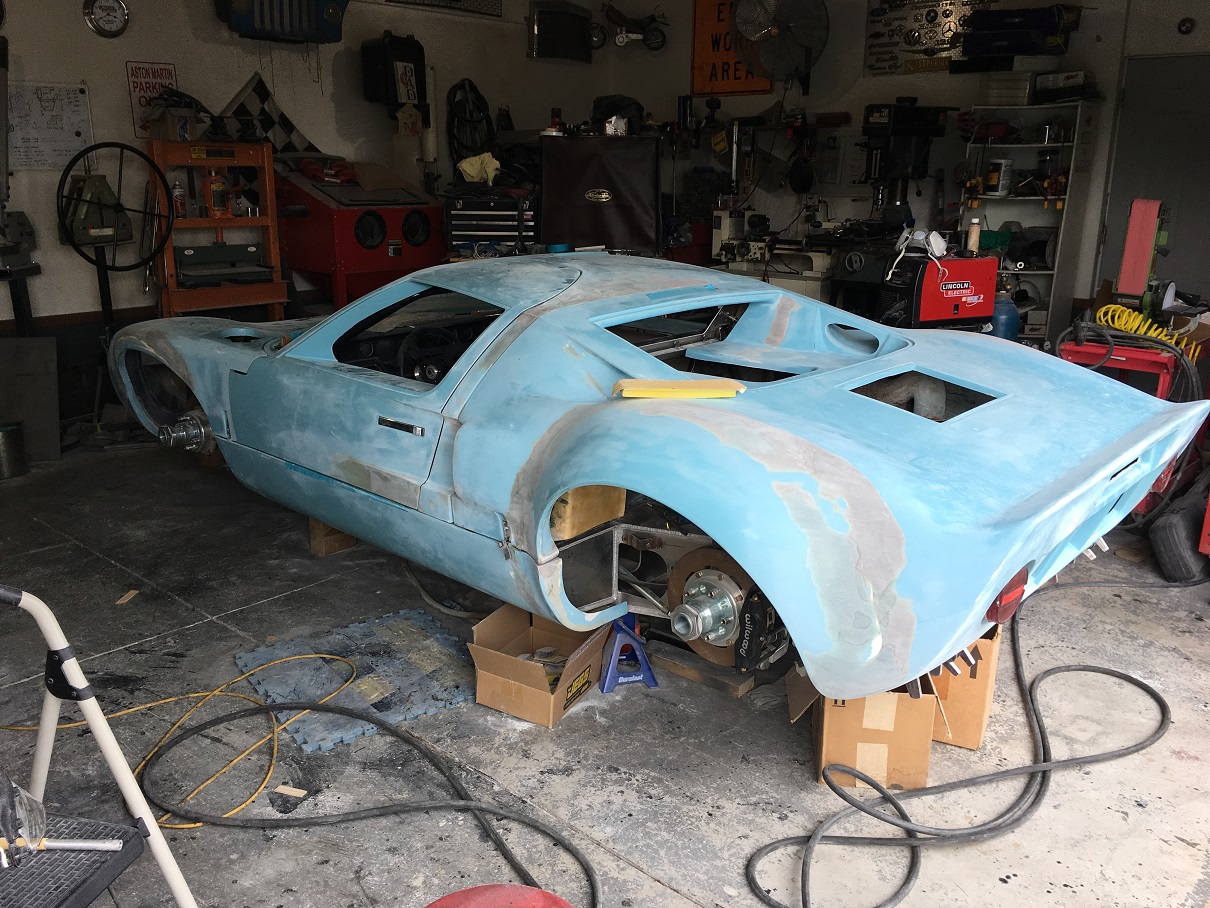

The front flares that RCR installed weren't right. The were off center and didn't cover the top of the tire. Also, the fender opening wouldn't let the tire turn a reasonable amount. Instead of just cutting the existing bodywork and hoping to get a shape that worked I decided to enlarge the fender and flare. I pulled a mold from the new shape.

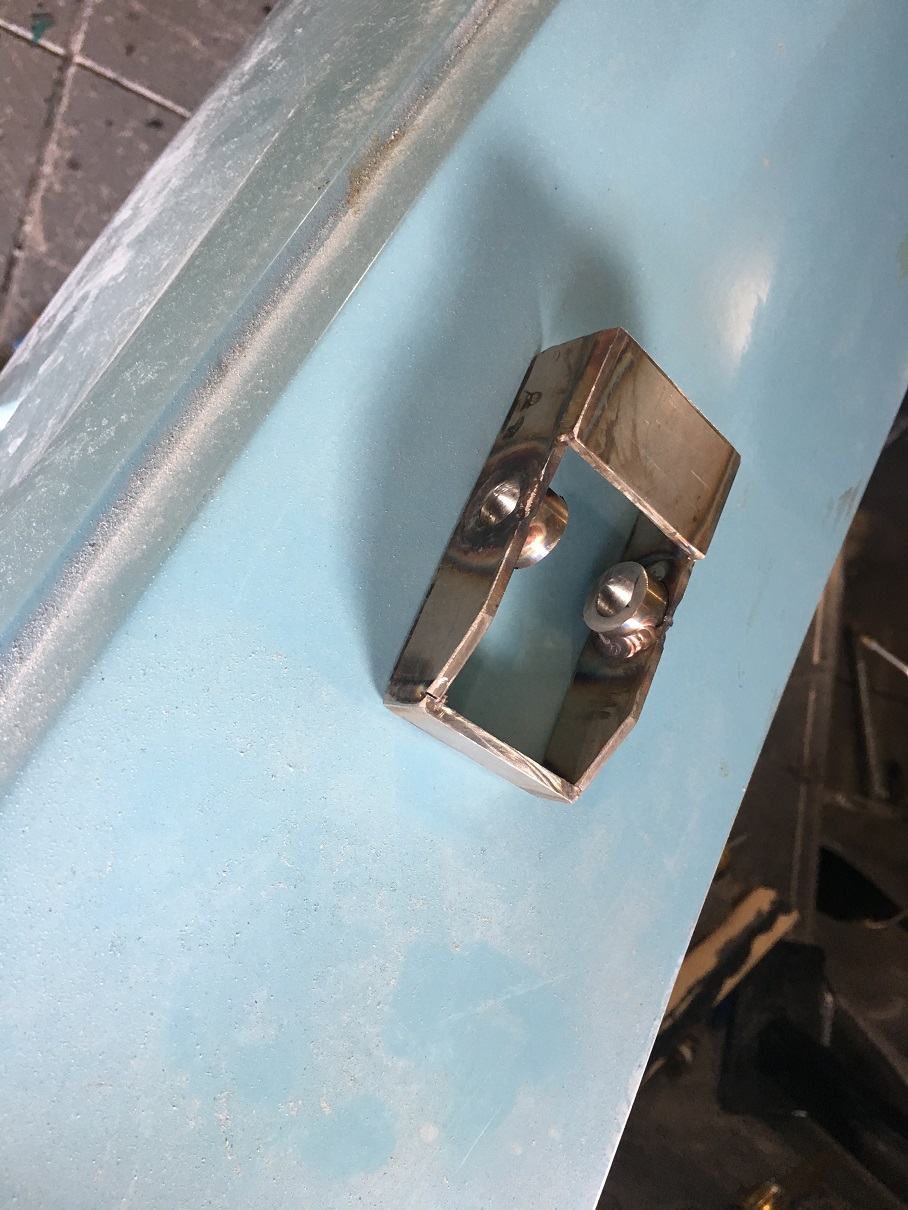

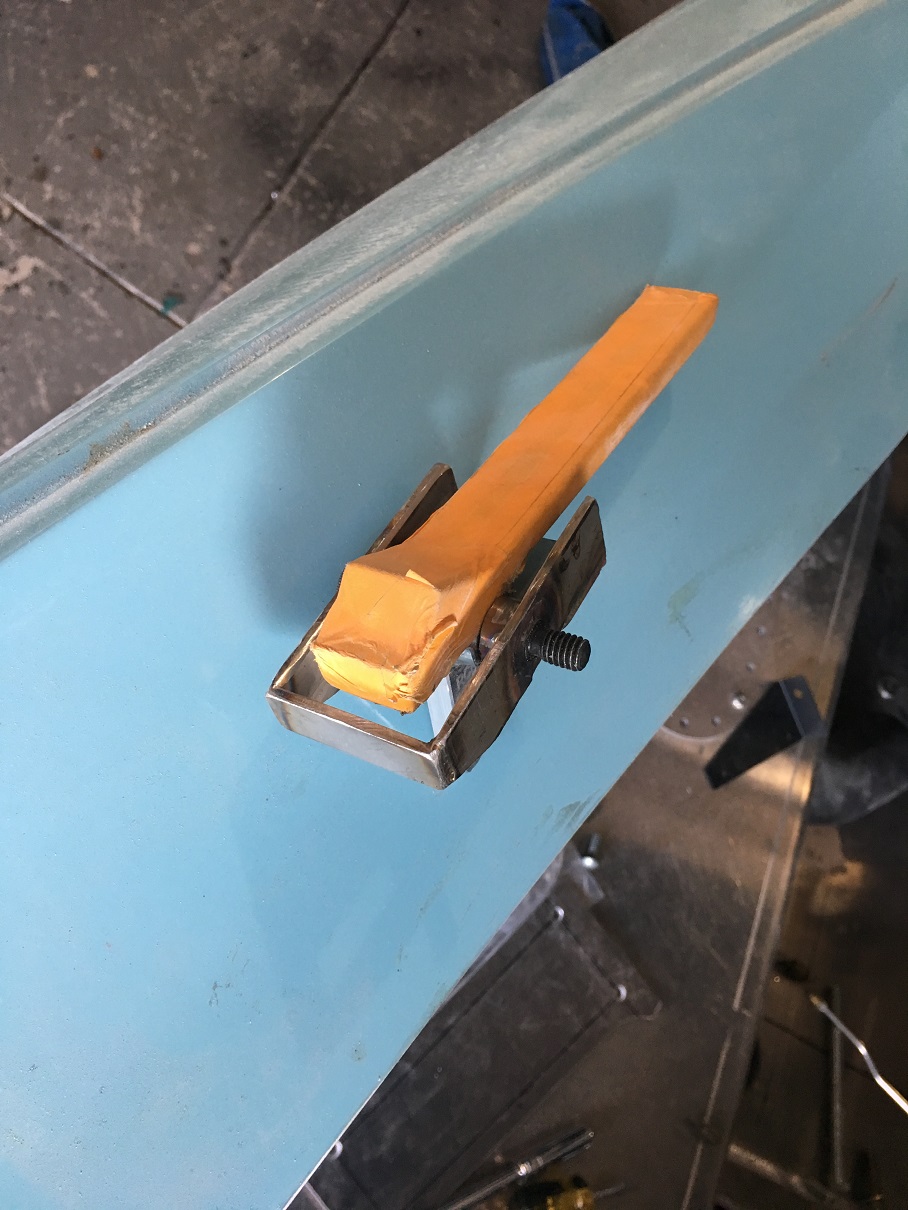

Almost forgot. I made a carriage for the door handle. The concept isn't original. I made mine from 304 stainless and bonded them to the inside of the door. It makes the handle movement feel great, very smooth.
