Dazza,
Yes this drawing is set up for spherical bearings. Bushings and ball joints can easily be done though.
Dave
Yes this drawing is set up for spherical bearings. Bushings and ball joints can easily be done though.
Dave
Just the latest purchase a 10X18 Lathe. I looked for a used one and always came up too late or it was too much. Still need a press but I can get by for now. Sorry no pic.
Dave
Dave
Last edited:
Gent's,
Just an update, Lathe up and mounted and run in. My quick change AXA tool post, adapters and carbide cutter's arrived today and going to have Gene the tooly mill the base for the tool post to fit my cross slide on the lathe. Thing's will go quickly from now on. I won't have to wait for bushings. I will post some pics when I have something substancial.
Dave
Just an update, Lathe up and mounted and run in. My quick change AXA tool post, adapters and carbide cutter's arrived today and going to have Gene the tooly mill the base for the tool post to fit my cross slide on the lathe. Thing's will go quickly from now on. I won't have to wait for bushings. I will post some pics when I have something substancial.
Dave
Update,
Laid out the bolt on front section and tacked it together. Lower front control arm mounting points done. Bungs welded in place for the front clip pins. I put the original turret back on the lathe and started cutting and turning. I am going to work front to back and back to front ,doing sub assemblies, then lining up adding each section. Should save alot of time and be easier to weld.
Dave
Laid out the bolt on front section and tacked it together. Lower front control arm mounting points done. Bungs welded in place for the front clip pins. I put the original turret back on the lathe and started cutting and turning. I am going to work front to back and back to front ,doing sub assemblies, then lining up adding each section. Should save alot of time and be easier to weld.
Dave
Gent's,

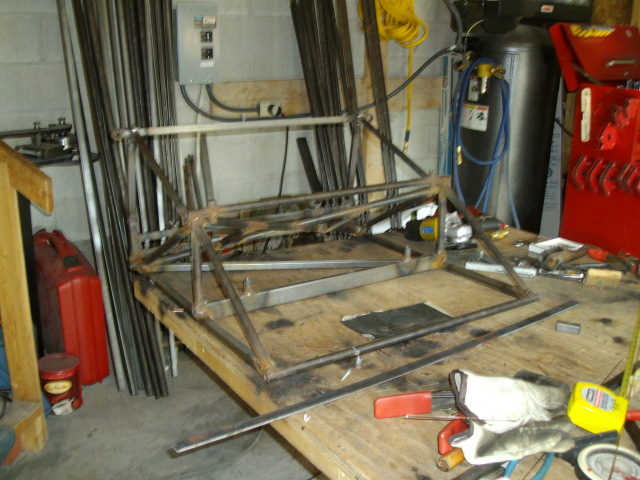

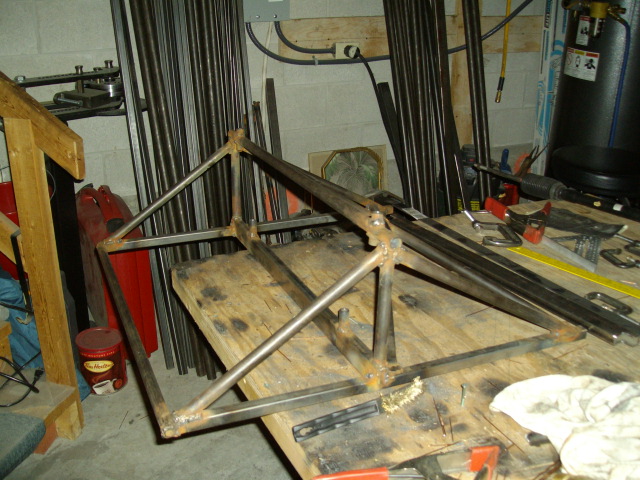

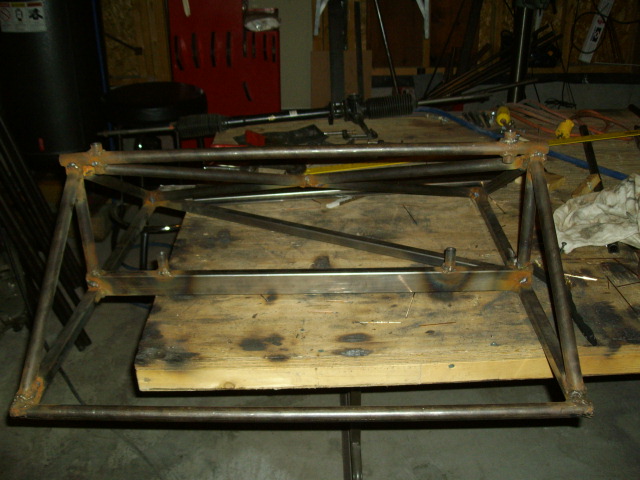

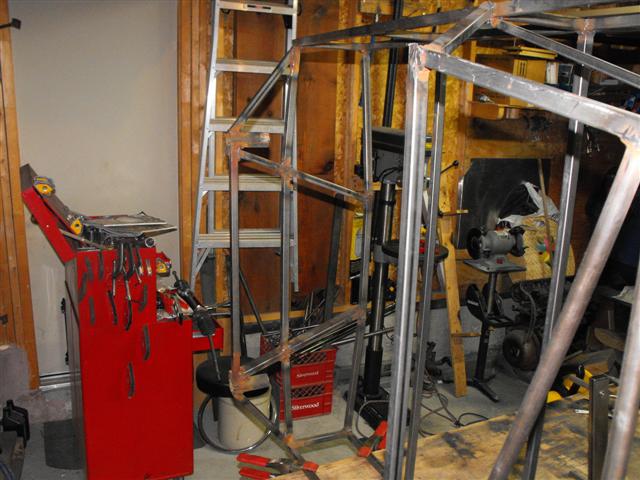

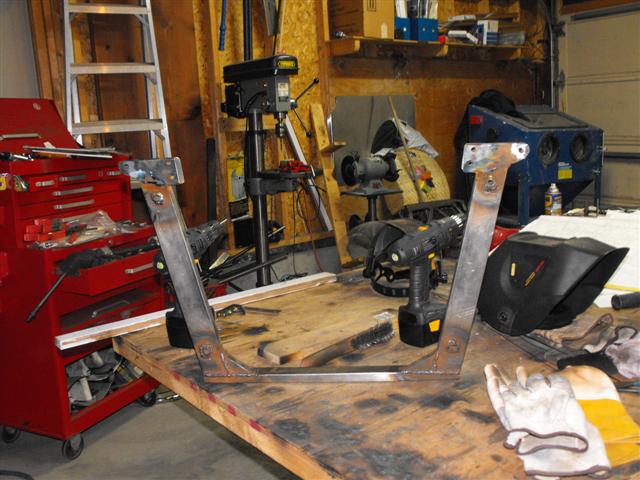

A few pics of what I have so far. The front bolt on section is almost complete. Steering rack braces and two upper tubes to connect to the firewall and a few tabs for rad and torsion bar. I won't add the tubes until I complete the firewall section. I will use that as a jig to drill to add tabs and line everything up. This section bolts on to the main chassis.
dave
A few pics of what I have so far. The front bolt on section is almost complete. Steering rack braces and two upper tubes to connect to the firewall and a few tabs for rad and torsion bar. I won't add the tubes until I complete the firewall section. I will use that as a jig to drill to add tabs and line everything up. This section bolts on to the main chassis.
dave
Attachments
Last edited:
Darren,
I just did a weld check. You will notice I have a yellow handled brass 20 oz. hammer lying around I use to check my welds with. The lastest braces did not pass. I will fix it up tomorrow. I left a little room to play with on the tabs. I will trim off the bad ends and crank up the heat on the next welds. Pedal drawings will help. We will have to discuss the bearing carriers and bearings for the control arms now that I have a lathe.
Dave
I just did a weld check. You will notice I have a yellow handled brass 20 oz. hammer lying around I use to check my welds with. The lastest braces did not pass. I will fix it up tomorrow. I left a little room to play with on the tabs. I will trim off the bad ends and crank up the heat on the next welds. Pedal drawings will help. We will have to discuss the bearing carriers and bearings for the control arms now that I have a lathe.
Dave
I have just recived my rear - front lower control arms back and the upper radius rods. The twit that was plating them for me (heat treated nickel) chrome plated them, 3 months work and 8' of chome moly down the toilet. It must be said were I live cr-mo cant be easily sourced, which adds to the pain.
The net result is I am about to do another production run on the bearing cups and bushes.
I have a list of all the buses for the 16 if you need and drawings if you prefer.
here are a couple of pics of what got stuffed up
The net result is I am about to do another production run on the bearing cups and bushes.
I have a list of all the buses for the 16 if you need and drawings if you prefer.
here are a couple of pics of what got stuffed up
Darren,
They look good. I have some chrome molly but I am going to use steel instead. My rear lower control arms are a A-Type. They use an oil lite bushing and a rod with a long clevis on one end through the lower and clevis with rod end on the top. I have a hard time getting chrome molly so the bearing carriers for the front upper and lower should be easy in steel. It's just selecting the right bearings and rod ends.
Dave
They look good. I have some chrome molly but I am going to use steel instead. My rear lower control arms are a A-Type. They use an oil lite bushing and a rod with a long clevis on one end through the lower and clevis with rod end on the top. I have a hard time getting chrome molly so the bearing carriers for the front upper and lower should be easy in steel. It's just selecting the right bearings and rod ends.
Dave

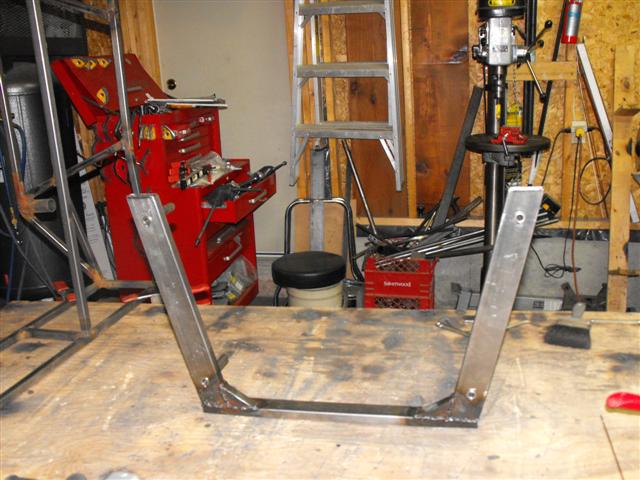

Just an update. I made a few changes to the way the mounting tabs are installed. I was not happy with the fit. I made the tabs a bit longer so I did not have to grind material away to make it fit. Also brought the lower control arm bushing out to make up for the difference. This shoud make it stronger and easier to fit. Should progress a little quicker once this is done.
Dave
Dave
Attachments

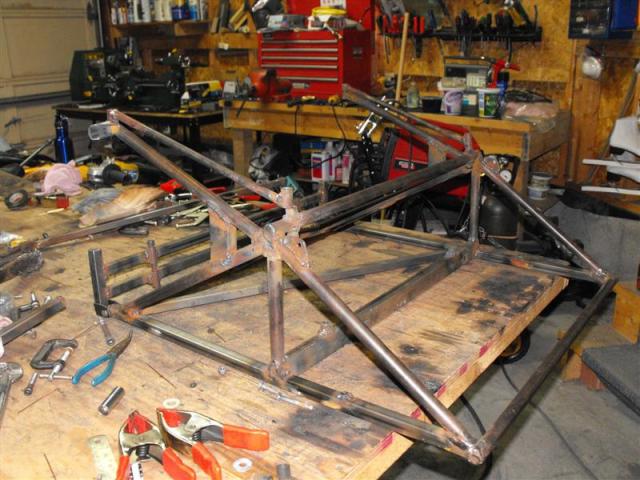

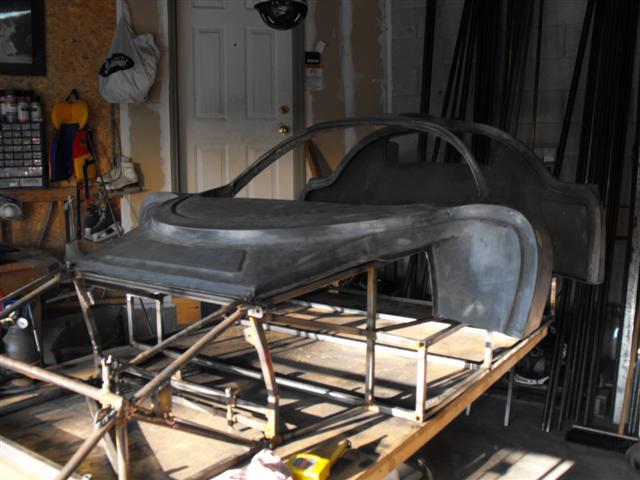

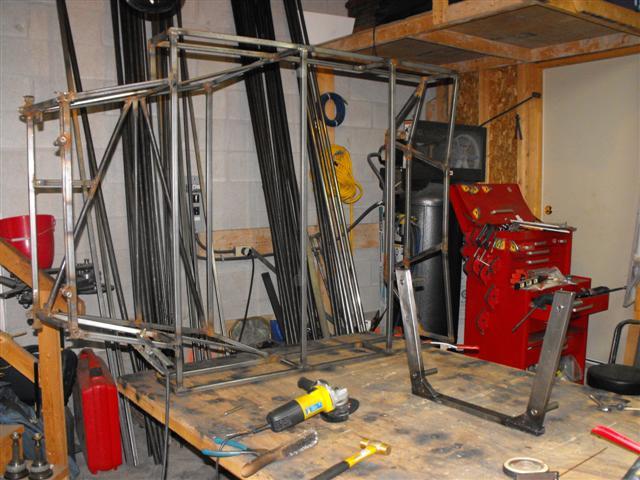

Still Plugging along.
Dave
Dave
Hi David,
Everything looks like it's coming together nicely, if you have some free time I would like to see your progress. Vise-versa, come over for a look anytime.
Chris
Newcastle
Everything looks like it's coming together nicely, if you have some free time I would like to see your progress. Vise-versa, come over for a look anytime.
Chris
Newcastle
No Problem Chris, I'm just off Thorton North of Rossland. PM me and we can set a time and date. I will have more done too. I'm trying to get as much welding done while the weather is still good.
Dave
Dave

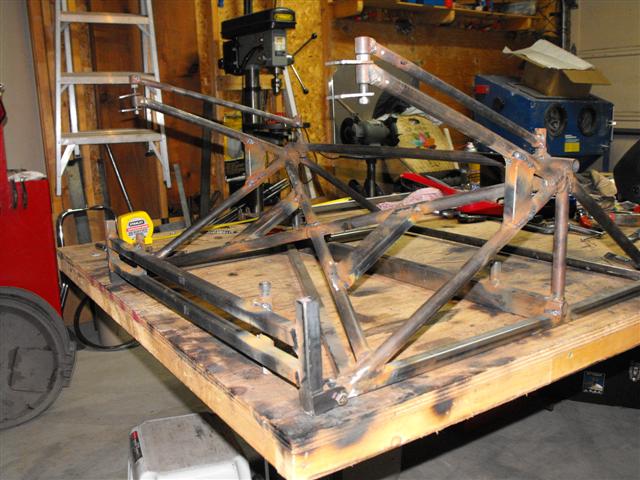

Finally after about 12 hours work I have the rear shock tower and suspension pick ups done. My original drawings are set up for the Chevron upright. I had to use my brain place all the points and extend the lenght of the towers by one inch for the Lola upright I'm using with the Granada hub. I will probaly have to mount the trailing link upper bracket up also. I will have this (Tower) in place with main supports by the weekend. I will consult with some of the site experts and we'll go frome there.
Dave
