Mike, I will not comment this, I'm only a builder . This tread will only contain pictures and comments from the building prosess.

Rune



[Rune]

Here are some pictures from the building prosess , it has been a lower building activity then normal for a while now due to the fact that GOX Teknik need a new building to meet the huge request for products both replica and monocoque. You need lots of special machines and space to do the perfect clone of a GT40

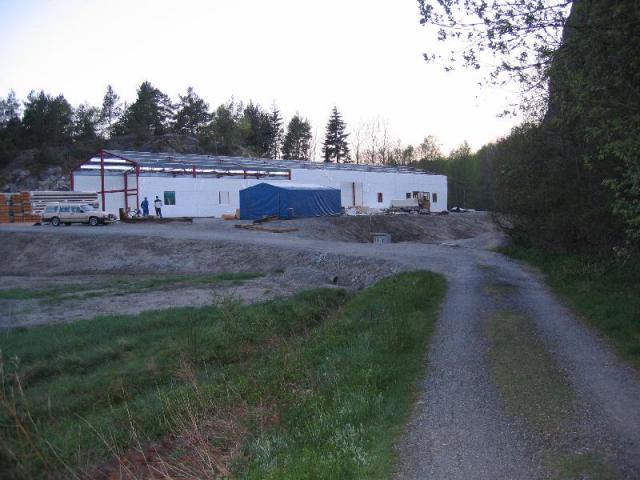

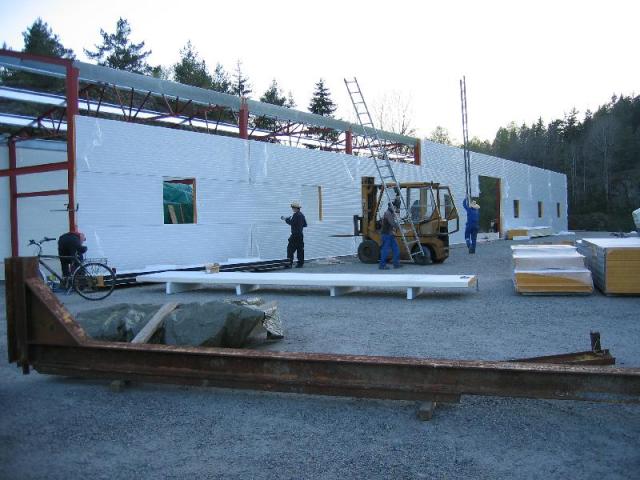

So then the new GOX factory building is almost completed 5500 square ft. (550 m2)



[Rune]

Pictures



[Rune]

Two more.



[Willem]

Hey Rune, I've been at Görans place in 2006, and it's nice to see there so much progress, the old place was a bit crowded if I might say.
When do you think to have a rolling chassis?



[Rune]

Hi. I think the chassis will be rolling before the end of 2008. There are one(the first one) rolling on its own wheel already.



[czan]

Hi. .... There are one(the first one) rolling on its own wheel already.

This thread is worthless without pics .



[Rune]

Just to give You a small update on the monocoque project .

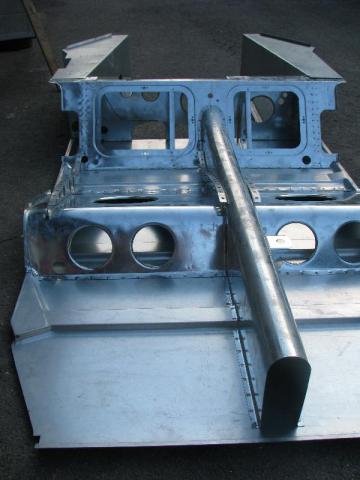

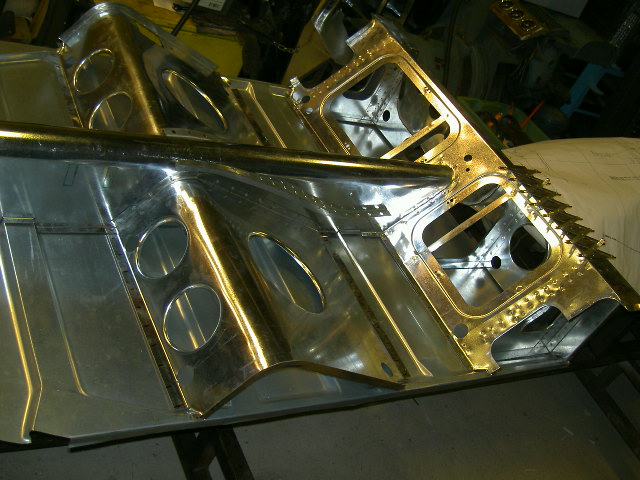

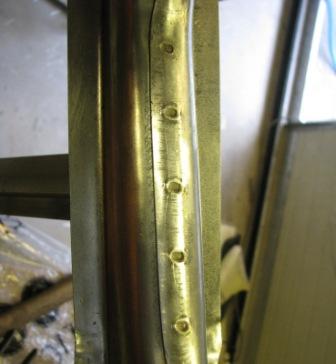

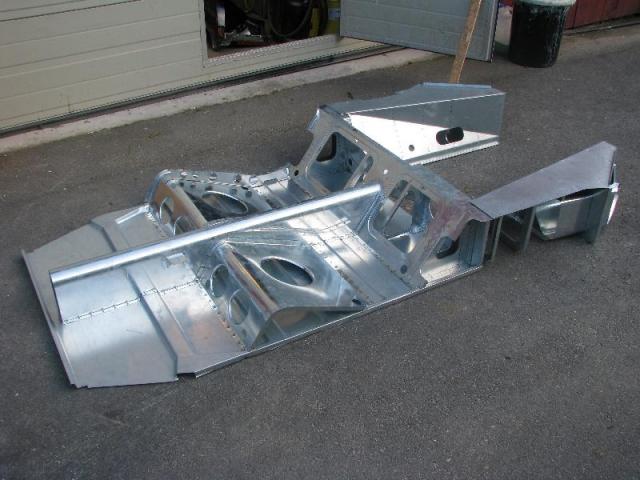

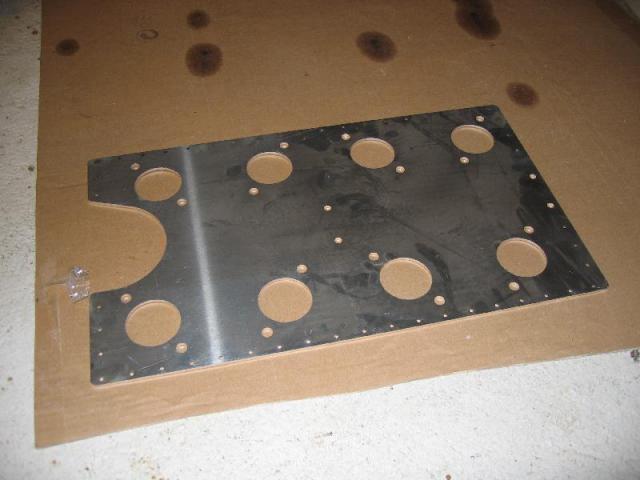

Things seems to take more time than planned (I still have a famely that want some time etc), but we are steady moving foreward with the project . Here are some pictures that show the floor spotvelded to other parts .

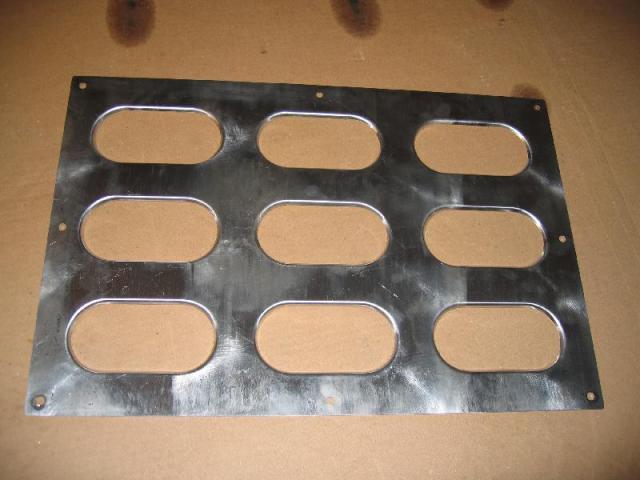

Most parts are now pressed, bent, rolled and velded together to bigger parts. The assembly have started. The first 8 floors outside the old workshop.
Rune



[dennism]

Hello Rune

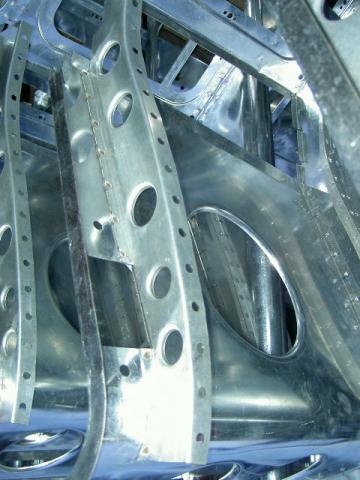

I was wondering if you could take a picture of the rear suspension lower trailing arm chassis attachment point construction
The top trailing arm attachment is always visible but the bottom has been a bit of a mystery since it's hidden
Keep posting
The pictures are fantastic!!
Dennis



[Rune]

I'll try to do so for You , but remind me if I forget it.
John Shand might have a good photo from the angle You ask , he have done this lower trailing suspension arm as rar as I can see from his pictures.

Regards Rune



[Mike Devaney]

Rune, Keep them coming-looks great, thanks for the pics. Mike



[David Sturch]

If I were to do a mono chassis and used galvanized steel I would cut it with waterjet. The fumes from plasma cutter and welding galvanized are not very good for your lungs. Good ventilation and a resporator would be advised. Nice work though Rune.
Dave



[Rune]

We left the cutting to someone else for this project so our lungs ar ok , they use a laser cutter , but the spotvelding produce lots of fumes so ventilation is a must.



[David Sturch]

Rune most of the welders that welded galvanized wore a resperator that had a canister that hung off the back of the neck connected by two hoses to the mask or air supply. Ventilation is a must for sure to prevent metal fume fever. One of the first signs is sore throat, play safe wear a good resperator, I like your work.
Dave



[Rune]

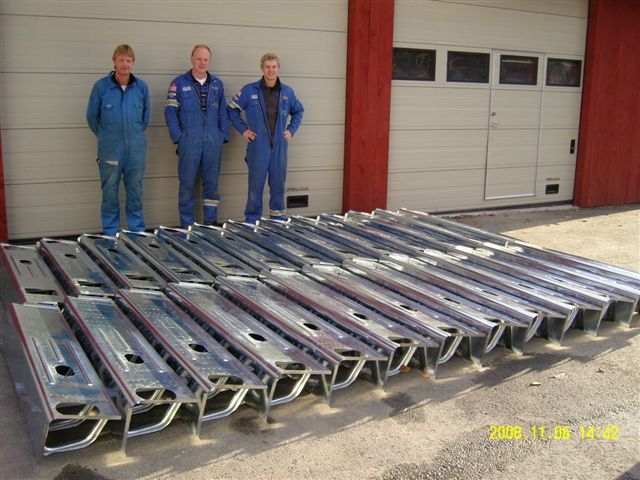

Here are some pictures showing a small milestone on the road to 13 monocoques.

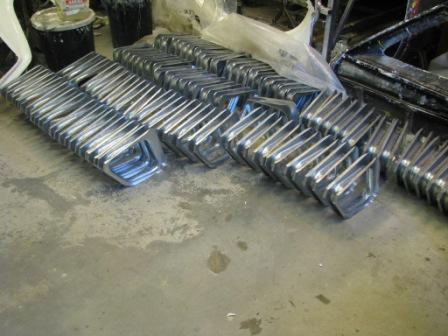

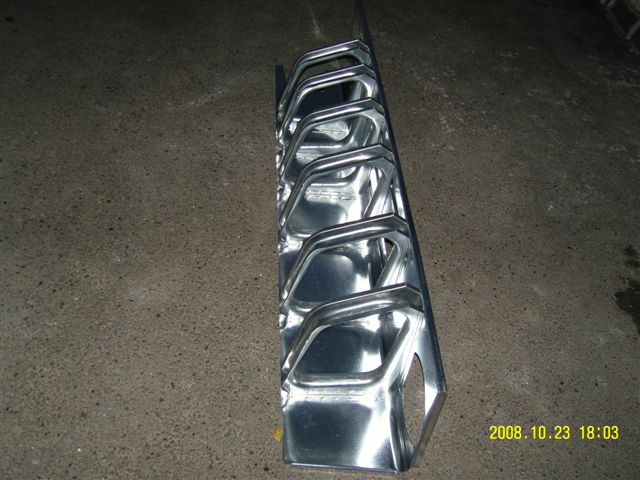

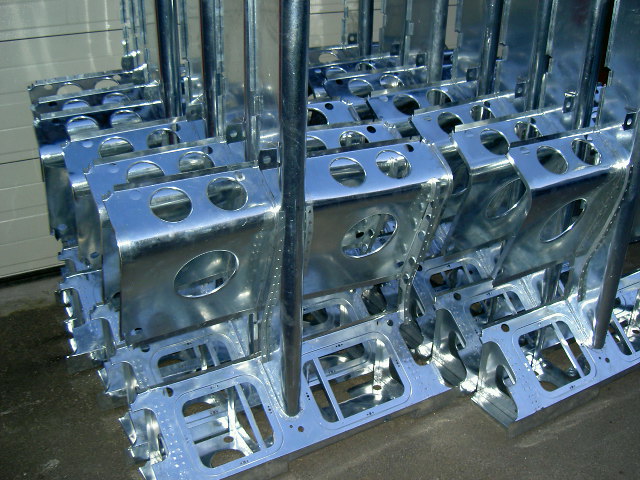

The GOX team have done some fuel assembly that are ready to be spotwelded to the chassis.



[Ron Earp]

Those boys are doing some nice work!



[Will Parker]

Your team of talented craftsmen are to be complimented on their great work. Truly amazing!!



[Rune]

Thanks Will, It is not my team , I'm only one of the craftsmen in this team. You can say that I'm one of the lucky gt40 monocoque builders, working (part job)in this factory. "I'm a old hand"

Rune
