S2's Build Thread

Scott

Lifetime Supporter
John,

The rubber was the same that I used on the chassis and it was cut to fit the brackets. I am going to use one additional bracket under the large beam that runs across the tank to keep the tank from rocking backwards. The part numbers in the table below have links to the specs. You could get away with just one piece of the rubber, but two means that you don't need to be careful:

Qty.Part NumberDescriptionUnit Price

4
4334
80/20 Aluminum 4 Hole - Wide Gusseted Inside Corner Bracket
$6.25


2
4134
80/20 Aluminum 4 Hole - Wide Gusseted Inside Corner Bracket
$5.65


2
1312N43
2" x 36" x 1/4" Ultra-Strength, Self Adhesive Neoprene<
(Durometer 70A - Hard)
$29.98




I ordered the 80/20 parts from eBay. The shipping on a per part basis is really high but they explain how you can combine shipping.

Last edited:

Scott

Lifetime Supporter
Does anyone know how to get the new steering column to tilt? I was expecting some sort of lever, but the only way I was able to get it to work was by using a screw driver to release the pawls on the underside of the steering column.

In addition, does the steering column telescope? If so, how?

I have the Oldsmo-buick column (as opposed to the XLR), my column is manual. There is a lever that came with the kit, black plastic (curved) handle, metal on the opposite end. It inserts into another metal lever on the left side of the column. You can actuate the tilt without the plastic lever inserted, but without the leverage of the handle, it does take some effort.

A.J.


Scott

Lifetime Supporter
...Superlite sent me the missing manual tilt lever.

I finished the pedals today and I did a few different things. I upgraded the Wilwoods to Tiltons because I believe the Tiltons are superior and they use a -4 AN fitting for the reservoir feed rather that a rubber hose and barb, and they have an additional -3 AN fitting on the pressure side.

I also purchased Titlton's throttle linkage kit. Like everything Tilton, it's very well made. However, I had an issue with the lock nut on the max travel stud hitting the bracket. I checked things out multiple times and figured that I could grind the bracket, but that didn't seem right for Tilton quality, so I called their tech support and sent them some pictures. They called me back about an hour later. Apparently the holes in the bottom of the bracket are asymmetrical and the shaft had been installed backwards at the factory, thus moving the bracket slightly towards the throttle pedal. The picture below shows the asymmetrical bottom (the top holes are symmetrical). After taking it apart and reassembling it everything was fine.



I won't use the supplied brake pressure switch. Instead I added high-end pressure transducers on the font brake, rear brake and clutch master cylinders. This will enable me to log the values and have the MoTec Power Distribution Unit (PDU) take actions based on the pressure.

The pressure sensor required a 1 1/16" wrench to tighten, which is the first time that I've used that wrench. Ironic that the tiny pressure sensor required a wrench much larger than all of the manly suspension pieces.

All of this resulted in a very clean installation.




Scott

Lifetime Supporter
Ron,

It's not a switch, but rather a transducer that outputs a variable voltage:

  • 0 to 2000psig
  • .5 - 4.5V Output
  • -40° to 257° F Operating Temperature
  • ±1% Total Error Band Accuracy
  • Less than 1ms response time
  • Less than 500msec warm-up time
  • 1/8" NPT Male Thread
  • Delphi Metri-Pack Mating Connector
  • Manufactured in the USA
I bought it from RaceSpec, who is doing my MoTeC install and I assume they white label it. To use it to switch the brake tail lights on/off I'll configure a threshold value in the PDU to toggle an output on/off.

It's not cheap ,but it appears to be very well made and the Race Spec guys have a lot of good experience with it. Here's the URL.

https://racespeconline.com/products/racespec-pressure-sensors?variant=16635733313


Ron McCall

Supporter
Ron,

It's not a switch, but rather a transducer that outputs a variable voltage:

  • 0 to 2000psig
  • .5 - 4.5V Output
  • -40° to 257° F Operating Temperature
  • ±1% Total Error Band Accuracy
  • Less than 1ms response time
  • Less than 500msec warm-up time
  • 1/8" NPT Male Thread
  • Delphi Metri-Pack Mating Connector
  • Manufactured in the USA
I bought it from RaceSpec, who is doing my MoTeC install and I assume they white label it. To use it to switch the brake tail lights on/off I'll configure a threshold value in the PDU to toggle an output on/off.

It's not cheap ,but it appears to be very well made and the Race Spec guys have a lot of good experience with it. Here's the URL.

https://racespeconline.com/products/racespec-pressure-sensors?variant=16635733313




Scott,

Thanks for the info but I was referring to the drive-by-wire throttle switch that you attached to the Tilton 72-792 throttle linkage . I assume that you are using the TPS280DP-type rotary sensor from Penny & Giles but I haven't been able to find a retail source .

Ron


Scott

Lifetime Supporter
LOL I had the same issue... after spending two weeks looking for a reseller I finally got a quote with a 6-8 week lead time. Then I posted in this thread and another member replied that it was rebranded by Jenvey as part number TP8LH. I bought it here:

TP8LH - Fox Injection


Ron McCall

Supporter
LOL I had the same issue... after spending two weeks looking for a reseller I finally got a quote with a 6-8 week lead time. Then I posted in this thread and another member replied that it was rebranded by Jenvey as part number TP8LH. I bought it here:

TP8LH - Fox Injection

Thanks!!!
Does anyone know if this sensor will work with a Ford engine management system?

Ron


Scott

Lifetime Supporter
After spending time thinking about how to solve the issue of the water pump outlet tube hitting the chassis, I decided to copy pnut... I had John at Design Enterprises build me a custom part. He machined one end of a stainless steel 90-degree elbow so that it can be press fitted into the water pump. He then machined an adapter from a solid block of stainless steel and TIG welded it to the other end. The adapter serves two purposes: it provides a pronounced bead so that the silicone coolant tube won't slip off and it transitions from the pump's diameter to stainless cooling tube's 1.5" diameter.

He did a really nice job, but some of the weld created a ridge on the inside edge which I filed smooth to reduce turbulence. I also decided to refinish the raw tube to give it a satin patina. I'm happy with the looks and it provides the best possible flow given the limited space.


Scott

Lifetime Supporter
I’m going to need to design some parts to be CNC’d or 3D printed. I have no CAD skills and although I bought a 3D printer, a MakerBot 2x, a couple of years ago, I never fired it up. So it makes sense to do something simple first...

Ron,
That Penny-Giles sensor looks pretty similar to the one TWM/Borla uses on their stack injection units. I have one on mine and no issues. Throttle Position Sensors

Scott,

Thanks for the info but I was referring to the drive-by-wire throttle switch that you attached to the Tilton 72-792 throttle linkage . I assume that you are using the TPS280DP-type rotary sensor from Penny & Giles but I haven't been able to find a retail source .

Ron


Scott

Lifetime Supporter
I received my Ricardo today! Since I have an aftermarket crank, so I’ll need to get a special flywheel from RCR. In any event, I know that it has an internal pump and I’d like to connect an oil cooler and thermostat.

Can anyone recommend a good thermostat? I’m looking at Improved Racing, but I’m not sure which is best. Oil Thermostats | Improved Racing

My guess is that the cooler dimensions will be driven by where I can fit it, but what is the recommended capacity?



Ken Roberts

Supporter
I use a Improved Racing FSM-165 thermostat on top of my Ricardo. I built a robust bracket that attaches to the DOM tubing. The trans cooler in the second picture is a Setrab 625. A Spal "puller" fan is used to aid cooling when needed. I attached a oil temp sensor in the Ricardo drain plug.




Scott

Lifetime Supporter
Thanks Ken and Stu, I now need to figure out where all of the coolers are going!

I designed and printed spacers and brackets to mount the condenser in front of the radiator. These are printed in medium quality mode in ABS. The final print will be in high quality mode in nylon, but I need to upgrade the extruder and several other parts of my 3D printer to handle the higher temperatures. The manual indicated that spacing should be 1/2" to 3/4" and I went with 3/4". Let me know if anyone thinks it should be different... it's easy change!








I designed the bottom bracket to be made of bent aluminum sheet. I decided to print it so that I could test the fit. McMaster provides a 3D download of all of their parts so I able to check the nut's clearance up front. I am surprised at how strong it is. If I decide to go with a nylon print, I'll add some material to the inside bend.


Scott

Lifetime Supporter
It's a MakerBot Replicator 2X. I bought it almost 3 years ago. It sat unused until recently. I know a lot has changed in the last 3 years, so I'm not sure what would be a decent machine now. I'm pretty happy with it other than not being able to print in nylon (I think they might have solved that in newer version) which I want for durability and heat resistance. I read about a

Thanks Ken and Stu, I now need to figure out where all of the coolers are going!/QUOTE]

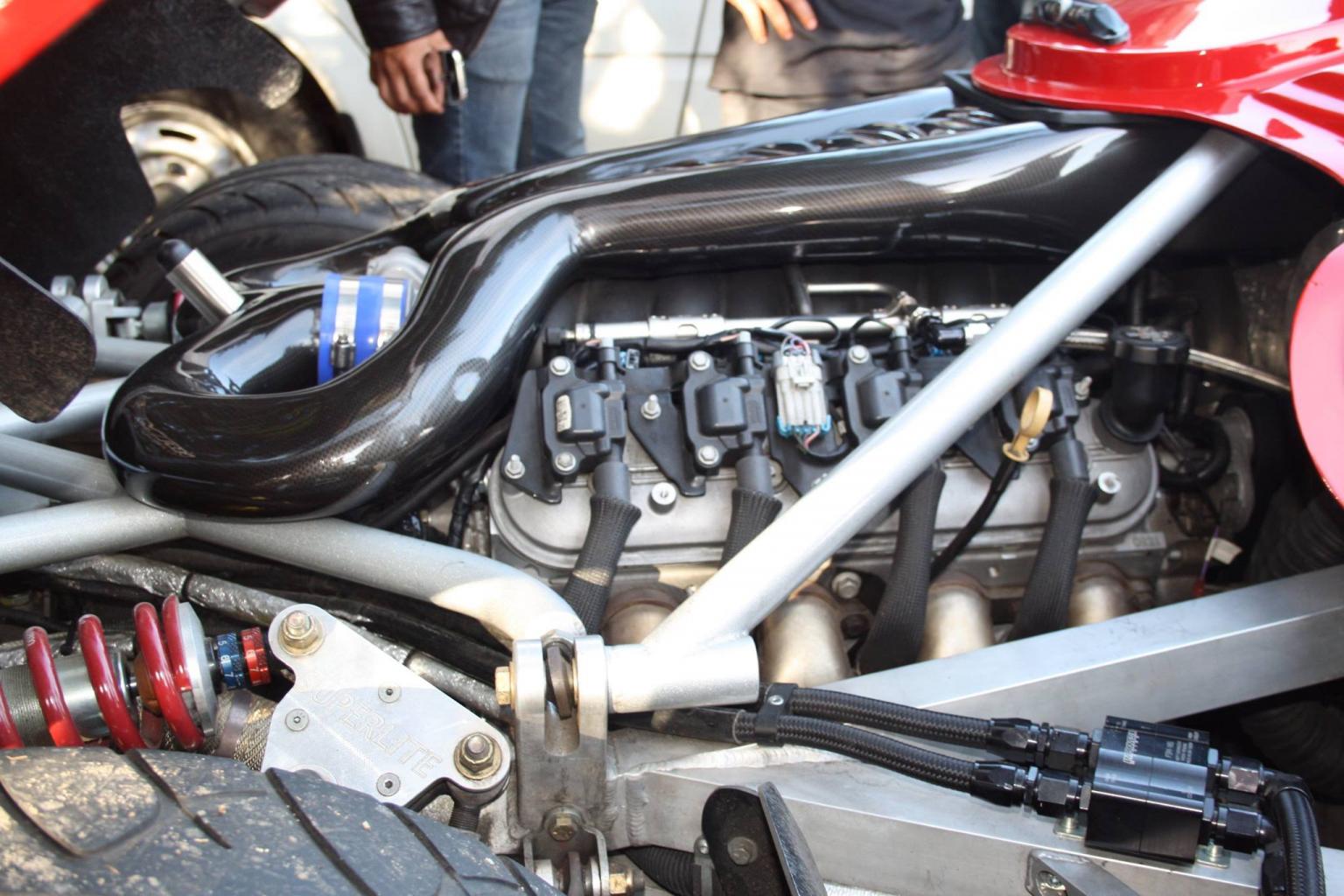

Scott, I used both the side vents for engine and transaxle cooling. However, my car is NA. You're running S/C so you'll need to find extra locations for cooling the induction air and with the street tail it limits options.
good luck with it!
cheers
