Classic HorsePower Scratch GT40

Devin

Supporter

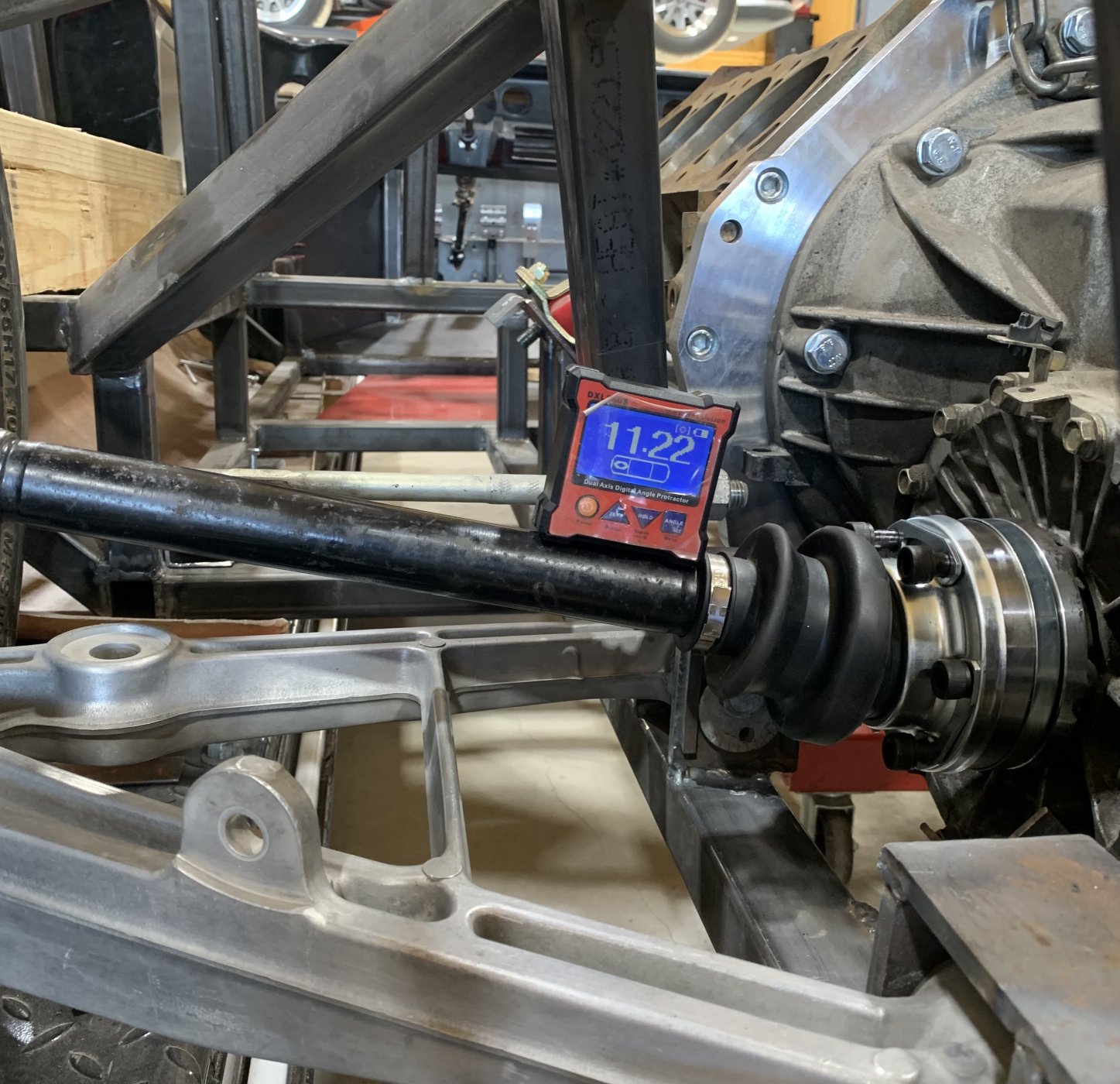

Need a sanity check on my drive axle angle…this is with a static 4.5-4.75” ride height and very slightly back from inline with transaxle (birdseye view). Does ~11 degrees of CV angle look acceptable??



Devin

Supporter

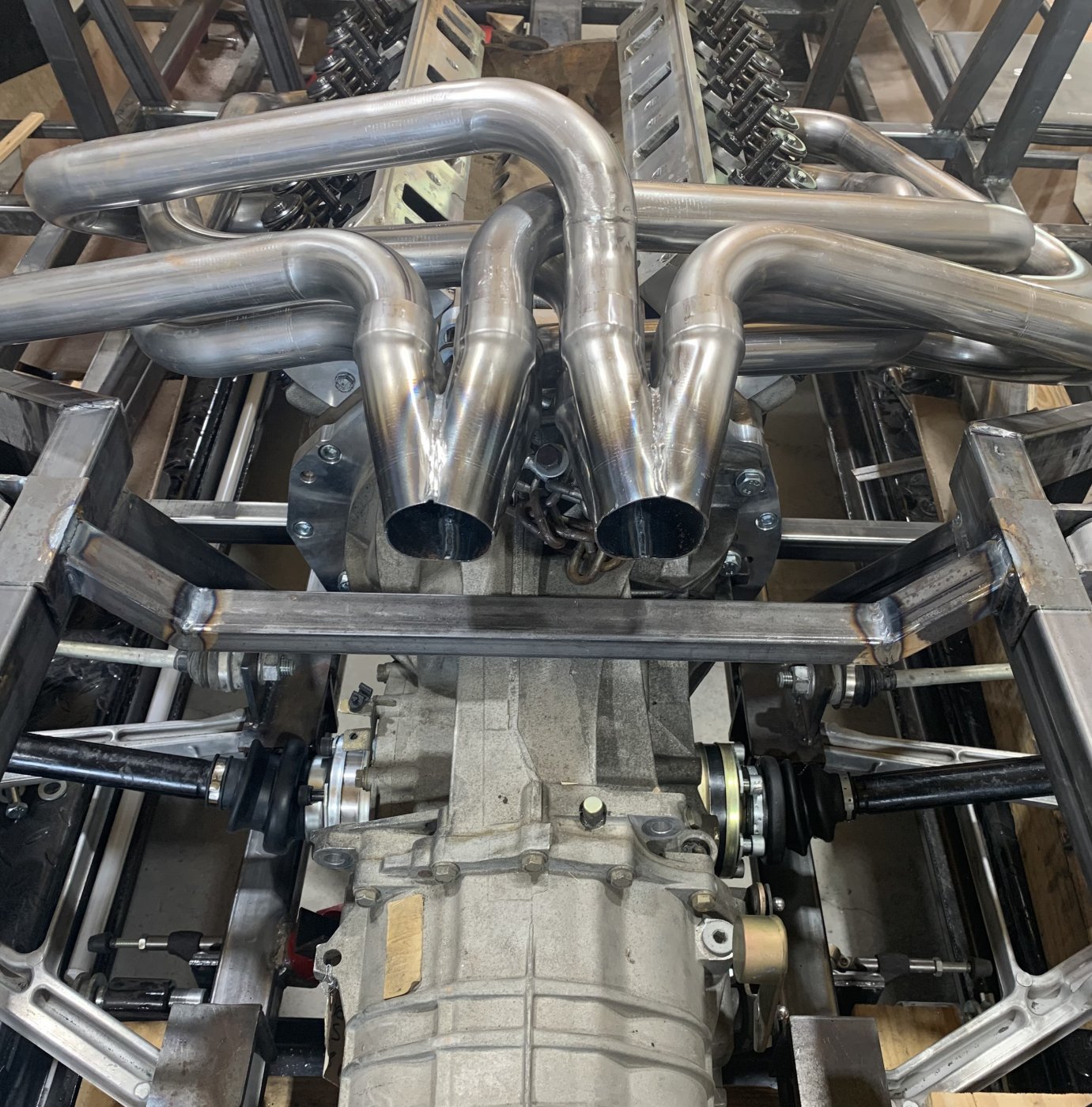

After mock-up fit (not tightened up), found out there is plenty of room between the collectors and transaxle so I fab’d up a rear cross brace to add rigidity to the rear upper suspension. TIG welding is so nice when pieces fit well together



Devin

Supporter

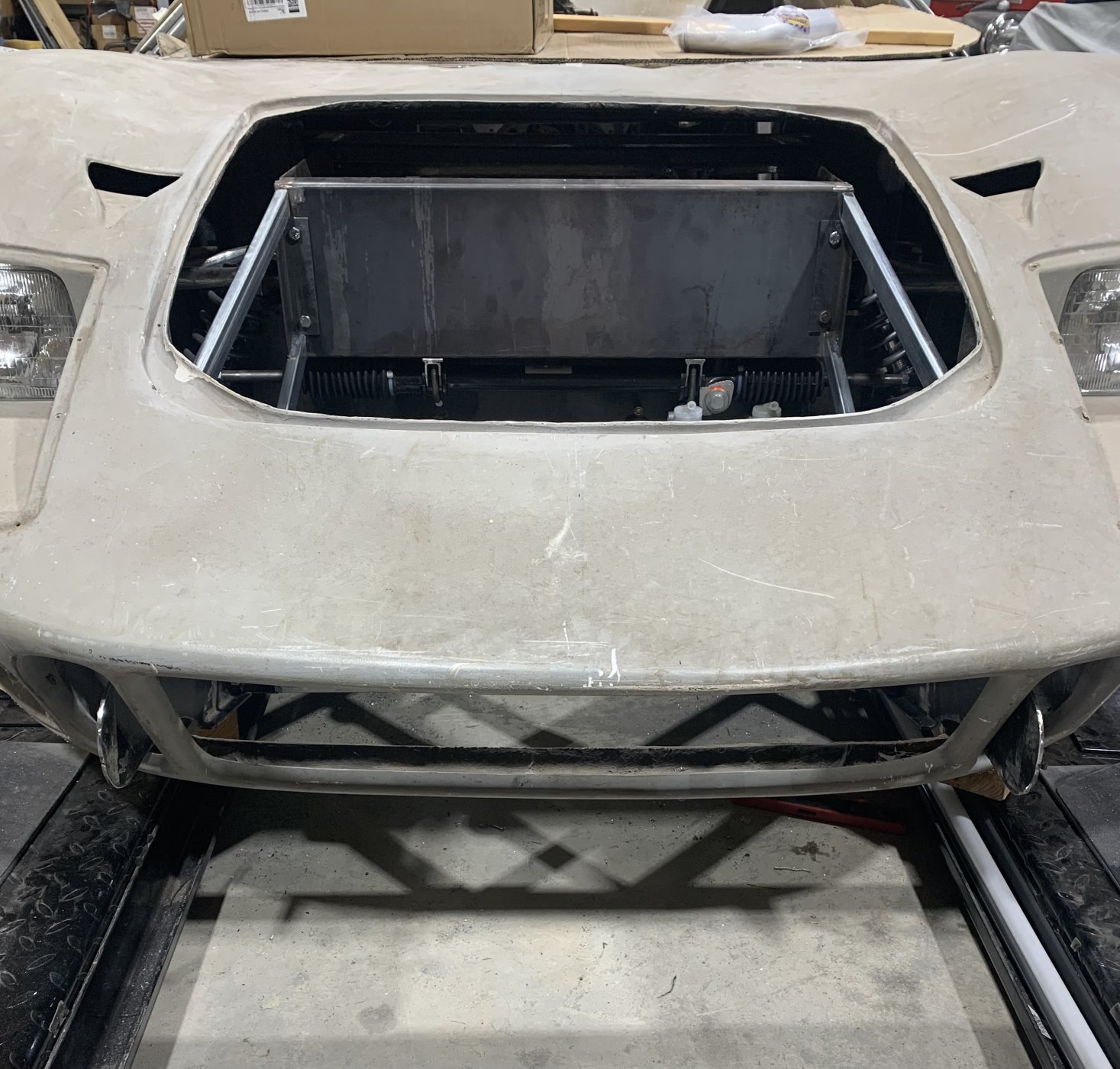

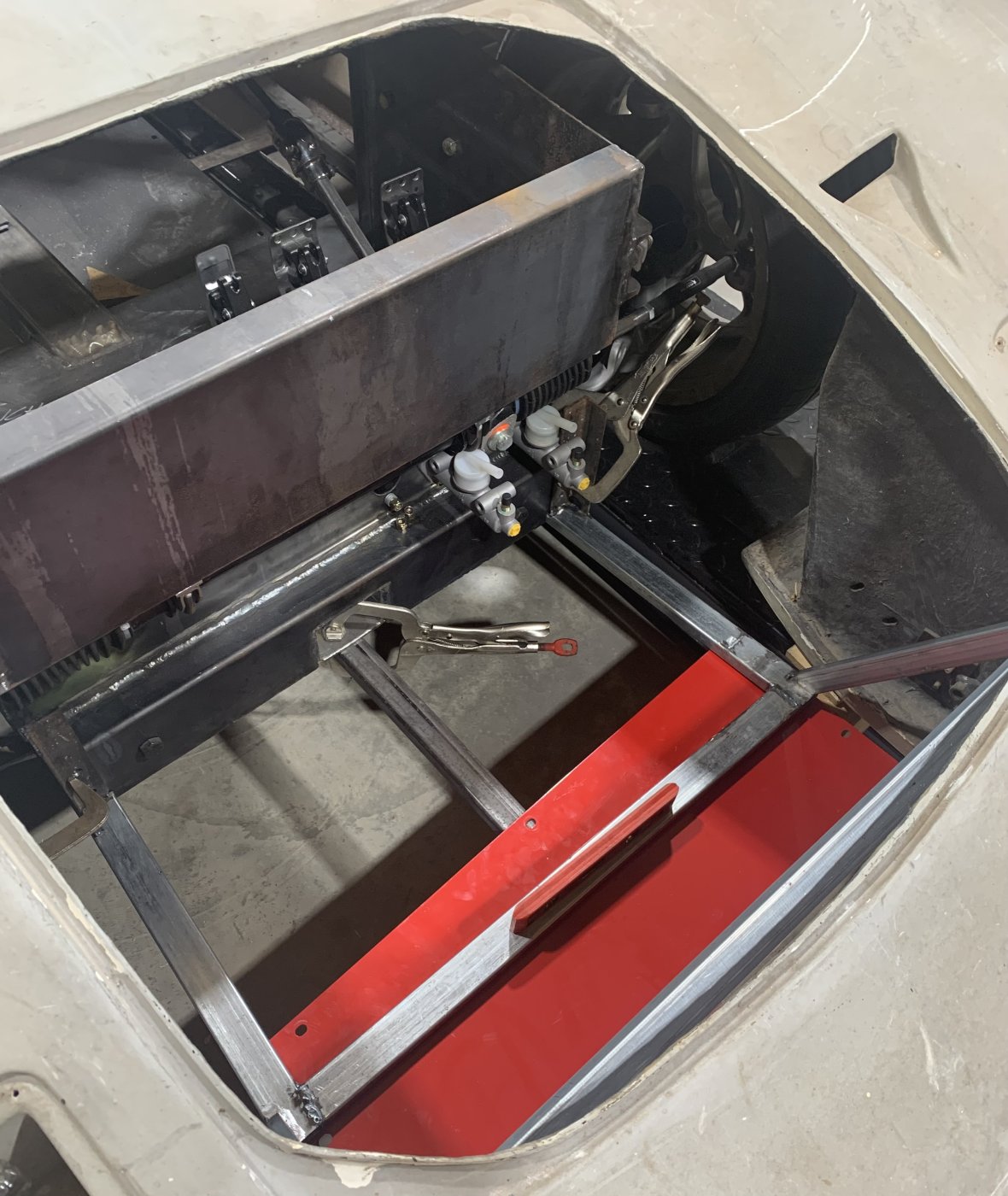

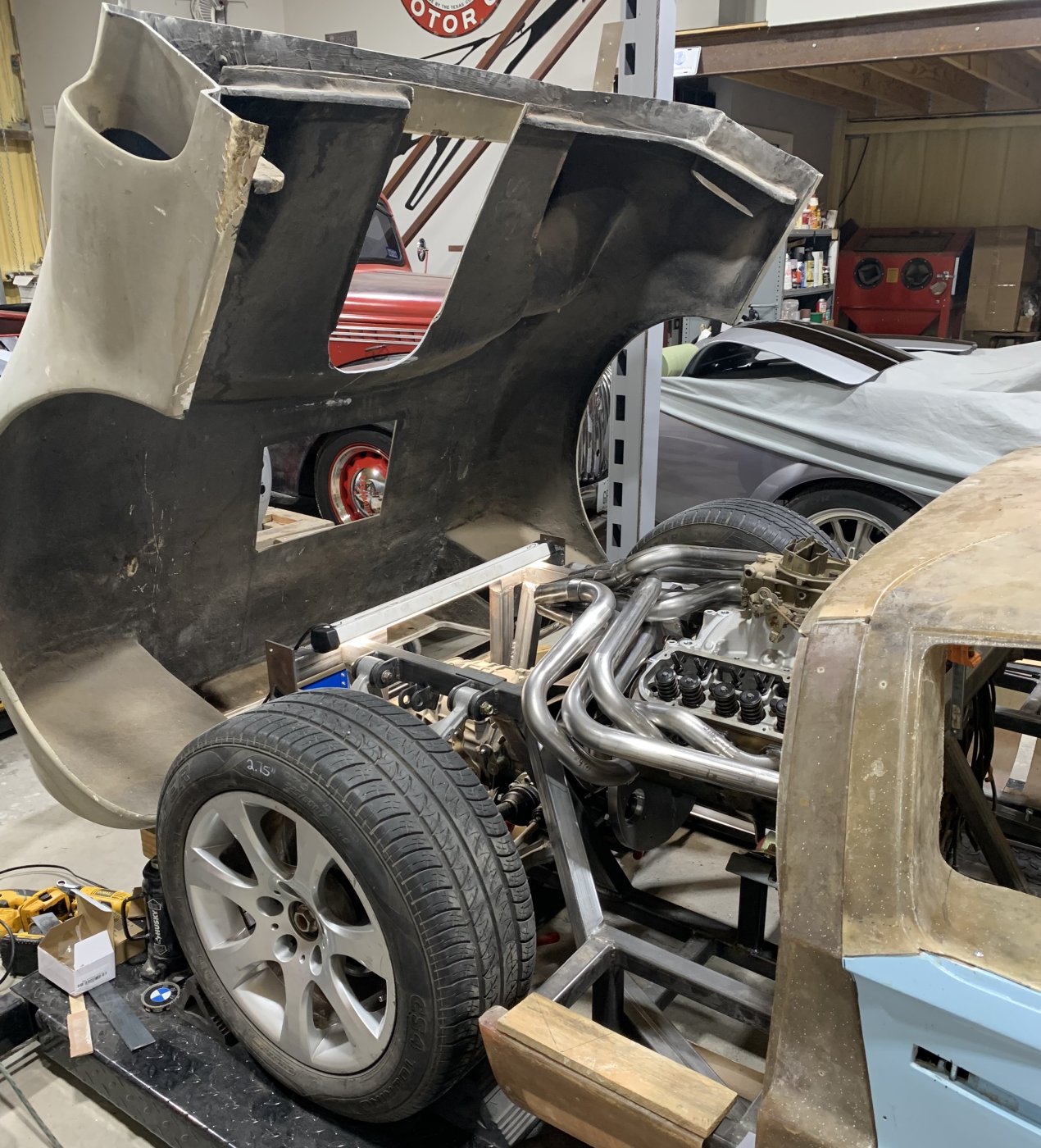

Been busy with work and final prep and paint on a Cobra replica I’m finishing but have had some small progress in the evenings on the rear clamshell pivot and front radiator support. The front support is of lighter material to be designed as more of a crumple zone in absorbing energy in an acciden. It also will be bolted on to the main chassis for ease of any possible maintenance in the front.

Last edited:
I'm planning on doing the same thing with 1.25" square tubing. My radiator is temporarily mounted the the aluminum panel that AP puts on the car and hangs the front end from. Probably will try to incorporate tow hooks into it as well.


Devin

Supporter
I'm planning on doing the same thing with 1.25" square tubing. My radiator is temporarily mounted the the aluminum panel that AP puts on the car and hangs the front end from. Probably will try to incorporate tow hooks into it as well.
The tow hooks/tie down hooks are certainly a strong possibility but just wanted to see how robust things were before I incorporated them. Also am thinking of a skid/curved contact pad/plate as well at the front & center as the lowest spot for high angle drives & approaches. Along those lines, I’m also looking at the RamLiftPro set up that raises the ride height at the top of the coil overs for quick adjustment to make it over high obstacles and drives.


Devin

Supporter

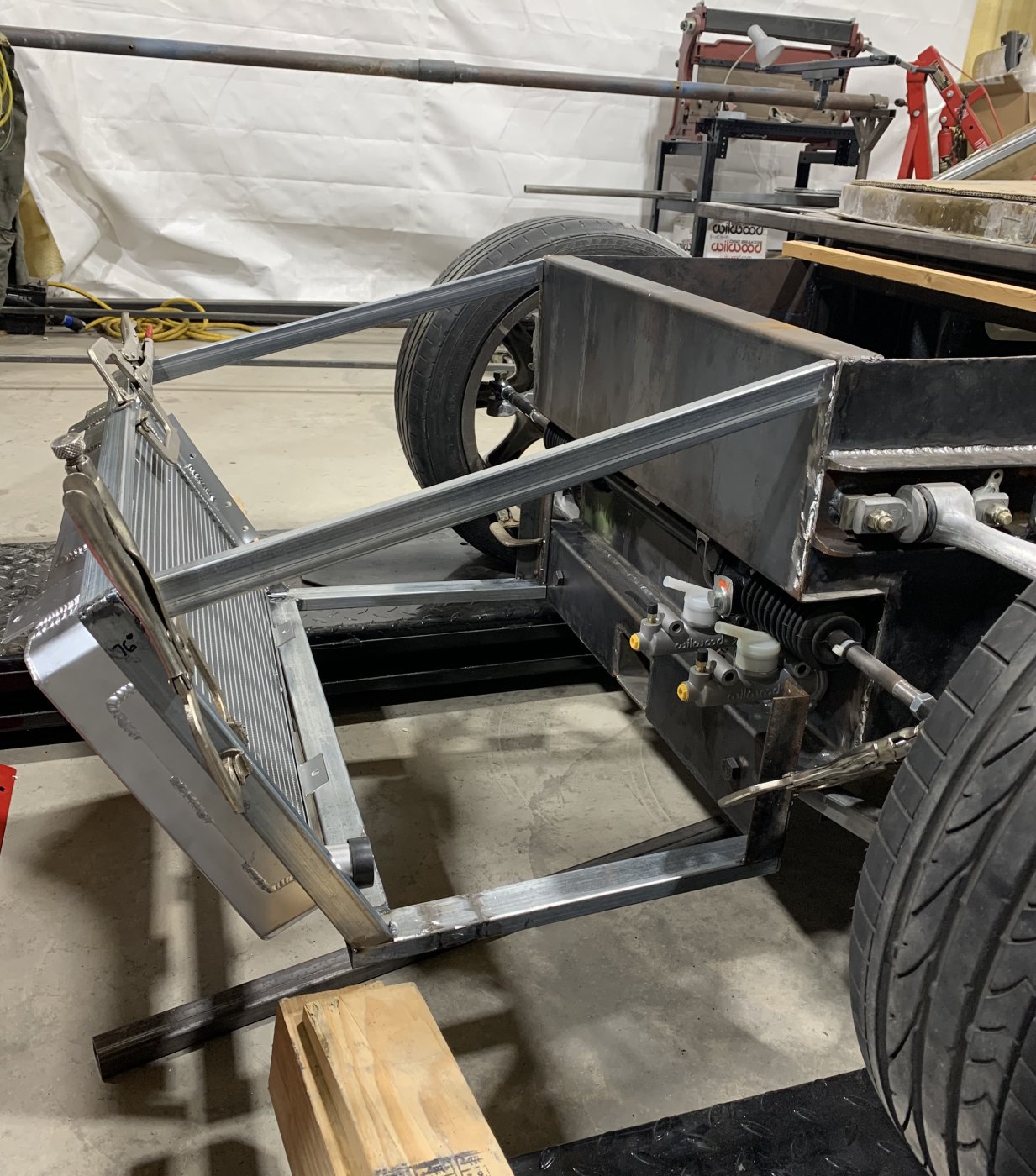

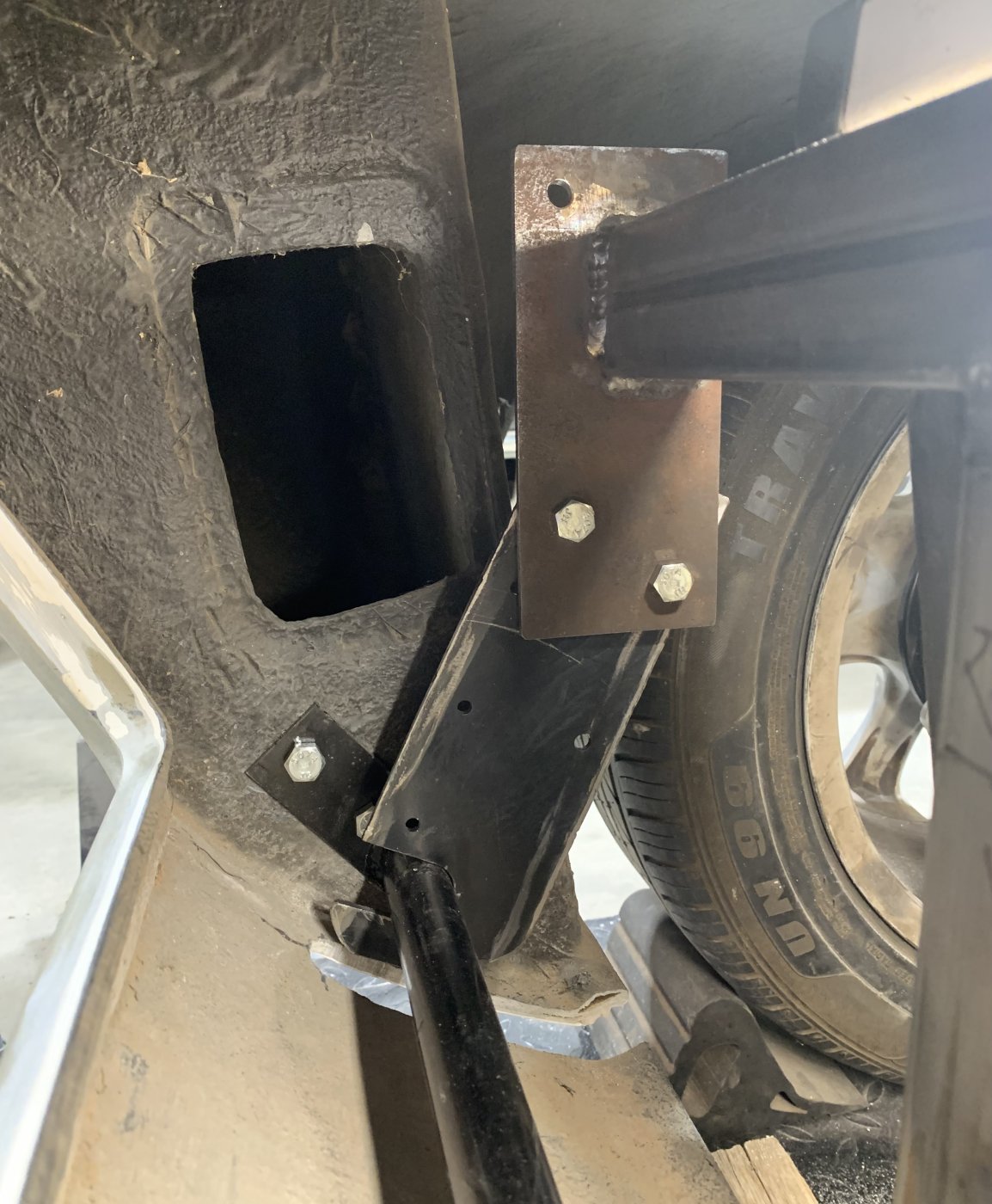

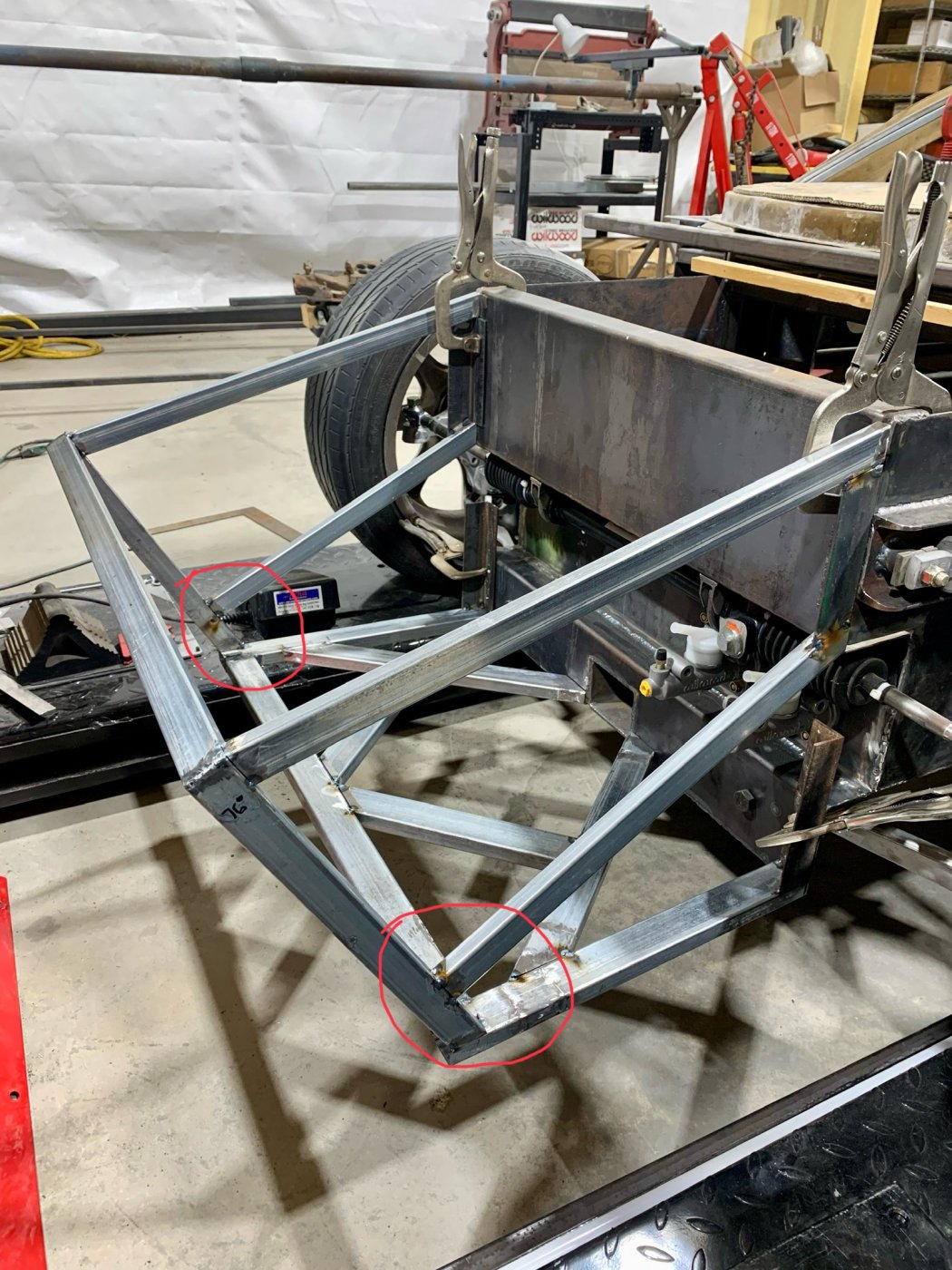

Mostly complete with tacking up the structure. I have one more addition in the form of reinforcement plates for the front corners (circled). These will support the front clamshell parrot beaks and tow/tie down hooks. With the addition of 12 bolts and 3 aluminum panels, this should be ready for final construction.


What are you planning in using for the hinges for the front clam? Are you sourcing the hinges from somewhere, or are you gonna fab something up? I've been trying to figure out how to redesign the simple slot and bar design that AP uses.


Devin

Supporter
What are you planning in using for the hinges for the front clam? Are you sourcing the hinges from somewhere, or are you gonna fab something up? I've been trying to figure out how to redesign the simple slot and bar design that AP uses.
Joe,

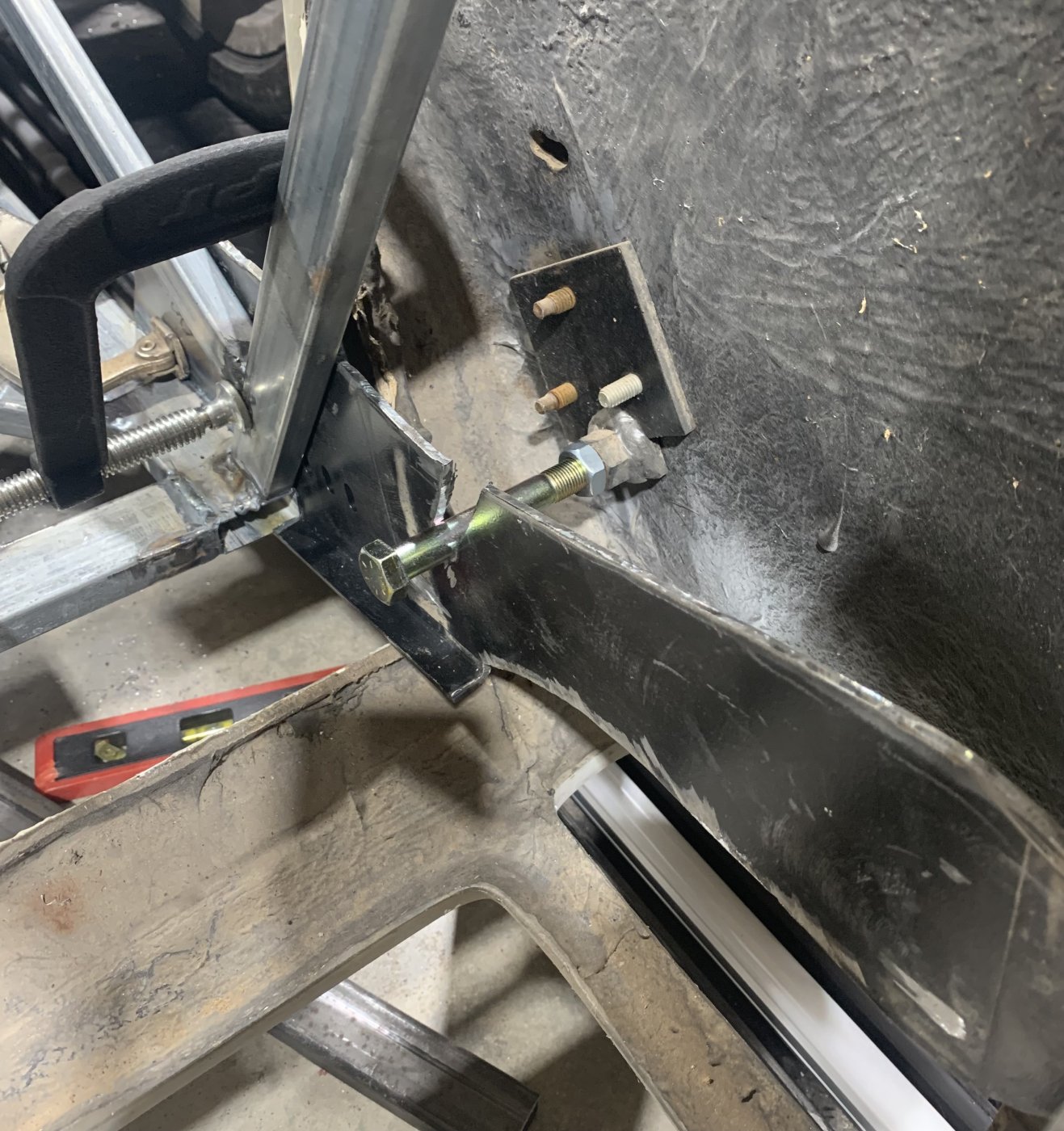

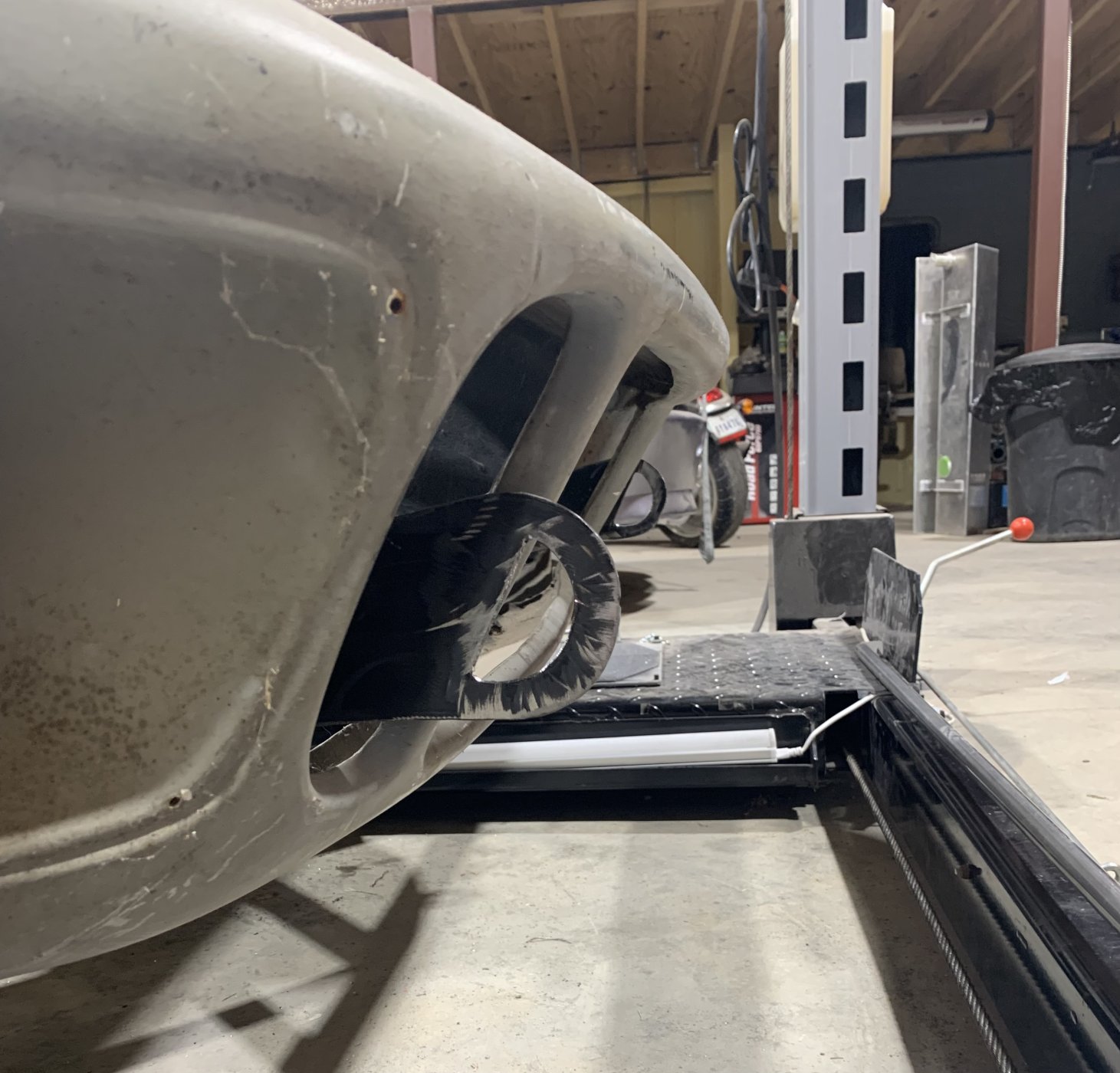

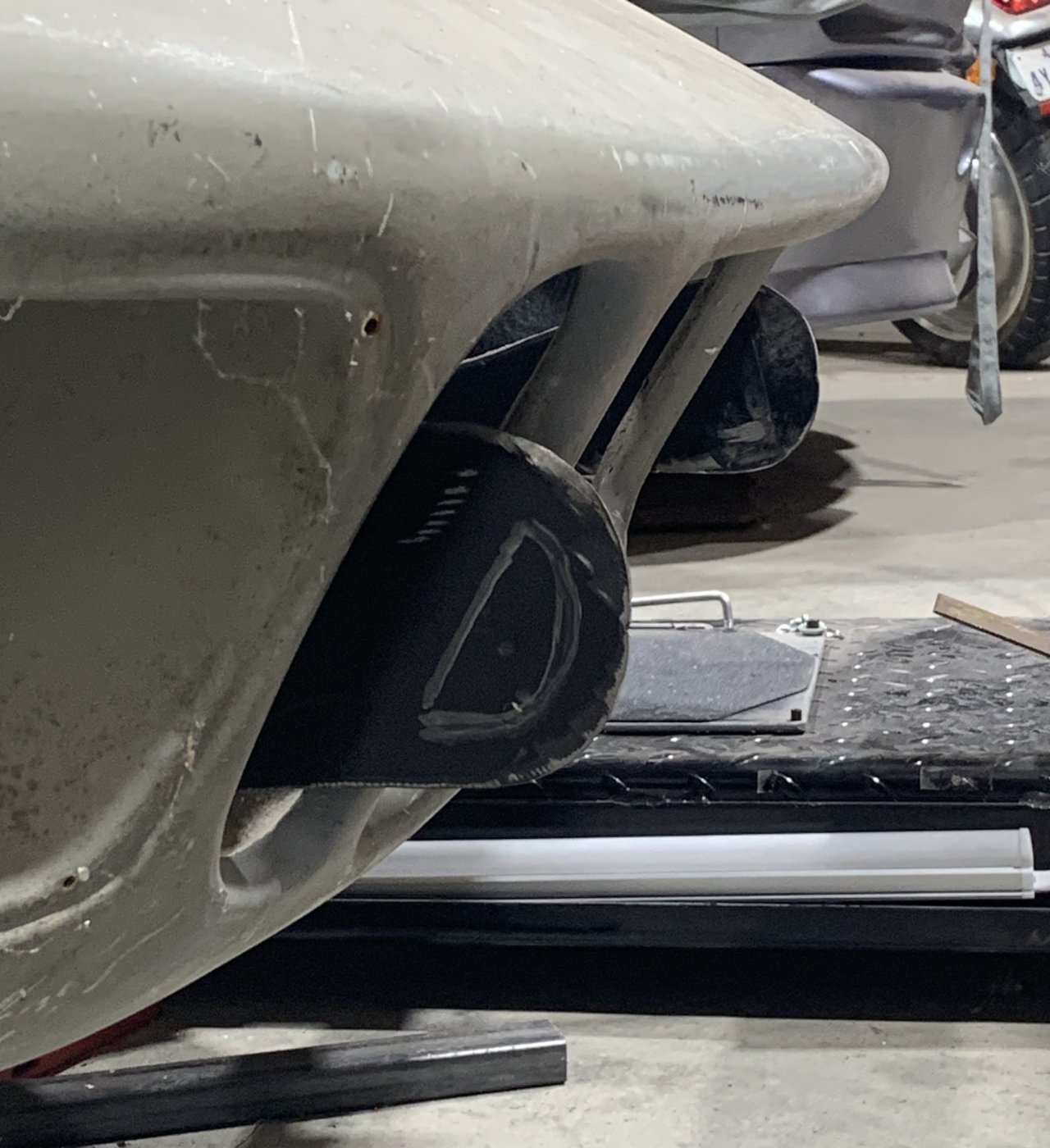

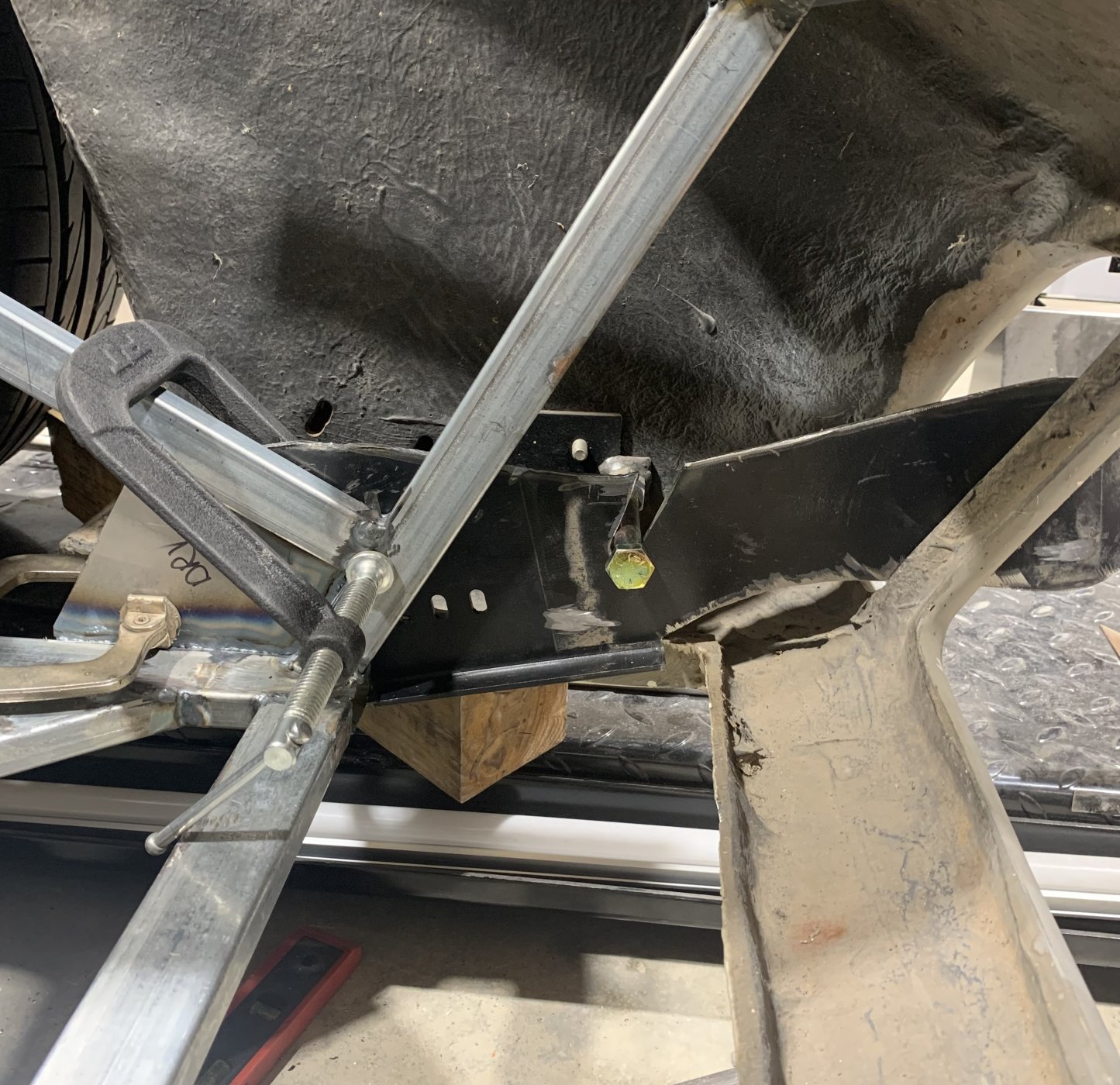

My previously owned clamshell came with fabricated 1/2” bolt mount pivots so decided their location and strength looked good enough to work with. I’ve cut out a couple tow bars brackets that both create a pivot point and tow hook loop. This first pic is with the clamshell open in almost vertical position.

I definitely have some refining to do as well as the “D” cut outs…also will add a crossbar between the two brackets to help strengthen and stabilize lateral movement plus a nod to the original look.

Thoughts?? I’m OPEN to critiques for sure as this set up will not allow me to just lift off the front as I had hoped but with the removal of the pivot bolts, I can.

Last edited:

Devin

Supporter

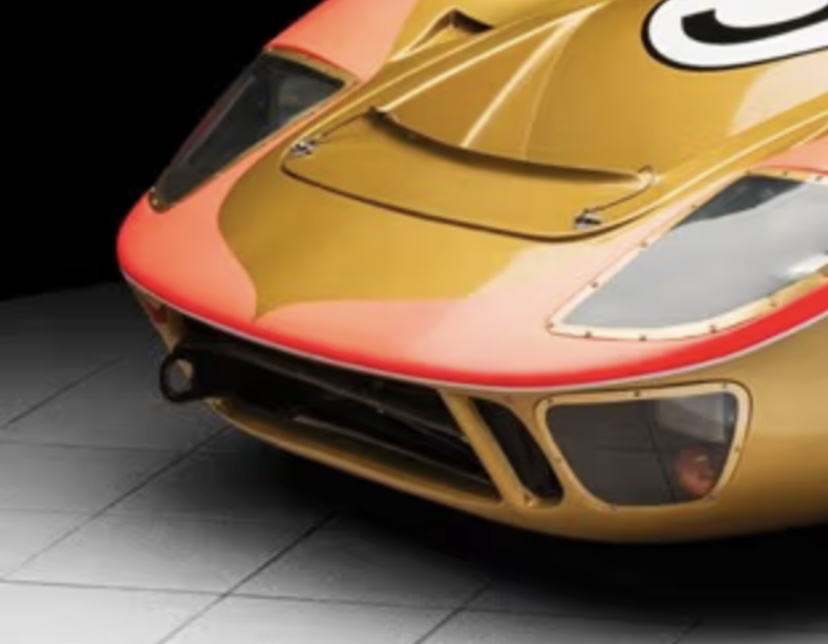

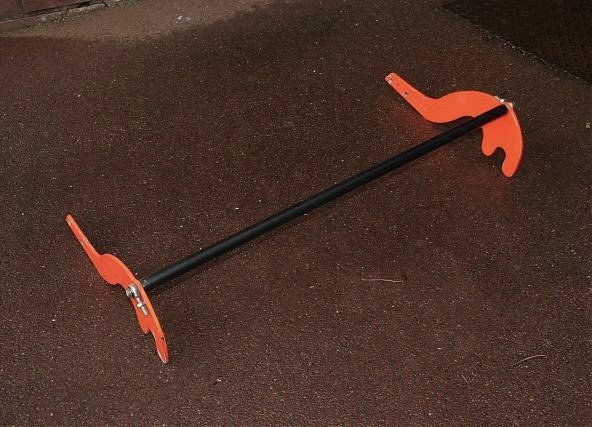

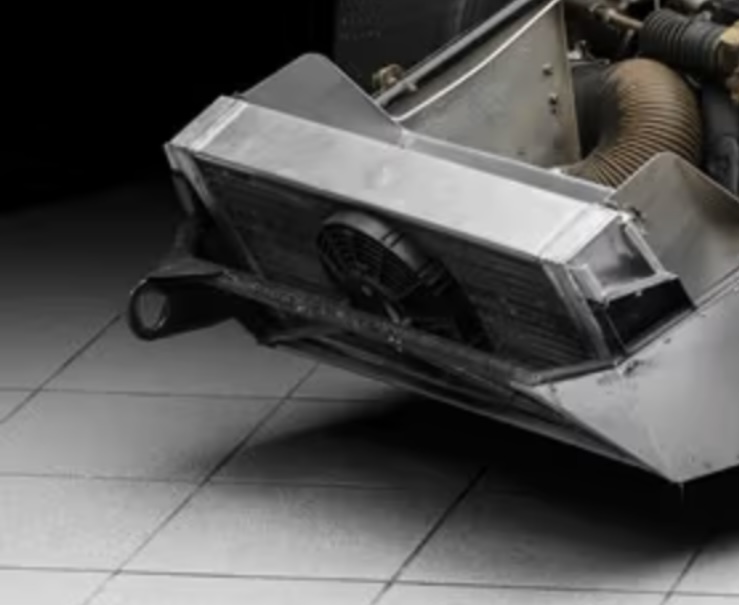

Found a couple pics of what I’m trying to replicate the design of…looks like I’ll need to reduce the radius and make a full circular hole. Anyone have dimensions of it or the diameter of the crossbar/lift bar?


Randy V

Moderator-Admin
Staff member
Admin
Lifetime Supporter
Found a couple pics of what I’m trying to replicate the design of…looks like I’ll need to reduce the radius and make a full circular hole. Anyone have dimensions of it or the diameter of the crossbar/lift bar?View attachment 134509View attachment 134508
This is for Towing rather than lifting. I believe the FIA Spec was a 2” diameter hole - but you’re going to have to research that further..


Devin

Supporter
This is for Towing rather than lifting. I believe the FIA Spec was a 2” diameter hole - but you’re going to have to research that further..
Thanks Randy, understand it’s purpose…was actually asking for dimensions of both in the same sentence so bad form on my part. Ok cool 2” hole for tow hook. Was the lift bar 1” or 3/4” or something else? I think my front structure (with panels installed) will easily be able to support lifting of ~ 1200lbs from the combination of both brackets.


Randy V

Moderator-Admin
Staff member
Admin
Lifetime Supporter
Somewhere in here are the drawings for the "Parrot's Beak" brackets that were used for lifting. I don't think I would use them for lifting the vehicle, however. Remember that those were fitted to racing cars and a little damage here at there was tolerated as the Parrot's Beaks may bend a bit and contact the bodywork..


Chris Kouba

Supporter
I would be nervous about that flat stock folding up at the slot you have for carrying the bolt. I'd call them ornamental in their current configuration.

I'd use something a bit stouter where you don't have a stress-concentrating slot cut in it if you want to lift it.


Devin

Supporter
I would be nervous about that flat stock folding up at the slot you have for carrying the bolt. I'd call them ornamental in their current configuration.

I'd use something a bit stouter where you don't have an stress-concentrating slot cut in it if you want to lift it.
You echo my thoughts too as I was thinking of welding up the intended parrot beak slot and just make it a bolt hole as the front clam will not simply lift off as I had hoped. Also am considering a reinforcement rod/piece to stiffen up any lateral pull forces in the case of tying it down for transport on a trailer or the like. Thanks all for the inputs as it’s nice to have a sounding board for these developmental pieces.


Devin

Supporter
Worked on refining the shape by reducing the diameter of the exposed tow loop…2” inner diameter with about a 3” outer. I think I’ll leave it a “D” ring to add a little protection from any potential body damage. Next I’ll be reinforcing the length of the bracket and adding the “lift bar” which will most likely be just for replicating the look but also will add lateral stability for tie down purposes.


Devin

Supporter

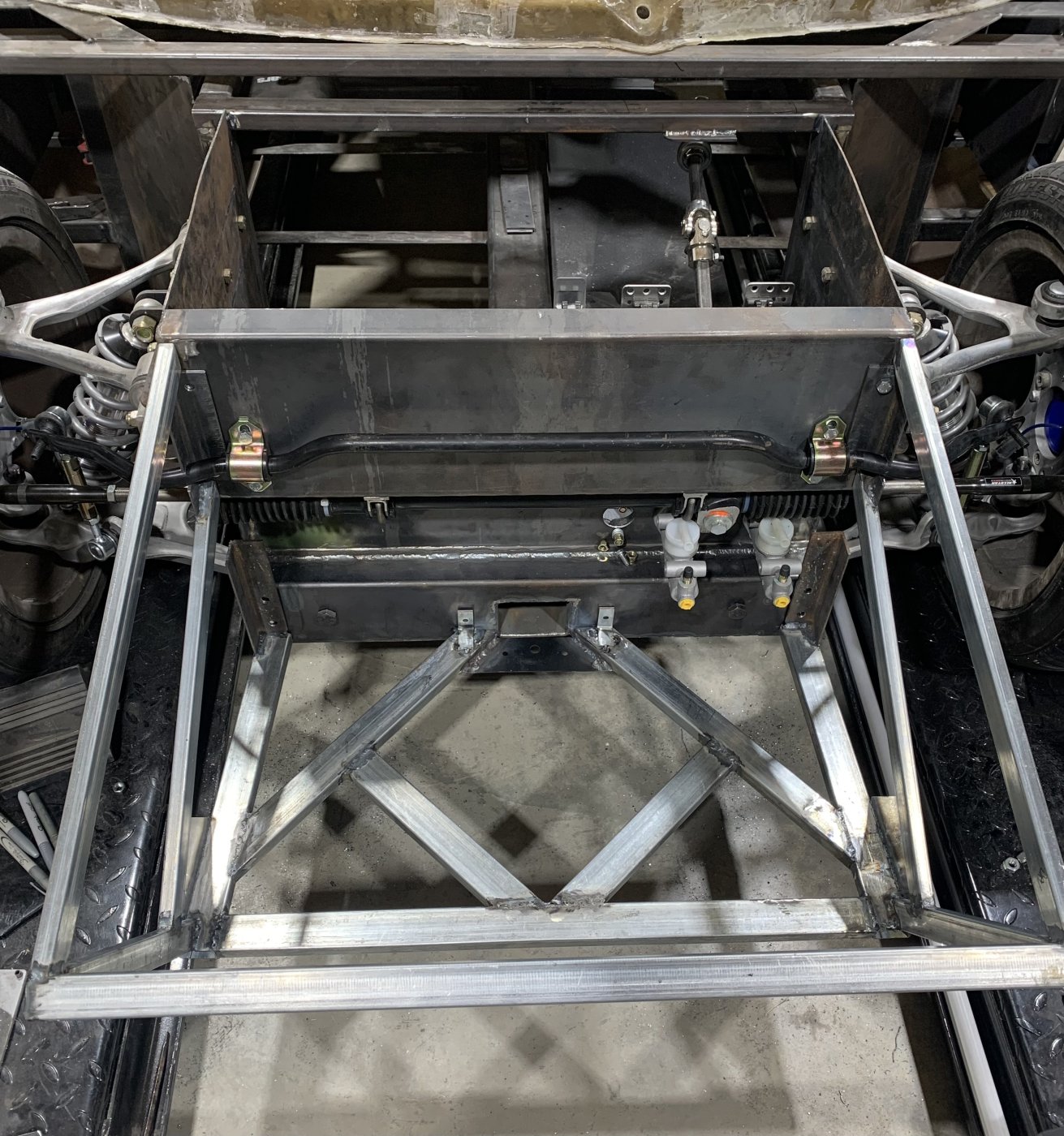

Found out through pics of other builds that my C5 donor rear sway bar (3/4”) works great as the front sway bar and mounted on the AP front bulkhead with adjustable (approximately 6” center to center) end links. Bought some poly mounts since they will be more firm and smaller footprint than the original C5s.

Think that the combo tow hook & jacking point (from the exposed part beyond the body) might be a goal too far, however, the front corners of the front subframe & radiator support appear to be more than adequate strength (after some quick testing) to use as a front jacking location. A good low profile Jack should easily reach this area (either corner) from the front or perhaps the main frame area just aft of the front wheels.
