Sean's RCR GT40 build

Gale

Supporter
Hello
Now for the age old question, what are you going to do for fuel pumps? I'm also interesting in what sort of padding if any you will be using around the tanks.
Gale


Sean S.

Supporter
Hello
Now for the age old question, what are you going to do for fuel pumps? I'm also interesting in what sort of padding if any you will be using around the tanks.
Gale

Hi Gale,

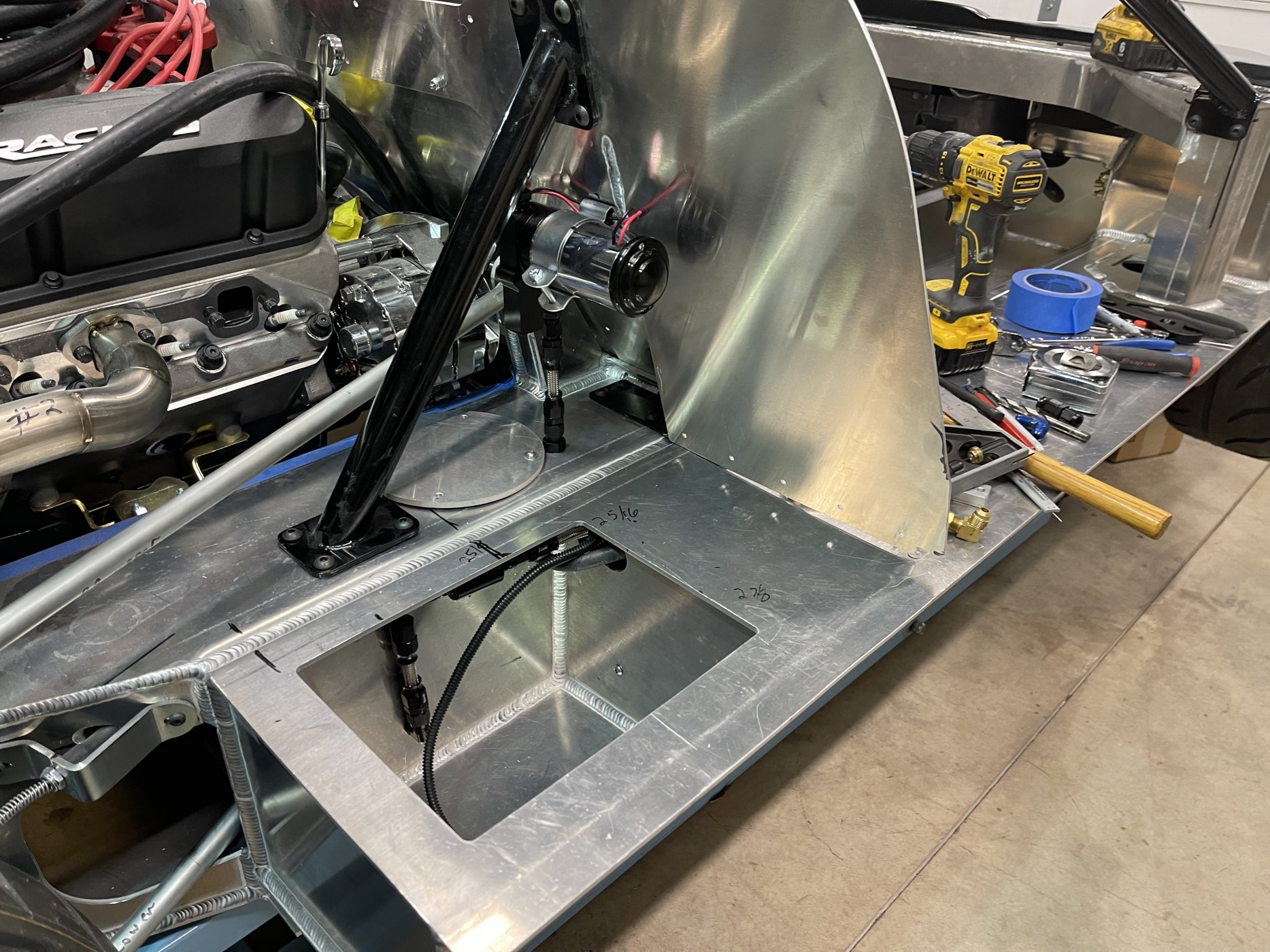

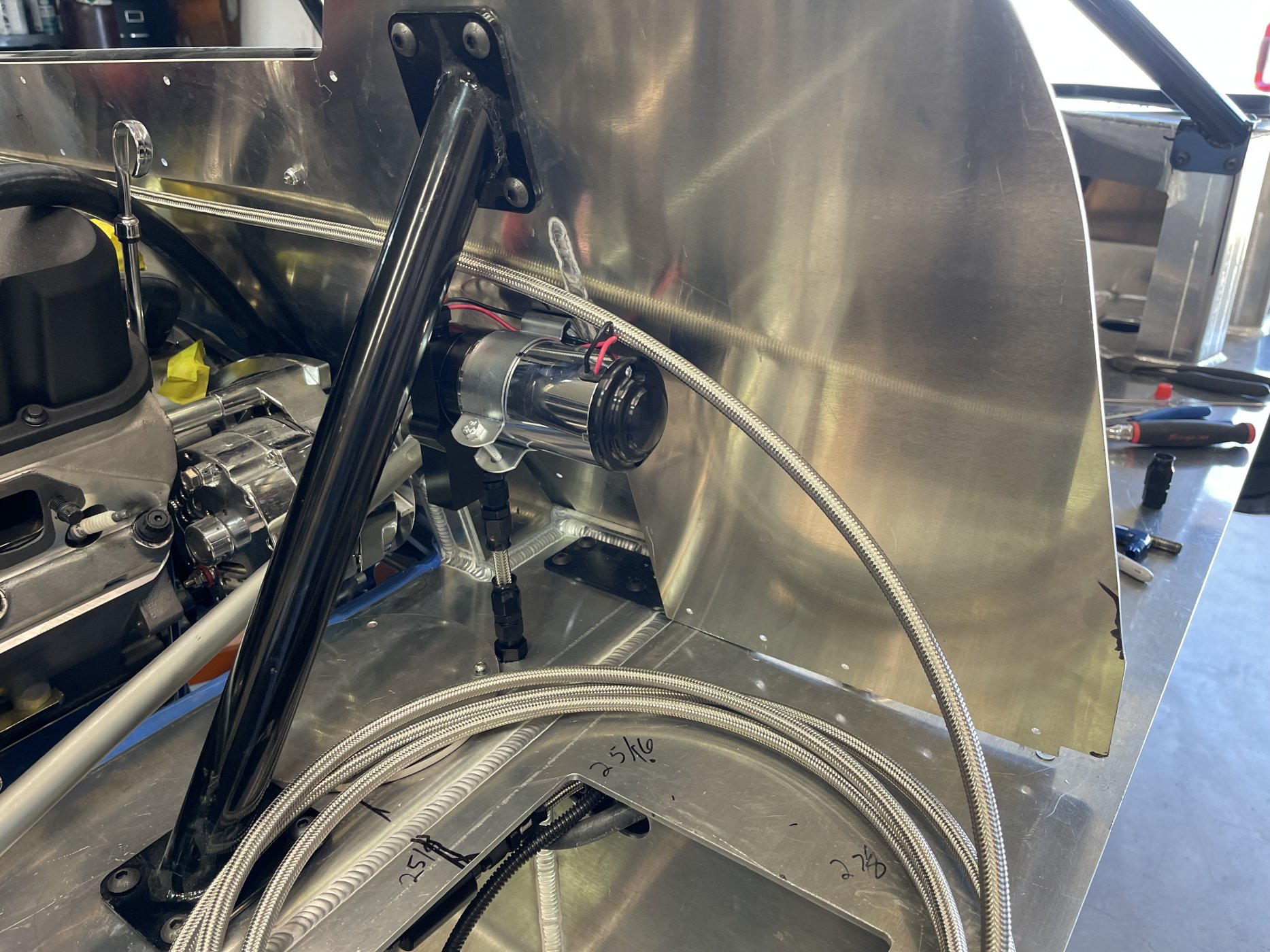

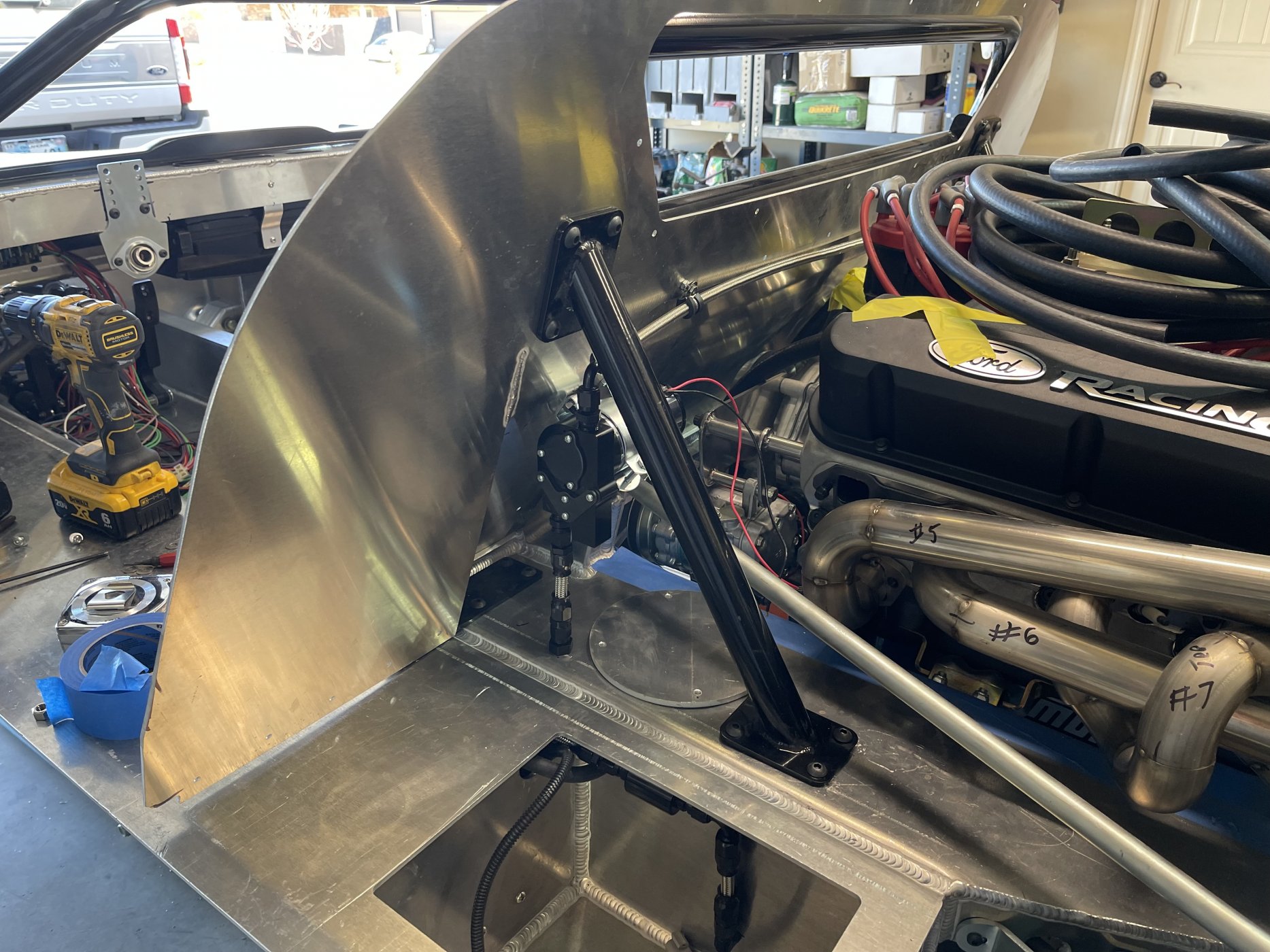

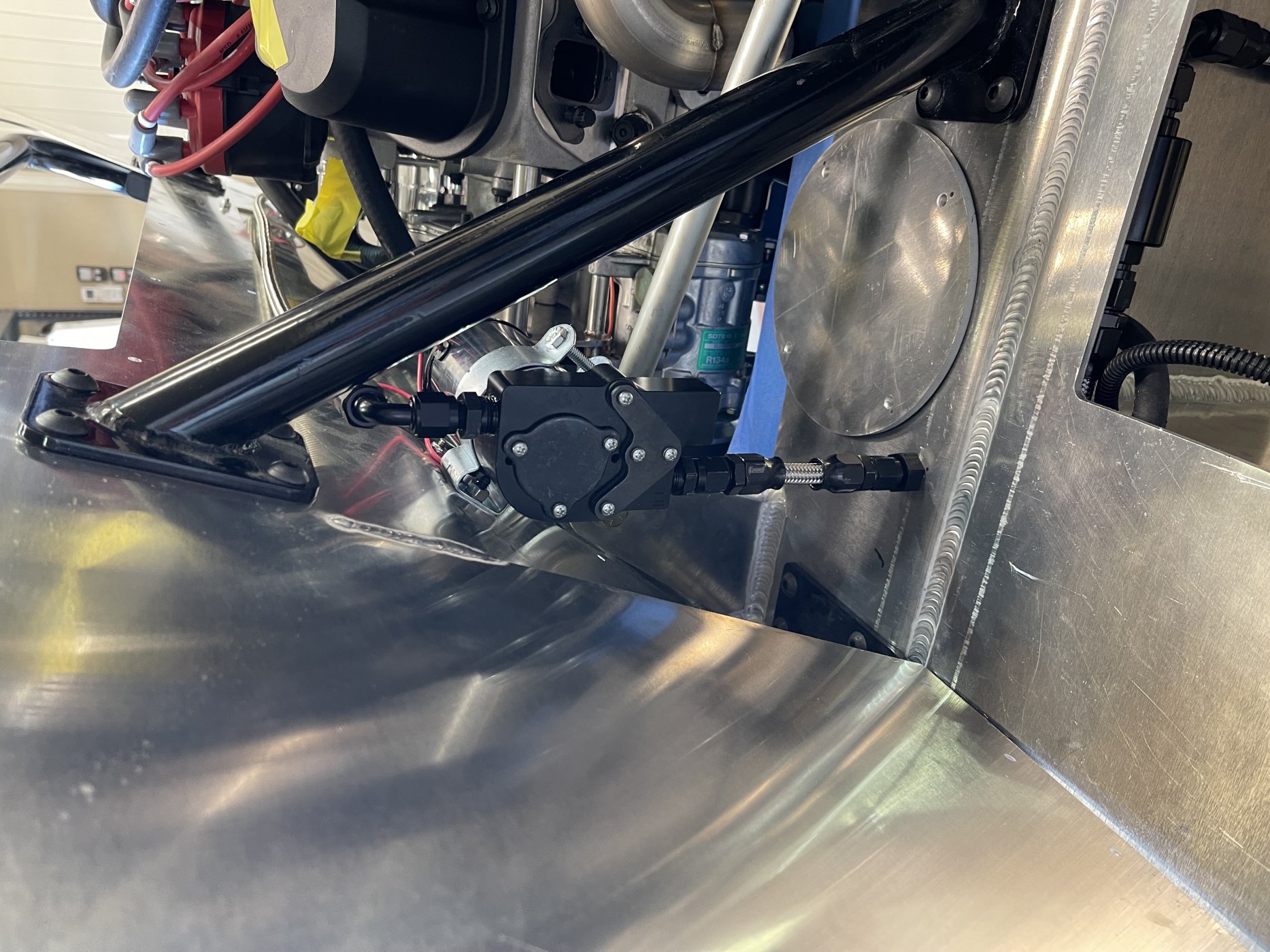

I was going to wait to post until I finished the fuel pump installation, I am using Aeromotive Low pressure pumps to a surge tank. From the surge tank is TBD, but likely a 044 type with return style regulator back to surge tank.

I don't have any plans for foam around the fuel tanks. The seem very secure the way I have them bolted in.

Sean


Attachments

  • IMG_6556.jpg
    480.5 KB · Views: 647
  • IMG_6562.jpg
    444.3 KB · Views: 647
  • IMG_6563.jpg
    435.6 KB · Views: 579
  • IMG_6564.jpg
    436 KB · Views: 559
  • IMG_6565.jpg
    461.1 KB · Views: 584

Vinny P

Supporter
Hi Gale,

I was going to wait to post until I finished the fuel pump installation, I am using Aeromotive Low pressure pumps to a surge tank. From the surge tank is TBD, but likely a 044 type with return style regulator back to surge tank.

I don't have any plans for foam around the fuel tanks. The seem very secure the way I have them bolted in.

Sean
Hi Sean I just ordered an RCR gt40 about a week ago I am a body man by trade. I was following your thread to get some ideas on how to go forward with my build. I will be using a 351/427 set up as well. I ordered a G96/01 transaxle from RCR but may change my mind after doing a bit of research. I have been admiring your fabrication skills and attention to details. I learned quite a bit more as to what is involved in these builds. RCR estimates 7-8 months for delivery of my GT40. Did it take about a year before your GT40 was delivered? I chose to have them set up the hinges and latches as I am not getting any younger and wanted to save a few hours on my build. I am looking into a new ZF transmission from RBT to also save some fabrication work. I wish you all the best on your build, it's looking really good so far I will be following your progress.


Sean S.

Supporter
Hi Sean I just ordered an RCR gt40 about a week ago I am a body man by trade. I was following your thread to get some ideas on how to go forward with my build. I will be using a 351/427 set up as well. I ordered a G96/01 transaxle from RCR but may change my mind after doing a bit of research. I have been admiring your fabrication skills and attention to details. I learned quite a bit more as to what is involved in these builds. RCR estimates 7-8 months for delivery of my GT40. Did it take about a year before your GT40 was delivered? I chose to have them set up the hinges and latches as I am not getting any younger and wanted to save a few hours on my build. I am looking into a new ZF transmission from RBT to also save some fabrication work. I wish you all the best on your build, it's looking really good so far I will be following your progress.
PM Sent.


Vinny P

Supporter
Lift is looking and working great. Still need to put the dark blue stripes and maybe get some Gulf stickers for it. Just got to wait for the car to put on it now.
Hi Sean, I am in the process of purchasing or having a lift built and was wondering if the size of the lift platform that you built worked out well and according to your build plans I think the lift platform was 40" x 92". If I were to find a lift already built is there a size range I need to look for? I remember reading that you had trouble finding one already built. Thanks, Vinny


Sean S.

Supporter
Hi Sean, I am in the process of purchasing or having a lift built and was wondering if the size of the lift platform that you built worked out well and according to your build plans I think the lift platform was 40" x 92". If I were to find a lift already built is there a size range I need to look for? I remember reading that you had trouble finding one already built. Thanks, Vinny

Hi Vinny,

The lift did work out well. If I were to change anything, it would be to shorten it to around 80". There are 2 reasons for this.

1. This is my biggest reason to want it shorter. It would allow you to have the car off centered more on the lift. As it is now you have to align it pretty close to keep the lower control arms off of it front and back. Making it 2" narrower would work for this too.

2. With the engine installed it sets slightly uneven due to the weight. Its not skewed enough to have me worried, but I would like it to sit level. I think if it were shorter there would be less flex allowing the back to drop a bit.


I did find several lifts available, but the lowest profile one that I found were around 5" which wouldn't allow me to set it all the way on the ground to quickly adjust the suspension. The lifts I found with the low profile didn't have casters on the either, the casters were a must for me as i want to be able to push the car out of the way if I need to work on something else in the garage.


Hope this helps,

Sean


Vinny P

Supporter
Hi Vinny,

The lift did work out well. If I were to change anything, it would be to shorten it to around 80". There are 2 reasons for this.

1. This is my biggest reason to want it shorter. It would allow you to have the car off centered more on the lift. As it is now you have to align it pretty close to keep the lower control arms off of it front and back. Making it 2" narrower would work for this too.

2. With the engine installed it sets slightly uneven due to the weight. Its not skewed enough to have me worried, but I would like it to sit level. I think if it were shorter there would be less flex allowing the back to drop a bit.


I did find several lifts available, but the lowest profile one that I found were around 5" which wouldn't allow me to set it all the way on the ground to quickly adjust the suspension. The lifts I found with the low profile didn't have casters on the either, the casters were a must for me as i want to be able to push the car out of the way if I need to work on something else in the garage.


Hope this helps,

Sean
Hi Sean, I appreciate the information it's a great help. I see your build is coming out quite well, great job on the headers and fabrication work.

Thanks,

Vinny


Sean S.

Supporter

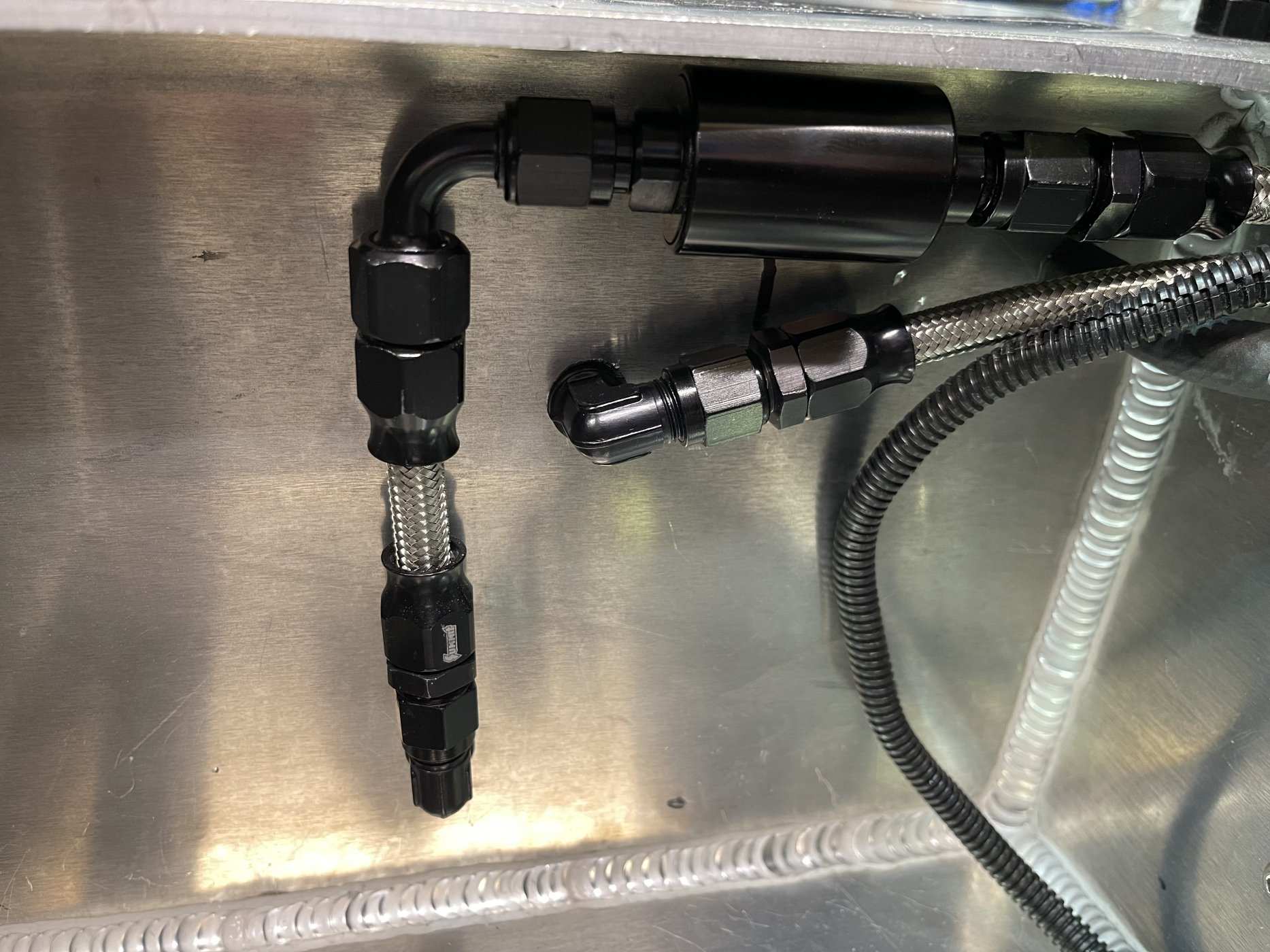

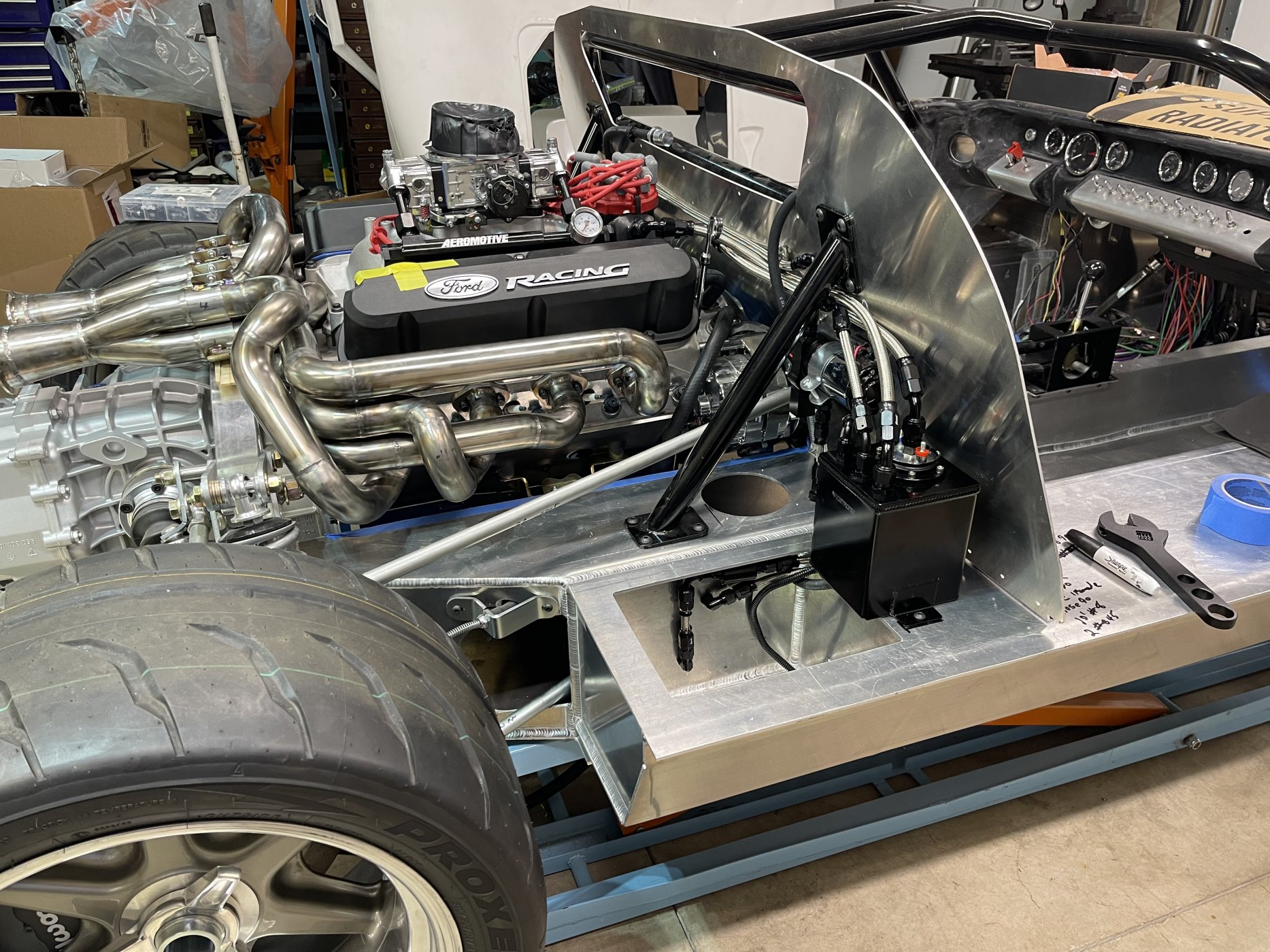

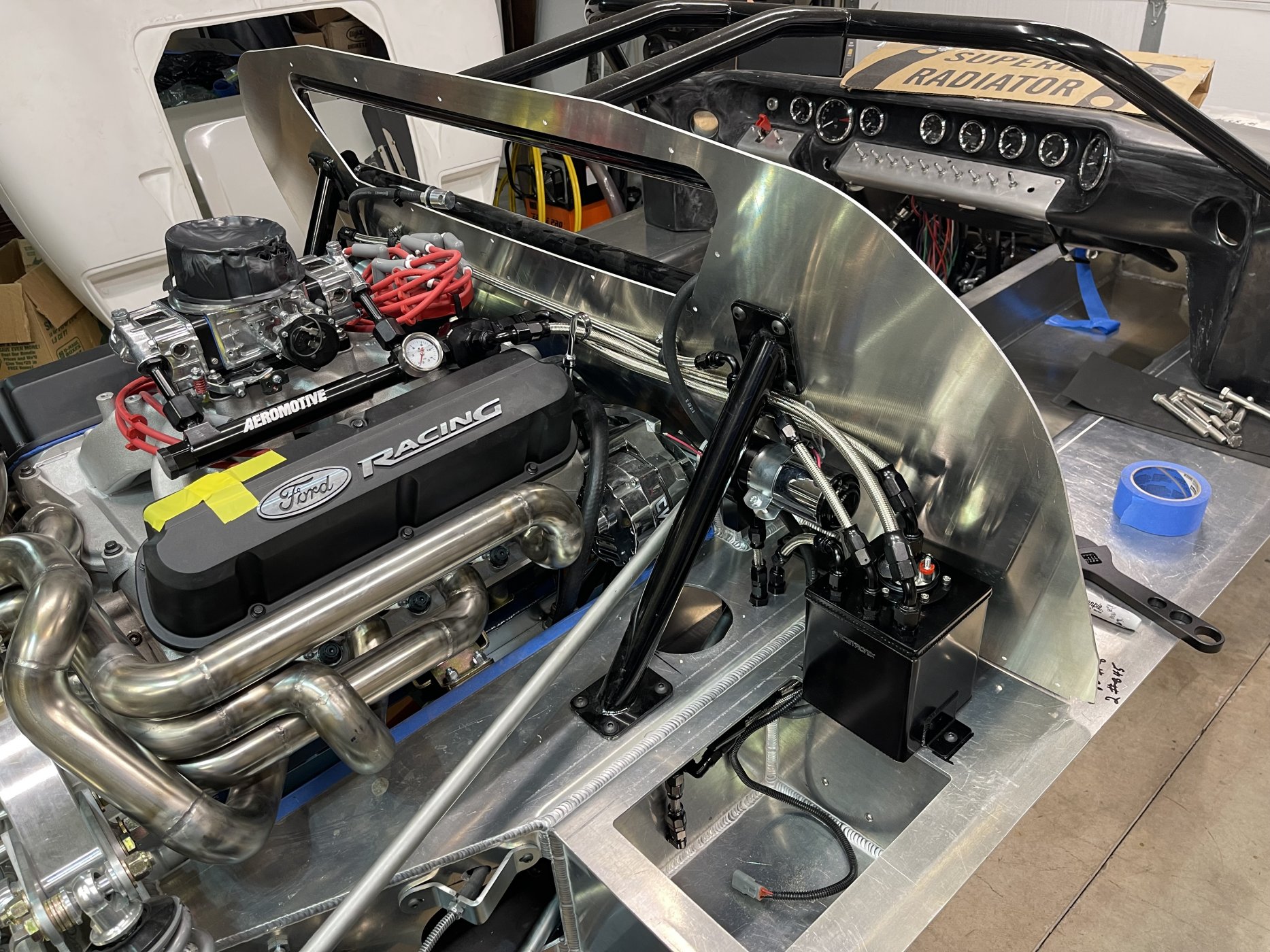

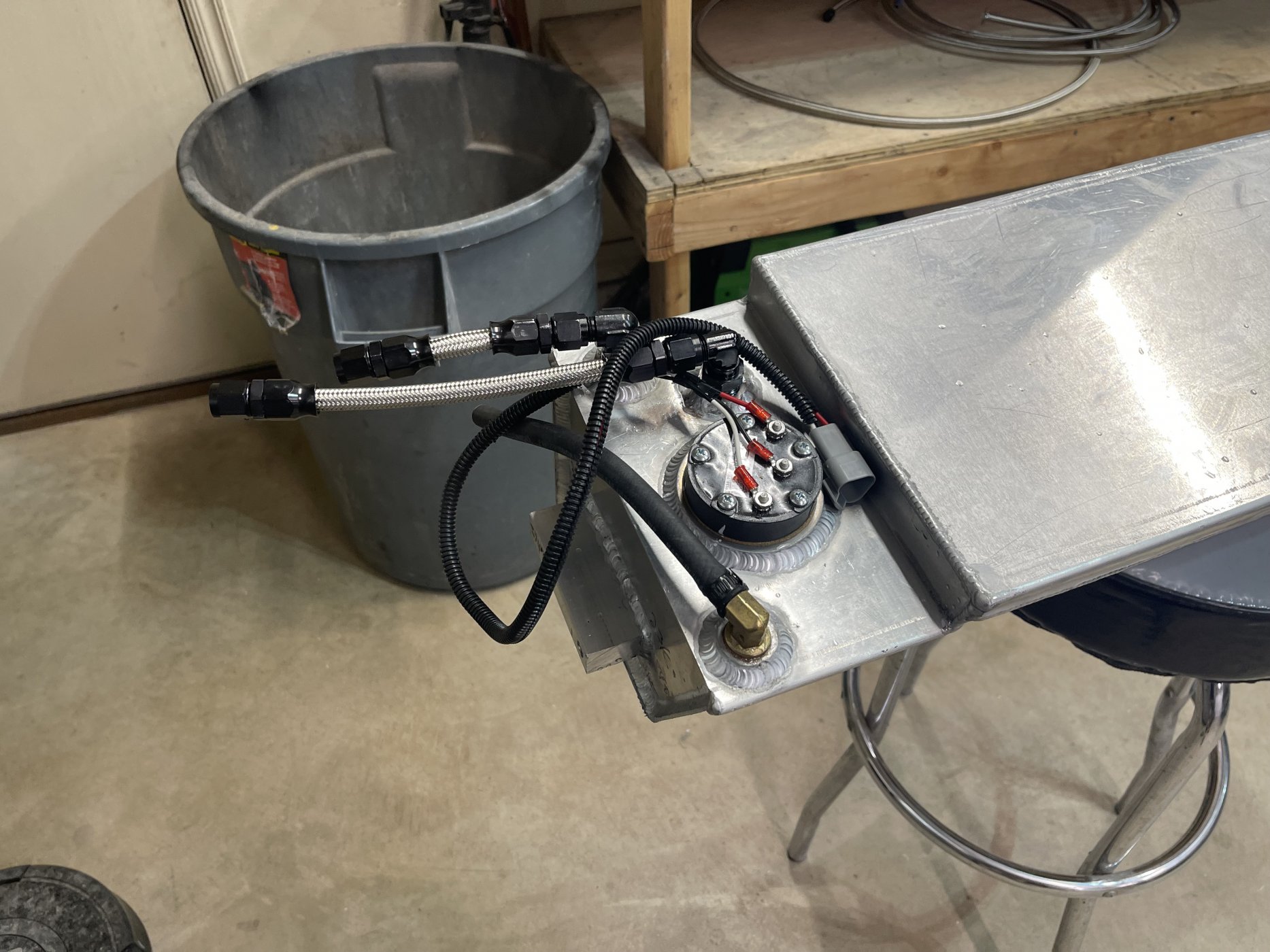

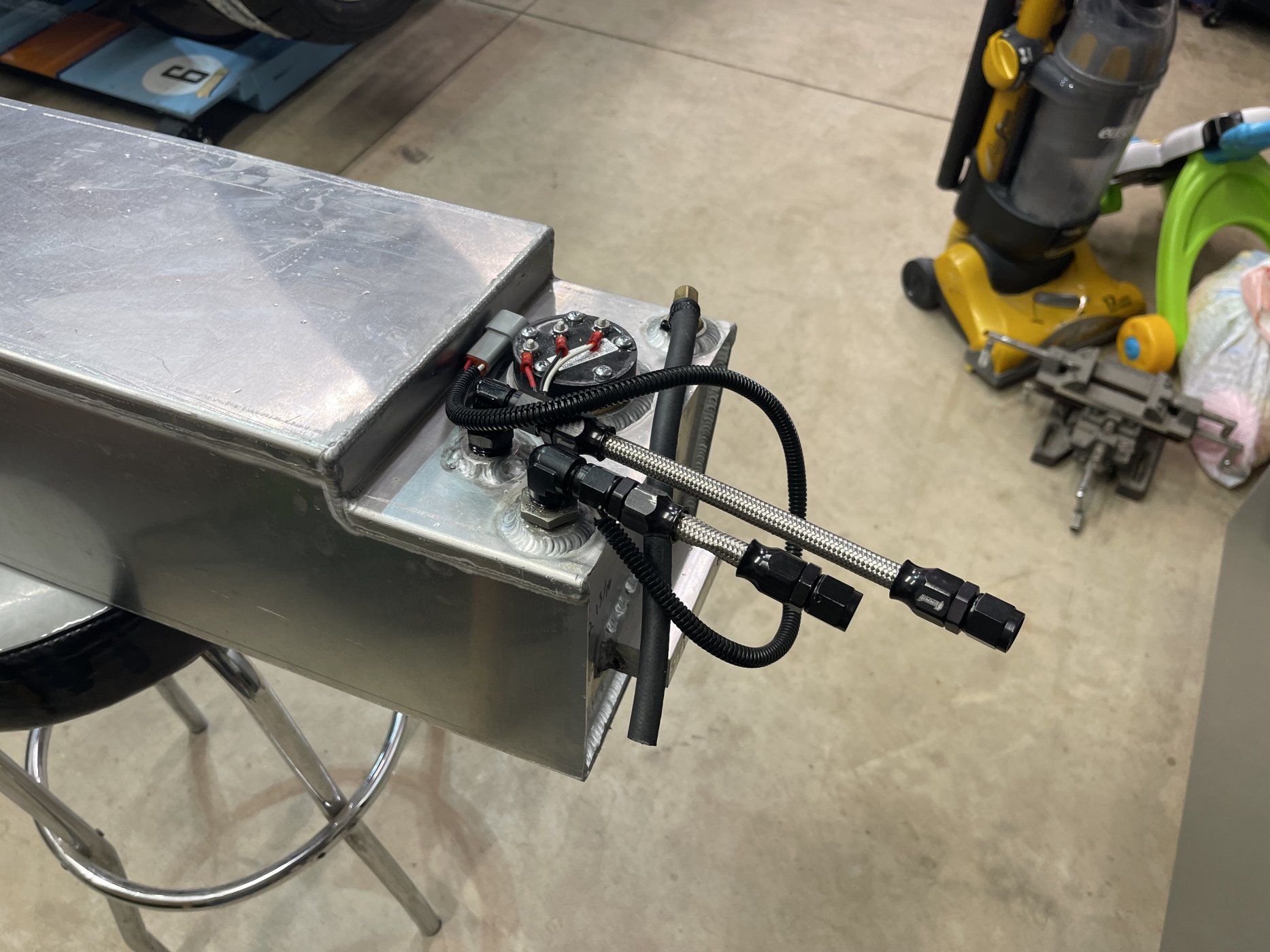

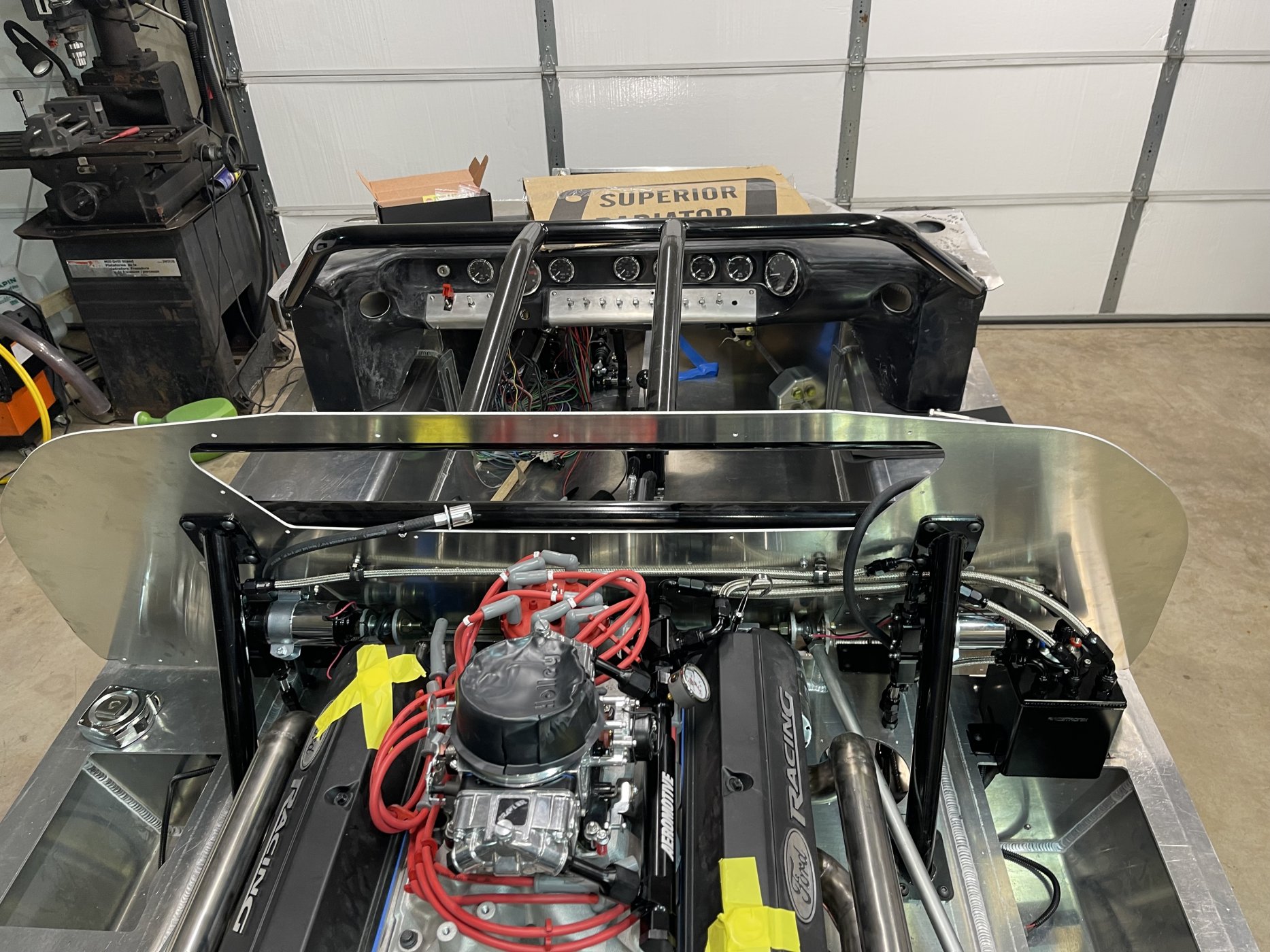

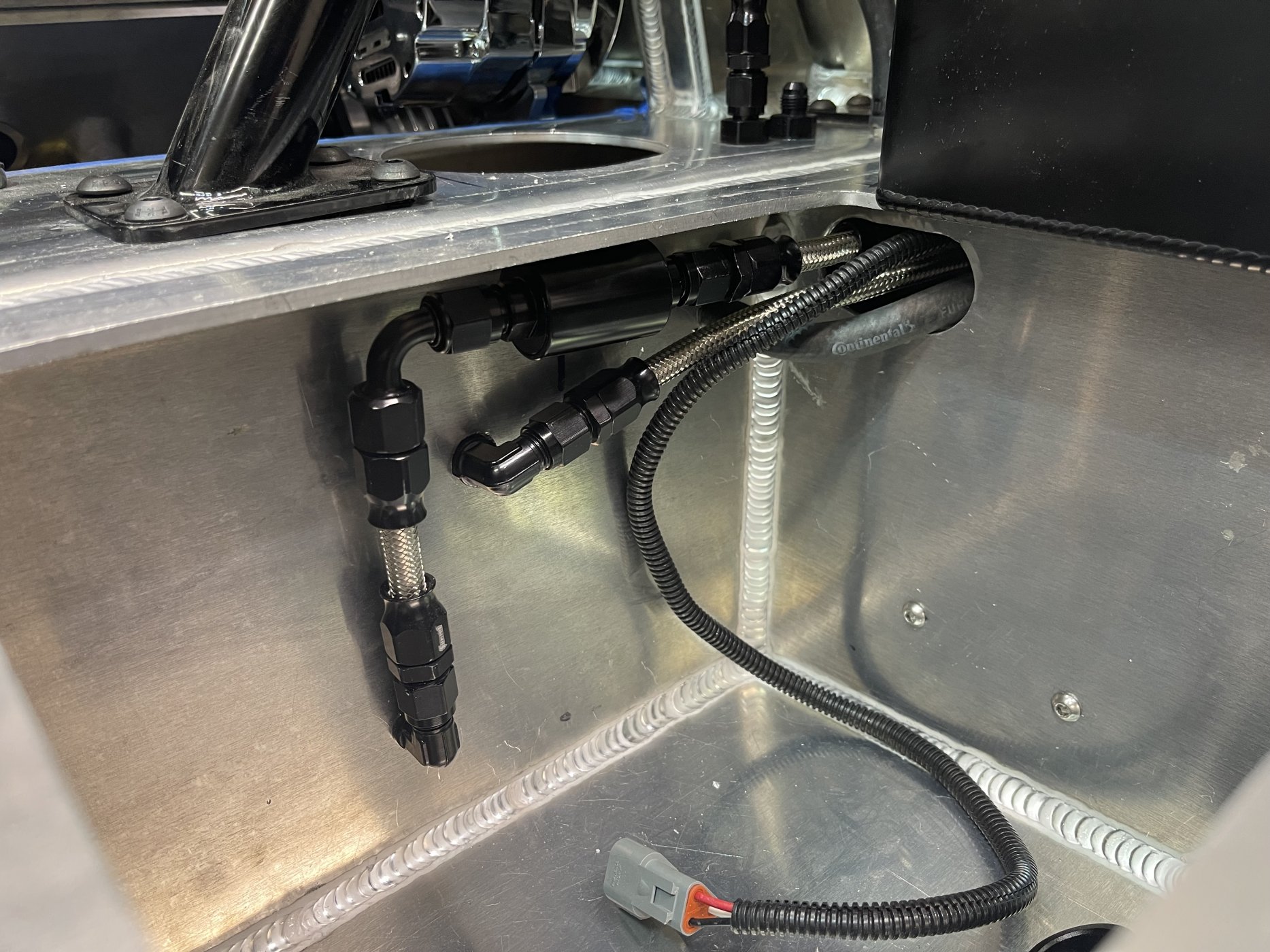

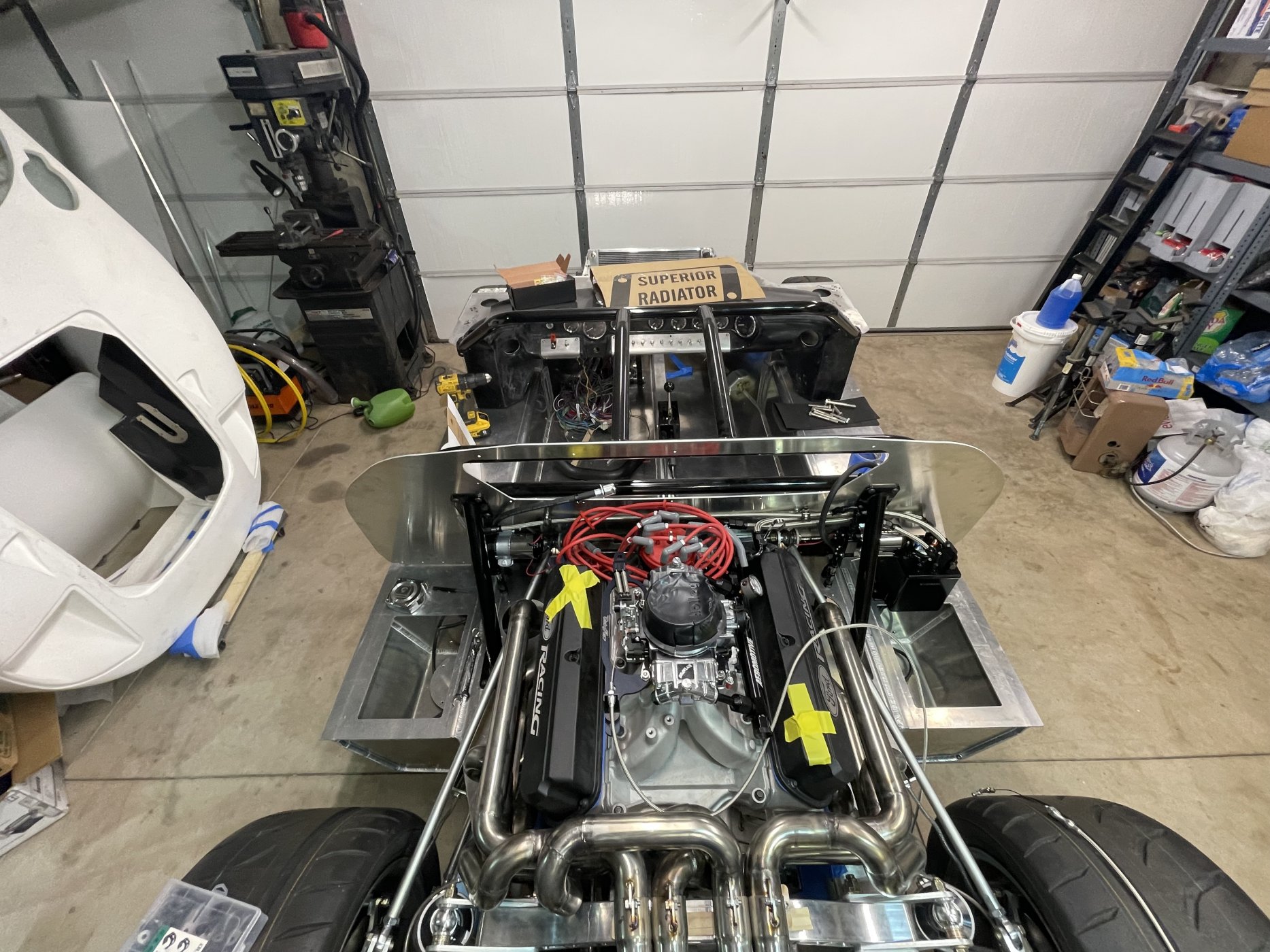

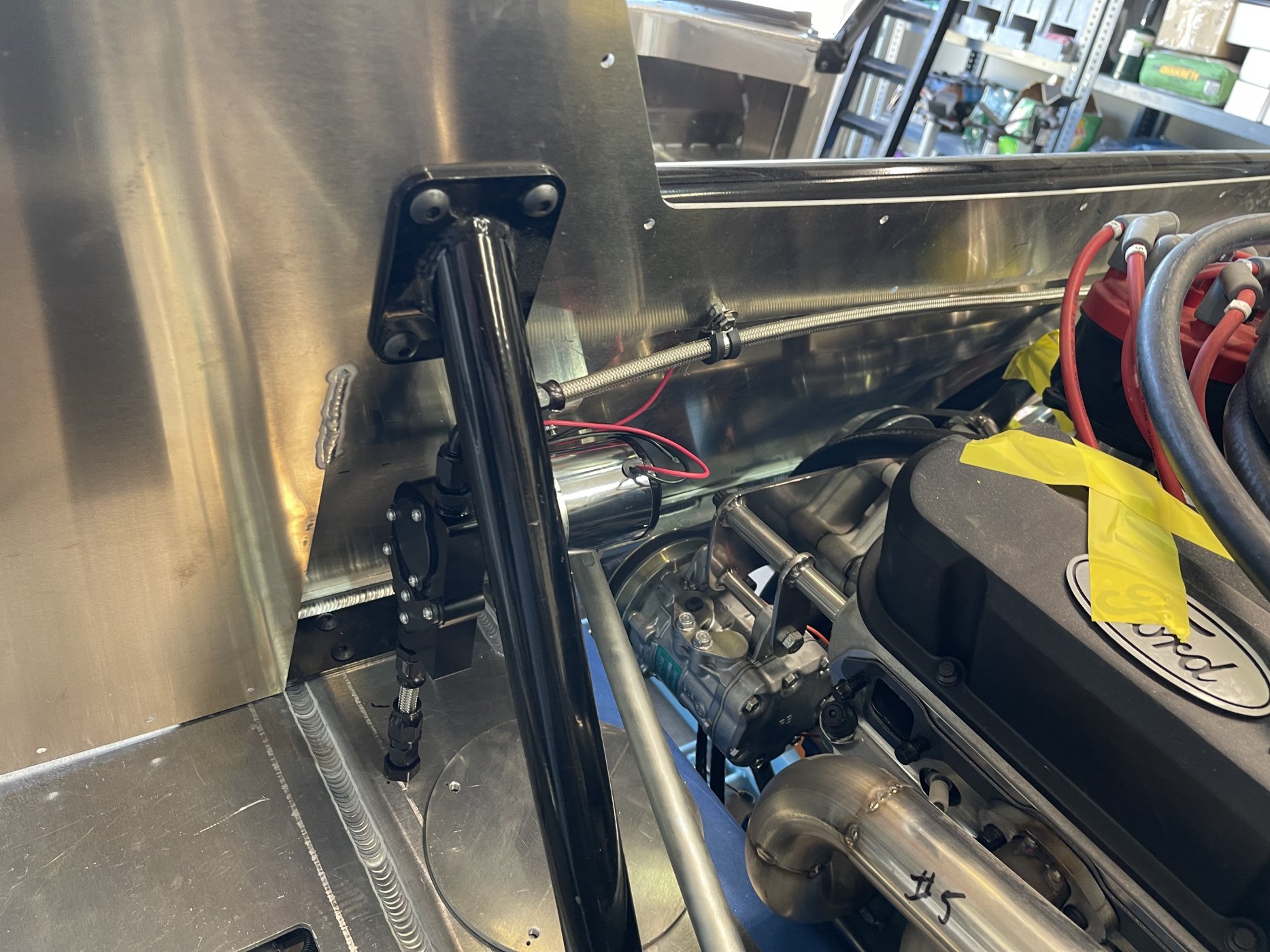

After a lot of trial and error, The fuel system is complete minus a couple hose supports to keep the top hoses in order.

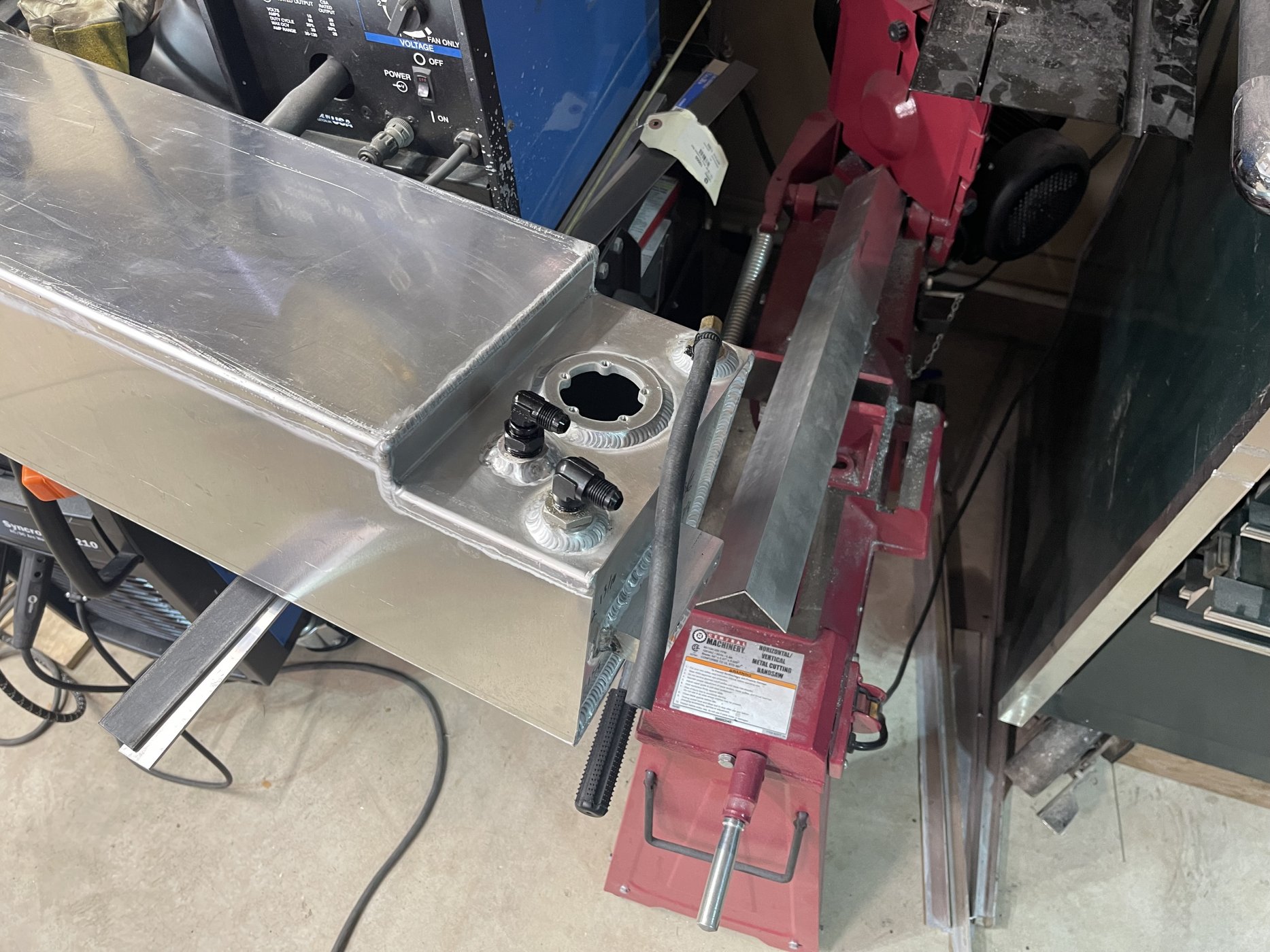

I decided to use the passenger tank to feed the surge tank and then return fuel back to the passenger tank. I welded a bung in the tank to accept the returning fuel. I have the pump from the driver side tank run into the surge tank as well to allow fuel to transfer from that tank to the passenger tank. I will set up a switch to run one or the other to allow me to fill the passenger tank when it begins to run low. Both pumps have check valves and 100 micron filters mounted on the suction side between the tank and the pump.


I just realized I didnt plumb in the 10 micron filter after the 044 pump. m-) At least that on should be easy to fix.


Attachments

  • IMG_6722.jpg
    423.8 KB · Views: 445
  • IMG_6723.jpg
    346.3 KB · Views: 448
  • IMG_6724.jpg
    321.3 KB · Views: 432
  • IMG_6726.jpg
    446.6 KB · Views: 429
  • IMG_6756.jpg
    580.9 KB · Views: 438
  • IMG_6757.jpg
    569.4 KB · Views: 451
  • IMG_6758.jpg
    487 KB · Views: 433
  • IMG_6760.jpg
    411.4 KB · Views: 435
  • IMG_6762.jpg
    486 KB · Views: 484

Sean S.

Supporter

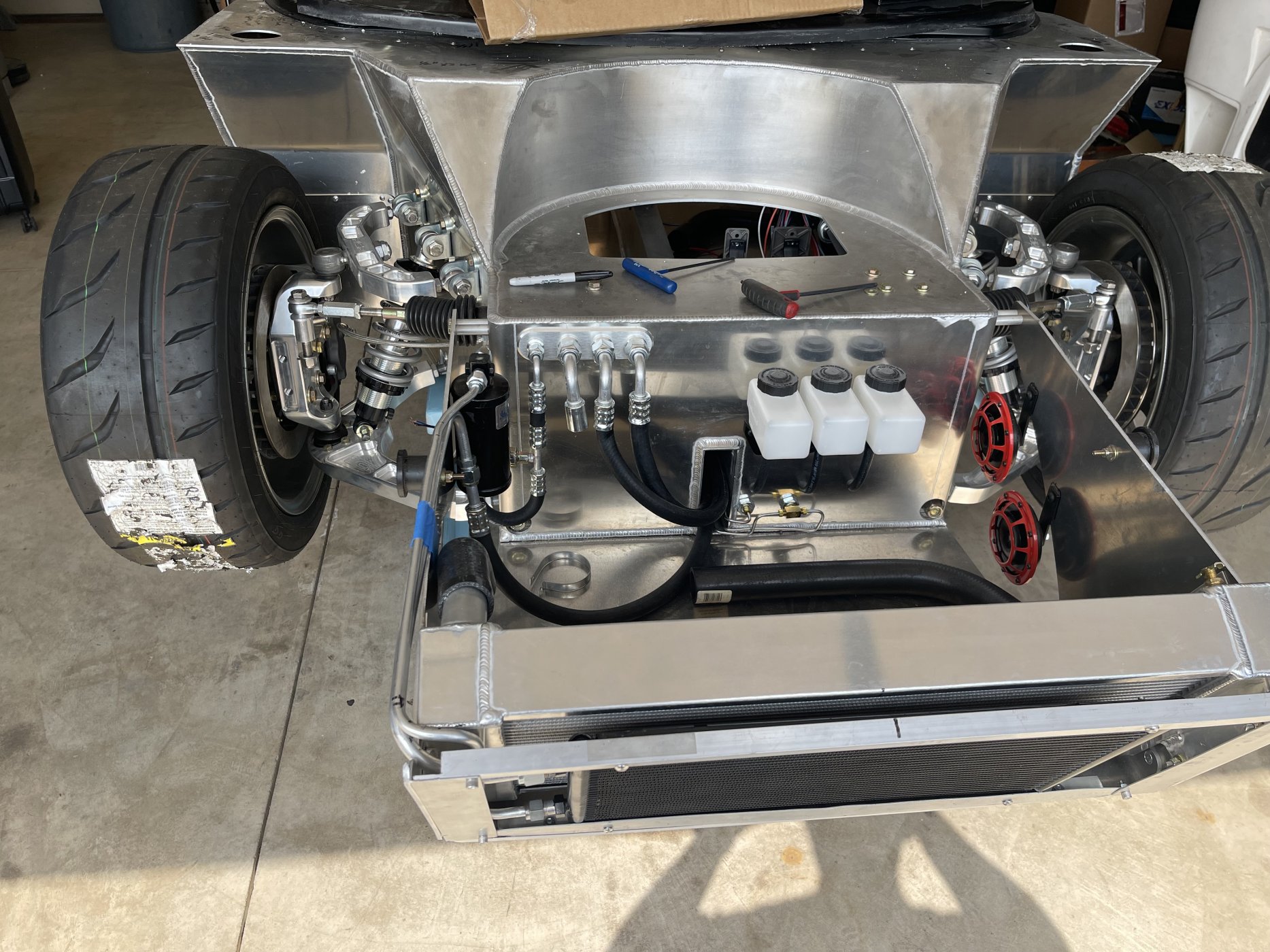

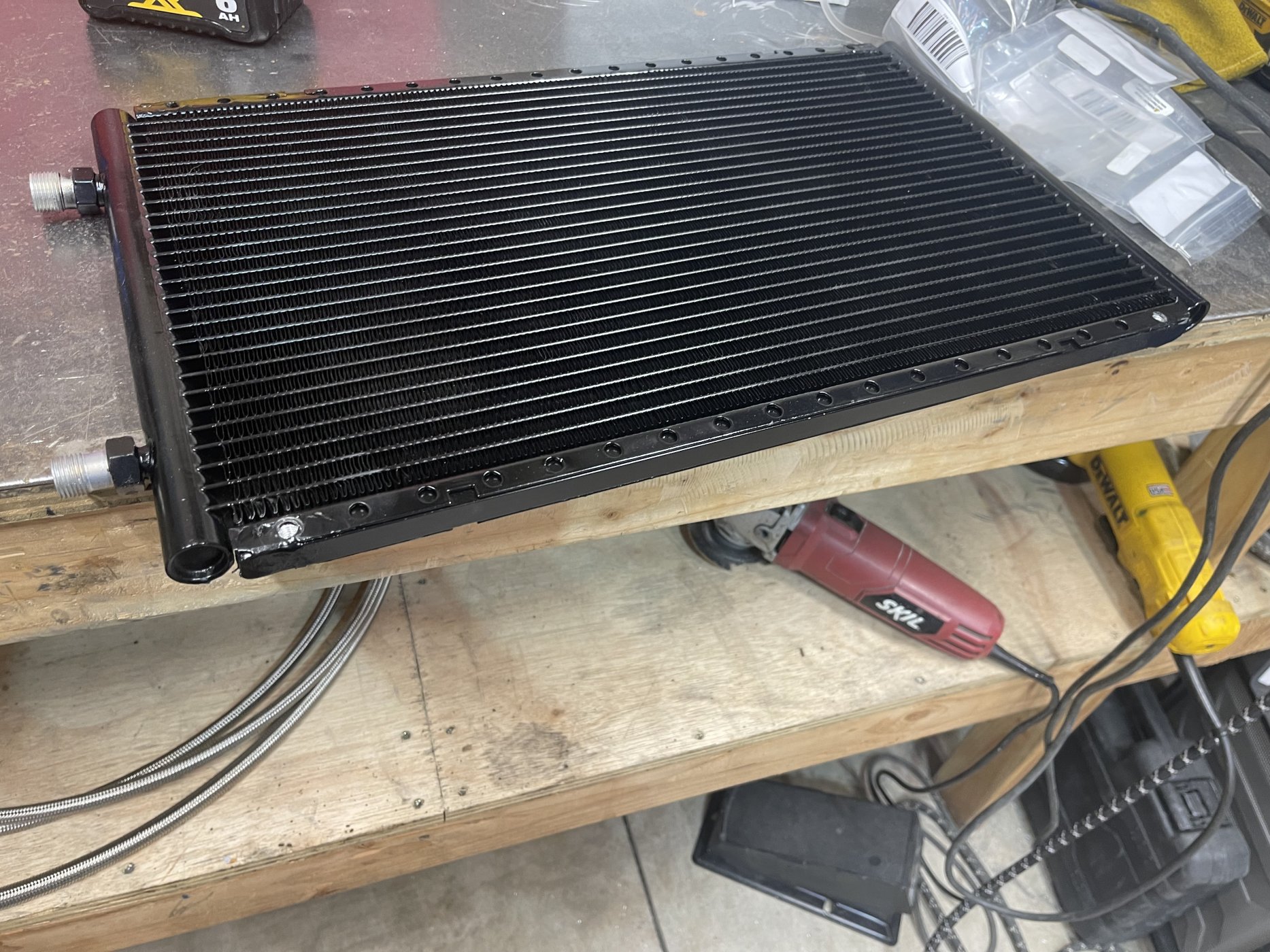

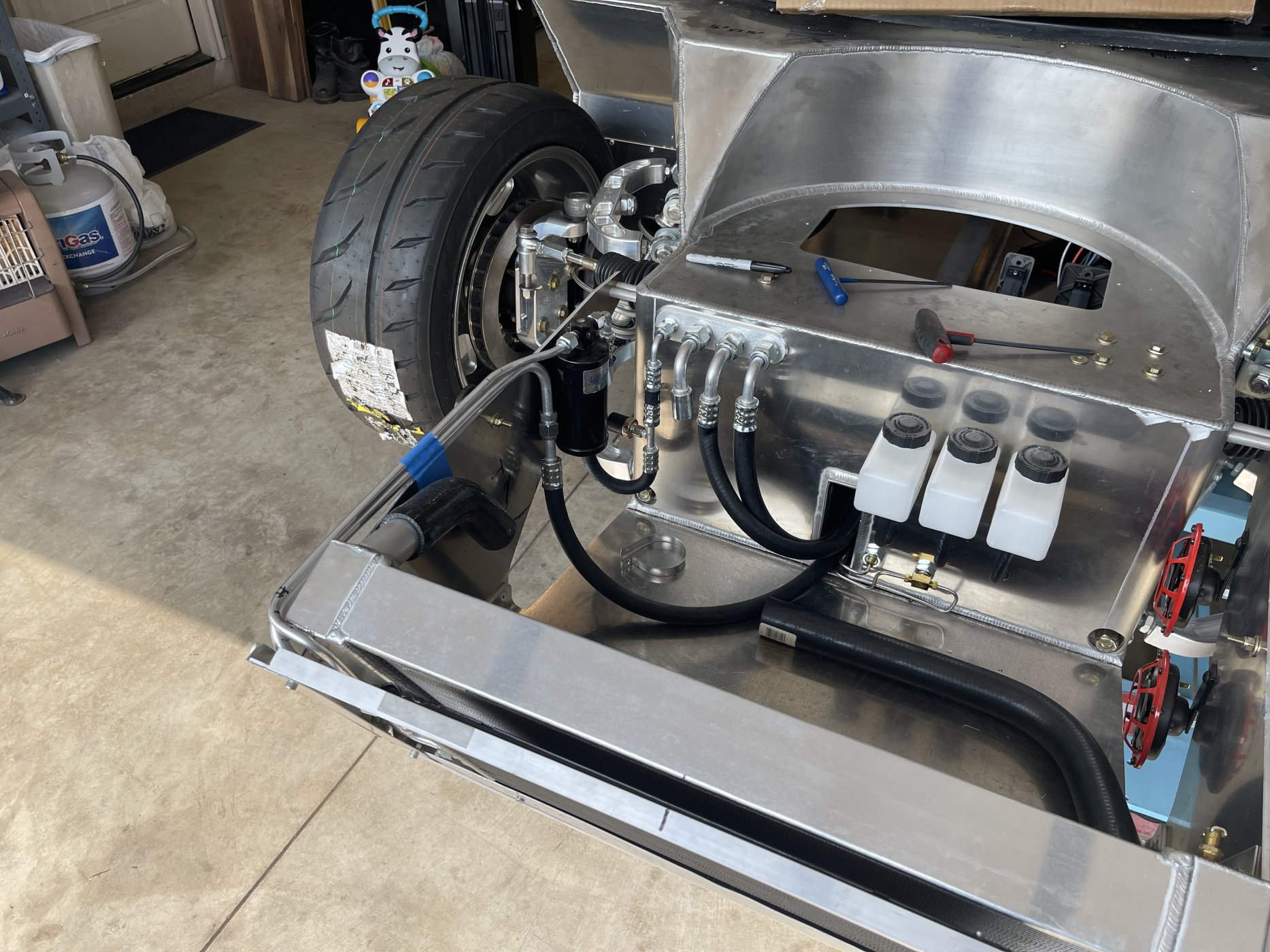

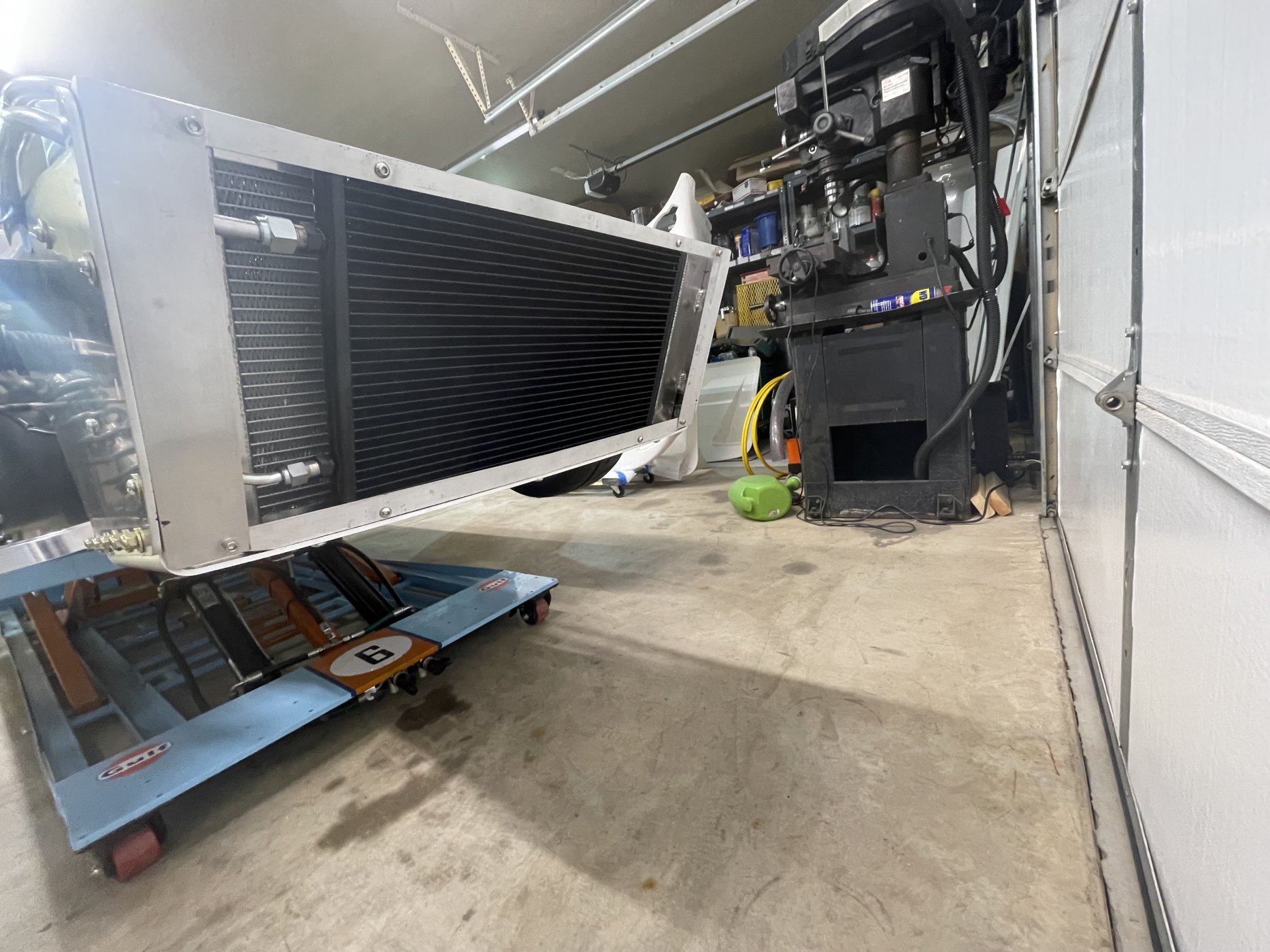

I finalized the installation of the condenser. I was having trouble finding fasteners to secure it in an easy way that I liked. I decided to weld 1/2" aluminum bar in the mounts and tap them, this made for a much easier installation.

Just a heads up to anyone that plans to use a single and duel snorkel for the front. running the A/C lines require a lot of patience. The 2 require very different routing of the lines. The single snorkel is much wider, hence I made my fitment for it and found the dual snorkel set further back. After several A/C lines later, I found a setup that will work for both.


Attachments

  • IMG_6728.jpg
    535.1 KB · Views: 482
  • IMG_6729.jpg
    388.5 KB · Views: 479
  • IMG_6765.jpg
    458.6 KB · Views: 484
  • IMG_6766.jpg
    478 KB · Views: 576

Paul T.

Supporter
Sean, your dual snorkel will fit and clear with the pass side radiator hose being on the top of the radiator? I wanted to move mine from the bottom to the top but it wont clear.


Sean S.

Supporter
Hi Paul,

Yes mine clears as of now. I am going to try to either move the radiator up a bit or modify the single snorkel so the fans fit in the opening a bit better. That hose will determine which route I take.

Sean

After a lot of trial and error, The fuel system is complete minus a couple hose supports to keep the top hoses in order.

I decided to use the passenger tank to feed the surge tank and then return fuel back to the passenger tank. I welded a bung in the tank to accept the returning fuel. I have the pump from the driver side tank run into the surge tank as well to allow fuel to transfer from that tank to the passenger tank. I will set up a switch to run one or the other to allow me to fill the passenger tank when it begins to run low. Both pumps have check valves and 100 micron filters mounted on the suction side between the tank and the pump.


I just realized I didnt plumb in the 10 micron filter after the 044 pump. m-) At least that on should be easy to fix.
Looks great.. these photos helped me. I see the threaded block that you welded to the back side of the gas tank. I didn‘t think about going 90 degrees from the top. I cut some of the panel above the tank to get access later. How are you fastening the front of the tank? S


Sean S.

Supporter
Looks great.. these photos helped me. I see the threaded block that you welded to the back side of the gas tank. I didn‘t think about going 90 degrees from the top. I cut some of the panel above the tank to get access later. How are you fastening the front of the tank? S


PM Sent


Sean S.

Supporter

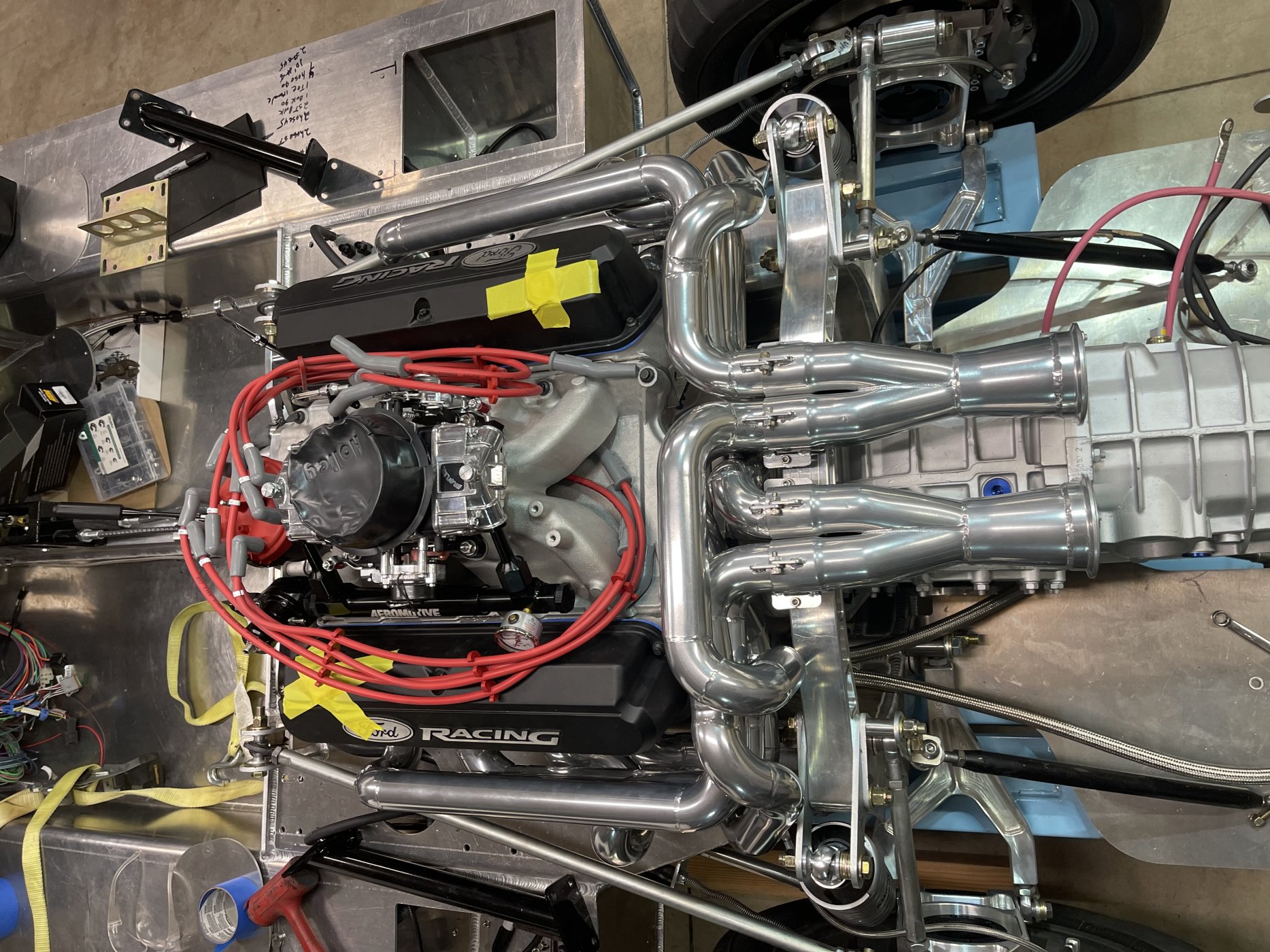

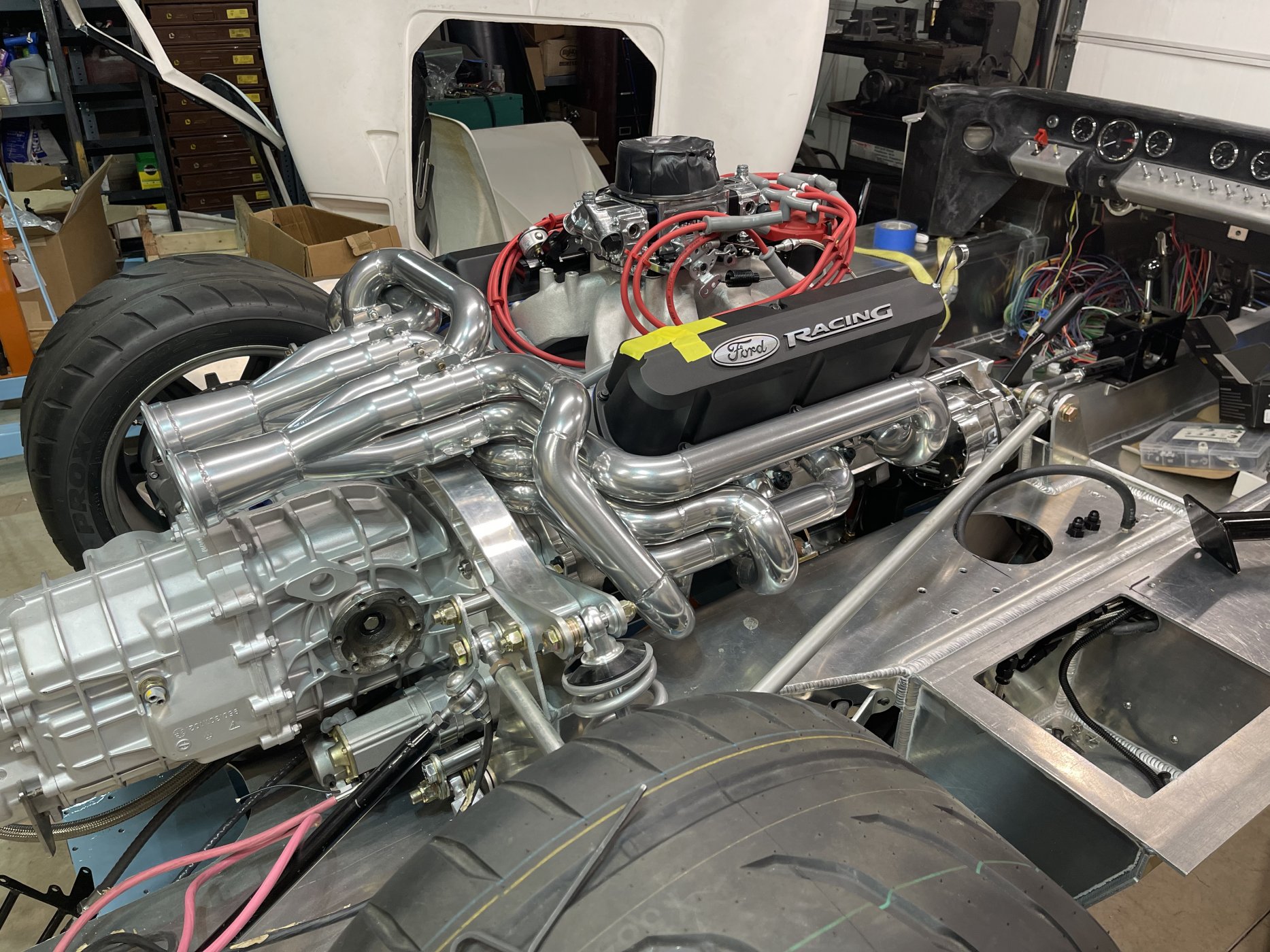

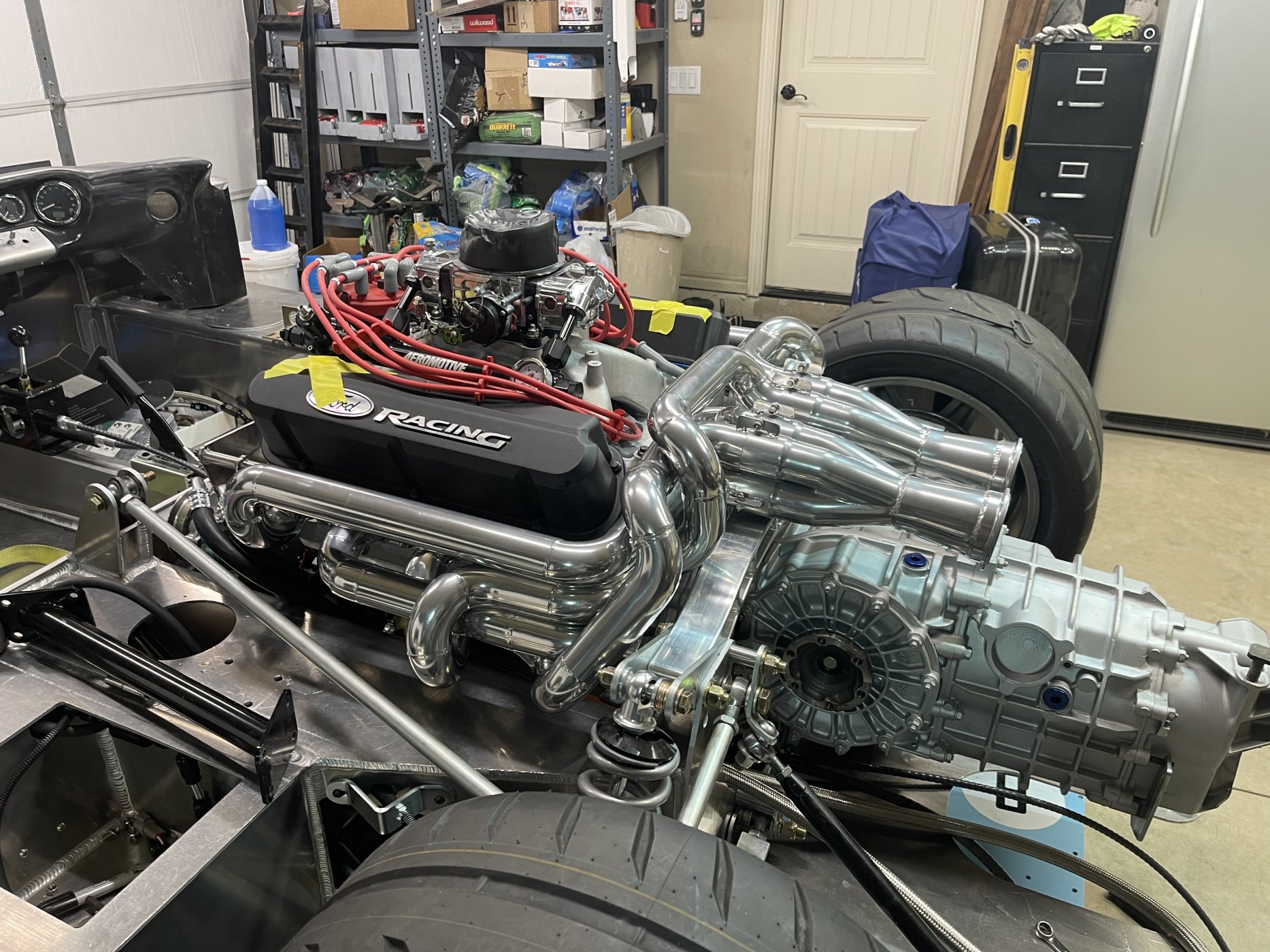

Got the headers back from ceramic coating today.

I am very happy with the job. I definitely recommend Jet-Hot High Performance Coatings


Attachments

  • 6A27D103-462A-432F-84BE-CB5ABE80CACE.jpeg
    530.4 KB · Views: 452
  • E899ACAC-CD96-440C-AAEC-38E87334C218.jpeg
    524.1 KB · Views: 430
  • DD69AC7D-02BD-4837-AE4E-6F9EE65E72F7.jpeg
    555.2 KB · Views: 447

Sean S.

Supporter

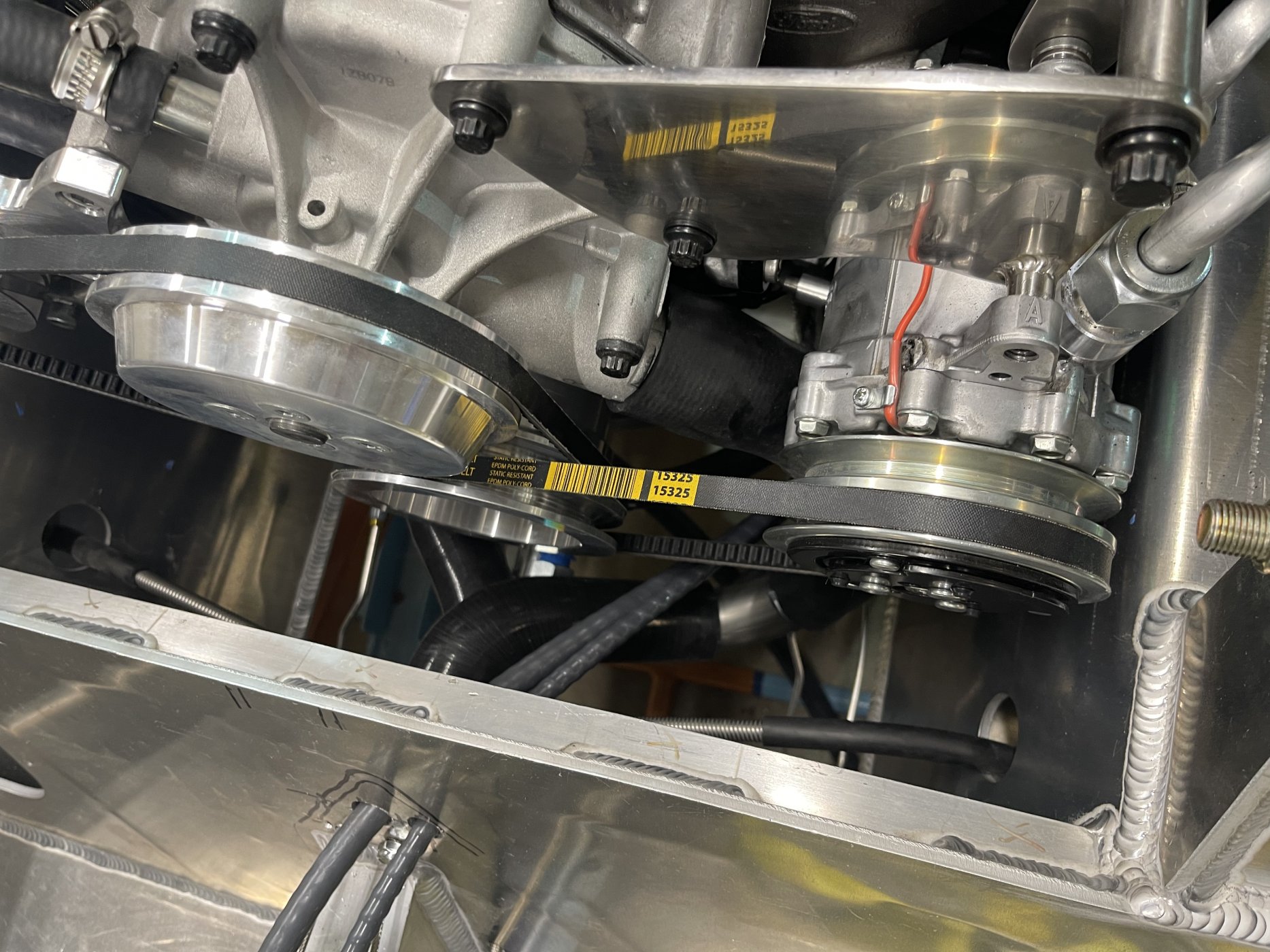

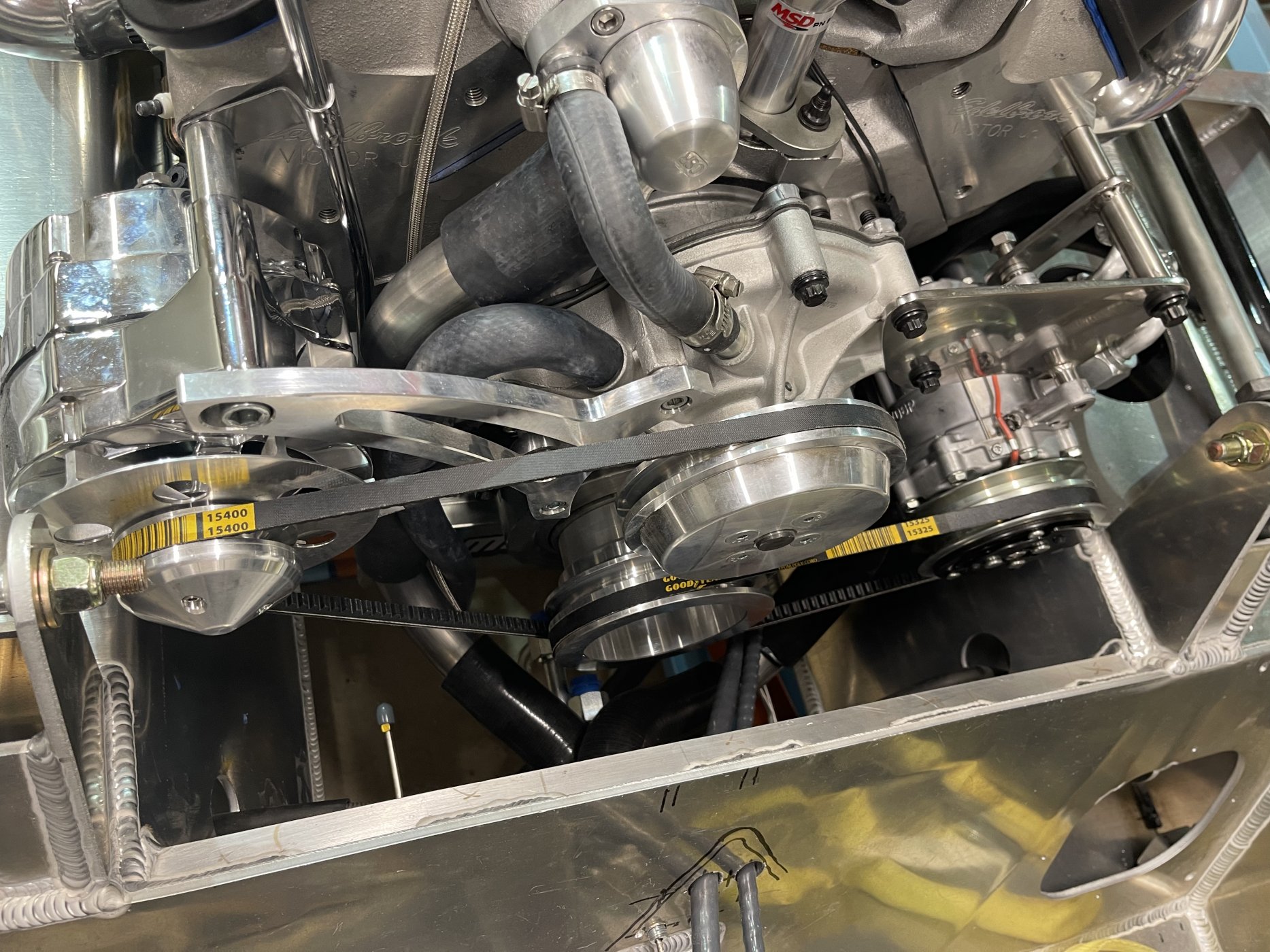

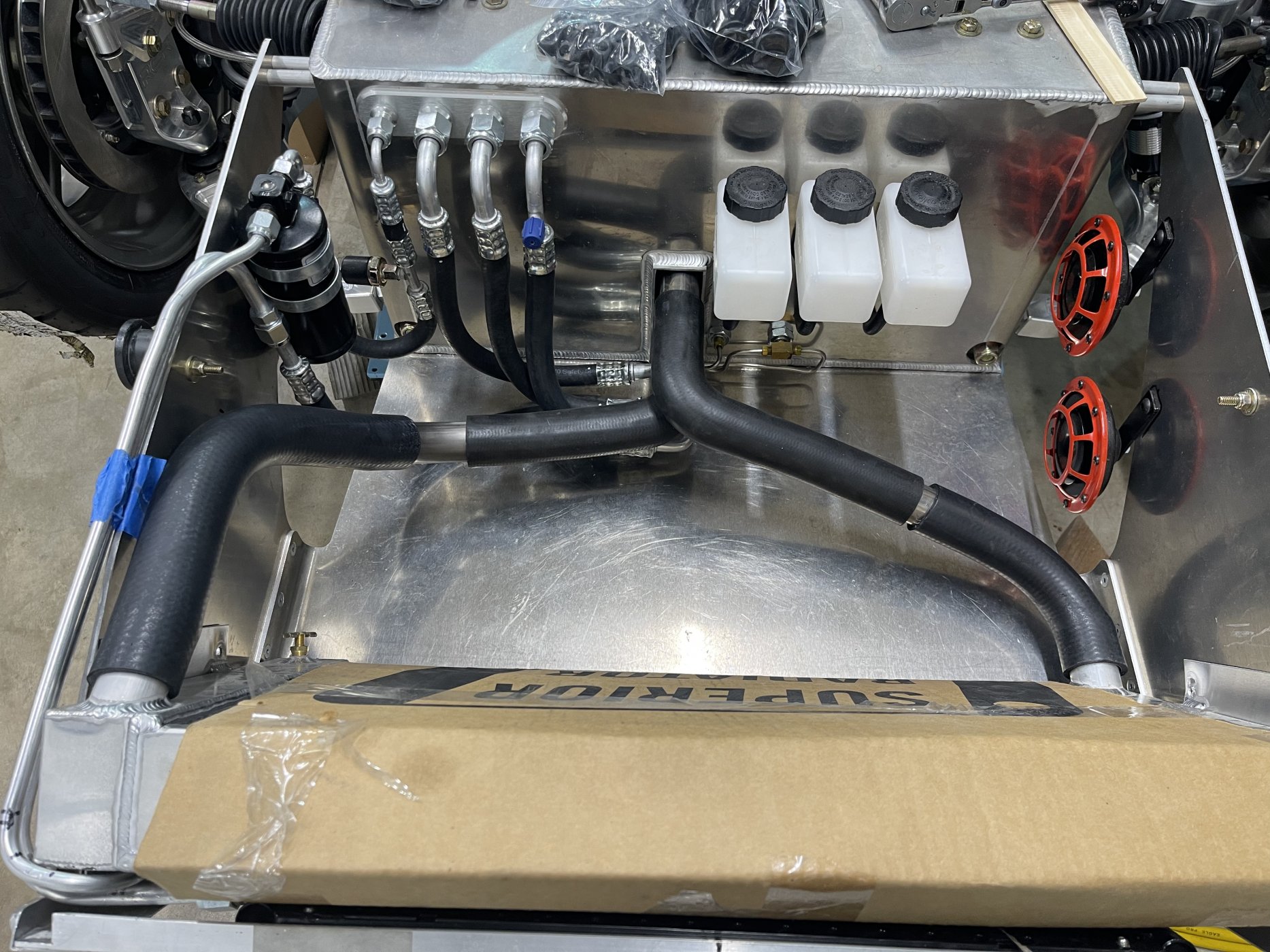

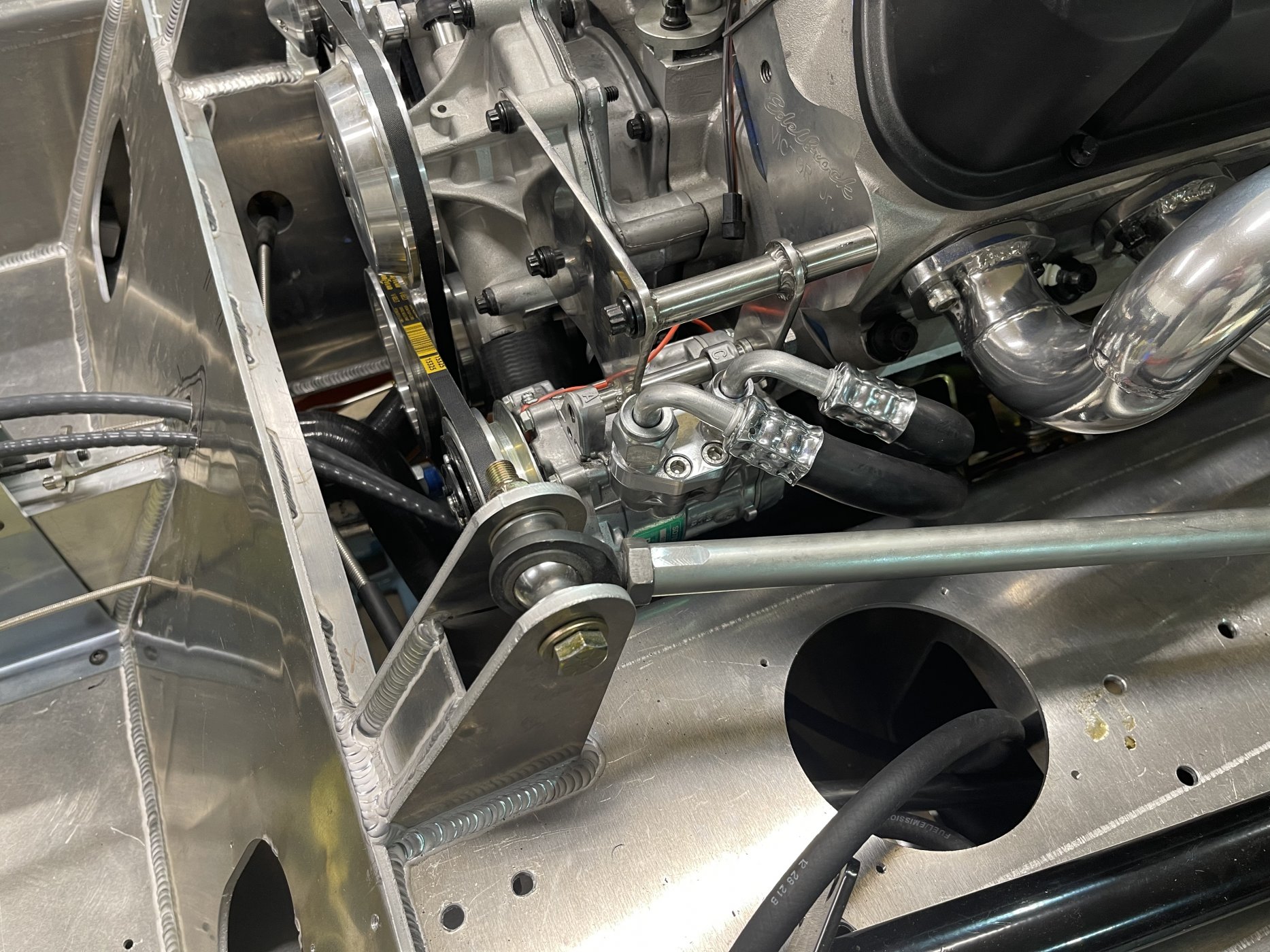

I have been working on plumbing the last couple weeks. I found a setup I like for the thermostat housing. I was also able to run the lines for the heater core through the spinal column.


Attachments

  • 3C3F5934-6977-4C51-BCFC-C6A4E8D39003.jpeg
    482.3 KB · Views: 420
  • 9C4AB85F-007F-4F53-8CE5-0E7F17C694E1.jpeg
    500.4 KB · Views: 402
  • B37A5D45-843F-450E-B77D-7DE11D5127BD.jpeg
    423.9 KB · Views: 366
  • 69421234-CC2F-4675-894D-EDE6B978C36C.jpeg
    488.9 KB · Views: 377

Vinny P

Supporter
The plumbing looks great, it's really coming together. I like the way you routed everything up front. I didn't think about the dual and single snorkel / routing, when I ordered both hatch covers. I just assumed they were the same width and dept overall.
