Stephan's SLC Build Log

Ken Roberts

Supporter

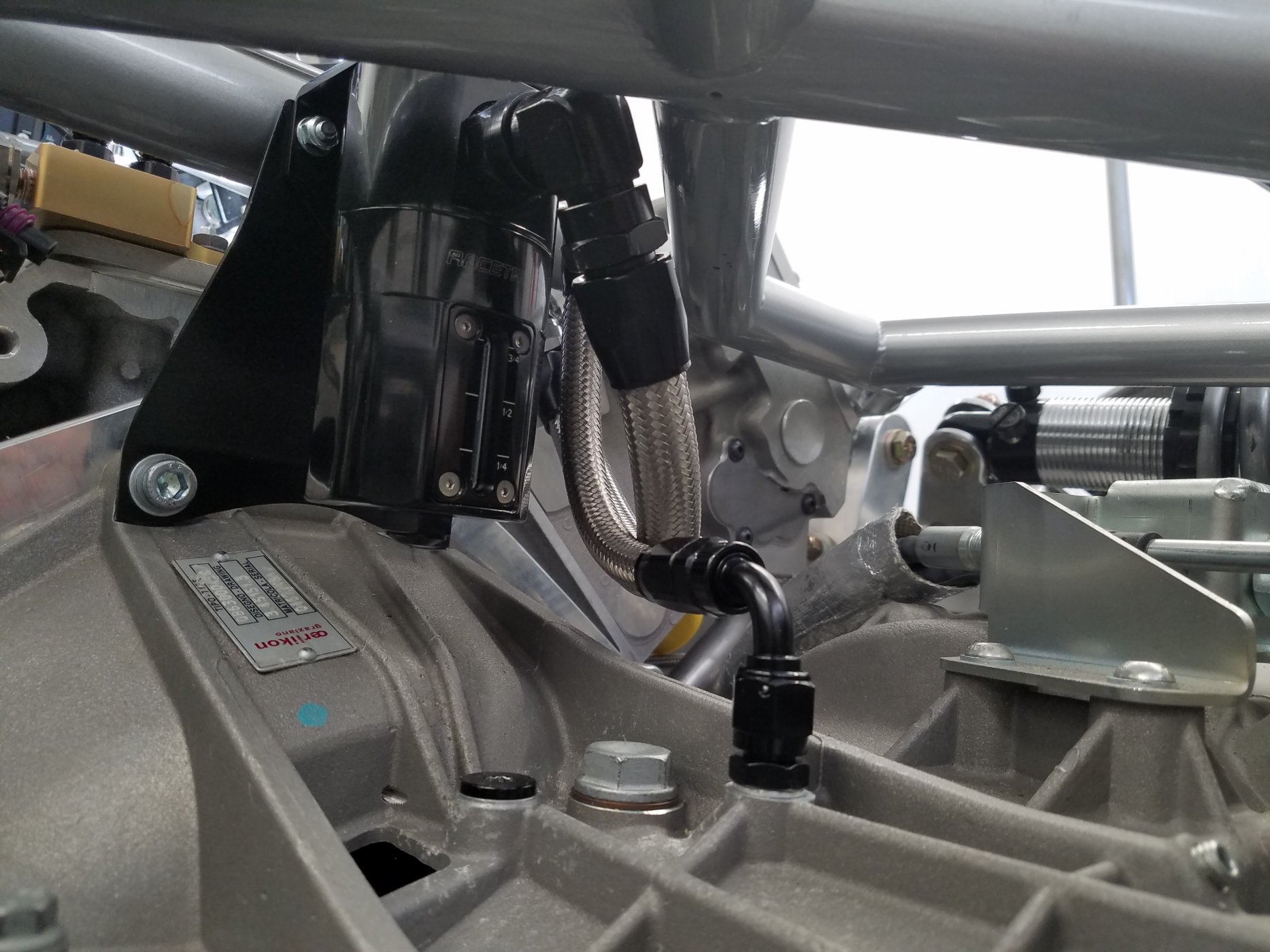

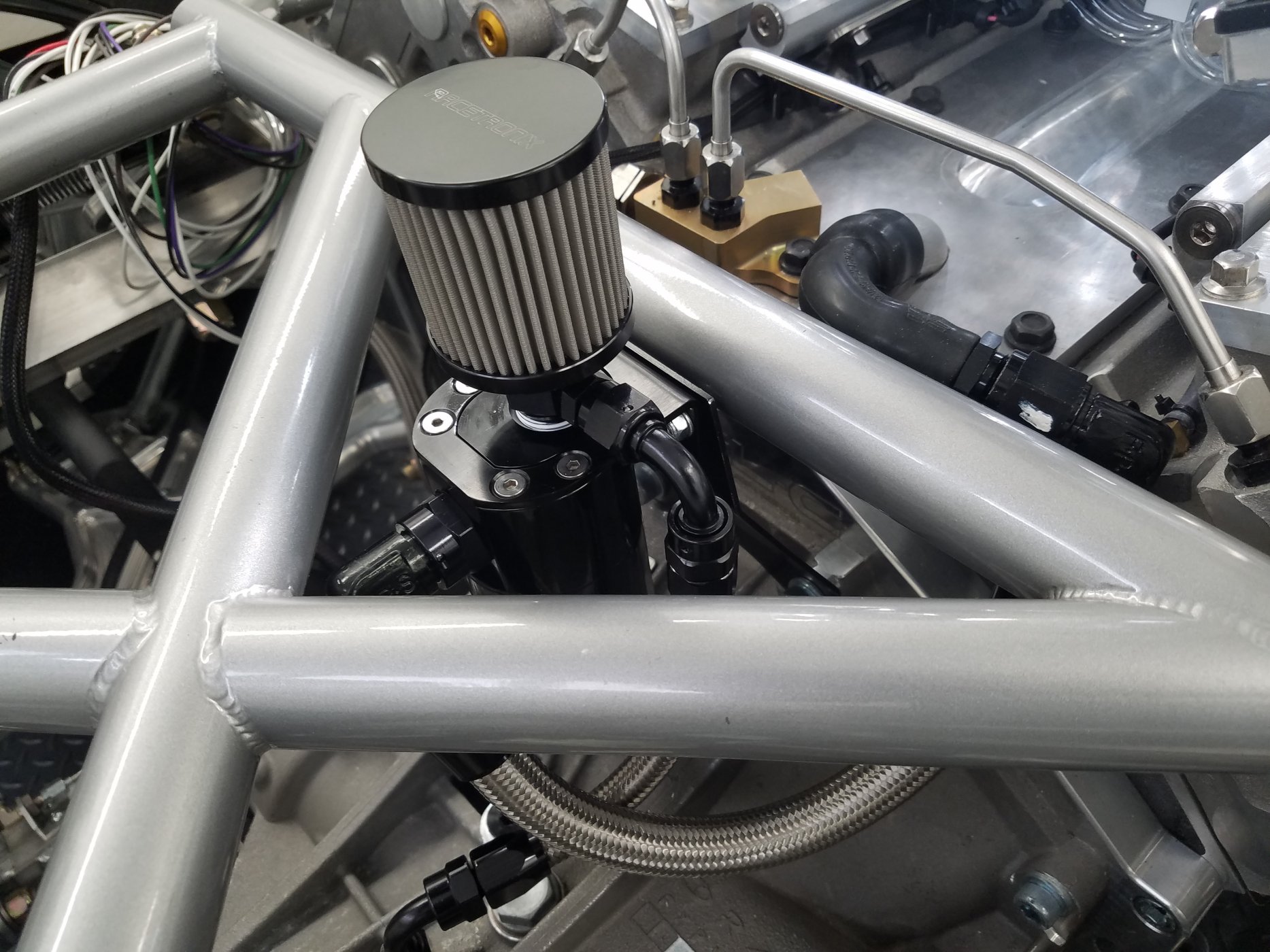

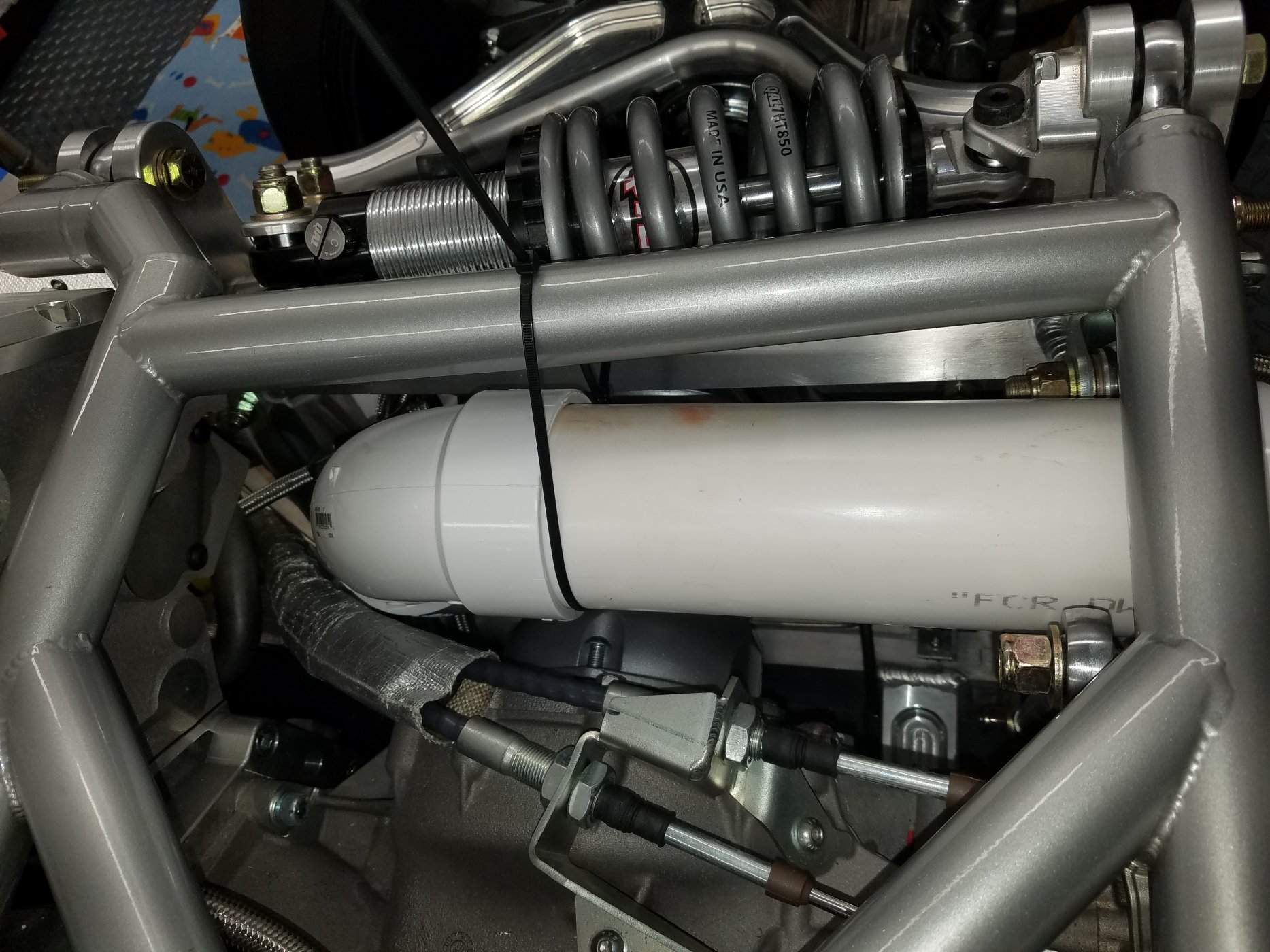

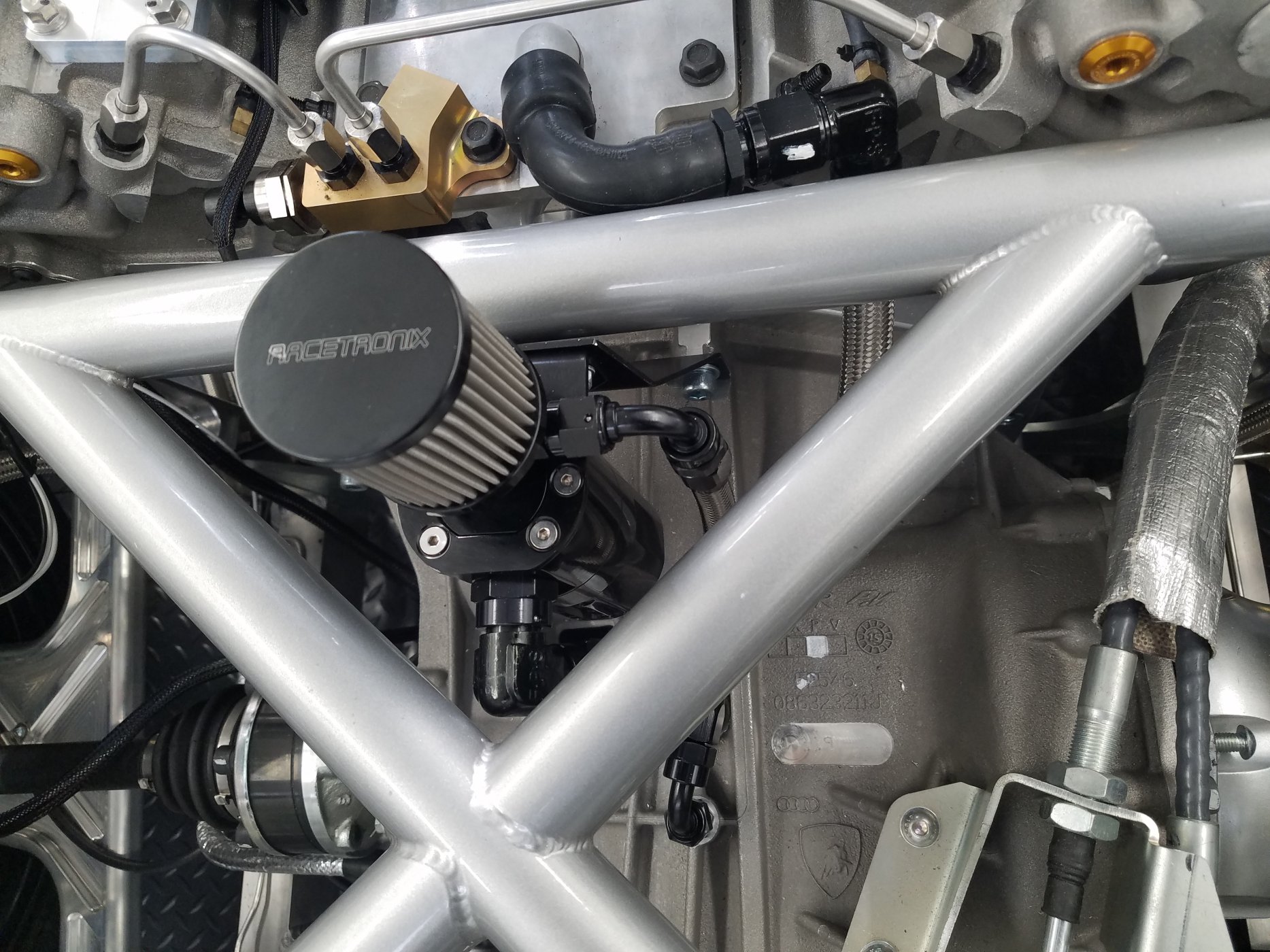

I relocated and reconfigured the crank case oil separator and added the transmission vent to it.
I would reconfigure the stainless braided line from the valley cover to the oil separator. It shouldn't be in the shape of a U. Oil will eventually accumulate at the bottom of the U and seal off the passage. It should be on a slope so that oil that doesn't make it to the separator can drain back to the valley cover. Just my thoughts.


Stephan E.

Supporter
I would reconfigure the stainless braided line from the valley cover to the oil separator. It shouldn't be in the shape of a U. Oil will eventually accumulate at the bottom of the U and seal off the passage. It should be on a slope so that oil that doesn't make it to the separator can drain back to the valley cover. Just my thoughts.
Thank you Ken,
Both ends on the 10AN are swivel and I could lower the bracket and add a clip to the brace to keep the line horizontal.


Stephan E.

Supporter

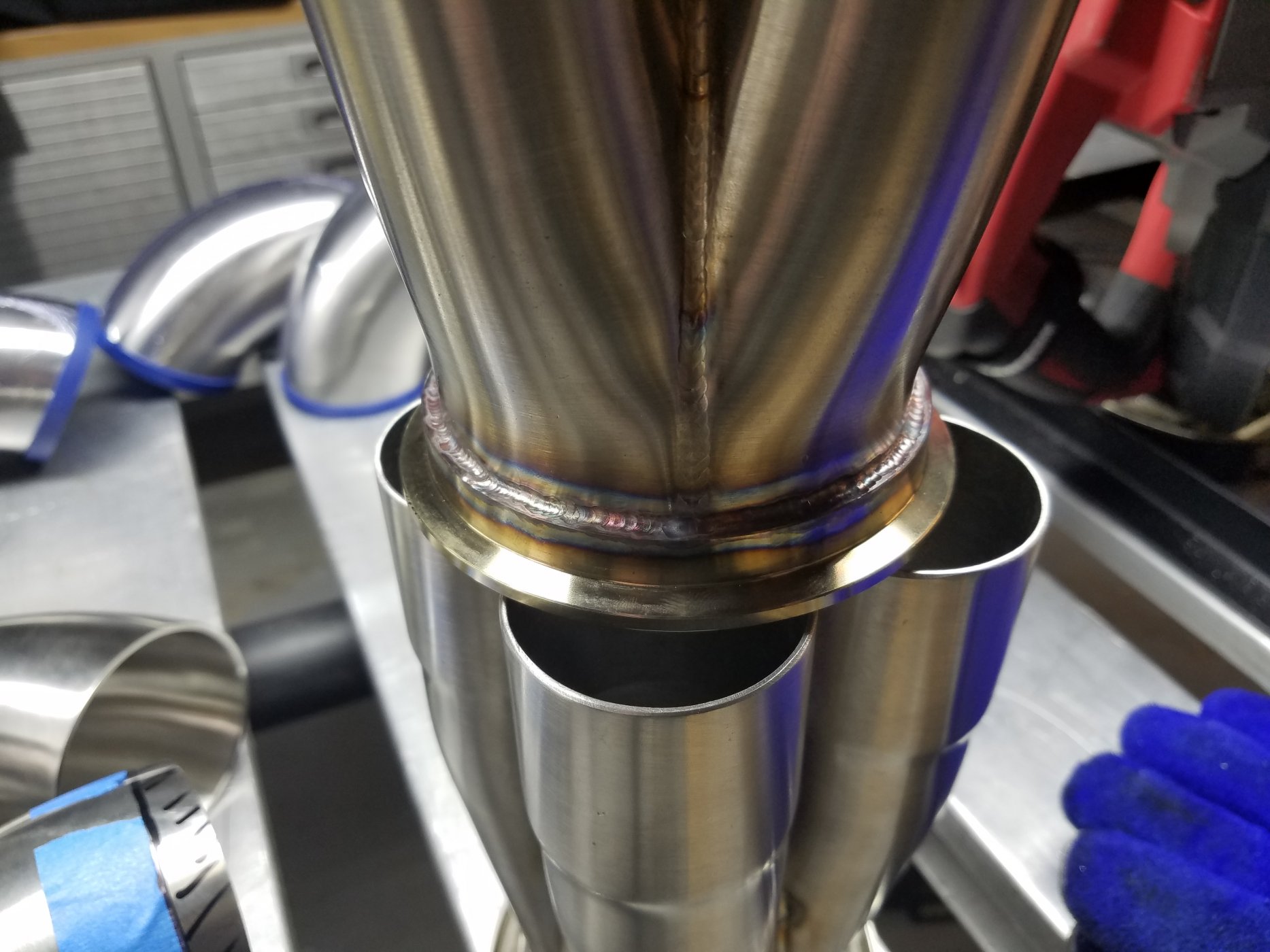

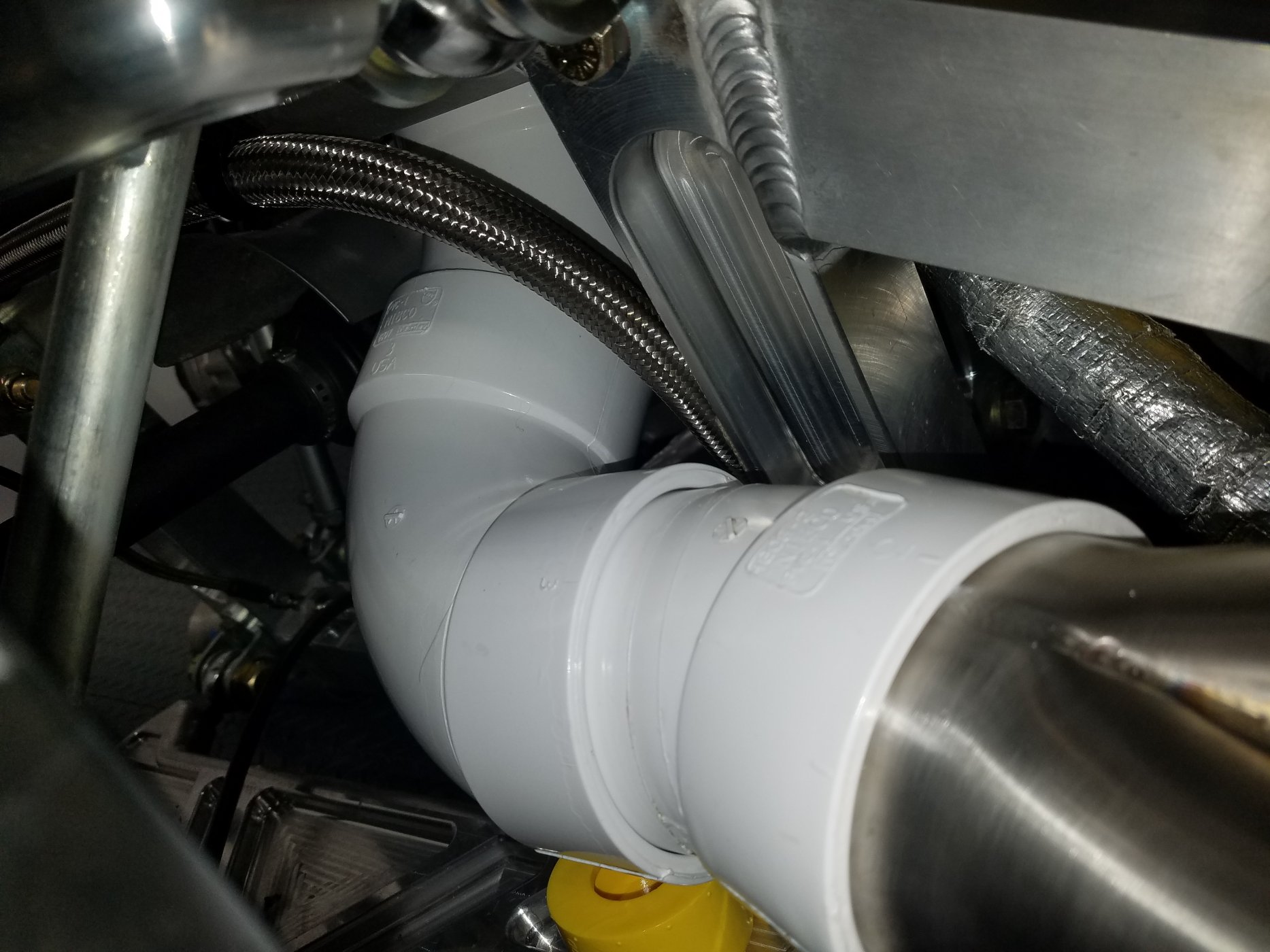

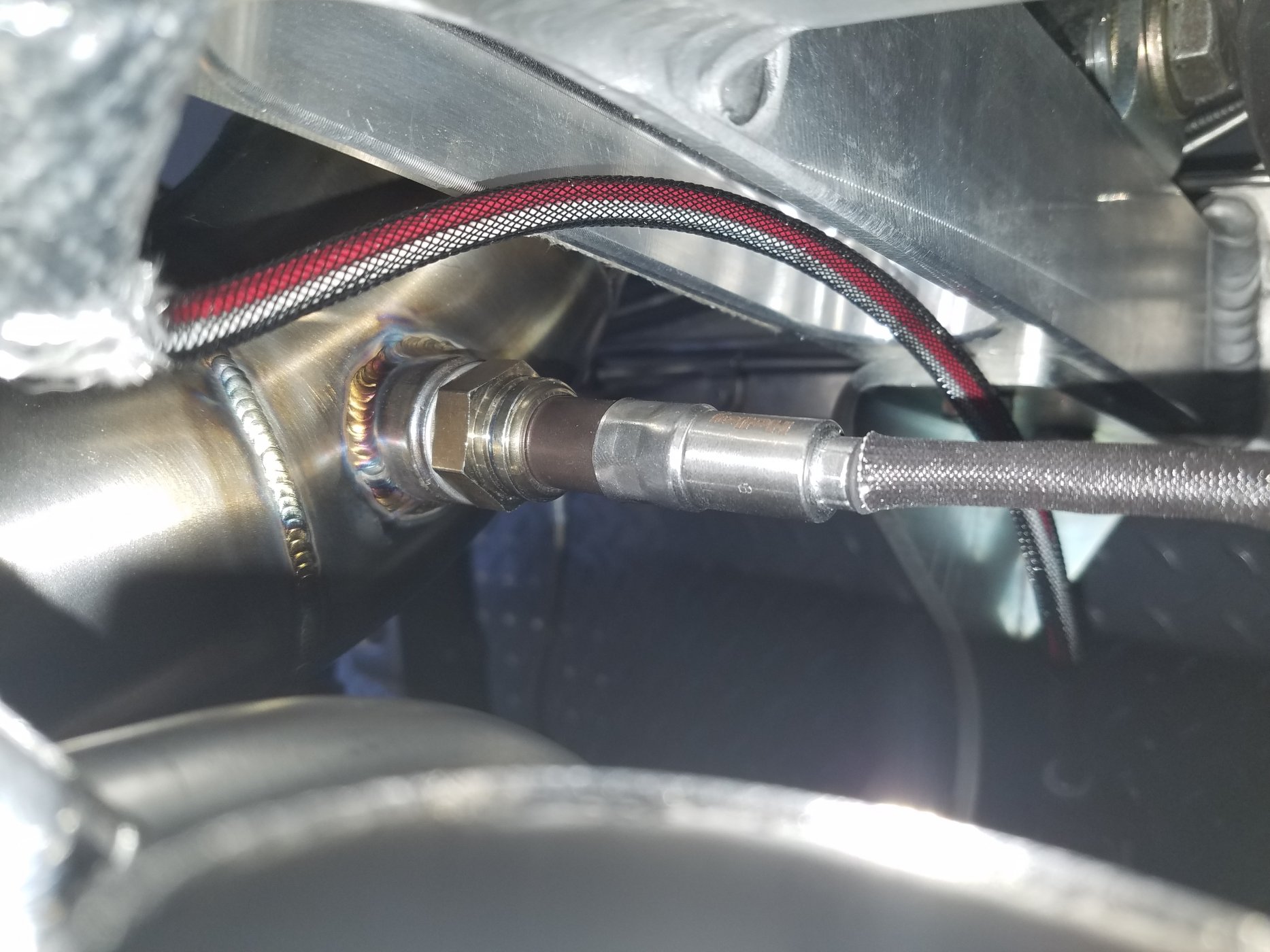

New Exhaust System Rev.1, Chapter 3

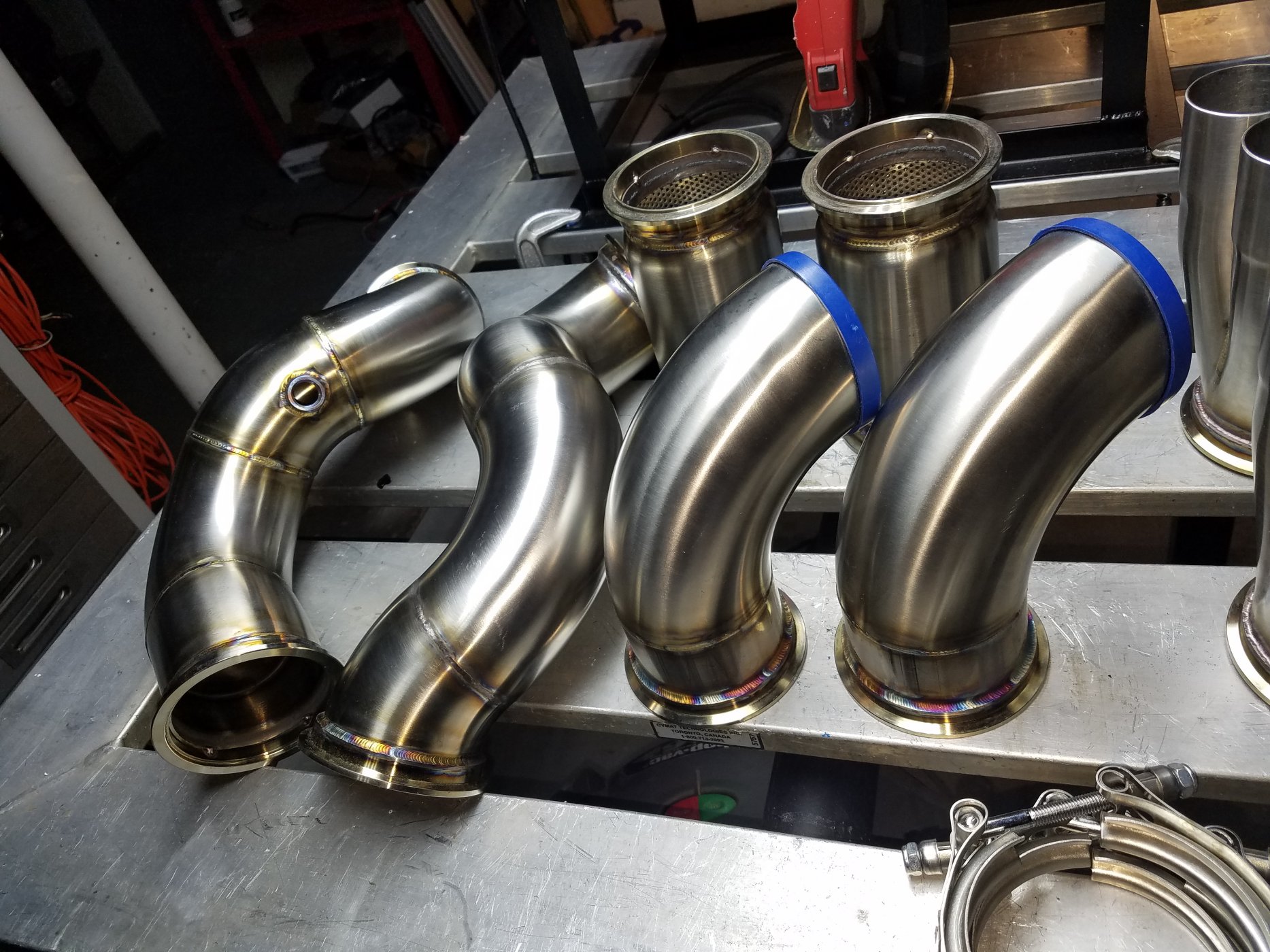

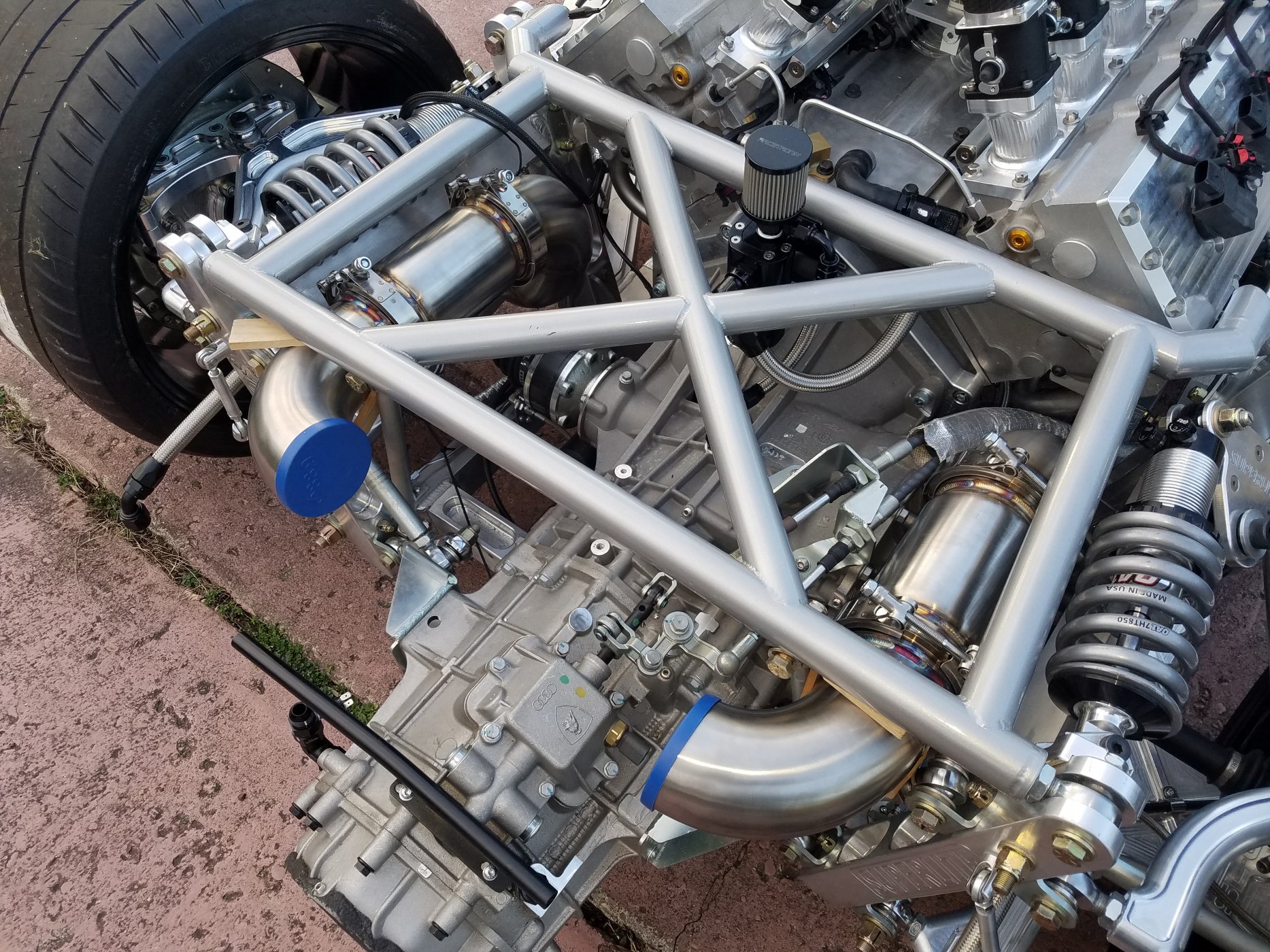

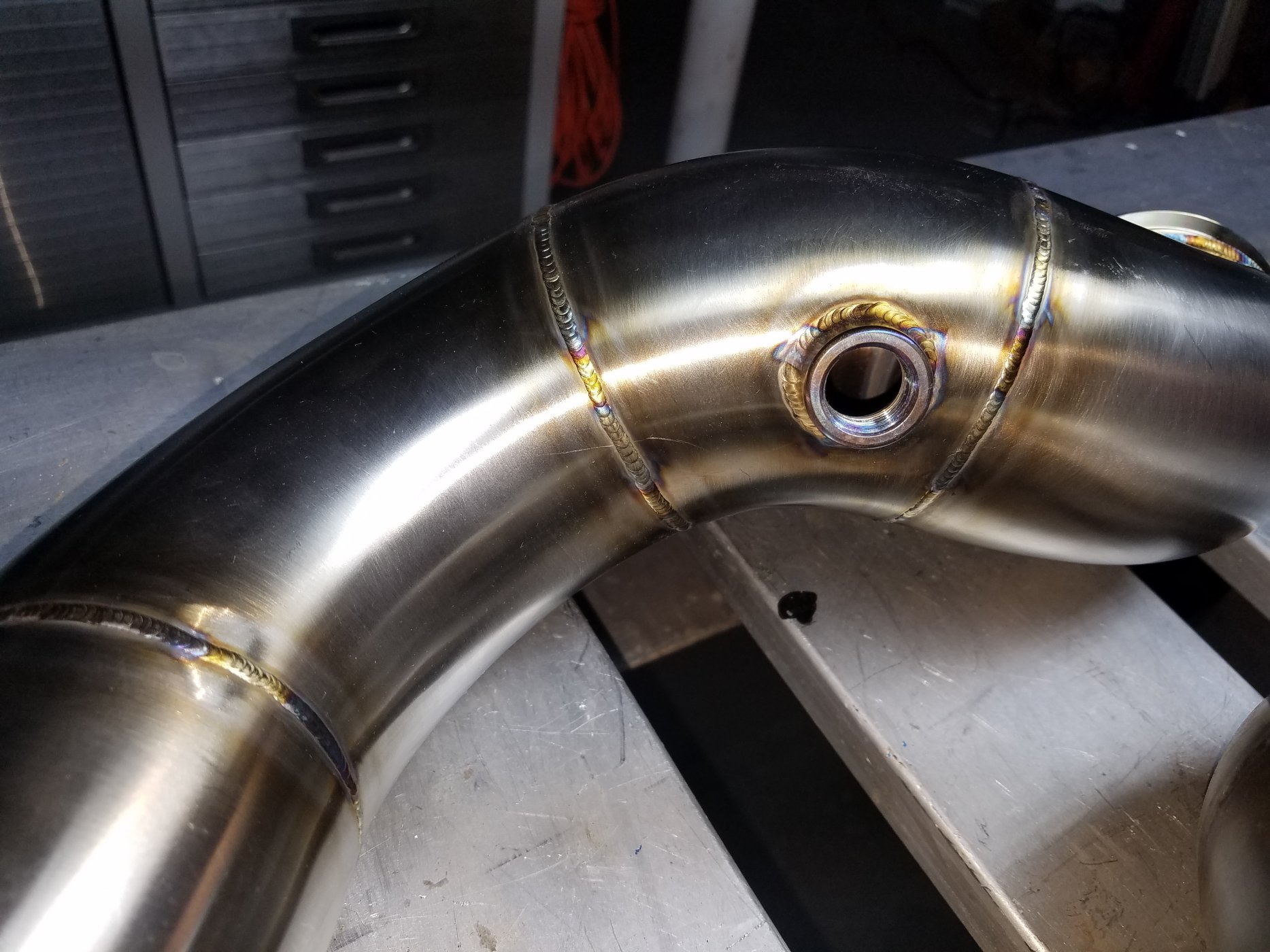

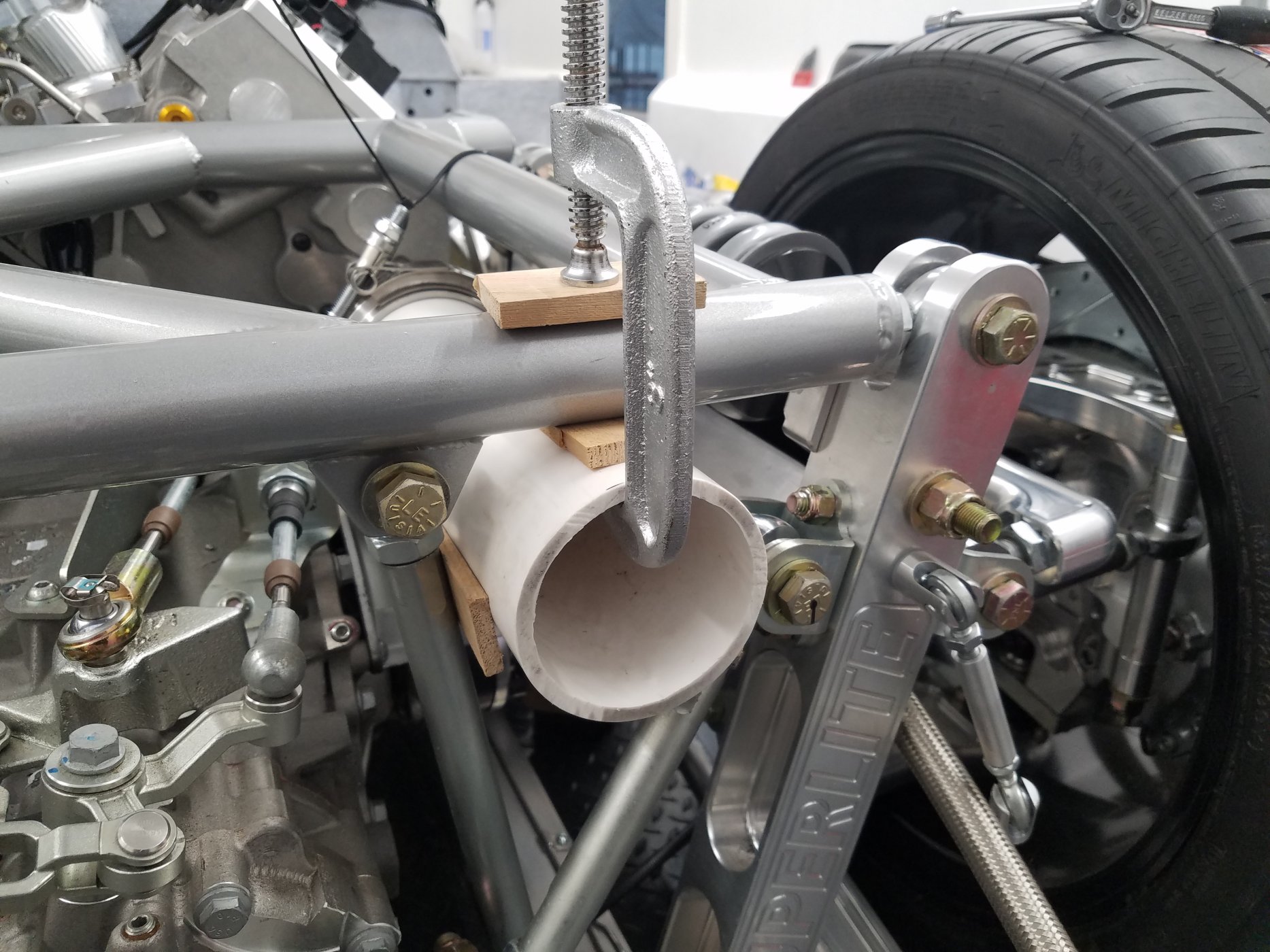

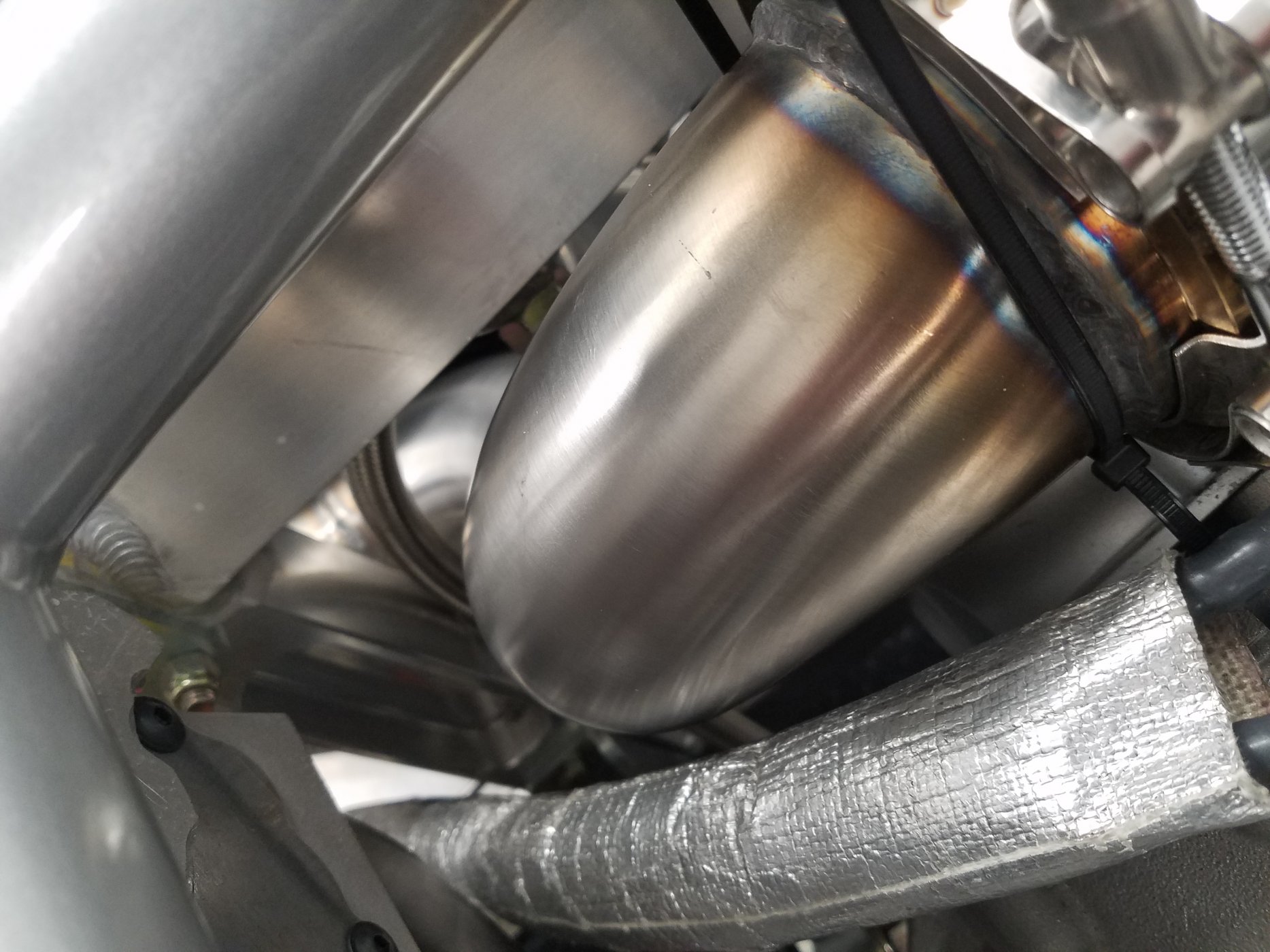

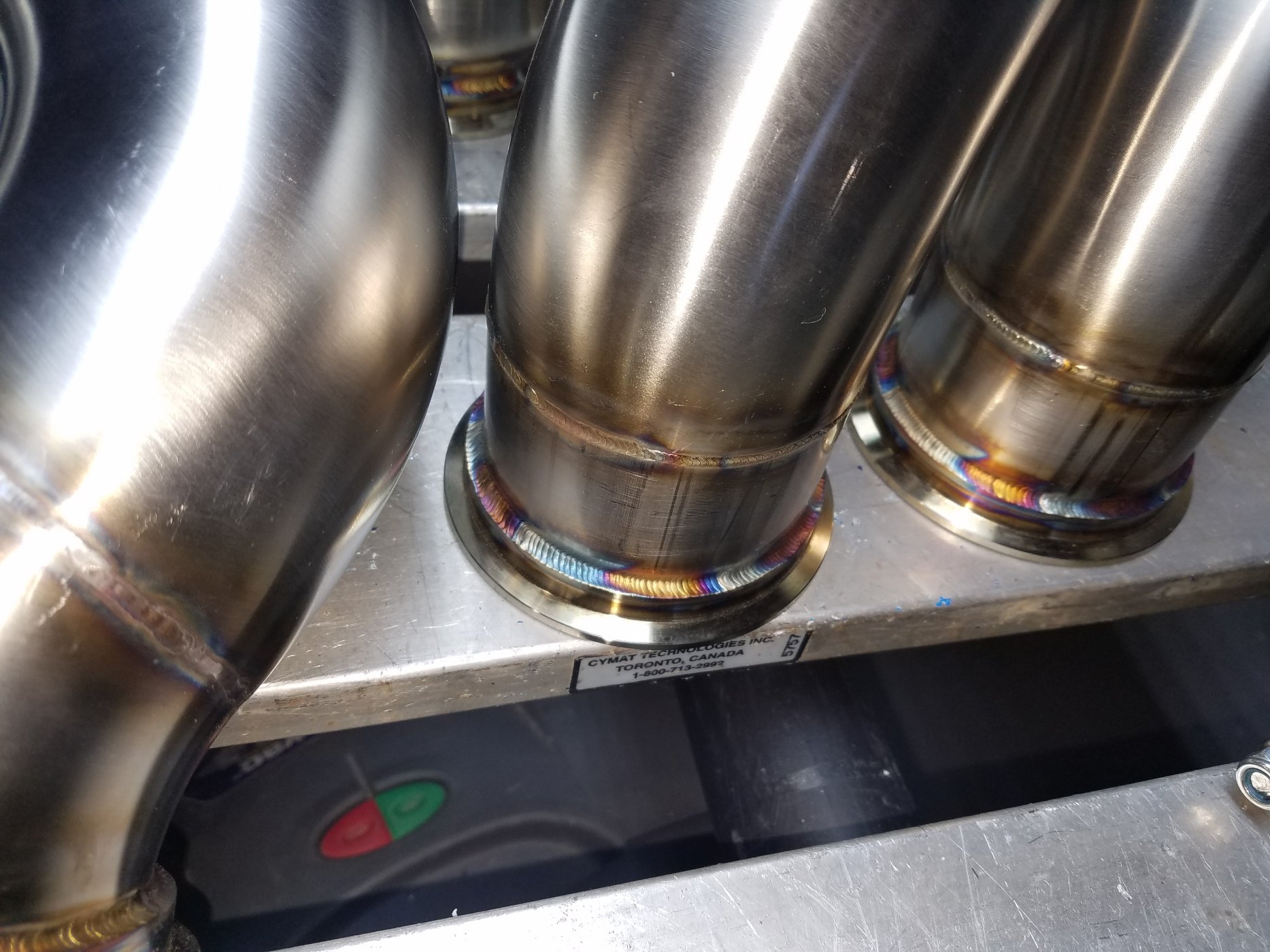

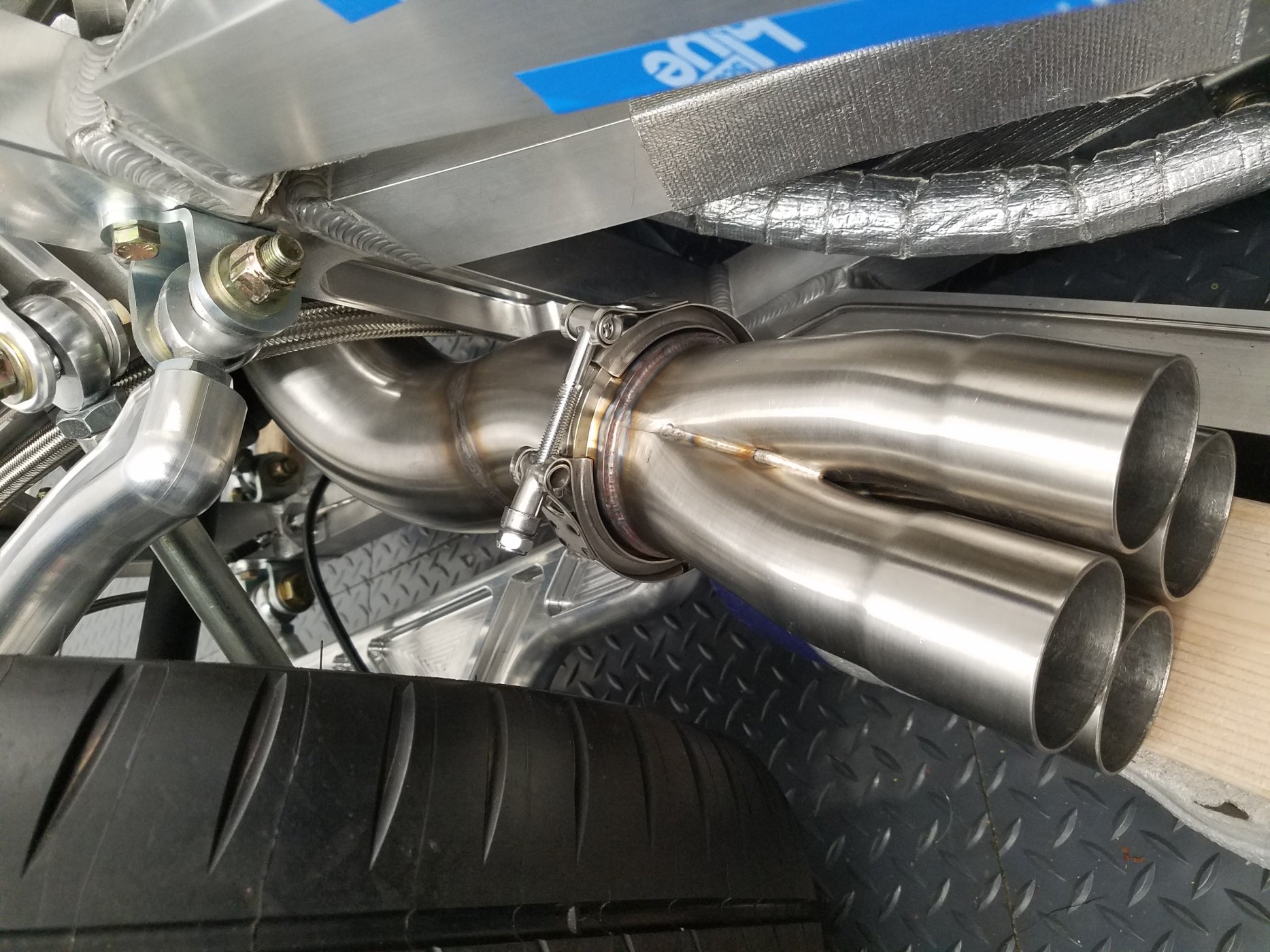

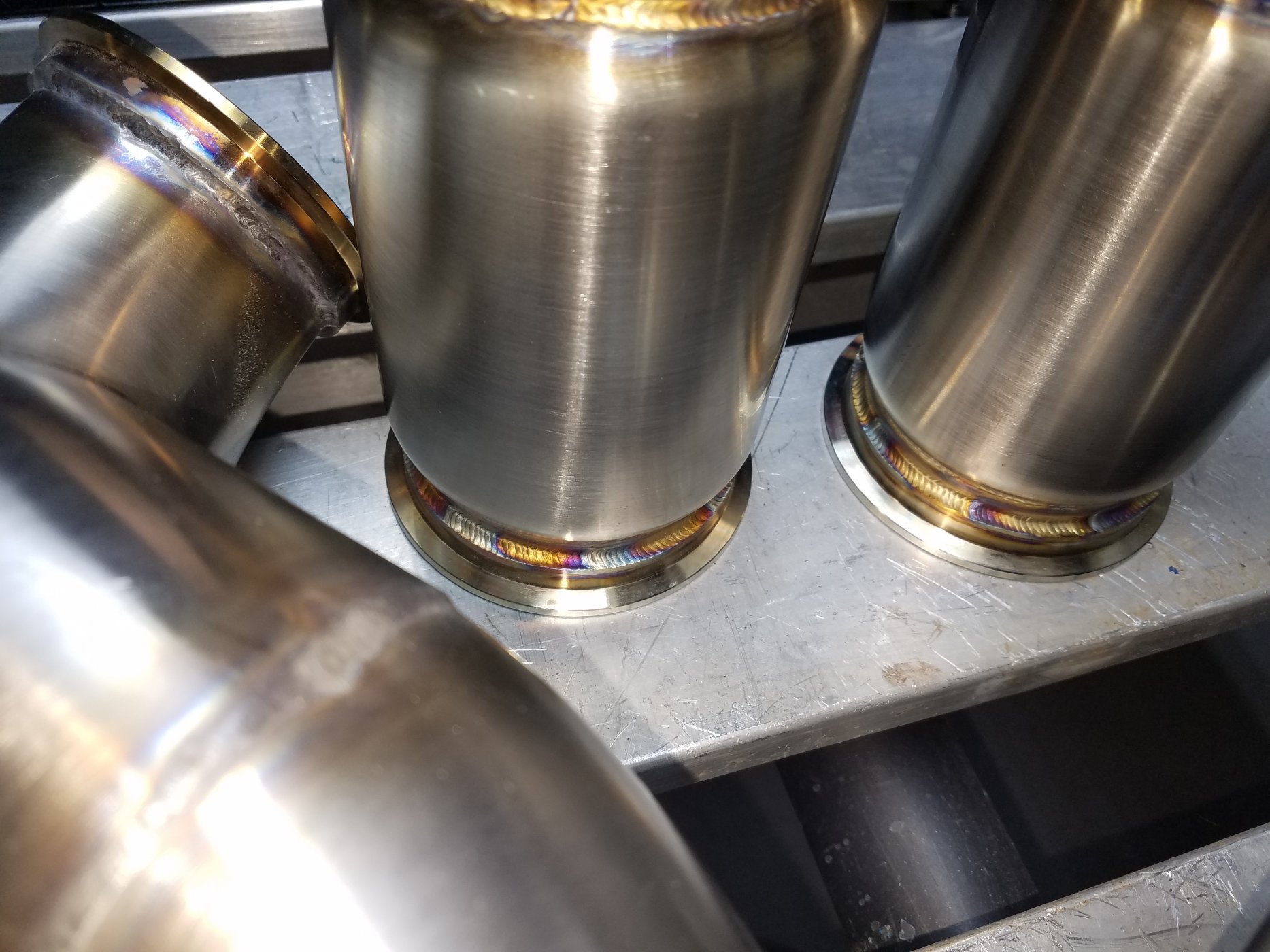

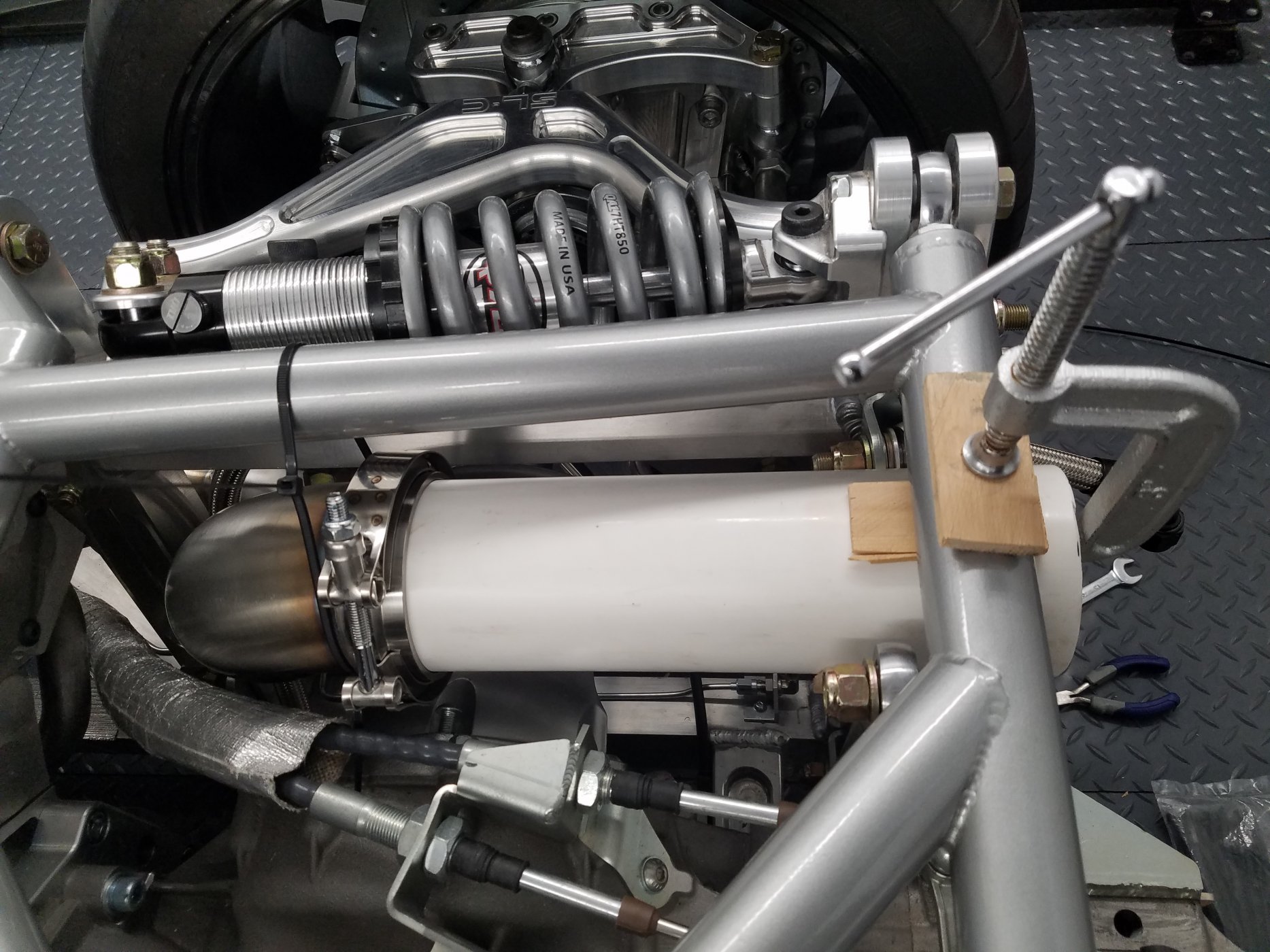

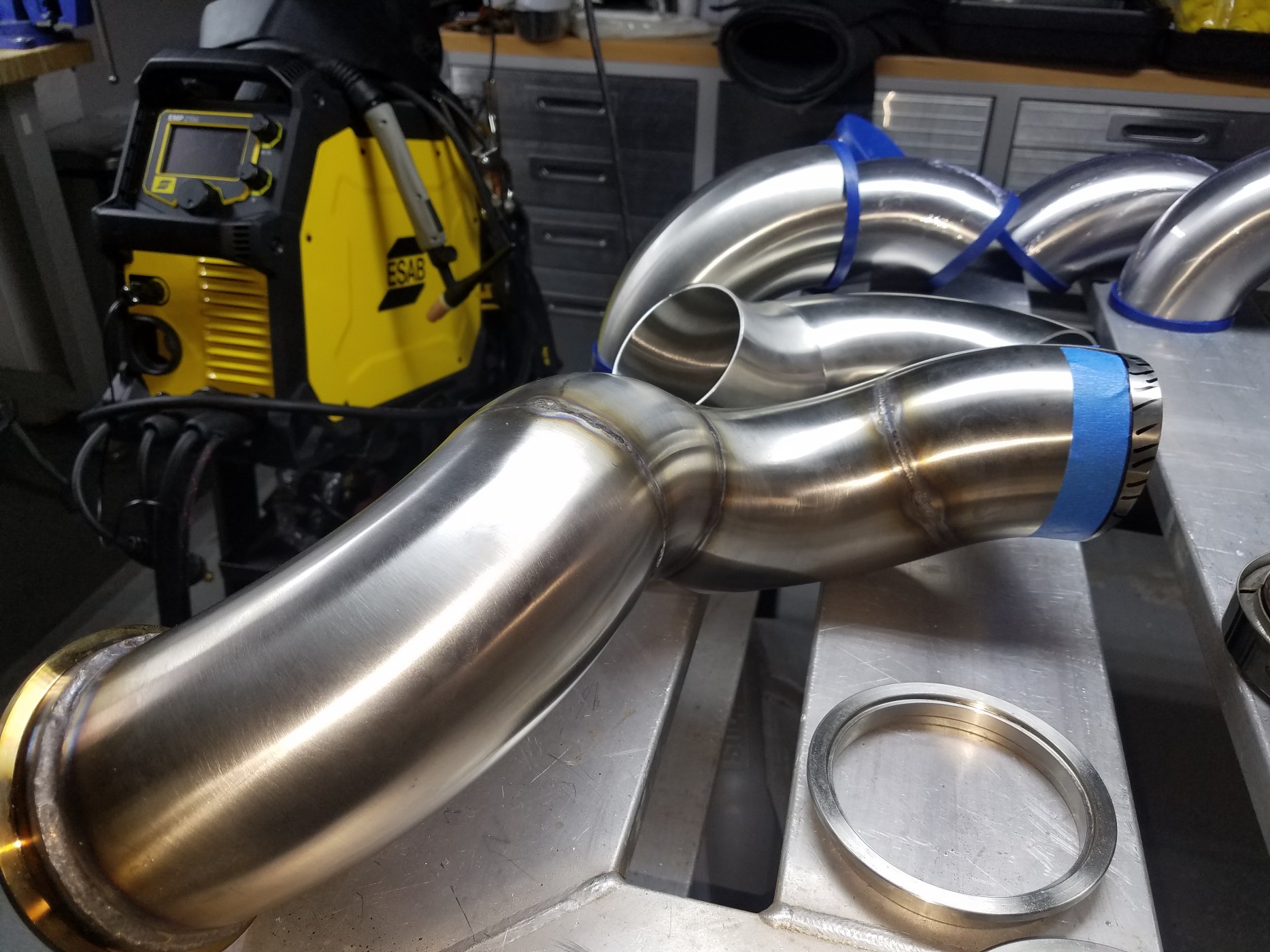

I was able to get the collectors and backwards tubing including mufflers in their permanent places and will soon start with the headers. What a project...


Attachments

Last edited:

Stephan E.

Supporter
New Exhaust System Rev.1, Chapter 4

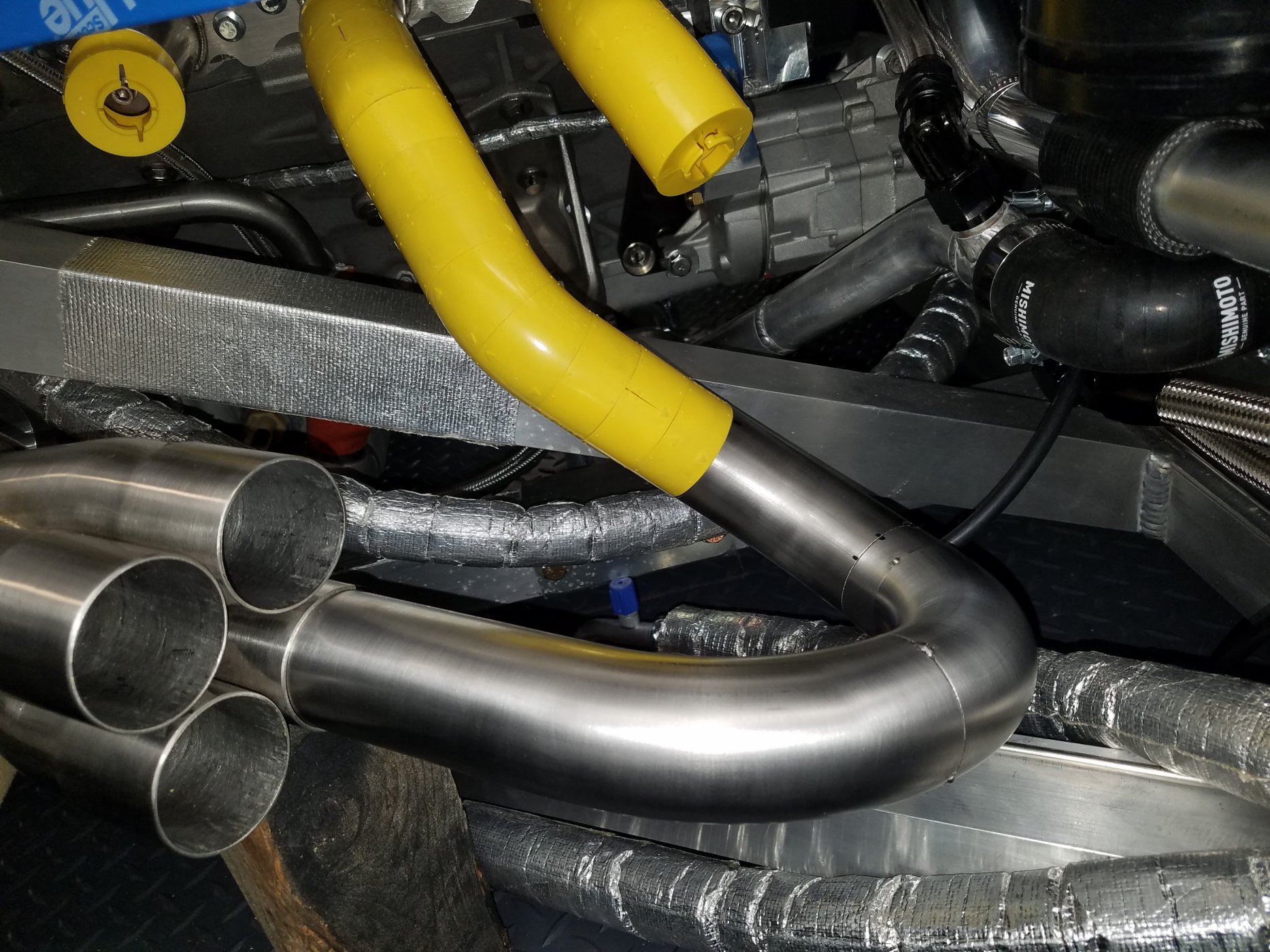

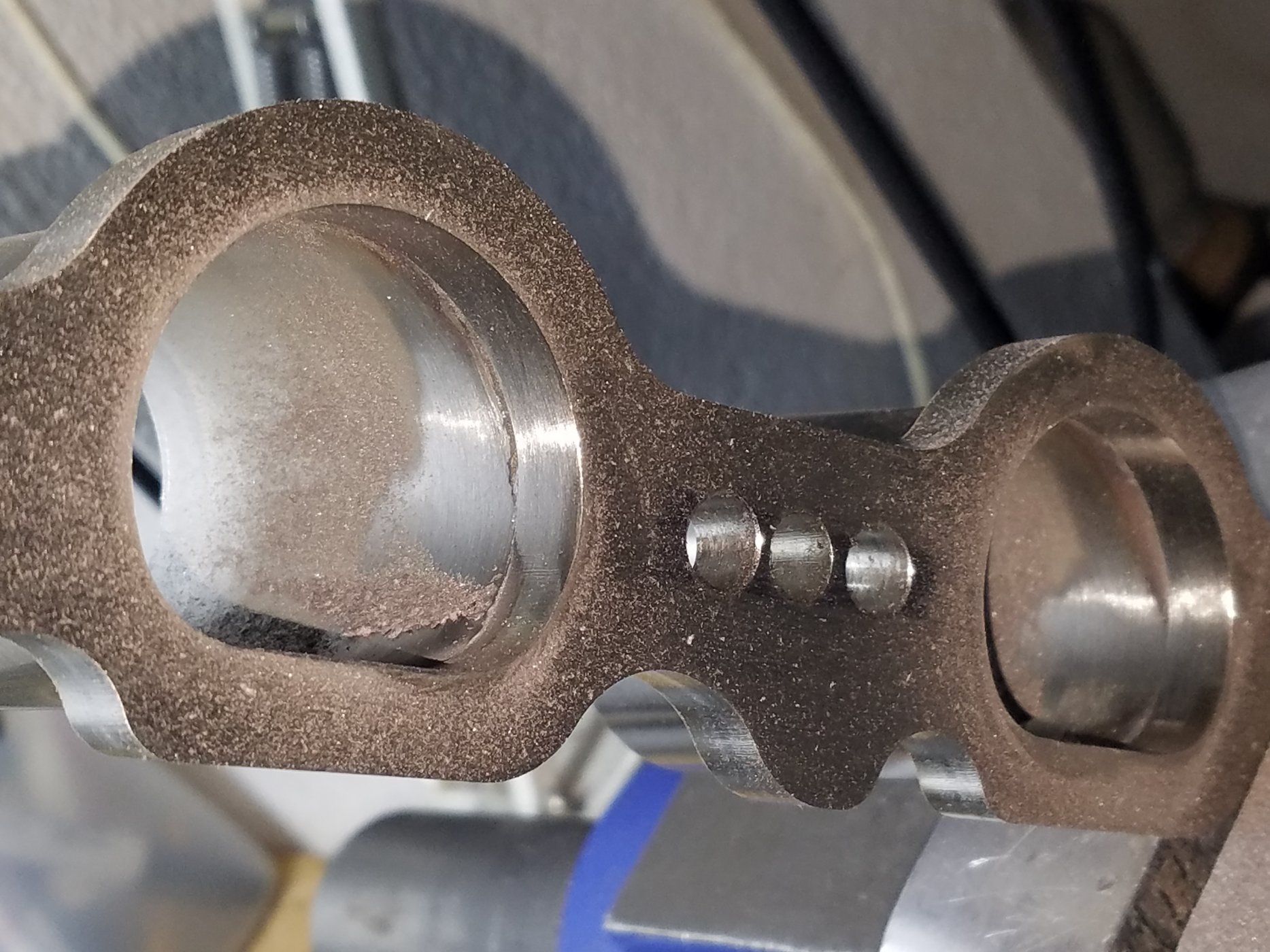

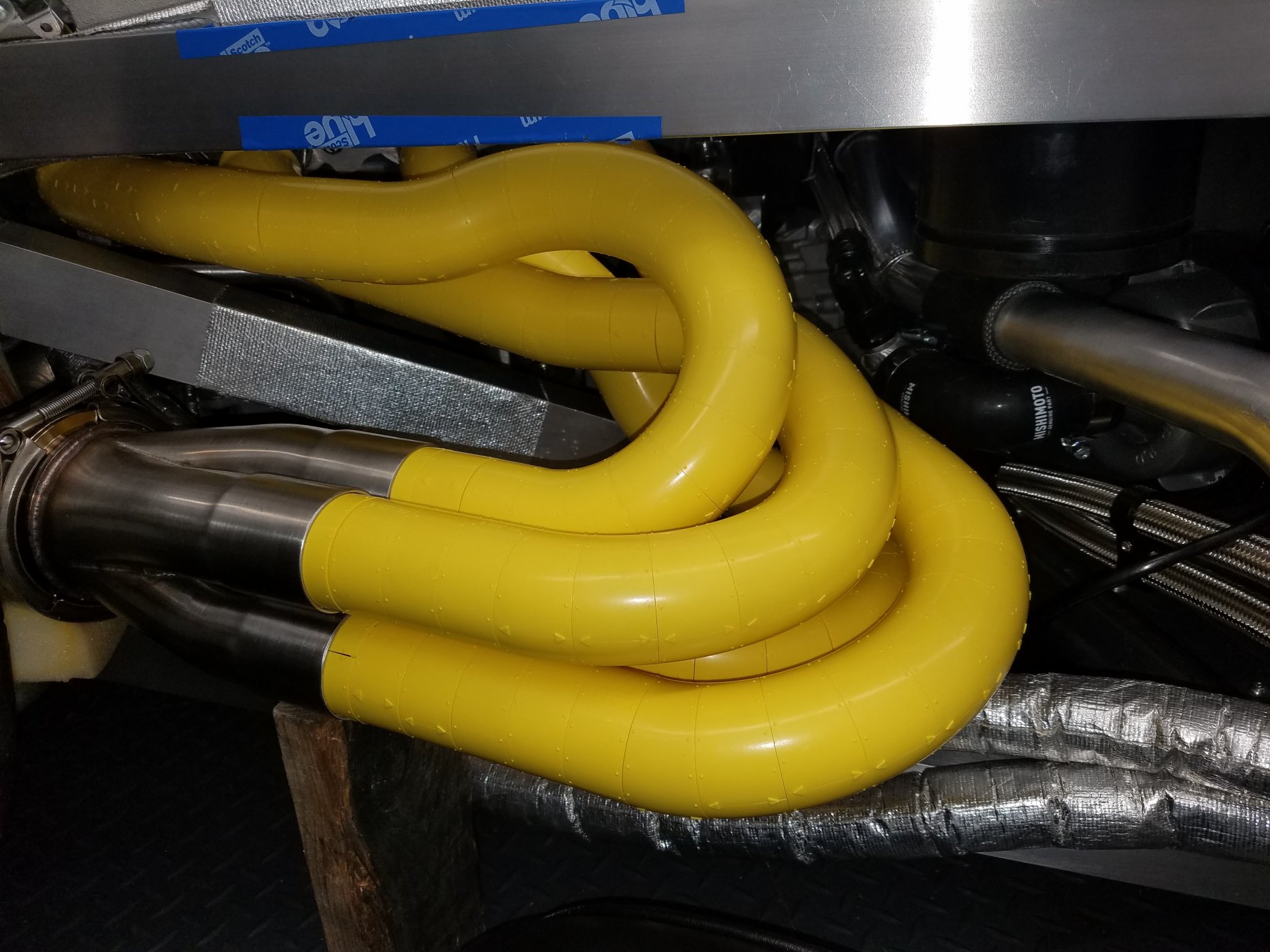

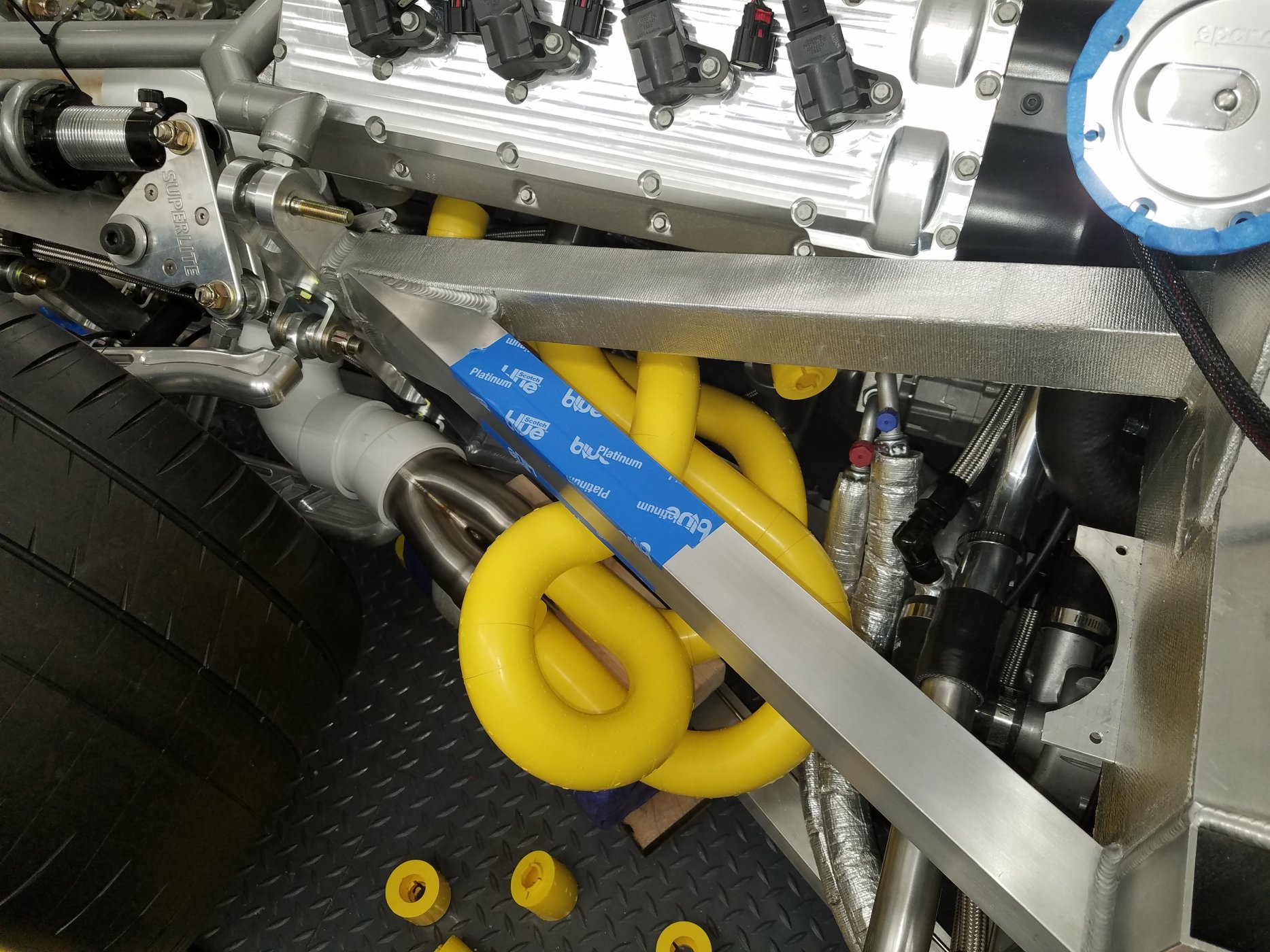

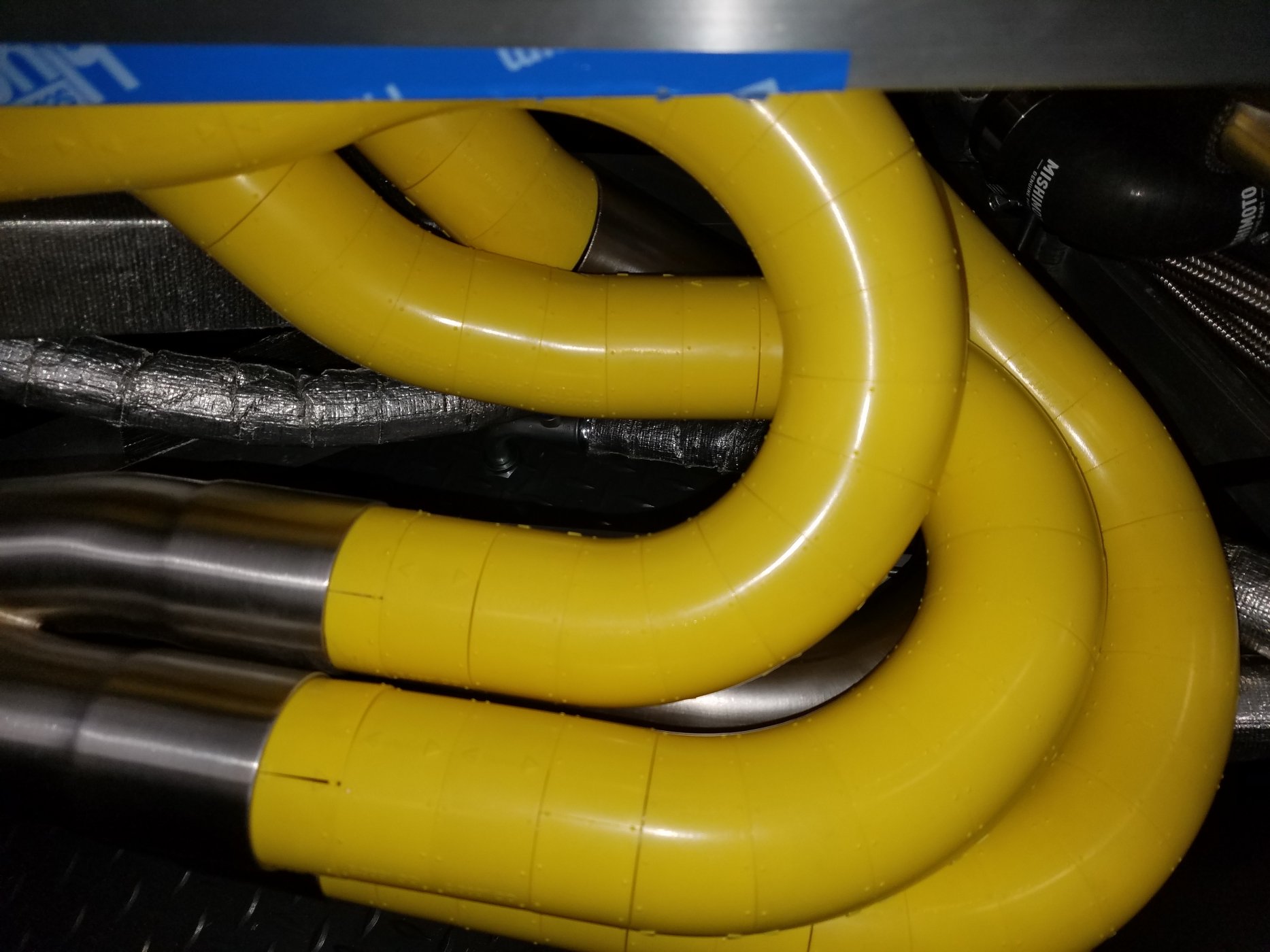

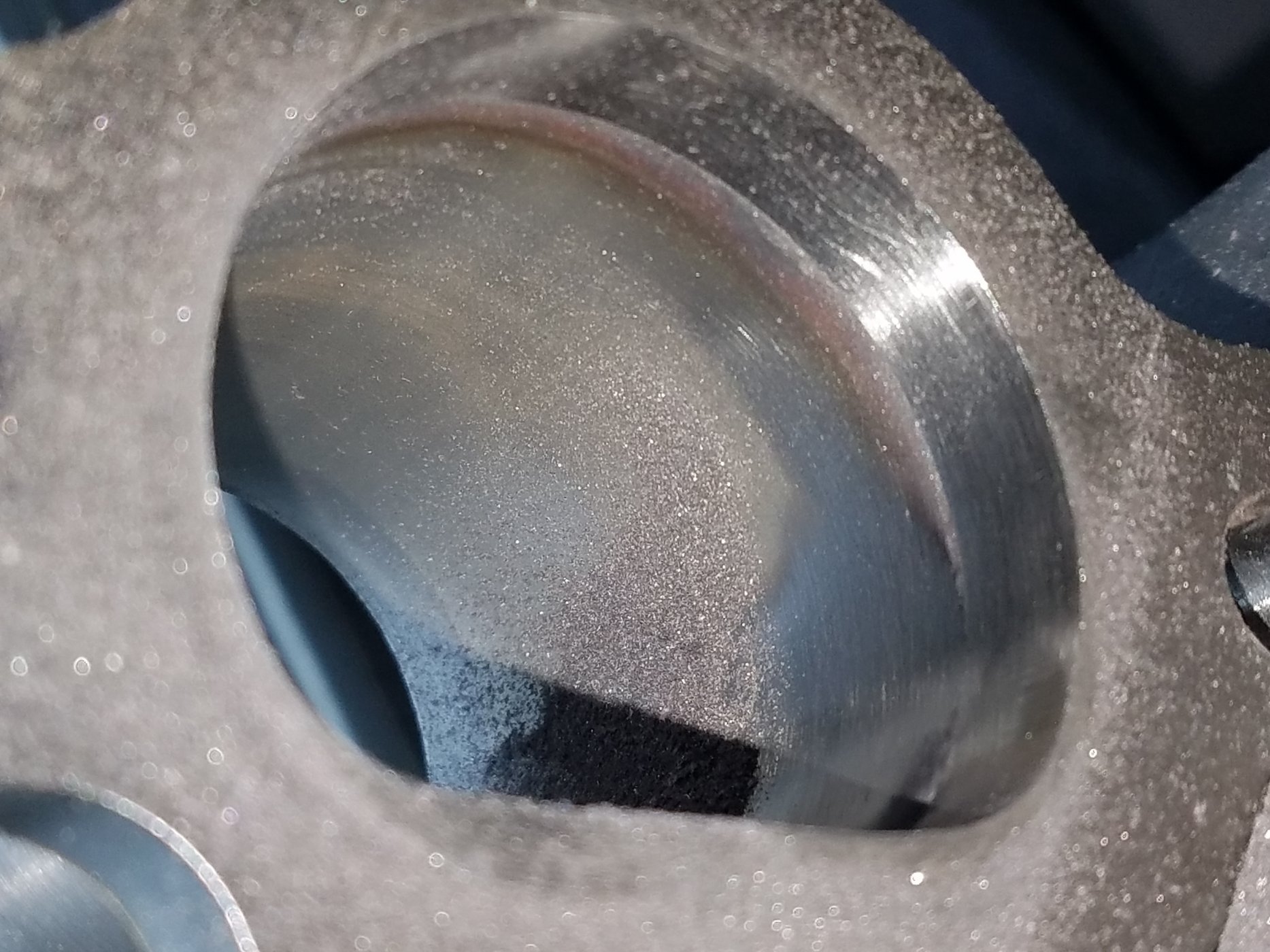

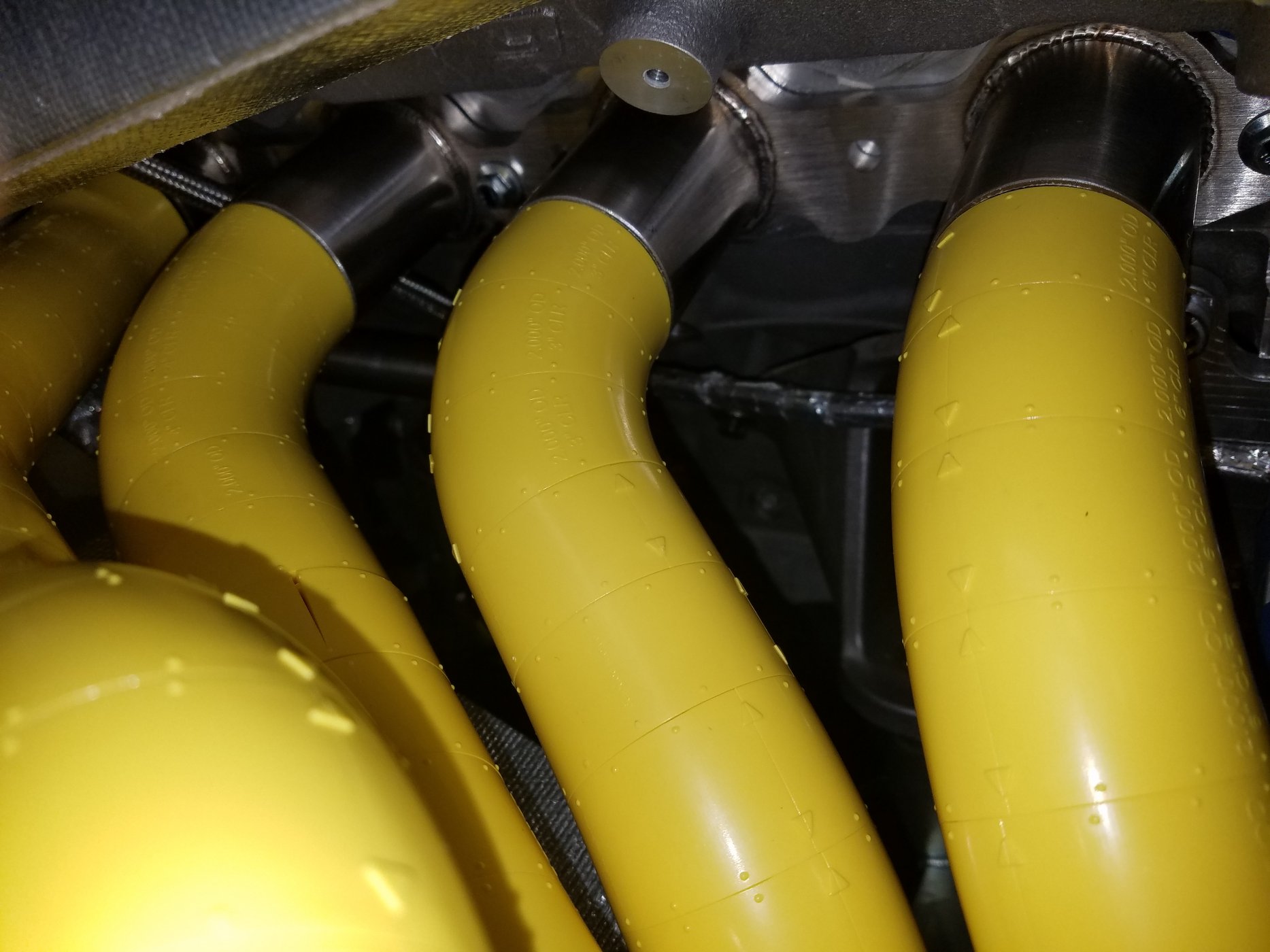

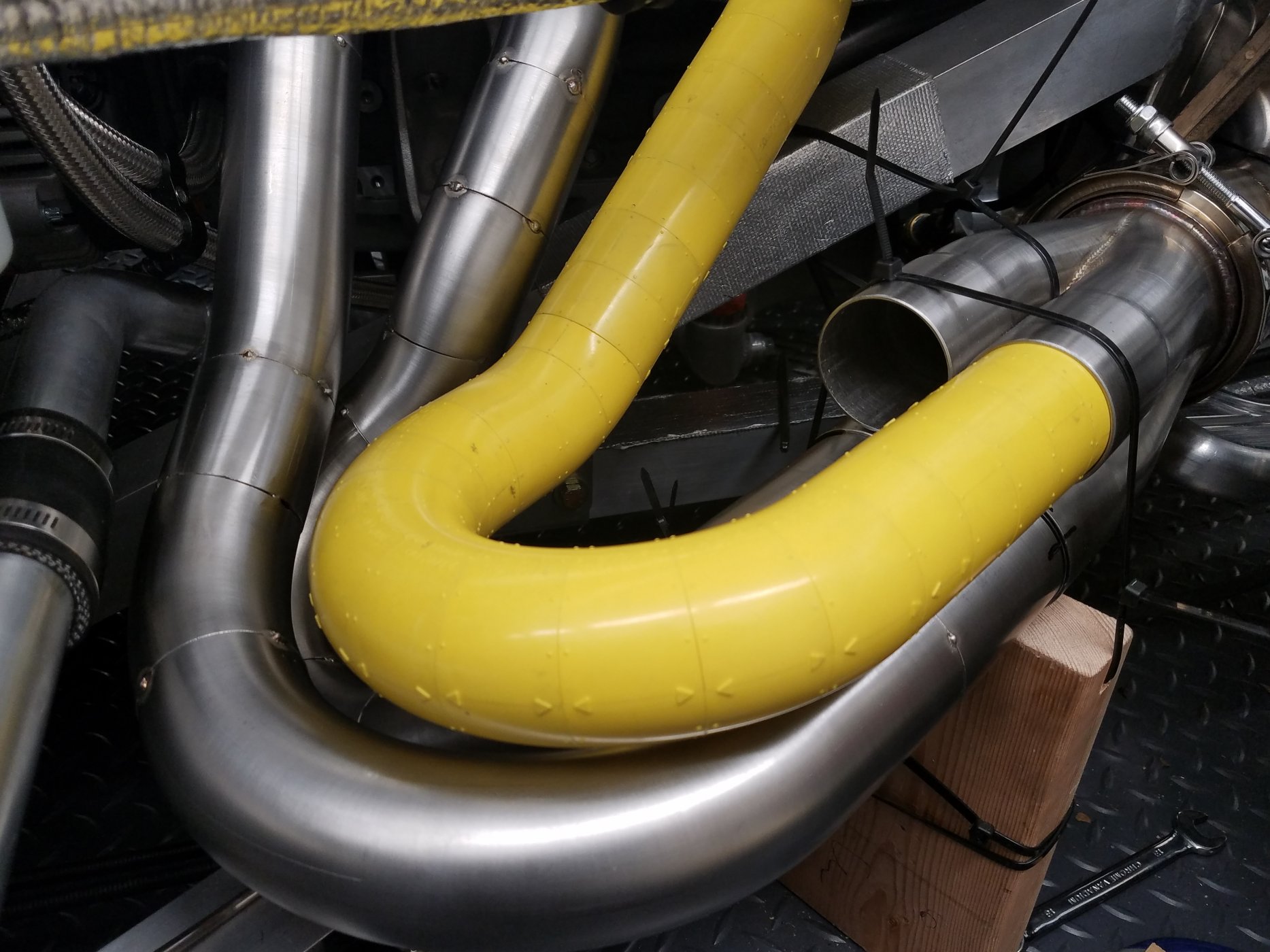

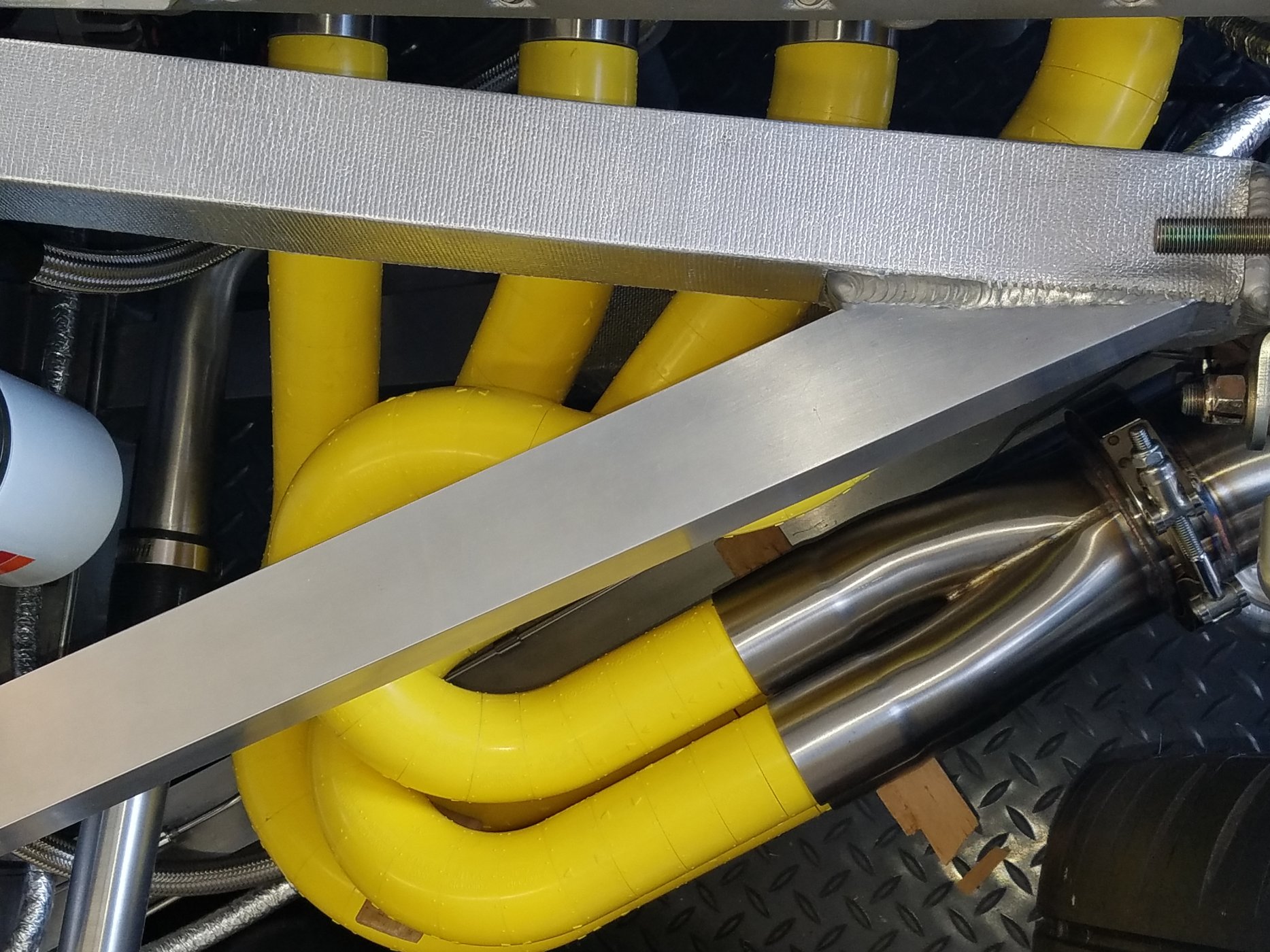

I finished the port matching and adding the Mercury bolt pattern to the new manifolds before mounting them. Now it was time to get serious with a tube layout. A lot to consider when making your own and first tuned exhaust system. I tried a few different ways and focused on being able to remove the headers when the body is on, keeping the weight low and as far inboard as I could. Keeping space between chassis and tubing for the header to grow as it heats up. What material thickness etc, etc... Here is how my headers transforming from theory to reality. I started on the passenger side of cramping 32" of 2" primary equal length 304SS tubing in this car.


Attachments

Last edited:

Stephan E.

Supporter

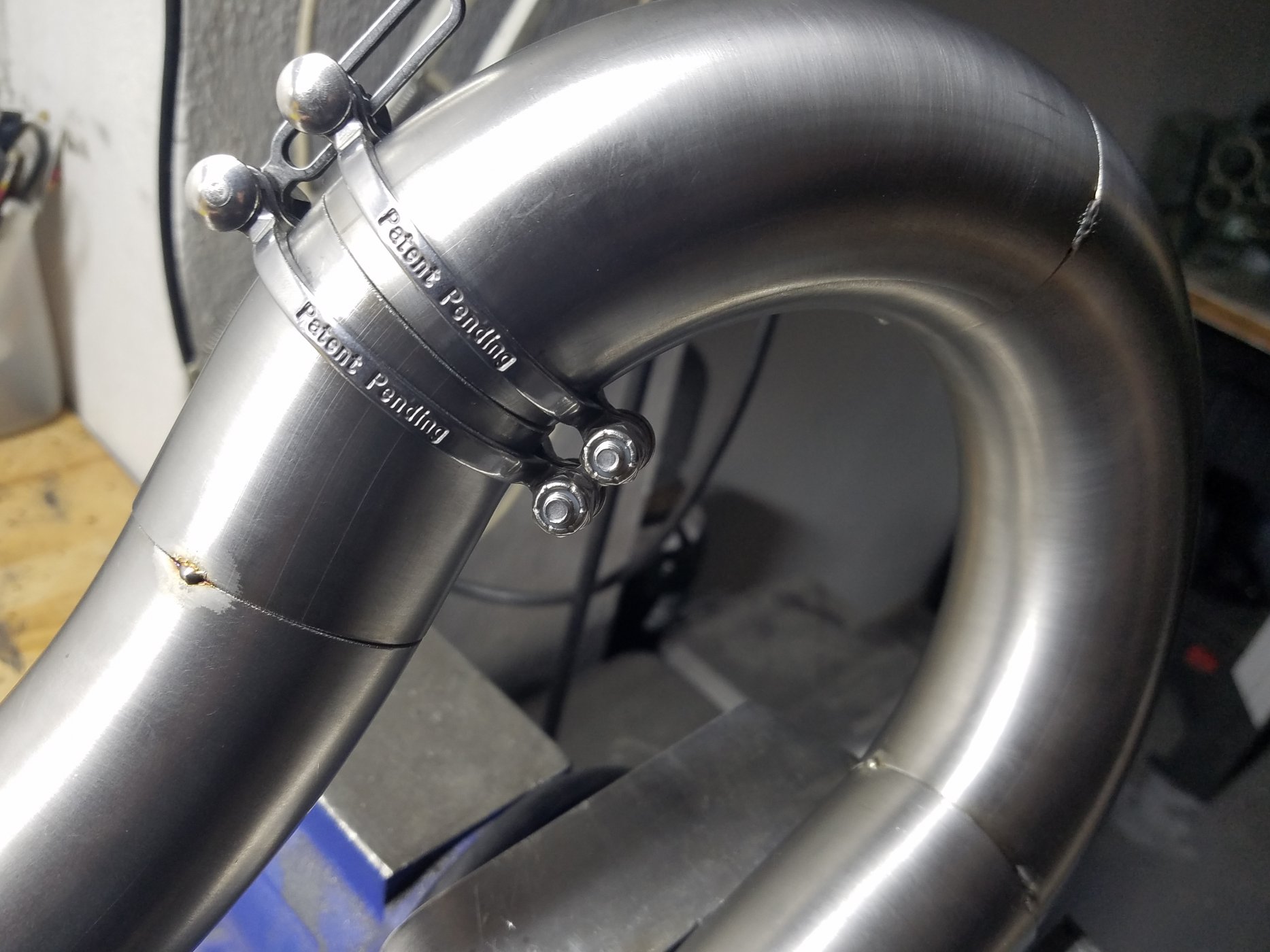

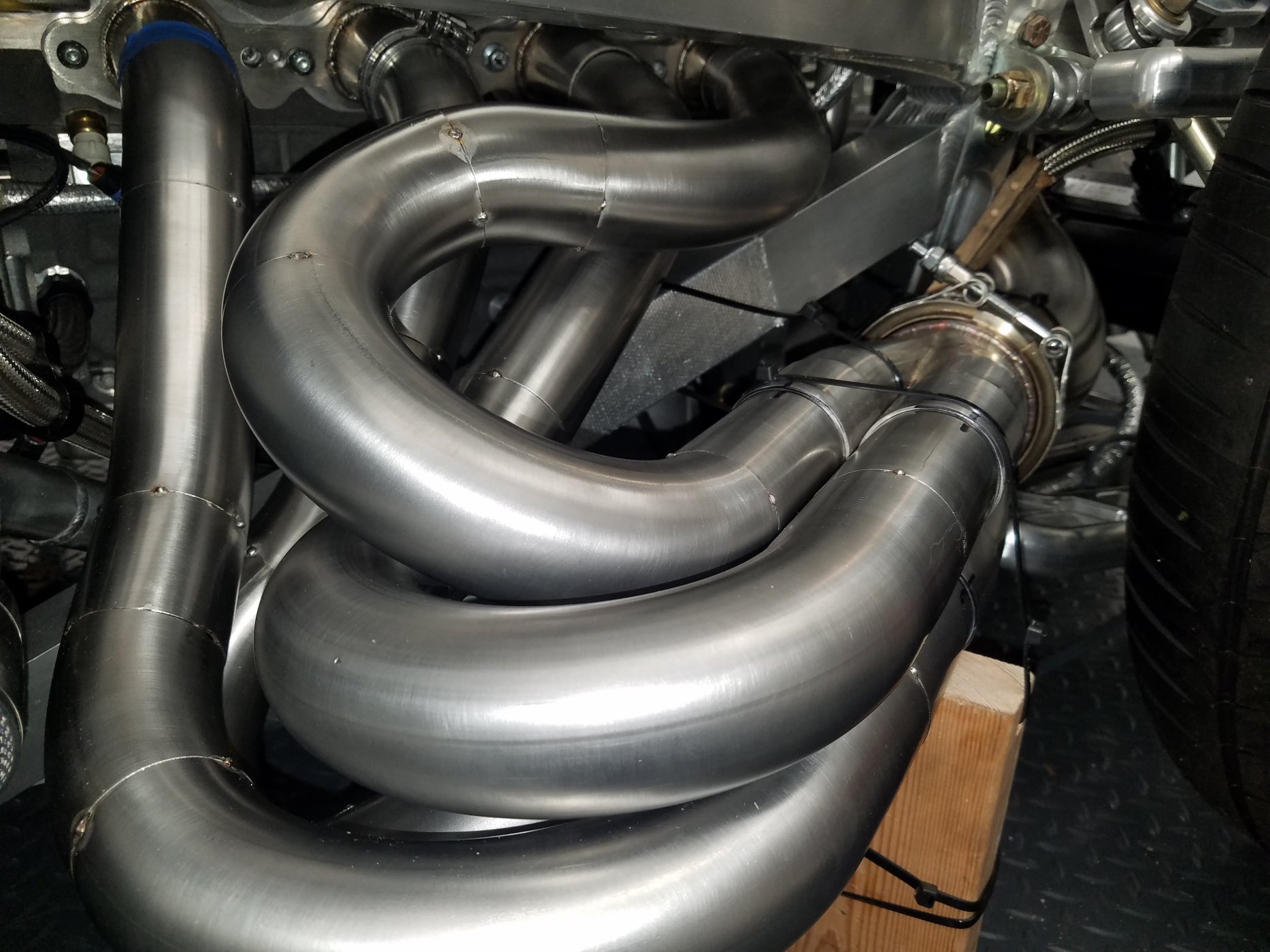

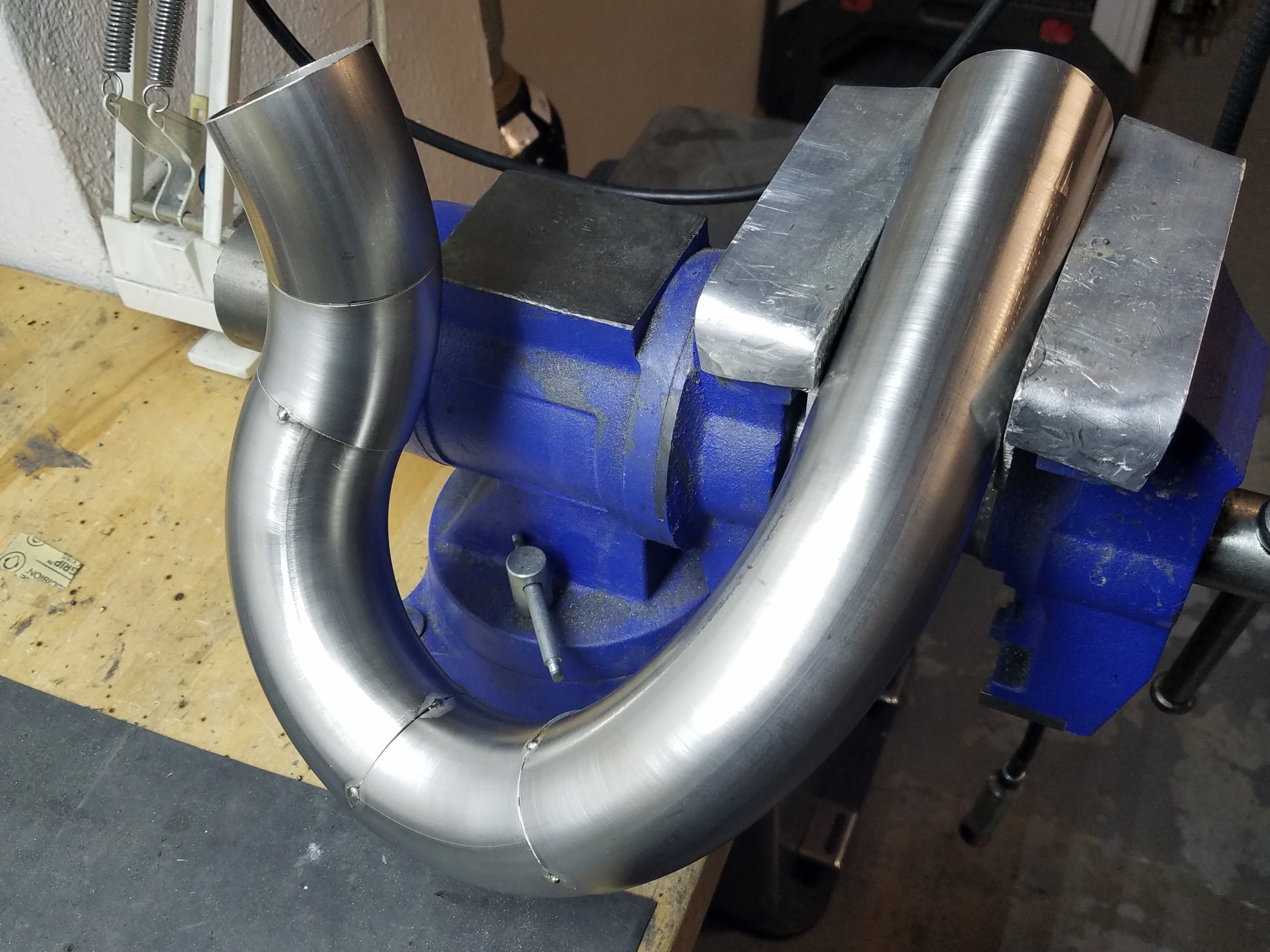

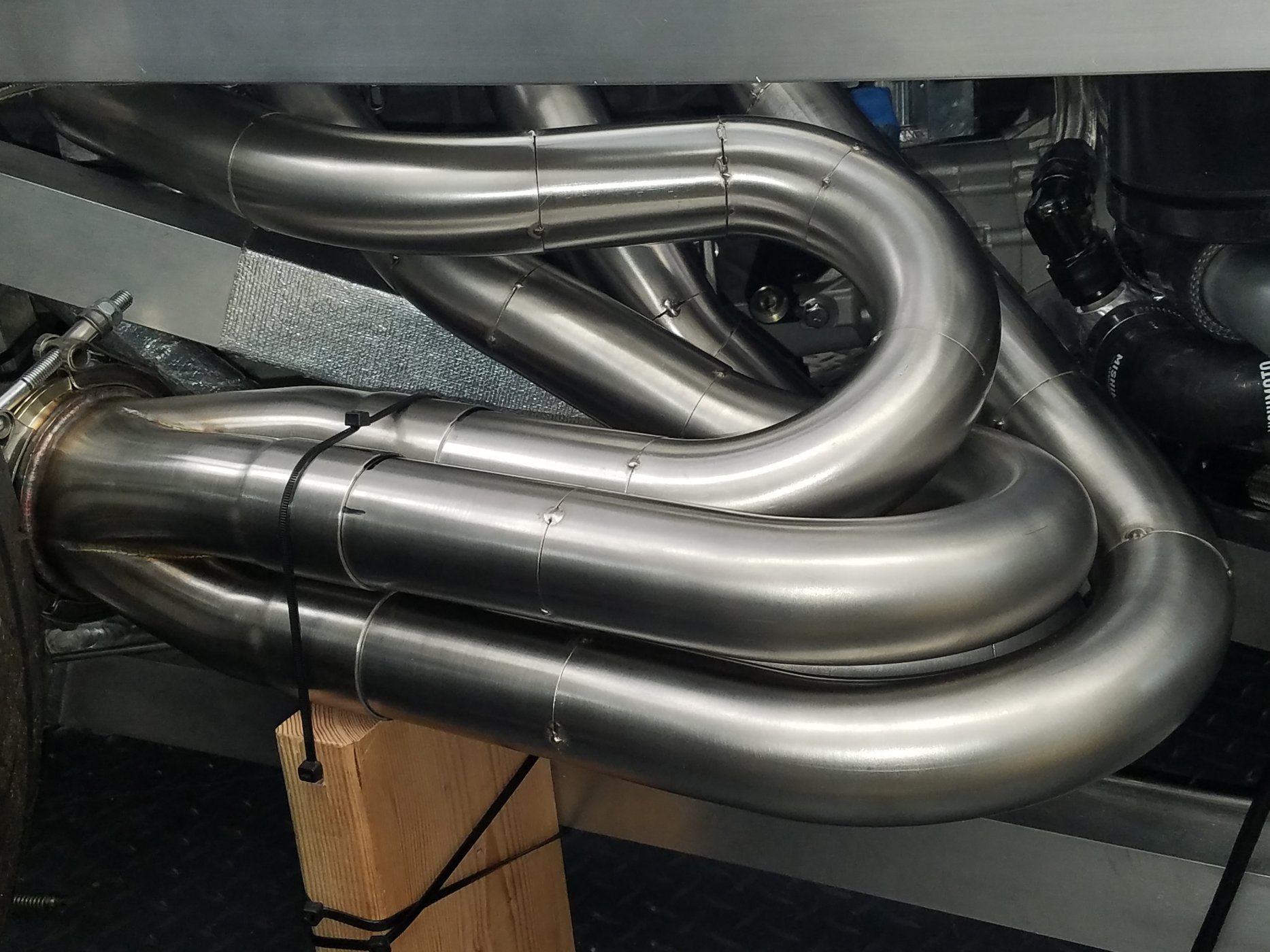

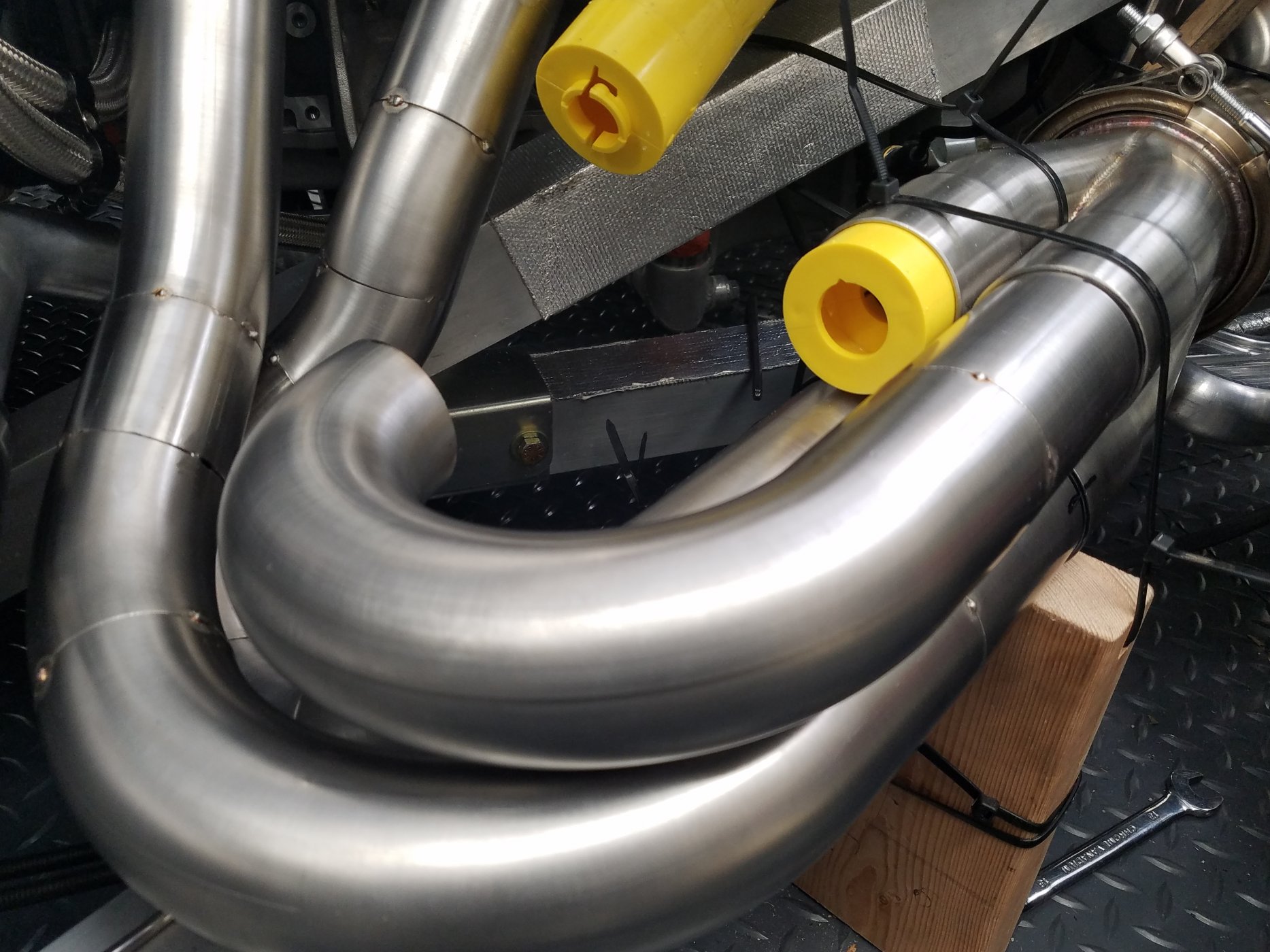

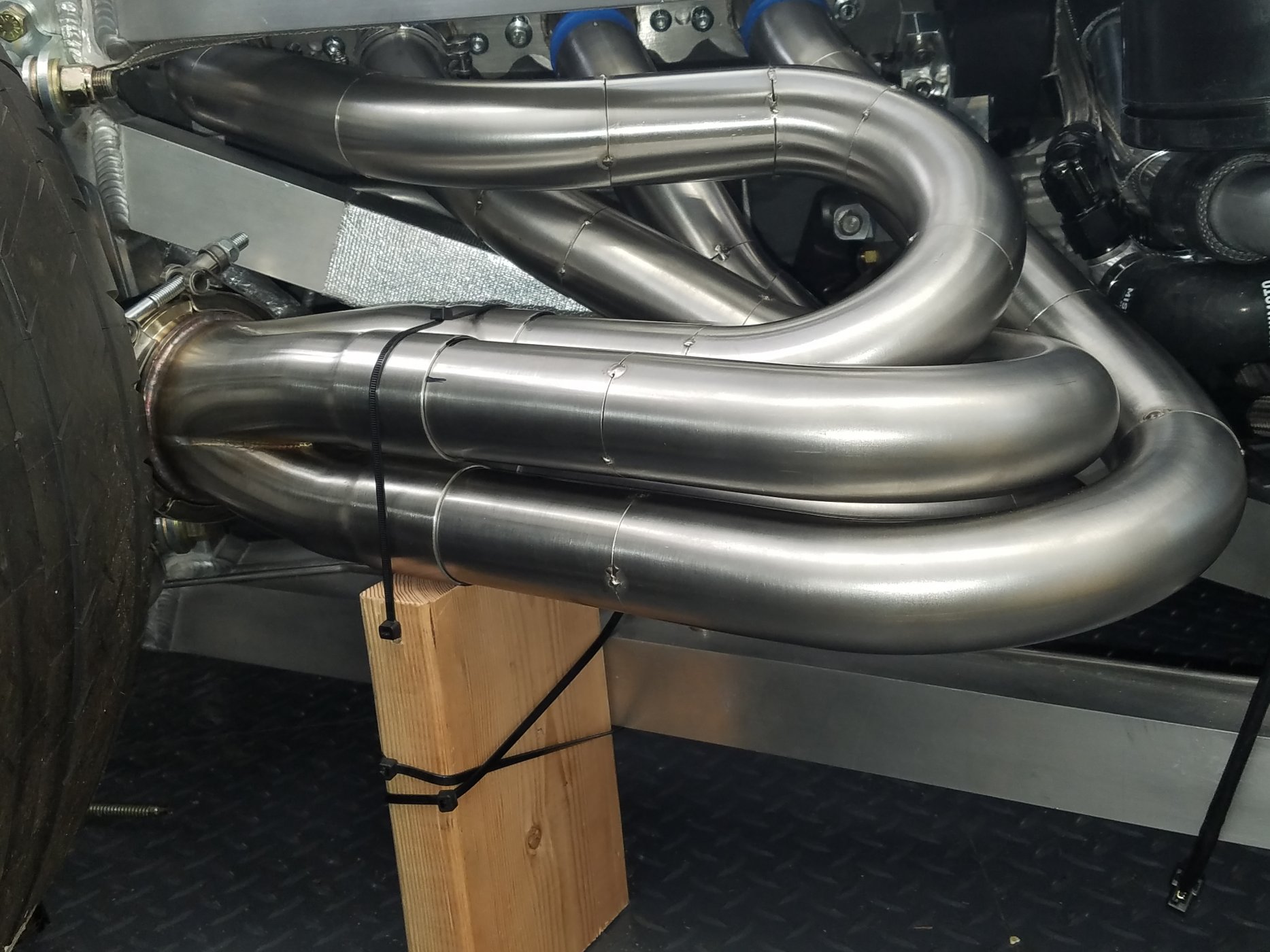

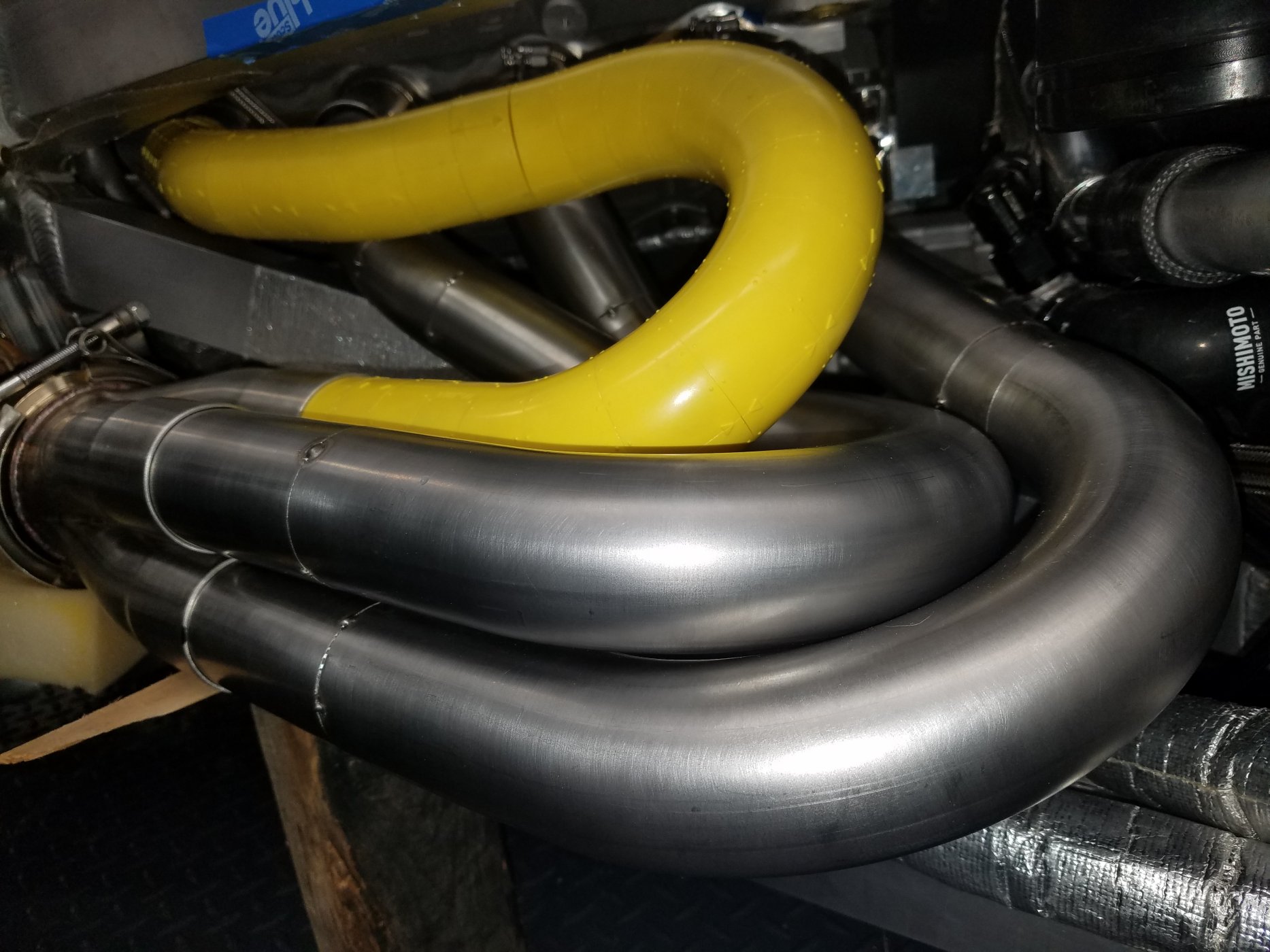

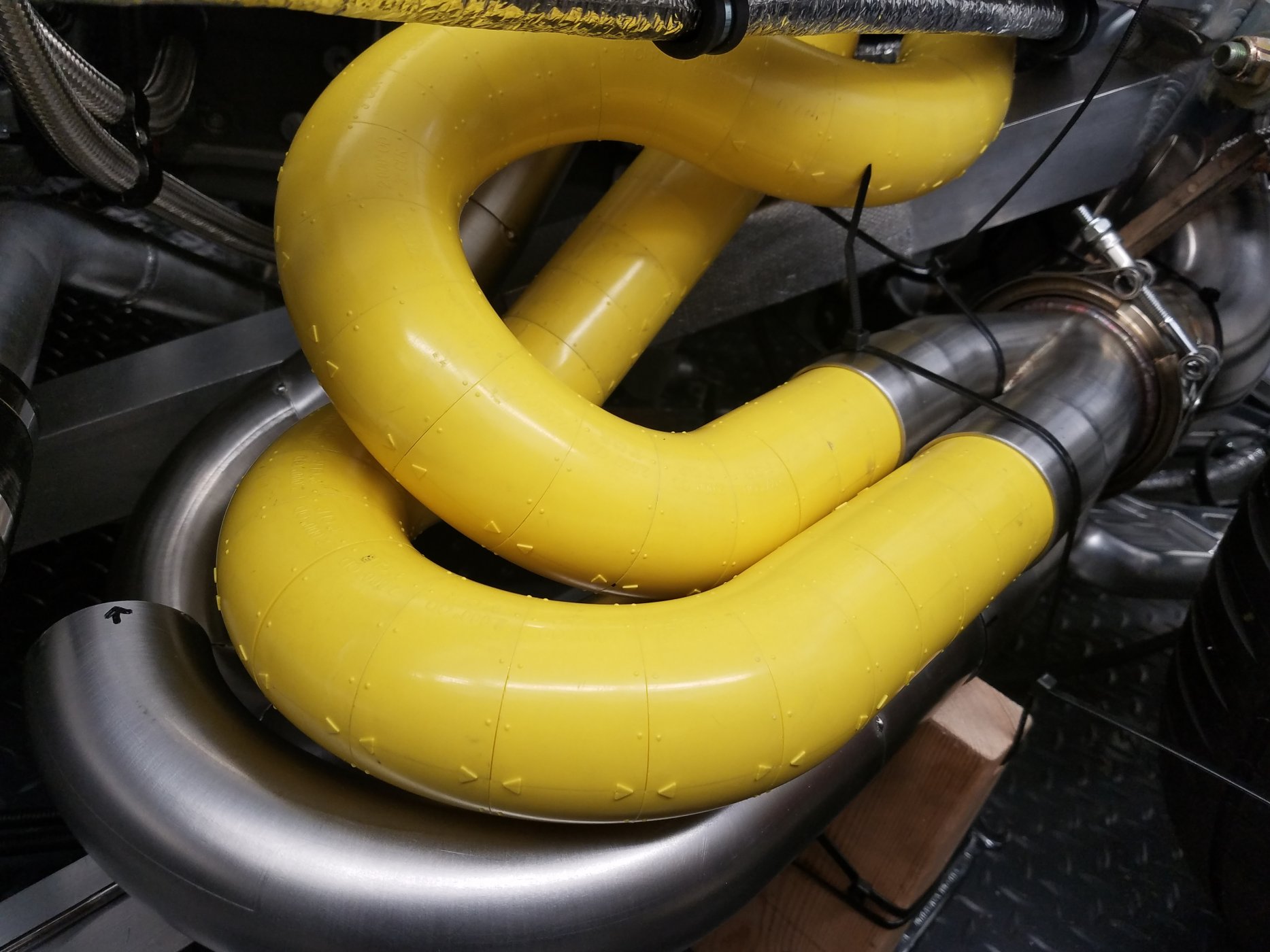

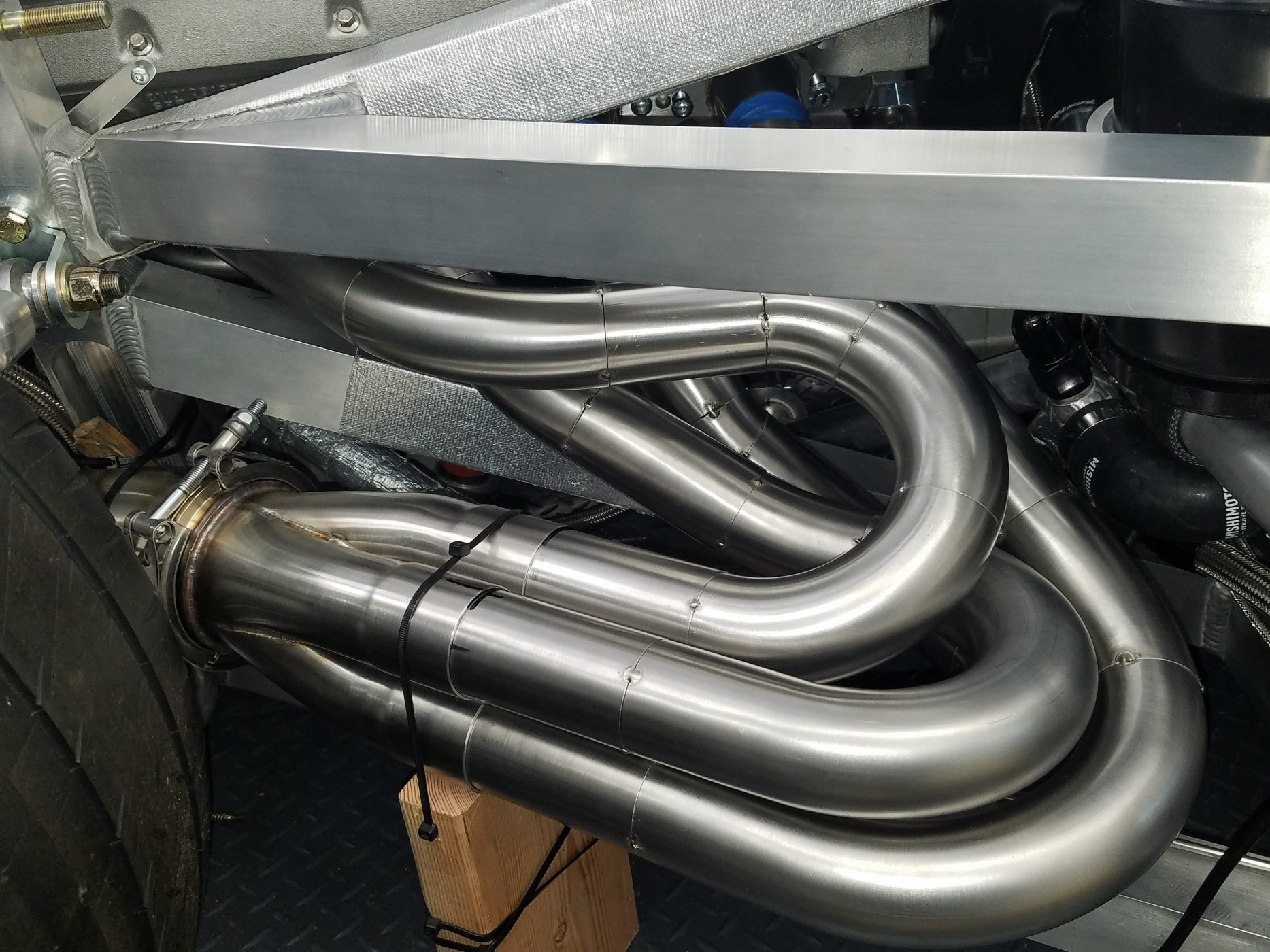

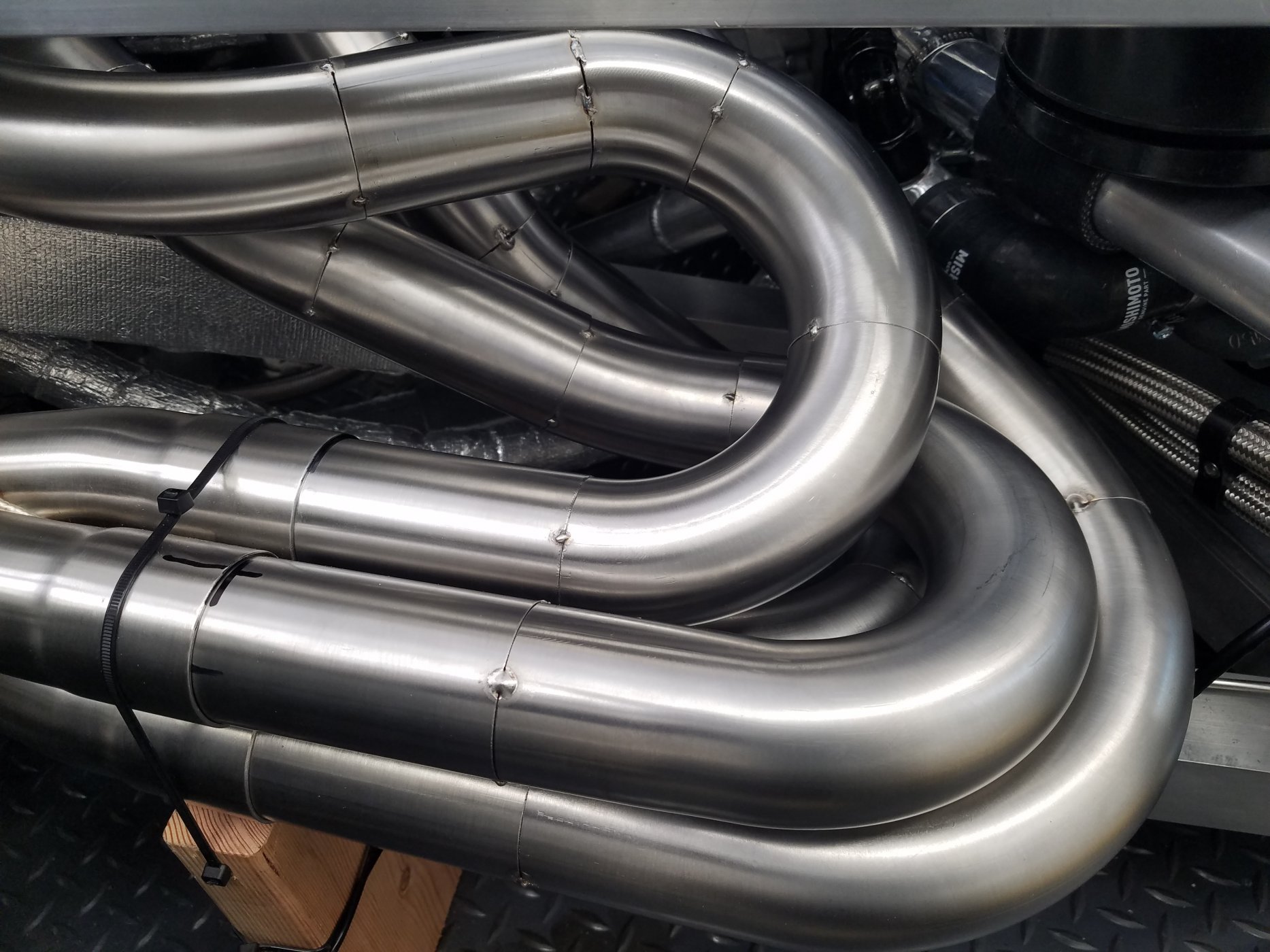

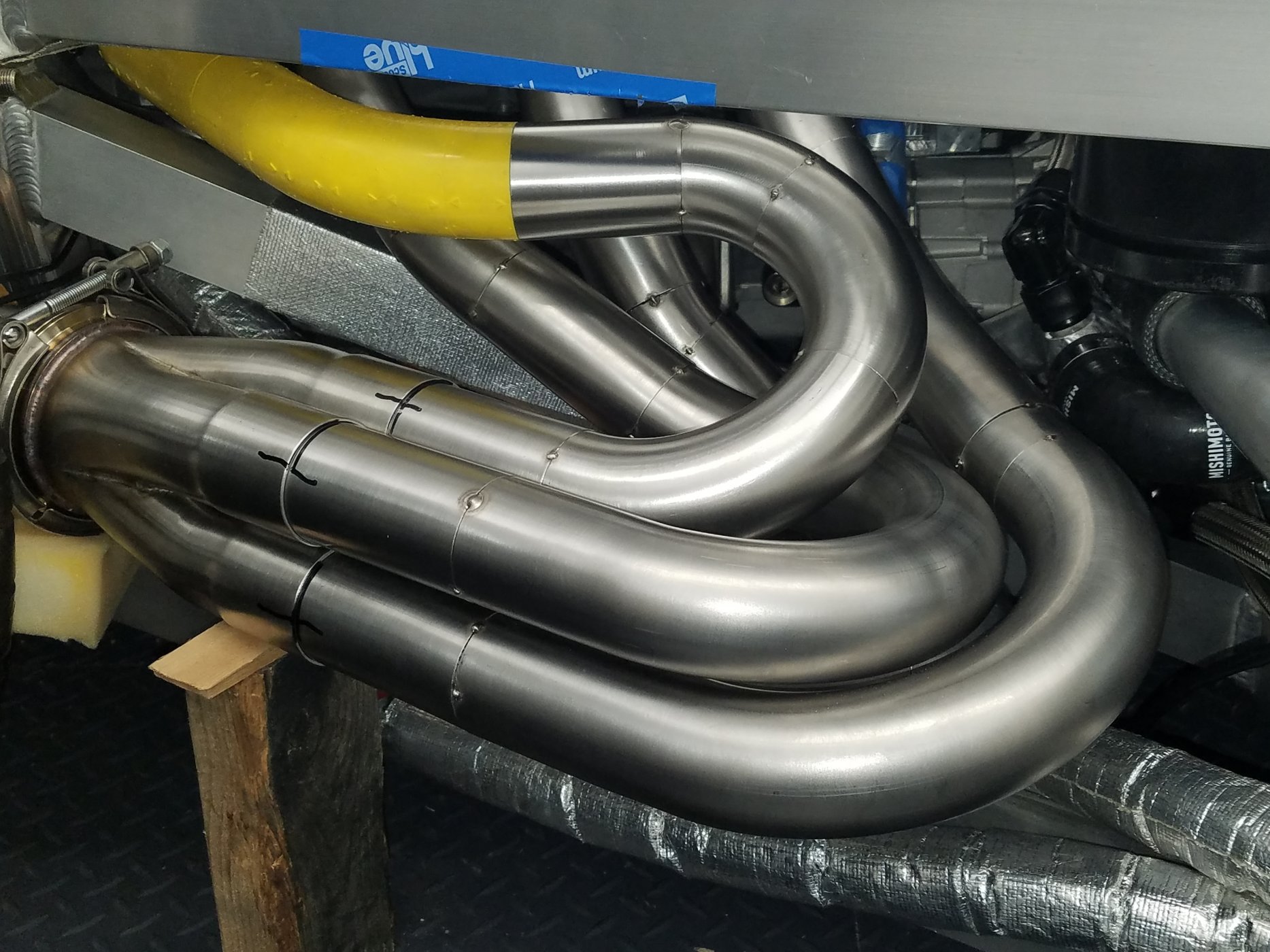

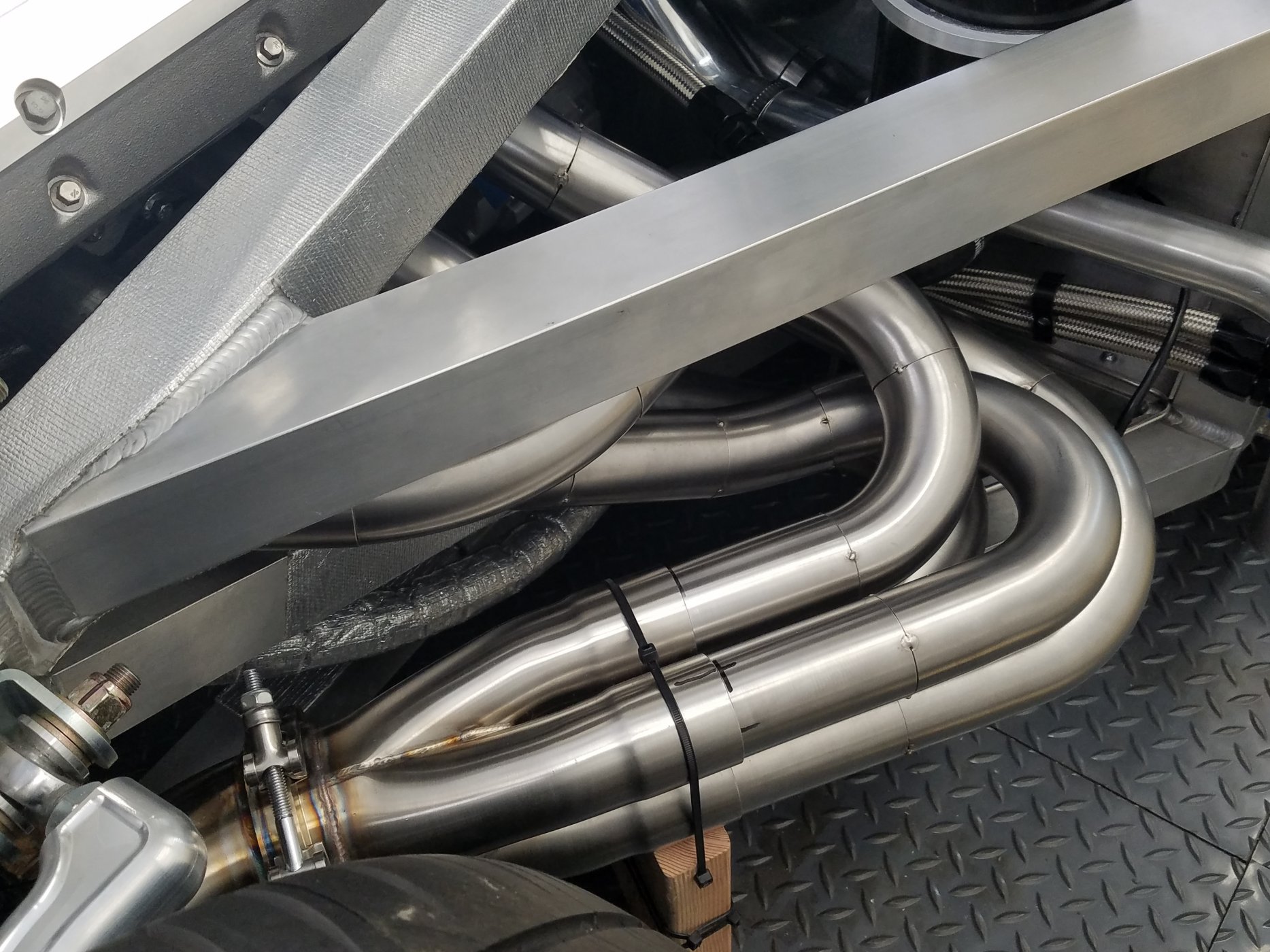

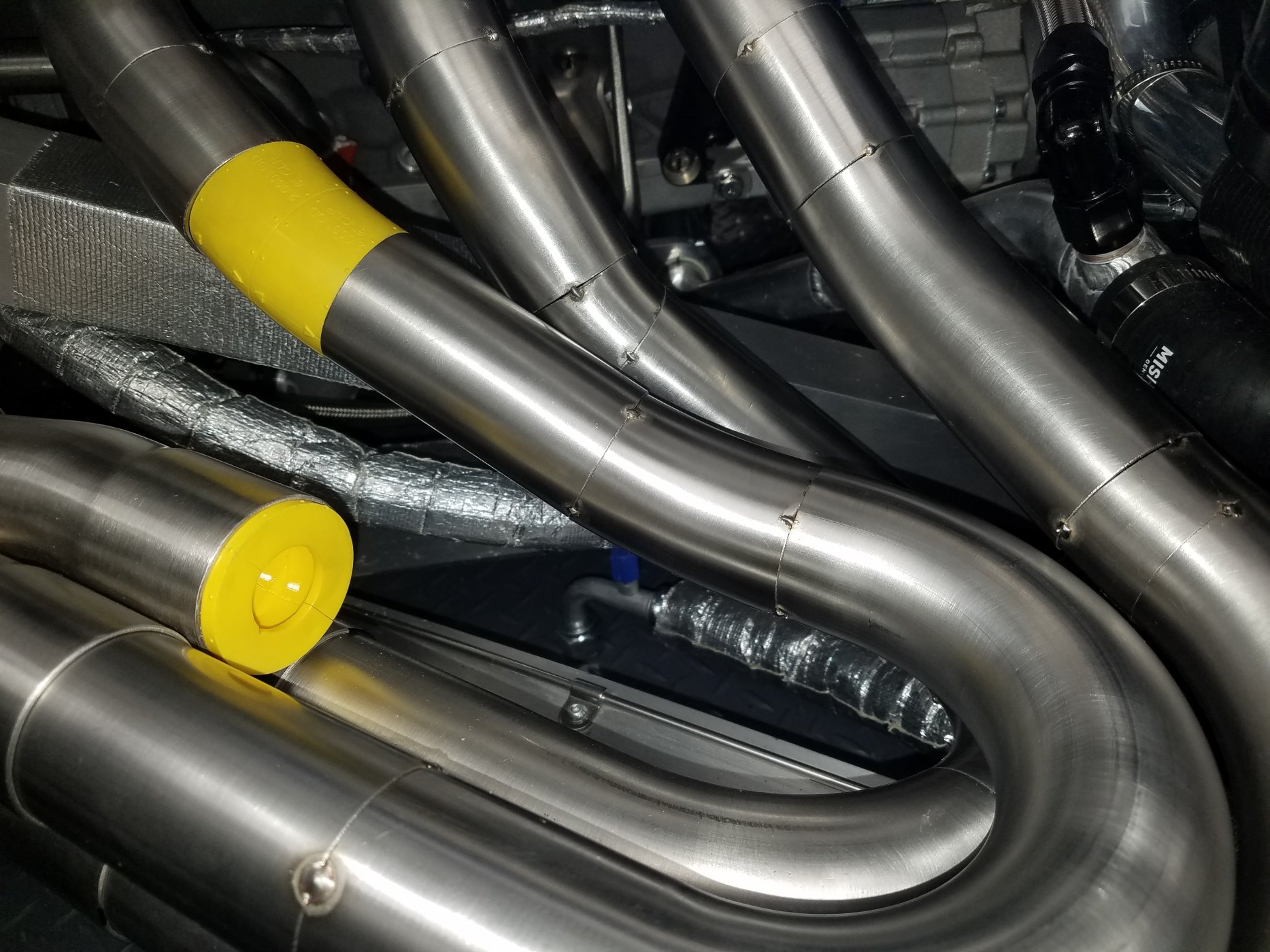

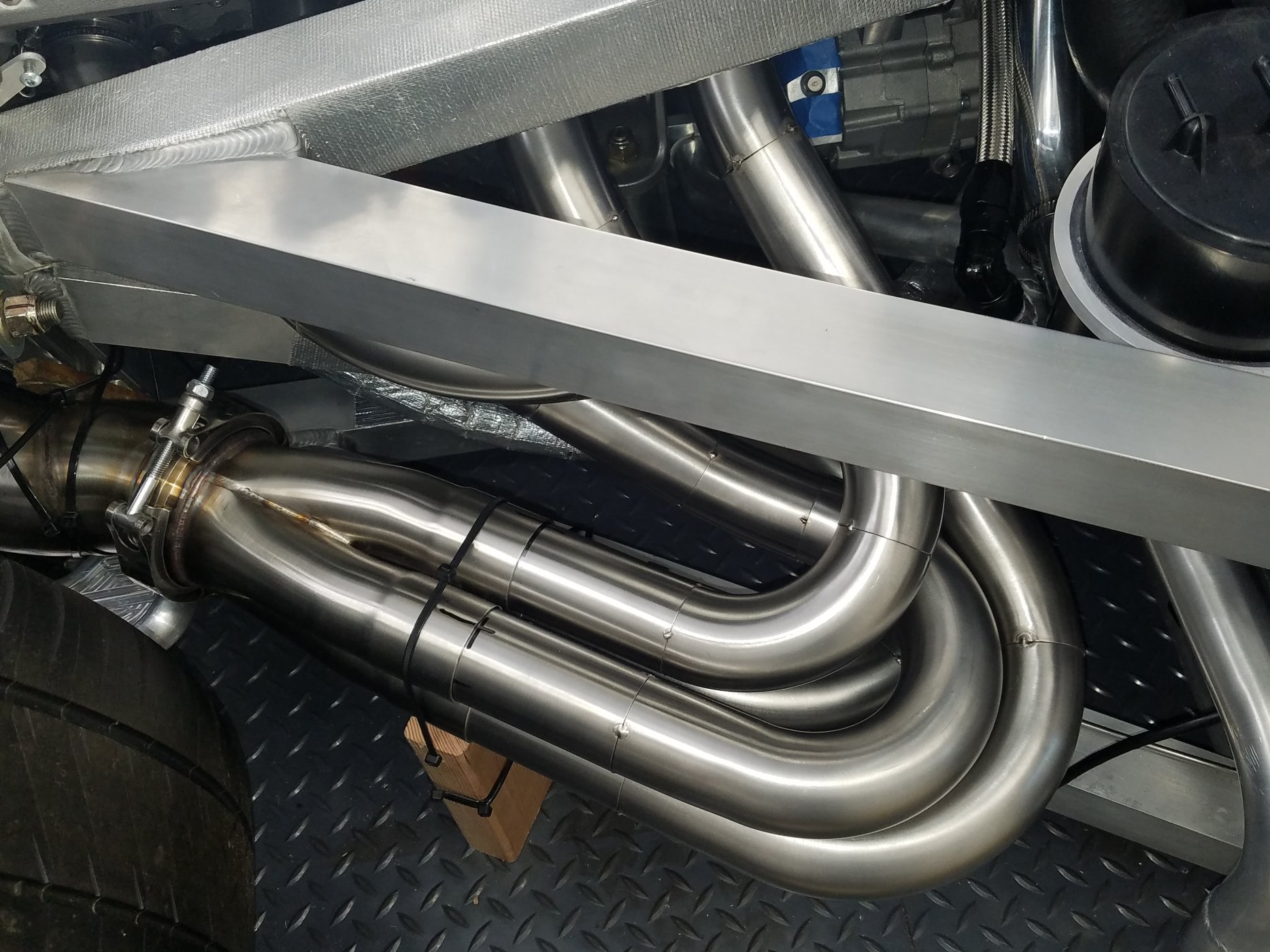

More of the passenger side. So far its only tacked together, I like the layout and probably keep it like that. I used tubing from JMD in California. The best quality mandrels I was able to find. The 180 Degree were chosen in 3",4" and 6"CLR.


Attachments

Last edited:

Stephan E.

Supporter
Stephan, a work of art. Just beautiful!
Hello Joel,

As always thank you for the compliment. This is far from being ready but I guess the result is quite encouraging. Many hours of welding still ahead but the driver side is already all tacked up as well and is looking just as nice. I will post more pictures at some point. So far I am having a blast doing this all by myself.


Scott

Lifetime Supporter

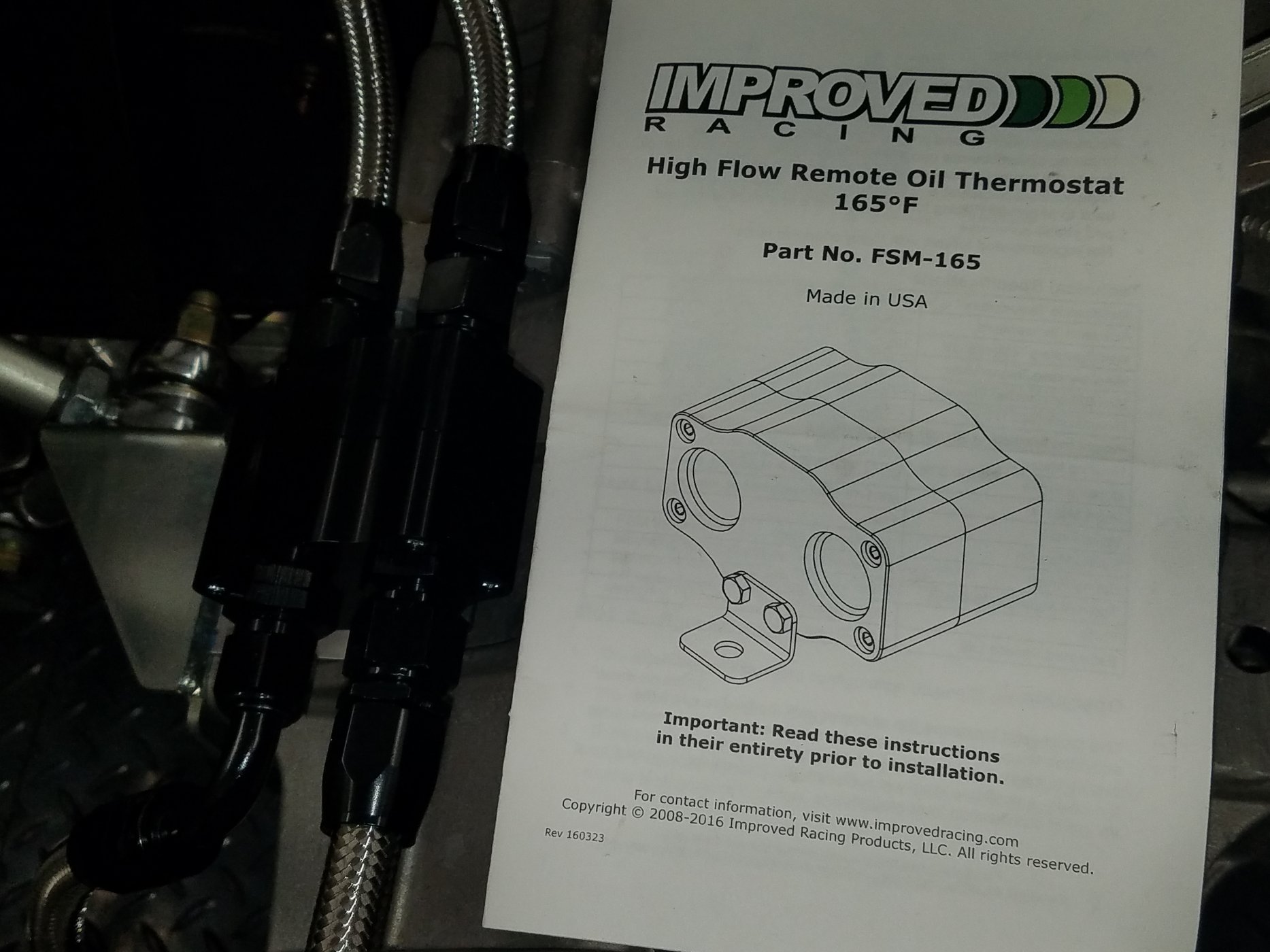

Stephan, that's the same one that I have. Note that Daily spec'd a -12 for my oil line and the female threads on the thermostat are only -10. I called Improved Racing and their -12 male fitting provides an unrestricted 0.60" which is 0.02" larger than a standard -12 AN straight hose end.


Steven Lobel

Supporter
Stephan, that's the same one that I have. Note that Daily spec'd a -12 for my oil line and the female threads on the thermostat are only -10. I called Improved Racing and their -12 male fitting provides an unrestricted 0.60" which is 0.02" larger than a standard -12 AN straight hose end.
I noticed that from Daily as well. -16 for the big stuff, -12 for the rest. But the fitting that comes out of the block on mine is a -10. So no matter what, one leg is going to be the bottle neck.


Stephan E.

Supporter

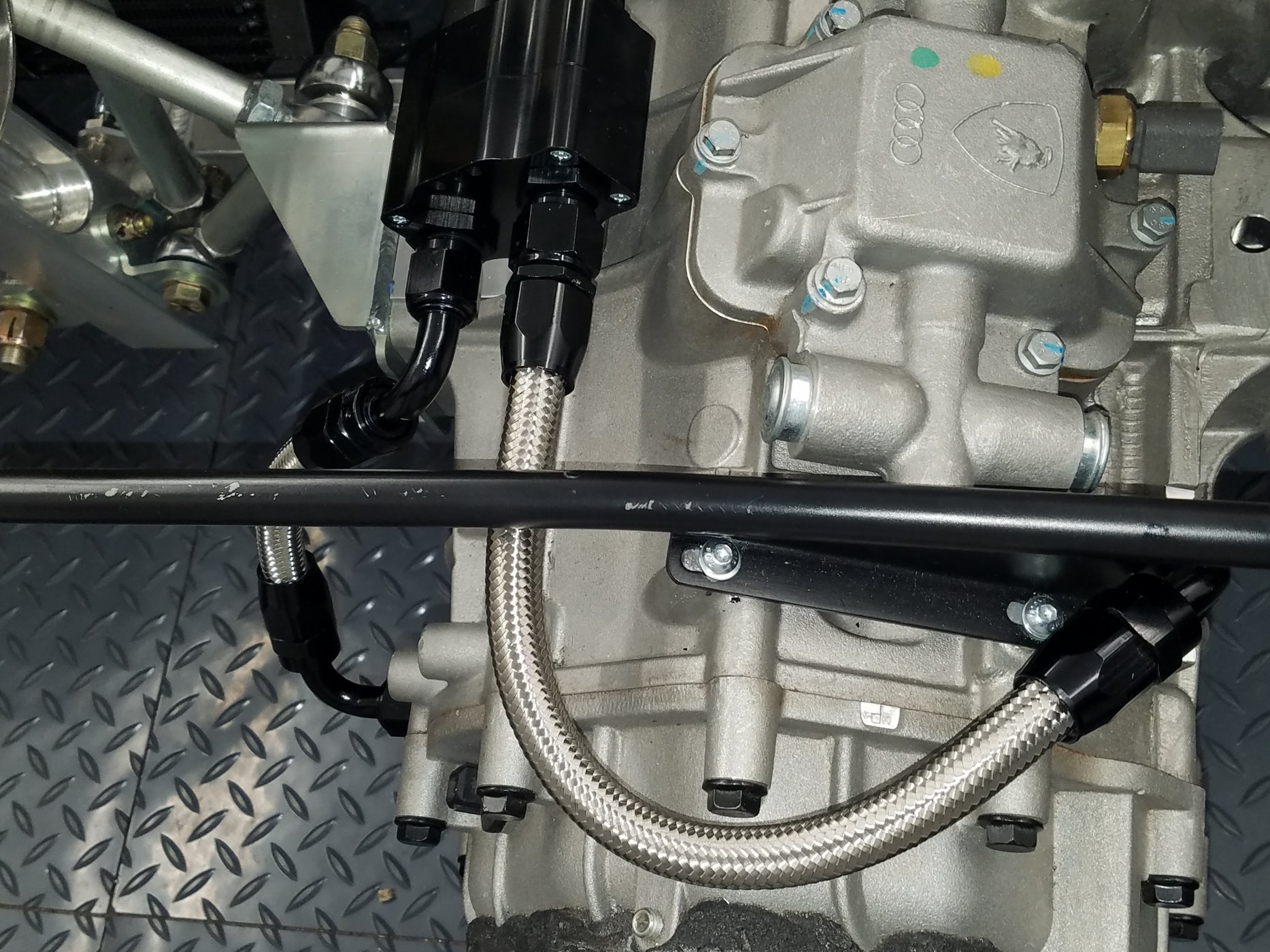

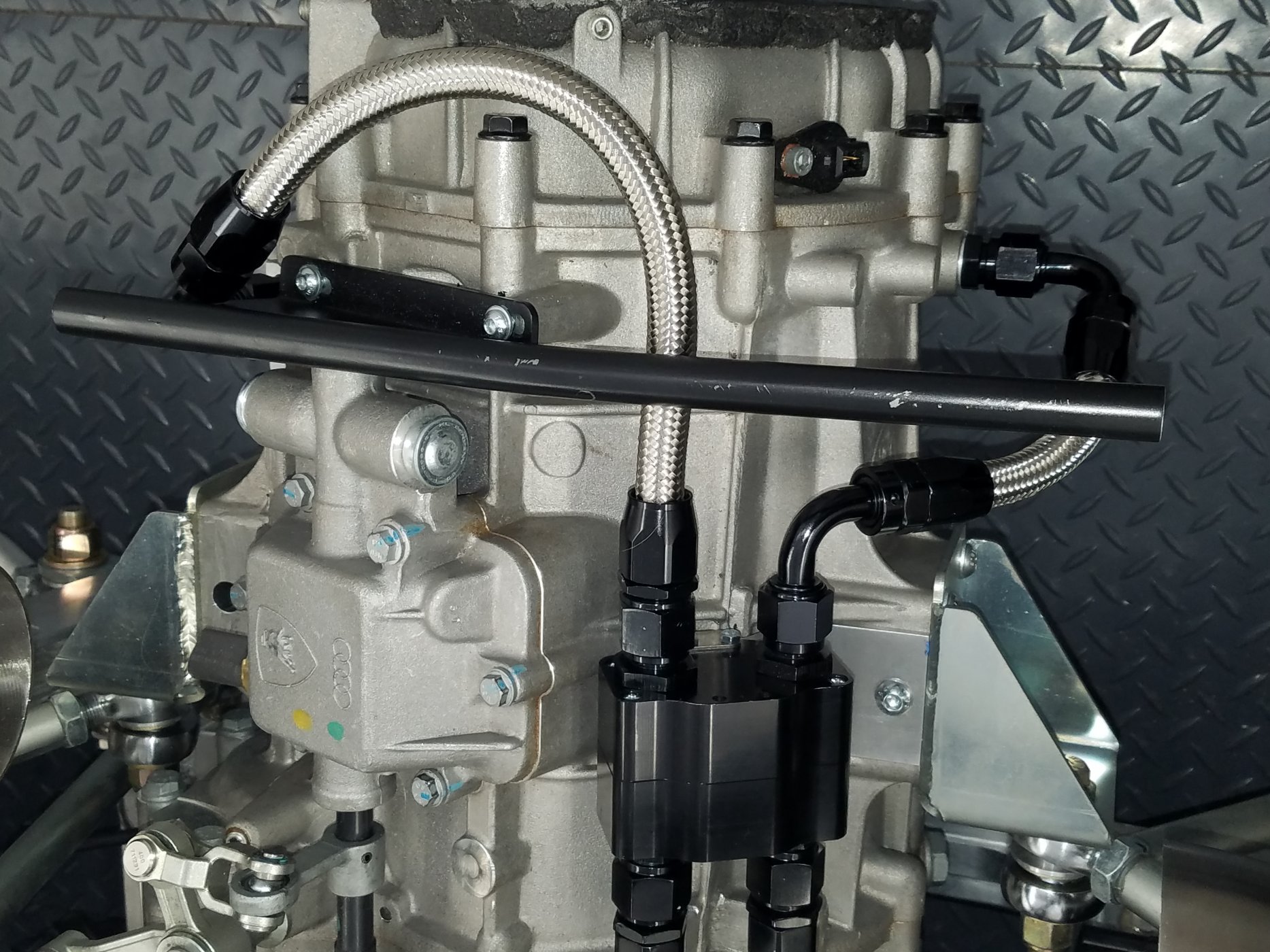

Stephan, that's the same one that I have. Note that Daily spec'd a -12 for my oil line and the female threads on the thermostat are only -10. I called Improved Racing and their -12 male fitting provides an unrestricted 0.60" which is 0.02" larger than a standard -12 AN straight hose end.
Hello Scott,

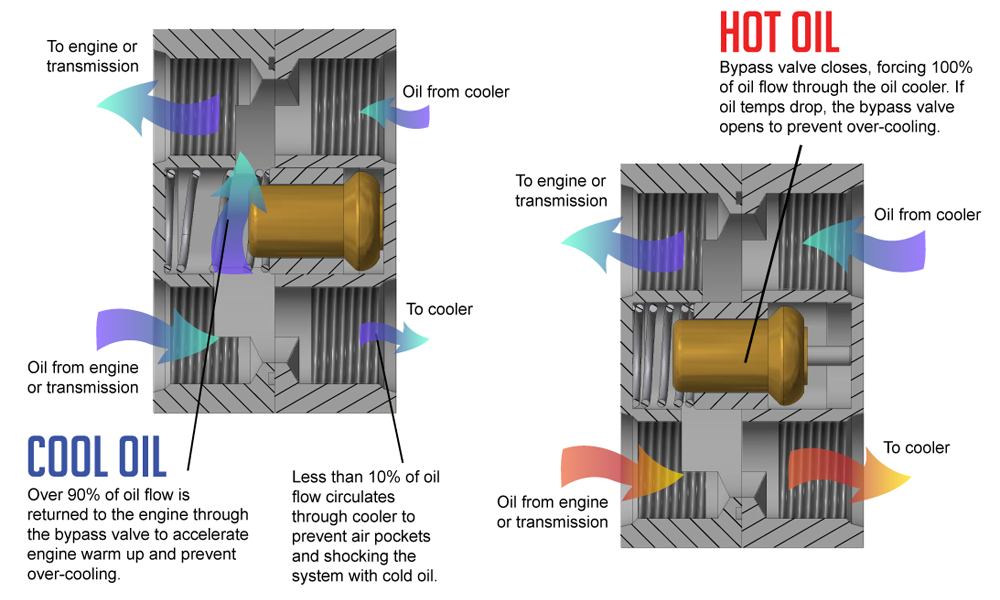

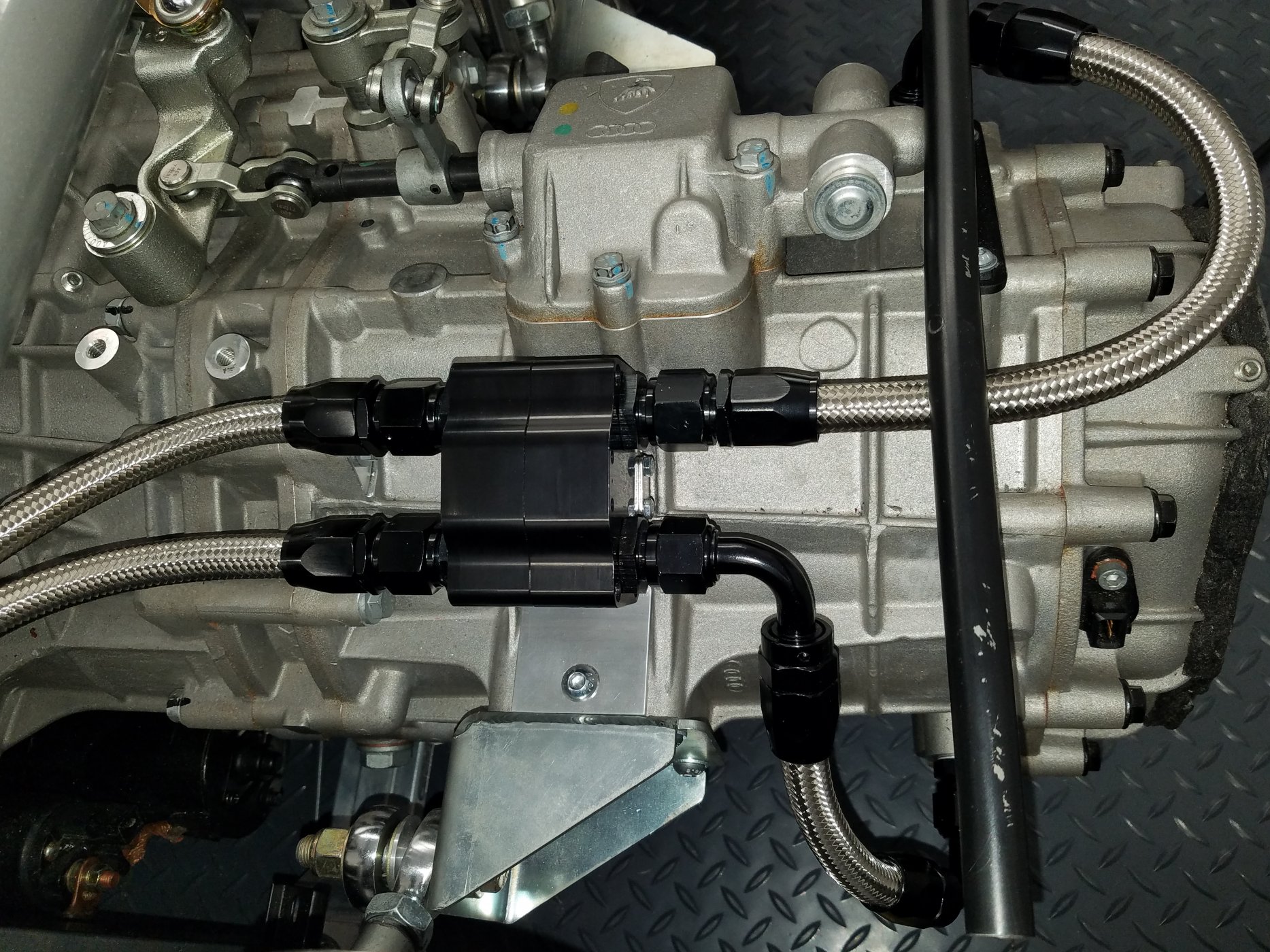

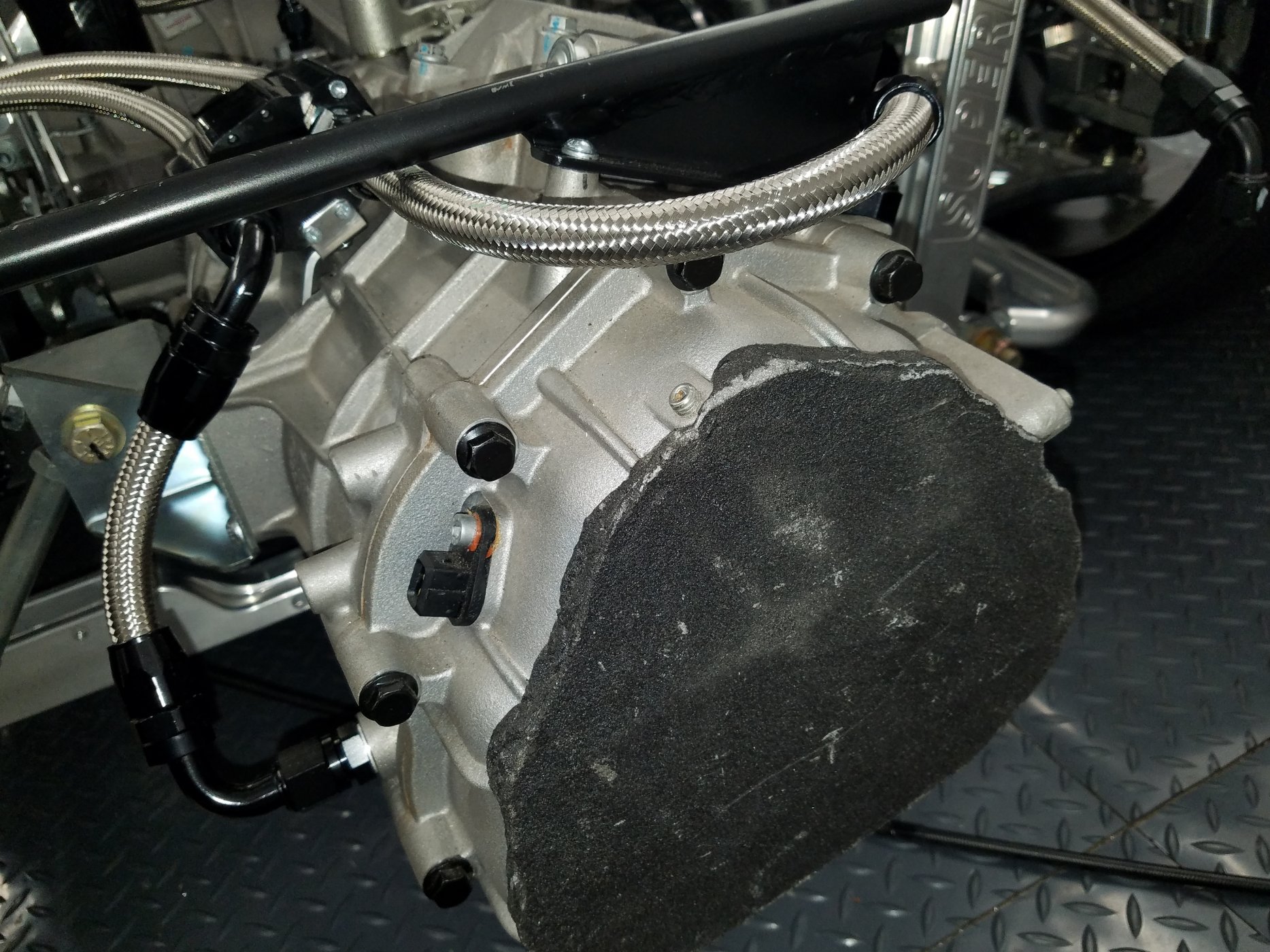

Thanks for the tip. Are you refering to enine cooling? This setup is for transaxle cooling only.

Cheers
